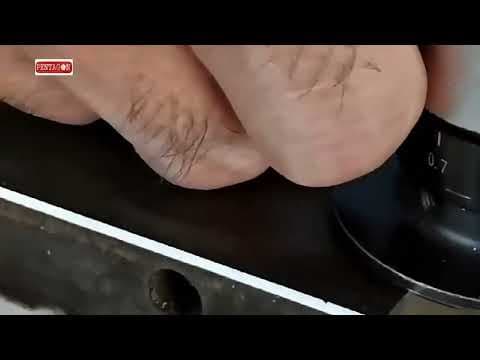

Pentagon Mini Pneumatic Chamfering Machine — PPMC-1.5mm
Designed for precision edge preparation on sheet metal and pipe fittings, this pneumatic chamfering tool delivers consistent bevels in tight production environments. It efficiently processes aluminum, iron, and mild steel with a material removal range of 0.1 to 1.5 mm. • No-load speed: 2800 RPM • Chamfering capacity for aluminum iron mild steel: 0.1-1.5mm • Chamfering capacity for stainless steel: 0.1-0.5 mm • Work pressure: 0.6-0.8 MPA
Specifications
For: PPMC-1.5mm- Type
- Mini Pneumatic chamfering machine
- Minimum thickness of plate
- > 2mm
- Minimum chamfer aperture
- > 7mm
- Chamfering capacity for aluminum iron mild steel
- 0.1-1.5mm
- Chamfering capacity for stainless steel
- 0.1-0.5 mm
- Sink depth
- > 6.5 mm
- No-load speed
- 2800 RPM
- Work pressure
- 0.6-0.8 MPA
- Air usage
- 0.3 M^3/min
- package size
- 20X12X7 cm
- weight
- 0.44 kg
Configurations
Click a row to switch| Variant | No-load speed | weight | Price |
|---|---|---|---|
| PPMC-1.5mm | 2800 RPM | 0.44 kg | ₹7,100 |
| PPMC-2mm | 3000 RPM | 0.88 kg | ₹8,200 |
Compact Footprint & Ergonomic Workflow Integration
- Lightweight chassis design reduces operator fatigue during extended shifts
- Small package dimensions allow placement directly on workbenches or fixtures
- Intuitive controls enable quick setup without extensive operator training
- Portable form factor supports mobile fabrication and on-site assembly tasks
- Minimal maintenance requirements lower total cost of ownership over time
- Durable internal components ensure long service life in demanding conditions
Ideal Applications for Sheet Metal & Pipe Fabrication
- Prepares weld-ready bevels on mild steel plates and structural components
- Profiles pipe fittings and tubing for seamless fusion welding processes
- Supports automotive assembly lines requiring consistent edge finishing
- Meets fabrication demands in HVAC ductwork and sheet metal enclosures
- Handles repetitive chamfering tasks in job shops and manufacturing plants
- Optimized for high-volume production environments with minimal downtime
High-Throughput Pneumatic Performance
- Operates efficiently within a standard work pressure range of 0.6 – 0.8 MPA
- No-load speeds reach 2800 to 3000 RPM depending on the configured variant
- Air consumption averages 0.3 M^3/min for sustained continuous operation
- Rapid material removal capabilities reduce cycle times on fabrication lines
- Pneumatic drive system minimizes vibration for cleaner cut edges
- Compatible with standard industrial compressed air infrastructure
Precision Edge Preparation & Consistent Bevel Control
- Engineered for precision edge preparation on sheet metal and pipe fittings
- Delivers consistent bevels optimized for tight production environments
- Maintains precise bevel control across aluminum, iron, and mild steel
- Material removal range of 0.1 – 1.5 mm for ferrous and non-ferrous alloys
- Controlled cutting action ensures 0.1 – 0.5 mm removal for stainless steel
- Reliable performance supports high-throughput edge finishing workflows
Frequently asked
What is the minimum plate thickness this machine can process?
The tool is engineered to handle plates with a minimum thickness greater than 2 mm.
Can this chamfering machine be used on thick stainless steel sheets?
It is optimized for controlled cutting action with a maximum removal of 0.1 – 0.5 mm for stainless steel.
How does the pneumatic drive compare to electric alternatives?
The air-powered system delivers consistent torque, reduces heat buildup, and operates safely in explosive environments.
Is regular maintenance required for the cutting mechanism?
Standard care involves periodic air inlet lubrication and wear component inspection.
More questions buyers ask
What is a pneumatic chamfering machine used for?
It is used for edge finishing, deburring, and creating precise bevels on metal plates, pipes, and structural components.
What materials can the Pentagon mini chamfering machine handle?
It is effective on aluminum, iron, mild steel, and stainless steel.
What is the air pressure requirement for this tool?
The machine operates efficiently within a standard industrial work pressure range of 0.6 – 0.8 MPA.
Is this tool suitable for stainless steel?
Yes, it is optimized for controlled cutting on stainless steel with a removal capacity of 0.1 – 0.5 mm.
What is the minimum plate thickness required?
The tool is engineered to handle plates with a minimum thickness greater than 2 mm.
Does it require regular maintenance?
Yes, standard care involves periodic air inlet lubrication and inspection of wear components like the cutting inserts.
Is it portable?
Yes, its compact, lightweight design makes it ideal for mobile fabrication and on-site assembly tasks.
How does it compare to electric chamfering tools?
The air-powered system provides consistent torque, reduces heat buildup, and is safer for use in potentially explosive environments.
What is the no-load speed of this machine?
The machine operates at speeds between 2800 and 3000 RPM depending on the specific model variant.
Can it be used for pipe beveling?
Yes, it is highly effective for profiling pipe fittings and tubing for seamless fusion welding.
Who should choose the PPMC-1.5mm variant?
The PPMC-1.5mm is ideal for users needing a lightweight, compact tool for standard edge finishing and deburring tasks on thinner materials.
Who should choose the PPMC-2mm variant?
The PPMC-2mm is best for users requiring slightly higher performance and robust handling for more demanding fabrication environments.
How do the PPMC-1.5mm and PPMC-2mm variants compare?
Both offer similar pneumatic performance, but the 2mm variant is built for slightly more intensive applications with a heavier build and optimized speed.
Which variant is better for high-volume production?
The PPMC-2mm variant is generally preferred for high-throughput environments due to its slightly more robust design and performance characteristics.
