Pillar Type Manual Tapping Machine Cone Clutch Type — PTM 6
Engineered for precision internal thread cutting, this manual tapping machine series features a robust cone clutch system for reliable torque transmission and spindle reversal. Suitable for metalworking shops requiring accurate tapping, drilling, and reaming operations on steel or aluminum components. • Cone clutch provides overload protection and smooth engagement • Vertical pillar design ensures stable spindle alignment • Manual feed control allows operator precision during operation • Compact base supports lightweight to heavy-duty workpieces

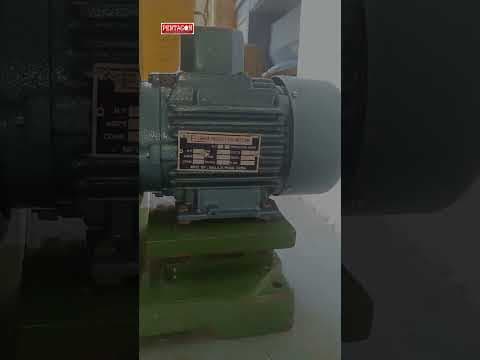

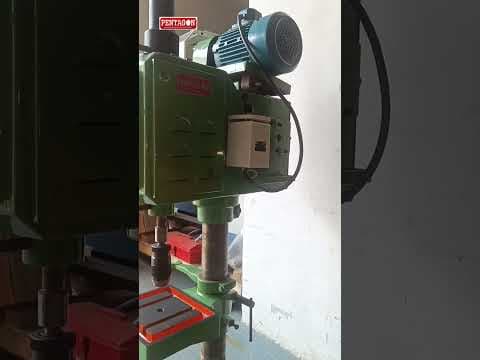

See it in action
Specifications
For: PTM 6- Machine Model
- PTM 6
- Clutch Type
- Cone Clutch Type
- Tapping Capacity
- M6/ 6 mm
- Spindle Travel
- 40 – 60 mm
- Column Diameter
- 50 – 60 mm
- Spindle Speed
- 300 – 700 RPM
- Motor Power
- 0.25 – 0.5 HP
- Table Size
- 150 × 150 mm
- Base Size
- 250 × 300 mm
- Machine Height
- 700 – 850 mm
- Operation Type
- Manual
- Application
- Precision Thread Tapping
- Suitable Materials
- MS, Aluminium, Brass, Plastic
- Weight
- 45 Kgs
Configurations
Click a row to switch| Variant | Price |
|---|---|
| PTM 6 | ₹22,800 |
| PTM 12 | ₹37,800 |
Common Questions
Q: Can this machine handle both soft and hard metals? A: Yes, it is suitable for MS, Aluminium, Brass, and Plastic materials. Q: Is the operation fully automated? A: No, this series features manual feed control for operator precision. Q: What protection does the clutch offer? A: The cone clutch provides overload protection and smooth engagement.
Design & Build Quality
- Heavy-duty construction protects against shop floor wear and tear
- Table size of 150 × 150 mm provides ample workspace for fixtures
- Base size of 250 × 300 mm ensures stability on workshop floors
- Machine height of 700 – 850 mm optimizes ergonomics for operators
- Standard weight of 45 Kgs ensures easy mobility and floor stability
Operational Features
- Manual feed control allows operator precision during critical operations
- Cone clutch provides overload protection and smooth engagement
- Suitable for processing MS, Aluminium, Brass, and Plastic materials
- Supports multiple operations including drilling and reaming tasks
- Column diameter of 50 – 60 mm ensures rigidity during high-torque work
Performance & Capabilities
- Spindle speed ranges from 300 – 700 RPM for versatile machining
- Motor power options between 0.25 – 0.5 HP for varied load needs
- Tapping capacity includes M6/ 6 mm for standard thread applications
- Spindle travel of 40 – 60 mm accommodates different thread depths
- Spindle reversal capability facilitates efficient thread removal and clearing
Product Range & Overview
- Available in PTM6 and PTM12 models to suit different shop requirements
- Engineered for precision internal thread cutting on various components
- Manual cone clutch type design ensures reliable torque transmission
- Vertical pillar structure maintains stable spindle alignment for accuracy
- Compact base supports lightweight to heavy-duty workpiece handling
More questions buyers ask
What is a cone clutch tapping machine?
A cone clutch tapping machine uses a friction-based clutch mechanism to engage and disengage the spindle, providing smooth operation and overload protection during threading.
What materials can this machine tap?
It is suitable for tapping threads in Mild Steel (MS), Aluminium, Brass, and various plastic materials.
Is this machine automatic or manual?
This is a manual feed tapping machine, allowing the operator to have precise control over the tapping depth and pressure.
What are the main advantages of a pillar-type design?
The pillar-type design provides a rigid vertical structure, ensuring stable spindle alignment and high accuracy during repetitive tapping operations.
Does it support drilling operations?
Yes, while primarily designed for tapping, it can also perform basic drilling and reaming tasks.
What is the tapping capacity of the PTM 6 model?
The PTM 6 model has a tapping capacity of up to M6 (6 mm).
What is the tapping capacity of the PTM 12 model?
The PTM 12 model has a tapping capacity of up to M12 (12 mm).
Does the machine come with a warranty?
Yes, Pentagon machines come with standard manufacturer warranty coverage. Please check specific invoice details for duration.
Is pan-India shipping available?
Yes, we provide secure, pan-India delivery for all our industrial machinery.
Do you provide GST invoices?
Yes, all purchases include a valid GST invoice for input tax credit claims.
Who should choose the PTM 6 model?
The PTM 6 is ideal for small-scale workshops and light-duty applications requiring precision threading up to M6.
Who should choose the PTM 12 model?
The PTM 12 is better suited for medium-duty industrial tasks requiring higher torque and capacity up to M12.
How does PTM 6 compare to PTM 12 in size?
The PTM 6 is more compact with a 150x150mm table, while the PTM 12 features a larger 250x250mm table for bigger workpieces.
Which model offers more power?
The PTM 12 offers a higher motor power range (0.5-1 HP) compared to the PTM 6 (0.25-0.5 HP).
Is there a difference in spindle speed?
Yes, the PTM 6 operates at 300-700 RPM, whereas the PTM 12 is geared for higher torque at lower speeds of 150-500 RPM.
