Pentagon Manual Hydraulic Platform Lift Truck Model PTH-500x900
This manual hydraulic scissor lift table provides stable vertical access for compact workstations. It features a 500 kg capacity and 900 mm lift height with a 900x500 mm platform. • Model PTH-500x900 • Heavy-duty steel construction • Foot pedal hydraulic operation • PU nylon wheels with brake

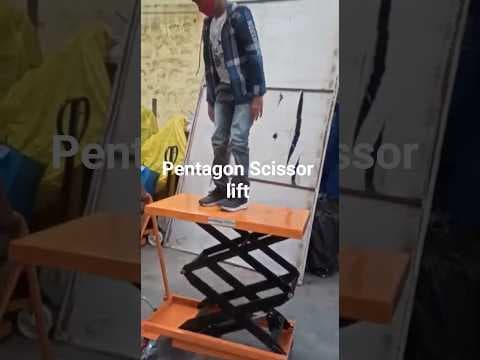

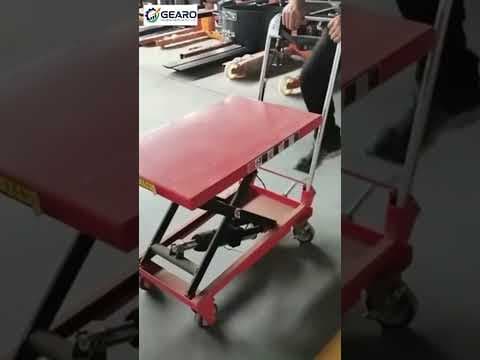

See it in action
Specifications
For: PTH-500x900- Model No.
- PTH-500x900
- Product Name
- Lifting Trolly
- Maximum Lift Height
- 900 mm
- Maximum Load Capacity
- 500 Kgs
- Minimum Height
- 280-300 mm
- Table Size
- 900x500x50 mm
- Operation Type
- Manual (Foot Pedal Hydraulic)
- Lifting Mechanism
- Scissor Type
- Material
- Heavy-Duty Steel
- Surface Finish
- Powder Coated
- Wheels
- PU/NYLON with Brake
- Weight Approx
- 90 Kgs
- Wheels Diameter
- 125 mm
Configurations
Click a row to switch| Variant | Maximum Load Capacity | Maximum Lift Height | Table Size | Price |
|---|---|---|---|---|
| PTH-500x900 | 500 Kgs | 900 mm | 900x500x50 mm | ₹21,500 |
| 500Kgs-1500 mm | 500 Kgs | 1500 mm | 900x500x50 mm | ₹29,400 |
| 1000kgs-1000 mm | 1000 Kgs | 1000 mm | 900x500x50 mm | ₹31,600 |
| 1000Kgs-1700 mm | 1000 Kgs | 1700 mm | 1000x600x60 mm | ₹62,000 |
| 800 kgs-1500 mm | 800 Kgs | 1500 mm | 1000x510x55 mm | ₹41,800 |
| PTH-300x900 | 300 Kgs | 900 mm | 900x500x50 mm | ₹20,900 |
Durability & Construction
- Built with heavy-duty steel for maximum load bearing strength
- Powder coating protects against rust, oil, and chemical exposure
- Reinforced scissor arms withstand repeated stress cycles safely
- High-quality PU/Nylon wheels resist abrasion on concrete floors
- Precision engineering ensures smooth hydraulic piston operation
- Robust frame design distributes weight evenly across the platform
- Corrosion-resistant finishes extend service life in harsh environments
- Industrial-grade components meet rigorous performance standards
- Stable base geometry prevents tipping under off-center loads
- Constructed to endure daily use in demanding industrial settings
Industrial Applications
- Ideal for assembly lines requiring precise height adjustment
- Suitable for loading and unloading trucks and containers
- Perfect for maintenance workshops and repair stations
- Supports packaging operations needing ergonomic workstation heights
- Used in manufacturing plants for component transfer and staging
- Effective in logistics centers for sorting and inspection tasks
- Assists in automotive service bays for vehicle part access
- Utilized in pharmaceutical labs for equipment height alignment
- Supports food processing facilities with hygienic material moves
- Versatile tool for general factory floor material handling needs
Operational Efficiency
- Foot pedal activation allows operators to keep hands free
- Hydraulic system delivers smooth and consistent lift cycles
- Scissor design maintains load stability at full extension
- Easy maneuverability in tight warehouse aisles and workspaces
- Quick deployment reduces setup time for material handling tasks
- Reliable braking system prevents unintended movement during lifts
- Ergonomic design minimizes operator fatigue during repetitive use
- Low minimum height fits under standard pallets and machinery
- High load capacity supports heavy industrial components effectively
- Durable materials reduce downtime due to mechanical failure
Key Features
- Model PTH-500x900 lifting trolley with 500 kg max load capacity
- Manual foot pedal hydraulic operation for hands-free control
- Scissor mechanism provides stable vertical lifting action
- Heavy-duty steel construction ensures long-term structural integrity
- Powder coated surface finish resists corrosion and wear
- PU/Nylon wheels with brakes for secure positioning and mobility
- Table size 900x500x50 mm offers ample platform area
- Lifts from 280-300 mm min height to 900 mm max height
- Approximate weight of 130 kgs for robust stability
- 125 mm wheel diameter balances maneuverability and load support
More questions buyers ask
What is a manual hydraulic scissor lift table?
It is a material handling trolley that uses a foot-operated hydraulic pump to raise heavy loads to an ergonomic working height.
What are the weight capacities available for Pentagon scissor lifts?
Pentagon offers manual scissor lift tables with capacities ranging from 500 kg to 1000 kg.
Are these lift tables suitable for industrial use?
Yes, they are built with heavy-duty steel and powder-coated finishes, making them ideal for assembly lines, warehouses, and workshops.
How do you operate the lift?
The lift is operated manually using a foot pedal, which activates the hydraulic system to raise the platform smoothly.
Does the trolley come with brakes?
Yes, all models are equipped with PU/Nylon wheels that include a braking system for secure positioning during operation.
What is the maximum lift height?
Depending on the model, the maximum lift height ranges from 900 mm to 1700 mm.
Is maintenance required for the hydraulic system?
Regular inspection of the hydraulic fluid and moving parts is recommended to ensure smooth operation and longevity.
Can this be used on uneven floors?
While designed for industrial flooring, the 125 mm wheels are engineered for smooth navigation; however, flat, stable surfaces are recommended for safety.
Is a GST invoice provided?
Yes, all purchases include a valid GST invoice for business accounting.
What is the warranty period?
Pentagon provides a standard industrial warranty on their hydraulic lift tables; please check specific model details.
Who should choose the 500kg x 900mm model?
Ideal for small workshops or light assembly tasks requiring frequent height adjustments for loads up to 500kg.
Who should choose the 1000kg x 1700mm model?
Best for heavy-duty industrial environments needing significant vertical reach and high load capacity.
Who should choose the 800kg x 1500mm model?
A versatile mid-range option for facilities handling medium-heavy loads that require a higher lift than standard entry-level models.
How does the 500kg capacity compare to the 1000kg capacity?
The 500kg models are lighter and more maneuverable, while the 1000kg models feature reinforced frames for heavier industrial loads.
Is there a difference in table size between models?
Yes, higher capacity and higher lift models often feature larger platform dimensions to ensure stability at full extension.
