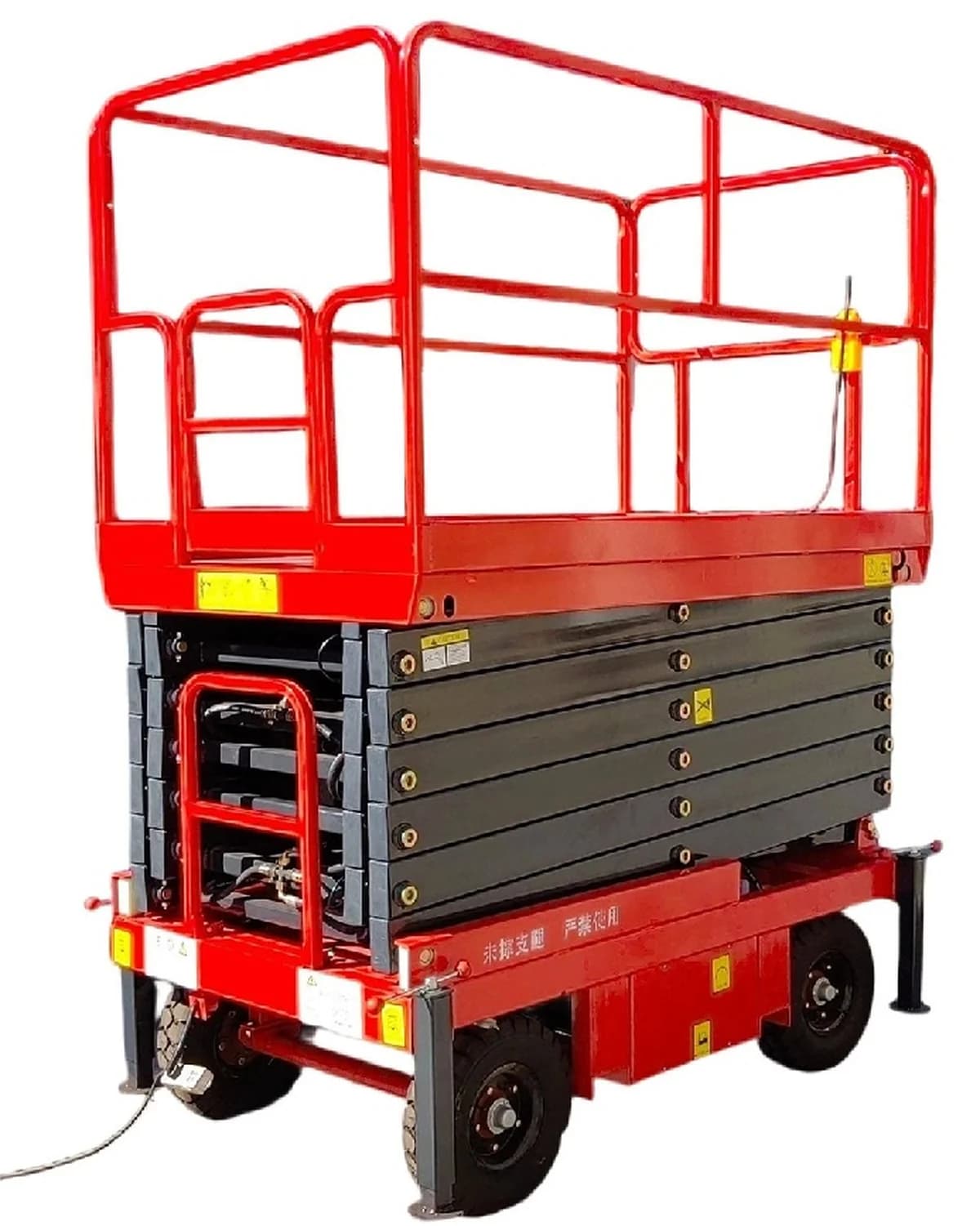

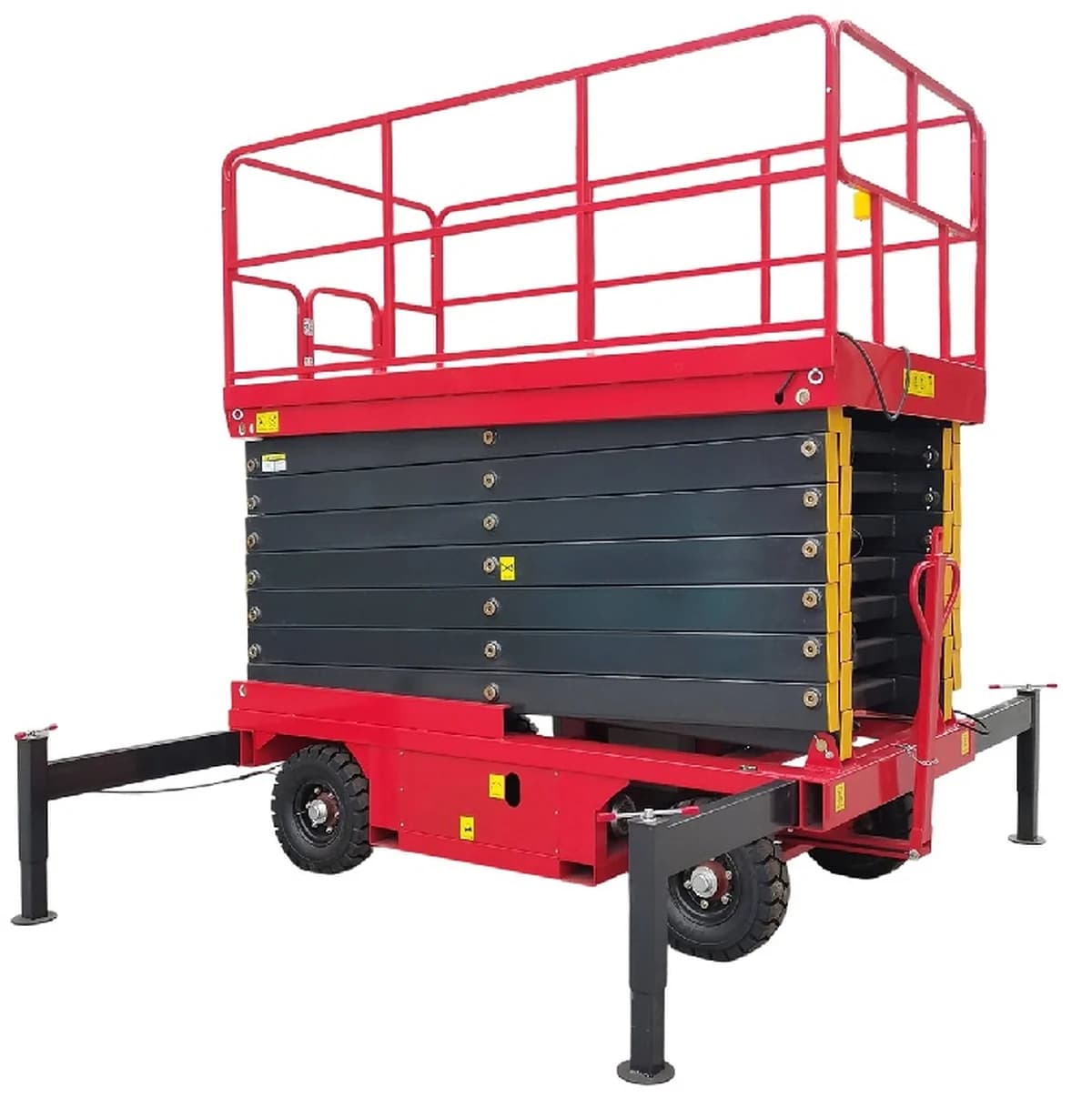

Manual Hydraulic Platform Lift 500 kgs Capacity — 500-6M
Engineered for elevated maintenance and material handling tasks, this mobile scissor lift series offers versatile height solutions. Reliable hydraulic power ensures smooth vertical movement across industrial sites. • Double scissor mechanism for stability • Load capacity up to 500 kg • Single or three-phase motor options
Specifications
For: 500-6M- Overall weight
- 850 Kgs
- Overall dimensions
- 2016x1000x1310 mm
- Model
- PAP-500-6M
- Working Height
- 7.5 Meters
- Lifting Time
- 50 – 70 sec
- Guard Rail Height
- 1000 mm
- Minimum Height (Closed)
- 1200 mm (Approx.)
- Extension Platform
- Optional
- Voltage
- Single Phase, 220V / 50 Hz
- Wheels
- PU/Rubber
- Max Load Capacity
- 500 Kgs
- Platform dimension
- 1800×900 mm
- Max lifting Height
- 6 Meters
- Lifting type
- Double Scissor Mechanism
- Motor Power
- 1.5 Kw
Configurations
Click a row to switch| Variant | Max Load Capacity | Max lifting Height | Platform dimension | Motor Power | Price |
|---|---|---|---|---|---|
| 500-6M | 500 Kgs | 6 Meters | 1800×900 mm | 1.5 Kw | ₹1,97,200 |
| 500-12M Blue | 500 Kgs | 12 Meters | 2550×1500 mm | 3.0 Kw | ₹3,23,300 |
| 500-12M Red | 500 Kgs | 12 Meters | 2550×1500 mm | 3.0 Kw | ₹3,41,000 |
Key Features
- • Heavy-duty scissor structure ensures stability during lifting
- • Single-phase electric hydraulic operation for versatility
- • Smooth lifting and controlled lowering for precision
- • Large working platform features anti-slip surface
- • Easy mobility with heavy-duty caster wheels

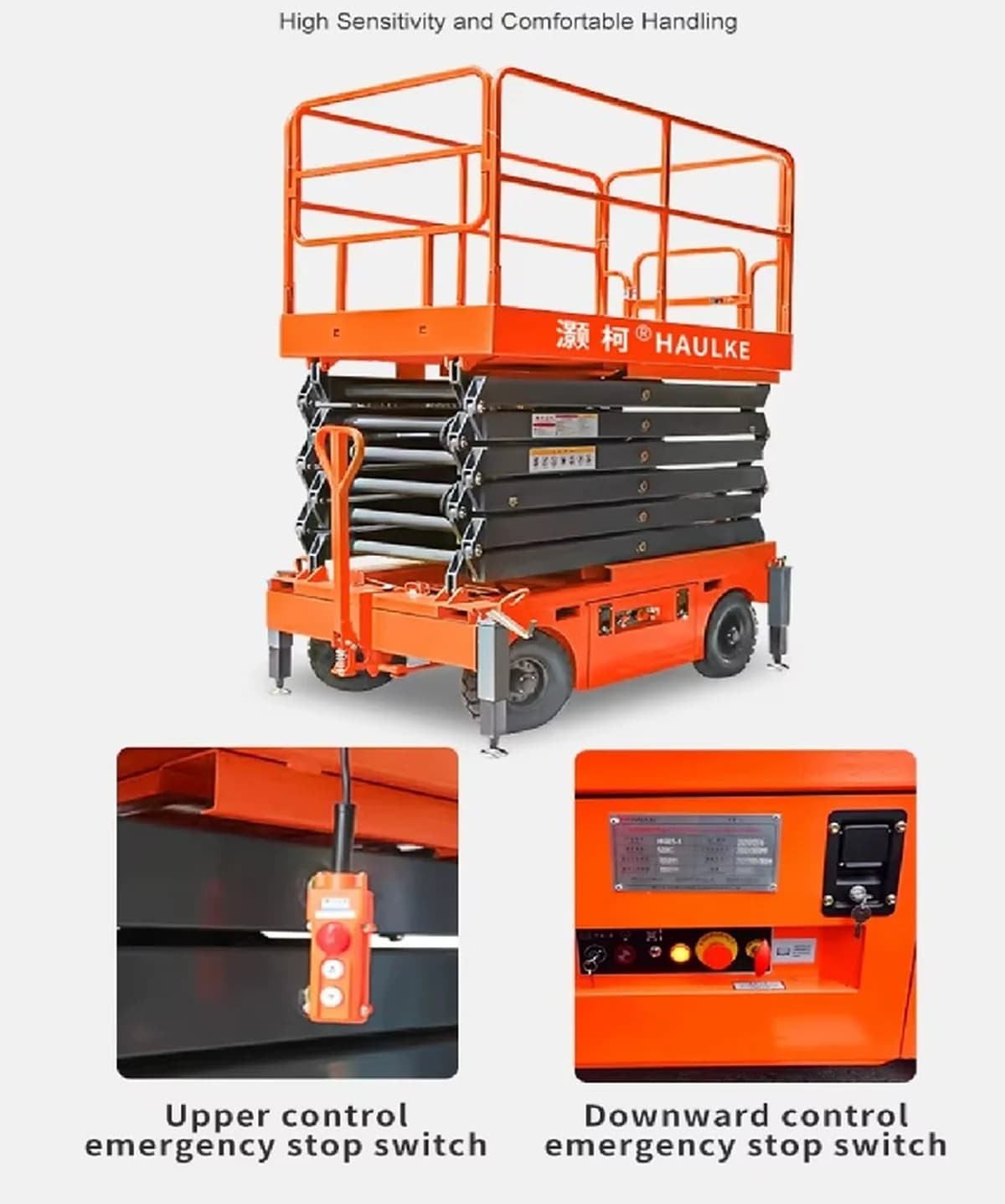

- • Emergency stop and safety lock system included
- • Compact and user-friendly design for tight spaces
- • Double scissor mechanism for vertical stability
- • 1.5 Kw motor power ensures efficient operation
- • 1000 mm guard rail height provides fall protection
Maintenance & Care
- Regular hydraulic fluid checks ensure smooth lifting
- Inspect wheels and casters for wear and tear
- Keep platform surface clean to maintain anti-slip grip
- Store in dry environment to prevent electrical corrosion
- Follow manufacturer guidelines for routine servicing
Safety & Stability
- Guard rails prevent accidental falls from platform
- Double scissor mechanism ensures vertical stability
- Emergency stop buttons allow immediate power cutoff
- PU or rubber wheels protect floor surfaces
- Safety lock system prevents unintended lowering
Operational Advantages
- Safe working at elevated heights reduces fall risks
- Easy to operate with single-phase power availability
- Reduces manual effort and physical strain on workers
- High load capacity accommodates tools and materials
- Stable and reliable performance under heavy usage
- Lifting time of 50 – 70 seconds for efficiency
- Working height up to 7.5 meters for reach
- Max lifting height of 6 meters for extended reach
- Extension platform available as an optional feature
Industrial Applications
- Warehouse maintenance and stock handling operations
- Electrical installation and repair work at height
- Factory and industrial maintenance tasks
- Construction and site work for structural support
- Cleaning and servicing at height for facilities
More questions buyers ask
What is the load capacity of the Pentagon Manual Hydraulic Platform Lift?
The Pentagon Manual Hydraulic Platform Lift has a maximum load capacity of 500 kgs, making it ideal for heavy-duty material handling and maintenance tasks.
What type of lifting mechanism does this platform lift use?

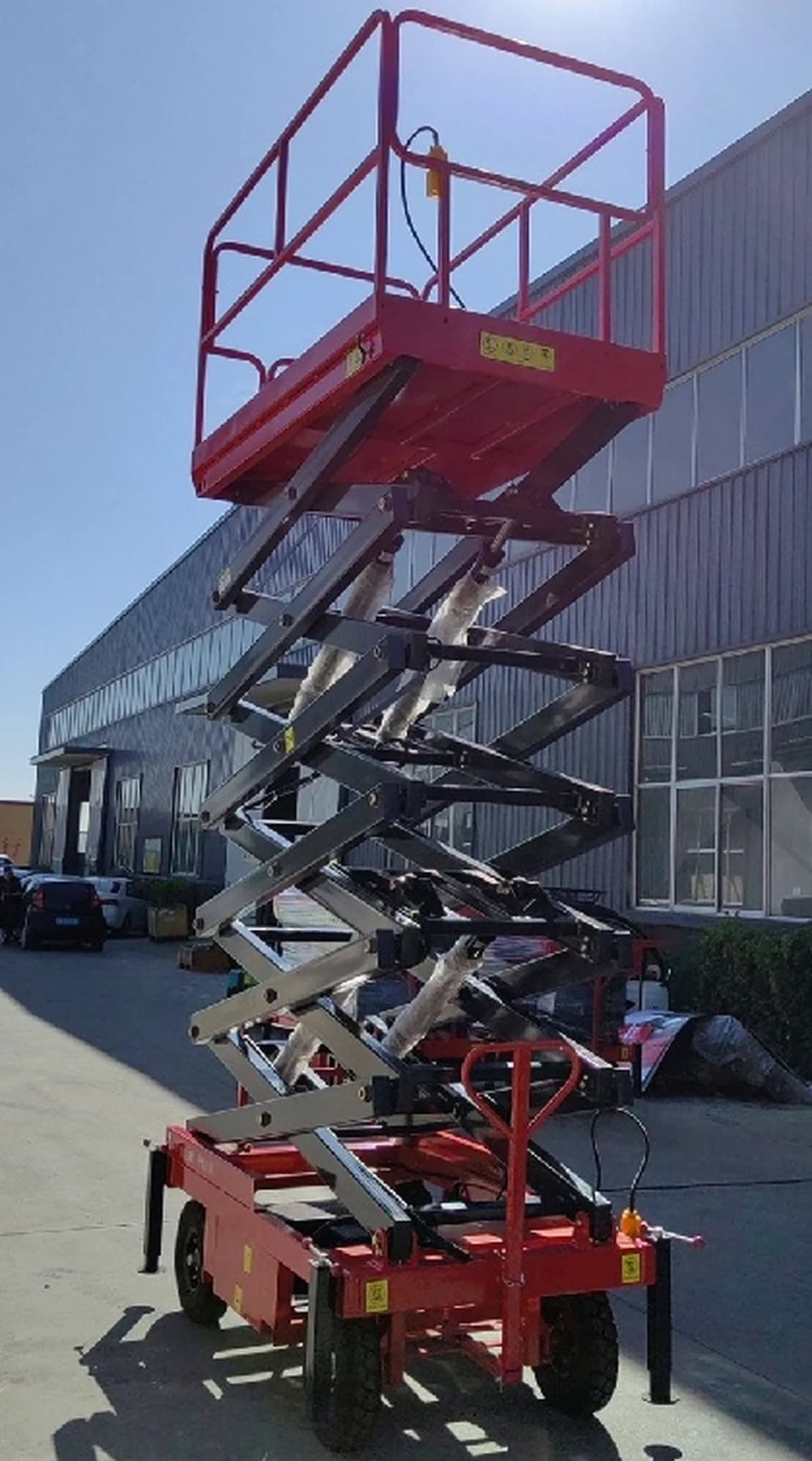

It utilizes a robust scissor mechanism. The 6M model features a double scissor mechanism, while the 12M models use a multi-scissor mechanism for enhanced stability at greater heights.
What safety features are included in this hydraulic lift?
Safety features include guard rails (1000-1100 mm height), an emergency stop button for immediate power cutoff, and a safety lock system to prevent unintended lowering.
Does the lift require a three-phase power supply?
The power requirement depends on the model. The 6M variant operates on a single-phase 220V supply, whereas the 12M variants require a three-phase 380V supply.
How long does it take to lift to maximum height?
The lifting time is approximately 50-70 seconds for the 6M model and 90-120 seconds for the 12M models.

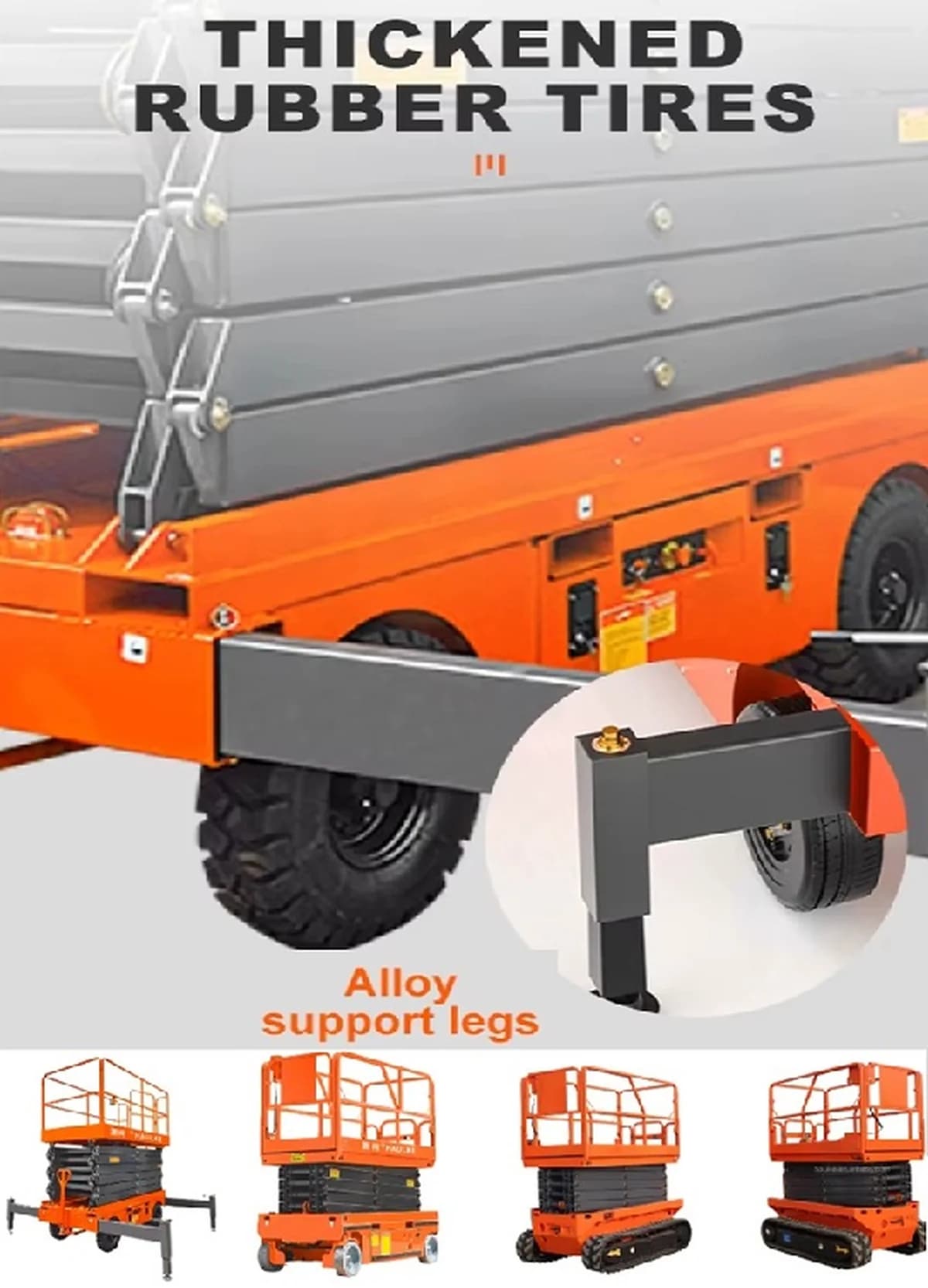

What are the wheels made of?
The lift is equipped with durable PU (Polyurethane) or rubber wheels, with the 12M models featuring heavy-duty PU wheels to protect floor surfaces while ensuring easy mobility.
Is there an emergency stop feature?
Yes, the platform lift is equipped with emergency stop buttons that allow operators to immediately cut off power in case of an emergency.
Can the platform be extended?
Yes, an extension platform is available. It is optional on the 6M model and comes as a standard 1000 mm (approx.) extension on the 12M models.
What maintenance is required for the hydraulic system?
Routine maintenance includes regular checks of the hydraulic fluid levels, inspecting wheels and casters for wear, and keeping the platform clean to maintain its anti-slip properties.
Does the product come with a warranty in India?
Yes, the Pentagon Manual Hydraulic Platform Lift comes with a standard manufacturer warranty. Please check the specific warranty terms at the time of purchase.
Can I get a GST invoice for this purchase?
Absolutely. We provide a valid GST invoice with every purchase, allowing businesses to claim input tax credit.
Who should choose the 500-6M variant?
The 500-6M variant is ideal for users needing a maximum lifting height of 6 meters (7.5m working height) and who prefer the convenience of a single-phase 220V power supply for indoor or lighter industrial tasks.
Who should choose the 500-12M Blue variant?
The 500-12M Blue variant is perfect for heavy-duty industrial applications requiring a high lifting height of 12 meters (13.5m working height), powered by a robust 3.0 Kw three-phase motor.
Who should choose the 500-12M Red variant?
The 500-12M Red variant offers the exact same high-performance specifications as the Blue variant, including a 12-meter lift and three-phase power, but comes in a highly visible red color for specific site safety or aesthetic preferences.
What is the difference between the 6M and 12M variants?
The primary differences are the maximum lifting height (6m vs 12m), motor power (1.5 Kw vs 3.0 Kw), power supply (single-phase vs three-phase), and the lifting mechanism (double scissor vs multi-scissor).
How does the lifting mechanism differ between the 6M and 12M models?
The 6M model uses a double scissor mechanism suitable for its height, while the 12M models employ a multi-scissor mechanism to ensure maximum stability and safety at extended heights.
Are the Blue and Red 12M variants different in specifications?
No, the 500-12M Blue and 500-12M Red variants have identical technical specifications, including load capacity, lifting height, and motor power. The only difference is the color of the equipment.
Which variant has the highest motor power?
The 12M variants (both Blue and Red) feature the highest motor power at 3.0 Kw, compared to the 1.5 Kw motor on the 6M variant.
