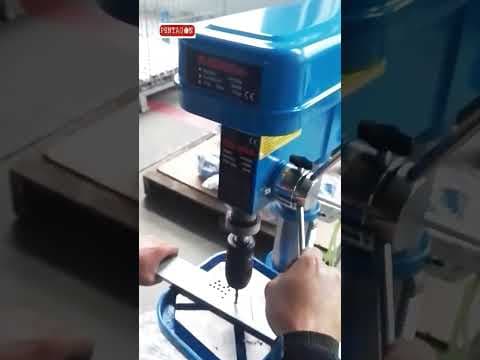

Pentagon Manual Feed Electrical Drilling & Tapping Machine Model LGT340A
The Pentagon Manual Feed Electrical Drilling & Tapping Machine delivers precise hole-making for workshop environments. This LGT340A model features a robust MT2 spindle taper and 1 HP motor for reliable performance. • Max drilling capacity: 16 mm • Spindle speed range: 170–1900 rpm across 9 speeds • Throat depth: 180 mm for versatile workpiece positioning • Net weight: 90 kg for stable operation
Specifications
For: Model LGT340A- Model
- LGT340A
- Max. Drilling capacity
- 16 mm
- Spindle Taper
- MT2
- Spindle travel
- 100 mm
- Spindle Speed
- 170–1900 rpm
- Number of Speed
- 9 Nos
- Throat (Column to spindle centre)
- 180 mm
- Column Diameter
- 80 mm
- Table Diameter
- 360 mm
- Base Size
- 300×500 mm
- Distance From Spindle To Table
- 450 mm
- Distance From Spindle To Base
- 620 mm
- Motor HP
- 1 HP
- Overall Height
- 1070 mm
- Weight Net,GW
- 90/105 Kgs
Common Buyer Questions
Q: Is this machine suitable for hard metals like stainless steel? A: Yes, it can drill stainless steel using appropriate speeds and coolants.
Q: How many speed options are available on this model? A: The machine typically offers 9 distinct speed settings for versatility.
Q: What is the maximum thickness of material it can handle? A: It supports drilling capacities up to 16 mm in mild steel.
User-Friendly Manual Feed Mechanism
- Features an ergonomic handle for precise depth control
- Enables operators to feel resistance for better hole quality
- Reduces risk of bit breakage through careful feed management
- Simple mechanical design ensures easy maintenance and repair
- Lowers operational costs compared to complex automated systems
- Ideal for batch production where flexibility is key
Optimized Power and Speed Control
- Equipped with a powerful motor for efficient material removal
- Offers multiple speed settings to match specific job requirements
- Allows operators to select optimal RPM for different drill bits
- Enhances tool life by preventing overheating or binding
- Provides smooth power transmission for consistent cutting action
- Adaptable to various drilling diameters and depths
Robust Construction and Stability
- Built with a rigid column and base for vibration-free operation
- Ensures high accuracy during prolonged drilling cycles
- Designed to withstand continuous workshop environments
- Provides stable support for heavy workpieces up to specified limits
- Maintains alignment over time for long-term reliability
- Constructed from high-grade materials for extended service life
Versatile Drilling and Tapping Capabilities
- Combines manual feed drilling with precision tapping operations
- Handles diverse materials including steel, aluminum, and cast iron
- Ideal for creating accurate holes and threaded connections
- Supports a wide range of industrial maintenance tasks
- Suitable for both light fabrication and heavy-duty repair work
- Delivers consistent performance across various metal types
Optional Accessories
Coolant system consisting of reservoir tank with chip collection tray, separation baffles, coolant pump with 3 phases AC induction motor, flexible piping & fittings, on/off valves, splash guards or chip collection tray etc. (Rs 8200)
Machine lamp arrangement (Rs 3200)
Standard Accessories
Comprehensive electrical control panel with selector switch for drilling & tapping operations without spindle motor protection device
Instruction manual
V Belts
Intermediate table with rack & pinion arrangement for lifting & lowering work table
Main motor of reputed Brand, 3 phase, 50 Hz, 6 pole, S1 duty
More questions buyers ask
What is the drilling capacity of the Pentagon LGT340A?
The machine has a maximum drilling capacity of 16 mm in mild steel.
Does this machine support tapping operations?
Yes, it is specifically designed for both drilling and tapping operations.
How many speed settings does it have?
It features 9 distinct speed settings ranging from 170 to 1900 rpm.
What is the motor power?
It is equipped with a 1 HP, 3-phase motor.
What type of spindle taper does it use?
It uses an MT2 spindle taper.
Is it suitable for stainless steel?
Yes, it can drill stainless steel when using appropriate speeds and coolants.
What is the throat distance?
The throat distance (column to spindle center) is 180 mm.
What are the standard accessories included?
It includes an electrical control panel, instruction manual, V-belts, and an intermediate table with rack & pinion.
Are there optional accessories available?
Yes, optional accessories include a coolant system and a machine lamp.
What is the weight of the machine?
The net weight is 90 kg, and the gross weight is 105 kg.
Who should choose the Pentagon LGT340A?
It is ideal for small to medium-sized workshops and fabrication units needing a reliable, manual-feed machine for precision drilling and tapping tasks.
How does the LGT340A compare to automatic feed machines?
The LGT340A offers better tactile feedback and control for the operator, making it more flexible for batch work and easier to maintain compared to complex automated systems.
