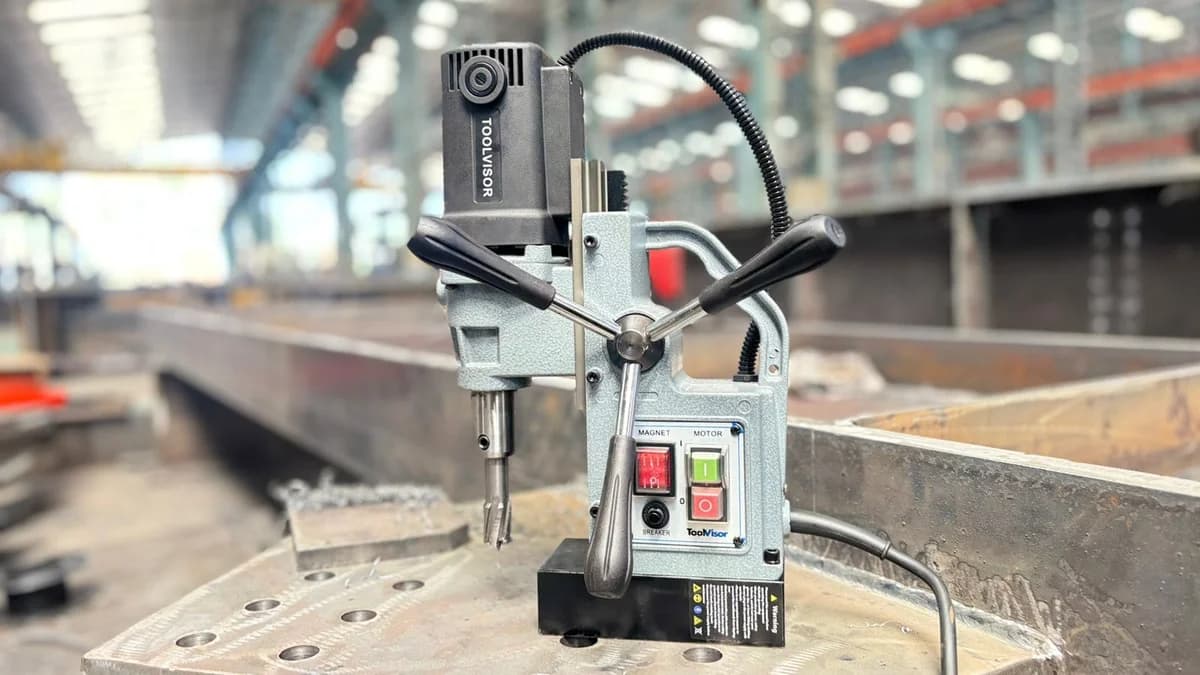

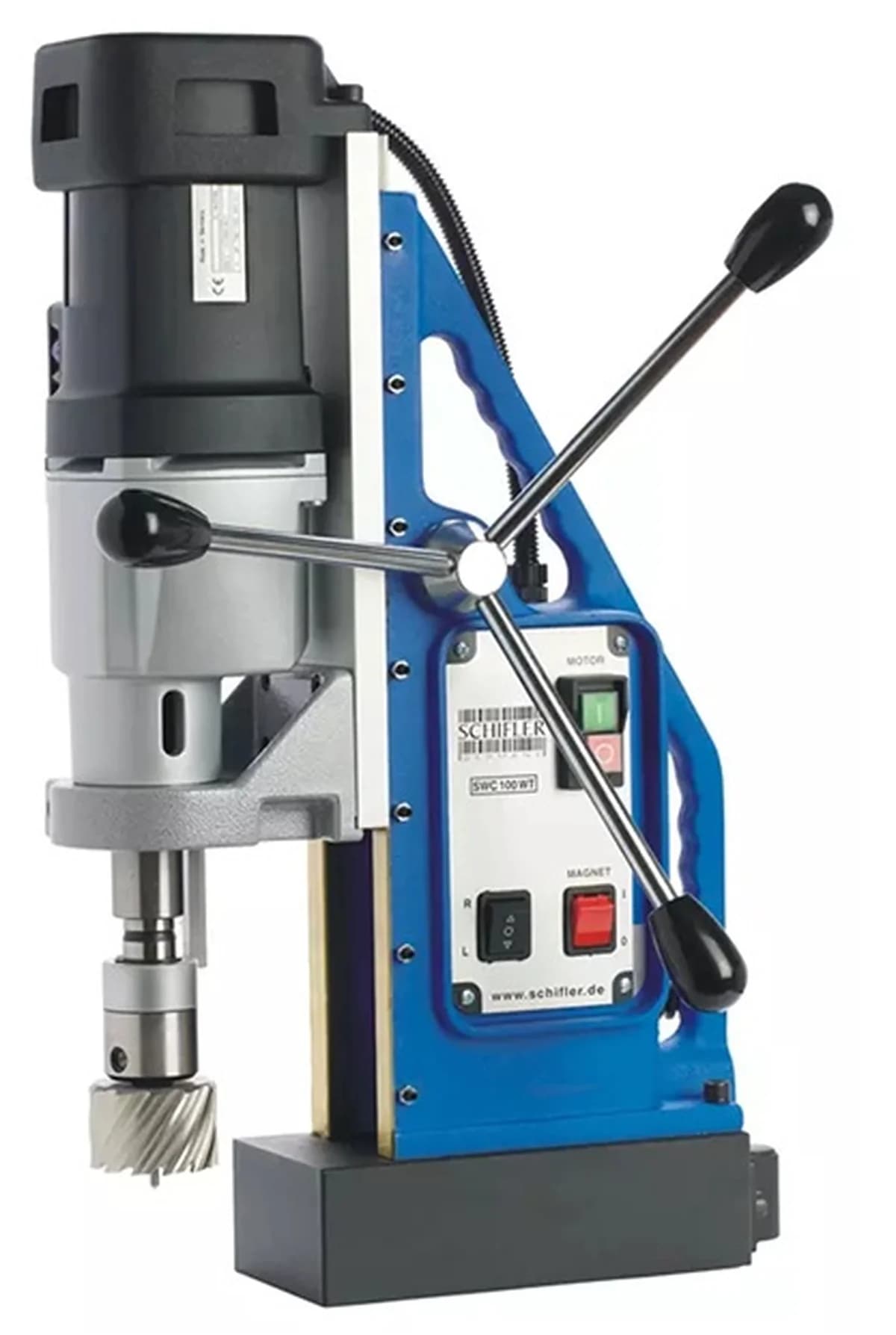

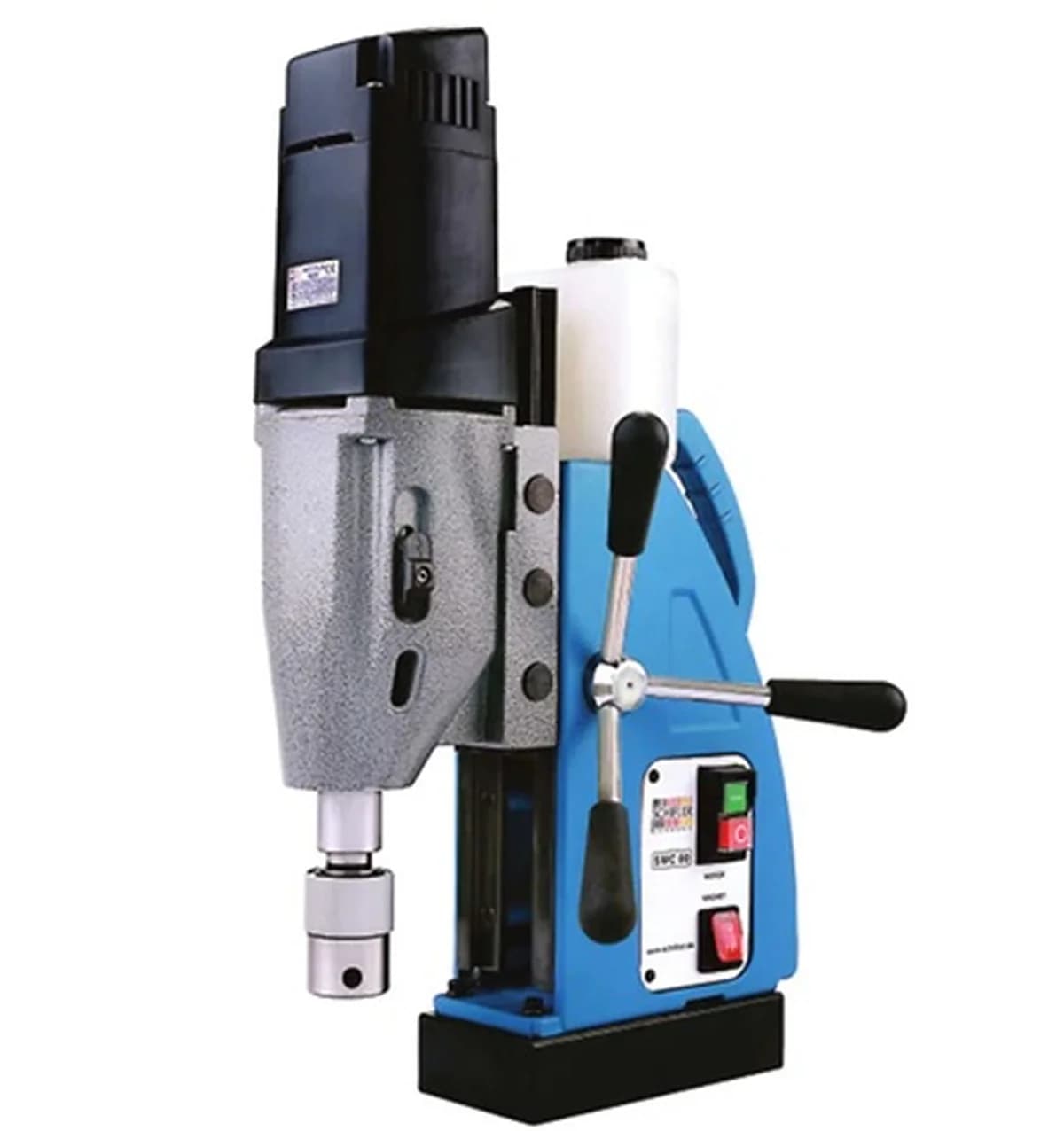

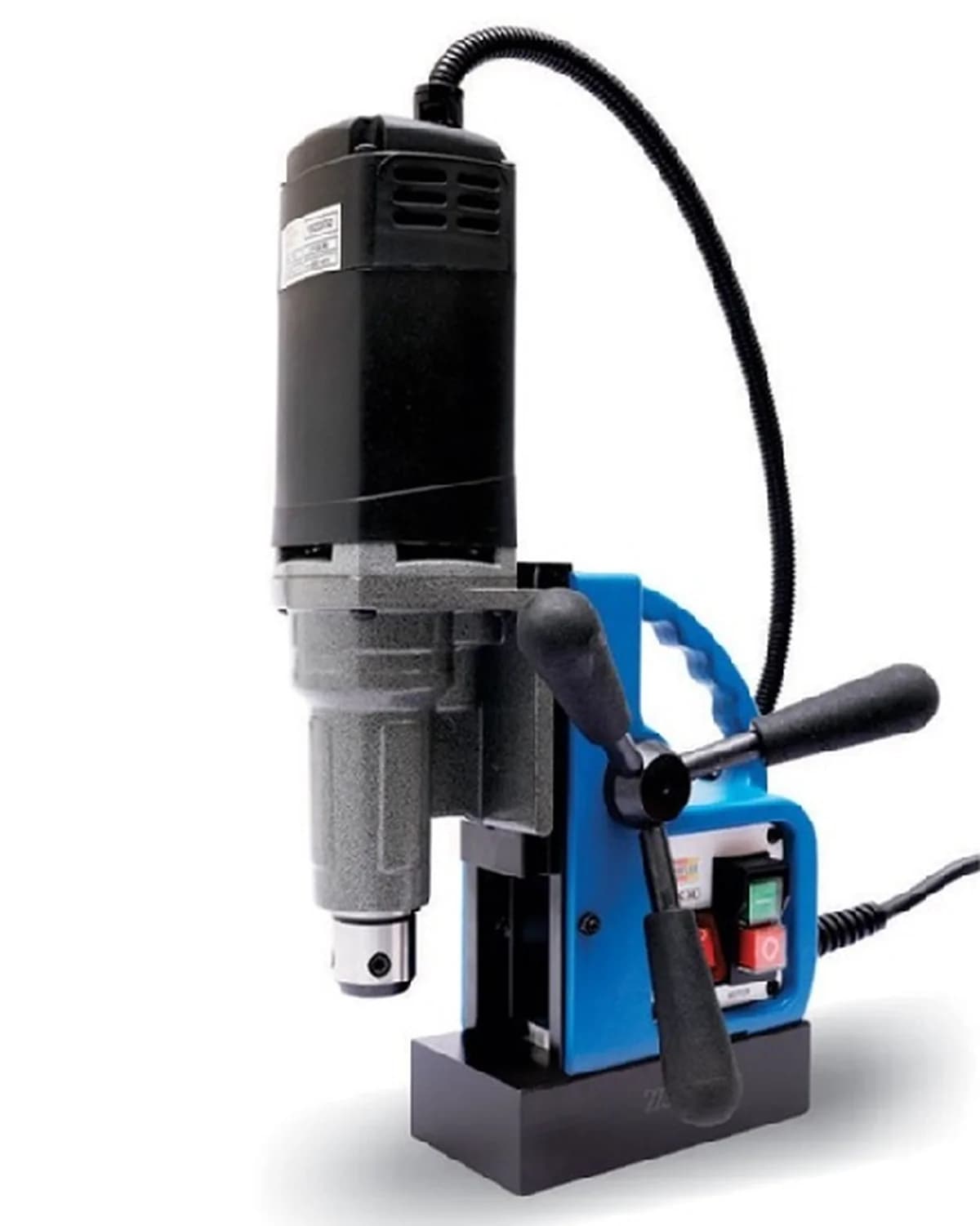

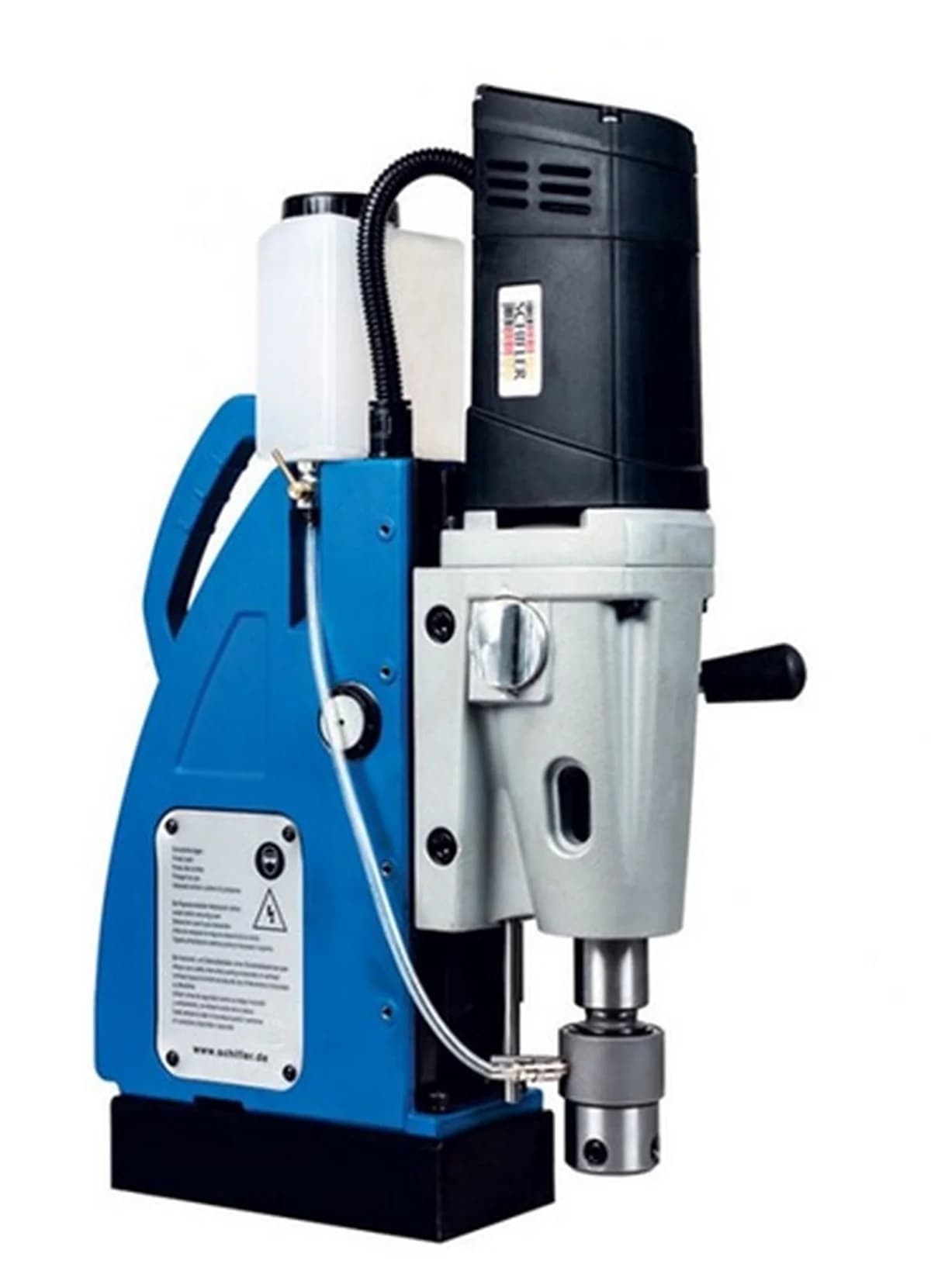

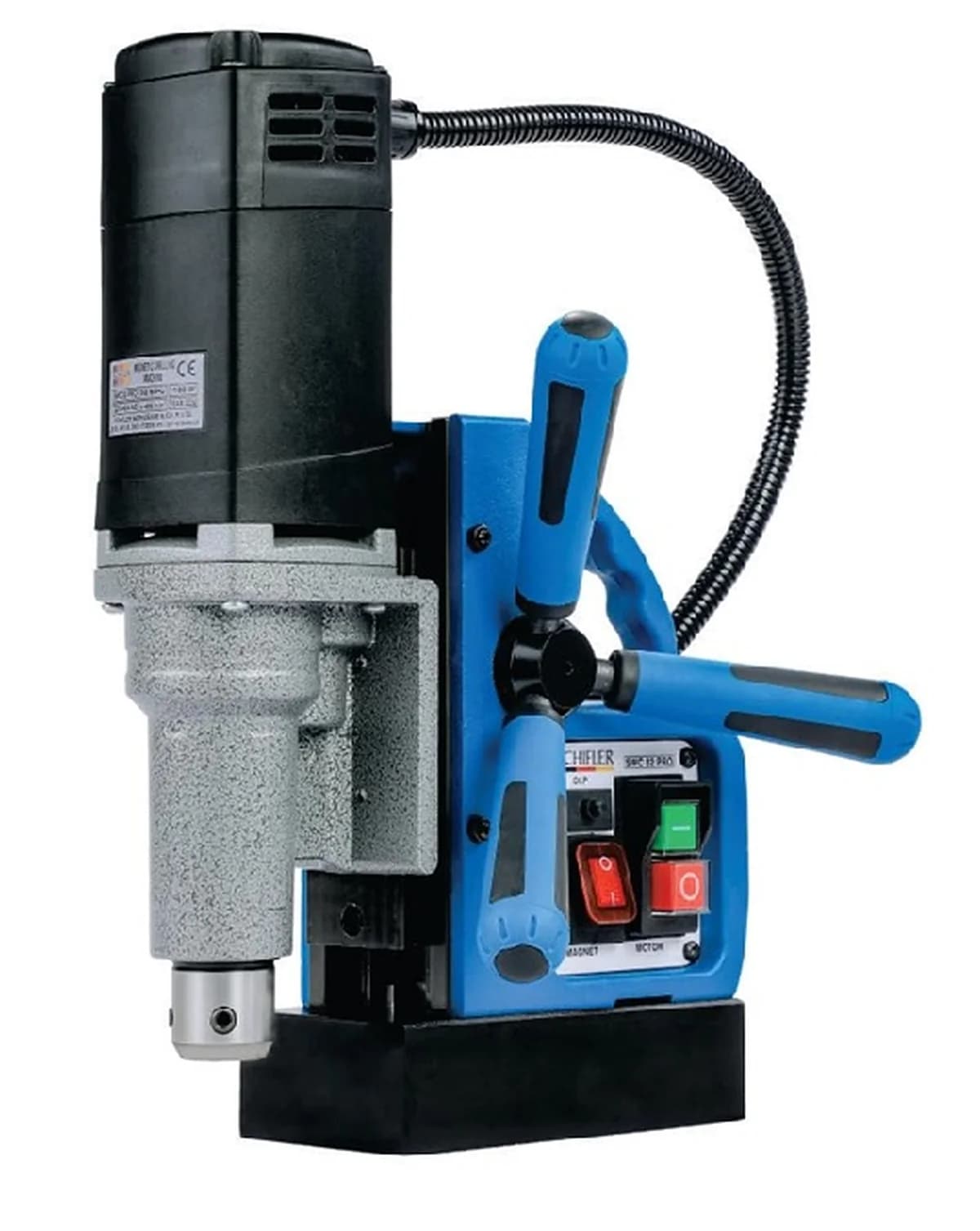

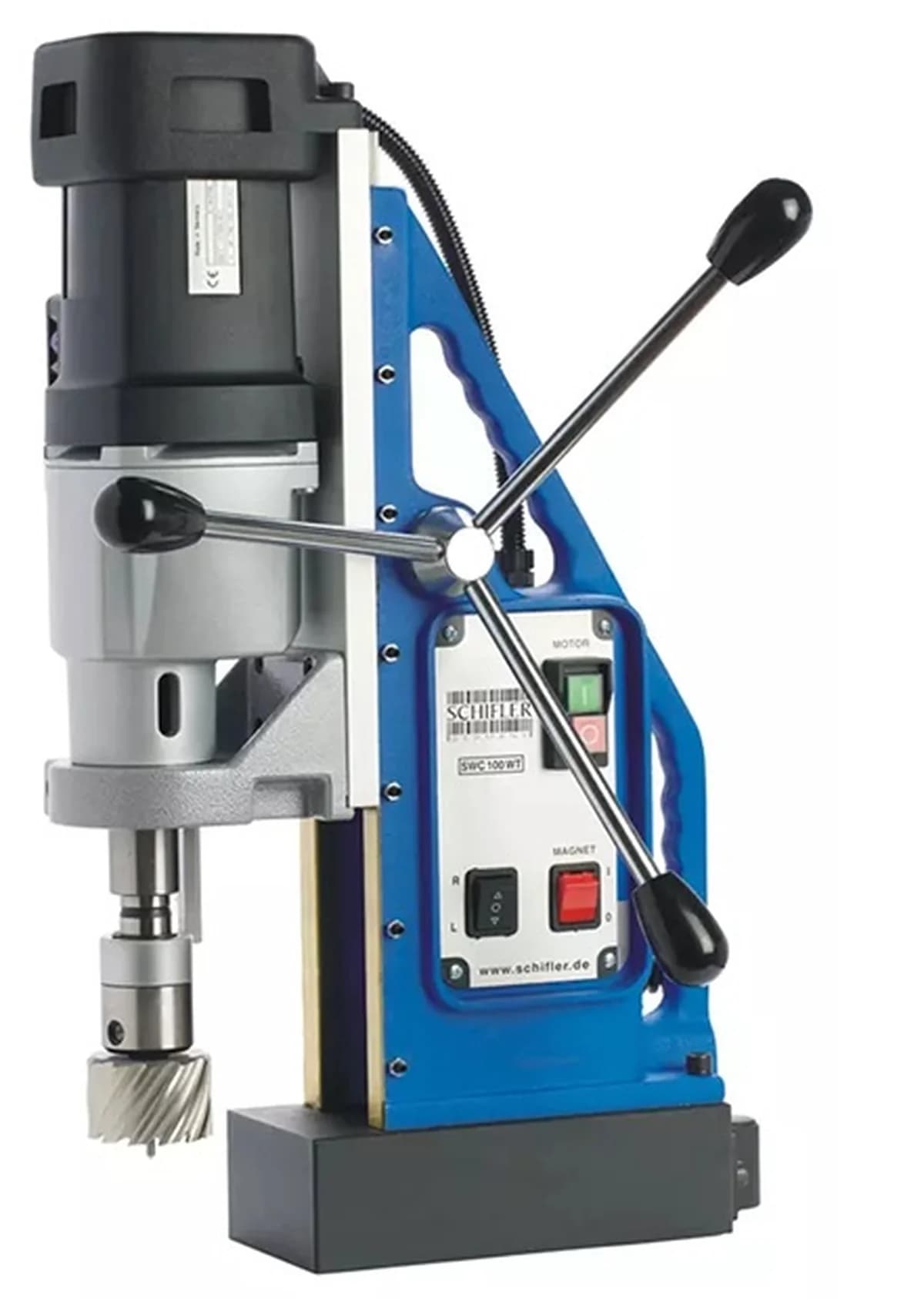

Toolvisor Magnetic Drill Machine Model TV.40
Magnetic Core Drill Machine is a reliable and efficient portable drilling machine engineered for accurate and safe drilling on ferrous metal surfaces. It features a powerful electromagnetic base that provides strong holding force, ensuring stable operation during vertical, horizontal, and overhead drilling. Driven by a high-torque motor. High-precision height adjustment for: Low maintenance Minimal wear correction Lightest 30 mm magnetic drilling machine: Most compact in class Incredibly easy to handle Integrated slide for: High accuracy Enlarged lifecycle Minimal vibration

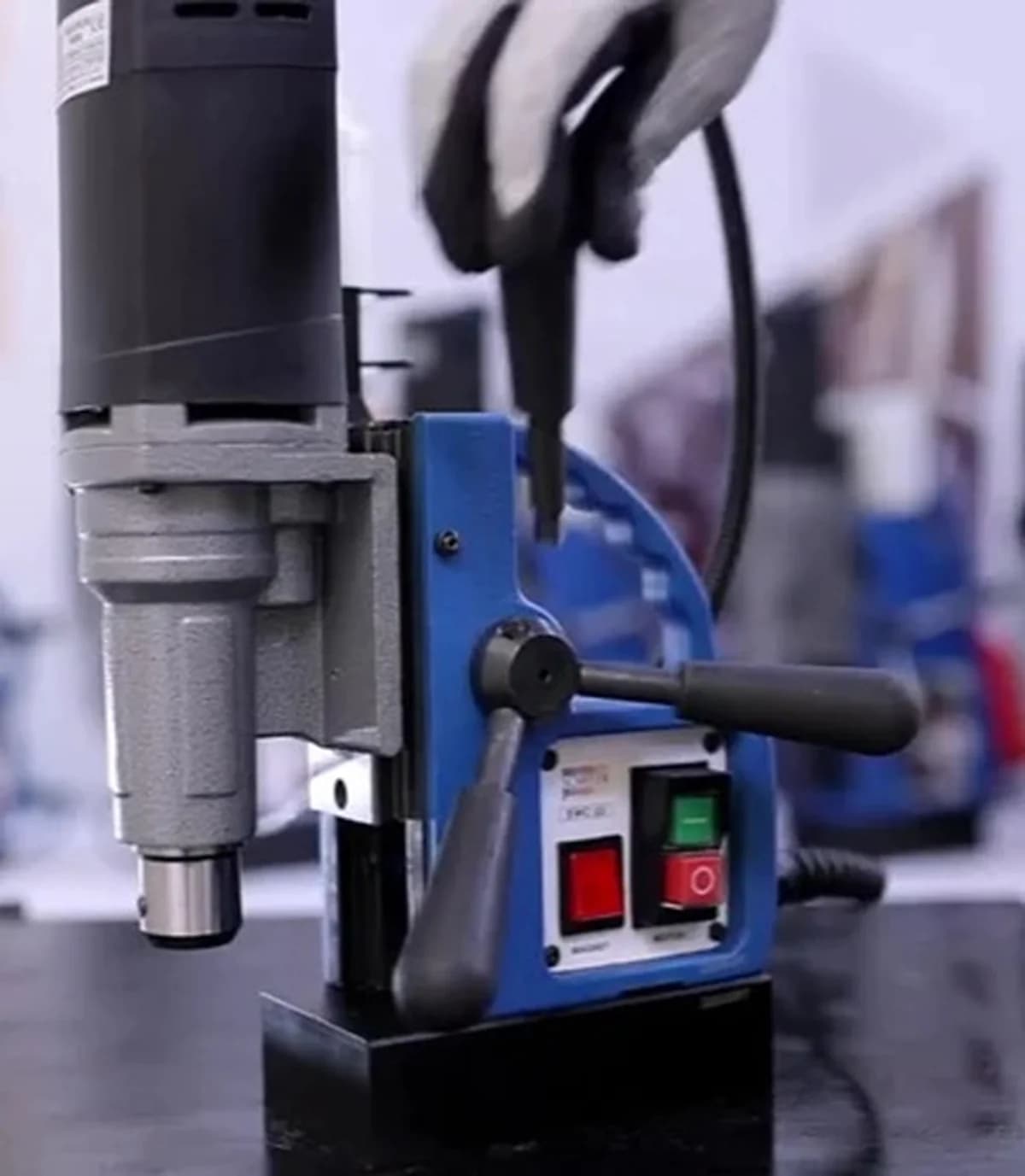

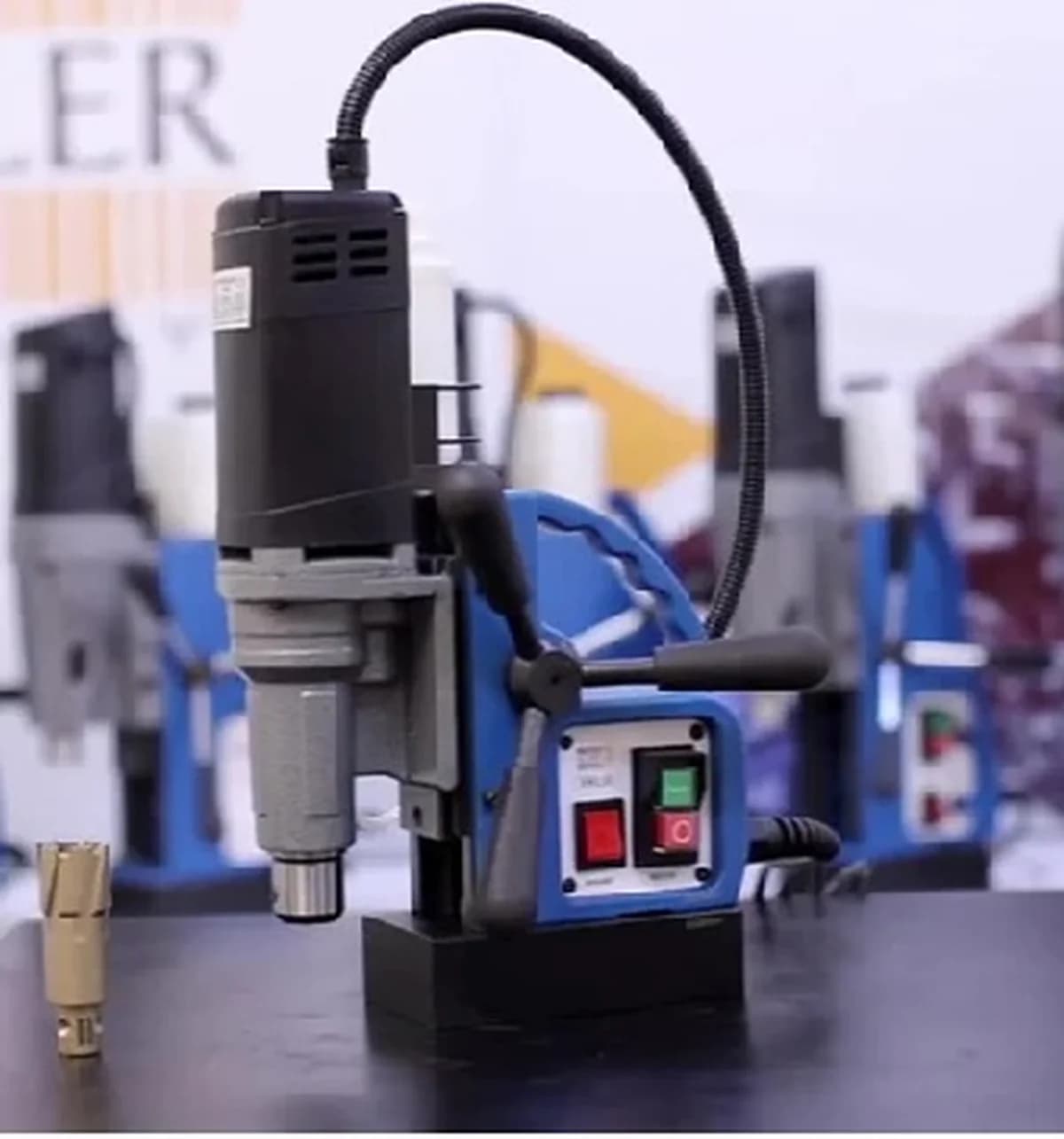

See it in action
Specifications
For: TV.40- ANNULAR CUTTERS
- 12 – 40 mm
- TWIST DRILLS
- 6-13 mm (Weldon Drill)
- COUNTERSINKING
- 10 – 40 mm
- LENGTH
- 250 mm
- WIDTH
- 110 mm
- HEIGHT
- 290 – 430 mm
- STROKE
- 140 mm
- WEIGHT
- 9.5 kg
- MAGNETIC FORCE
- 10000 N
- MOTOR POWER
- 1050 W
- TOTAL POWER
- 1100 W
- SPEED (no load)
- 400 rpm
- SPINDLE WELDON
- 19.05 mm / ¾”
- POWER SOURCE
- 220 – 240V AC 50 ~ 60 HZ
- Model
- TV40
- Spindle
- 19mm (3/4") Weldon
Operational Versatility
- Capable of vertical drilling
- Performs horizontal drilling
- Supports overhead drilling
- Stable operation in all positions
- Ideal for construction sites
- Reduces setup time significantly
Portability and Dimensions
- Weight is 9.5 kg for portability
- Length measures 250 mm
- Width is 110 mm
- Height ranges 290 – 430 mm
- Stroke is 140 mm for depth
- Compact design for site work
Electrical Power Compatibility
- Power source is 220 – 240V AC
- Frequency 50 ~ 60 HZ compatible
- Standard industrial voltage support
- Ensures consistent operation
- Suitable for global power grids
- Model TV.40 power rating
Motor and Power Performance
- Driven by a high-torque motor
- Motor power is 1050 W
- Total power is 1100 W
- Speed (no load) is 400 rpm
- Reliable for efficient drilling

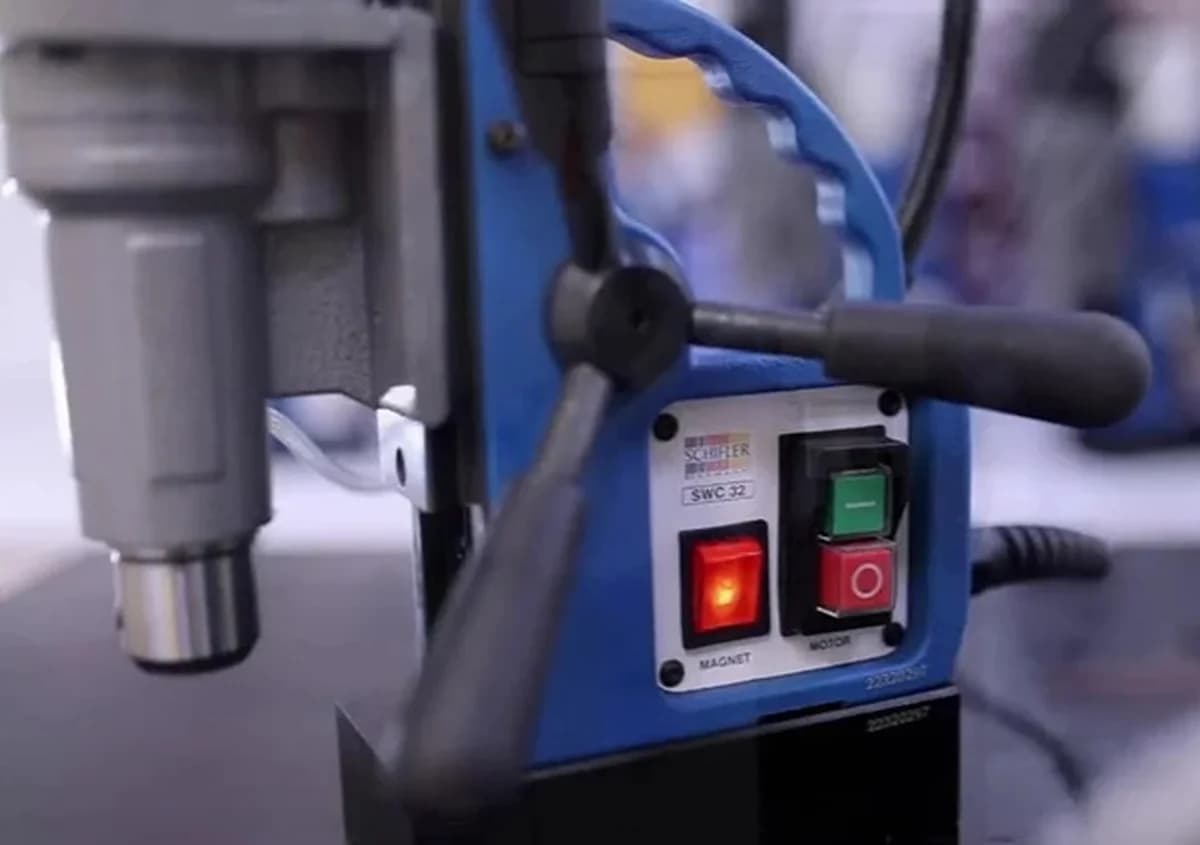

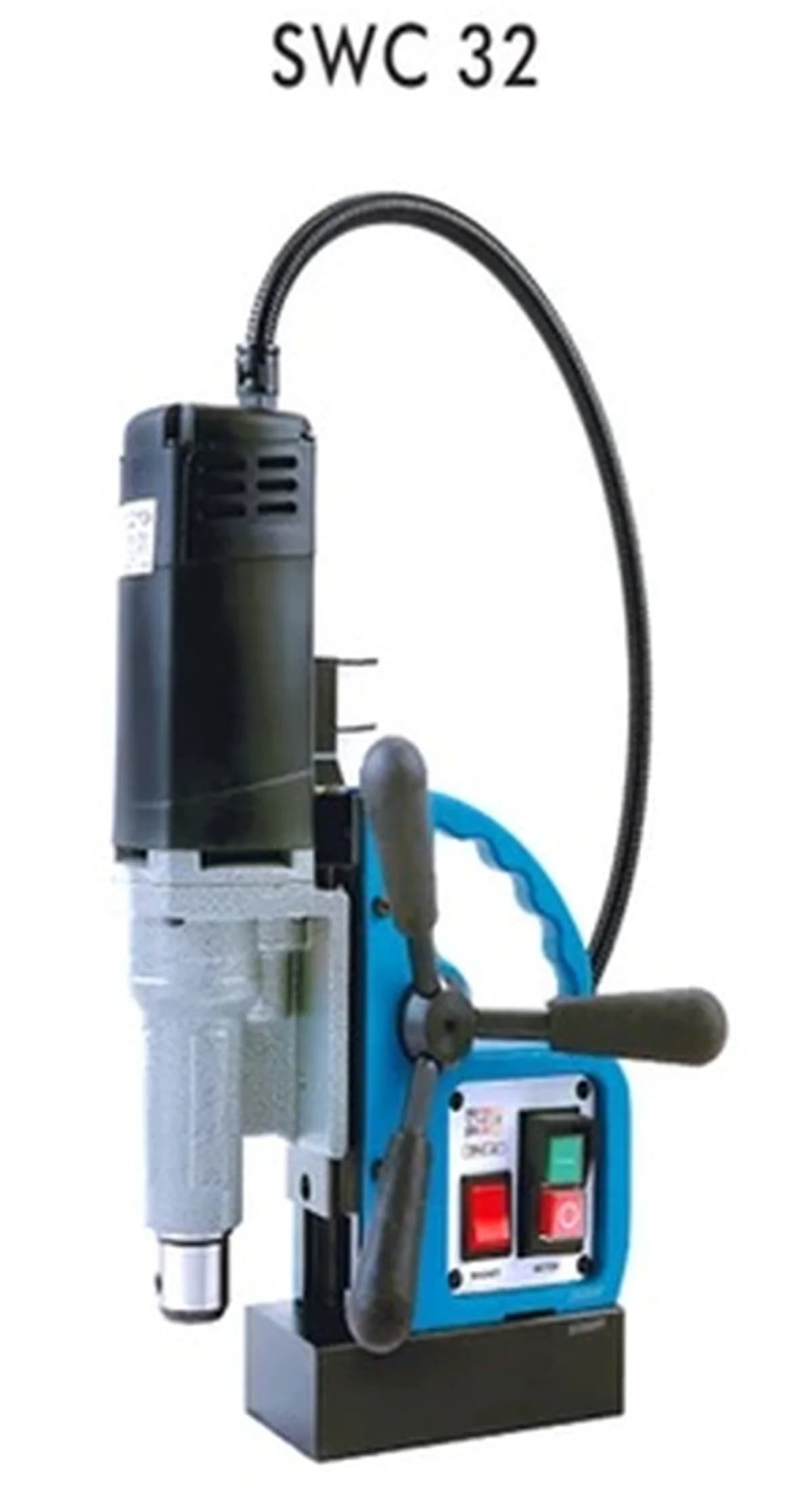

- Schifler SWC-32 engineering

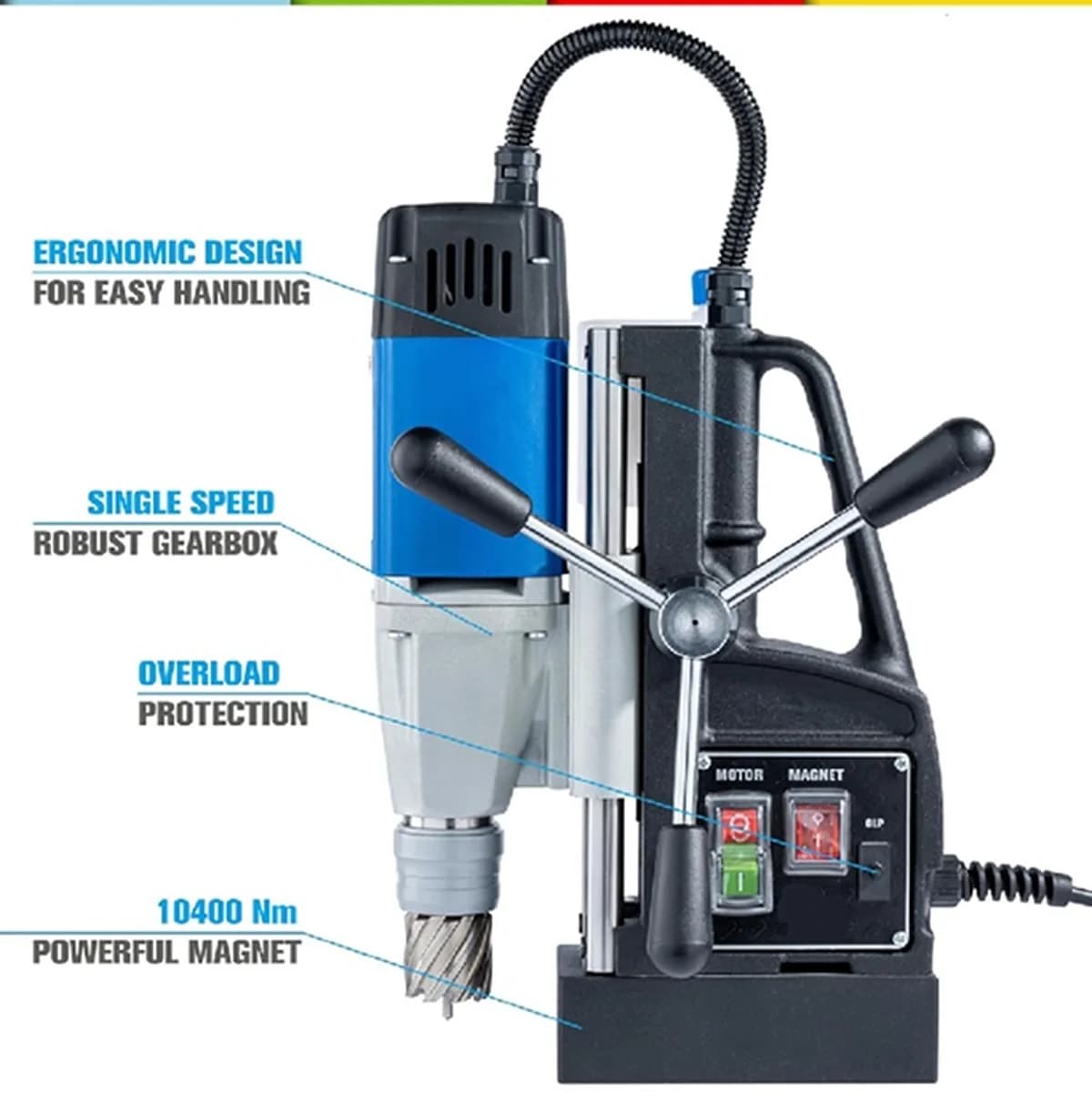

Magnetic Base and Stability
- Features a powerful electromagnetic base
- Provides strong holding force for stability
- Magnetic force rated at 10000 N
- Ensures safe drilling on ferrous metal
- Prevents slippage during operation
- Engineered for accurate drilling
Precision Drilling Capabilities
- Supports annular cutters from 12 – 40 mm
- Accommodates twist drills from 6-13 mm
- Enables countersinking from 10 – 40 mm
- Utilizes a 19.05 mm Weldon spindle
- Spindle size is 19mm (3/4") Weldon
- Designed for accurate drilling tasks
More questions buyers ask
What is a PENTAGON Magnetic Drill Machine?
The PENTAGON Magnetic Drill Machine is a portable drilling machine with a powerful electromagnetic base designed for drilling on ferrous metal surfaces. It's known for its stability and high-torque motor, making it suitable for vertical, horizontal, and overhead drilling.
What is the power of the PENTAGON TV.40 magnetic drill?
The PENTAGON TV.40 has a motor power of 1050W and a total power of 1100W, providing a no-load speed of 400 rpm for efficient drilling.
What is the drilling capacity of the TV.40 model?
The PENTAGON TV.40 is designed for a drilling diameter of up to 40 mm.
What kind of spindle does the PENTAGON TV.40 use?
This model is equipped with a 19mm (3/4 inch) Weldon spindle, which is a common standard for magnetic drills.
Is the PENTAGON Magnetic Drill Machine portable?
Yes, with a weight of just 9.5 kg and a compact design, the TV.40 model is highly portable and ideal for use on construction sites and in workshops.
What is the warranty on the PENTAGON TV.40?
The PENTAGON TV.40 Magnetic Drill Machine comes with a 6-month warranty against manufacturing defects.
Do you provide a GST invoice?
Yes, we provide a GST invoice for all purchases, so you can claim input tax credit.
Do you deliver across India?
Yes, we offer pan-India delivery for the PENTAGON Magnetic Drill Machine.
Who should choose the PENTAGON TV.40 Magnetic Drill Machine?
The PENTAGON TV.40 is ideal for professionals in construction, fabrication, and industrial maintenance who need a reliable and portable magnetic drill for holes up to 40mm in diameter. Its high-torque motor and stable magnetic base make it perfect for a wide range of on-site and workshop applications.
More like this
Full description
Magnetic Core Drill Machine is a reliable and efficient portable drilling machine engineered for accurate and safe drilling on ferrous metal surfaces. It features a powerful electromagnetic base that provides strong holding force, ensuring stable operation during vertical, horizontal, and overhead drilling. Driven by a high-torque motor. High-precision height adjustment for:
Read more ↓
Low maintenance Minimal wear correction Lightest 30 mm magnetic drilling machine:
Most compact in class Incredibly easy to handle Integrated slide for:
High accuracy Enlarged lifecycle Minimal vibration
