PENTAGON Vertical RAM Turret Milling Machine M3-R8/ISO30-3
Robust vertical ram turret milling machine featuring a 1270×254 mm table and R8 spindle taper. Built for accurate milling and drilling in professional toolrooms. • V-type cross guideways provide smooth horizontal movement • 850 mm longitudinal travel allows versatile positioning • 3 HP double speed motor delivers consistent power • Top brake mounting ensures quick spindle stopping

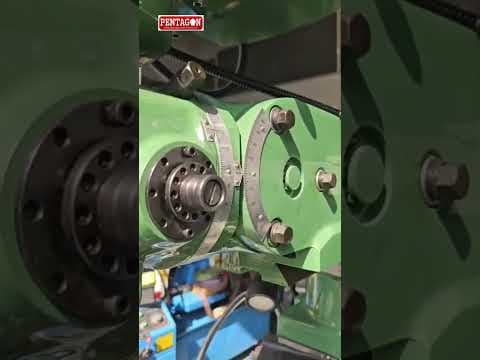

See it in action
Specifications
For: M3-R8/ISO30-3- Machine Model
- M3-R8/ISO30-3
- Table size
- 1270x254 mm
- Longitudinal Travel of Table
- 850 mm
- Cross Travel of table
- 400 mm
- Vertical Travel of Table
- 400 mm
- Quill Travel
- 127 mm
- Ram Travel
- 580 mm
- Spindle Nose taper
- R8/ISO30
- Spindle Nose to Table
- 500 mm
- Auto Quill Feeds per Revolution
- 0.40/0.08/0.15 mm/rev
- Spindle Motor
- 3 HP (Double Speed)/415V/50 or 60Hz
- Spindle Speed
- 45-5440 rpm(60Hz)
- Steps of Speeds
- 16 Steps
- Brake Mounting Type
- Top
- Z-Axis Guideways
- V Type
- Head Swivel (F x B)
- 45°
- Head Swivel (L x R)
- 90°
- Milling Head Type
- Round/Square
- Cross Guideways
- V Type
- Max Load on Table
- 250 Kgs
- Weight of the Machine (Approx.)
- 1250 Kgs
Operational Flexibility
- Flexible ram and turret head positioning for complex tasks
- Head swivel capability up to 90° left and right
- Multiple table size options available to fit workshop needs
- Top brake mounting type ensures quick stopping power
Versatile Industrial Applications
- Ideal for toolrooms requiring versatile metal cutting
- Suitable for production workshops needing stable performance
- Supports drilling, shaping, and complex milling operations
- Handles diverse materials with consistent surface finish
Precision & Performance
- High precision machining capabilities for tight tolerances
- V or Square type guideways maintain alignment under load
- 16 speed steps provide optimal cutting speed selection
- Spindle speeds range from 45–5440 rpm for efficiency
- Auto quill feeds support various cutting speeds
Spindle & Drive System
- Spindles available in R8, ISO30, or ISO40 taper configurations
- Equipped with double speed spindle motor for versatility
- Features Taiwan Imported Head for superior reliability
- Precision Taiwan Imported lead screws and nuts included
- 3 HP double speed motor supports various cutting speeds
Robust Construction & Durability
- Heavy duty design built for continuous industrial operations
- Constructed with high-quality Mehnite casting for stability
- Hardened table and guideways ensure long-term accuracy
- Rugged build supports heavy loads in demanding environments
Optional Accessories
- 3 axis DRO set with suitable size of linear scale
- Reduction sleeve MT3
- Reduction sleeve MT2
- X axis table auto power feeder 110V type
- Y axis table auto power feeder 110V type
- H-V Rotary table
- Semi Universal dividing head with tail stock soft jaws Indexing plates
- Splash Tray/Chip Tray
- Integrated type keyless drill chuck with intact suitable arbor
- Micro boring head F-12 or F-18 with suitable Shank
- Mechanical Edge Finder/Edge Sensor
- Boring bar dia 18 mm set of 12 pcs
- keyless drill chuck with intact suitable arbor
- Mechanical Gear box Power feeder 380V
***All machine prices are subjected to ex-warehouse without installation and service charges. Incase service person is required for installation, trial-training then it will be on extra cost and can be discuss further ***
Standard Accessories
- DRO 2 Axis with suitable linear scales fitted in machine
- Coolant Pump with fitting
- Machine Lamp
- Rear and front bellow cover set
- Suitable draw bar set
- Central Lubrication unit
- Electrical cabinet with 110/220 V output
- Tool Box with essential tools
- Operation manual with machine test certificate
- Swivel base Acculock type machine vice 150 mm jaw opening
- Clamping kit M12 Type 58 Pcs set
- Collet set ER32 type 10/11 pcs set
More questions buyers ask
What is the PENTAGON M3 Turret Milling Machine used for?
The PENTAGON M3 is a versatile vertical milling machine designed for precision metal cutting, drilling, tapping, and shaping in toolrooms and production workshops.
What is the motor power of the PENTAGON M3?
The M3 model is equipped with a 3 HP double-speed motor, providing reliable power for various industrial milling tasks.
What are the table dimensions of the PENTAGON M3?
The table size for the PENTAGON M3 is 1270 x 254 mm, offering ample workspace for medium-sized industrial components.
Does the PENTAGON M3 come with a DRO?
Yes, the machine includes a 2-axis Digital Readout (DRO) with suitable linear scales for enhanced machining accuracy.
What is the spindle speed range of the M3?
The spindle speed ranges from 45 to 5440 rpm, allowing for optimal speed selection based on the material and cutting requirements.
What is the maximum workpiece weight capacity?
The PENTAGON M3 can handle a maximum workpiece weight of 250 kg.
What type of guideways does the M3 use?
The M3 features V-type guideways for both cross and Z-axis movements, ensuring stability and alignment under load.
Is the machine suitable for heavy-duty industrial use?
Yes, it is built with high-quality Mehnite casting and a heavy-duty design, making it suitable for continuous industrial operations.
What accessories are included as standard?
Standard accessories include a coolant pump, machine lamp, bellow covers, central lubrication unit, machine vice, clamping kit, and a collet set.
Does the price include installation?
No, machine prices are ex-warehouse. Installation, trial, and training services are available at an extra cost upon request.
Who should choose the PENTAGON M3-R8/ISO30-3?
The M3-R8/ISO30-3 is ideal for workshops requiring a reliable, versatile milling machine with standard R8/ISO30 tooling compatibility for general-purpose metal machining.
How does the M3 compare to other models in the series?
The M3 is a compact, high-precision model optimized for standard toolroom tasks, whereas higher models like the M4 or M5 offer larger travel capacities and heavier load-bearing capabilities.
