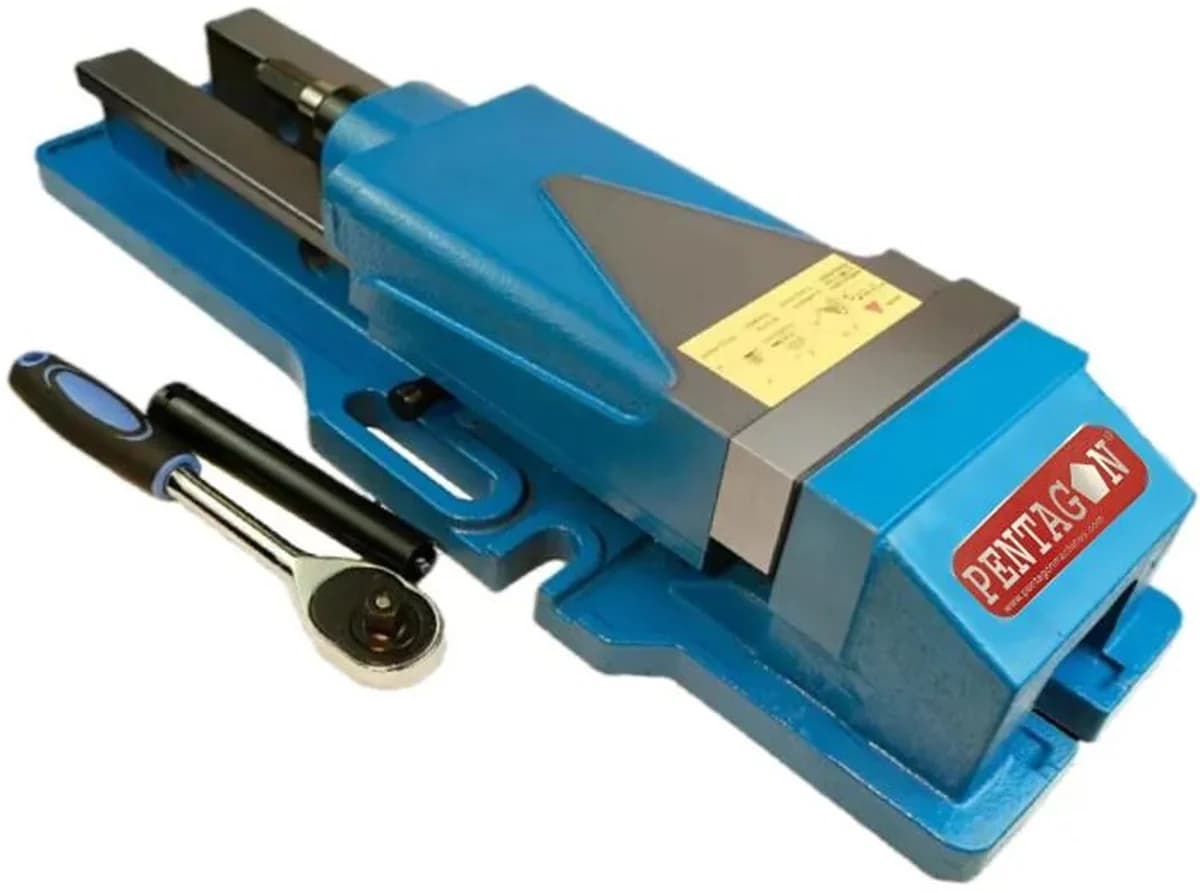

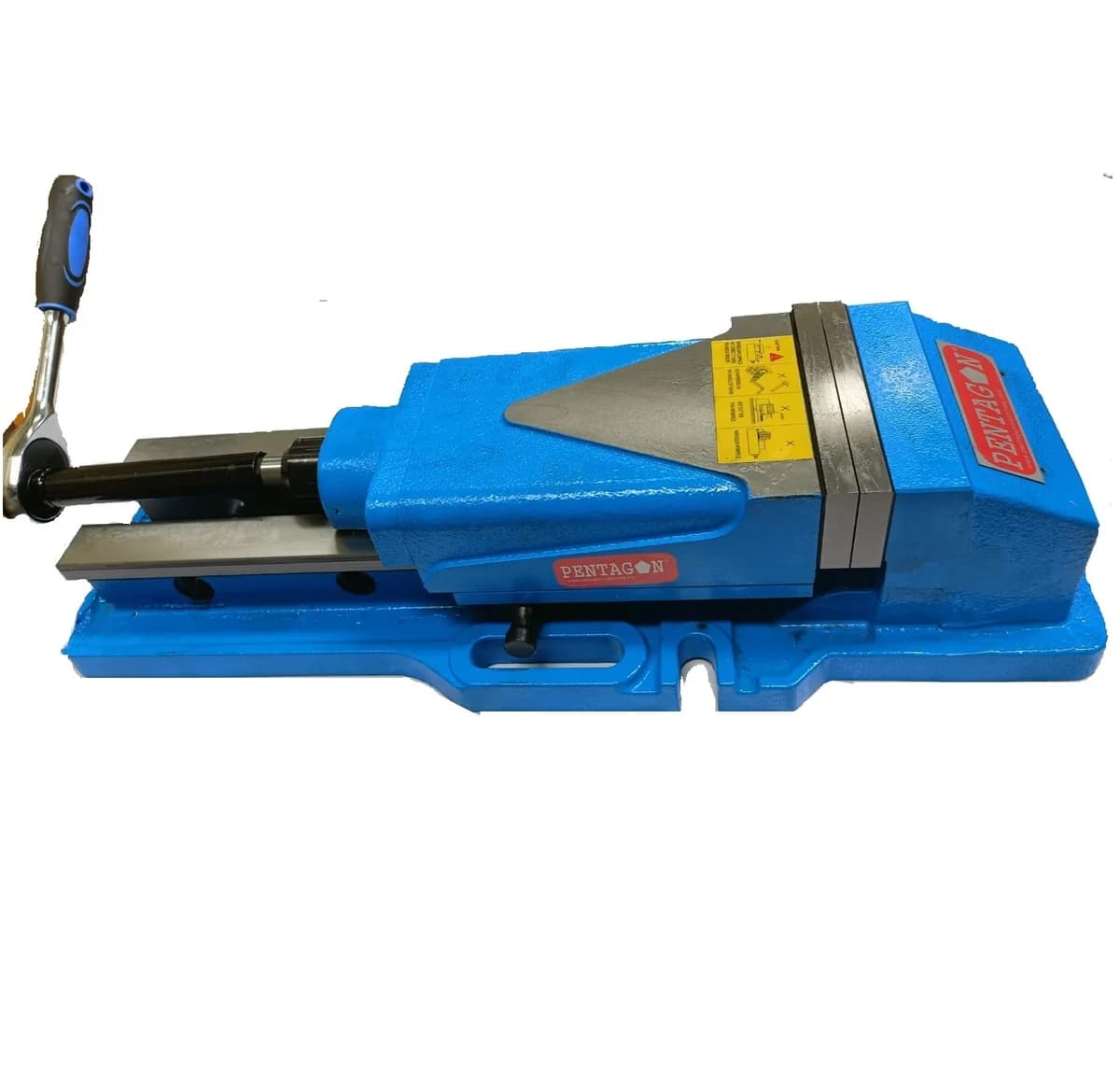

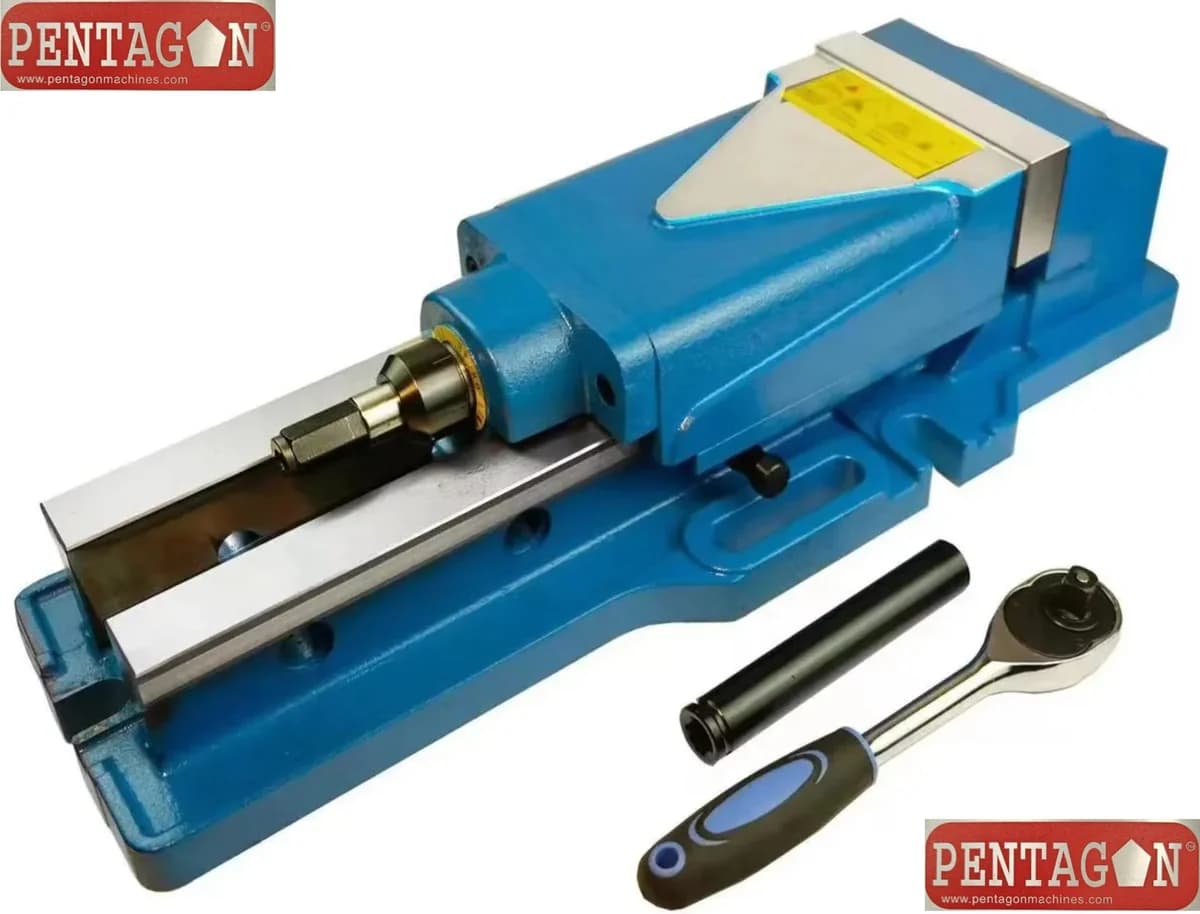

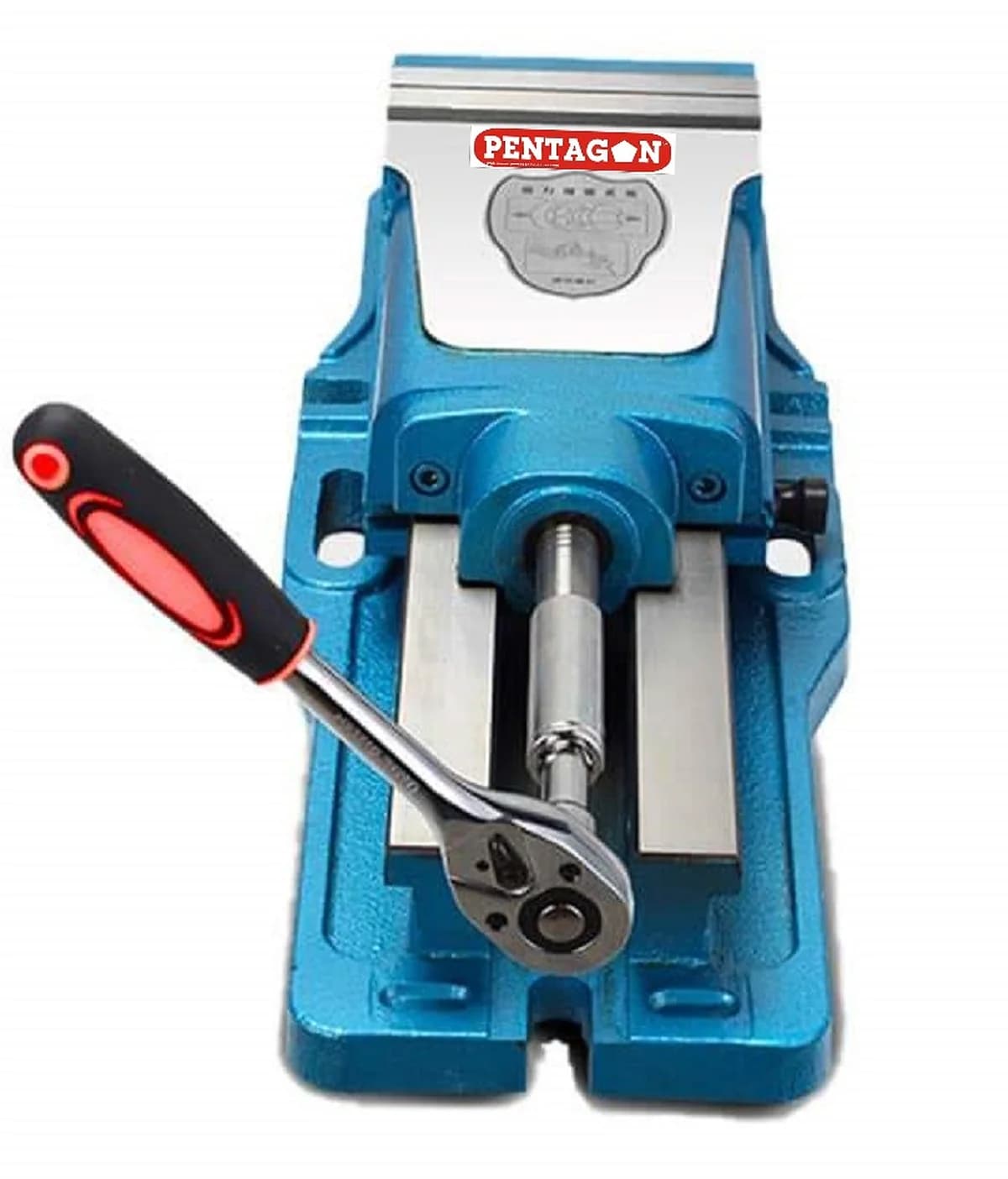

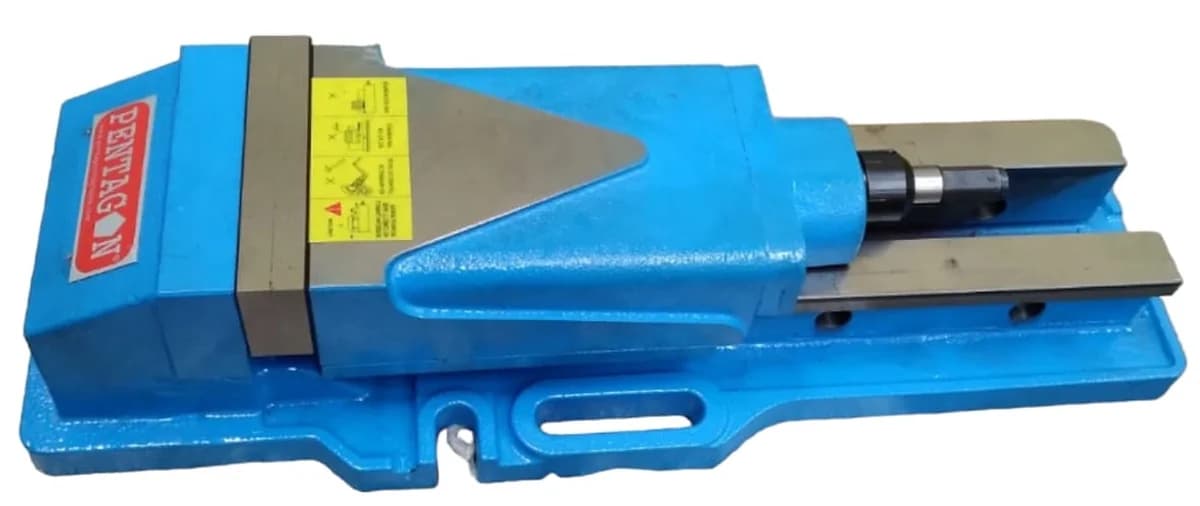

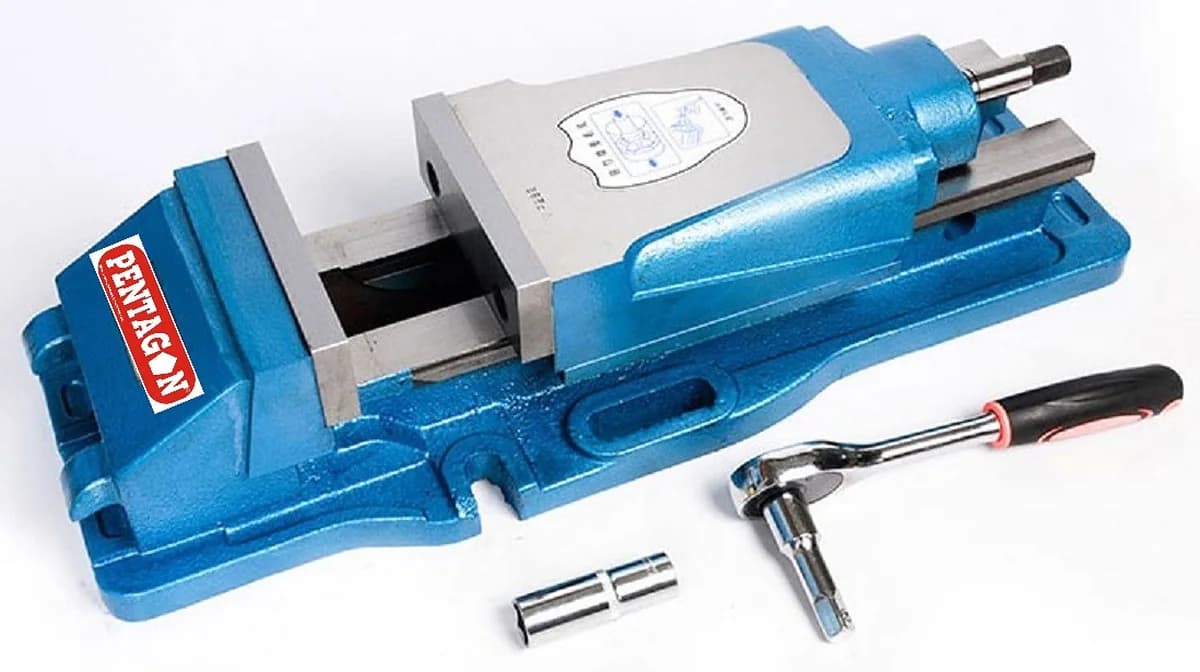

High Clamping force Precision Hydraulic Vice Model PHV-240
This hydraulic machine vice provides strong, uniform clamping pressure for accurate machining performance. Engineered for high-precision clamping, it delivers consistent holding force for milling and drilling operations. • Maximum jaw opening of 240 mm accommodates medium-sized workpieces • Hardened tool steel jaws maintain HRC 50–55 hardness • Overall length of 540 mm fits standard machine tables • Repeatability of ±0.02 mm ensures precise positioning
See it in action

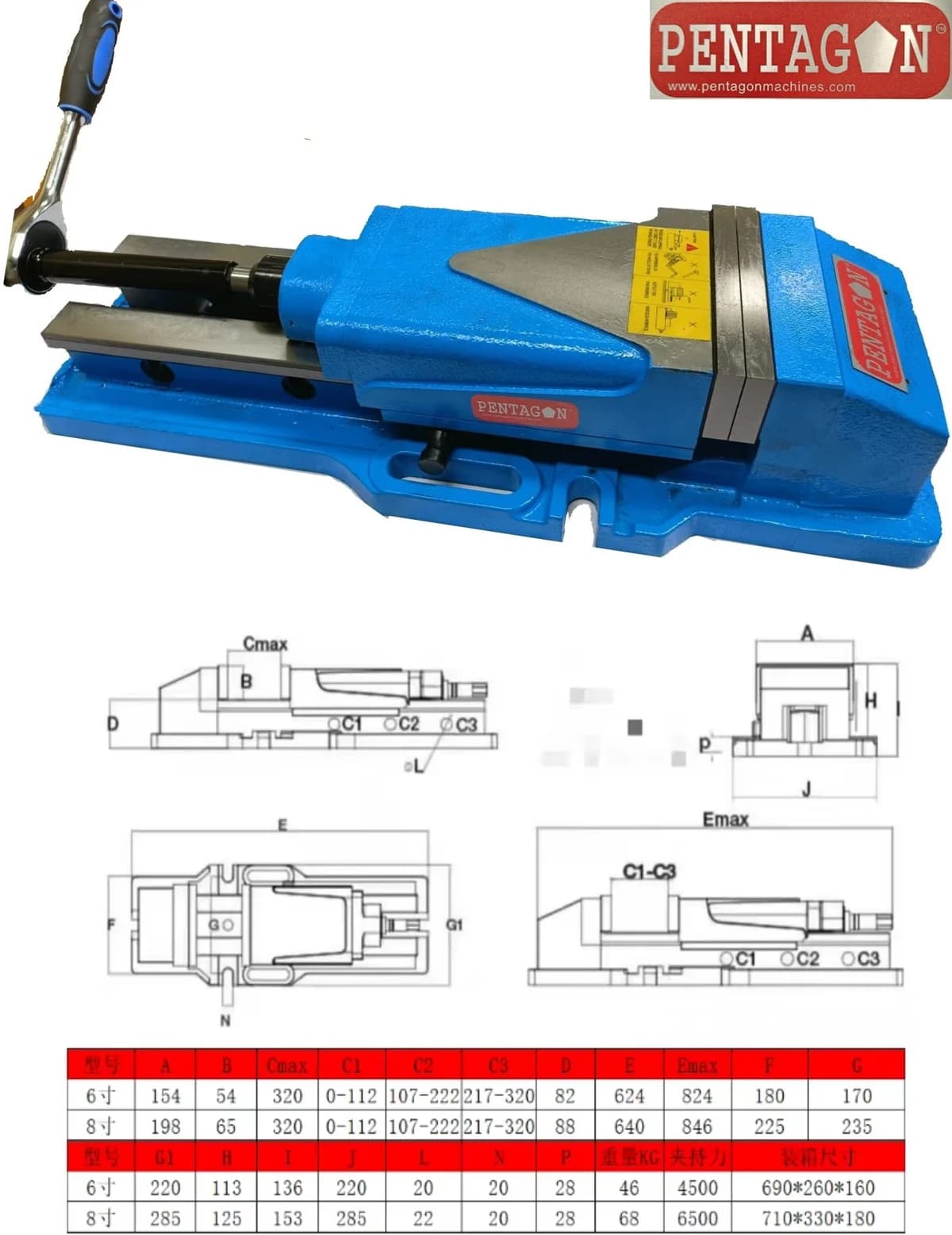

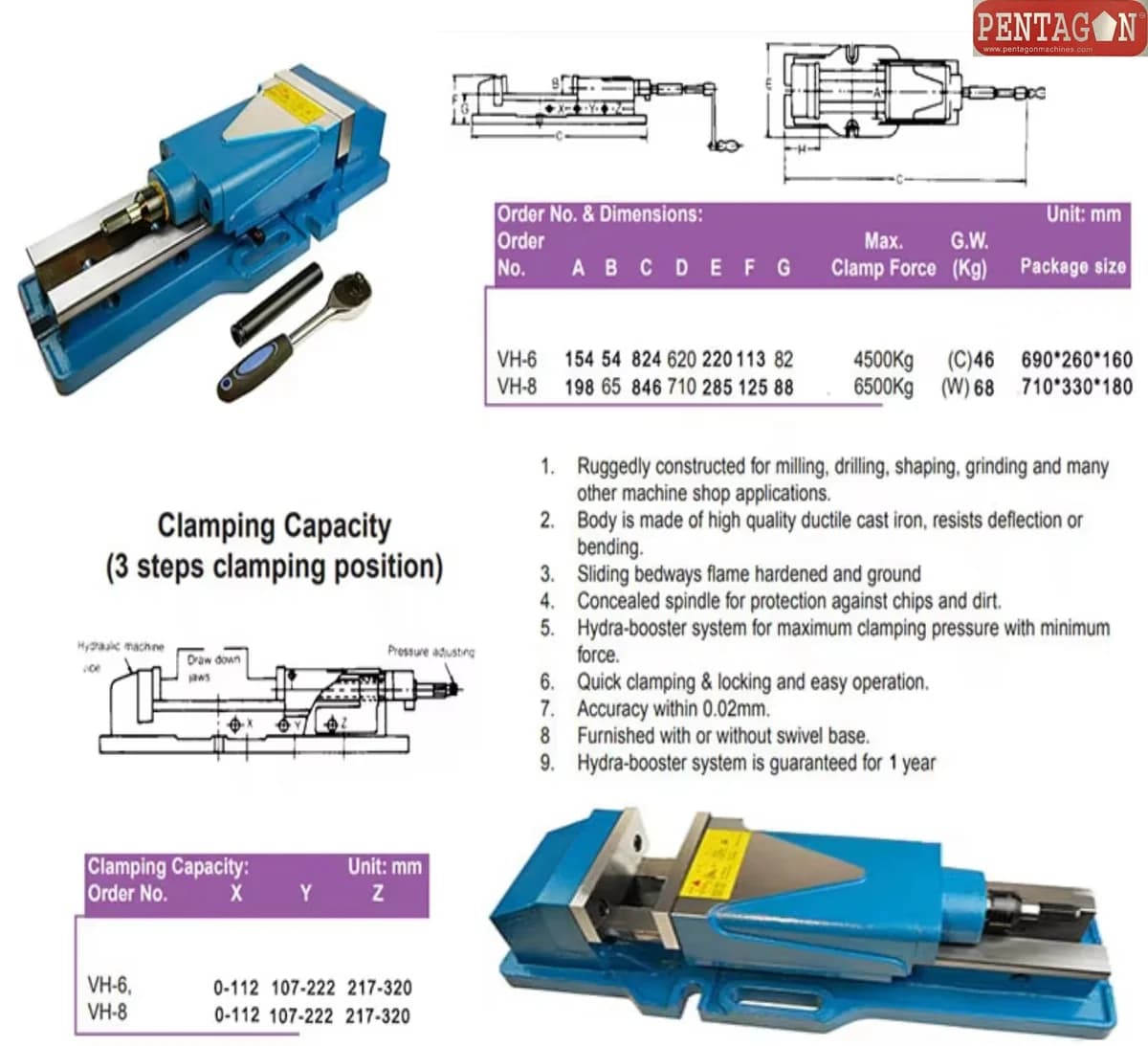

Specifications
For: PHV-240- Model
- PHV 240
- Maximum Jaw Opening
- 240 mm
- Width of Jaws
- 135 mm
- Depth of Jaws
- 52 mm
- Clamping Force
- 4500 kgf ≈ 44.1 kN
- Jaw Material
- Hardened tool steel (HRC 50–55)
- Repeatability
- ±0.02 mm
- Overall Width
- 195 mm
- Overall Length
- 540 mm
- Overall Height
- 215 mm
- Weight
- 38 kgs
Configurations

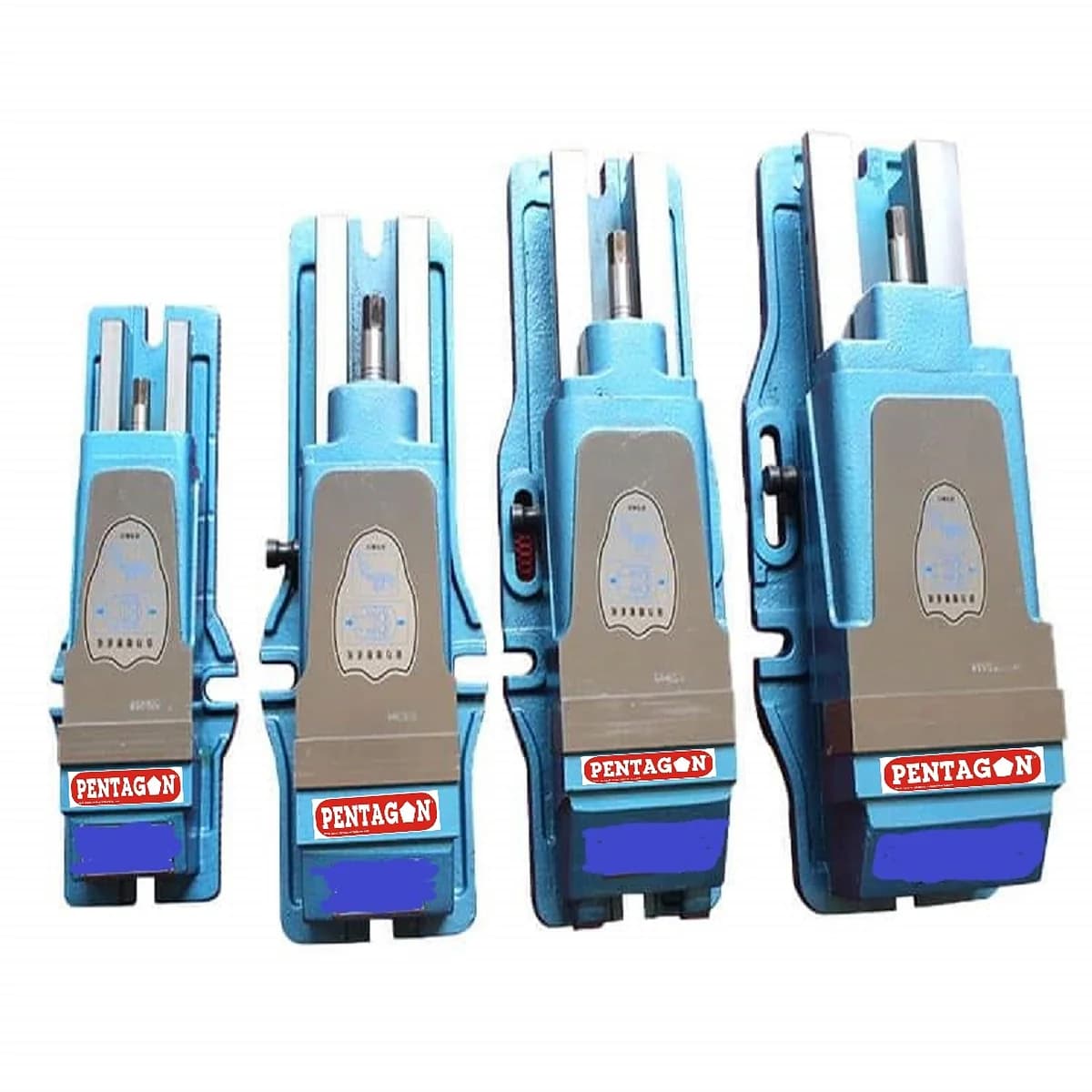

Click a row to switch| Variant | Maximum Jaw Opening | Width of Jaws | Depth of Jaws | Overall Length | Price |
|---|---|---|---|---|---|
| PHV-240 | 240 mm | 135 mm | 52 mm | 540 mm | ₹22,800 |
| APEX-782P-300 | 300 mm | 150 mm | 70 mm | 700 mm | ₹24,600 |

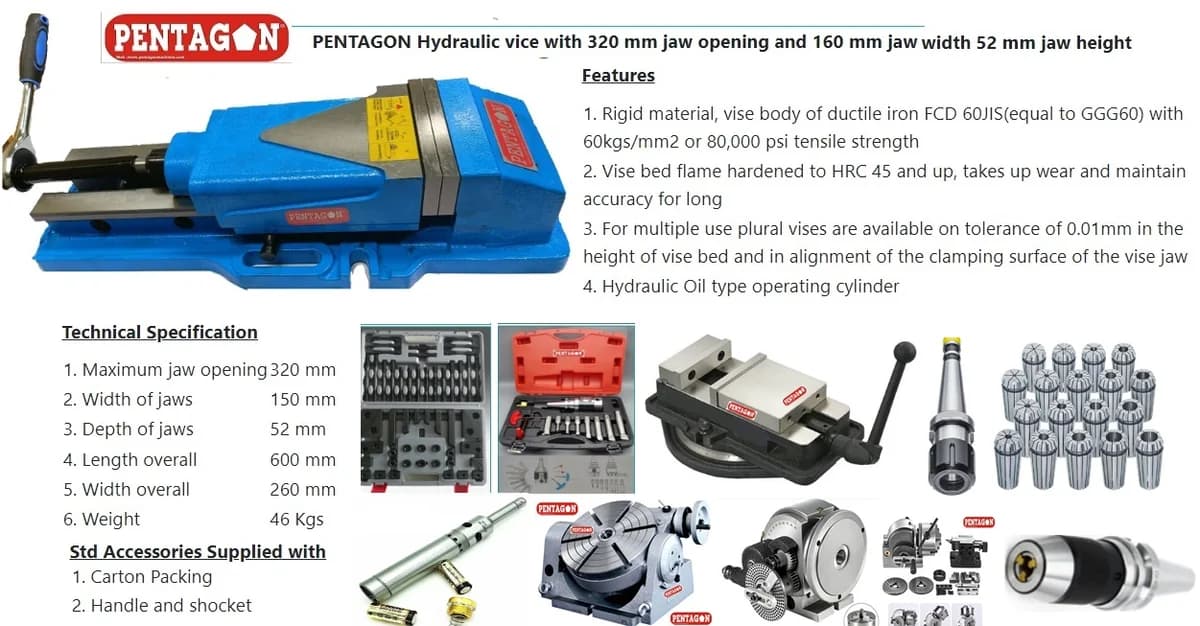

| PHV-320 | 320 mm | 160 mm | 52 mm | 600 mm | ₹26,000 |
Compatibility
- Fits standard machine tenon slot configurations
- Integrates seamlessly with milling and drilling machines
- Suitable for diverse industrial manufacturing settings
- Supports varied workpiece sizes within jaw opening limits
Operational Benefits
- Reduces setup time with quick hydraulic actuation
- Maintains consistent pressure for uniform part quality
- Ideal for high-volume production runs
- Minimizes tool vibration during cutting operations
- Enhances overall machine tool efficiency
Construction Quality
- Hardened tool steel jaws resist wear and deformation
- Jaw material hardness rated HRC 50–55 for longevity
- Ensures stability and accuracy across varied job sizes
- Robust design withstands demanding machining conditions
- Precision engineering maintains alignment over time
Core Performance
- PENTAGON Hydraulic Machine Vice delivers consistent clamping force
- Secure workholding during milling and drilling operations
- High clamping force up to 120 kN for heavy-duty tasks
- Precision repeatability ensures accurate part positioning
- Compatible with standard machine tenon slots
- Designed for industrial environments
More questions buyers ask
What is a hydraulic machine vice used for?
A hydraulic machine vice is used for securely holding workpieces during heavy-duty milling, drilling, and grinding operations, providing consistent, high-pressure clamping force.
What are the benefits of using a hydraulic vice over a manual one?
Hydraulic vices offer faster setup times, consistent clamping pressure, reduced operator fatigue, and superior vibration dampening during machining.
Are Pentagon hydraulic vices compatible with VMC machines?
Yes, Pentagon hydraulic vices are designed for industrial use and are compatible with standard milling machines, drilling machines, and VMC setups.
What is the clamping force of these vices?
Pentagon hydraulic vices typically provide high clamping forces, ranging from 45 kN to 120 kN depending on the specific model.
Can the jaws be replaced?
Yes, the hardened tool steel jaws are designed for durability and can be replaced when they show signs of wear.
What is the repeatability accuracy of these vices?
These precision hydraulic vices offer high repeatability, typically around ±0.02 mm, ensuring consistent part quality.
Do you provide a GST invoice?
Yes, all purchases include a valid GST invoice for your accounting and tax credit requirements.
Is pan-India delivery available?
Yes, we offer reliable pan-India delivery for all our industrial machine accessories.
What material are the jaws made of?
The jaws are manufactured from high-quality hardened tool steel with a hardness rating of HRC 50–55 for maximum longevity.
How do I choose the right size hydraulic vice?
Choose based on your maximum workpiece size (jaw opening), required clamping force, and the table dimensions of your machine tool.
Who should choose the PHV-240 model?
The PHV-240 is ideal for standard milling and drilling tasks requiring a 240mm jaw opening and reliable 45kN clamping force.
Who should choose the APEX-782P-300 model?
The APEX-782P-300 is best for heavy-duty applications needing a larger 300mm jaw opening and higher clamping force capacity.
Who should choose the PHV-320 model?
The PHV-320 is perfect for workshops handling larger workpieces up to 320mm that still require the precision of a hydraulic system.
How does the PHV-240 compare to the PHV-320?
The PHV-240 offers a 240mm opening, while the PHV-320 provides a larger 320mm opening for bigger parts, with both sharing similar precision standards.
Is the APEX-782P-300 more powerful than the PHV series?
Yes, the APEX-782P-300 is designed for more demanding industrial tasks with a higher clamping force range and larger jaw depth compared to the standard PHV models.
