PLU Series Hydraulic Cylindrical Grinding Machine with ID and OD Attachment — PLU-500x150
Hydraulic Cylindrical Grinding Machine with ID & OD attachment for precision internal and external grinding of components up to 500 mm length × 150 mm Center Height. Features hydraulic feed, swiveling wheel head, mechanical 4-step table drive, and integrated coolant system for high accuracy, superior surface finish, and reliable production or workshop use.

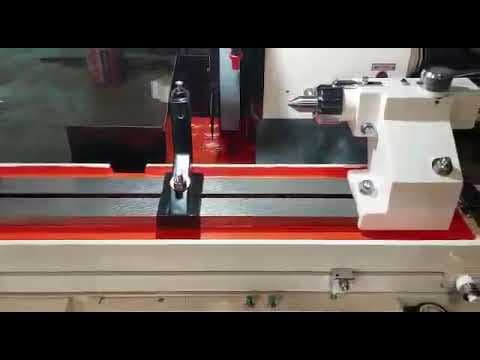

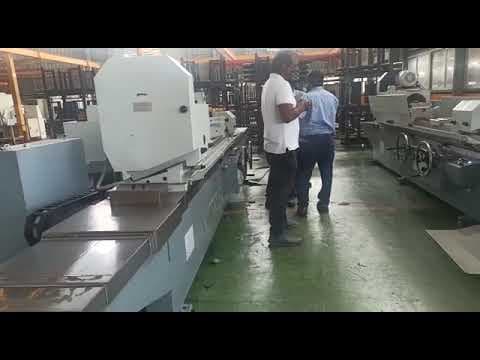

See it in action
Specifications
For: PLU-500x150- Model
- PLU-500x150
- Height of Center
- 150 mm
- Distance Between center
- 510 mm
- Max Grinding Dia OD
- 300 mm
- Spindle taper
- MT-4
- Motor Power for OD Grinding Wheel
- 3hp 3Phase 1440 rpm
- Spindle Speed
- 65, 140, 205 and 300 rpm
- Spindle Speed for ID Grinding
- 16000 rpm
- Tailstock Quill Taper
- MT-4
- Table speed Mech. 4 step
- 140, 260, 370 and 700 mm/min
- Quill Stroke
- 40 mm
- Motor Power for Table feed
- 0.5hp 3phase 1440 rpm
- Grinding wheel size OD
- 350x40x127 mm
- Swiveling Angle
- +7°, -3°
- Motor power for ID Grinding
- 1hp 3Phase 2800 rpm
- Coolant tank capacity
- 50 liters
- Coolant Motor
- 0.15hp
- Rapid Approch
- 40 mm (FxR)
- Infeed handwheel per division
- 0.01 mm
- Hydraulic Power pack Motor Power
- 1hp 3Phase 1440 rpm
- Spindle Size for ID Grinding
- 250x60 mm
- Hydraulic Speed Infinitely Variable
- 0.1 to 2.5 meter/Min
- Grinding Wheel Speed
- 1700 rpm
- Electric Motor for Work head
- 0.5 hp 3Phase 960 rpm
- Machine Weight Approx
- 1700 Kgs
Configurations
Click a row to switch| Variant | Height of Center | Distance Between center | Grinding Wheel Speed | Spindle taper | Price |
|---|---|---|---|---|---|
| PLU-600x150 | 150 mm | 610 mm | 1700 rpm | MT-4 | ₹8,75,000 |
| PLU-800x150 | 150 mm | 810 mm | 1700 rpm | MT-4 | ₹9,26,000 |
| PLU-1000x150 | 150 mm | 1010 mm | 1700 rpm | MT-4 | ₹11,20,000 |
| PLU-1250x150 | 150 mm | 1260 mm | 1700 rpm | MT-4 | ₹12,40,000 |
| PLU-500x150 | 150 mm | 510 mm | 1700 rpm | MT-4 | ₹8,25,000 |
Maintenance Guidelines
- Regular coolant filtration ensures longevity of the hydraulic power pack
- Machine operators should adhere to standard safety protocols for grinding
- Periodic lubrication of table ways maintains smooth mechanical movement
- Spindle bearings require monitoring to prevent overheating during use
- Follow manufacturer guidelines for wheel balancing and dressing procedures
Industry Applications
- Ideal for automotive component manufacturing requiring cylindrical precision
- Suitable for hydraulic cylinder production and repair services
- Effective for general engineering workshops needing versatile grinding
- Supports bearing raceway grinding and shaft finishing operations
- Used in tool and die making for hardened steel component processing
Construction & Stability
- Robust machine construction ensures stability during high-load grinding tasks
- Approximate weight of 1700 Kgs provides necessary mass for vibration damping
- Tailstock and work head spindles feature MT-4 taper for standard tooling
- 50 liter coolant tank capacity reduces refill frequency during long shifts
- Durable design suitable for both high-volume production and workshop environments
Precision Operations
- Designed for superior surface finish and tight tolerance maintenance
- Swiveling wheel head allows for angled grinding operations up to +7° and -3°
- Mechanical table drive ensures reliable movement during grinding cycles
- Hydraulic speed infinitely variable from 0.1 to 2.5 meter per minute
- Rapid approach capability of 40 mm reduces non-cutting time significantly
- Infeed handwheel division of 0.01 mm allows for micro-adjustments
Optional Accessories
- Digital Readout (DRO) for X & Z axes
- CNC controller automation kit (cycle grinding)
- Steady rest for long shafts
- Follow rest for thin jobs
- Auto taper grinding attachment
- In-process gauging system
- Coolant filtration system (paper band/mesh)
- Auto lubrication system (motorized)
- Variable frequency drive (VFD) for spindle speed variation
- Diamond tool holder for wheel dressing
- Dresser fixture (manual/auto)
- Anti-vibration pads
Standard Accessories
- Hydraulic power pack with controlled feed
- Internal grinding spindle (ID) attachment
- External grinding wheel head (OD)
- Wheel balancing stand
- Wheel balancing arbor
- Coolant system with settling tank
- Splash guards and safety covers
- Tailstock with hardened centre
- Machine lamp
- Lubrication system (centralized/manual)
- Standard grinding wheels (ID & OD)
Key Features & Capabilities
- High precision hydraulic cylindrical grinding machine for industrial use
- Equipped with ID and OD attachment for versatile internal and external grinding
- Features hydraulic feed system for smooth and consistent material removal
- Includes Variable Frequency Drive (VFD) for precise speed control
- Standard height of center is 150 mm for stable workpiece support
- Admits workpieces between centers ranging from 300 to 1500 mm
More questions buyers ask
What is a hydraulic cylindrical grinding machine?
A hydraulic cylindrical grinding machine is a precision tool used for grinding the exterior of a workpiece to a cylindrical shape. It uses hydraulic systems for smooth and controlled movement of the grinding wheel and the workpiece, ensuring high accuracy and a fine surface finish.
What are the main applications of the Pentagon PLU Series?
The Pentagon PLU Series is ideal for various industrial applications, including automotive component manufacturing, hydraulic cylinder production and repair, bearing raceway grinding, and general engineering workshops that require versatile and precise grinding capabilities.
What is the maximum grinding diameter and length of the PLU series?
The maximum grinding diameter for all models in the PLU series is 300 mm. The maximum grinding length varies by model, ranging from 510 mm for the PLU-500x150 to 1260 mm for the PLU-1250x150.
Does the machine come with both internal (ID) and external (OD) grinding capabilities?
Yes, the PLU Series machines are equipped with attachments for both internal (ID) and external (OD) grinding, making them highly versatile for a wide range of cylindrical grinding tasks.
What is the benefit of the hydraulic feed system?
The hydraulic feed system provides an infinitely variable table speed (0.1 to 2.5 m/min), allowing for precise control over the grinding process. This results in superior surface finishes and high dimensional accuracy.
What is the warranty on this machine?
All Pentagon machines come with a standard 1-year manufacturer warranty against manufacturing defects. We also provide after-sales support and service across India.
Can I get a GST invoice for my purchase?
Yes, we provide a GST invoice for all purchases. This allows you to claim input tax credit for your business.
Do you offer delivery across India?
Yes, we offer pan-India delivery for the Pentagon PLU Series grinding machines. We ensure safe and timely delivery to your workshop or factory.
What is the power requirement for the machine?
The machine requires a 3-phase power supply. The total power requirement varies depending on the motors running, with the main grinding wheel motor being 3 HP.
What maintenance is required for this machine?
Regular maintenance includes checking and filtering the coolant, lubricating the table ways, and monitoring the spindle bearings. A detailed maintenance schedule is provided with the machine manual.
Who should choose the PLU-500x150 model?
The PLU-500x150 is the most compact and affordable model in the series. It is ideal for workshops and businesses that need to grind smaller components up to 510 mm in length with high precision.
Who should choose the PLU-600x150 model?
The PLU-600x150 offers a longer bed than the base model, accommodating workpieces up to 610 mm. It's a great choice for workshops that handle a mix of small to medium-sized components.
Who should choose the PLU-800x150 model?
With a grinding length of 810 mm, the PLU-800x150 is suited for job shops and production facilities that require the flexibility to grind longer shafts, rollers, and hydraulic cylinders.
Who should choose the PLU-1000x150 model?
The PLU-1000x150 is a heavy-duty machine for grinding long components up to 1010 mm. It is perfect for manufacturing and repair of long shafts and other large cylindrical parts.
Who should choose the PLU-1250x150 model?
As the largest model in the series, the PLU-1250x150 is designed for heavy industrial applications involving very long workpieces up to 1260 mm. It offers the maximum capacity for the most demanding jobs.
What is the main difference between the PLU-500 and PLU-800 models?
The primary difference is the 'Distance Between Centers,' which dictates the maximum length of the workpiece. The PLU-500 accommodates up to 510 mm, while the PLU-800 can handle longer components up to 810 mm. The PLU-800 is also a heavier machine, providing more stability.
How does the PLU-1000 compare to the PLU-1250?
Both are large-capacity machines. The PLU-1250 has a longer bed, allowing for workpieces up to 1260 mm compared to 1010 mm for the PLU-1000. The PLU-1250 is also significantly heavier (3680 Kgs vs 2800 Kgs), offering maximum rigidity for precision grinding of very long parts.
Is there a significant price difference between the models?
Yes, the price increases with the size and capacity of the machine. The PLU-500x150 is the most affordable, while the PLU-1250x150 is the premium model. The price reflects the increased material, construction, and capacity of the larger machines.
