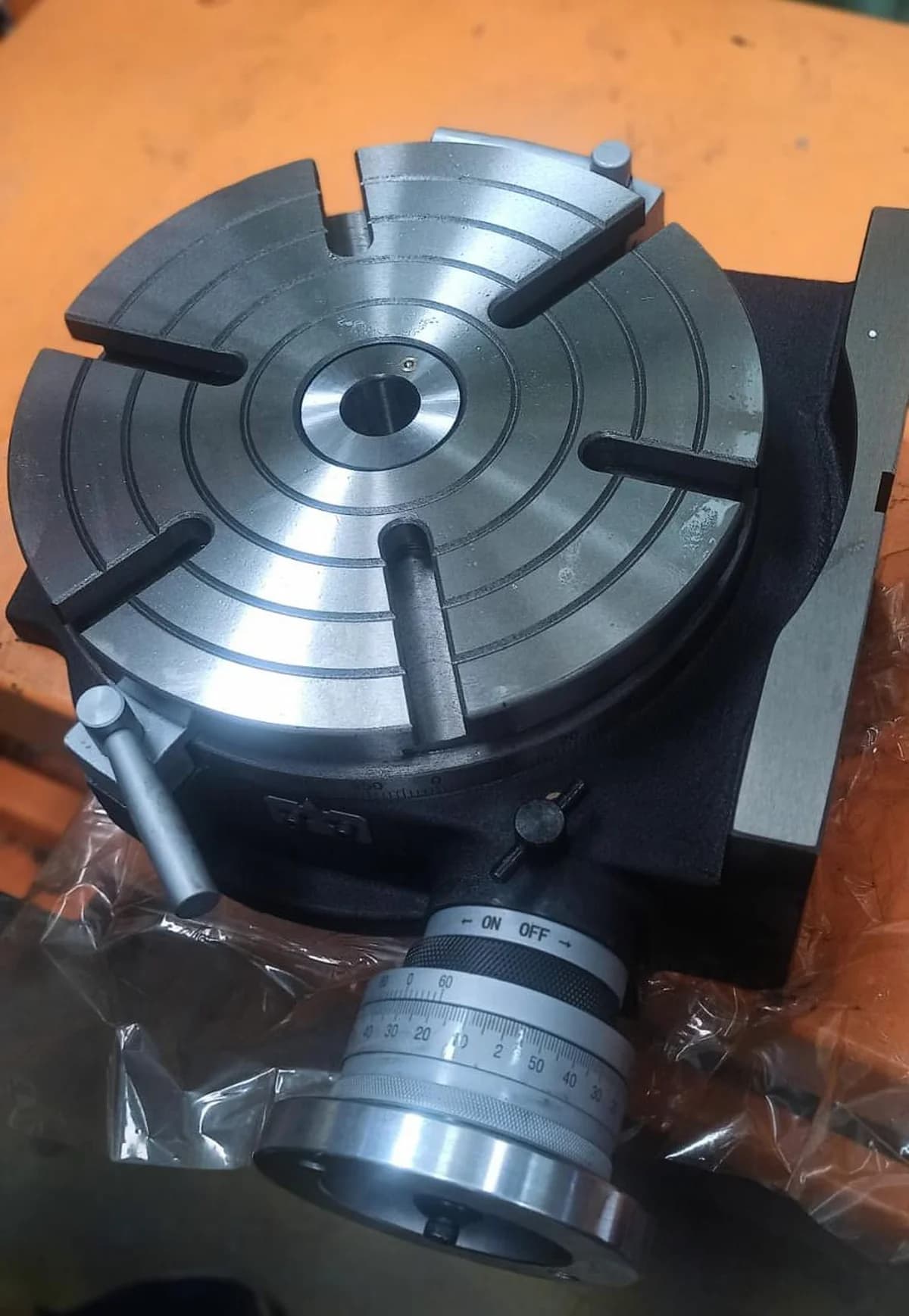

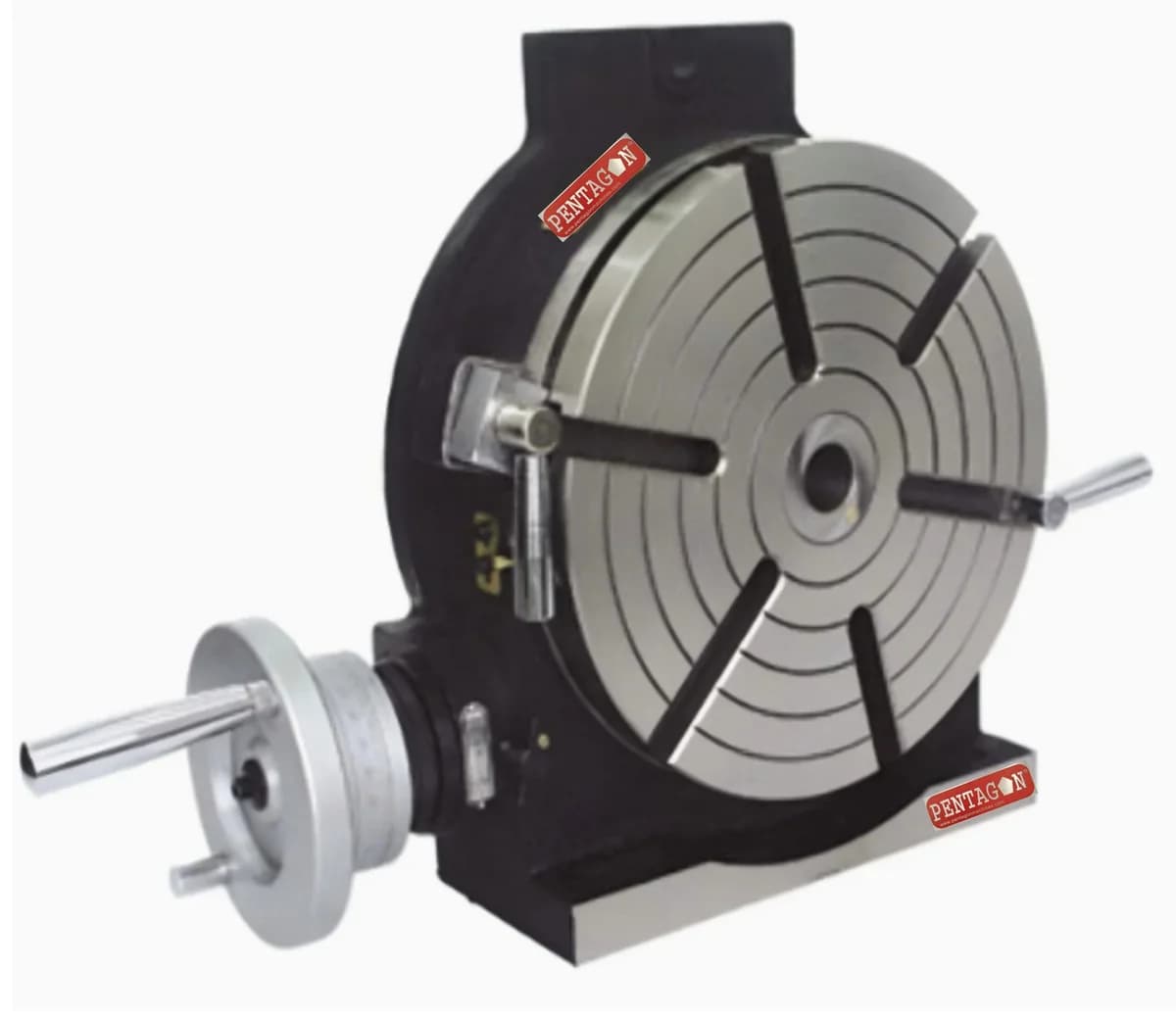

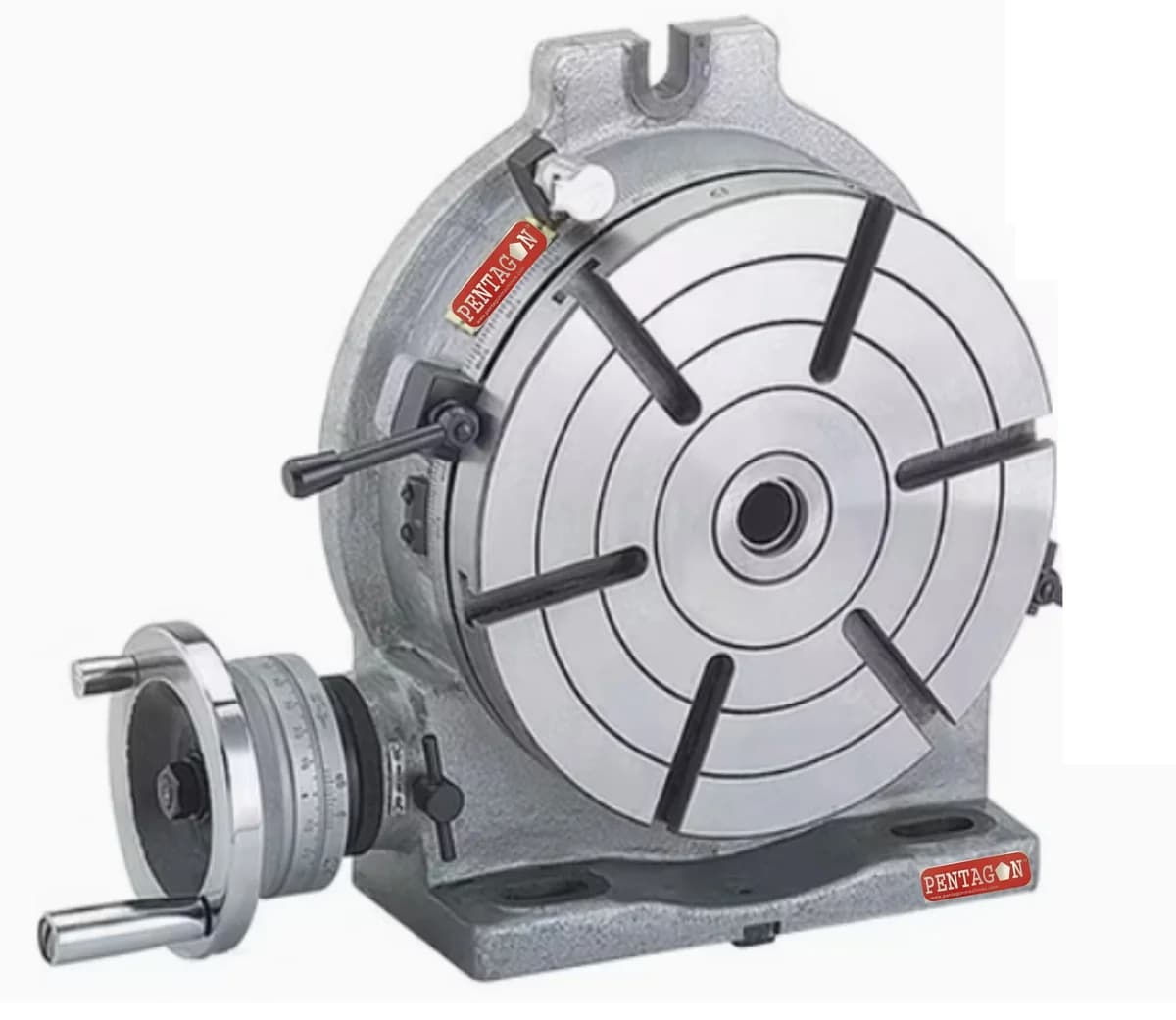

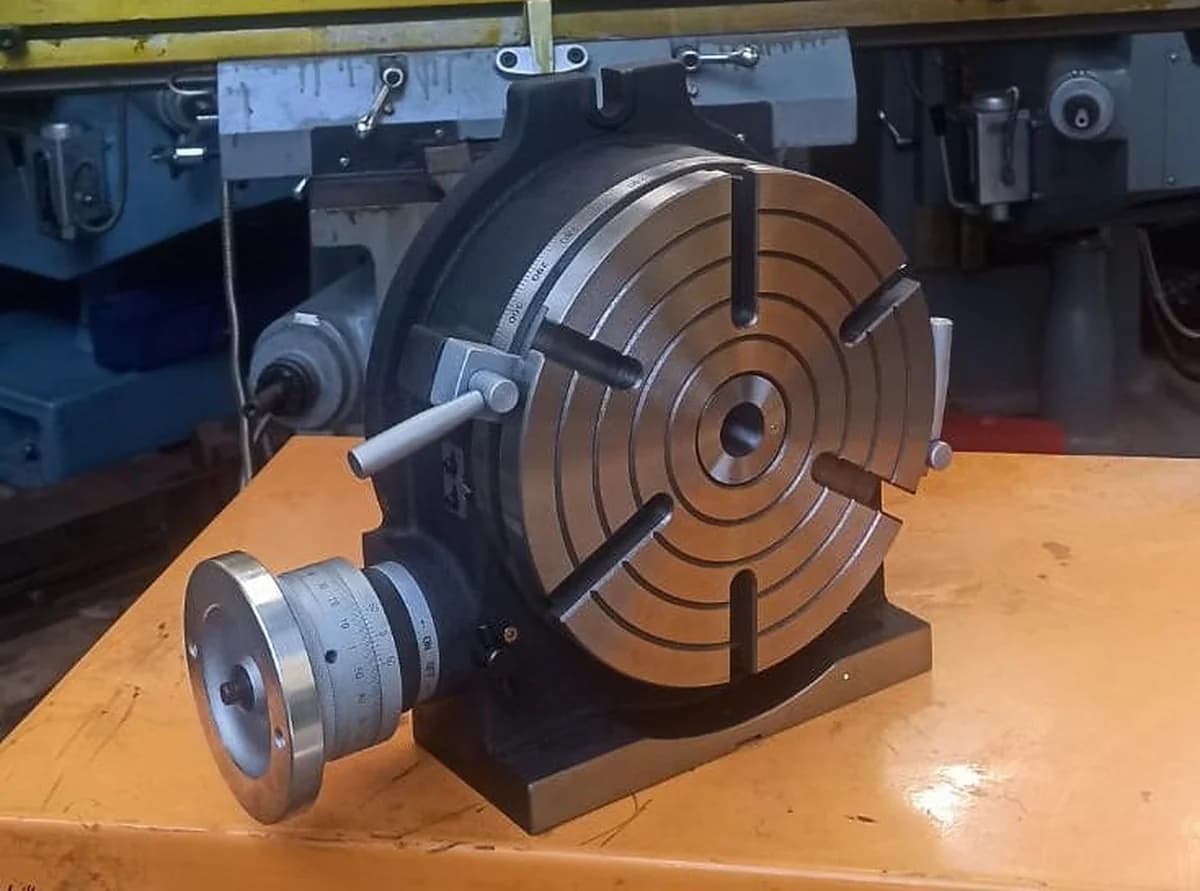

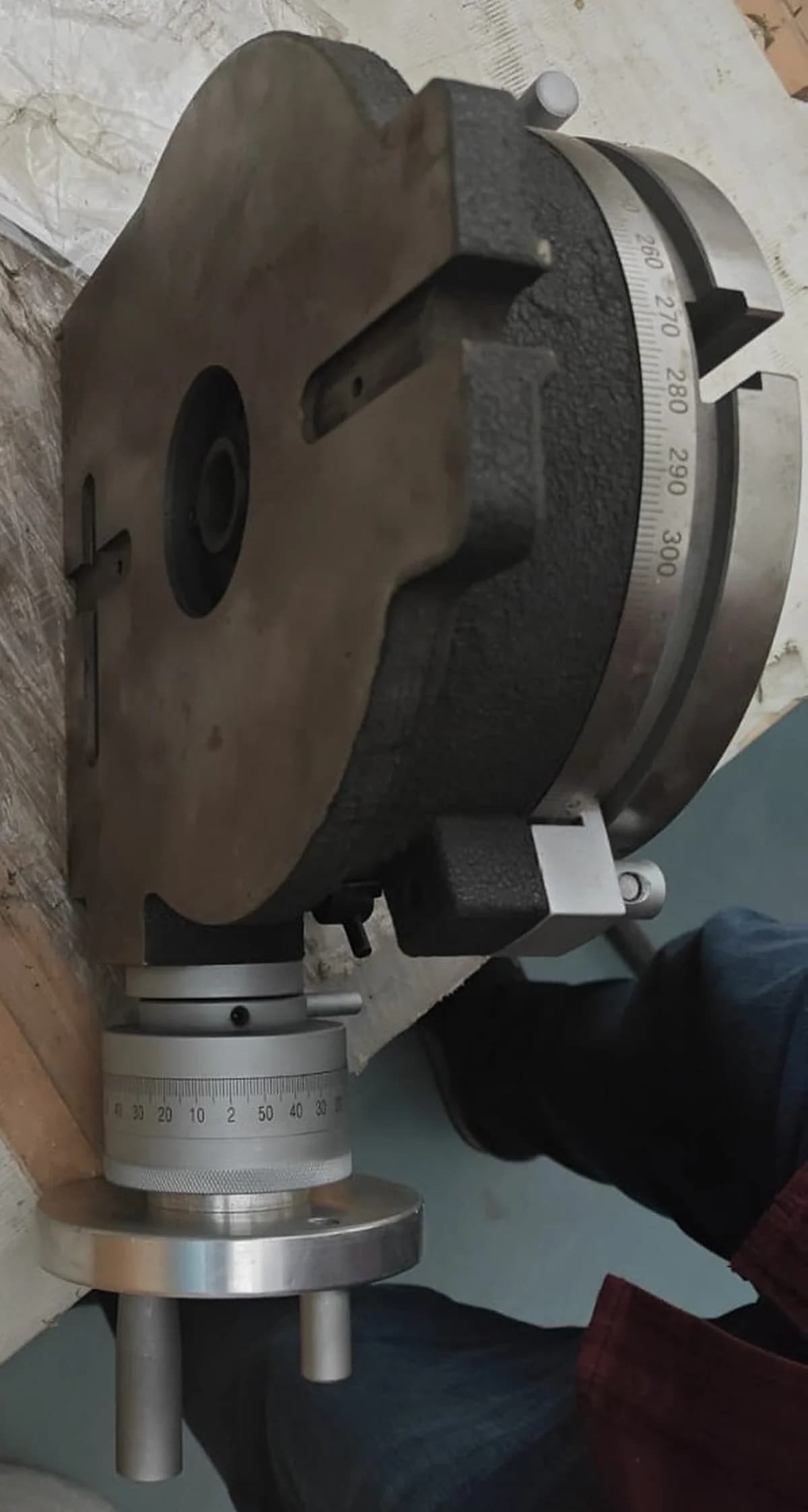

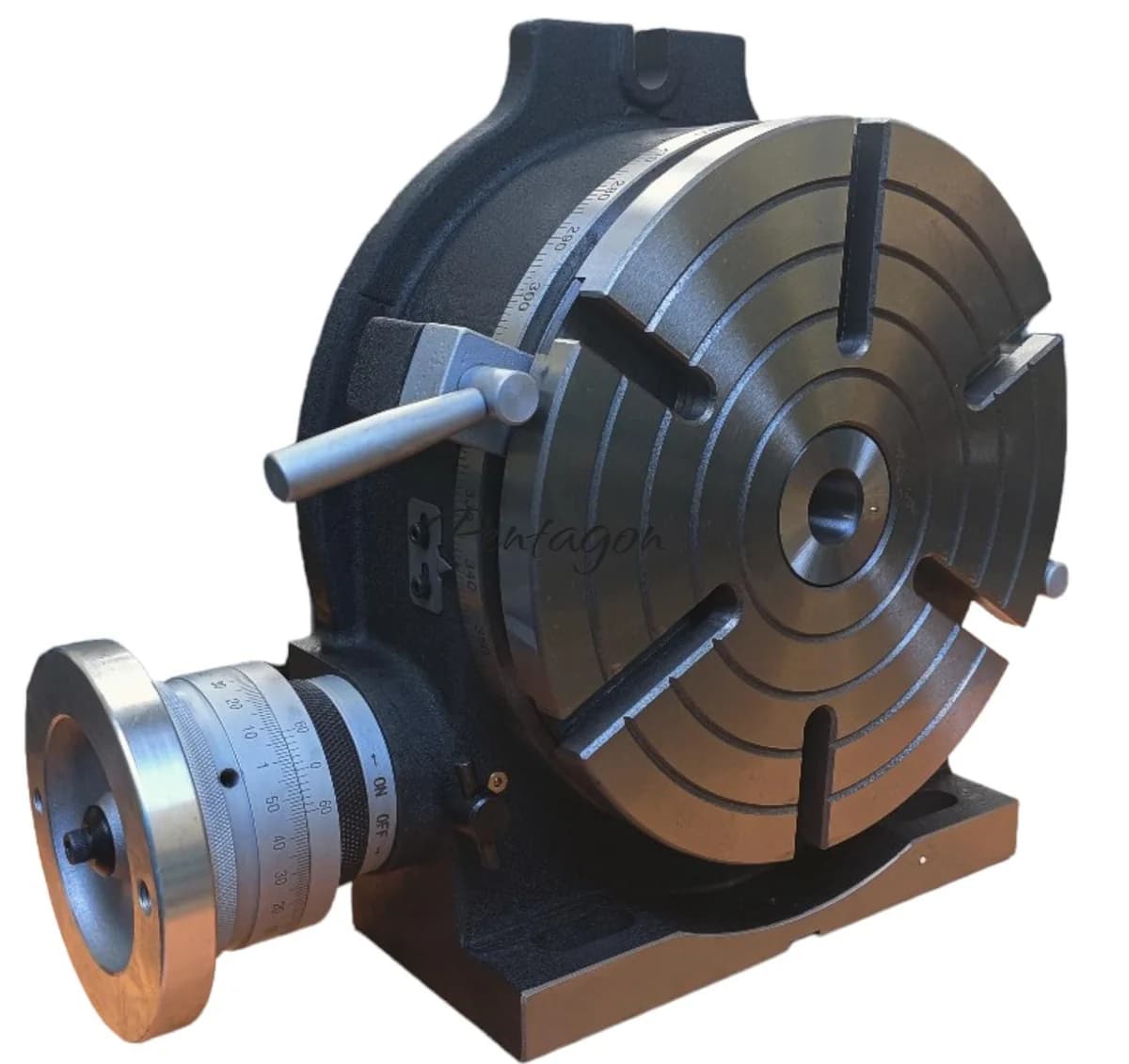

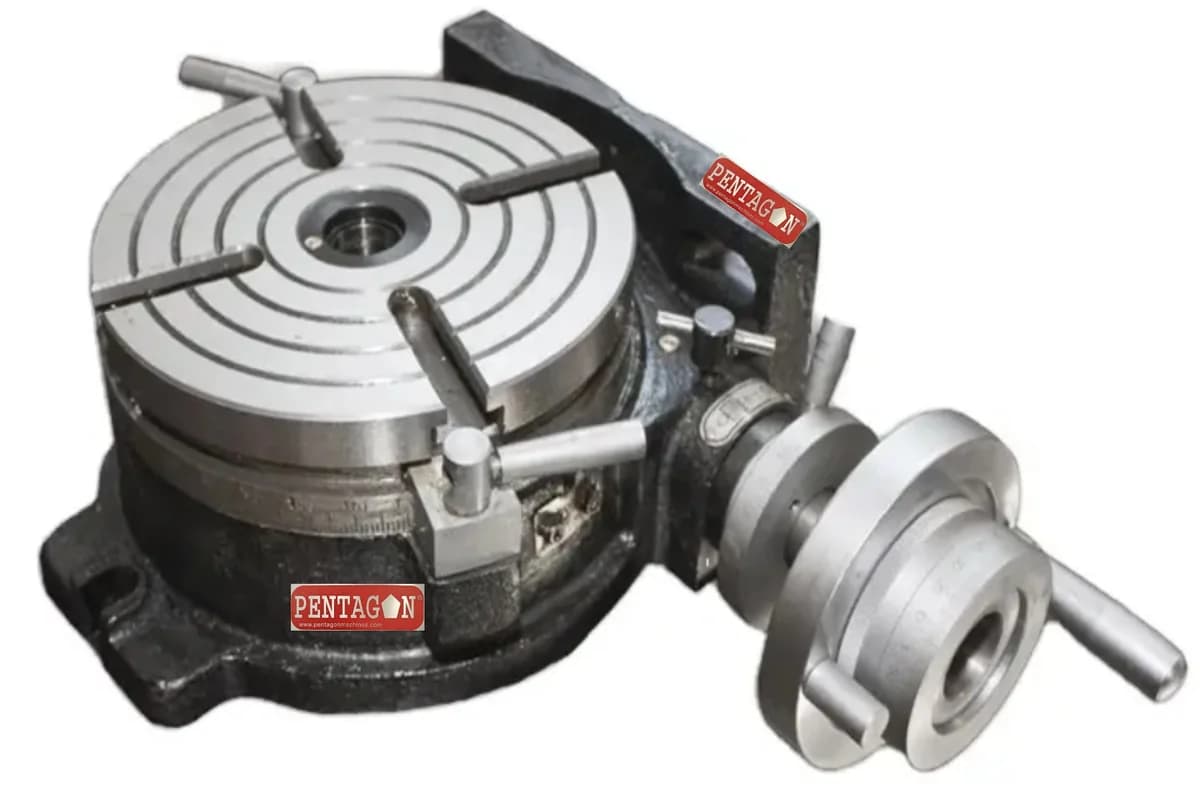

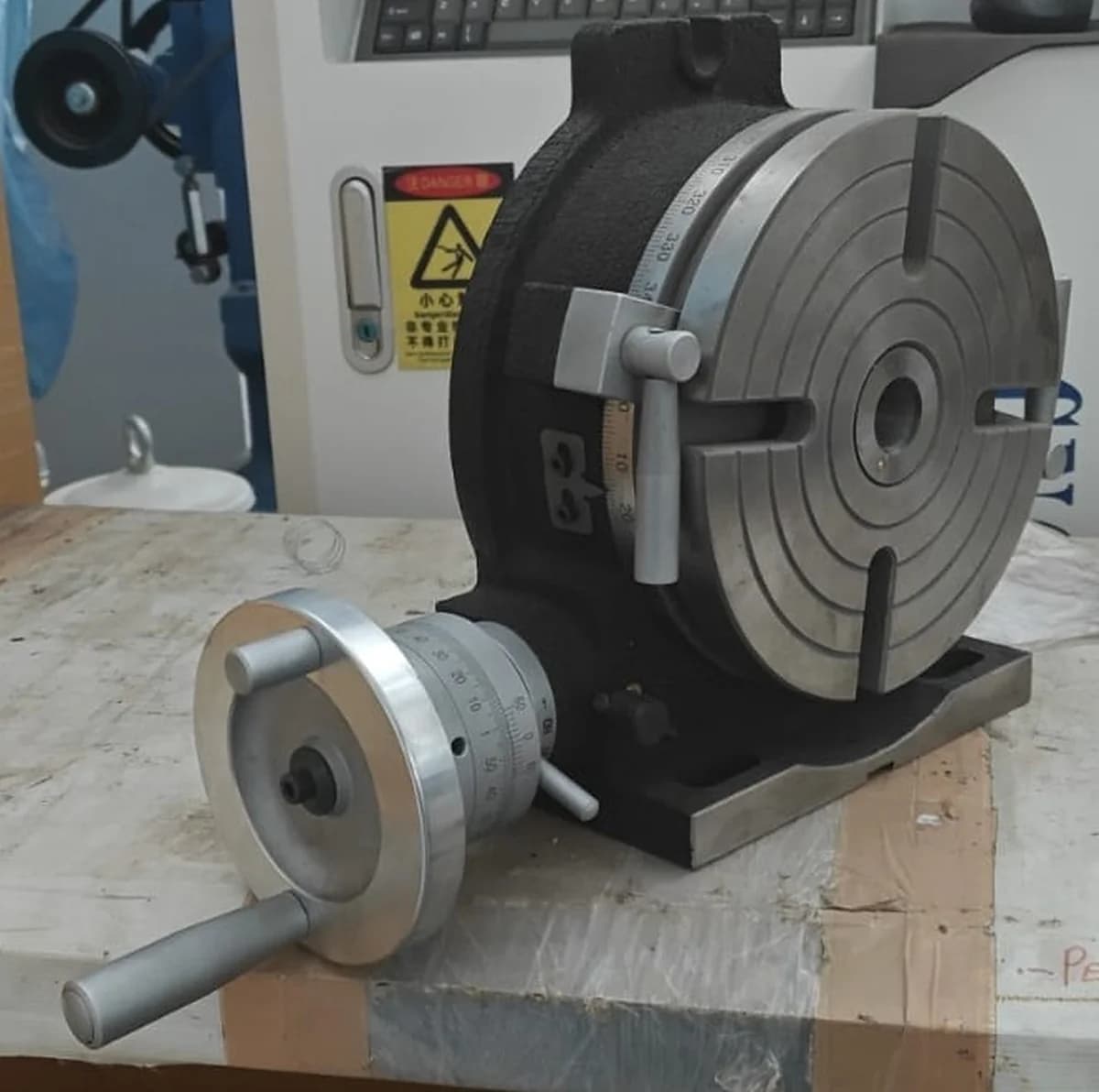

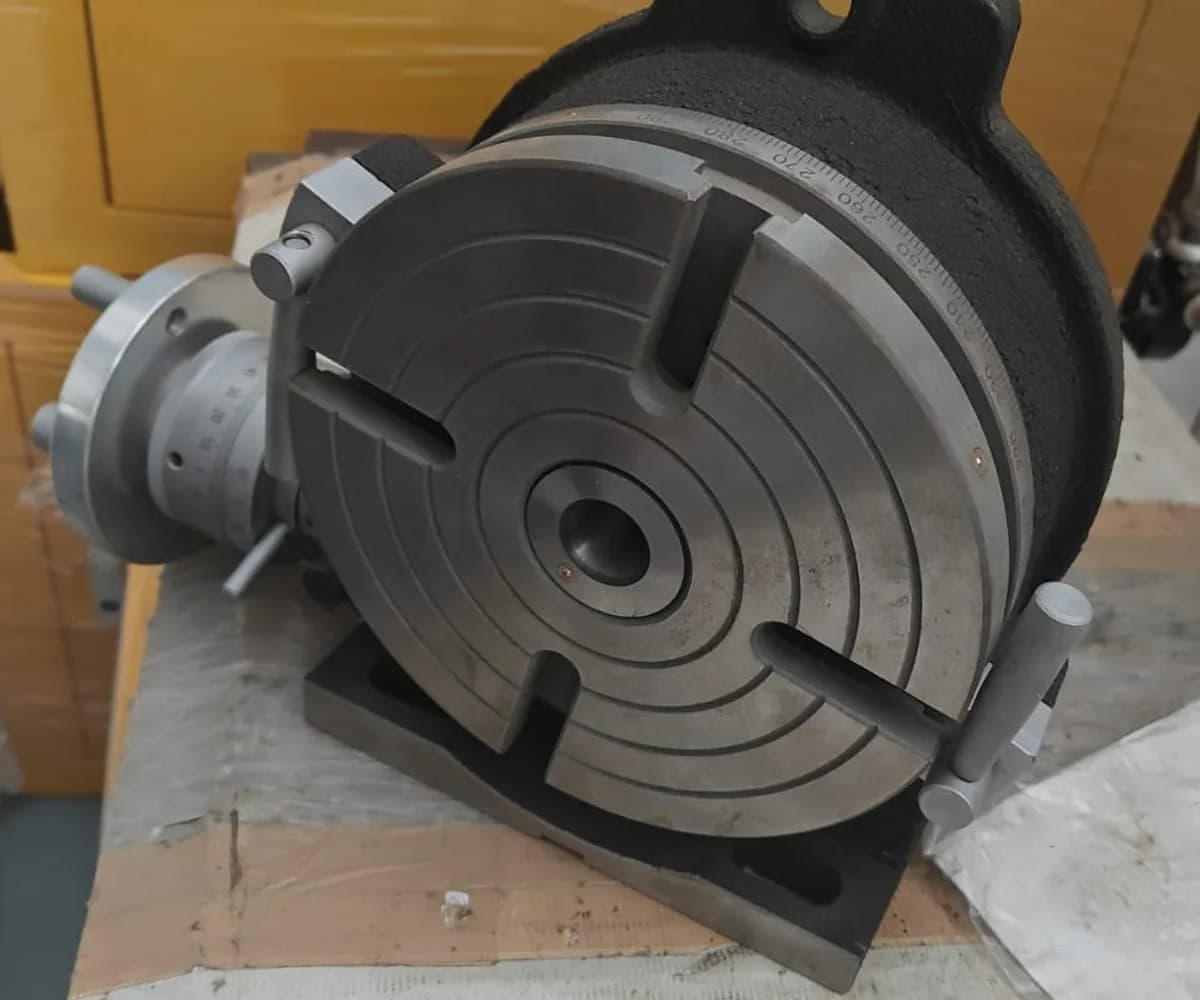

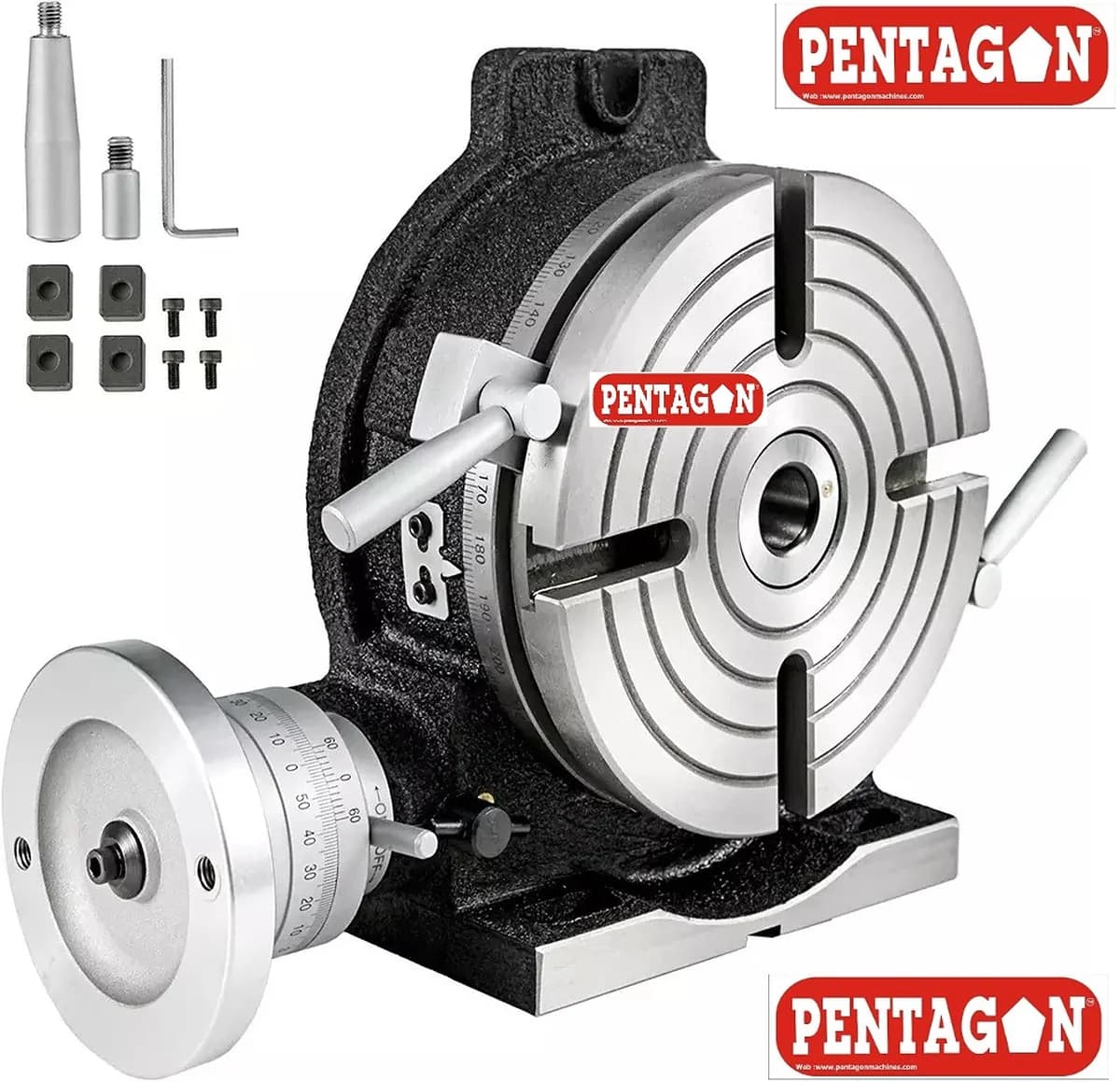

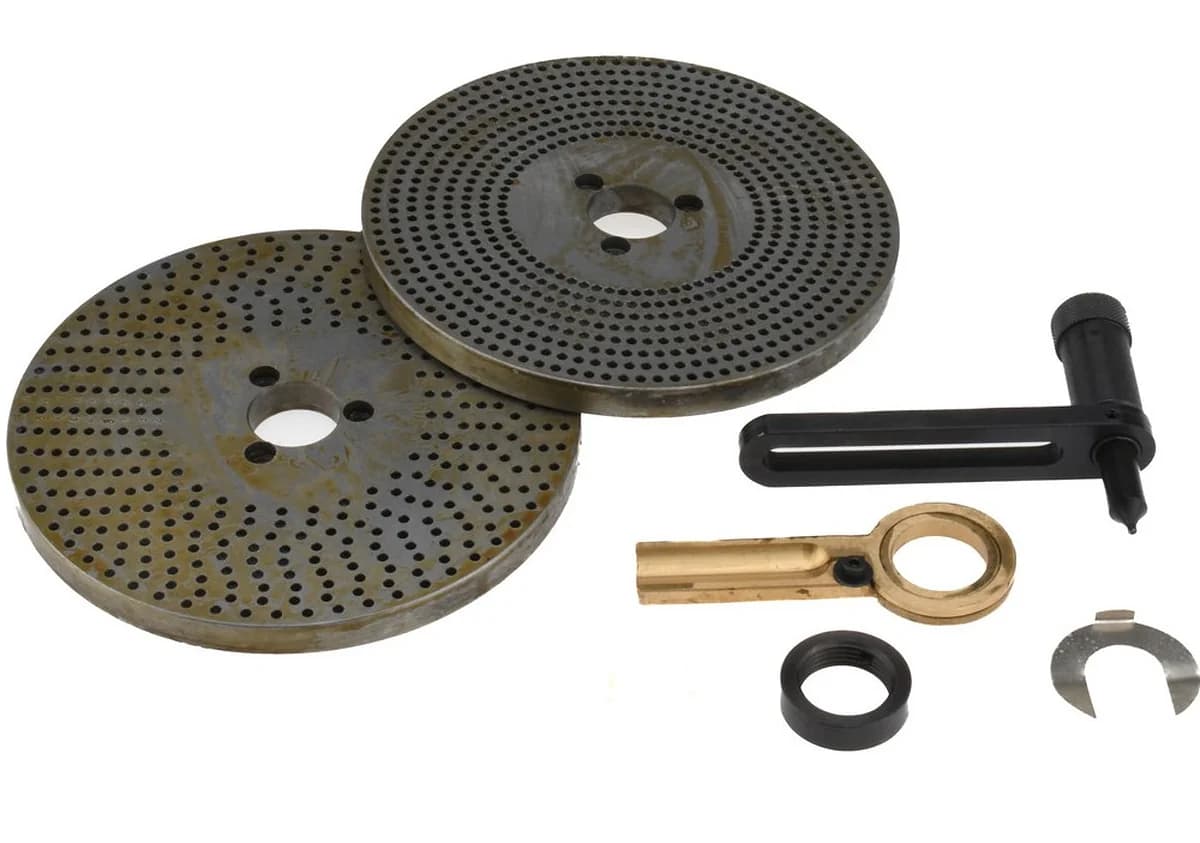

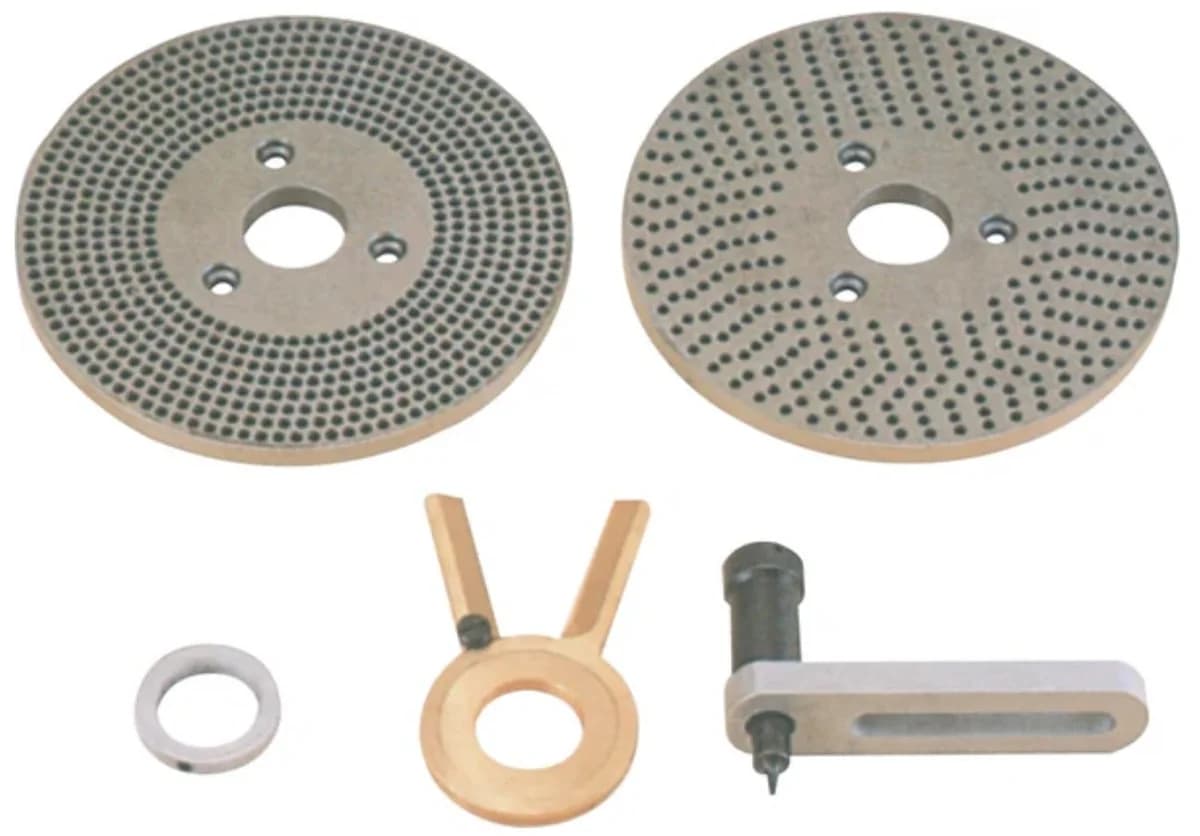

Pentagon Precision H/V Rotary Table TSL Series for Milling & Indexing Applications Model TSL-160
These precision rotary tables deliver accurate angular positioning for milling and indexing applications. This 160 mm table suits smaller workpieces with 50 kg capacity. • 4x10 mm T-slots for versatile clamping • 10-second graduation for precise indexing • 25 mm through hole for tool access • 1:90 worm gear ratio for smooth rotation

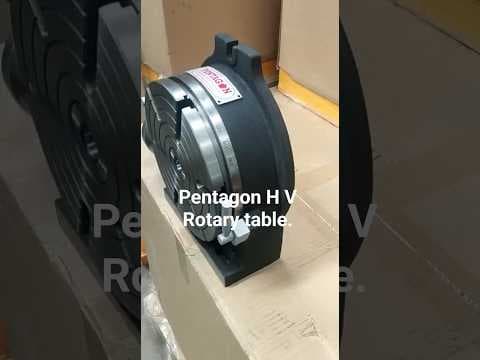

See it in action

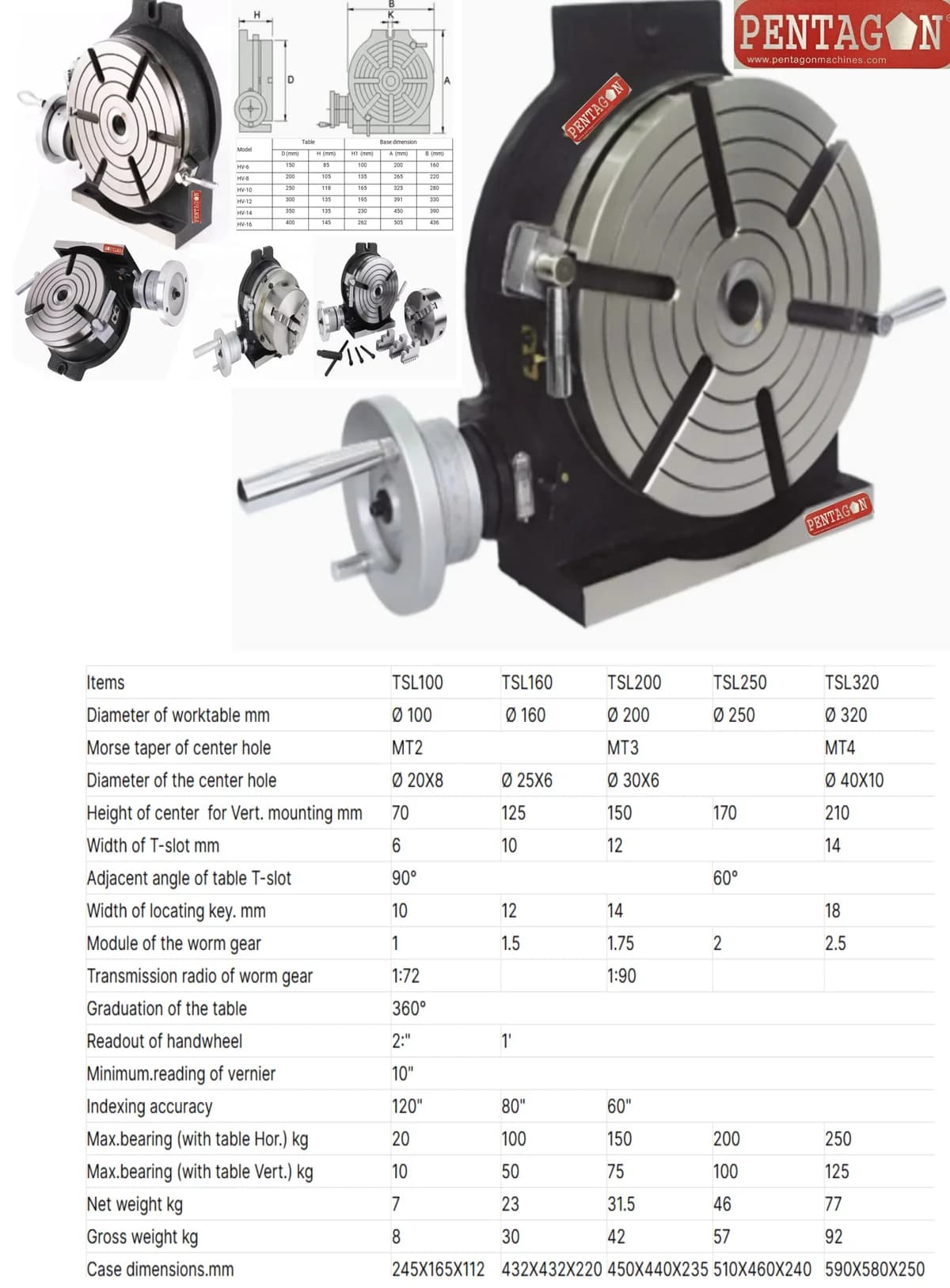

Specifications
For: TSL-160- Model
- TSL160
- Table Diameter
- 160 mm
- Center Height
- 125 mm
- Through Hole
- 25 mm
- T-Slots (No x Size)
- 4x10 mm
- Worm Gear Ratio
- 1:90
- Minimum Graduation
- 10 sec
- Table Rotation
- 360°
- Load Capacity (Horizontal)
- 100 Kgs
- Load Capacity (Vertical)
- 50 Kgs
- Net Weight (Approx.)
- 30 Kgs
- Over all Size
- 290x240x180 mm

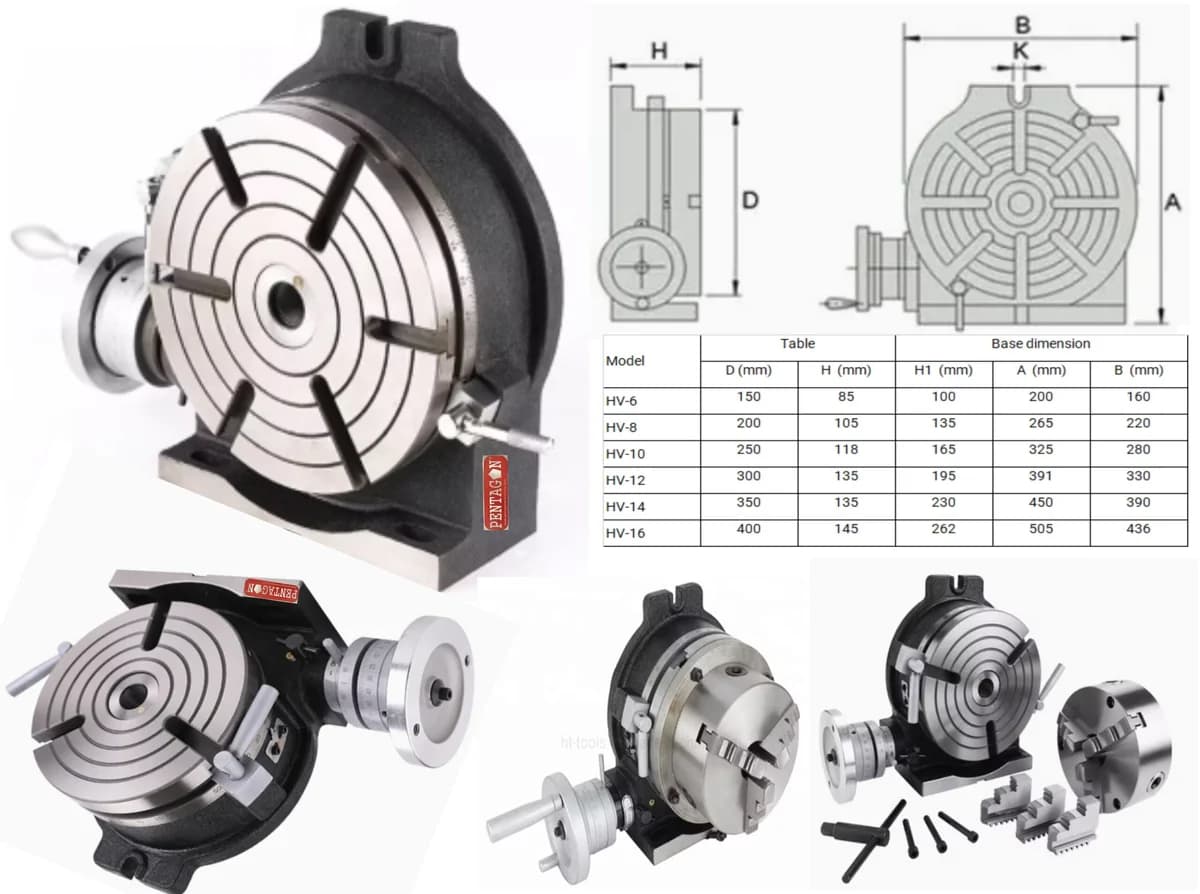

Configurations
Click a row to switch| Variant | Over all Size | Center Height | Through Hole | Price |
|---|---|---|---|---|
| TSL-160 | 290x240x180 mm | 125 mm | 25 mm | ₹16,800 |
| TSL-200 | 350x280x210 mm | 150 mm | 30 mm | ₹29,800 |
| TSL-250 | 420x330x240 mm | 170 mm | 40 mm | ₹32,800 |
| TSL-320 | 500x420x300 mm | 210 mm | 50 mm | ₹48,799 |
| TSL-400 | 600x500x360 mm | 260 mm | 60 mm | ₹1,14,700 |
Common Questions
Q: Can this rotary table be used on both horizontal and vertical mills? A: Yes, the TSL Series is designed for flexible mounting in both orientations. Q: What is the indexing accuracy of this series? A: The 1:90 worm-gear drive provides high precision for accurate angular positioning. Q: Is maintenance required for the worm-gear mechanism? A: Regular lubrication and cleaning are recommended to ensure smooth operation. Q: Can it handle heavy workpieces? A: Load capacity varies by specific model size within the series.
Ideal Applications
- Perfect for tool and die making requiring precise angular cuts
- Supports aerospace component manufacturing with tight tolerance needs
- Suitable for automotive prototyping and custom fixture machining
- Widely used in general engineering workshops for part fabrication
- Effective for jig and fixture setup in production line environments

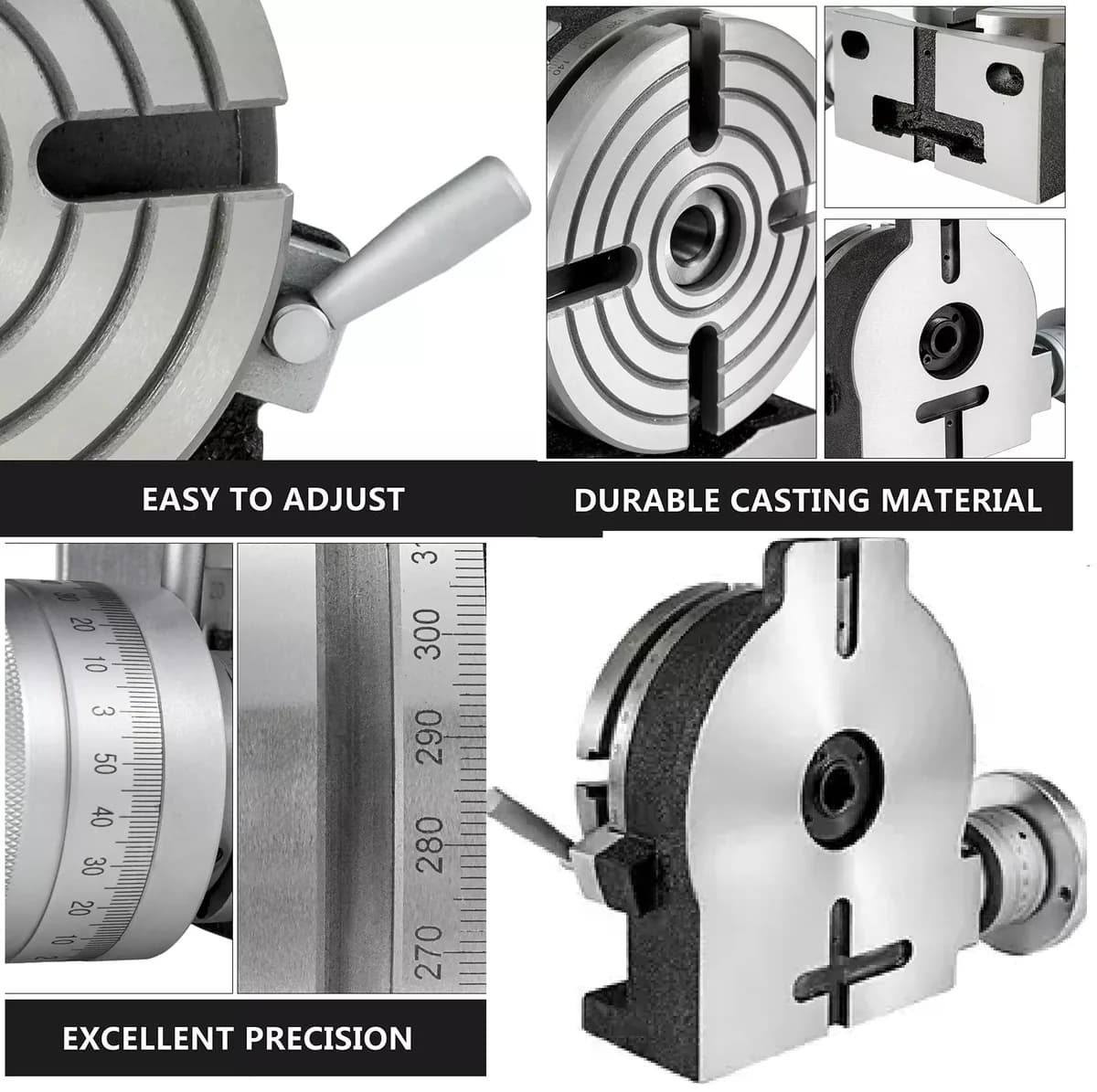

Construction and Durability
- Robust construction maintains alignment under heavy cutting loads
- Precision-ground surfaces ensure long-term accuracy and repeatability
- Durable components withstand continuous industrial workshop usage
- Stable base design minimizes vibration during high-speed operations
- Engineered for consistent performance across various machining cycles
Operational Versatility
- Ideal companion for milling machines requiring angular positioning
- Facilitates complex workpiece setups without re-clamping
- Supports high-precision operations in diverse machining environments
- Enhances workflow efficiency through stable rotary indexing
- Compatible with standard tooling setups for quick integration
Key Features
- Versatile horizontal and vertical mounting options for flexible setup
- 1:90 worm-gear drive ensures smooth rotation and accurate indexing
- Enables circular cutting, angle machining, and precise hole drilling
- Precision engineering designed for reliable general machining operations
- Compact design suitable for tooling and precision engineering tasks
More questions buyers ask
What is a horizontal/vertical (H/V) rotary table?
An H/V rotary table is a precision machining accessory that allows a workpiece to be rotated and indexed at precise angles, suitable for both horizontal and vertical milling setups.
What does the 1:90 worm-gear ratio mean?
A 1:90 ratio means that 90 full turns of the handle result in one complete 360-degree rotation of the table, allowing for extremely fine angular adjustments.
Can these rotary tables be used for circular milling?
Yes, they are ideal for circular milling, angular drilling, and complex indexing tasks on milling machines.
What is the indexing accuracy of the TSL series?
The TSL series features a minimum graduation of 10 seconds, providing high precision for demanding engineering applications.
Are these rotary tables suitable for heavy-duty work?
Yes, they are built with robust materials to handle significant loads, though capacity varies by model (e.g., TSL160 vs TSL400).
How do I maintain the rotary table?
Regular cleaning of the table surface and proper lubrication of the worm-gear mechanism are essential for maintaining accuracy and smooth operation.
What mounting options are available?
The TSL series is designed for versatile mounting, allowing it to be used in either a horizontal or vertical orientation on your machine bed.
Are T-slots included for clamping?
Yes, all models come with precision-machined T-slots to securely clamp workpieces or fixtures.
What is the difference between the TSL160 and TSL400?
The primary differences are the table diameter (160mm vs 400mm), load capacity, and overall physical dimensions to suit different workpiece sizes.
Does the product come with a warranty?
Yes, Pentagon provides standard industrial warranty coverage. Please check specific invoice details for terms.
Who should choose the TSL-160?
The TSL-160 is ideal for small-to-medium workshops requiring a compact, high-precision rotary table for light-to-medium indexing tasks.
Who should choose the TSL-200?
The TSL-200 is perfect for general engineering shops needing a balance of capacity and precision for standard milling and drilling projects.
Who should choose the TSL-250?
The TSL-250 is suited for shops handling larger, heavier components that require stable, high-capacity rotary indexing.
Who should choose the TSL-320?
The TSL-320 is designed for production environments and heavy-duty tool rooms needing robust support for larger workpieces.
Who should choose the TSL-400?
The TSL-400 is the heavy-duty choice for large-scale industrial machining, offering maximum load capacity and table surface for complex, heavy parts.
Which model is best for small workshops?
The TSL-160 is the most compact and cost-effective option for small workshops with limited space.
How do I compare load capacities?
Load capacity increases with model size; choose based on the weight of your heaviest typical workpiece, ensuring you stay within the vertical/horizontal limits.
Is the TSL-400 overkill for standard milling?
Unless you are machining large, heavy parts, the TSL-400 may be larger than necessary; the TSL-200 or TSL-250 are often sufficient for standard tasks.
