Specifications
| Variant | Price | table-size | spindle-taper | main-spindle-motor | spindle-speed-steps |
|---|---|---|---|---|---|
| Horizontal Knee type Milling Machine ZX6350H | ₹3,95,000.00 | 1500 x280 mm | ISO40 | 2.2/3kW | 40-1300 rpm/12 steps |
| The base PENTAGON ZX6350H Horizontal Milling Machine provides a 1500x280mm table, ISO40 spindle, and 2.2/3kW motor. A cost-effective choice for general horizontal machining tasks. | |||||
| ZX6350AH | ₹4,65,000.00 | 1500 x280 mm | ISO40 | 2.2/3kW | 40-1300 rpm/12 steps |
| The PENTAGON ZX6350AH Horizontal Milling Machine features a 1500x280mm table and ISO40 spindle. Ideal for workshops needing reliable auto-feed capabilities and a 2.2/3kW motor. | |||||

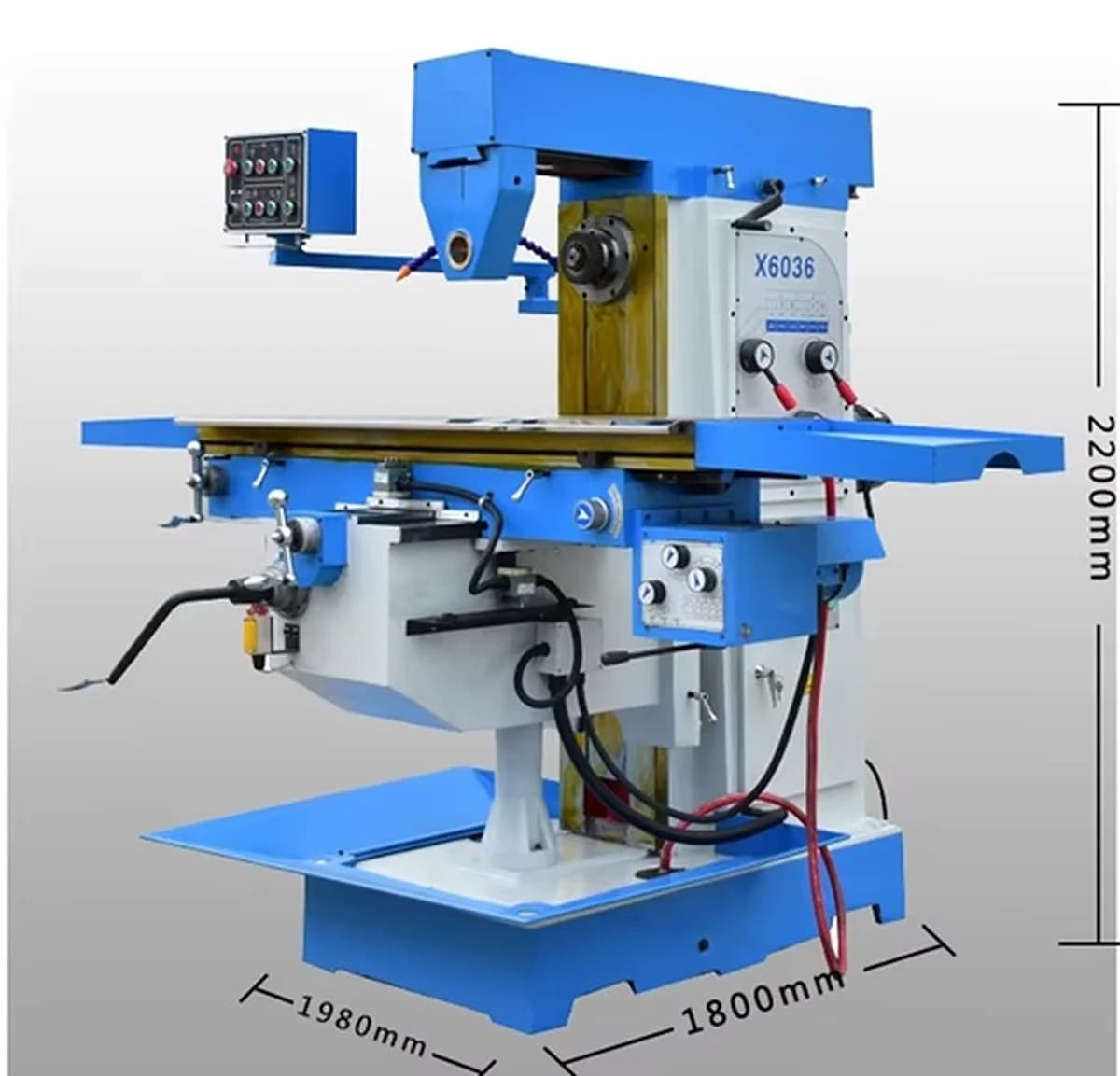

| X6036H | ₹6,75,000.00 | 1500 x360 mm | ISO50 | 4 kW | 30-1500 rpm/12 steps |
| The heavy-duty PENTAGON X6036H Horizontal Milling Machine offers a larger 1500x360mm table, powerful 4kW motor, and ISO50 spindle. Perfect for demanding industrial applications. | |||||
Description

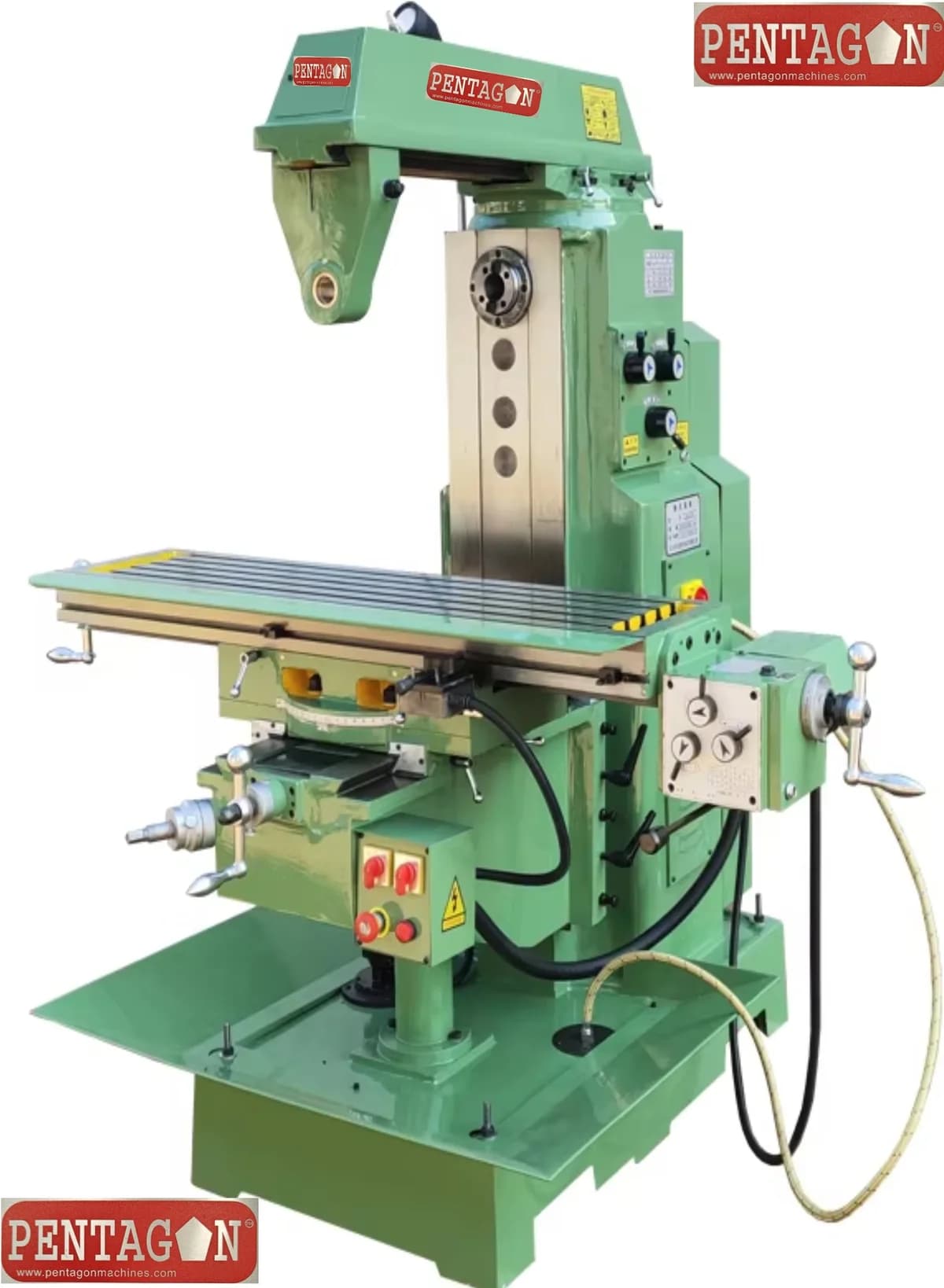

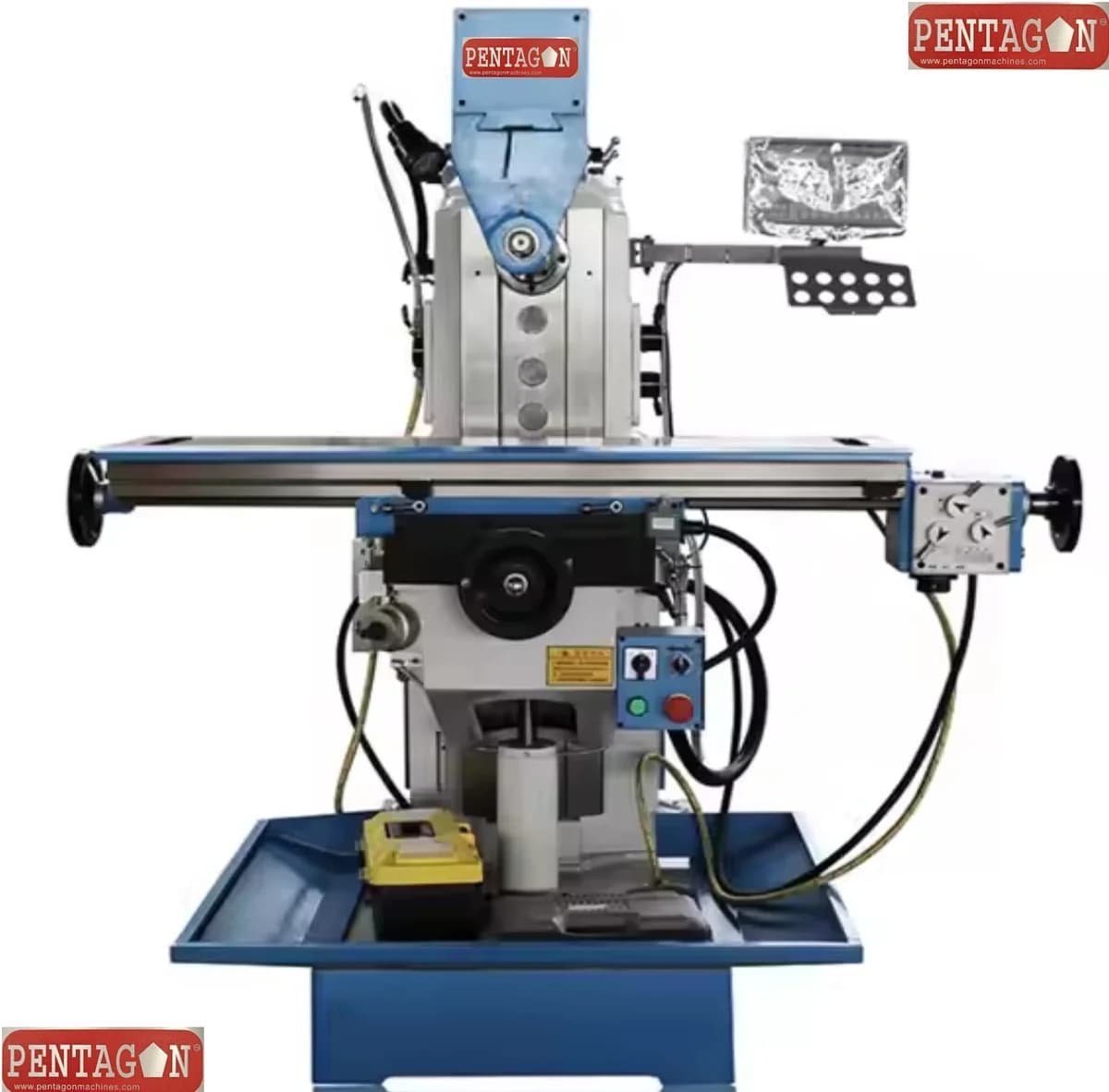

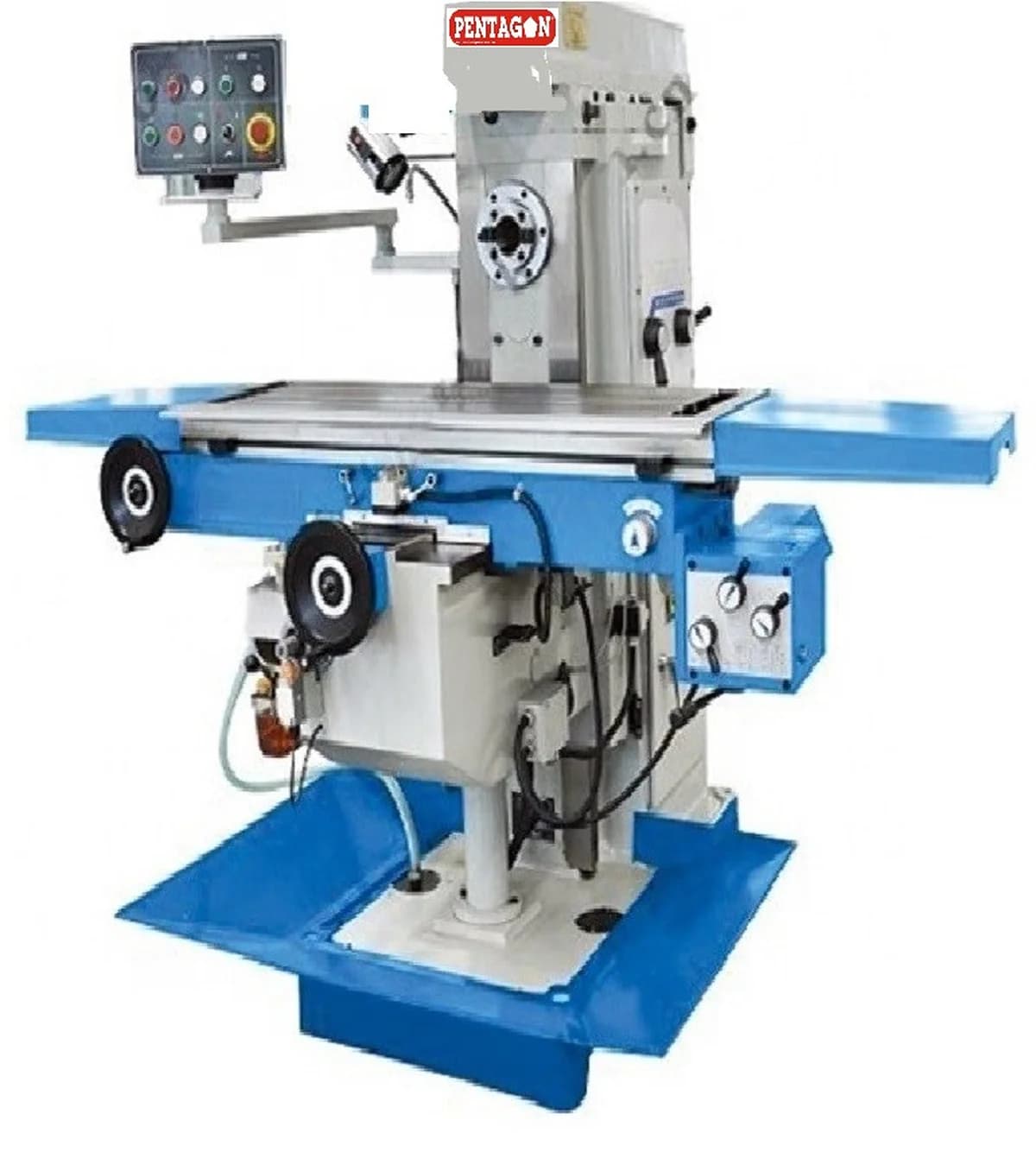

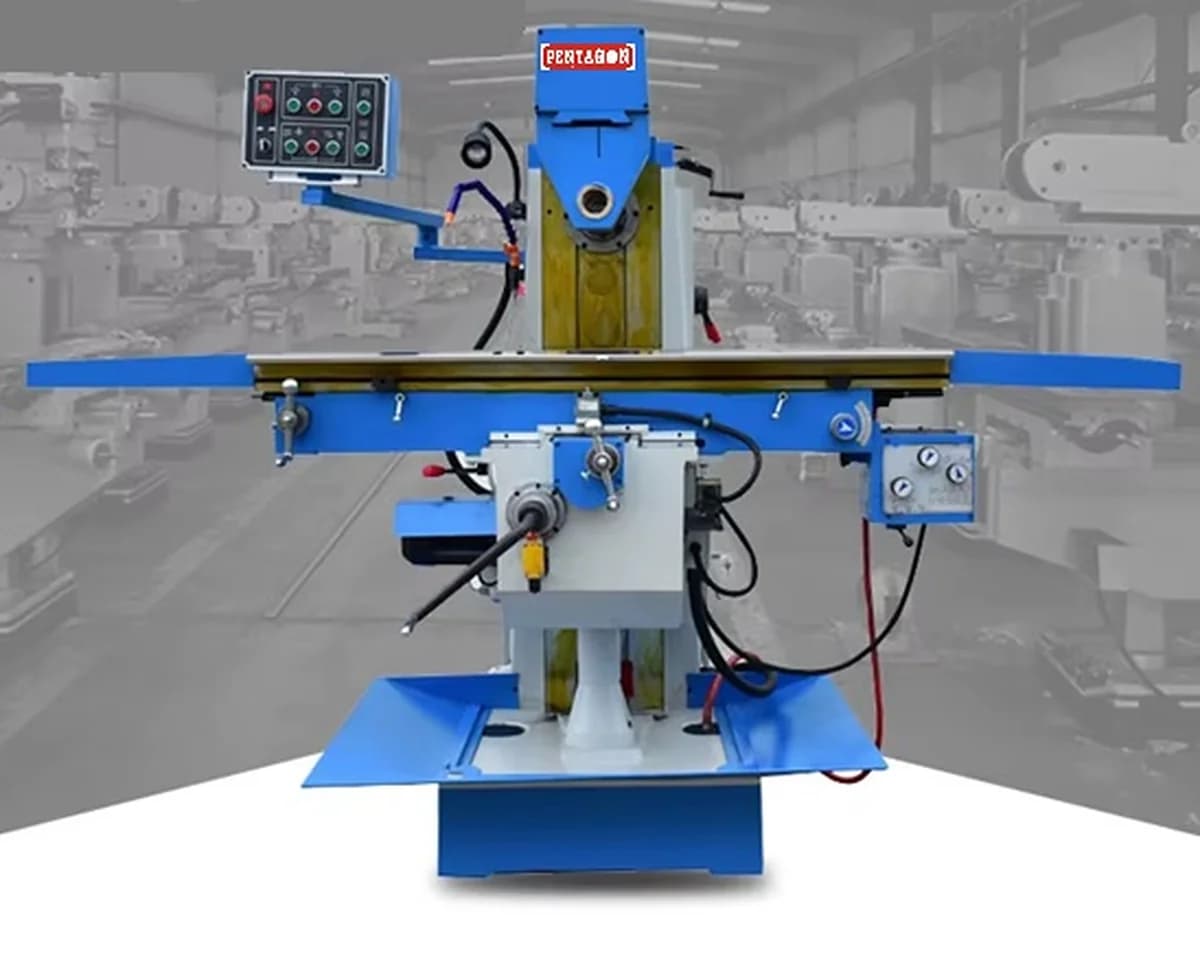

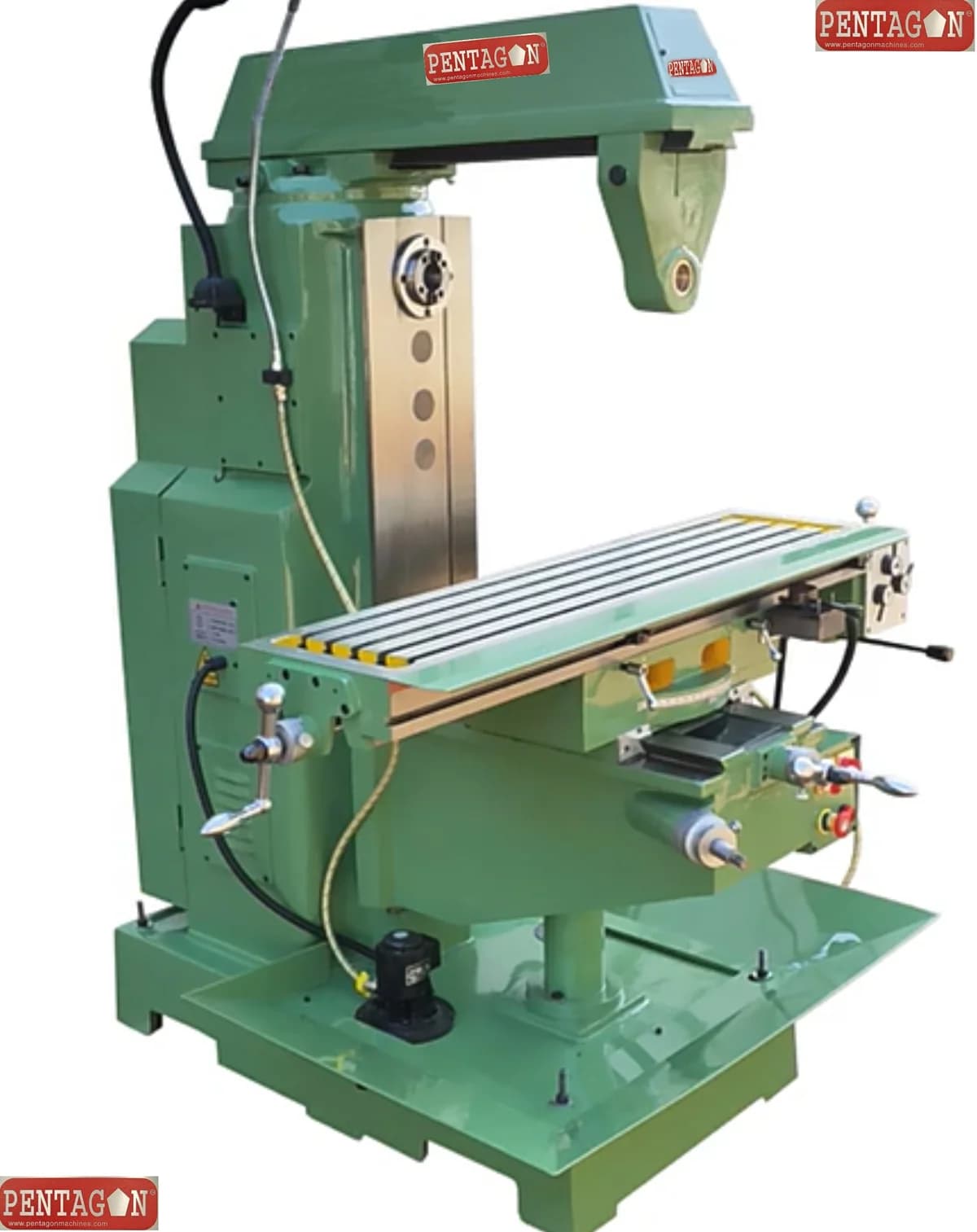

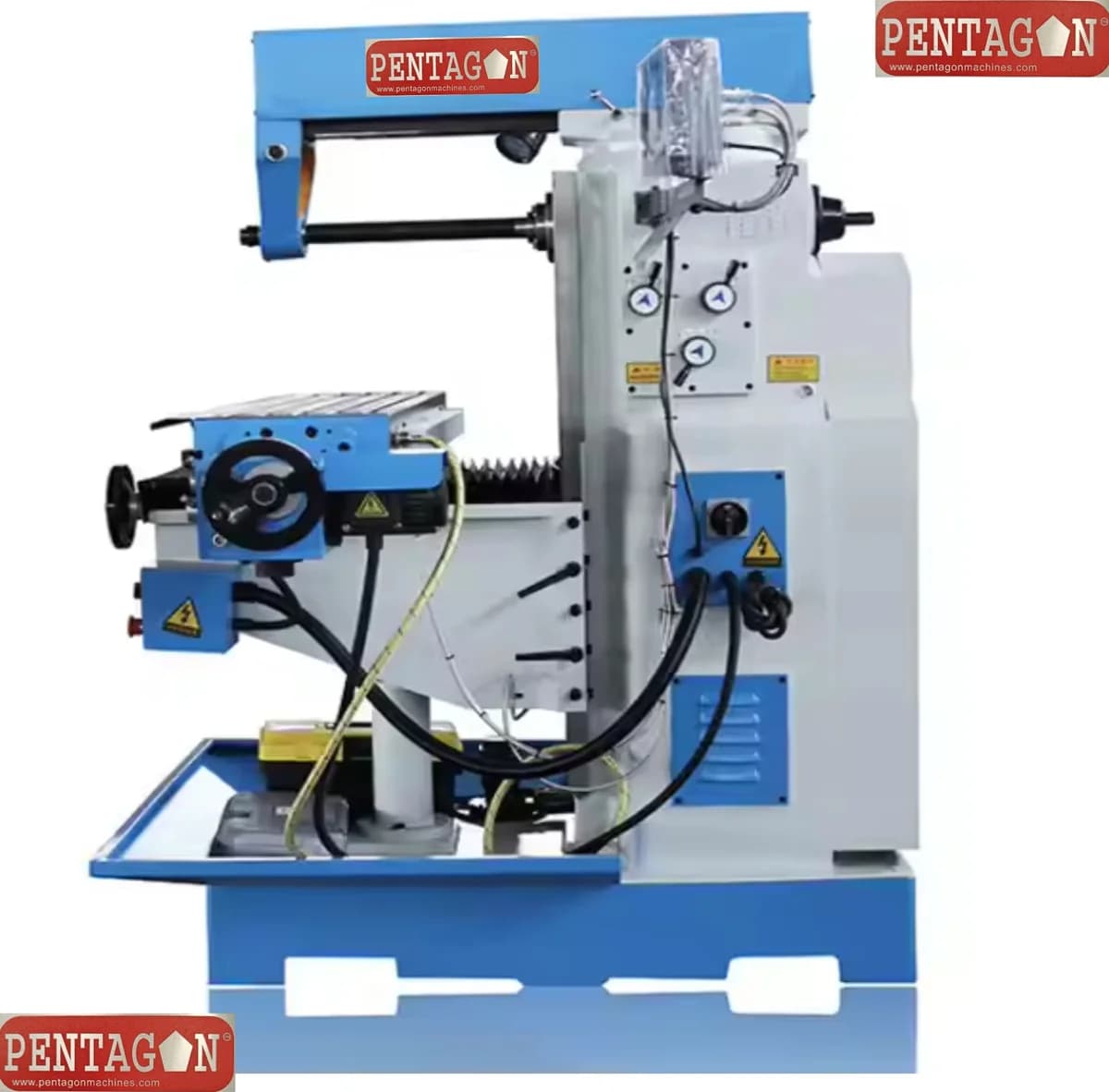

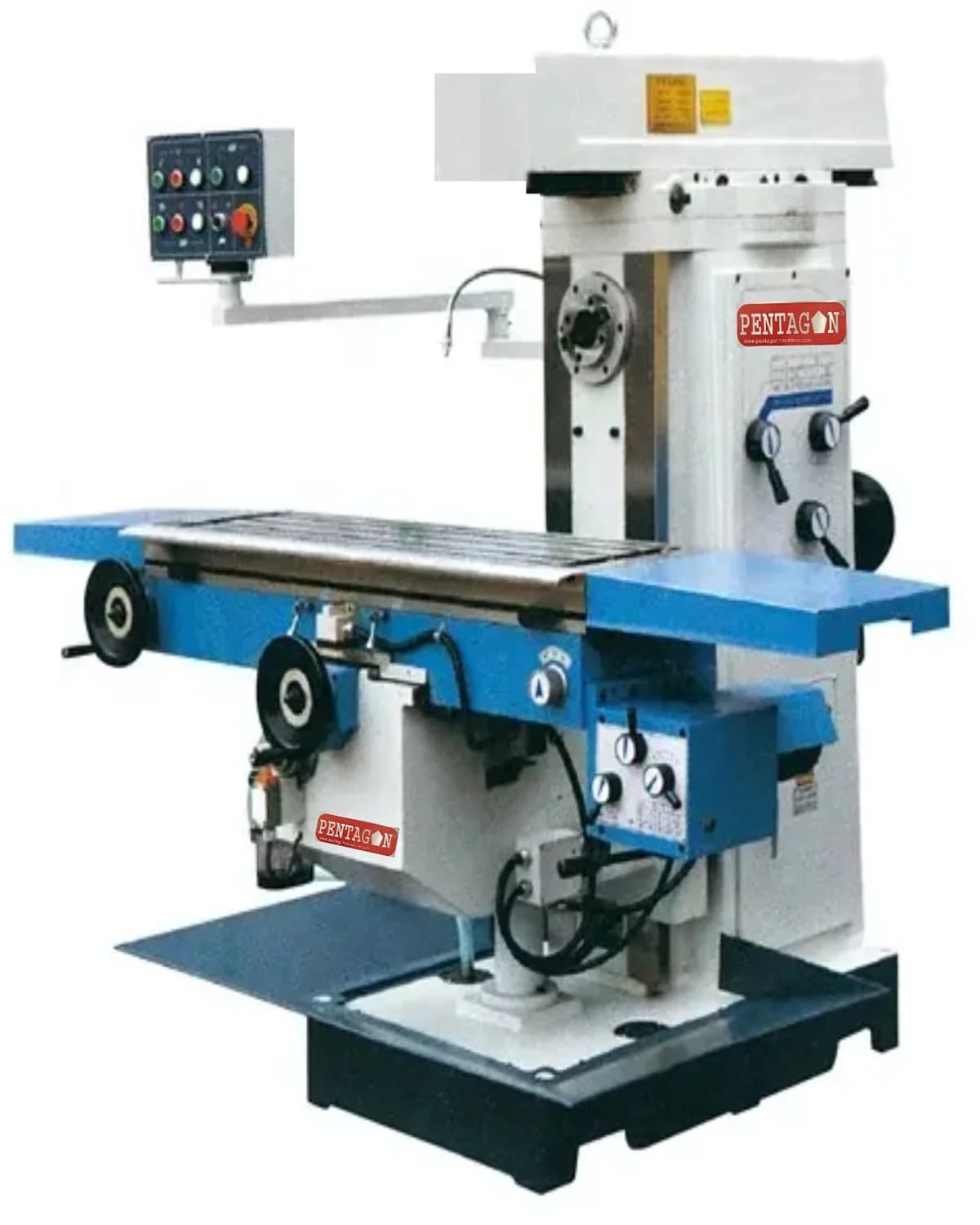

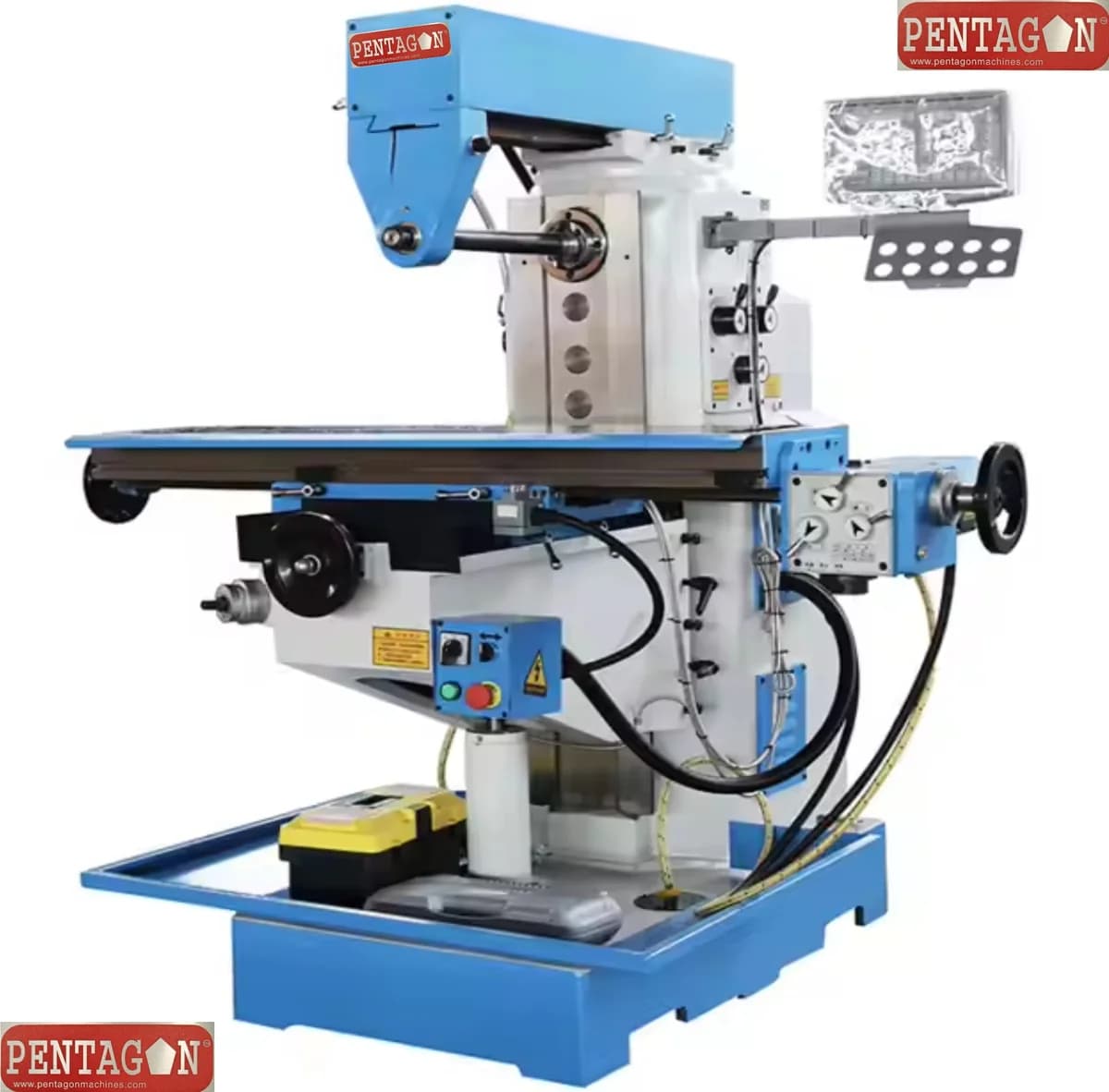

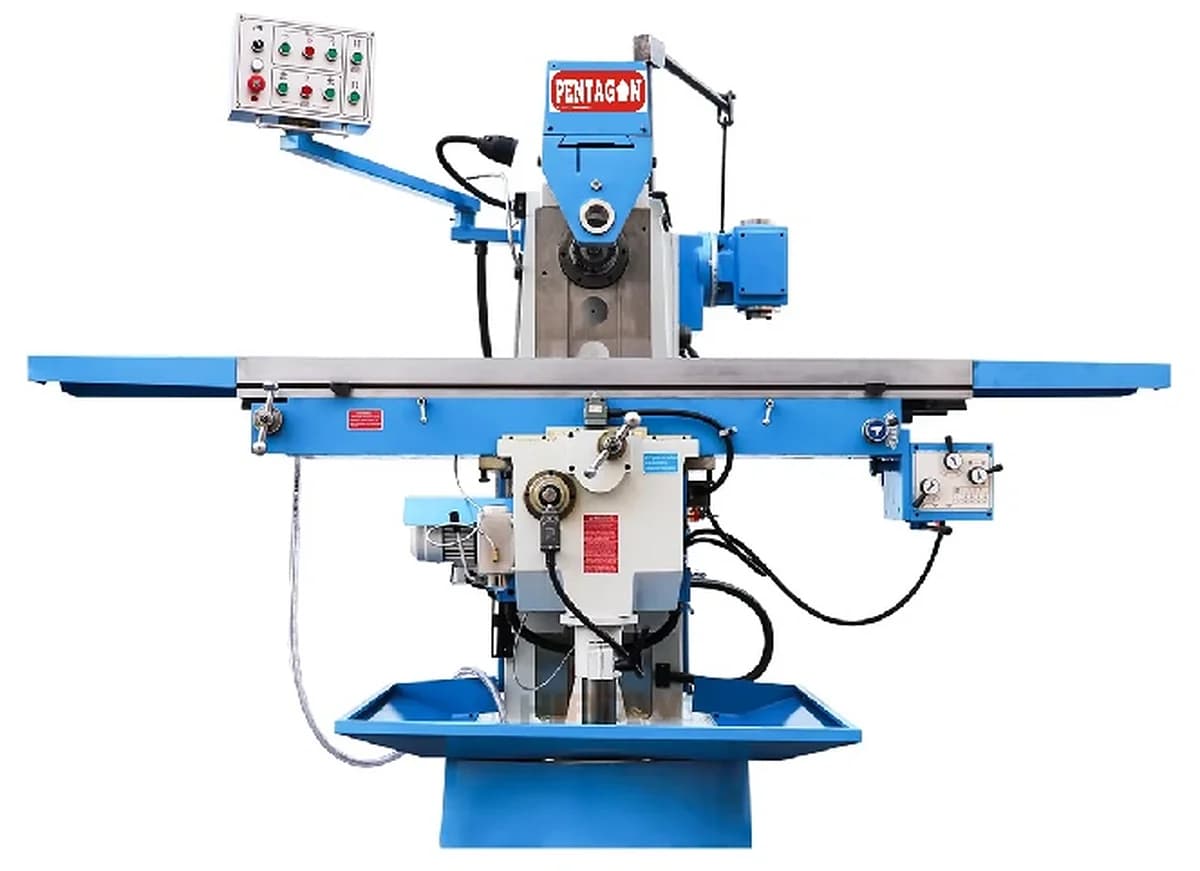

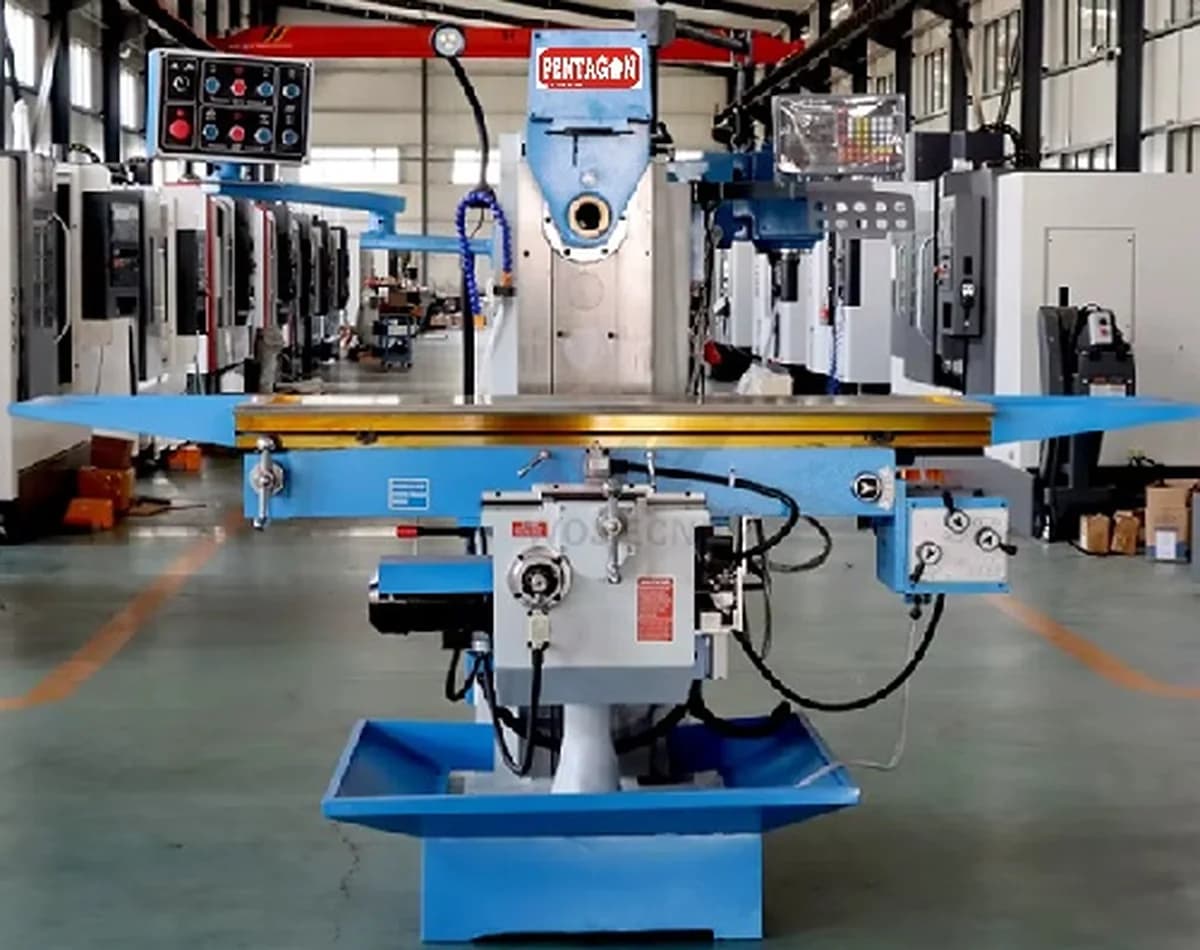

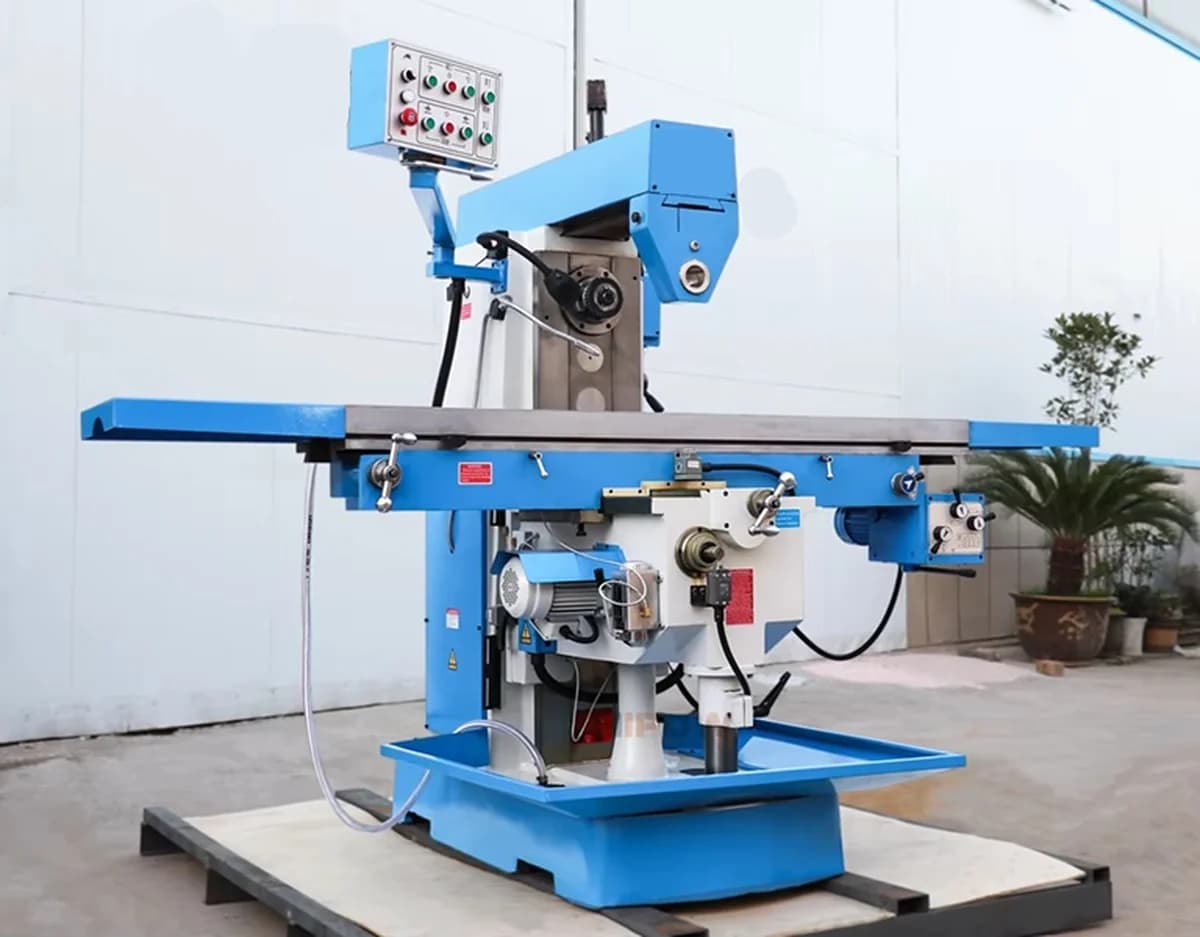

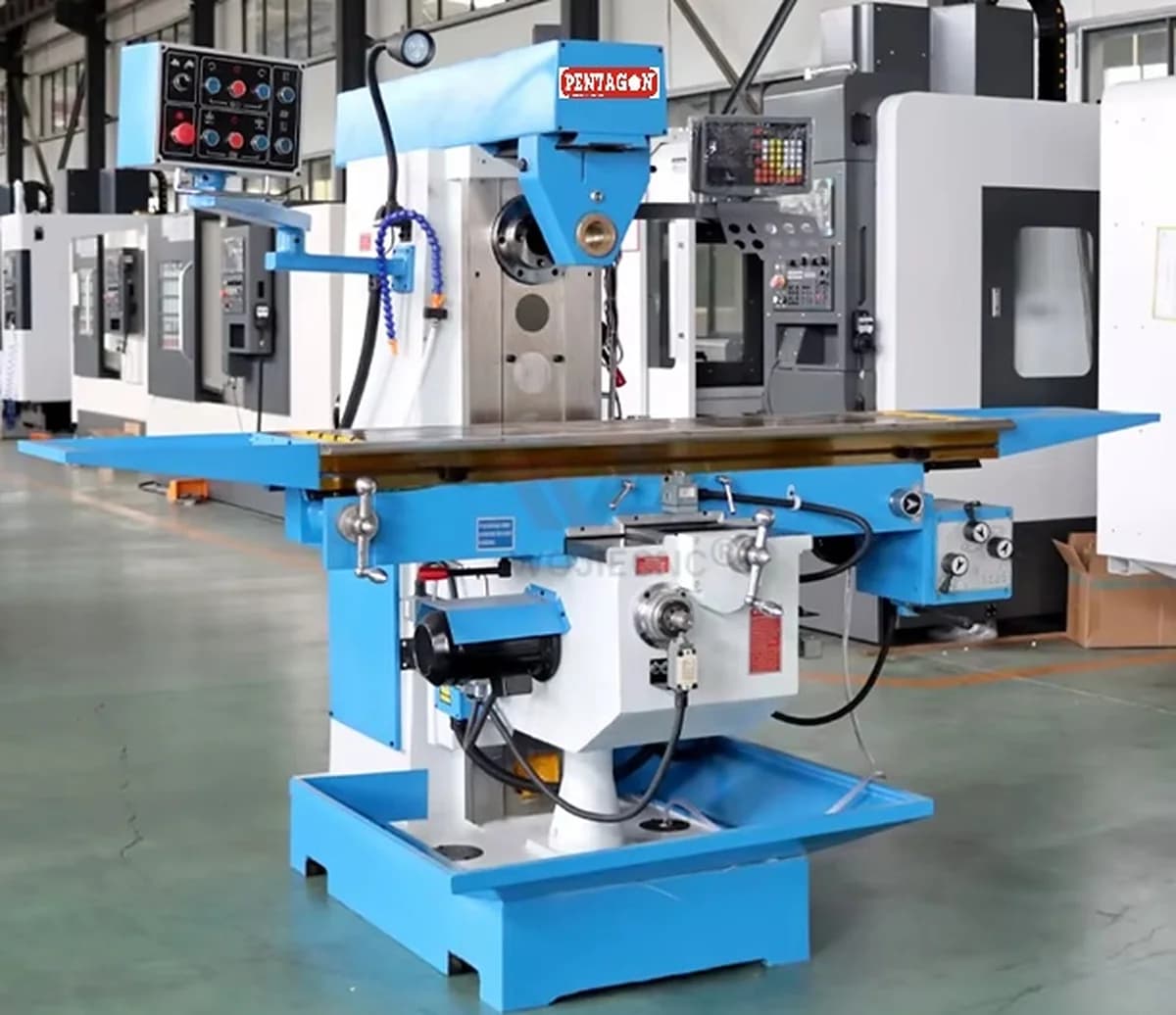

PENTAGON Horizontal Knee type Milling Machine Model ZX6350H table size 1500x280 mm with Longitudinal auto table feed and other standard accessories mentioned
The ZX6350H is a robust, conventional (non-CNC) knee-and-column milling machine designed primarily for horizontal milling tasks. It’s built for reliability, rigidity, and general-purpose machining, especially suited for job shops or production settings where flexibility and durability matter.

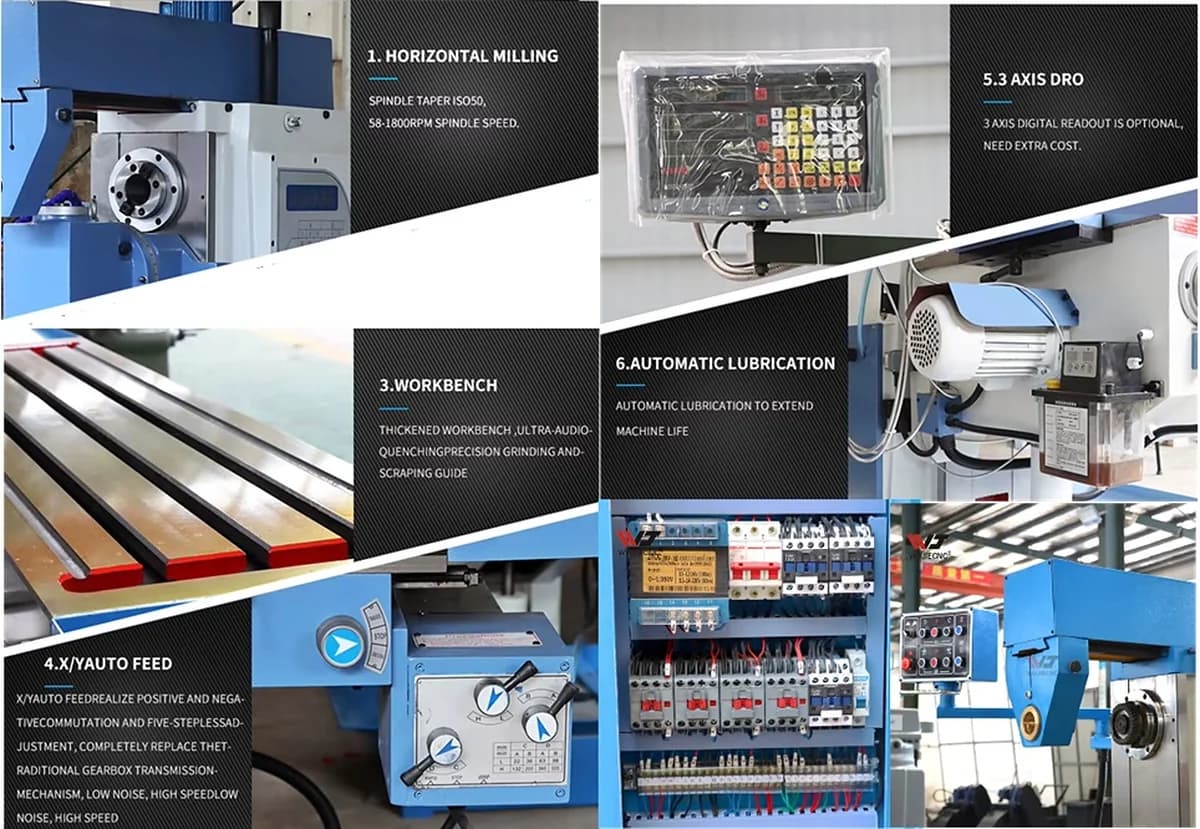

Features

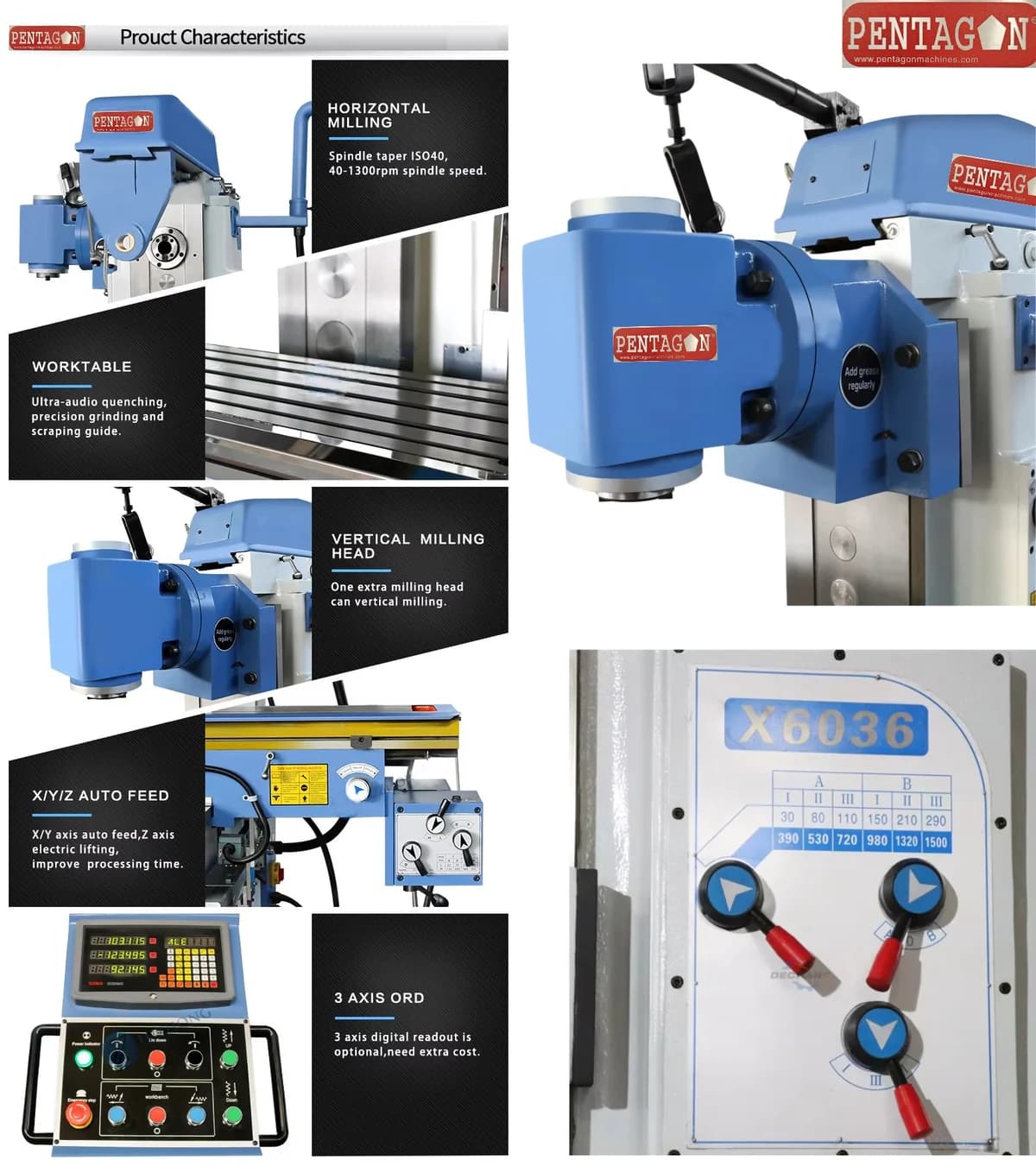

1. Heavy Milling Capability (Horizontal)
- Equipped with horizontal spindles.
- Highly versatile for a wide range of machining tasks.
2. Wide Speed Range
- Variable spindle speeds for horizontal modes.
- Suitable for light finishing to heavy cutting operations.
3. Strong & Rigid Structure
- Heavy-duty cast iron construction ensures stability.
- Hardened and ground guideways for durability.
- Accurate machining with reduced vibration.
4. Large Worktable Capacity
- Spacious table with long travel distance.
- Supports larger workpieces and increases productivity.
5. Easy Operation & Adjustment
- Manual controls, smooth feeds, and operator-friendly layout.
- Ideal for workshops, training institutes, and job shops.

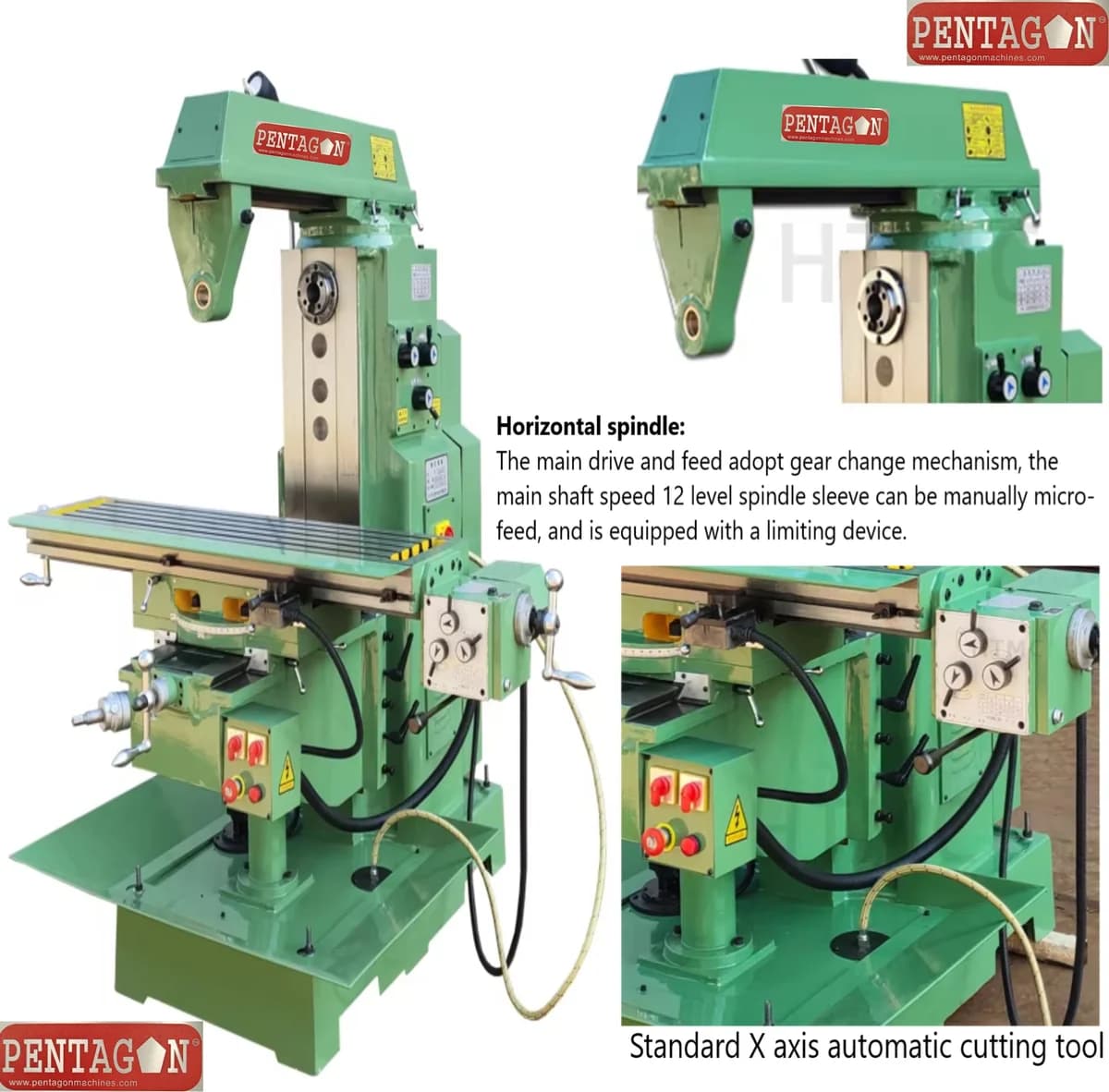

6. Power Feed on Worktable
- Power feed on X for cutting efficiency.
- Reduces operator fatigue and ensures consistent cutting.
Applications
1. The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.
2.If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove .
3. And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, The length of X of the machine can be further expanded.
4. Large machine tool use range, according to user needs can be configured to display device.
5. The spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.
6.The configuration of special accessories: vertical milling head, which realize the milling function
Standard Accessories
1. Collet set with adapter and spanner
2. Wrench S22-24
3. Inner-hexagonal spanners
4. Machine Vice 6"
5. Horizontal milling arbor dia 22/27 mm
6. Horizontal draw bar
7. Hexagon nut
8. Operational manual
9 .Coolant Pump with fittings
10.Machine lamp with fitting
11.Splash guard cum tray
12.Manual Central lubrication pump
Optional Accessories
1. Two/Three Axis DRO with suitable linear scales and fittings
2. Semi universal dividing head with chuck and tail stock
3. H-V rotary table
4. Mounting pads 4 Nos suitable for the machine
Frequently Asked Questions
Q.What is the PENTAGON ZX6350H horizontal milling machine used for?
The PENTAGON ZX6350H is designed for precise horizontal machining operations, ideal for cutting slots, keyways, surfaces, and heavy metal components in workshops and production units.
Q.What is the table size of the ZX6350H milling machine?
The standard ZX6350H and ZX6350AH variants feature a 1500 x 280 mm worktable, while the X6036H features a larger 1500 x 360 mm worktable.
Q.What is the spindle taper of the ZX6350H?
The ZX6350H and ZX6350AH models come with an ISO40 spindle taper, whereas the heavier X6036H model features an ISO50 spindle taper.
Q.Does the ZX6350H come with a warranty?
Yes, all PENTAGON milling machines come with a standard manufacturer warranty. Please check the specific warranty terms at the time of purchase.
Q.Can I get a GST invoice for the PENTAGON ZX6350H?
Yes, a valid GST invoice is provided with every purchase for seamless input tax credit claims for your business.
Q.What is the main spindle motor power of the ZX6350H?
The ZX6350H and ZX6350AH models are equipped with a 2.2/3kW main spindle motor, while the X6036H features a more powerful 4kW motor.
Q.Is pan-India delivery available for this milling machine?
Yes, we offer safe and reliable pan-India delivery for all heavy industrial machinery, including the PENTAGON ZX6350H.
Q.What is the maximum table travel for the ZX6350H?
The longitudinal table travel is 950 mm across all variants, providing ample movement for various milling applications.
Q.What standard accessories are included with the ZX6350H?
Standard accessories typically include a collet set, machine vice, horizontal milling arbor, coolant pump, machine lamp, and operational manual.
Q.What is the weight of the ZX6350H milling machine?
The weight varies by model: the base ZX6350H and ZX6350AH weigh approximately 1350-1400 Kgs, while the heavy-duty X6036H weighs around 2350 Kgs.
Q.Who should choose the Horizontal Knee type Milling Machine ZX6350H?
The base ZX6350H is ideal for workshops needing a reliable, cost-effective horizontal milling machine with standard ISO40 spindle and 1500x280mm table for general machining tasks.
Q.Who should choose the ZX6350AH variant?
The ZX6350AH is suited for users who require the same robust ISO40 spindle and 1500x280mm table but with specific auto-feed configurations for enhanced operational efficiency.
Q.Who should choose the X6036H variant?
The X6036H is perfect for heavy-duty industrial applications requiring a larger 1500x360mm table, a more powerful 4kW motor, and a stronger ISO50 spindle taper.
Q.What is the difference between the ZX6350H and ZX6350AH?
Both models share similar dimensions, ISO40 spindle, and 2.2/3kW motor, but they differ slightly in their feed mechanisms and overall weight distribution for specific operational needs.
Q.How does the X6036H compare to the ZX6350H?
The X6036H is a heavier, more powerful machine featuring a 4kW motor, ISO50 spindle, and a wider 360mm table, compared to the ZX6350H's 2.2/3kW motor, ISO40 spindle, and 280mm table.
Q.Which variant offers the largest table size?
The X6036H variant offers the largest table size at 1500 x 360 mm, providing more surface area for larger workpieces compared to the 1500 x 280 mm table on the other variants.
