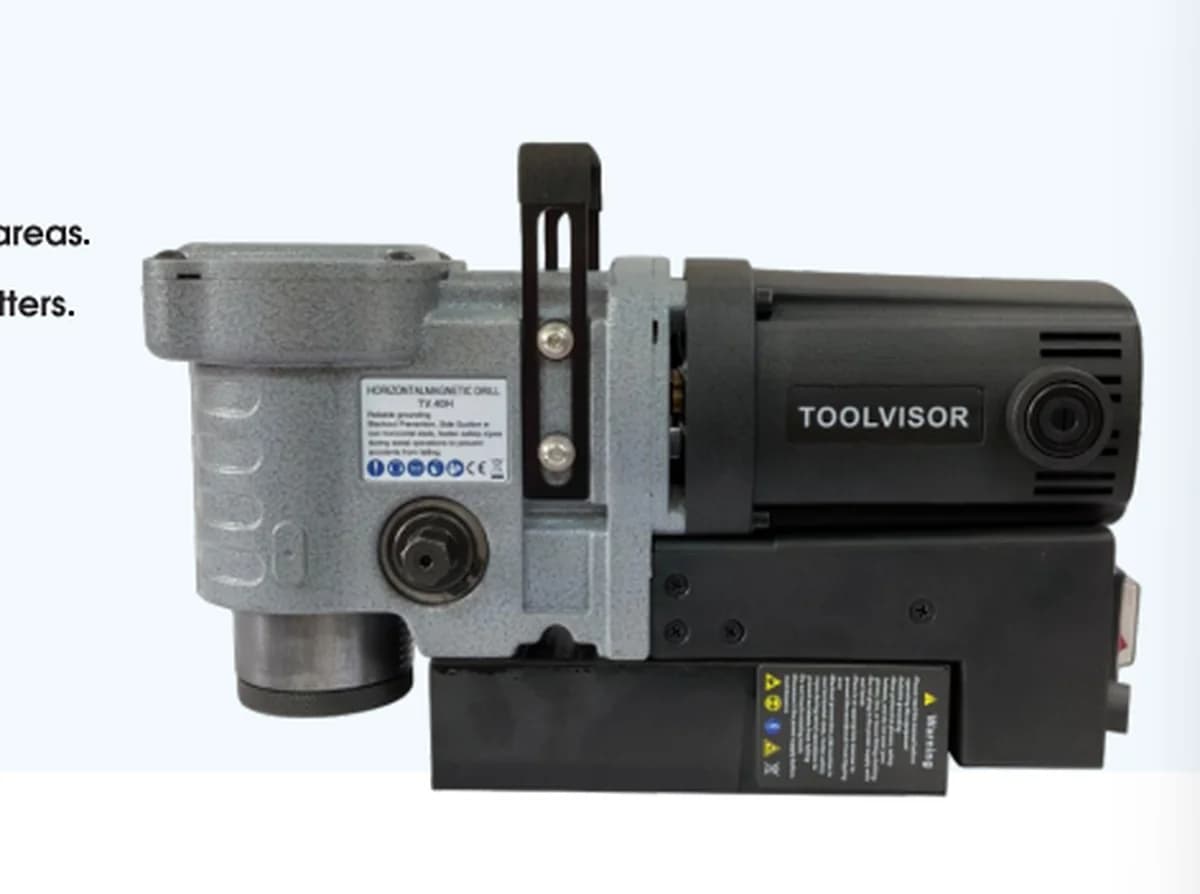

Toolvisor Horizontal Magnetic Drilling Machine TV.40H
This horizontal magnetic drilling machine secures to steel structures for accurate sideways and inverted hole making. The TV.40H model delivers consistent performance with a 1200W motor and a 50mm stroke for reliable feed control. • 1200W motor handles demanding steel fabrication tasks • 50mm stroke ensures precise depth control • Compatible with 12-40mm core drills and 6-16mm twist drills • Magnetic base enables stable operation on beams and pipes
Specifications
For: TV.40H- CUTTER CAPACITY
- 12-40MM
- TWIST DRILL CAPACITY
- 6-16MM
- COUNTERSINK CAPACITY
- 10-40MM
- SPINDLE WELDON
- 19.05MM
- MOTOR POWER
- 1200W
- STROKE
- 50MM
- height
- 175mm
- magnetic force
- 12000N
- Power source
- 220-240V AC (50~60HZ)
- RPM loaded
- 540 RPM
- RPM no load
- 690 RPM
- lennth x width
- 310mmX 100mm
- weight
- 10.5 kg
Stable Magnetic Base Design
- Features a high-strength magnetic base for firm workpiece attachment
- Eliminates the need for clamping on large structural steel pieces
- Reduces operator fatigue by minimizing setup and alignment time
- Built to withstand vibration and torque during aggressive drilling
- Allows for quick repositioning on different workpiece surfaces
- Ensures safety by preventing machine movement during operation
Ideal for Structural Steel and Fabrication
- Essential equipment for construction sites requiring on-site drilling
- Widely used in steel fabrication shops for beam preparation
- Supports maintenance teams working on pipelines and structural beams
- Reduces setup time compared to traditional radial drilling methods
- Enhances productivity for heavy industrial manufacturing projects
- Suitable for both new construction and retrofitting maintenance
High-Performance Motor and Speed
- Powered by a robust 1200W motor for consistent torque output
- Delivers stable RPM of 690 for optimal cutting speed control
- Stroke length of 50mm allows for deep hole drilling cycles
- Designed to handle continuous duty cycles in industrial environments
- Provides sufficient power for penetrating thick steel sections
- Ensures efficient chip evacuation during high-load operations
Versatile Tooling and Cutting Capacity
- Supports annular cutters for efficient core drilling operations
- Compatible with twist drills for smaller diameter hole requirements
- Enables tapping operations for creating threaded holes in steel
- Typical cutter capacity ranges from 12–40mm for core bits
- Twist drill capacity accommodates sizes from 6–16mm
- Countersink capacity extends from 10–40mm for finishing
- Spindle Weldon size of 19.05mm ensures secure tool retention
Precision Drilling in Challenging Positions
- Engineered for drilling holes in steel structures such as beams and plates
- Capable of operating in sideways or inverted positions without slippage
- Magnetic base securely locks the machine onto the workpiece
- Ensures accurate and vibration-free drilling during operation
- Ideal for maintenance work on existing structural steel frameworks
- Supports heavy-duty fabrication tasks in confined spaces
- Maintains stability even when drilling into pipes or vertical surfaces
More questions buyers ask
What is the maximum drilling capacity of the Toolvisor TV.40H?
The Toolvisor TV.40H magnetic drill has a maximum annular cutter capacity of 40mm and a twist drill capacity of 16mm.
Can this magnetic drill be used for overhead drilling?
Yes, the high-strength 12000N magnetic base allows for secure operation in vertical, sideways, and inverted (overhead) positions.
What power supply does the Toolvisor TV.40H require?
It operates on a standard 220-240V AC (50-60Hz) power supply, making it suitable for most industrial and construction sites in India.
What is the motor power of this machine?
The machine is equipped with a robust 1200W motor designed for consistent torque and performance in heavy-duty steel fabrication.
Does it support tapping operations?
Yes, the Toolvisor TV.40H is versatile and supports annular cutters, twist drills, and tapping tools for various hole-making requirements.
What is the spindle Weldon size?
The spindle Weldon size is 19.05mm, which ensures secure retention for standard annular cutters.
Is this machine suitable for site work?
Absolutely. Its portable design, weighing 10.5 kg, and powerful magnetic base make it ideal for on-site structural steel fabrication and maintenance.
What is the stroke length of the TV.40H?
The machine features a 50mm stroke length, allowing for efficient drilling cycles in thick steel plates and beams.
What is the no-load RPM of the drill?
The Toolvisor TV.40H operates at a no-load speed of 690 RPM, providing optimal cutting efficiency.
Does the purchase include a warranty?
Yes, all Toolvisor products sold through Gearo come with a standard manufacturer warranty and a GST-compliant invoice.
Who should choose the Toolvisor TV.40H?
The TV.40H is the ideal choice for professional fabricators, construction contractors, and maintenance teams requiring a reliable, high-torque magnetic drill for structural steel work.
How does the TV.40H compare to standard radial drills?
Unlike large radial drills, the TV.40H is portable and can be mounted directly onto the workpiece, significantly reducing setup time and allowing for drilling in confined or elevated spaces.
