PENTAGON TSK-Series Tilting Rotary Table Price in India — TSK-250
These universal tilting rotary tables enable precision indexing for milling and drilling tasks. Key features include 0 to 90 degree tilting capability, accurate indexing with worm gear drive, and robust load capacity for heavy-duty machining. • 360-degree graduation with vernier readout • T-slot table for versatile workpiece mounting • Available in multiple diameters from 160mm to 400mm

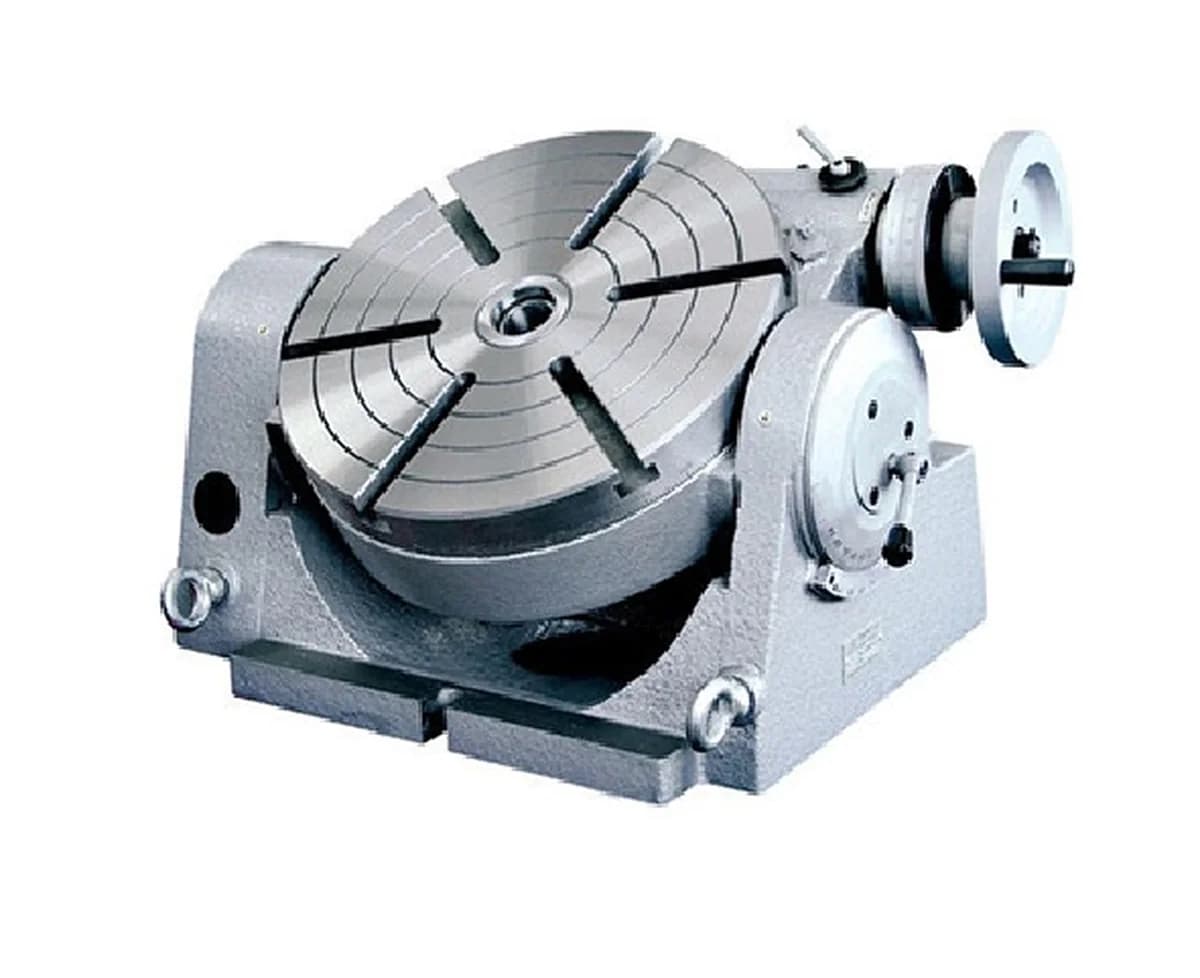

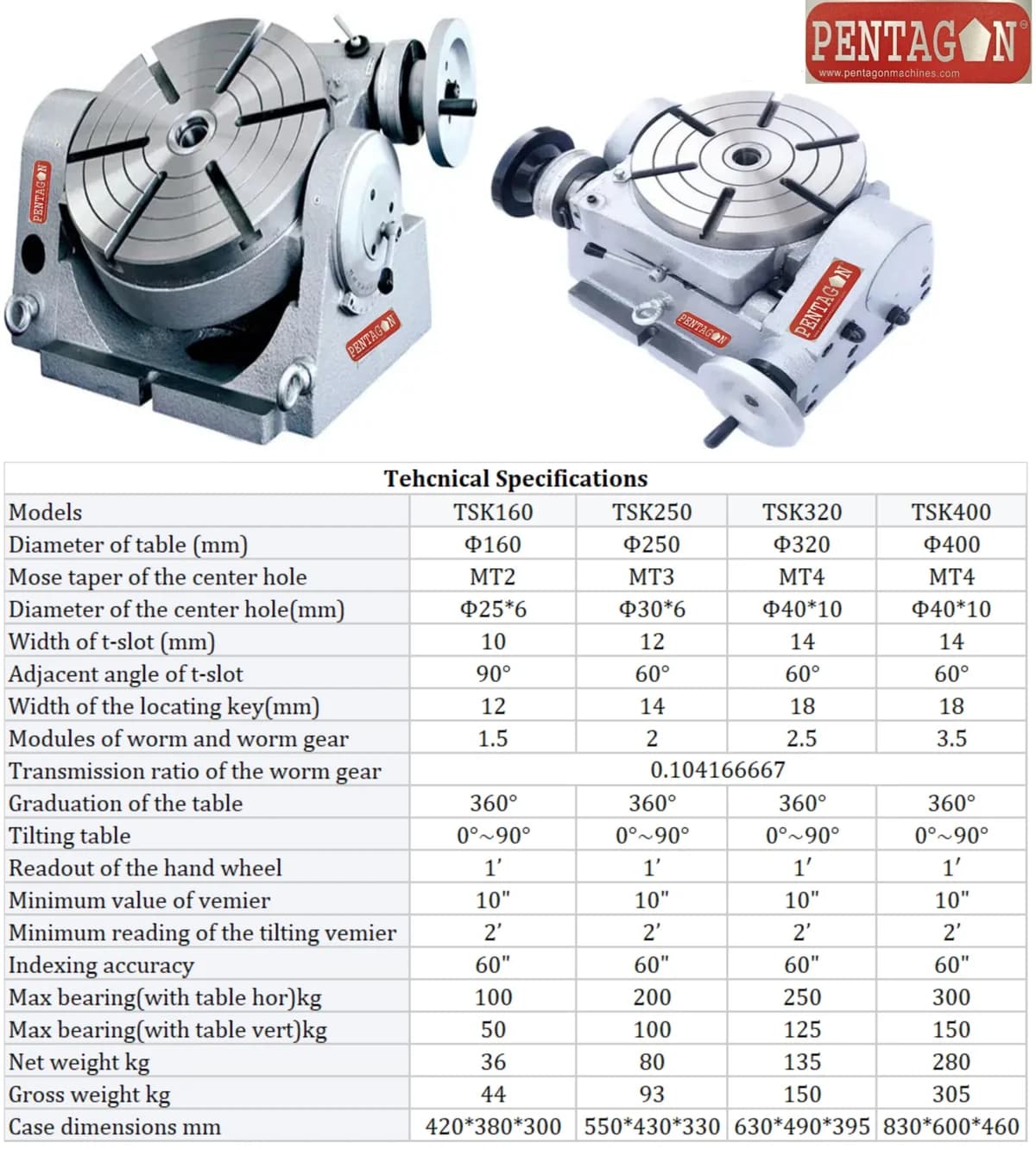

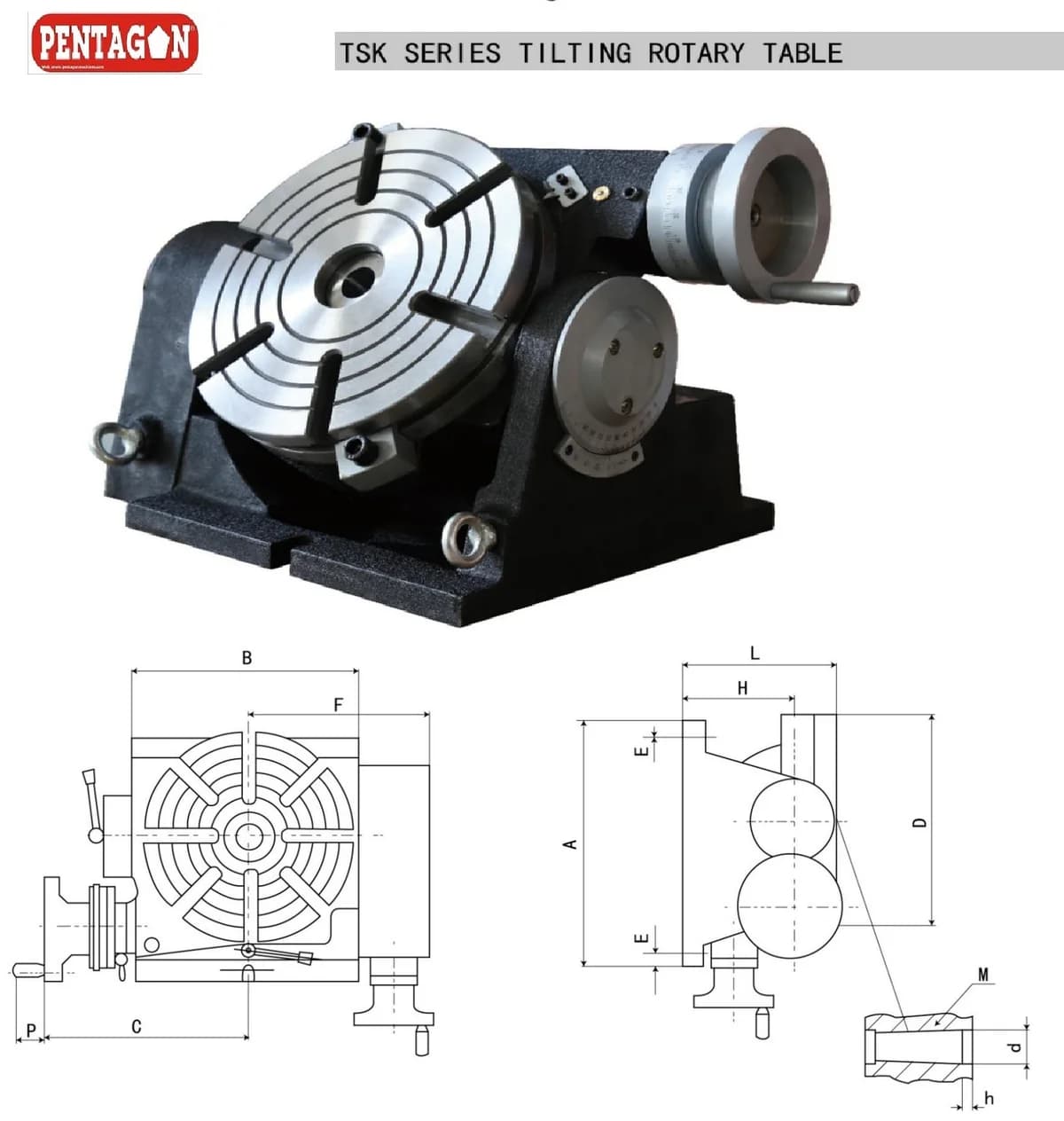

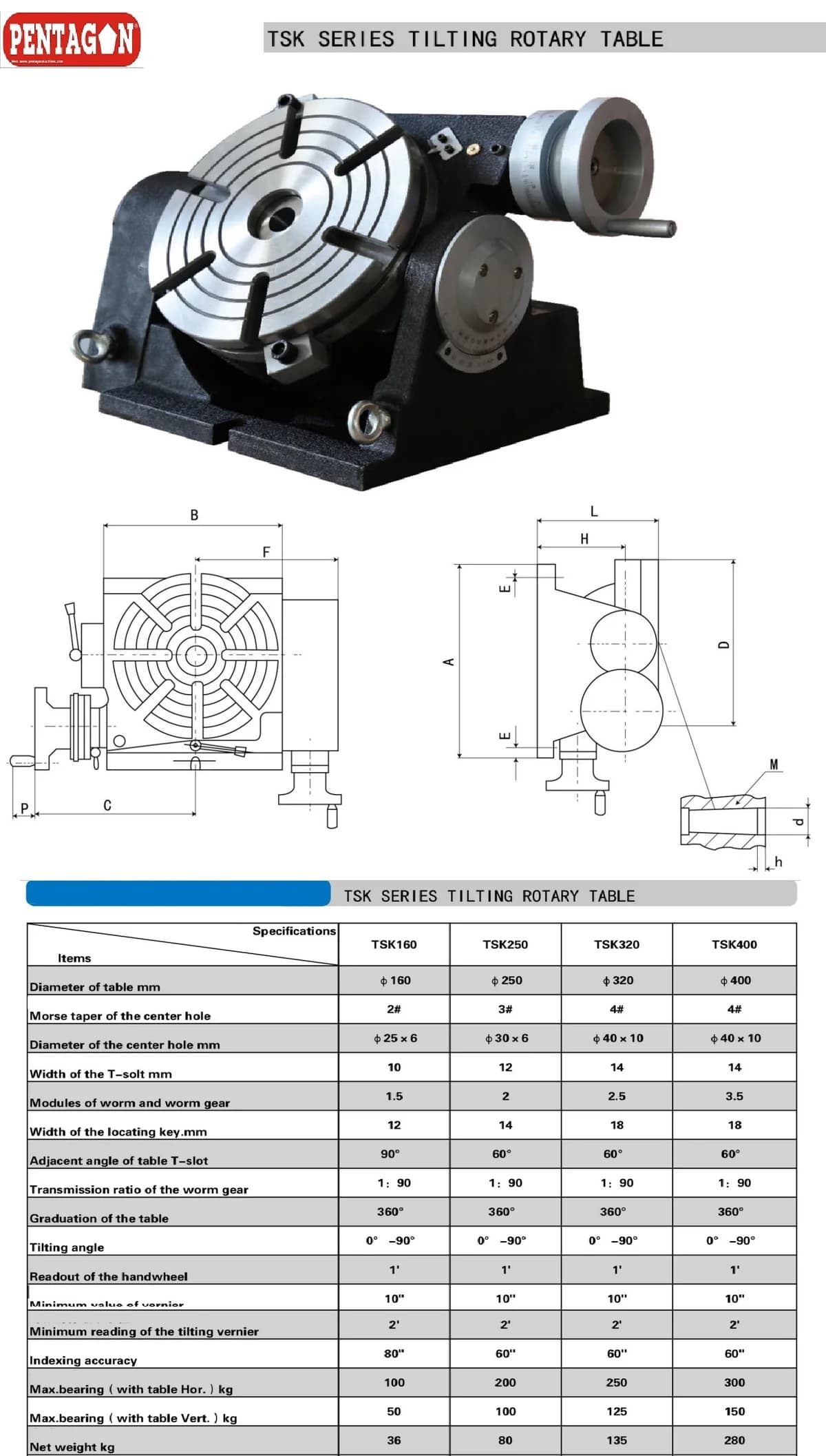

Specifications
For: TSK-250- Model
- TSK-250
- Table Diameter
- 250 mm
- Center Hole Taper
- MT3
- Diameter of the center hole
- 30x6 mm
- Adjacent Angle of T-Slot
- 60°
- Indexing Accuracy
- 60
- Handwheel Readout
- 1′ (one minute of arc)
- Transmission Ratio (Worm Gear)
- 1:90
- Table Graduation
- 360°
- Tilting Angle
- 0° to 90°
- Minimum reading of the vernier
- 10"
- Module of Worm & Worm Gear
- 2
- Minimum reading of the tilting vernier
- 2"
- T-slot Width
- 12 mm
- Width of Locating Key
- 14 mm
- Max Load Capacity (Horizontal)
- 200 Kgs
- Max Load Capacity (Vertical)
- 100 Kgs
- Packing Dimensions
- 550×430×330 mm
- Net Weight
- 86 Kgs
- Gross Weight
- 93 Kgs

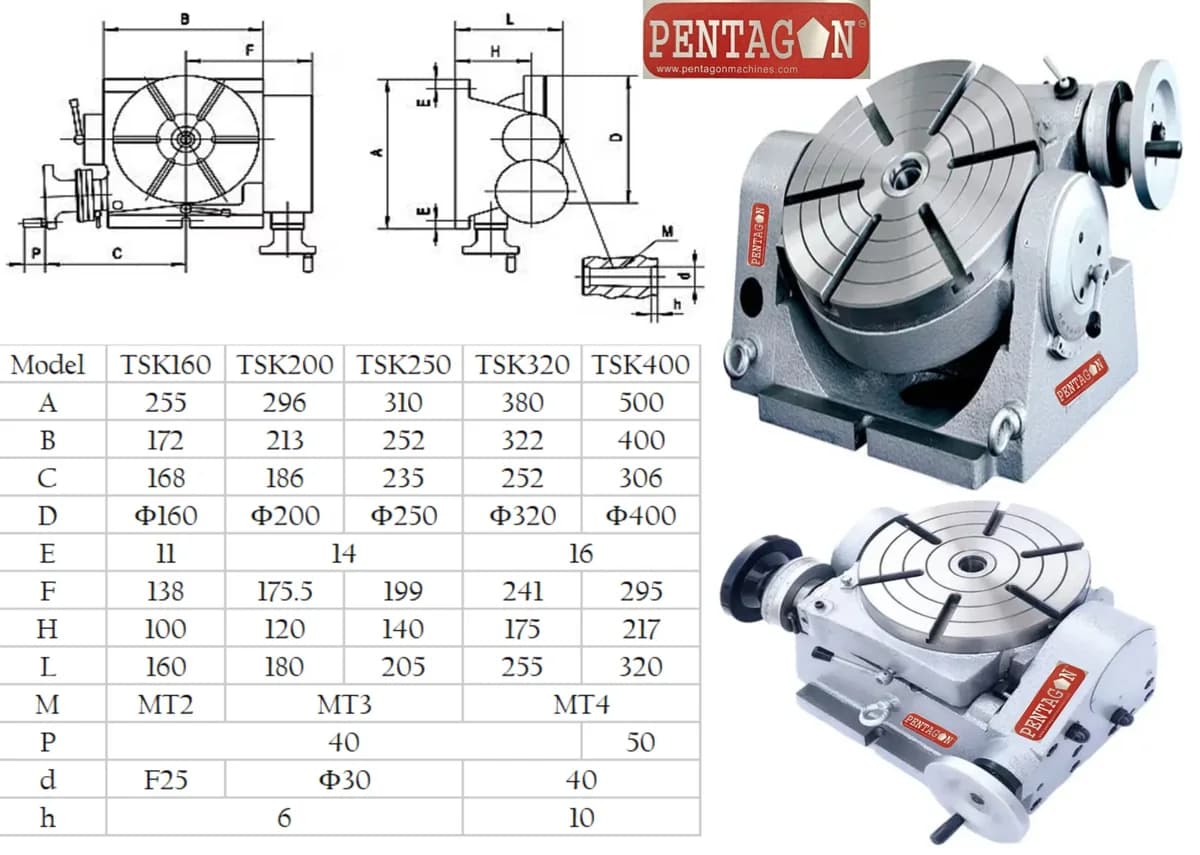

Configurations
Click a row to switch| Variant | Table Diameter | Center Hole Taper | Adjacent Angle of T-Slot | Max Load Capacity (Horizontal) | Price |
|---|---|---|---|---|---|
| TSK-160 | 160 mm | MT2 | 90° | 100 Kgs | ₹56,500 |
| TSK-250 | 250 mm | MT3 | 60° | 200 Kgs | ₹97,000 |
| TSK-320 | 320 mm | MT3 | 60° | 250 Kgs | ₹1,22,000 |
| TSK-400 | 400 mm | MT4 | 60° | 300 Kgs | ₹2,34,400 |
Description
The TSK-160 is a heavy-duty tilting rotary table designed for precision machining on milling, drilling, and boring machines. With a 160 mm table diameter, it provides 360° rotation and 0–90° tilting, allowing accurate machining of angles, circular profiles, and complex multi-axis setups.
It features a worm-gear drive (1:90) for smooth, controlled rotation, fine vernier scales, and optional dividing plates for indexing operations such as gear cutting. The table includes 10mm T-slots, an MT2 center bore, and strong mechanical locks on both axes.
Built for durability, it supports heavy loads (up to 100 kg horizontal) and delivers high machining accuracy, making it suitable for toolrooms, fabrication shops, and precision engineering applications.
Features

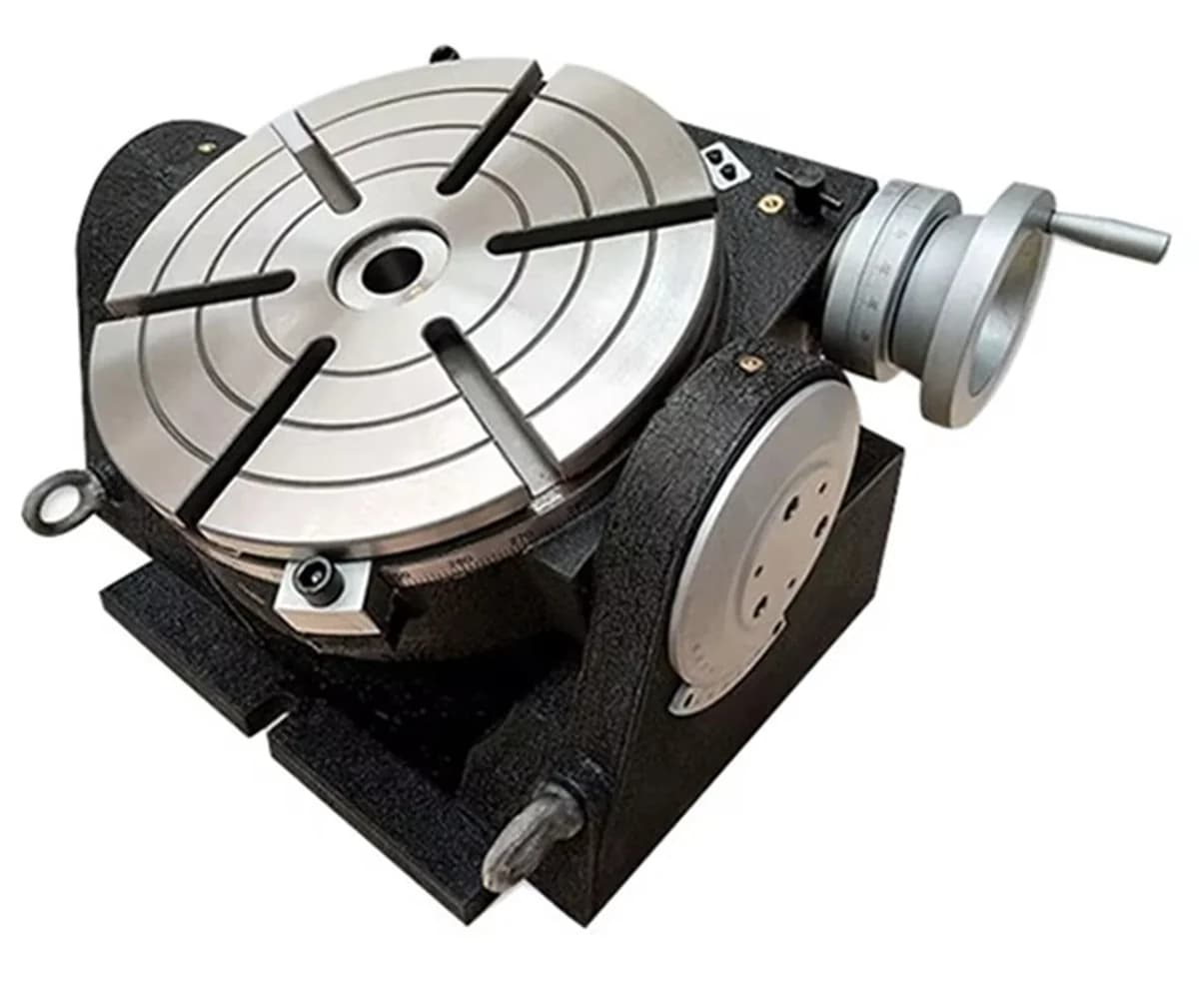

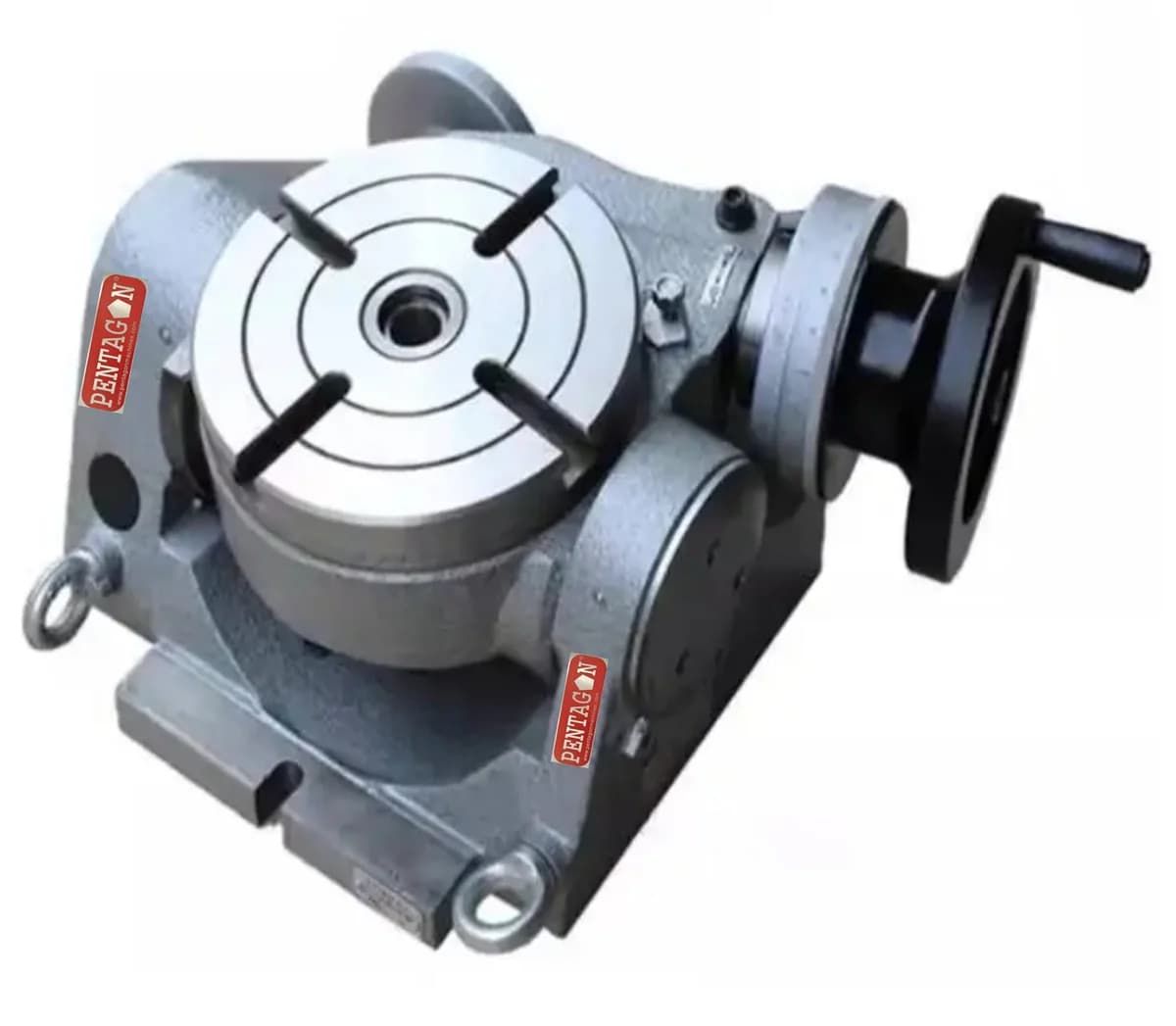

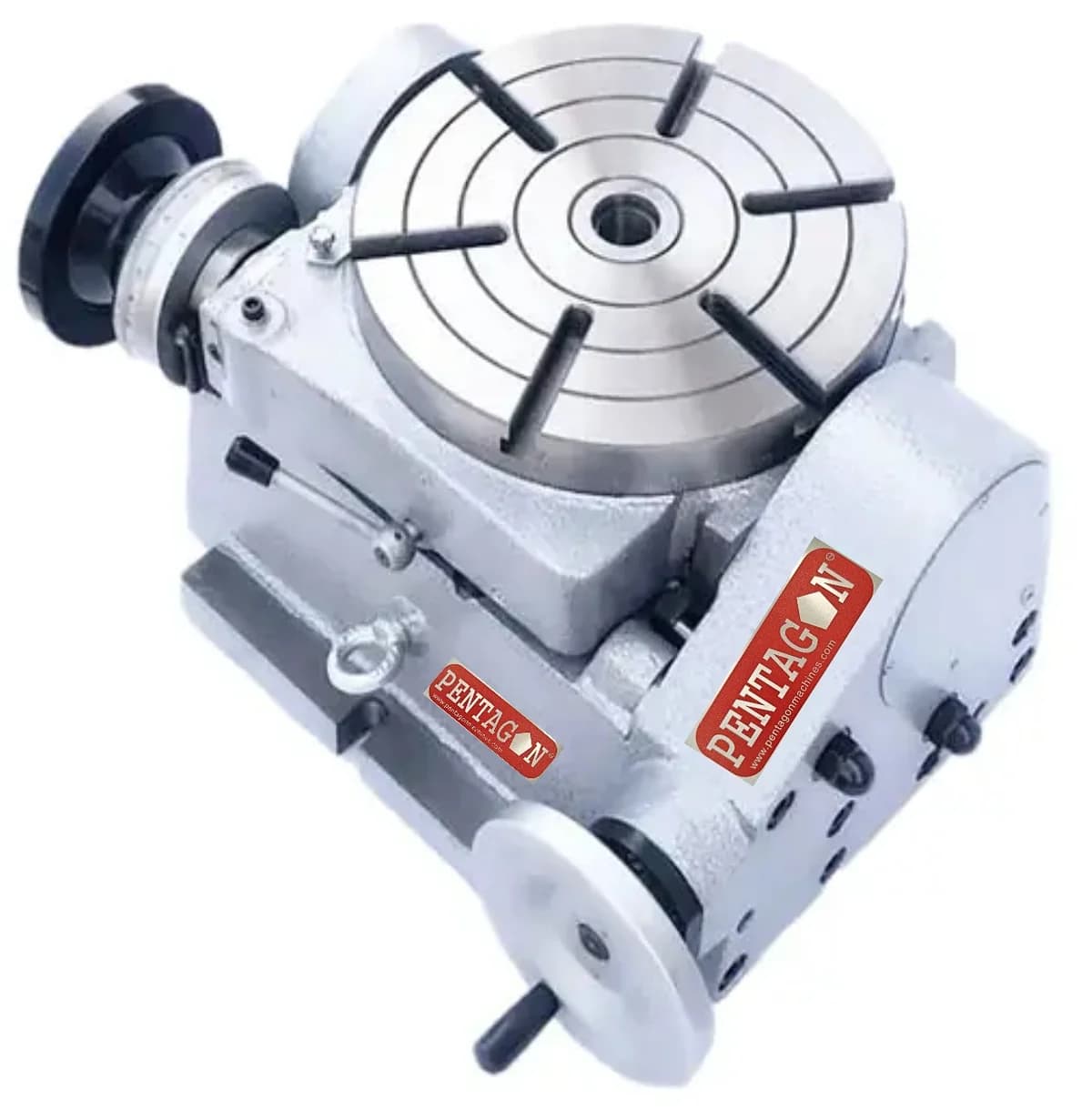

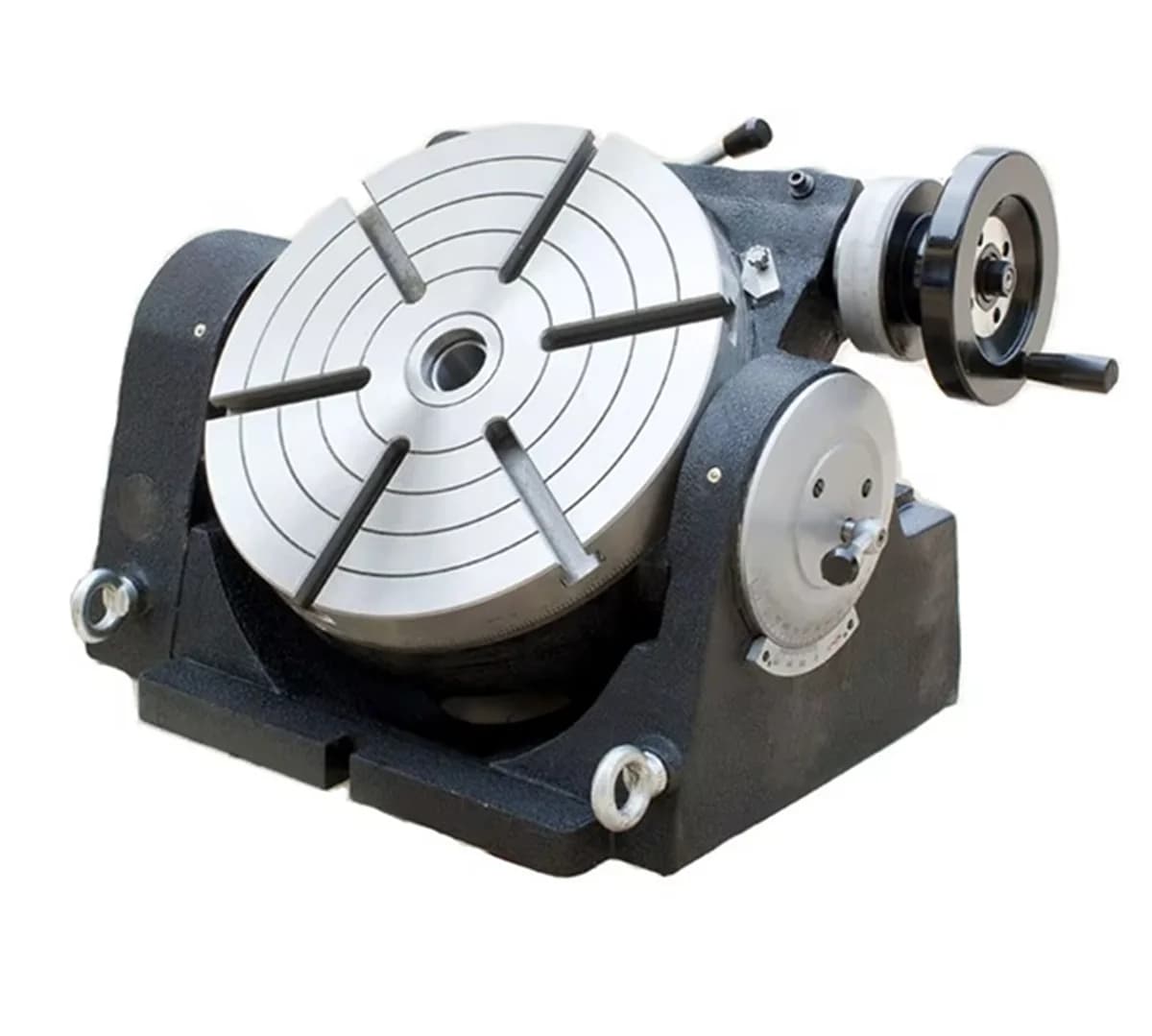

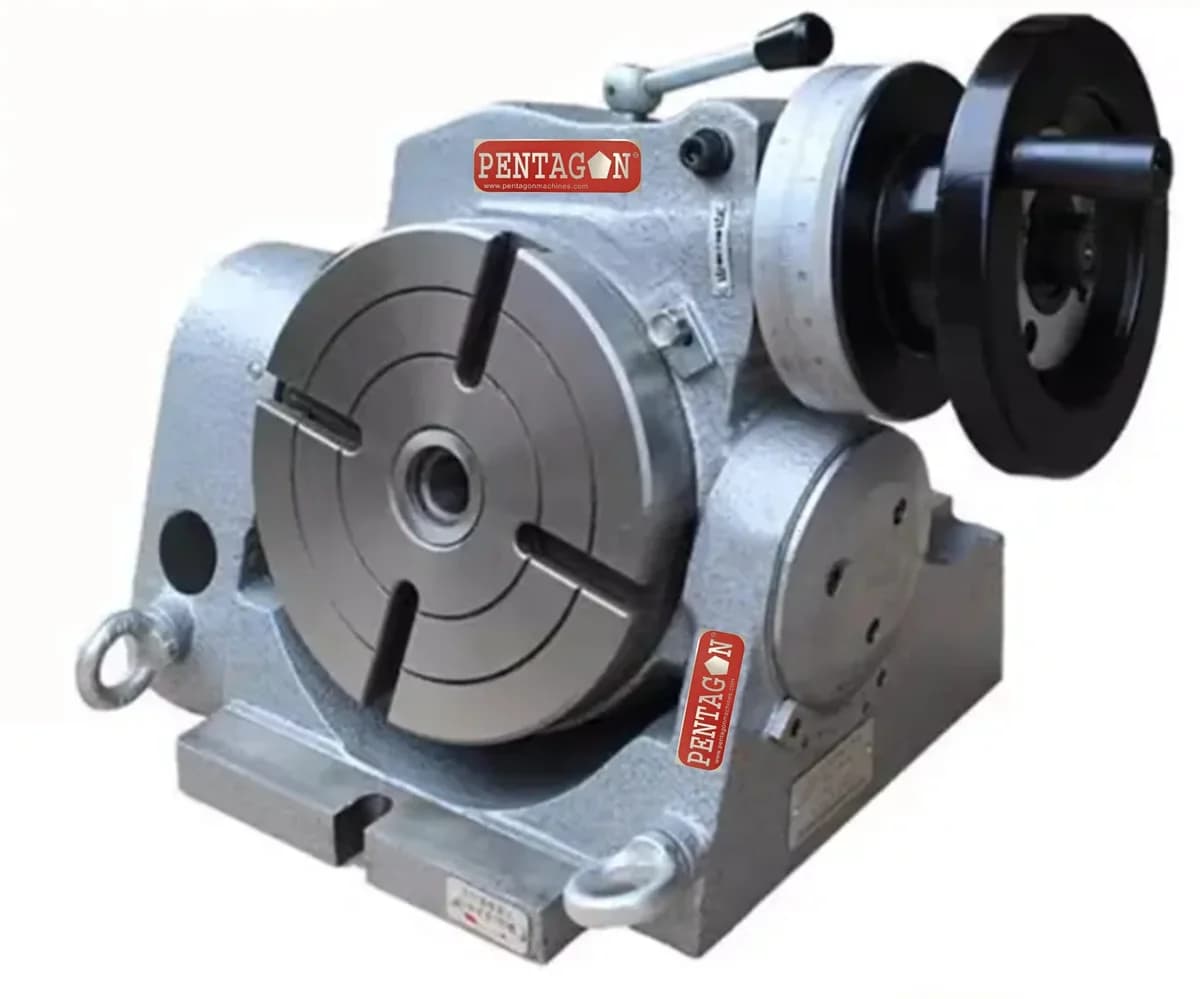

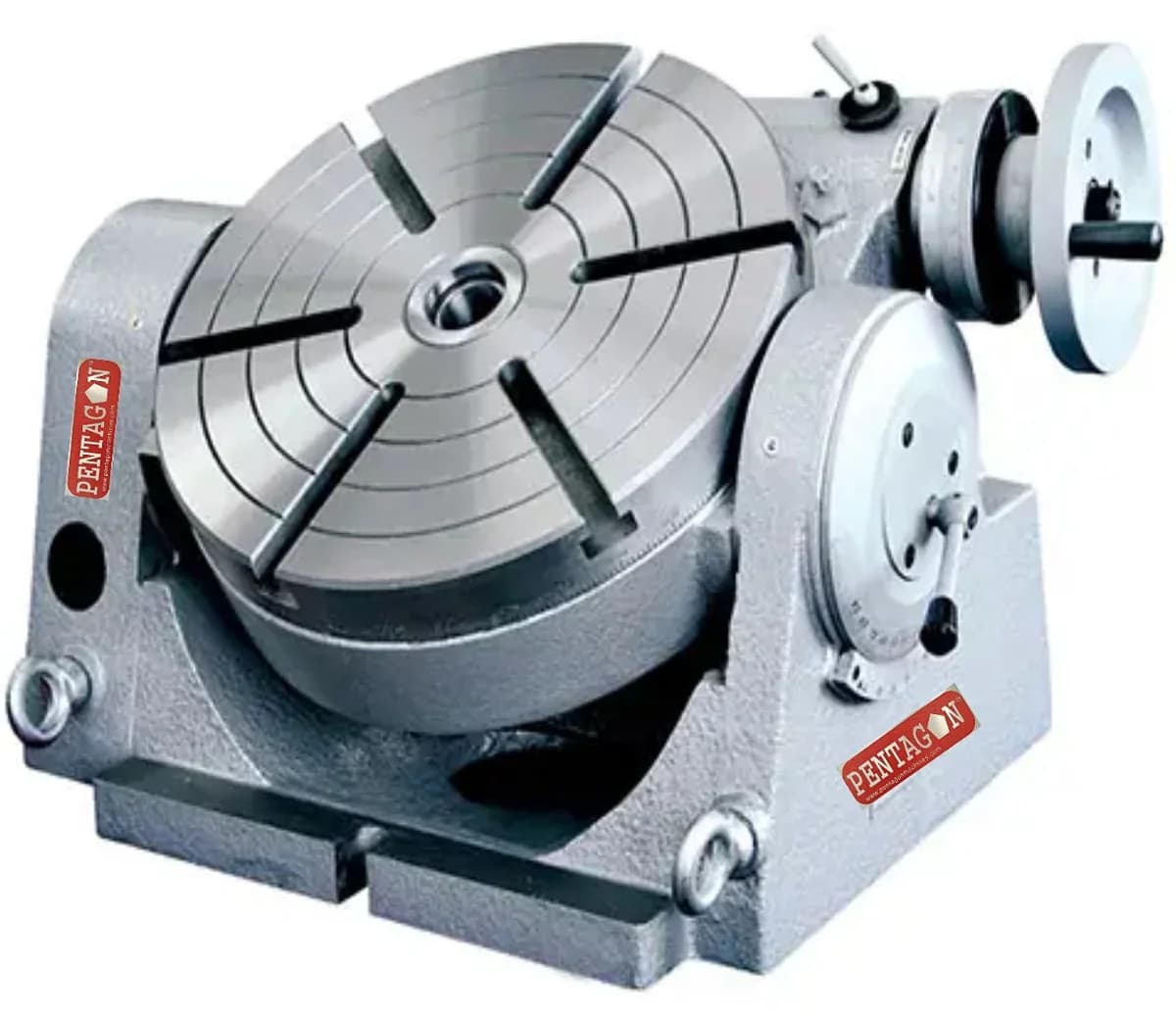

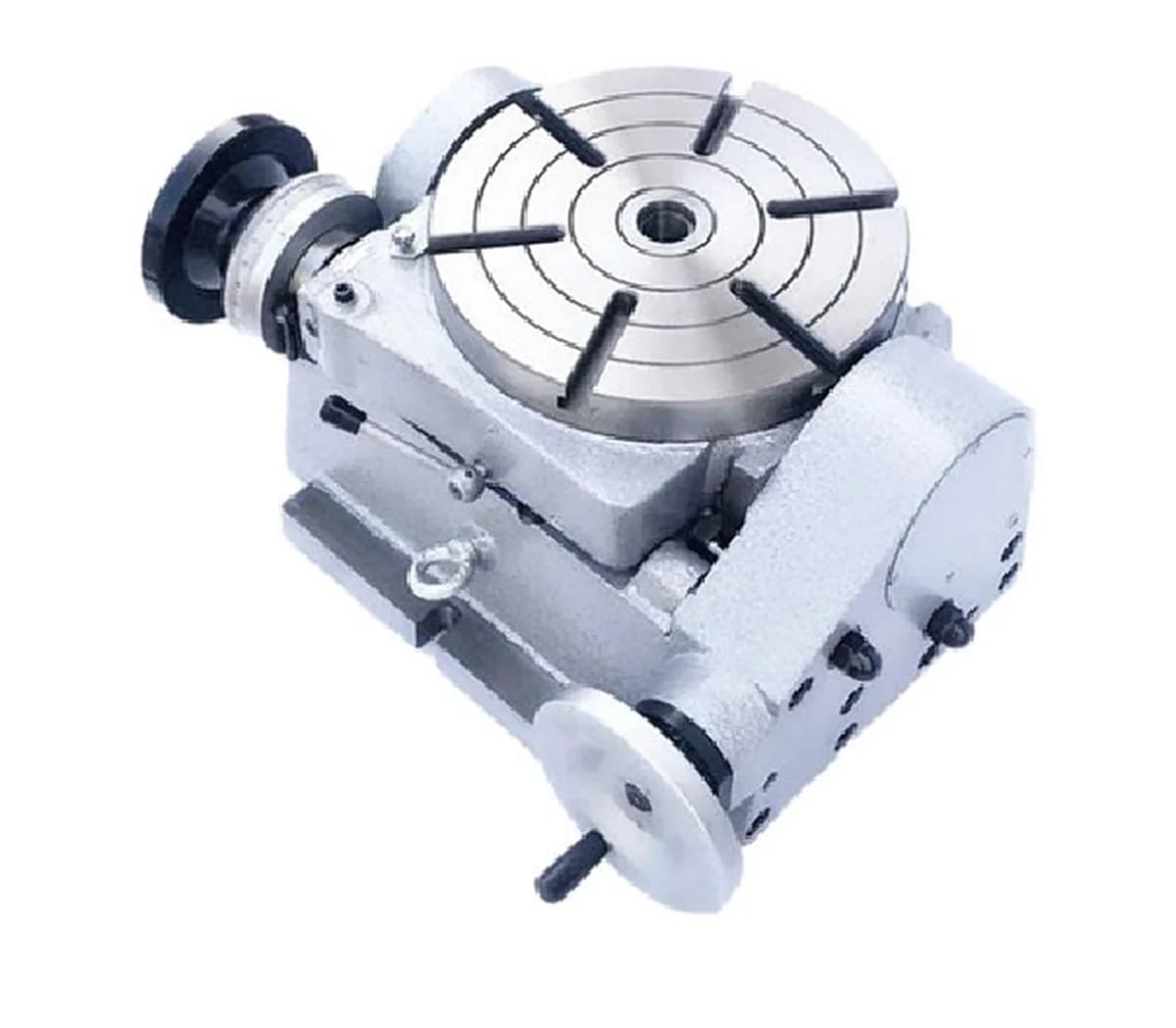

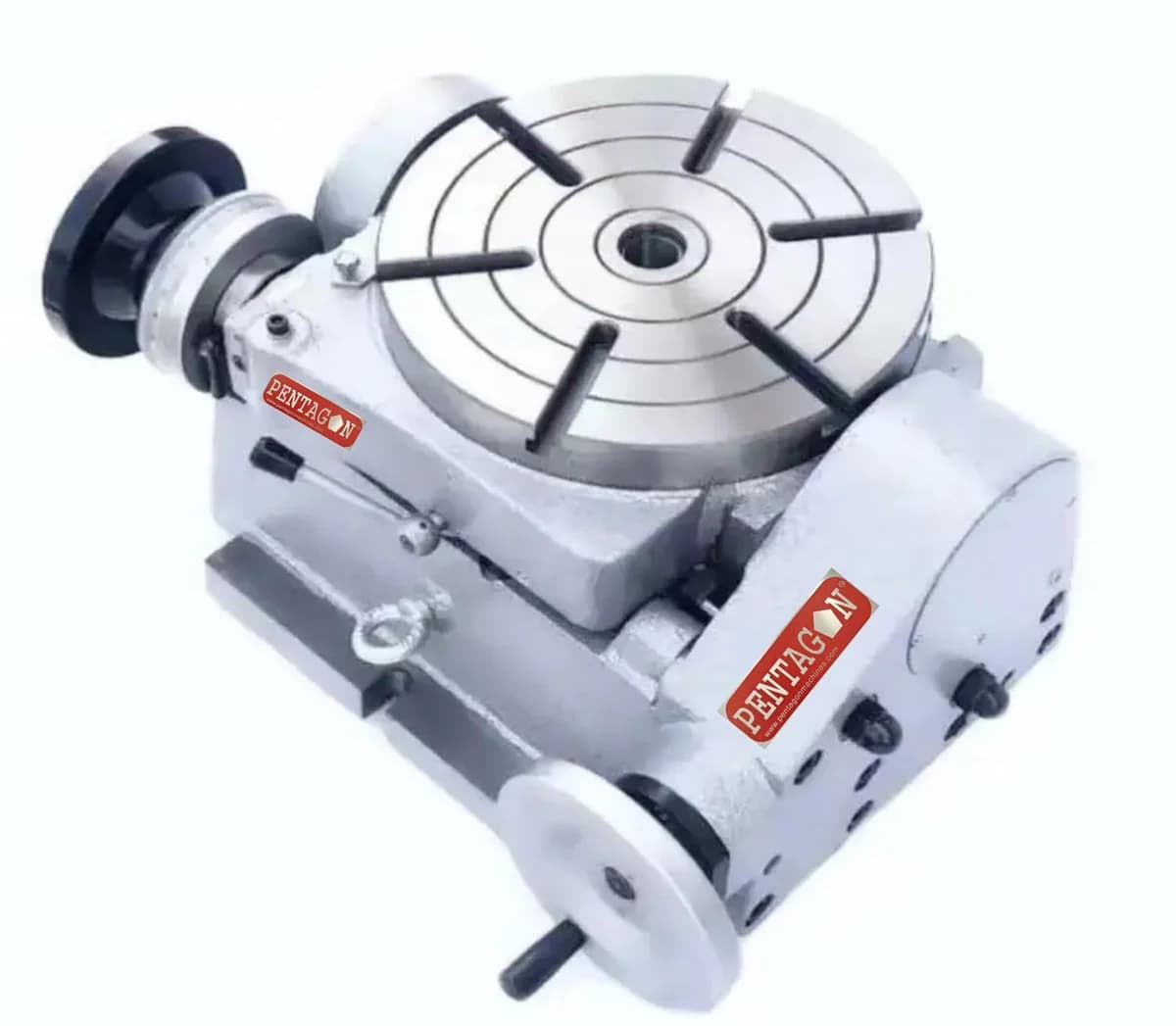

TSK-160 Universal Tilting Rotary Table
1. Dual-Axis Capability
- 360° rotary motion for circular machining and indexing.
- 0°–90° tilting function for angled and compound machining.
- Positive locking at any desired angle.
2. Precision Machining
- Worm-gear drive (1:90 ratio) ensures smooth and controlled rotation.
- High accuracy with fine vernier scales on both rotary and tilt axes.
- Handwheel graduation up to 1′ (arc-minute) for precise settings.
3. Robust Construction
- Heavy-duty cast iron body for excellent rigidity and vibration absorption.
- High-quality worm and worm-wheel mechanism for long service life.
4. Versatile Mounting Options
- 160 mm diameter table with machined working surface.
- 10 mm T-slots arranged symmetrically for easy fixture and job clamping.
- MT2 center bore for using center attachments or alignment tools.
5. Strong Load Capacity
- Supports high workpiece weight:
- 100 kg in horizontal position
- 50 kg in vertical/tilted position
6. Indexing Capability
- Compatible with dividing plates for precise indexing, gear cutting, fluting, and repetitive angular operations.
7. Multi-Machine Compatibility
- Can be mounted on conventional milling machines, turret mills, drilling machines, and toolroom setups.
- Tailstock option for supporting long components when tilted.
8. Operator-Friendly Design
- Smooth handwheel operation.
- Easy tilt adjustment with graduated scale.
- Secure locking handles ensure stability during machining.
Applications
1. It is main accessory in milling machine. it is used for indexing, circular cutting, angle setting, boring, spot facing operations etc.
2. It permits machine operation at a higher dimension than that of TSL type. It can be used in a vertical position to enable to carry out center work with the help of tailstock.
3. A flange is special supplied, and be packed independent. And the dividing plates accessory allows the operator to accurately divide the 360°ratation of the clamping surface into division of 2 through 66, and all divisible of 2,3 and 5 from 67--132
Advantage
1. Very versatile: Combines tilting + rotary, reducing the need for extra fixtures.
2. High load capacity, especially for an accessory of this type — good for heavier workpieces.
3. Precision: Fine readouts, good indexing accuracy.
4. Cost-efficient: Manual design means simpler and often less costly (versus motorized / CNC rotary tables).
More questions buyers ask
What is a tilting rotary table?
A tilting rotary table is a precision work-holding device used in milling machines and other machine tools. It allows the workpiece to be rotated in 360 degrees and tilted, typically up to 90 degrees, enabling the machining of complex angles and circular features without re-clamping the job.
What are the main applications of the PENTAGON TSK-series rotary tables?
The TSK-series is used for a variety of tasks including indexing, circular cutting, angle setting, boring, and spot facing operations on milling, drilling, and boring machines.
What is the gear ratio of the worm and worm gear in these tables?
All models in the PENTAGON TSK-series feature a 1:90 transmission ratio for the worm gear, which allows for very fine and precise rotational adjustments.
What is the indexing accuracy of the TSK-series?
The indexing accuracy for all models in this series is 60 seconds.
Can I get a GST invoice for my purchase?
Yes, we provide a GST invoice for all purchases. As a B2B supplier, we ensure all transactions are properly documented for your accounting and tax purposes.
Do you provide delivery across India?
Yes, we offer pan-India delivery for all our products. We ensure safe and timely delivery to your workshop or factory, wherever you are located.
Is there a warranty on these rotary tables?
Yes, all PENTAGON rotary tables come with a manufacturer's warranty against manufacturing defects. Please refer to the warranty card for specific terms and conditions.
What is the center hole taper for these models?
The center hole taper varies by model: MT2 for TSK-160, MT3 for TSK-250 and TSK-320, and MT4 for TSK-400.
Who should choose the PENTAGON TSK-160 model?
The TSK-160, with its 160mm table diameter and 100kg horizontal load capacity, is ideal for smaller workshops, R&D labs, and educational institutions working with lighter workpieces that require high-precision indexing and tilting.
Who should choose the PENTAGON TSK-250 model?
The TSK-250 is a versatile mid-range option suitable for general-purpose machine shops. Its 250mm diameter and 200kg horizontal load capacity can handle a wide variety of jobs, making it a great all-around performer.
Who should choose the PENTAGON TSK-320 model?
The TSK-320 is designed for heavy-duty applications in production environments. With a 320mm table and a robust 250kg horizontal load capacity, it's built to handle larger and heavier components with sustained accuracy.
Who should choose the PENTAGON TSK-400 model?
The TSK-400 is the largest and most robust model in the series, intended for heavy industrial manufacturing. Its 400mm table and 300kg horizontal load capacity are perfect for machining very large and heavy workpieces that demand the utmost stability and precision.
What is the main difference between the TSK-160 and TSK-250?
The primary differences are size and load capacity. The TSK-250 has a larger table diameter (250mm vs 160mm), a higher load capacity (200kg vs 100kg horizontally), and a larger center hole taper (MT3 vs MT2), making it suitable for bigger jobs.
How does the load capacity change as I go from the TSK-320 to the TSK-400?
Moving from the TSK-320 to the TSK-400 increases the horizontal load capacity from 250kg to 300kg and the vertical capacity from 125kg to 150kg. The TSK-400 is built for the heaviest machining tasks in the series.
Are the T-slot dimensions the same across all models?
No, the T-slot dimensions change with the model size. The TSK-160 has a 10mm T-slot width, the TSK-250 has a 12mm width, and both the TSK-320 and TSK-400 have a 14mm width to accommodate larger clamping hardware.
