Belt Driven Heavy Duty Lathe Machine 15x15-125 Series — PBHL-7'-15"-125

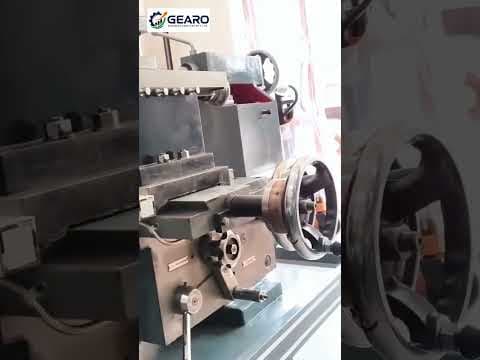

See it in action
Specifications
For: PBHL-7'-15"-125- Model
- PBHL-9-15-125
- Bed Length
- 7 Feet
- Admit Between Centers
- 1000 mm
- Height Of Centre
- 375 mm
- Width Of Bed
- 375 mm
- Swing Over Bed
- 750 mm
- Swing Over Slide
- 550 mm
- Swing Over Gap
- 900 mm
- Spindle Bore
- 125 mm
- Speed- Nos
- 30-600 RPM/8 Nos
- Lead Screw TPI
- 4 TPI
- Tail Stock Sleeve
- MT-4
- Power Required
- 3/5 HP
- Electrical Supply
- 415V, 3 Phase, 50 Hz
- Appx Weight
- 2100 Kgs
Configurations
Click a row to switch| Variant | Bed Length | Admit Between Centers | Spindle Bore | Height Of Centre | Price |
|---|---|---|---|---|---|
| PBHL-9'-15"-125 | 9 Feet | 1600 mm | 125 mm | 375 mm | ₹4,35,000 |
| PBHL-16'-15"-125 | 16 Feet | 3700 mm | 125 mm | 375 mm | ₹6,05,000 |
| PBHL-14'-15"-125 | 14 Feet | 3100 mm | 125 mm | 375 mm | ₹5,15,000 |
| PBHL-5.5'-15"-125 | 5.5 Feet | 560 mm | 125 mm | 375 mm | ₹3,95,000 |
| PBHL-7'-15"-125 | 7 Feet | 1000 mm | 125 mm | 375 mm | ₹4,15,000 |
| PBHL-10'-15"-125 | 10 Feet | 1900 mm | 125 mm | 375 mm | ₹4,53,000 |
| PBHL-12'-15"-125 | 12 Feet | 2500 mm | 125 mm | 375 mm | ₹4,65,000 |
Operational Efficiency & Maintenance
- Simplified mechanical controls reduce downtime and enable quick setup changes between different job types
- Robust gearbox and belt tensioning system maintain optimal cutting performance under heavy loads
- Accessible lubrication points and standardized wear components streamline routine servicing schedules
- Stable cast iron construction dampens vibration to preserve tool life and improve surface finish quality
Industrial Applications & Use Cases
- Heavy component turning and facing operations for automotive, agricultural, and construction equipment manufacturing
- Precision shaft machining and thread cutting for industrial pump and valve assembly lines
- Batch production of flanges, rollers, and cylindrical components requiring consistent dimensional accuracy
- Repair shop refurbishment of worn mechanical parts and replacement component fabrication
Configuration & Size Range
- Available bed lengths ranging from 5.5 feet to 24 feet to accommodate varying job requirements and layouts
- Multiple spindle bore options including 52 mm, 80 mm, 104 mm, and 125 mm for flexible bar stock processing
- Modular architecture allows precise matching of machine footprint to specific shop floor space constraints
- Standardized 15x15 series dimensions ensure compatibility with common tooling setups and workholding accessories
Drive System & Core Design
- Belt driven transmission ensures smooth power delivery and consistent torque across all operating speeds
- Heavy duty construction engineered for continuous machining cycles and demanding workshop environments
- 15 inch center height and 15 inch bed width provide a robust foundation for substantial workpiece handling
- Mechanical drive design prioritizes reliability, ease of maintenance, and straightforward operational control
Optional Accessories
- Steady Rest
- Follow Rest
- Face Plate Electrical Fittings
- True Chuck & Dog Chuck
- Quick Change Tool Post Tapper Turning Attachment
- Coolant Pump with Tank & Fittings Machine Lamp
- Rear Tool Post
- Key Way Milling Attachment
- Tool Post Grinder
Standard Accessories
- Electrical Motor, Switches/Starter/V Belts
- Chuck Plate
- Gear Set
- Center Adaptor
- Dead Centers
- Dial Indicator
- Square Tool Post
- Tool Post Key
Frequently asked
How does the belt driven configuration benefit high torque operations?
Mechanical belt drive ensures direct power transfer, reducing slippage while maintaining consistent cutting force.
Can this machine handle long workpieces without additional support?
Models up to 24 feet feature reinforced ways and heavy duty tail stocks to safely support extended machining runs.
What spindle bore sizes are available across the series?
The product family offers 52 mm, 80 mm, 104 mm, and 125 mm bore options to match different bar feeding requirements.
More questions buyers ask
What is the main advantage of a belt-driven lathe?
Belt-driven lathes provide smooth power transmission and consistent torque, which is ideal for heavy-duty turning operations.
What industries use the Pentagon 15x15-125 series?
It is widely used in automotive, agricultural, pump manufacturing, and general industrial repair workshops.
Does this lathe come with a warranty?
Yes, Pentagon provides standard manufacturer warranty and after-sales support for all lathe machines.
What is the spindle bore size for this series?
The 15x15-125 series features a 125 mm spindle bore, suitable for large bar stock processing.
Is pan-India delivery available?
Yes, we offer secure, pan-India delivery for all industrial machinery.
What electrical supply is required?
The machine operates on a 415V, 3-phase, 50 Hz power supply.
What accessories are included as standard?
Standard accessories include an electrical motor, chuck plate, gear set, centers, and a square tool post.
Can this machine handle long workpieces?
Yes, with bed lengths available up to 24 feet, it is designed to handle extended machining runs.
What is the weight of the 9-foot model?
The 9-foot model weighs approximately 2200 Kgs.
Are optional accessories available?
Yes, we offer steady rests, coolant pumps, taper turning attachments, and more as optional add-ons.
Who should choose the 5.5-foot model?
Ideal for workshops with limited space requiring high-torque turning for smaller components.
Who should choose the 16-foot model?
Best for heavy industrial applications requiring large admit-between-center capacity for long shafts.
How does the 7-foot model compare to the 16-foot model?
The 7-foot model is compact for general shop use, while the 16-foot model is built for heavy-duty, long-workpiece production.
Which model is best for heavy shaft machining?
The 14-foot or 16-foot models are recommended for superior support and stability during long shaft machining.
