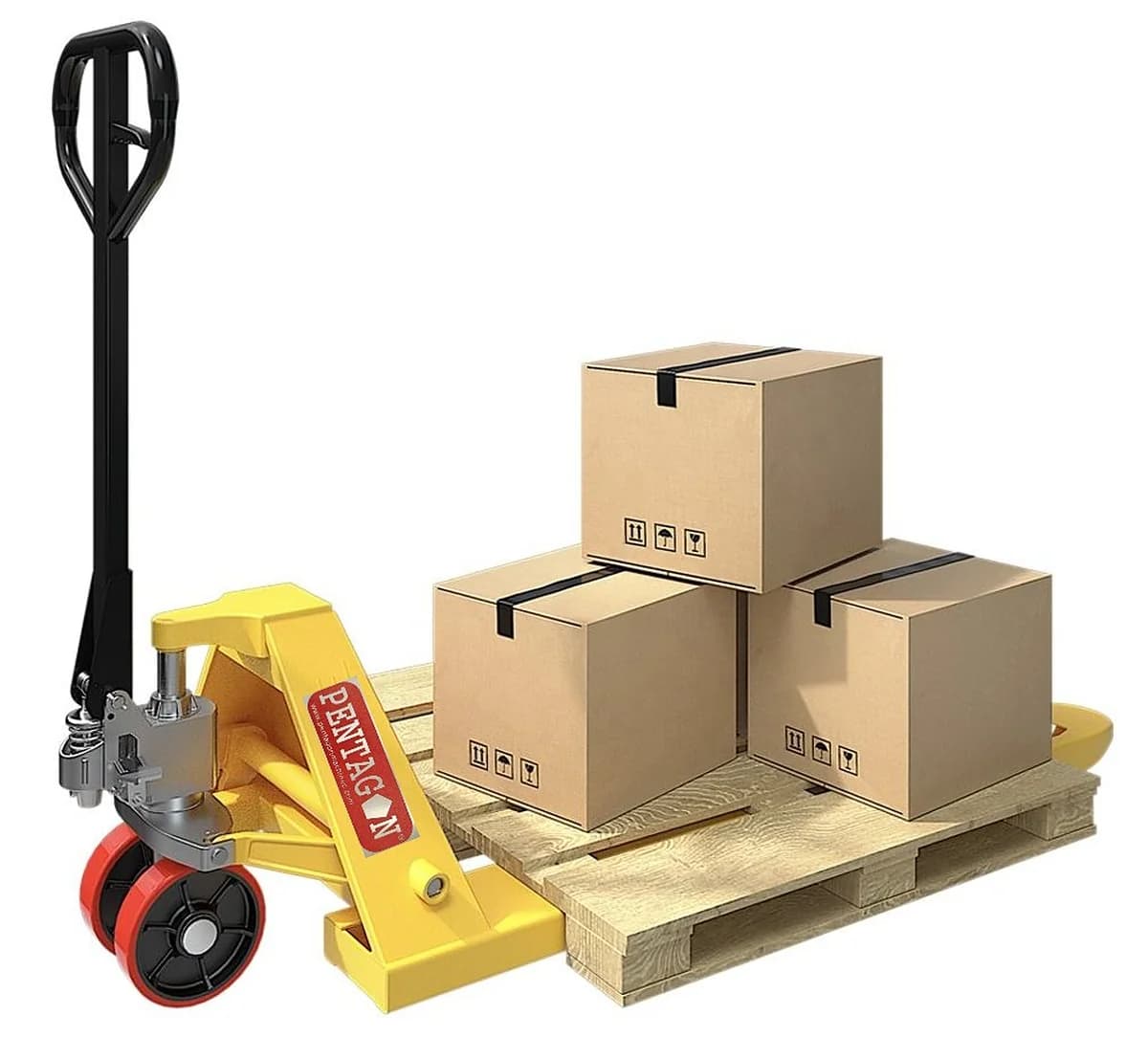

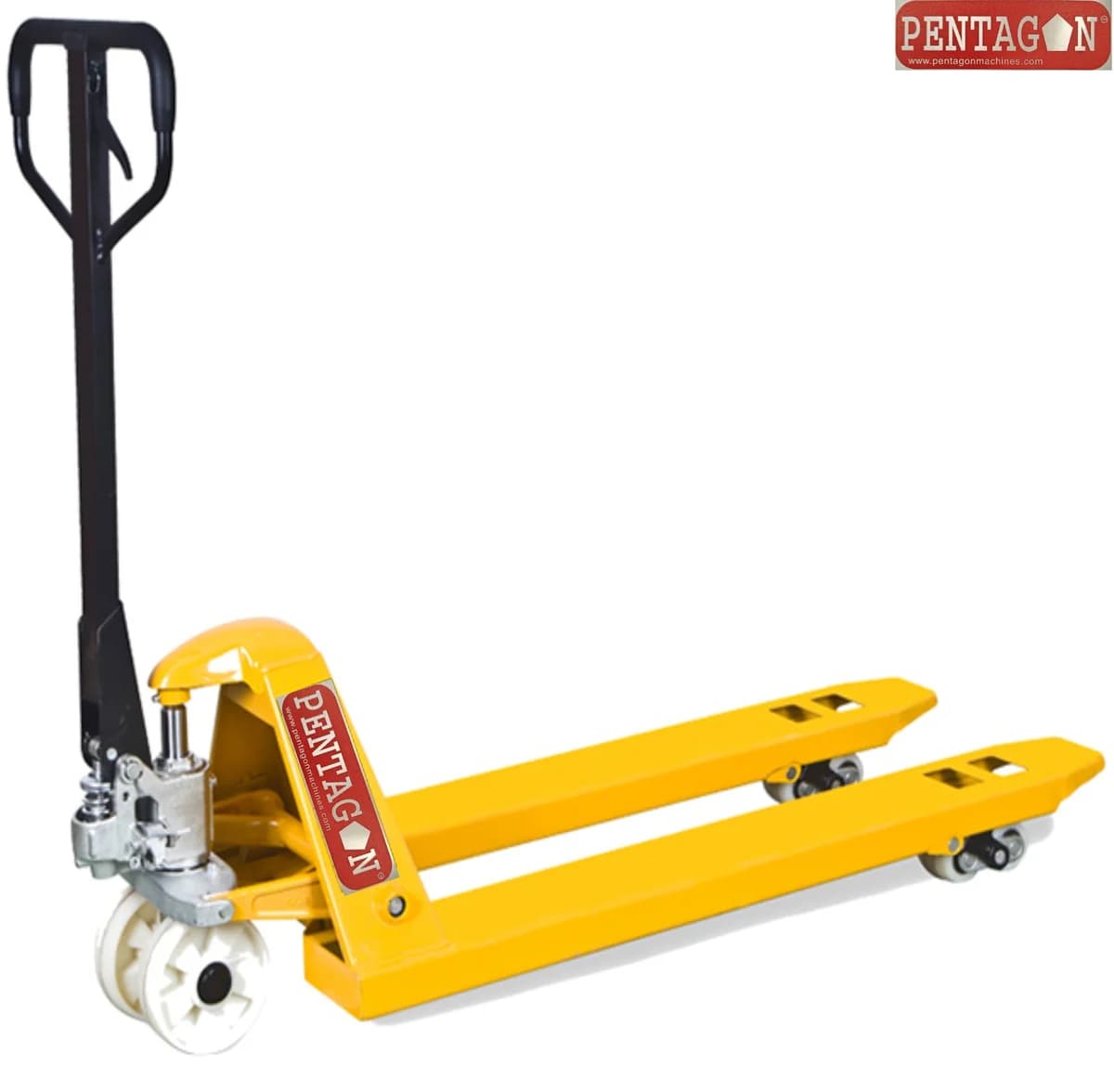

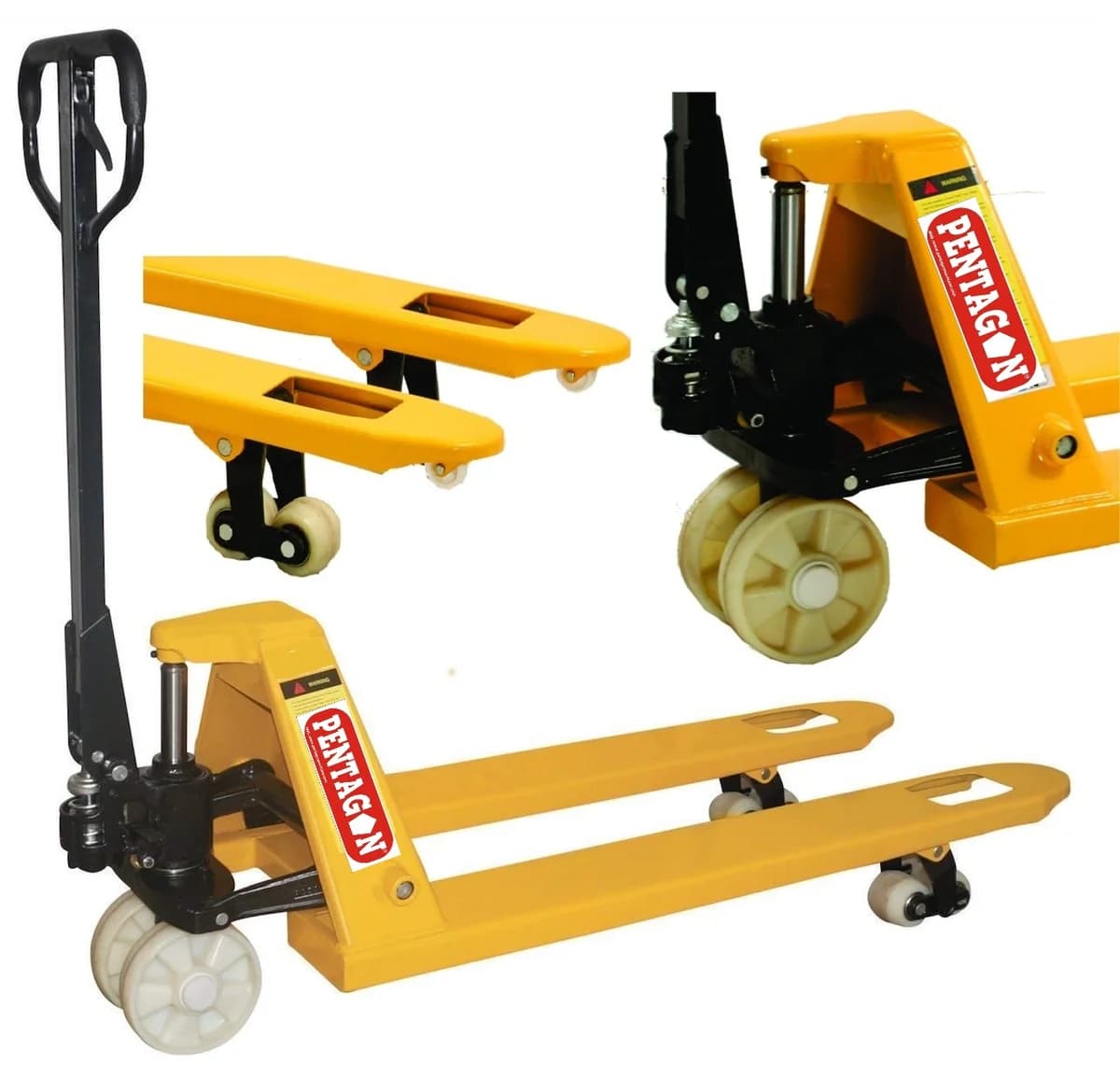

Hydraulic Hand Pallet Truck Model PHPT-30LN
Standard hydraulic hand pallet truck for general warehouse use. Lifts 3000 kg with 1200 mm fork length. • Rated load capacity of 3000 Kgs for standard pallets • Fork length of 1200 mm accommodates common EU and ISO pallets • Nylon wheels provide durability on concrete surfaces • Minimum height of 85 mm allows entry under low clearance pallets

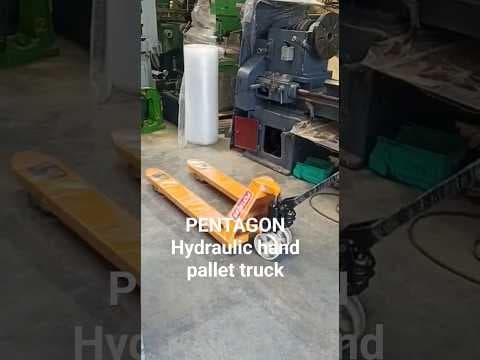

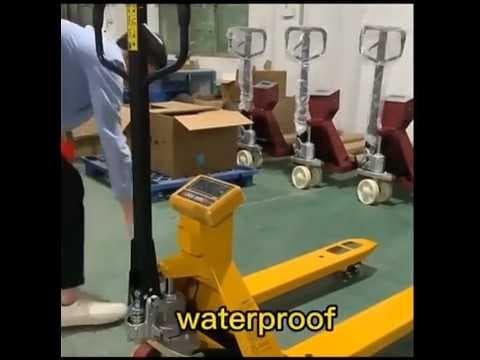

See it in action

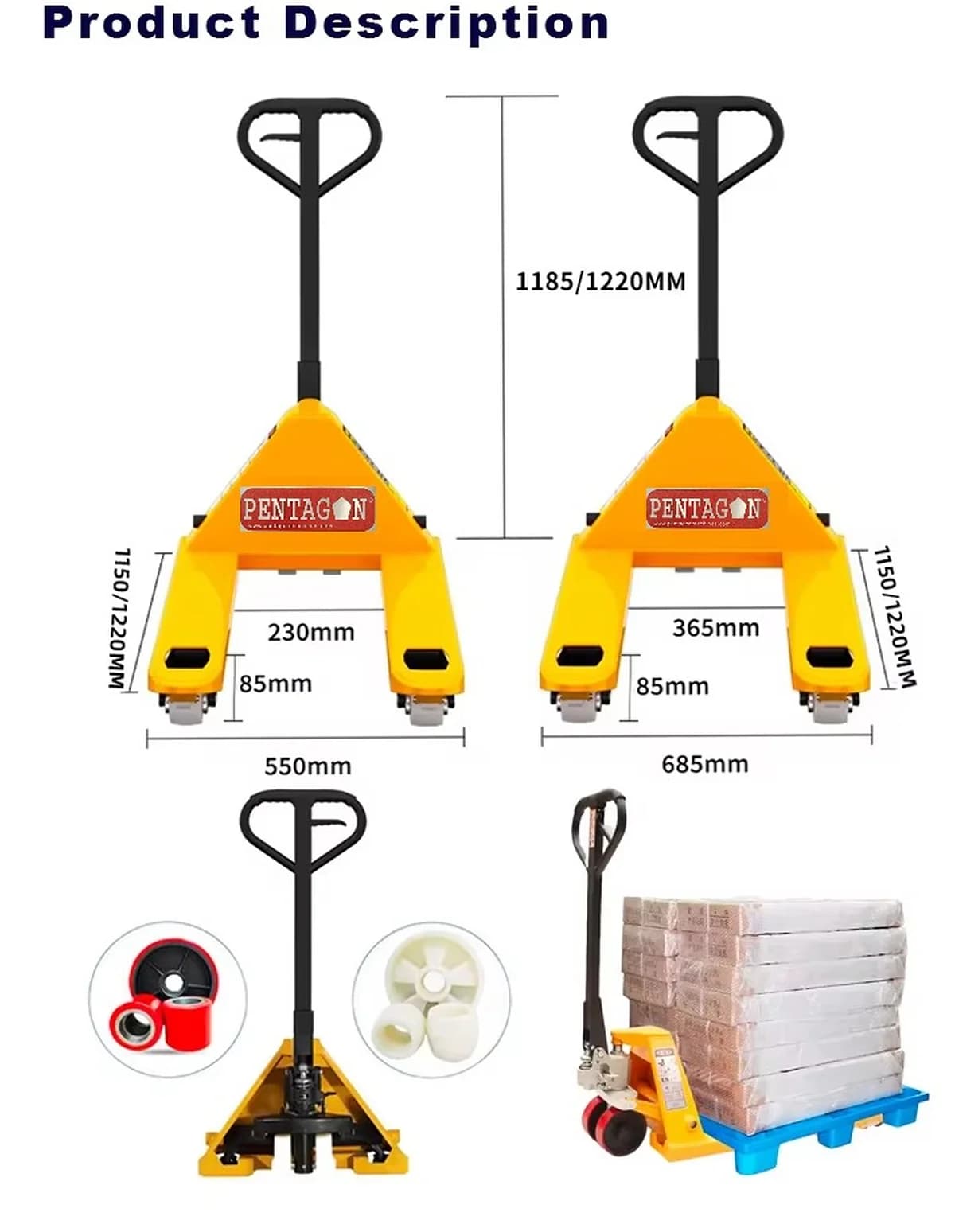

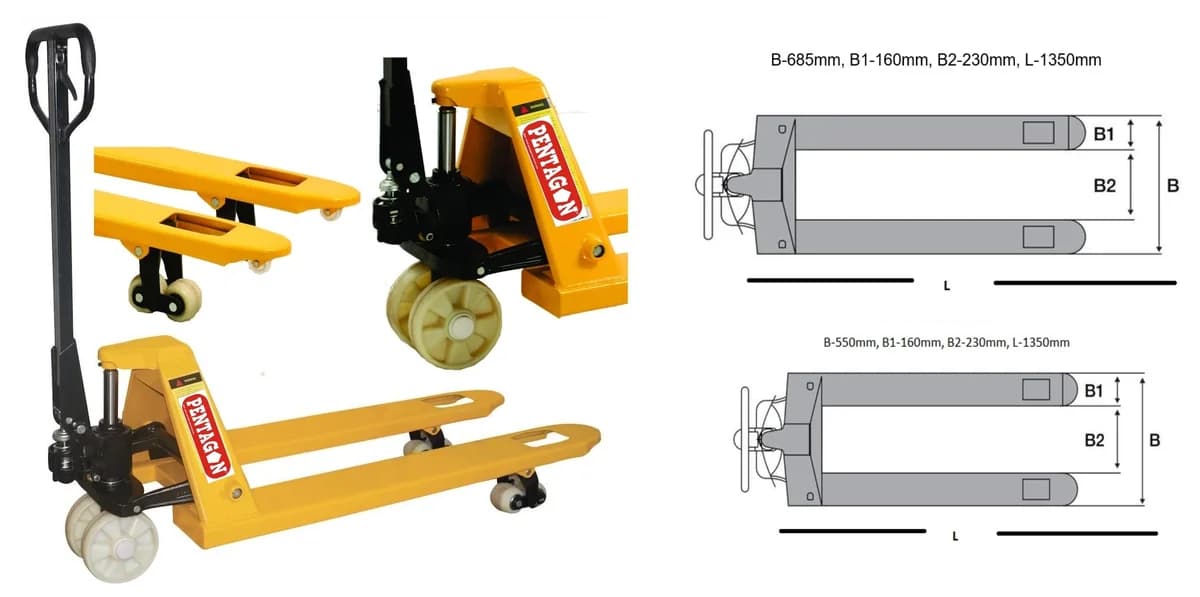

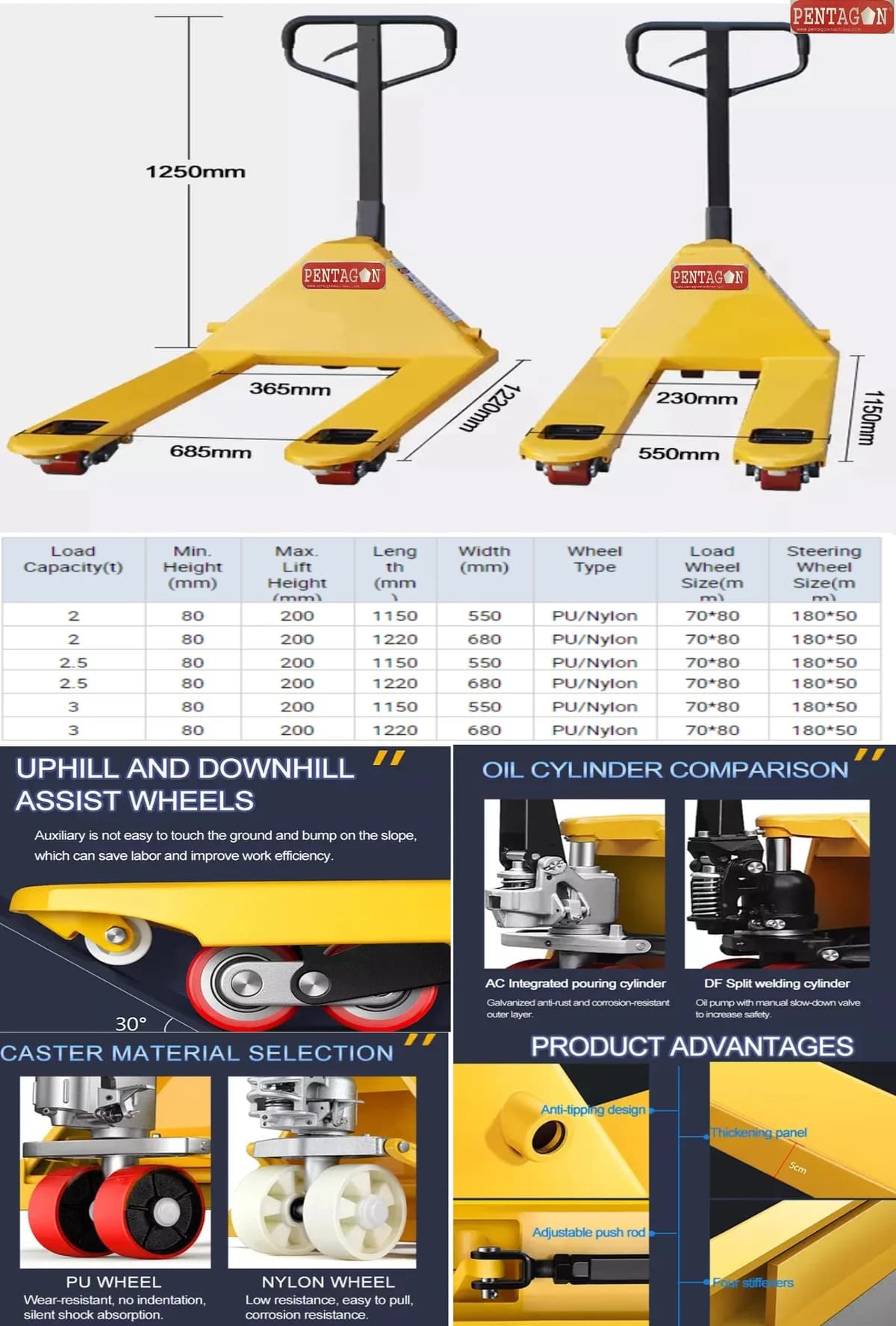

Specifications
For: PHPT-30LN- Model
- PHPT-30LN
- Rated Load Capacity
- 3000 Kgs
- Distance Between Forks
- 550 mm
- Max Lifting height
- 180 mm
- Wheel Size (Rear)
- 80x70 mm
- Wheel Size (Front)
- 180x50 mm
- Minimum Height
- 85 mm
- Fork Length (l)
- 1150 mm
- Construction
- Heavy-duty steel frame
- Pump Mechanism
- Hydraulic pump
- Wheel Material
- Nylon
- Handle
- Rubber-coated, ergonomic with safety grip
- Net Weight of Truck
- 76-83 kg
- Turning Radius
- 1166/1336 mm
Configurations
Click a row to switch| Variant | Rated Load Capacity | Fork Length (l) | Wheel Material | Distance Between Forks | Price |
|---|---|---|---|---|---|
| PHPT-30LN | 3000 Kgs | 1150 mm | Nylon | 550 mm | ₹13,200 |
| PHPT-30WN | 3000 Kgs | 1150 mm | Nylon | 685 mm | ₹14,700 |
| PHPT-50LN | 5000 Kgs | 1150 mm | Nylon | 550 mm | ₹33,800 |
| PHPT-50WN | 5000 Kgs | 1150 mm | Nylon | 685 mm | ₹37,300 |
| PHPT-30LPu | 3000 Kgs | 1150 mm | Pu | 550 mm | ₹15,199 |
| PHPT-30WPu | 3000 Kgs | 1150 mm | Pu | 680 mm | ₹16,699 |
| PHPT-50LPu | 5000 Kgs | 1150 mm | Pu | 550 mm | ₹36,200 |
| PHPT-50WPu | 5000 Kgs | 1150 mm | Pu | 680 mm | ₹39,400 |
| PHPT-25LN | 2500 Kgs | 1150 mm | Nylon | 550 mm | ₹12,899 |
| PHPT-25LPu | 2500 Kgs | 1150 mm | Pu | 550 mm | ₹14,899 |
| PHPT-30-800Pu | 3000 Kgs | 800 mm | Pu | 550 mm | ₹15,900 |
| PHPT-20-1500Pu | 2000 Kgs | 1500 mm | Pu | 550 mm | ₹18,900 |
| PHPT-20-1800Pu | 2000 Kgs | 1800 mm | Pu | 550 mm | ₹21,700 |
| PHPT-20-2000Pu | 2000 Kgs | 2000 mm | Pu | 550 mm | ₹34,700 |
Common Buyer Questions
Q: Can I customize the wheel material for specific floor types? A: Yes, PU and Nylon wheel options are available to suit different surfaces. Q: Is the weighing scale option accurate for compliance? A: Integrated scales provide precise weight data for inventory management. Q: What is the maximum load this truck can handle? A: Capacities range from 2500 kgs – 5000 Kgs depending on the model.
Construction Quality and Longevity
- Heavy-duty steel frame resists wear and tear in demanding environments
- Nylon wheels offer excellent resistance to abrasion and impact
- Hydraulic system designed for long-term reliability with minimal downtime
- Simple maintenance requirements reduce total cost of ownership
- Robust construction supports high-cycle usage in busy operations
Versatile Industrial Applications
- Ideal for warehouses, factories, and logistics facilities
- Suitable for loading docks and distribution centers
- Supports general material handling tasks in manufacturing plants
- Handles standard palletized loads in retail and cold storage environments
- Reliable solution for frequent lifting and short-distance transport

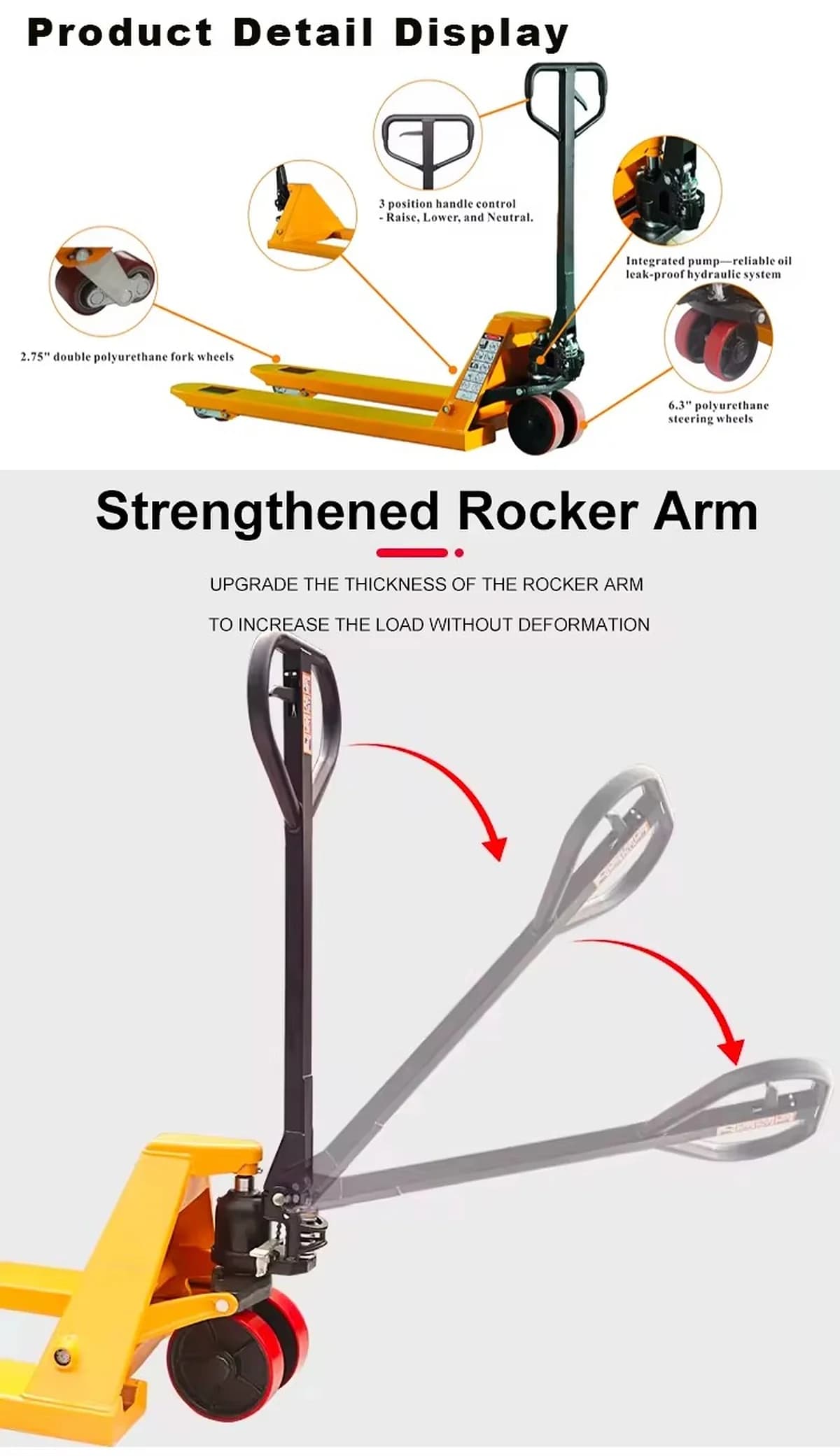

Ergonomic Design and Operational Efficiency
- Ergonomic handles feature rubber-coated grips for safety and comfort
- Low minimum height fits under most standard pallets
- Pump mechanism allows for effortless operation by single operator
- Compact design enhances maneuverability in tight warehouse aisles
- Front and rear wheel configuration ensures stable load transport

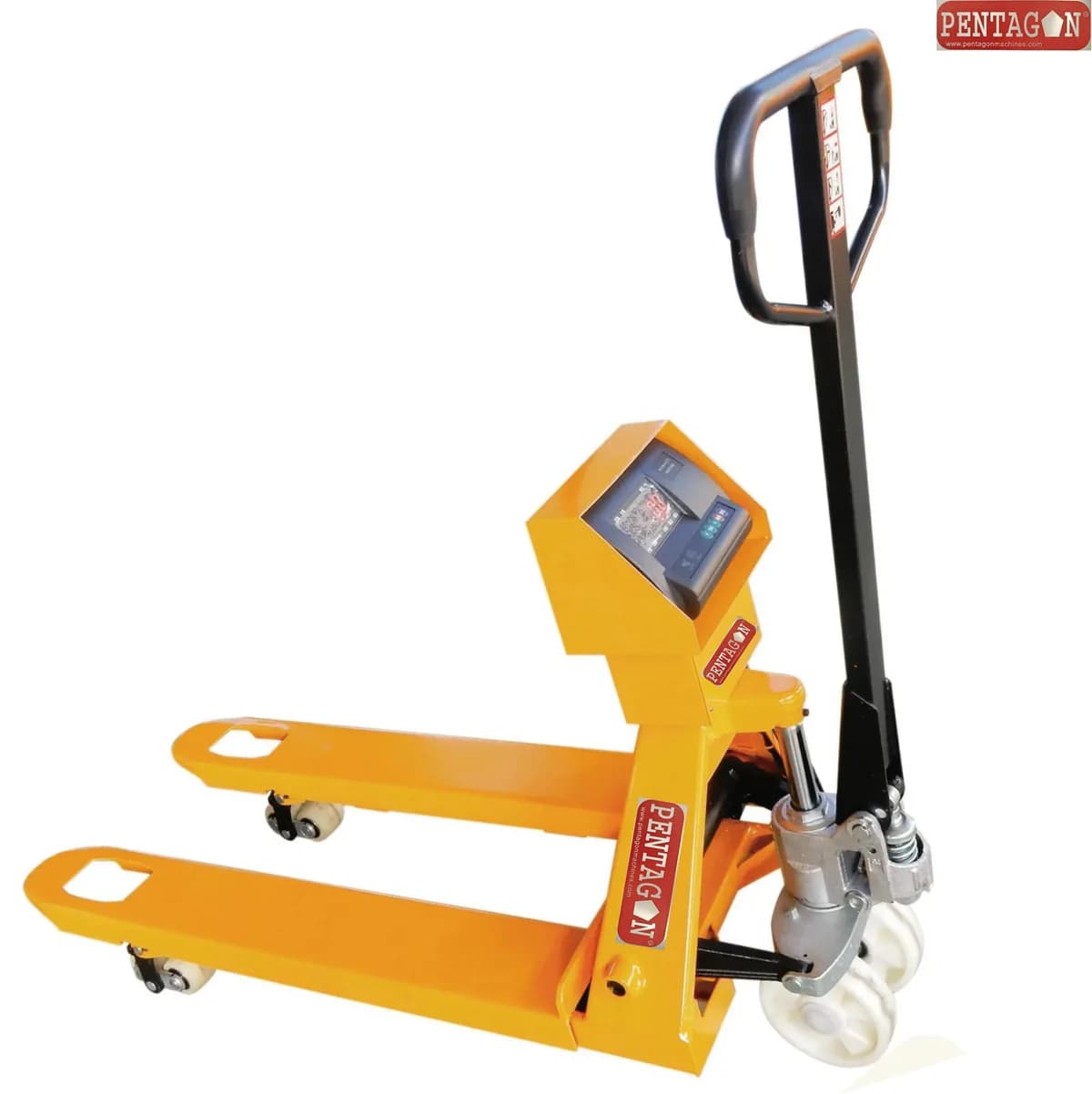

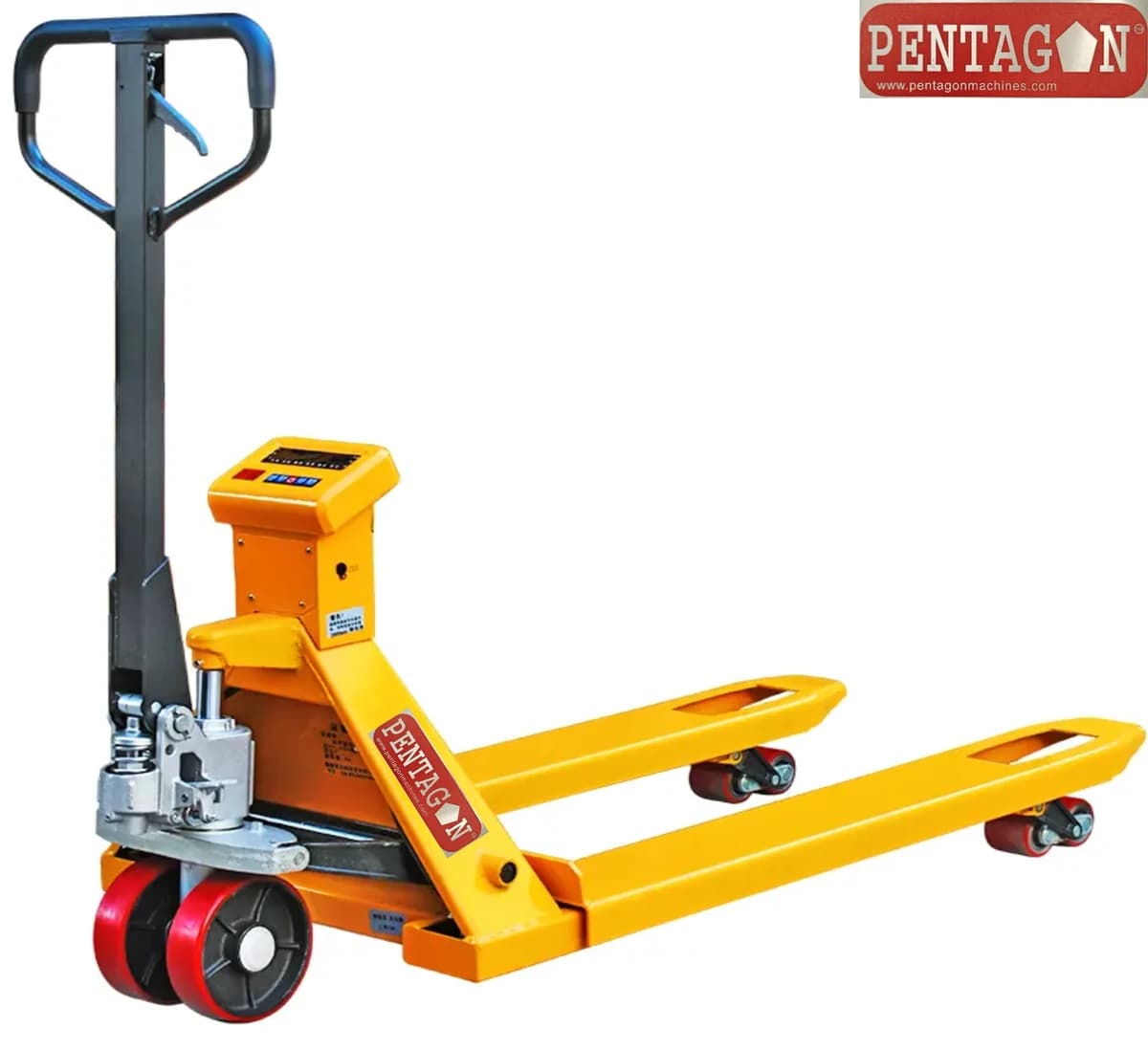

Integrated Weighing and Printing Solutions
- Integrated weighing scales available for real-time load monitoring
- Optional thermal printers provide immediate weight receipt generation
- Supports inventory control and reduces manual data entry errors
- Ideal for facilities requiring precise weight verification during logistics
Robust Load Handling Capabilities
- Load capacities available from 2500 kgs – 5000 Kgs
- Equipped with durable PU or Nylon wheel options for varied floors
- Designed for efficient lifting and horizontal transport of palletized loads
- Heavy-duty steel frame construction ensures structural integrity
- Hydraulic pump mechanism provides smooth lifting operation
More questions buyers ask
What is the load capacity of Pentagon Hydraulic Hand Pallet Trucks?
Pentagon Hydraulic Hand Pallet Trucks are available in various capacities ranging from 2000 kg to 5000 kg to suit different industrial requirements.
What wheel materials are available for these pallet trucks?
We offer both Nylon and Polyurethane (PU) wheel options to ensure optimal performance on different floor surfaces.
Are these pallet trucks suitable for heavy-duty industrial use?
Yes, they feature a heavy-duty steel frame construction designed for high-cycle usage in warehouses, factories, and logistics centers.
What is the standard fork length for these trucks?
Standard fork length is 1150 mm, with specialized long-fork models (up to 2000 mm) available for oversized loads.
Do you provide GST invoices with the purchase?
Yes, all purchases include a valid GST invoice for your accounting and tax compliance.
Is pan-India delivery available?
Yes, we provide reliable pan-India shipping for all our material handling equipment.
What maintenance is required for the hydraulic pump?
The hydraulic system is designed for long-term reliability with minimal maintenance, helping to reduce your total cost of ownership.
Can these trucks be used in cold storage?
Yes, our robust construction and high-quality wheel options make them suitable for various environments, including retail and cold storage.

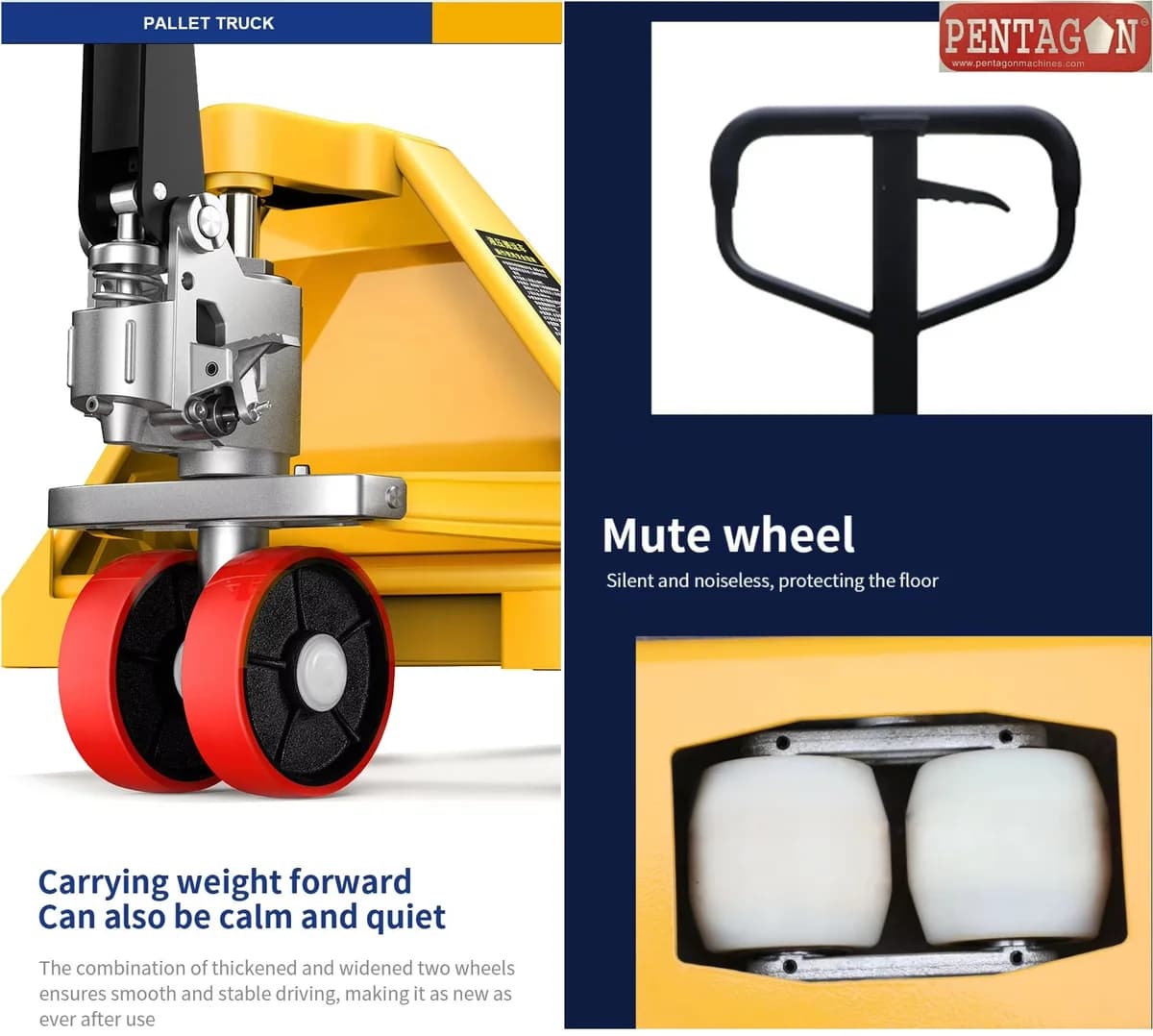

How do I choose between Nylon and PU wheels?
Nylon wheels are generally better for rough or concrete floors, while PU wheels offer a smoother, quieter ride on polished or epoxy-coated floors.
What is the minimum fork height?
The minimum fork height is 85 mm, allowing them to fit easily under most standard industrial pallets.
Who should choose the PHPT-30LN model?
The PHPT-30LN is ideal for standard warehouse operations requiring a 3000kg capacity with durable Nylon wheels.
Who should choose the PHPT-50WN model?
The PHPT-50WN is best for heavy-duty logistics handling up to 5000kg with wide forks for stability.
Who should choose the PHPT-20-2000Pu model?
This model is perfect for handling oversized or non-standard palletized loads requiring a 2000mm fork length.
How does the 3000kg model compare to the 5000kg model?
The 3000kg models are optimized for standard daily tasks, while the 5000kg models feature reinforced frames for heavy-duty industrial lifting.
How do standard fork models compare to long-fork models?
Standard 1150mm forks are for general pallet handling, whereas long-fork models (1500mm-2000mm) are specifically designed for bulky or extra-long loads.
