Pentagon Hand folding machine Model : PHFM 1020X22 SWG
The PHFM 1020X22 SWG is a manual sheet metal folding machine designed for precise edge bending and seaming operations. It accommodates sheets up to 1020 mm wide with a maximum thickness of 22 SWG. • Max bending width: 1020 mm • Max bending thickness: 22 SWG • RAM stroke: 25 mm • Knife size: 150x12 mm

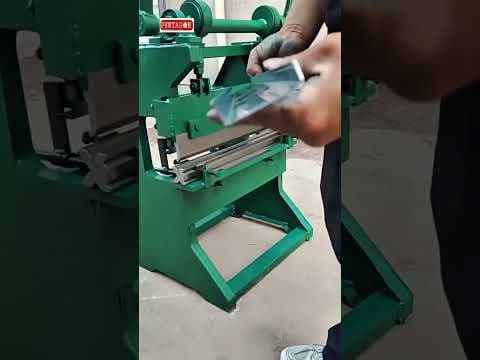

See it in action
Specifications
For: PHFM 1020X22 SWG- Model
- PHFM1020x22 swg
- Max bending width of sheet
- 1020 mm
- Max bending thickness of sheet
- 22 swg
- Stroke of RAM
- 25 mm
- Knife size
- 150x12 mm
- V Block groove
- 60x60 mm
- ARM Pipe length
- 750 mm
Configurations
Click a row to switch| Variant | Max bending width of sheet | Max bending thickness of sheet | Price |
|---|---|---|---|
| PHFM 1020X22 SWG | 1020 mm | 22 swg | ₹38,100 |
| PHFM 1270X22 SWG | 1070 mm | 22 swg | ₹58,100 |
| PHFM 1525 X22 SWG | 1525 mm | 22 swg | ₹72,100 |
Operational Efficiency and Safety
- Simple mechanical operation requires minimal training
- No electrical hazards associated with manual hydraulic systems
- Easy to maintain with standard lubrication and cleaning
- Clear visual alignment aids for accurate positioning
- Reduces material waste through precise manual control
- Portable design allows movement between workstations
- Complies with general industrial safety standards
Ideal for General Fabrication Work
- Perfect for small-scale metal fabrication and repair shops
- Suitable for creating boxes, enclosures, and custom brackets
- Effective for light-duty structural steel bending projects
- Ideal for prototyping new designs before mass production
- Supports diverse industries including HVAC and automotive
- Enables quick adjustments for varied bending requirements
- Cost-effective solution for low-volume production runs
Durable Construction and Design
- Built with heavy-duty materials for long-term industrial use
- Manual operation ensures reliability without power dependency
- Stable frame design minimizes vibration during bending tasks
- High-quality V-block groove accommodates various material types
- Precision-machined components ensure consistent bend angles
- Ergonomic handle design reduces operator fatigue over time
- Compact footprint suitable for workshops with limited space
Robust Manual Bending Performance
- Engineered for precise manual sheet metal folding operations
- Handles maximum bending width of 1020 mm effectively
- Supports sheets up to 22 SWG thickness capacity
- Features a 25 mm stroke of RAM for controlled bending
- Includes 150x12 mm knife size for sharp, clean edges
- Equipped with 60x60 mm V Block groove for versatility
- Utilizes 750 mm ARM Pipe length for optimal leverage
More questions buyers ask
What is a Pentagon hand folding machine used for?
It is used for precise bending and folding of sheet metal in fabrication, HVAC, and repair workshops.
What is the maximum sheet thickness capacity?
These machines are designed to handle sheet metal up to 22 SWG thickness.
Does this machine require electricity?
No, these are manual hand-operated machines, making them energy-efficient and portable.
What industries use these folding machines?
They are widely used in HVAC, automotive, prototyping, and general metal fabrication industries.
How do I maintain the machine?
Maintenance is simple, requiring regular lubrication of moving parts and keeping the bending surfaces clean.
Are these machines suitable for small workshops?
Yes, their compact design and manual operation make them ideal for small-scale shops with limited space.
What is the bending width range available?
We offer models with bending widths of 1020 mm, 1270 mm, and 1525 mm.
Is the machine portable?
Yes, the manual design allows for easy movement between different workstations in your facility.
Does it come with a warranty?
Yes, all Pentagon machines come with standard manufacturer warranty support.
How can I get a GST invoice?
We provide a valid GST invoice with every purchase for your accounting and tax filing needs.
Who should choose the 1020mm model?
Choose the 1020mm model if you have limited workshop space and primarily work on smaller sheet metal components.
Who should choose the 1270mm model?
The 1270mm model is best for medium-sized fabrication tasks where you need a balance between capacity and footprint.
Who should choose the 1525mm model?
The 1525mm model is ideal for larger sheet metal projects requiring a wider bending capacity for structural or custom parts.
How does the 1020mm compare to the 1525mm model?
The 1020mm is more compact and cost-effective for small jobs, while the 1525mm offers significantly more width for larger, complex sheet metal work.
Are all models equally durable?
Yes, all Pentagon hand folding machines are built with heavy-duty materials to ensure long-term industrial reliability.
More like this
Full description
The PHFM 1020X22 SWG is a manual sheet metal folding machine designed for precise edge bending and seaming operations. It accommodates sheets up to 1020 mm wide with a maximum thickness of 22 SWG. • Max bending width: 1020 mm • Max bending thickness: 22 SWG • RAM stroke: 25 mm • Knife size: 150x12 mm
