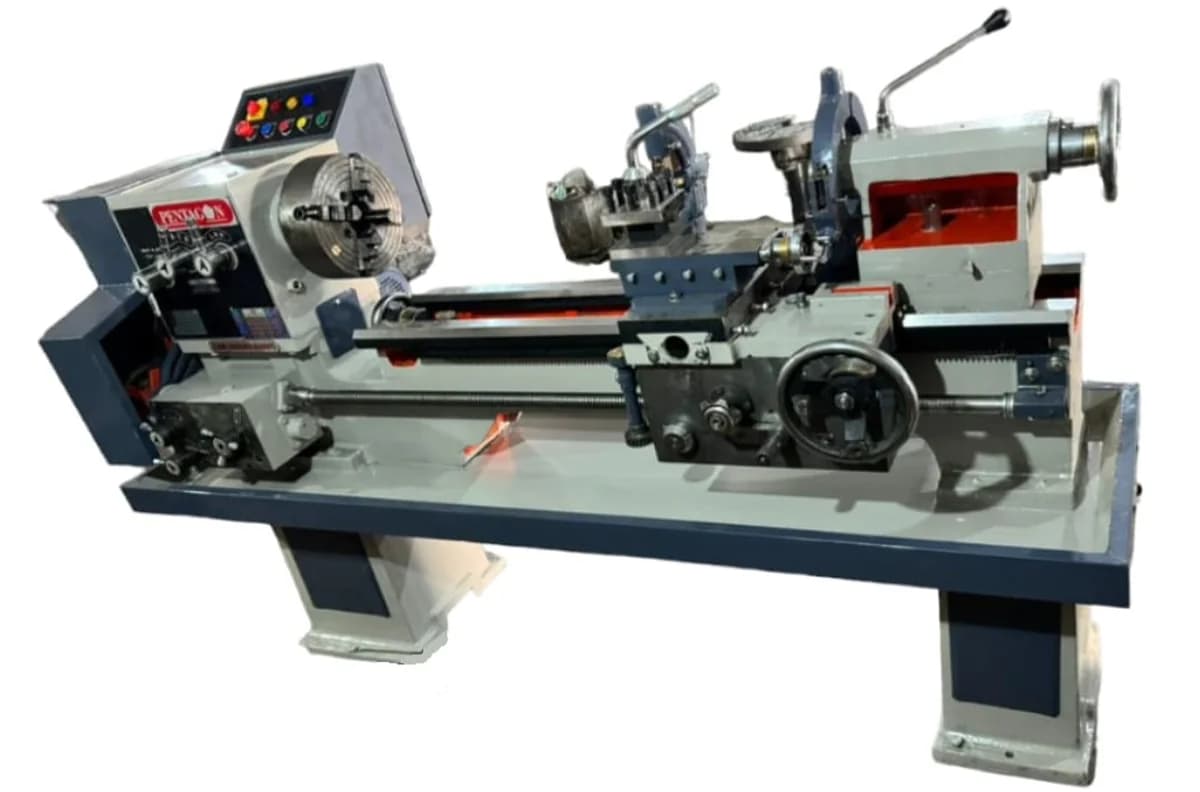

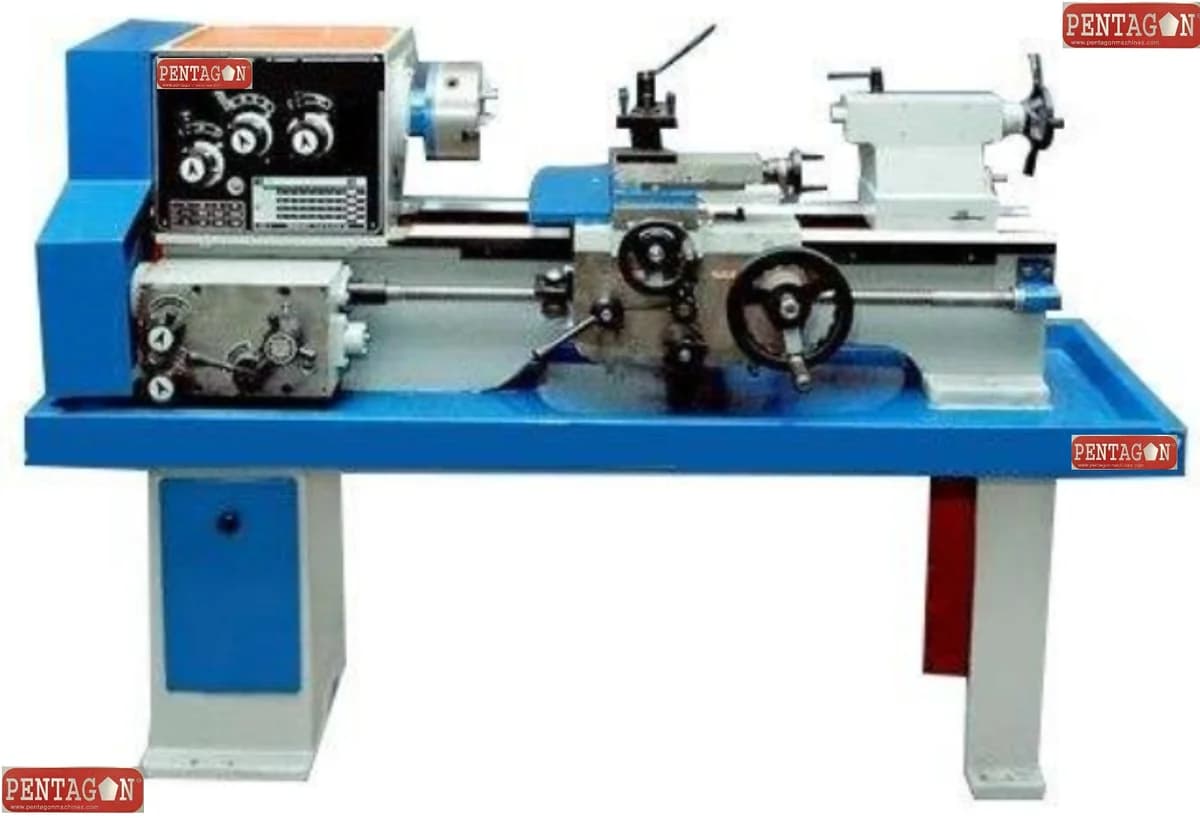

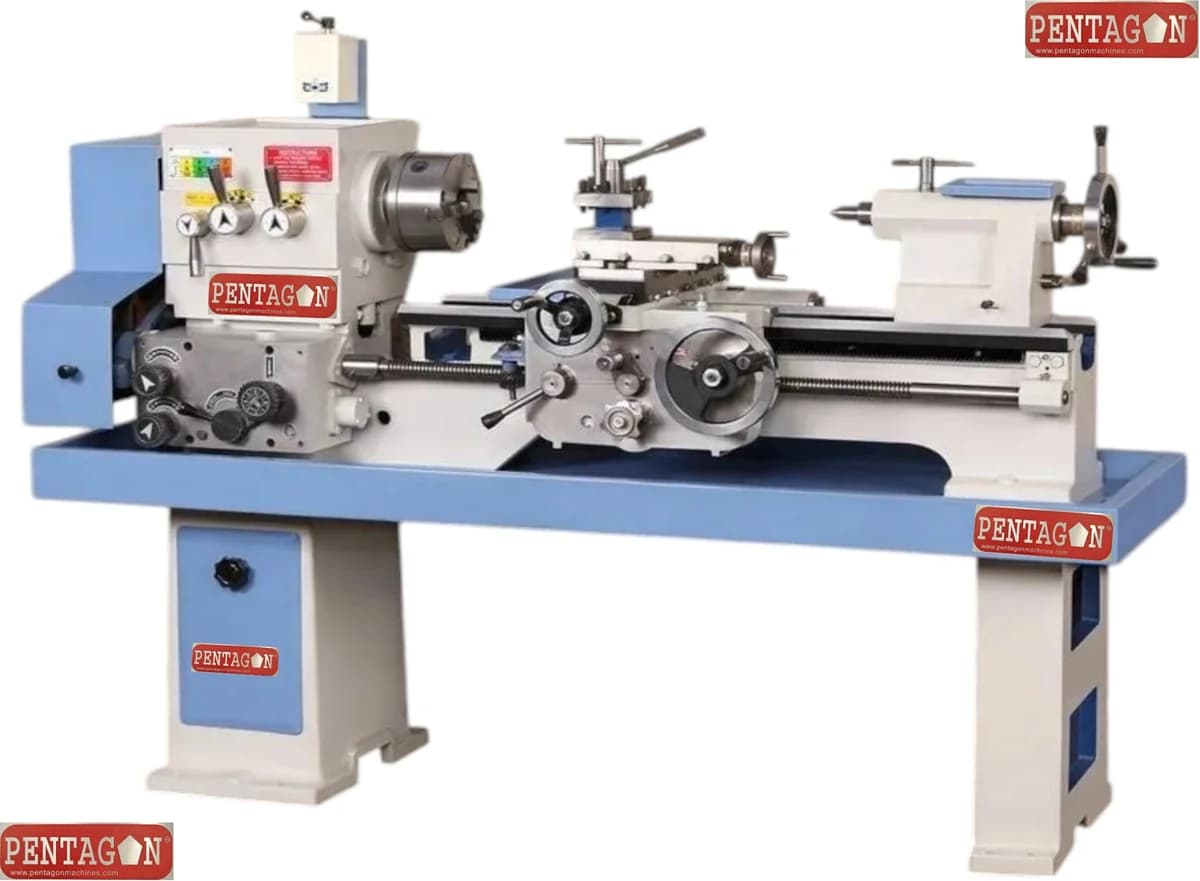

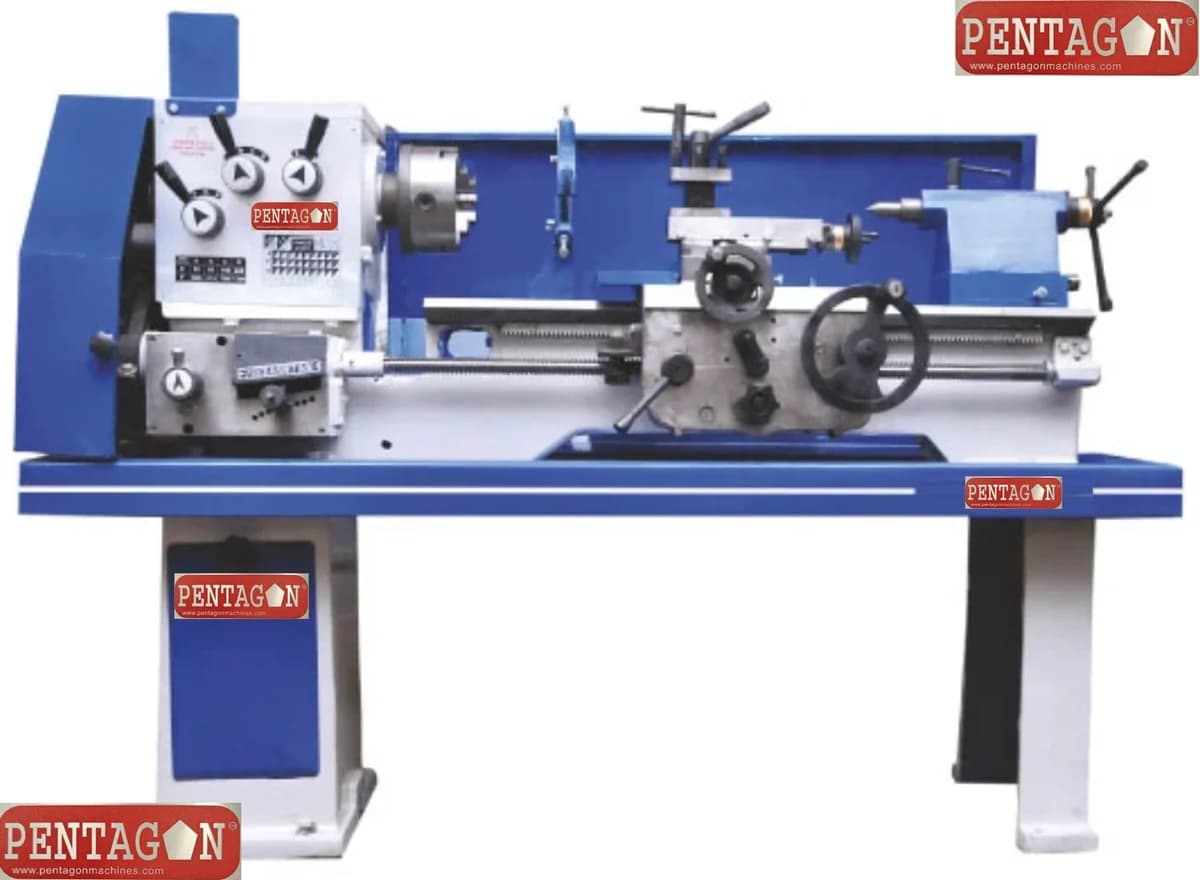

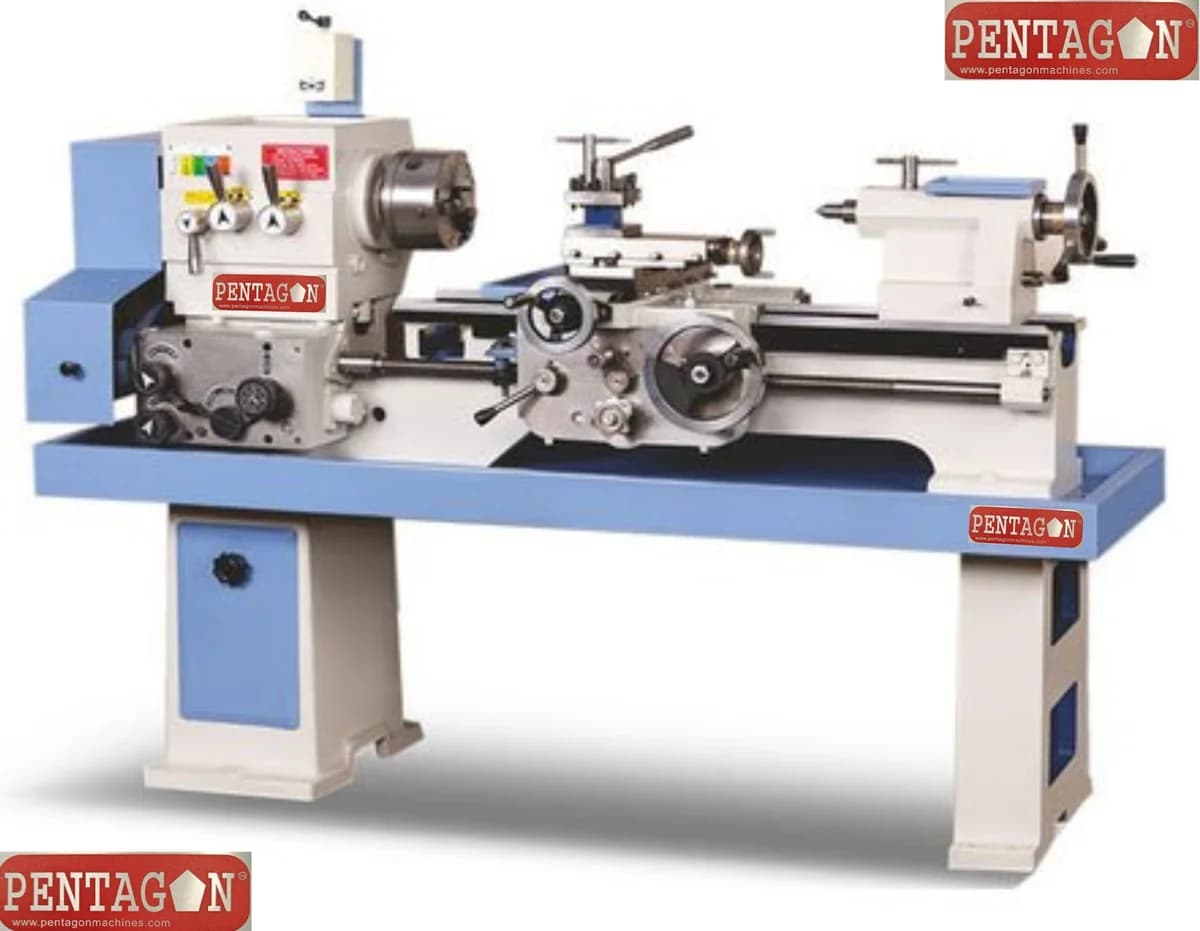

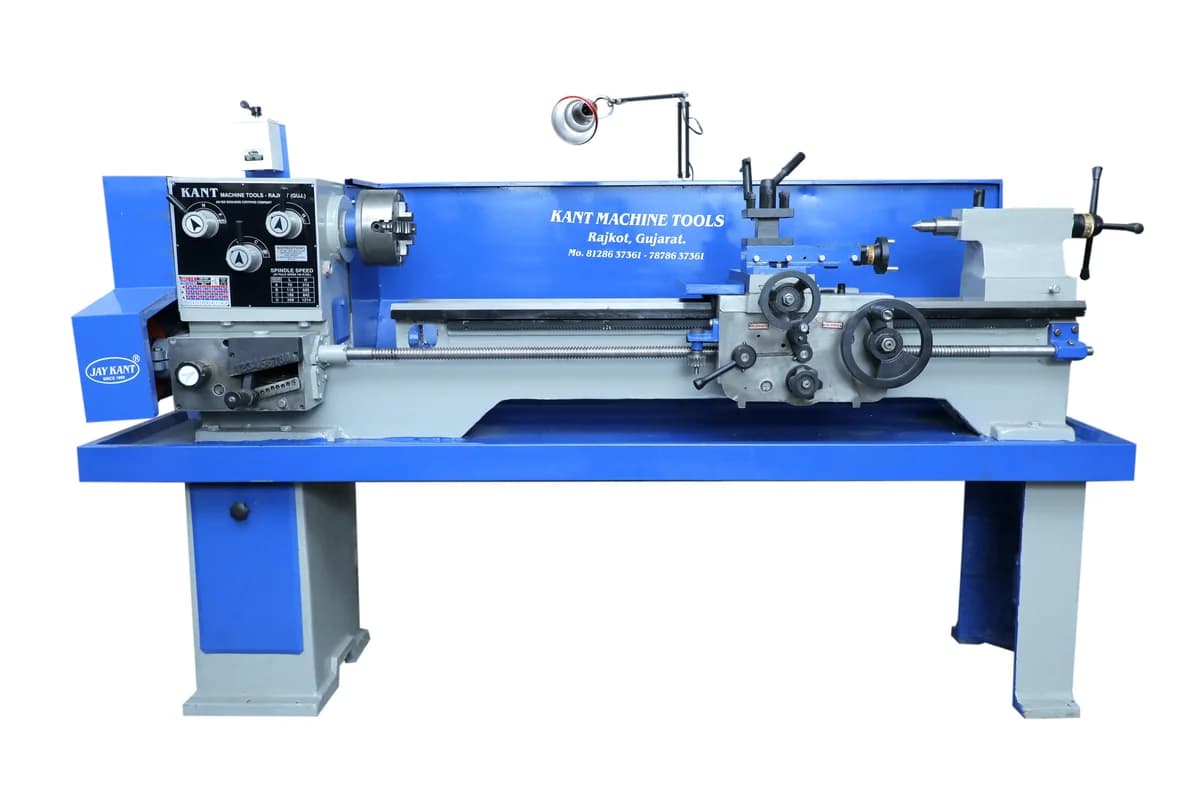

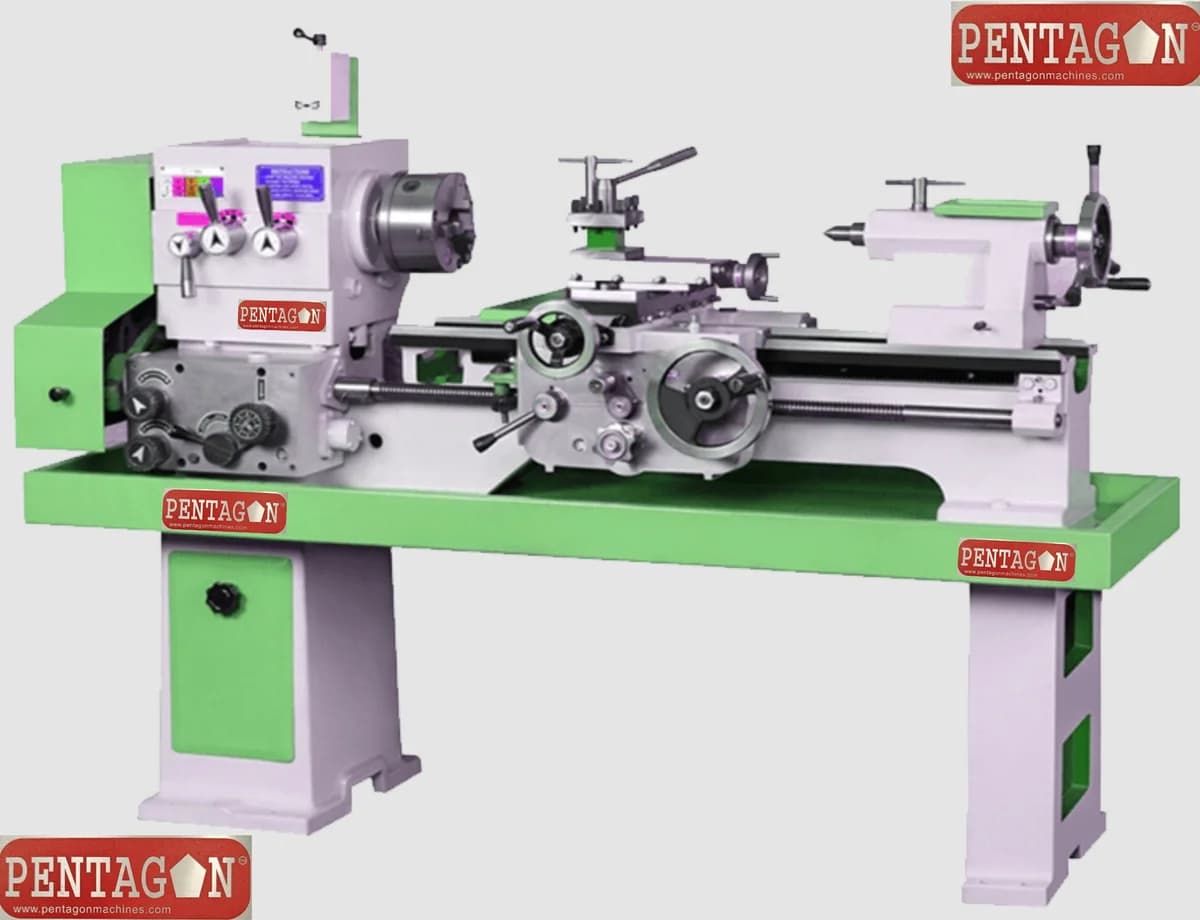

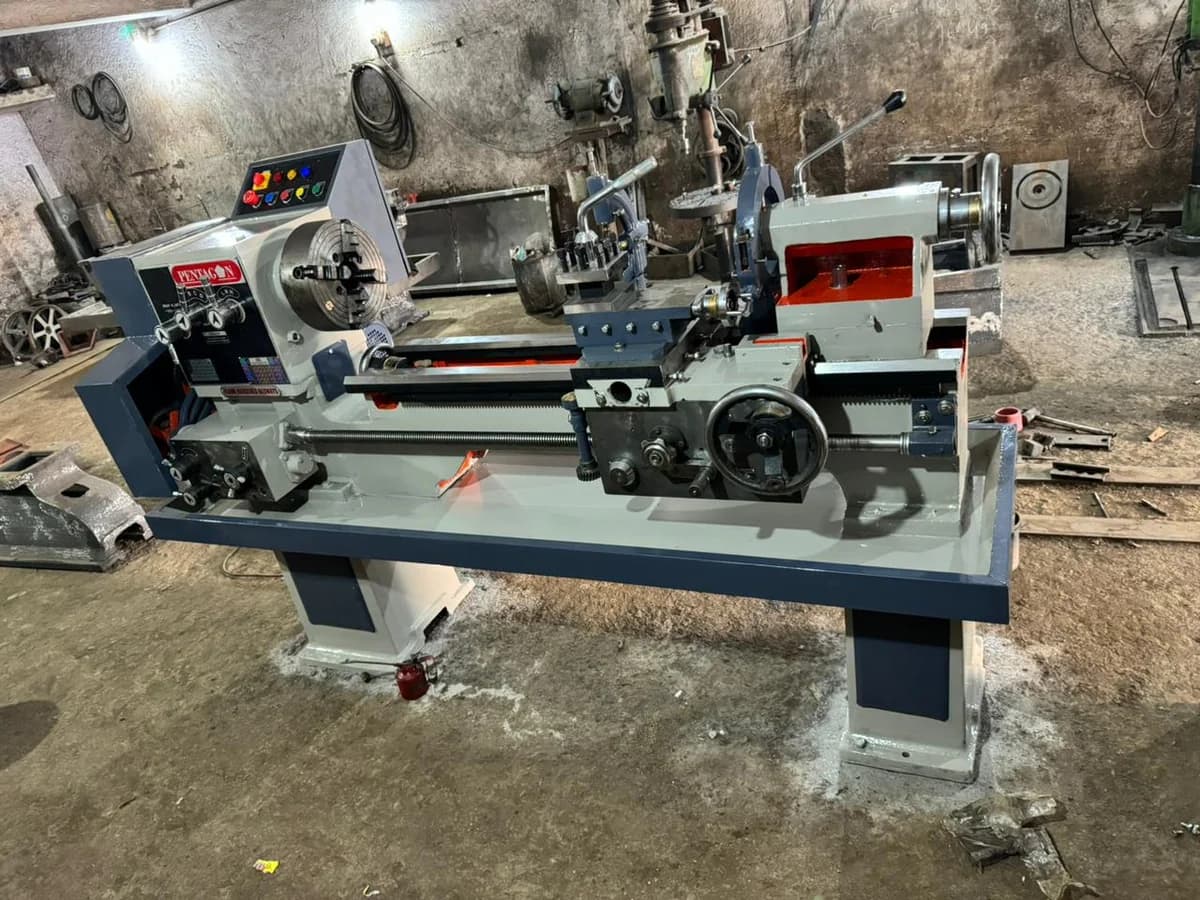

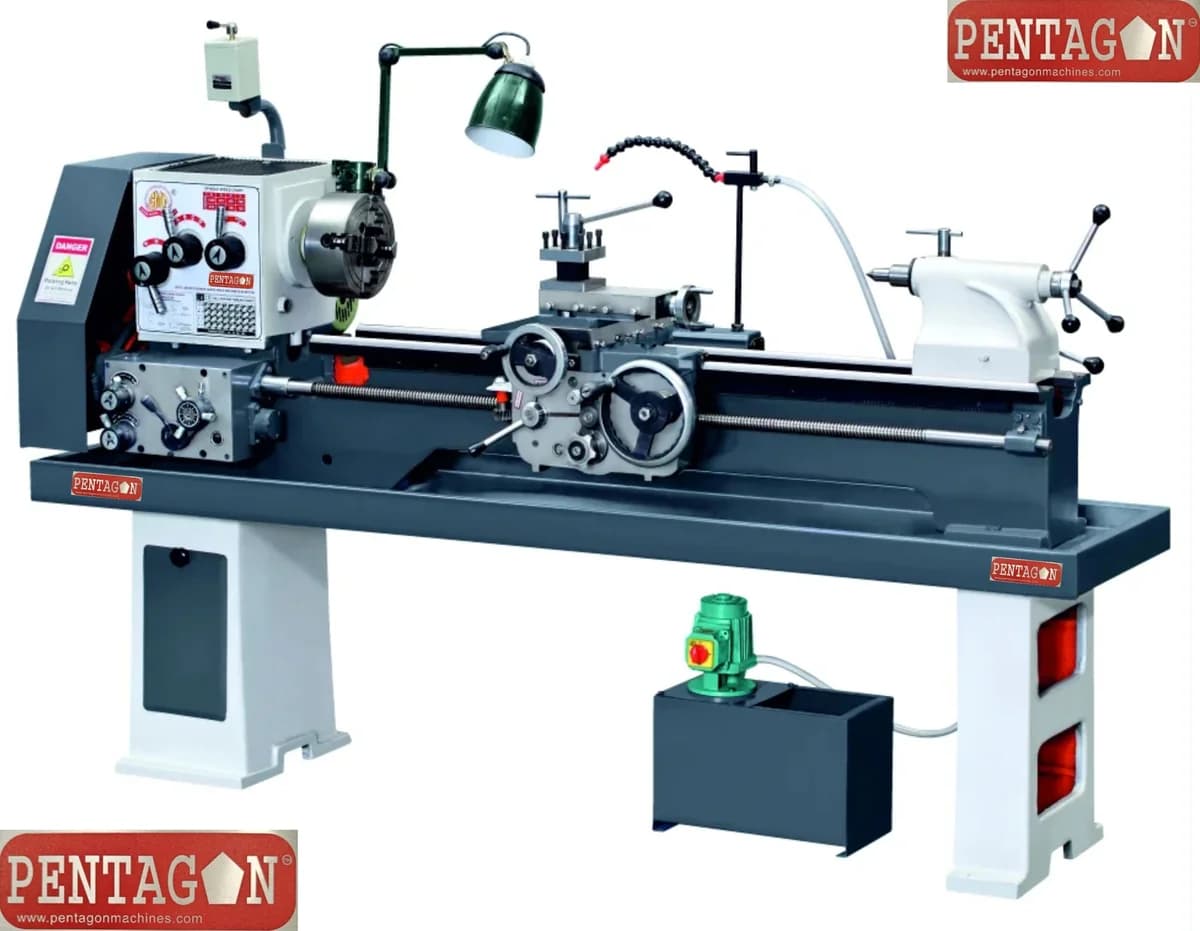

Geared Head Light Duty Lathe Machine model LDAGL-1370/4'6"
Precision metal turning requires reliable machinery. This geared head light duty lathe machine provides stable performance for general purpose machining tasks in small to medium workshops. • 650 mm admit between centers for moderate length workpieces • 54-1000 RPM range of speed for versatile cutting operations • 38 mm spindle bore accommodates standard bar stock sizes • MT4 spindle taper head stock ensures secure tool holding
See it in action
Specifications
For: PLL1370 mm (4'6- Model
- ALDL-1370/4'6
- Center Height
- 165 mm
- Swing Over Bed
- 330 mm
- Swing Over Cross Slide
- 180 mm
- Bed Length
- PLL1370 mm (4'6
- Bed Width
- 230 mm
- Admit Between Centers
- 650 mm
- Spindle Bore
- 38 mm
- Spindle Taper Head Stock
- MT4
- Tail Stock dia
- 40mm
- Metric Thread
- 0.5-7mm
- TPI Thread
- 4-48 TPI
- Range of Speed
- 54-1000 RPM
- No of Spindle Speed
- 8 Nos
- Weight Approx
- 460 kgs
Description
PENTAGON Brand All Geared Light Duty Lathe Machine Model LDAGL-1370/4'6" bed length 1370 mm with center height 165 mm, bed width 230 mm and Spindle bore 38 mm along with all standard accessories
Features:
1. Flame Hardened bed ways
2. Latest Design Head Stock and spindle is made of alloy steel & precision grinding.
3. All rotating parts are balanced
4. High-Grade Cast Iron Construction: Ensures rigidity and vibration damping
5. Powerful Main Spindle Motor: Usually 1-2 HP
6. Tailstock: Heavy-duty, manually or hydraulically operated
7. An all-geared lathe is a precision machine designed for heavy-duty turning operations. Below are the main features that define and distinguish it
8. Enables smooth and quick speed changes without stopping the machine
9. Multiple speed ranges controlled via gear levers
10. Ideal for various materials and operations (roughing, finishing, threading, etc.)
11. Precision-ground and hardened for long life and smooth carriage movement
Advantage:
An all-geared lathe machine uses internal gears in the headstock to transmit power directly from the motor to the spindle, offering several advantages over belt-driven types
Gears provide better torque and power delivery compared to belts
Suitable for heavy-duty machining tasks
Gearboxes allow precise and quick speed changes
No need to manually shift belts—just change the gear lever position
Speed and torque remain stable under load
Less slippage compared to belt systems, improving machining accuracy
Rigid power transmission minimizes vibrations and deflection
Results in better surface finish and tighter tolerances
Can handle large and hard materials (e.g., cast iron, steel)
Suitable for industries like shipbuilding, railway, aerospace, and manufacturing
Enclosed gearboxes are protected from dust and coolant
Gear-driven mechanisms are more durable and wear-resistant
Safer than open belt systems, especially in high-speed operations
About the Product:
An all-geared lathe machine is a type of metal-turning lathe where the headstock is driven by a system of interlocked gears instead of belts. It is designed for precision, strength, and high productivity, making it ideal for industrial and heavy-duty machining applications
Standard Accessories:
- 1. Chuck Plate
- 2. Change Gear Set of ( inch and mm)
- 3. Dead Center
- 4. Center Adapter
- 5. Motor Pulley
- 6. Tool Post Key
- 7. Chip Tray
- 8. Norton gear Box Included
Optional Accessories:
- 1. Coolant Pump with fitting
- 2. Machine lamp with fitting
- 3. Rear Safety Guard
- 4. Extra face plate
- 5. Quick Change Tool Post
- 6. Electric Motor 1 HP 3 phase
- 7. 3 Jaw True chuck size
- 8. 4 Jaw Dog chuck size
- 9. DRO set two axis with linear scale of suitable size fitted
More questions buyers ask
What is a geared head lathe machine?
A geared head lathe machine uses a gearbox to control the spindle speed, providing higher torque and more precise speed control compared to belt-driven models. This makes it ideal for machining a wider range of materials and performing heavy-duty operations.
What are the main applications of the PENTAGON LDAGL-1370 lathe?
The PENTAGON LDAGL-1370 is a light-duty lathe designed for general purpose machining tasks in small to medium workshops, including turning, facing, threading, and drilling operations on metal workpieces.
What is the spindle bore of this lathe machine?
The spindle bore is 38 mm, which allows for standard bar stock to be passed through the headstock for machining.
What is the swing over bed capacity?
The swing over bed is 330 mm, meaning it can accommodate workpieces with a maximum diameter of 330 mm.
What is the distance between centers?
This model has an admit between centers of 650 mm, allowing for workpieces up to 650 mm in length to be mounted and machined.
What standard accessories are included with the PENTAGON LDAGL-1370?
Standard accessories include a Chuck Plate, a set of Change Gears for inch and mm threading, a Dead Center, a Center Adapter, a Motor Pulley, a Tool Post Key, and a Chip Tray.
What optional accessories are available?
You can upgrade the machine with optional accessories such as a Coolant Pump, Machine Lamp, Rear Safety Guard, Quick Change Tool Post, a 3 or 4 Jaw Chuck, and a Digital Readout (DRO) system.
Is this a three-phase machine?
Yes, the optional electric motor specified is a 1 HP, 3-phase motor, which is standard for industrial machinery of this type.
What is the warranty on PENTAGON lathe machines?
All PENTAGON machines come with a standard 1-year manufacturer warranty against manufacturing defects. We provide full support and service.
Do you provide a GST invoice for purchases?
Yes, we provide a GST-compliant invoice with every purchase, allowing you to claim Input Tax Credit.
Who is the PENTAGON LDAGL-1370/4'6" model ideal for?
This model is ideal for small to medium-sized workshops, tool rooms, and educational institutions that require a reliable and precise machine for general-purpose turning, threading, and machining operations on moderate-sized workpieces.
How does a geared head lathe differ from a belt-driven lathe?
Geared head lathes offer more robust torque and easier speed changes via levers, making them better for heavy cuts and threading. Belt-driven lathes are simpler, quieter, and often have a lower initial cost but require manual belt changes to adjust speed.
What is the benefit of a flame-hardened bed?
A flame-hardened bed provides a highly durable and wear-resistant surface for the lathe's carriage and tailstock to travel on. This ensures the machine maintains its accuracy and has a longer operational life.
What maintenance is required for this lathe machine?
Regular maintenance includes cleaning the machine after use, lubricating the bedways, gears, and lead screws, checking and adjusting gibs, and ensuring the headstock oil level is correct. This ensures longevity and accuracy.
