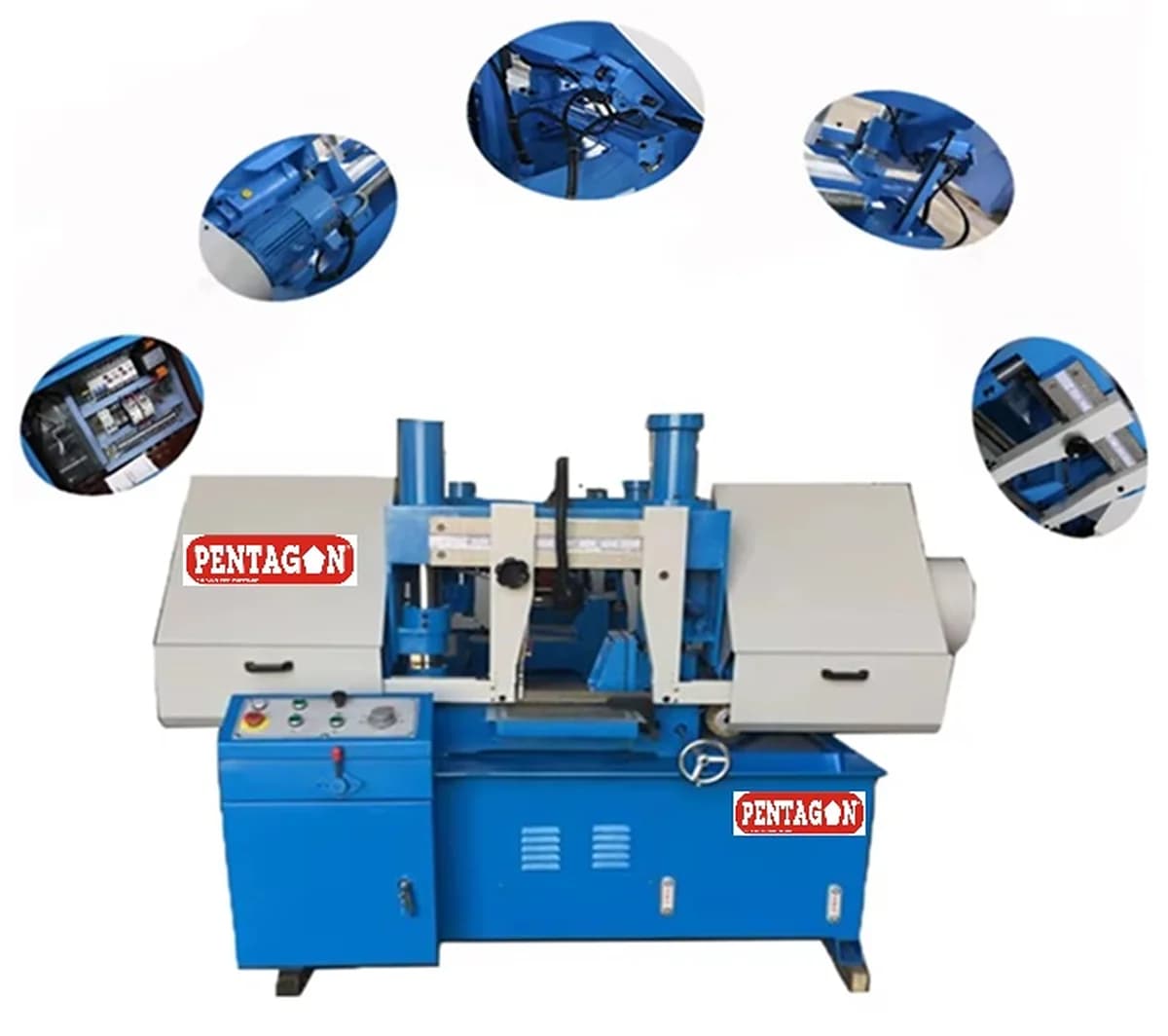

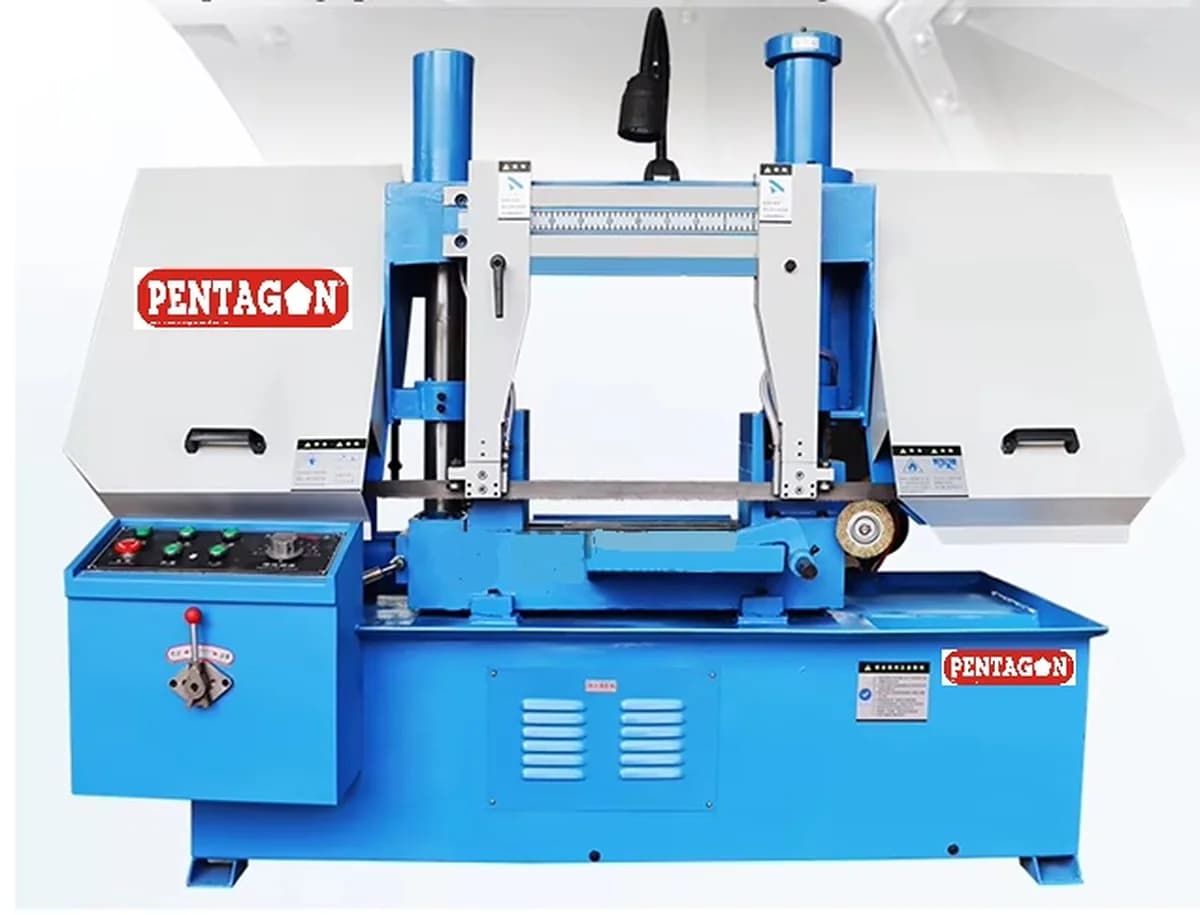

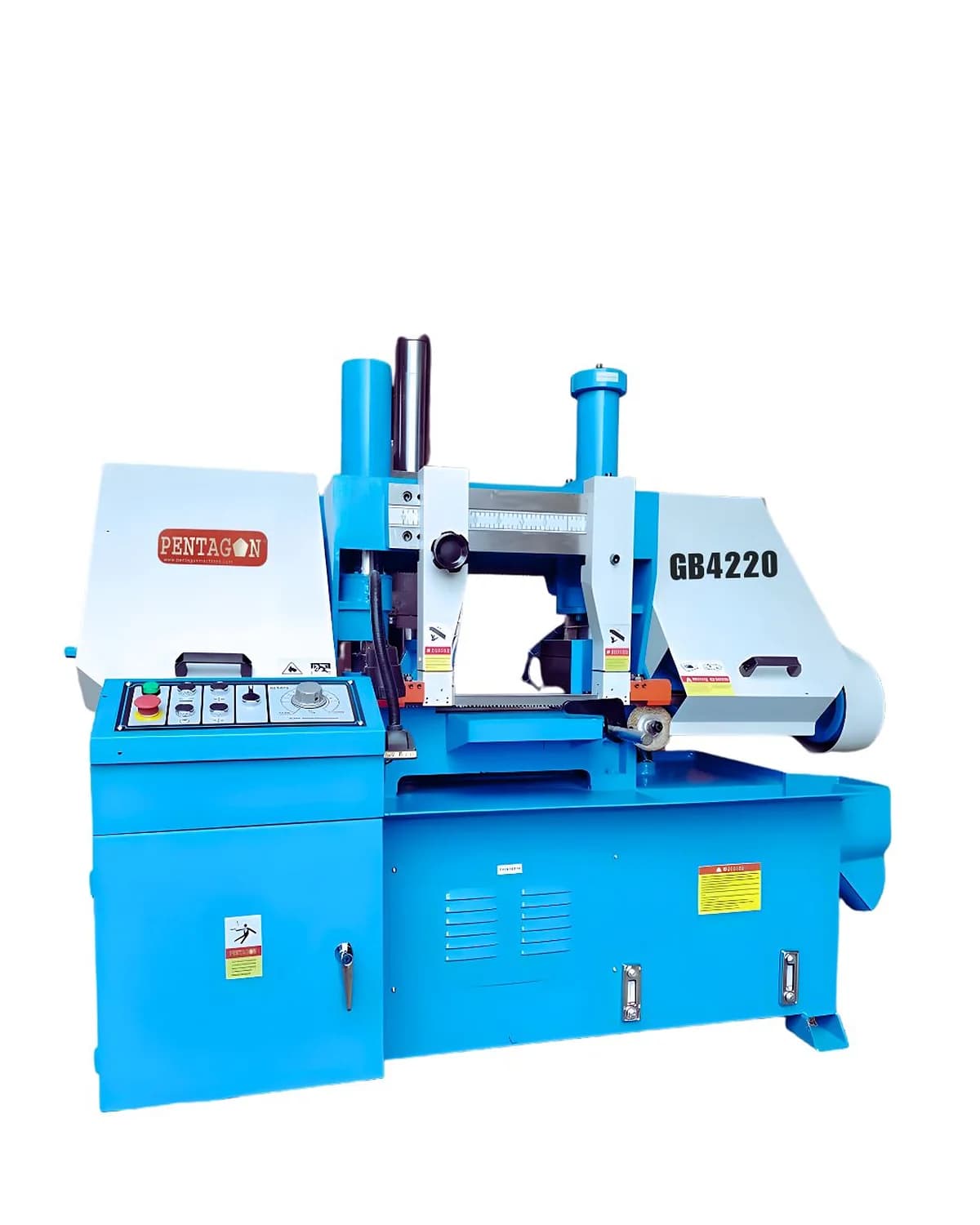

Semi Automatic Double Column Metal Cutting Hydraulic Bandsaw Machine PDB- Series Model PDB4220
Heavy-duty semi-automatic bandsaw for accurate cutting of solid bars. • 220 mm round, 200x200 mm square cutting capacity for light duty • 1.5 Kw main motor power suitable for light duty applications • 2800x27x0.9 mm blade size reduces operational costs • 35 Liter hydraulic tank capacity supports efficient cooling • 680 Kgs weight allows easy installation in smaller workshops

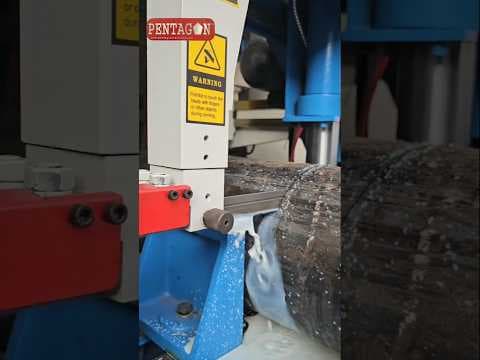

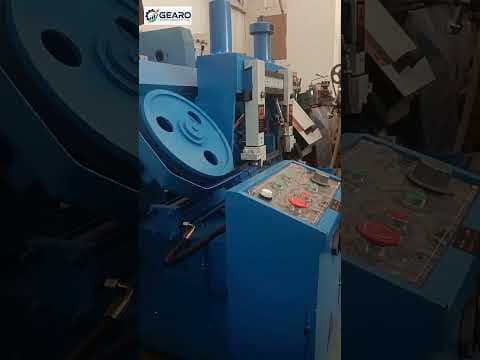

See it in action
Specifications
For: PDB4220- Model
- PDB4220
- Cutting Capacity Round
- 200 mm
- Cutting Capacity Square
- 200 x 200 mm
- Blade size
- 2800 x 27 x 0.9 mm
- Hydraulic Motor Power
- 0.55 kw
- Job Clamping Mechanism
- Hydraulic clamping
- Saw Frame
- Double column frame
- Drive System
- Gearbox with direct drive/Pulley drive
- Blade Speed Options
- 27, 45, 69 m/min
- Main Motor Power
- 1.5 kW
- Hydraulic Tank Capacity
- 25-30 Liter
- Machines Dimensions
- 1600x1150x550 mm
- Weight Approx.
- 680 Kgs
Configurations

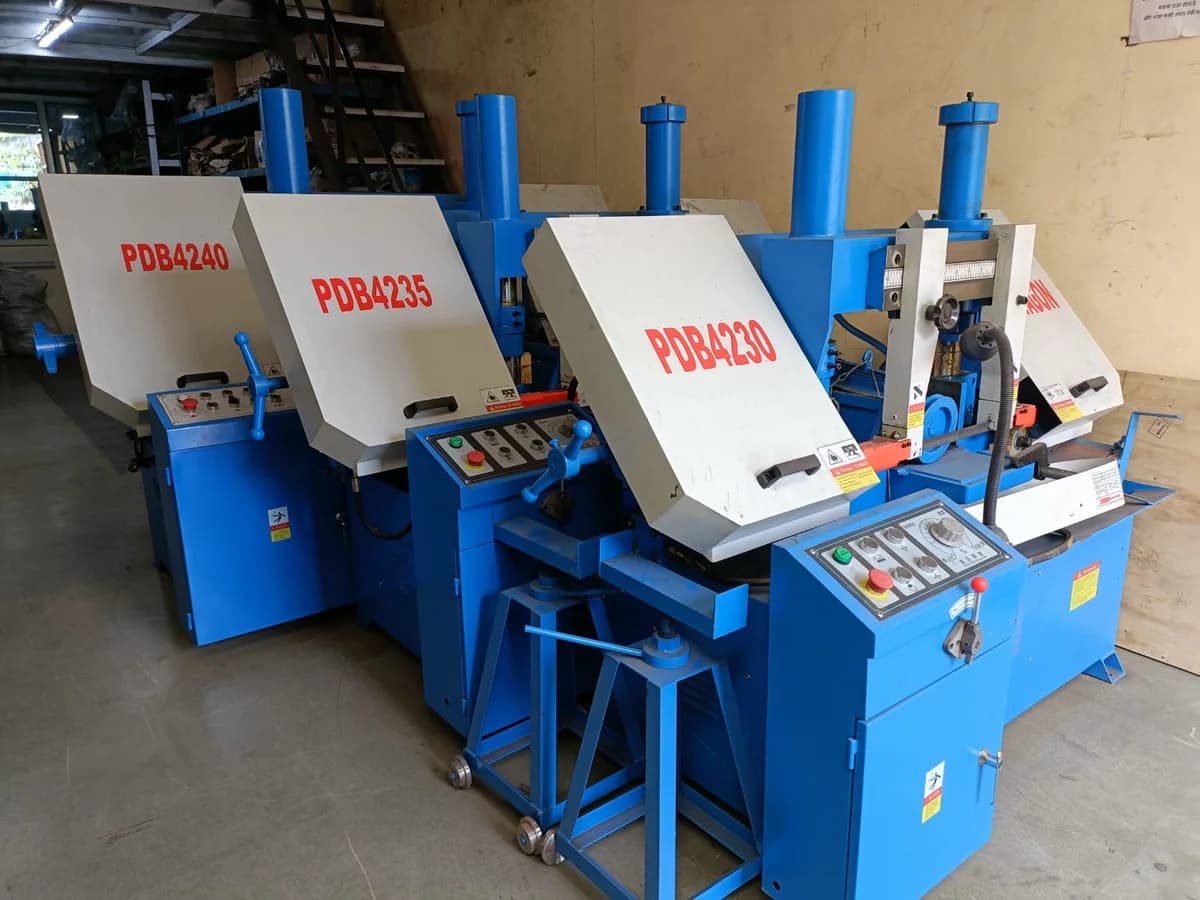

Click a row to switch| Variant | Cutting Capacity Round | Blade size | Cutting Capacity Square | Main Motor Power | Price |
|---|---|---|---|---|---|
| PDB4280 | 800 mm | 8880 × 67 × 1.6 mm | 800 × 800 mm | 11 kW | ₹17,36,000 |
| PDB4260 | 600 mm | 6640 × 54 × 1.6 mm | 600 × 600 mm | 7.5 kW | ₹11,86,000 |

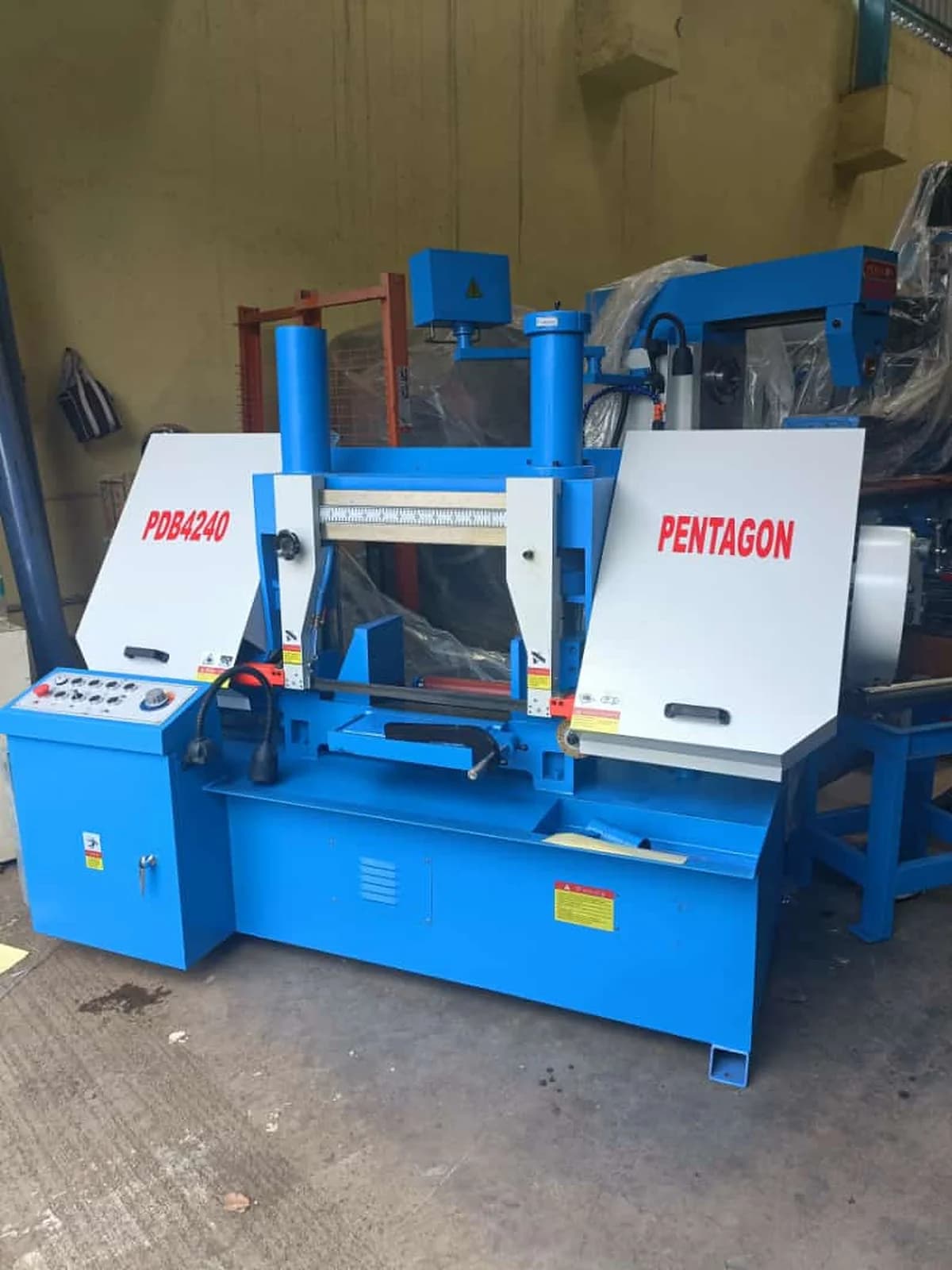

| PDB4240 | 400 mm | 5000 × 41 × 1.3 mm | 400 × 400 mm | 4 kW | ₹4,75,000 |

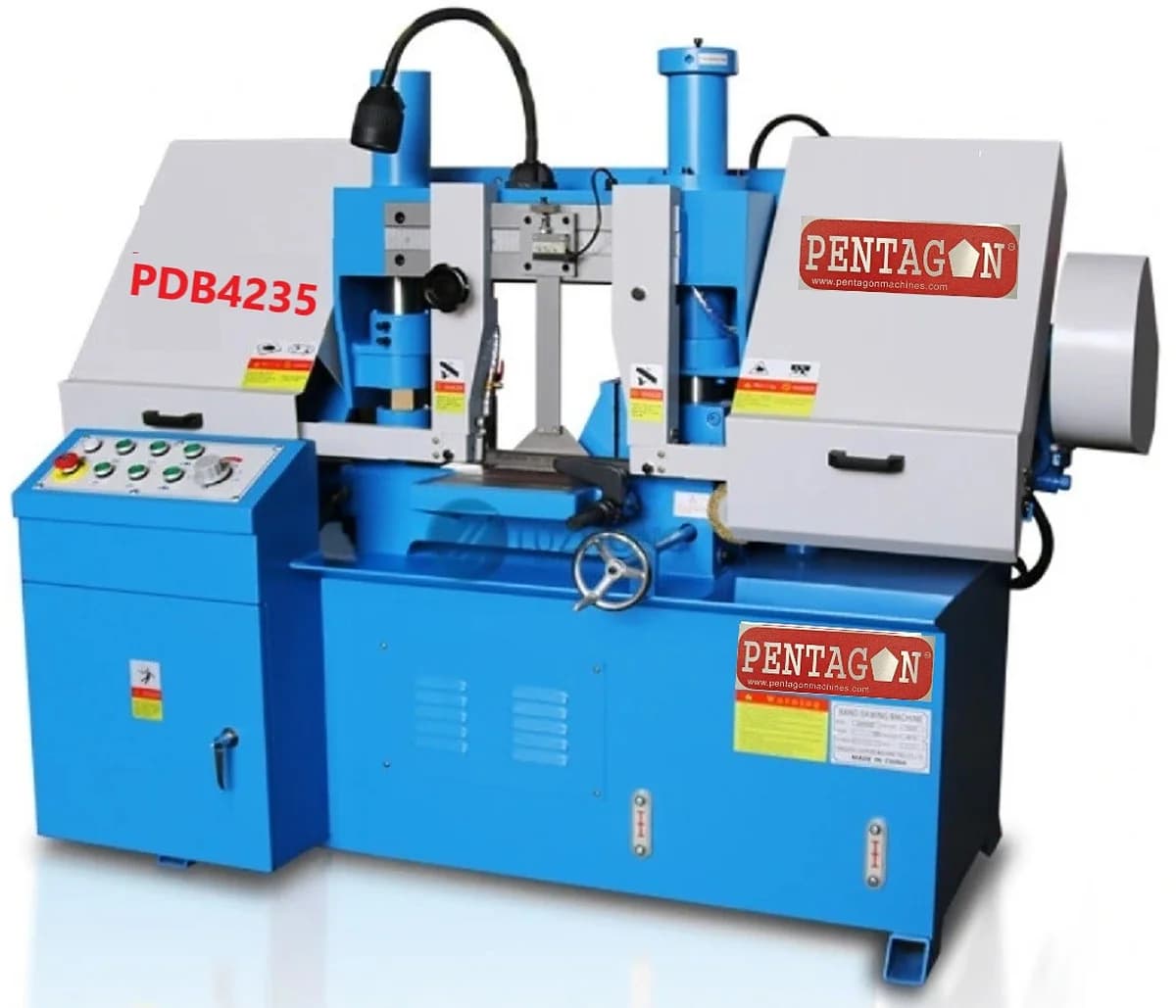

| PDB4235 | 350 mm | 4115 × 34 × 1.1 mm | 350 × 350 mm | 3 kW | ₹3,65,000 |

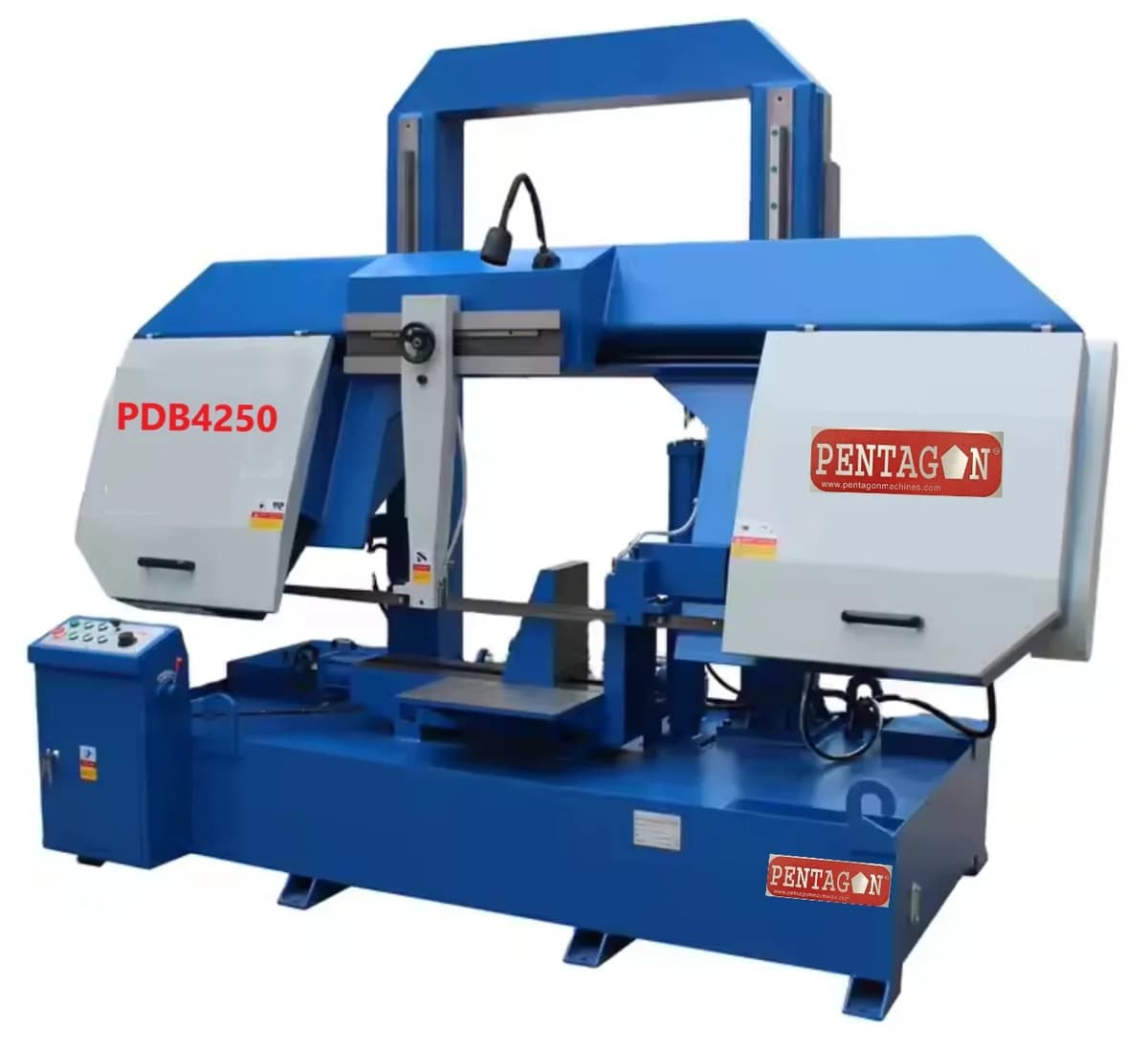

| PDB4250 | 500 mm | 5800 × 41 × 1.3 mm | 500 × 500 mm | 5.5 kW | ₹6,85,000 |
| PDB4230 | 300 mm | 3505 × 27 × 0.9 mm | 300 × 300 mm | 2.2 kW | ₹3,21,000 |
| PDB4220 | 200 mm | 2800 x 27 x 0.9 mm | 200 x 200 mm | 1.5 kW | ₹2,55,000 |
Common Questions
Q: What materials can this machine cut? A: It is designed for both ferrous and non-ferrous metals including steel and aluminum. Q: How is the workpiece secured? A: The machine uses a hydraulic vice clamping mechanism for secure workholding. Q: What is the maximum cutting capacity? A: The PDB Series is available in multiple cutting capacities up to 800mm. Q: Is the operation fully manual? A: No, it is a semi-automatic machine with hydraulic feed and clamping control.
Operational Versatility
- Semi-automatic operation reduces operator fatigue and effort
- Handles round, square, and irregular metal profiles effectively
- Hydraulic clamping ensures quick setup between different jobs
- Variable speed settings accommodate steel, aluminum, and alloys
- Efficient power consumption with dedicated main and hydraulic motors
- Easy maintenance access for routine service and blade changes
Cutting Performance
- Precision metal cutting designed for machining and fabrication
- Multiple blade speed options allow adaptation to material hardness
- Feed control mechanisms reduce vibration during cutting process
- Secure clamping minimizes material movement for straight cuts
- Optimized blade tensioning extends tool life and reduces cost
- Suitable for high-volume production and custom job shops
Construction & Stability
- Heavy-duty double column saw frame designed for rigidity
- Gearbox with direct drive or pulley drive options available
- Hydraulic system includes tank capacity ranging from 25–30 liters
- Main motor and hydraulic motor power configured for efficiency
- Compact machine dimensions fit standard industrial workshop layouts
- Robust build quality supports continuous production environments
Key Features
- PDB Series semi-automatic bandsaw for industrial fabrication
- Rigid double column frame ensures stability during heavy-duty operations
- Hydraulic vice clamping provides secure workholding for various shapes
- Variable blade speeds optimized for ferrous and non-ferrous metals
- Hydraulic feed control optimizes blade life and cut accuracy
- Available in multiple cutting capacities up to 800mm diameter
Standard Accessories
- 1. Blade
- 2. Hydraulic clamping vice
- 3. Blade cleaning brush
- 4. Work lamp
- 5. Coolant system
- 6. Guide Roller
- 7. Bar Supporting Stand
Optional Accessories
- 1. Blade breakage protection
- 2. Fast drop protection
- 3. Hydraulic blade tension
- 4. Automatic chip removal
- 5. Variable speed
More questions buyers ask
What is a semi-automatic double column bandsaw machine?
It is an industrial machine that uses a hydraulic system to control the feed and clamping of the workpiece, while the operator handles loading and unloading, ensuring precise and efficient metal cutting.
What materials can the Pentagon PDB series cut?
These machines are versatile and can cut various ferrous and non-ferrous metals, including mild steel, stainless steel, aluminum, and alloys.
What are the benefits of a double column design?
The double column frame provides superior rigidity and stability compared to single column designs, which minimizes vibration and ensures straighter, more accurate cuts.
Does the machine come with a warranty?
Yes, Pentagon machines come with standard manufacturer warranty coverage. Please contact our support team for specific terms based on your location.
Is pan-India delivery available?
Yes, we provide secure, pan-India delivery for all industrial machinery, ensuring safe transit to your facility.
Are spare parts easily available?
As a domestic manufacturer, Pentagon ensures good availability of spare parts and reliable after-sales service support across India.
What is the role of the hydraulic vice?
The hydraulic vice provides powerful, consistent clamping force, which secures the workpiece firmly to prevent movement and improve cutting accuracy.
Can I get a GST invoice?
Yes, all purchases include a valid GST invoice, allowing you to claim input tax credit for your business.
What maintenance is required?
Routine maintenance includes checking hydraulic oil levels, cleaning the blade guide rollers, ensuring the coolant system is functional, and regular blade inspection.
How do I choose the right model?
Choose based on your maximum workpiece diameter/square size and production volume. Our team can help you select the right PDB model for your specific needs.
Who should choose the PDB4220?
Ideal for small to medium workshops needing a compact, reliable machine for 200mm capacity cutting.
Who should choose the PDB4280?
Best for large-scale industrial fabrication facilities requiring heavy-duty 800mm cutting capacity.
How does PDB4220 compare to PDB4280?
The PDB4220 is a compact 200mm capacity model with a 1.5 kW motor, while the PDB4280 is a heavy-duty 800mm capacity machine with an 11 kW motor for large-scale production.
Is the PDB4240 suitable for high-volume work?
Yes, with its 400mm capacity and 4 kW motor, it is well-suited for medium-to-high volume fabrication tasks.
Which model is best for 500mm steel profiles?
The PDB4250 is specifically designed for 500mm capacity, making it the ideal choice for that requirement.
