CW Series All Geared Heavy duty High Speed Lathe Machine Model CW6280Cx2000
This heavy duty lathe model supports extended workpiece lengths with 2000 mm distance between centers. It maintains the series standard of 800 mm swing over bed and 105 mm spindle bore for versatile machining. • Weight of 5800 kg ensures stability during operation • Cross slide travel up to 500 mm for precise feeds • 18 speed steps accommodate various material hardness • 415V / 50Hz electrical configuration standard

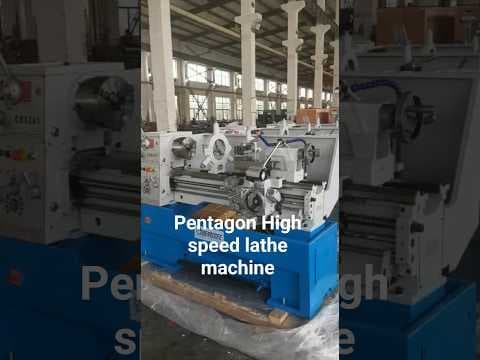

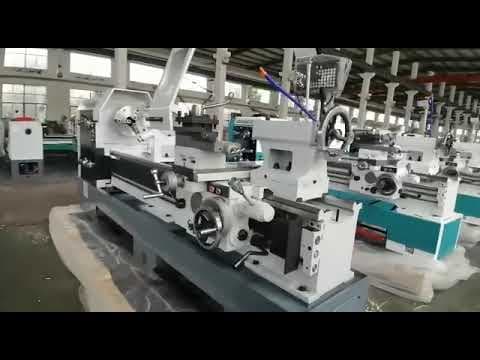

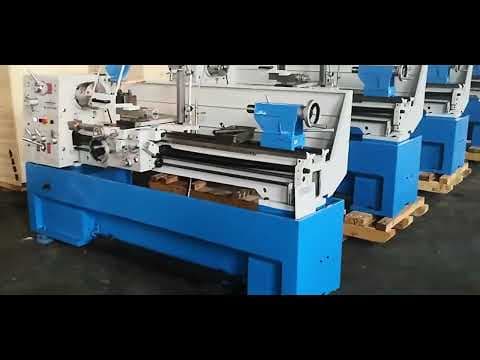

See it in action
Specifications
For: CW6280Cx2000- Model
- CW6280Cx2000
- Distance Between Centers
- 2000 mm
- Swing Over Bed
- 800 mm
- Swing Over Cross Slide
- 520 mm
- Swing Over Gap
- 1000 mm
- Bed Width
- 550 – 600 mm
- Spindle Bore
- 105 mm
- Spindle Nose
- D1-11 Camlock
- Spindle Taper
- MT6
- Spindle Speed Range
- 7.5 – 1000 RPM
- Number of Speeds
- 18 Steps
- Main Motor Power
- 11 – 15 kW
- Cross Slide Travel
- 450 – 500 mm
- Compound Slide Travel
- 200 mm
- Tailstock Quill Diameter
- 100 mm
- Tailstock Quill Trave
- 230 – 250 mm
- Taper of Tailstock Sleeve / Quill Taper
- MT6
- Metric Thread Range
- 1 – 240 mm
- Inch Thread Range
- 1 – 14 TPI
- Voltage
- 415V / 50Hz
- Packing Dimensions
- 4200 × 1500 × 1900 mm
- Net Weight / Gross Weight
- 5800 Kgs
Configurations
Click a row to switch| Variant | Distance Between Centers | Swing Over Bed | Spindle Bore | Main Motor Power | Price |
|---|---|---|---|---|---|
| CW6280Cx2000 | 2000 mm | 800 mm | 105 mm | 11 – 15 kW | ₹26,17,000 |
| CW6280Cx3000 | 3000 mm | 800 mm | 105 mm | 11 – 15 kW | ₹27,35,000 |
| CW6280Cx1500 | 1500 mm | 800 mm | 105 mm | 11 – 15 kW | ₹24,21,000 |
| CW6180Cx1500 | 1500 mm | 800 mm | 105 mm | 11 – 15 kW | ₹24,05,000 |
| CW6180Cx5000 | 5000 mm | 800 mm | 105 mm | 11 – 15 kW | ₹37,95,000 |
| CW6280Cx5000 | 5000 mm | 800 mm | 105 mm | 11 – 15 kW | ₹38,70,000 |
| CW6180Cx2000 | 2000 mm | 800 mm | 105 mm | 11 – 15 kW | ₹26,11,000 |
| CW1280Cx3000 | 3000 mm | 800 mm | 105 mm | 11 – 15 kW | ₹26,95,000 |
Common Buyer Questions
Q: What spindle bore size does this series offer? A: The spindle bore is 105 mm for this series configuration. Q: Can this machine cut both metric and inch threads? A: Yes, it supports metric 1-240 mm and inch 1-14 TPI. Q: What is the maximum distance between centers? A: The distance between centers goes up to 5000 mm.
Ideal Applications
- Suitable for heavy duty machining tasks in metalworking shops
- Ideal for turning shafts, cylinders, and flanges efficiently
- Supports continuous operation in high-volume production lines
- Handles medium to large workpieces with high torque output
- Optimized for stable machining accuracy in precision environments
- Reduces cycle times with high-speed geared spindle options
Construction & Logistics
- Built with rigid cast-iron structures for vibration damping
- Net weight 5000 Kgs, Gross weight 5800 Kgs for shipping
- Packing dimensions are 3700 × 1500 × 1900 mm for transport
- Designed for robust performance in industrial manufacturing
- Supports metric thread range 1 – 240 mm for diverse needs
- Inch thread range supports 1 – 14 TPI for imperial standards
Dimensions & Travel Ranges
- Bed width measures 550 – 600 mm for heavy load support
- Swing over cross slide is 520 mm for internal operations
- Swing over gap reaches 1000 mm for larger diameter parts
- Cross slide travel spans 450 – 500 mm for lateral movement
- Compound slide travel provides 200 mm for angled cuts
- Tailstock quill diameter measures 100 mm for stability
- Tailstock quill travel extends 230 – 250 mm for support
- Spindle taper is MT6 ensuring compatibility with standard tools
Series Overview & Capacity
- Available in CW 6180 and CW6280 series configurations
- Distance between centers 1500 mm, 2000 mm, 3000 mm, 5000 mm
- 800 mm swing over bed accommodates medium to large workpieces
- 105 mm spindle bore allows for large diameter bar feeding
- 18 speed steps ranging from 7.5 – 1000 RPM for versatility
- High torque motor power options available from 11 – 15 kW
- Voltage standard is 415V / 50Hz for industrial power supply
- Spindle nose features D1-11 Camlock for quick tool changes
Standard Accessories
- 3-Jaw Self-Centering Chuck
- 4-Jaw Independent Chuck (Only in Gap bed type Machine)
- Face Plate
- Steady Rest (Fixed Steady)
- Follow Rest
- Dead Centers (MT5/MT6 as per model)
- 4-Way Tool Post (Heavy Duty)
- Tool Holder
- Coolant Pump with Tank & Fittings
- Chip Tray
- Thread Dial Indicator
- Change Gear Set for threading
- Motor Pulley / V-Belt Set
- Electrical Control Panel with Push Buttons
- Service Spanners & Tools
- Operation & Maintenance Manual
- Inspection / Test Certificate
Optional Accessories
- 1. Digital Readout System (DRO) – 2 or 3 Axis
- 2. Taper Turning Attachment
- 3. Quick-Change Tool Post (QCTP)
- 4. Large Face Plate (Special Size)
- 5. Boring Bar Support
- 6. Live Centers (MT6 / Heavy Duty)
- 7. Coolant Filtration System
- 8. Steady Rest – Extra Large Capacity
- 9. Follow Rest – Special Type
- 10. Chip Conveyor System
- 11. Tailstock with Motorized Travel
- 12. Variable Frequency Drive (VFD) for Spindle Speed Control
- 13. Safety Guarding / Enclosures
More questions buyers ask
What is the swing over bed for the Pentagon CW-80 series?
The Pentagon CW-80 series features a swing over bed of 800 mm, allowing for the machining of large diameter workpieces.
What is the spindle bore size on this lathe?
This series is equipped with a 105 mm spindle bore, suitable for large diameter bar feeding.
What is the spindle speed range?
The machine offers 18 speed steps ranging from 7.5 to 1000 RPM, providing versatility for various machining tasks.
Does this machine support metric and inch threading?
Yes, it supports a metric thread range of 1–240 mm and an inch thread range of 1–14 TPI.
What is the main motor power?
The main motor power ranges from 11 kW to 15 kW, depending on the specific configuration.
What type of spindle nose does it use?
The spindle nose features a D1-11 Camlock design for quick and secure tool changes.
What is the distance between centers available?
The distance between centers is available in multiple configurations, including 1500 mm, 2000 mm, 3000 mm, and 5000 mm.
What standard accessories are included?
Standard accessories include a 3-jaw chuck, 4-jaw chuck (gap bed), face plate, steady rest, follow rest, coolant pump, and more.
Is a Digital Readout System (DRO) available?
Yes, a 2 or 3-axis Digital Readout System (DRO) is available as an optional accessory.
What is the bed width?
The bed width measures between 550 mm and 600 mm, providing excellent rigidity for heavy-duty operations.
Who should choose the CW6280Cx1500 model?
This model is ideal for workshops requiring a compact footprint while maintaining heavy-duty turning capabilities for workpieces up to 1500 mm in length.
Who should choose the CW6280Cx5000 model?
This model is best suited for heavy industrial manufacturing requiring the turning of long shafts or cylinders up to 5000 mm in length.
How does the CW6280 series compare to the CW6180 series?
The CW6280 series includes a gap bed design for increased swing over gap (1000 mm), whereas the CW6180 series is typically a straight bed design without the gap.
Which model is best for large diameter workpieces?
Both the CW6280 and CW6180 series offer an 800 mm swing over bed, but the CW6280 series provides an additional 1000 mm swing over gap for specialized large-diameter turning.
