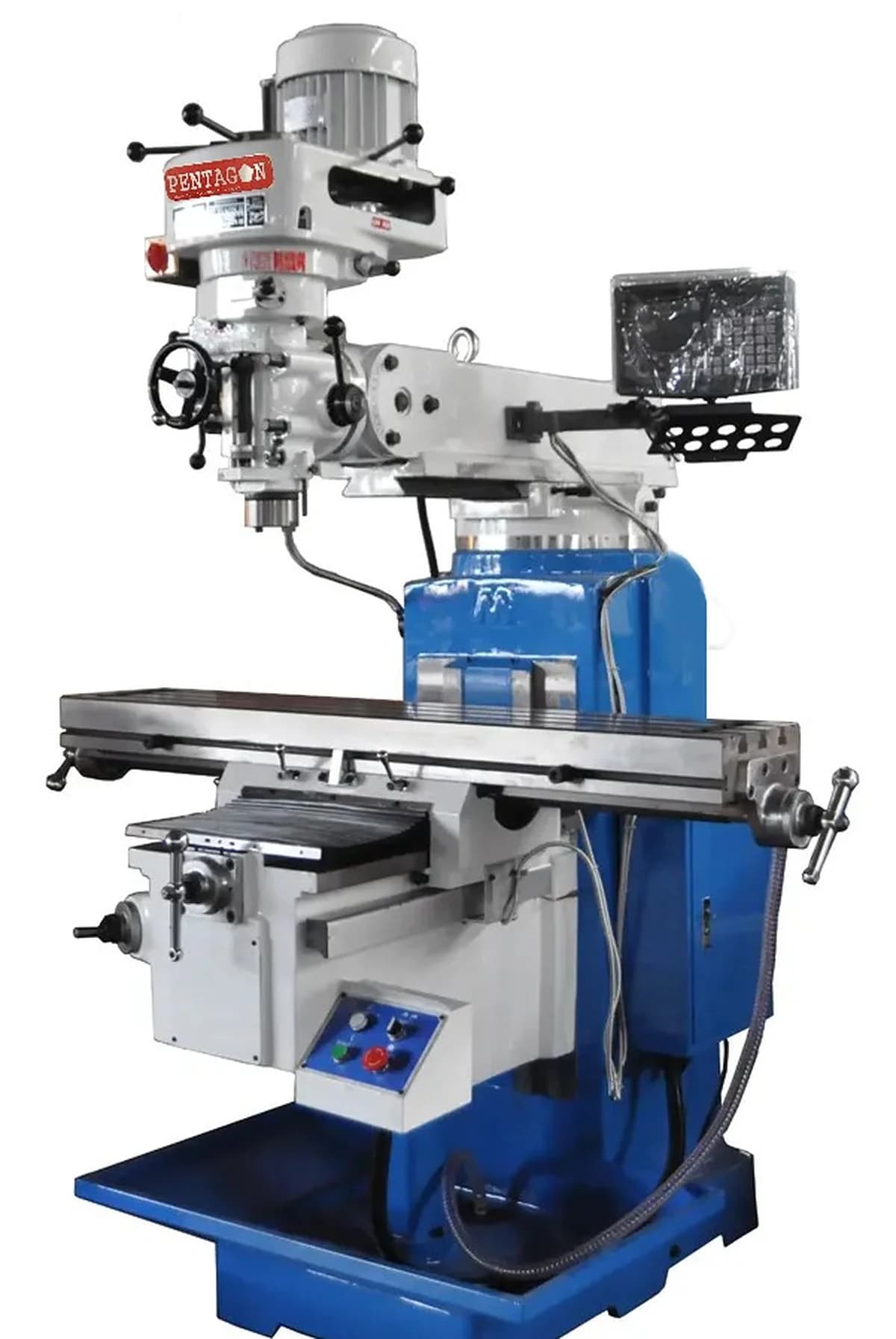

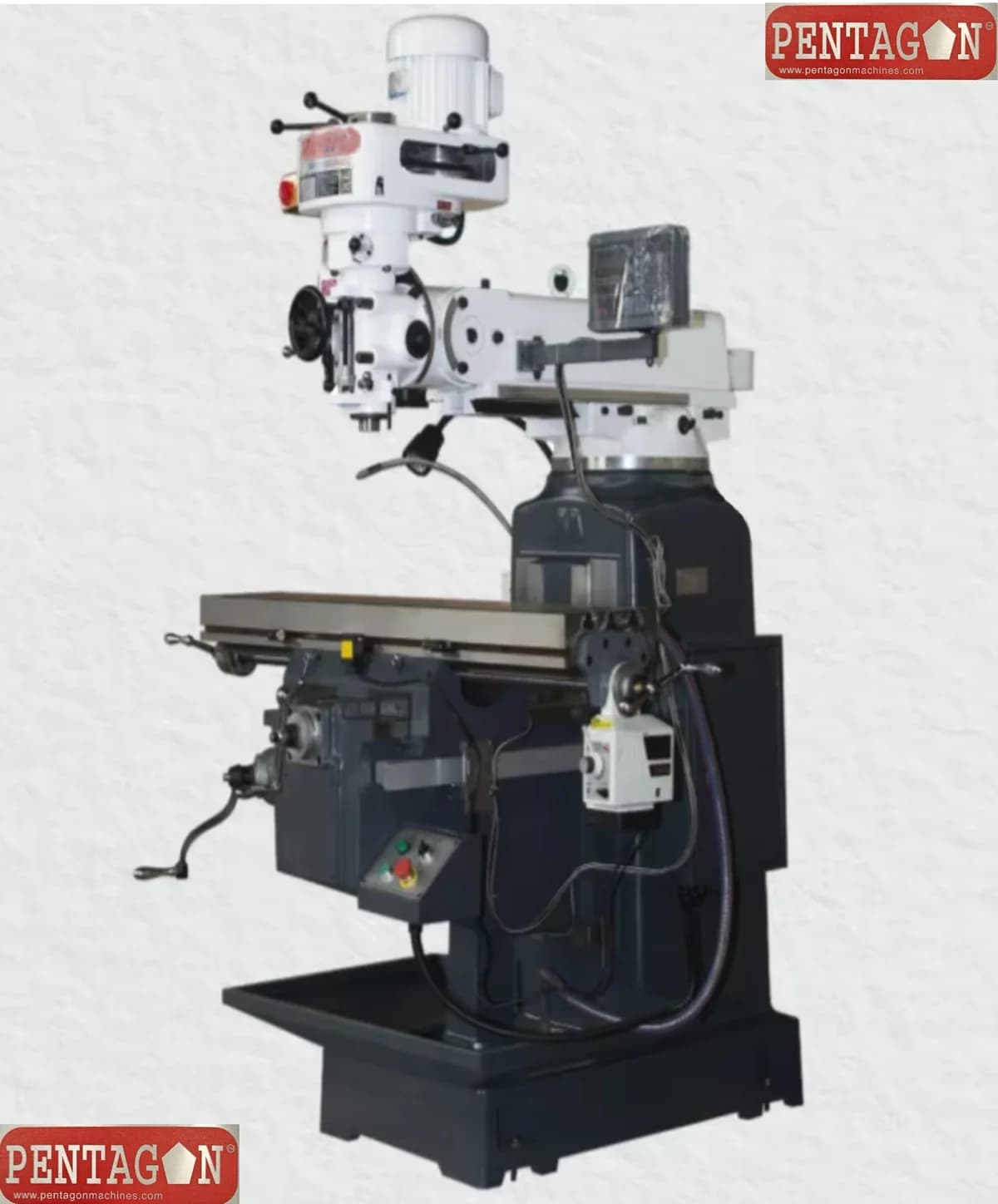

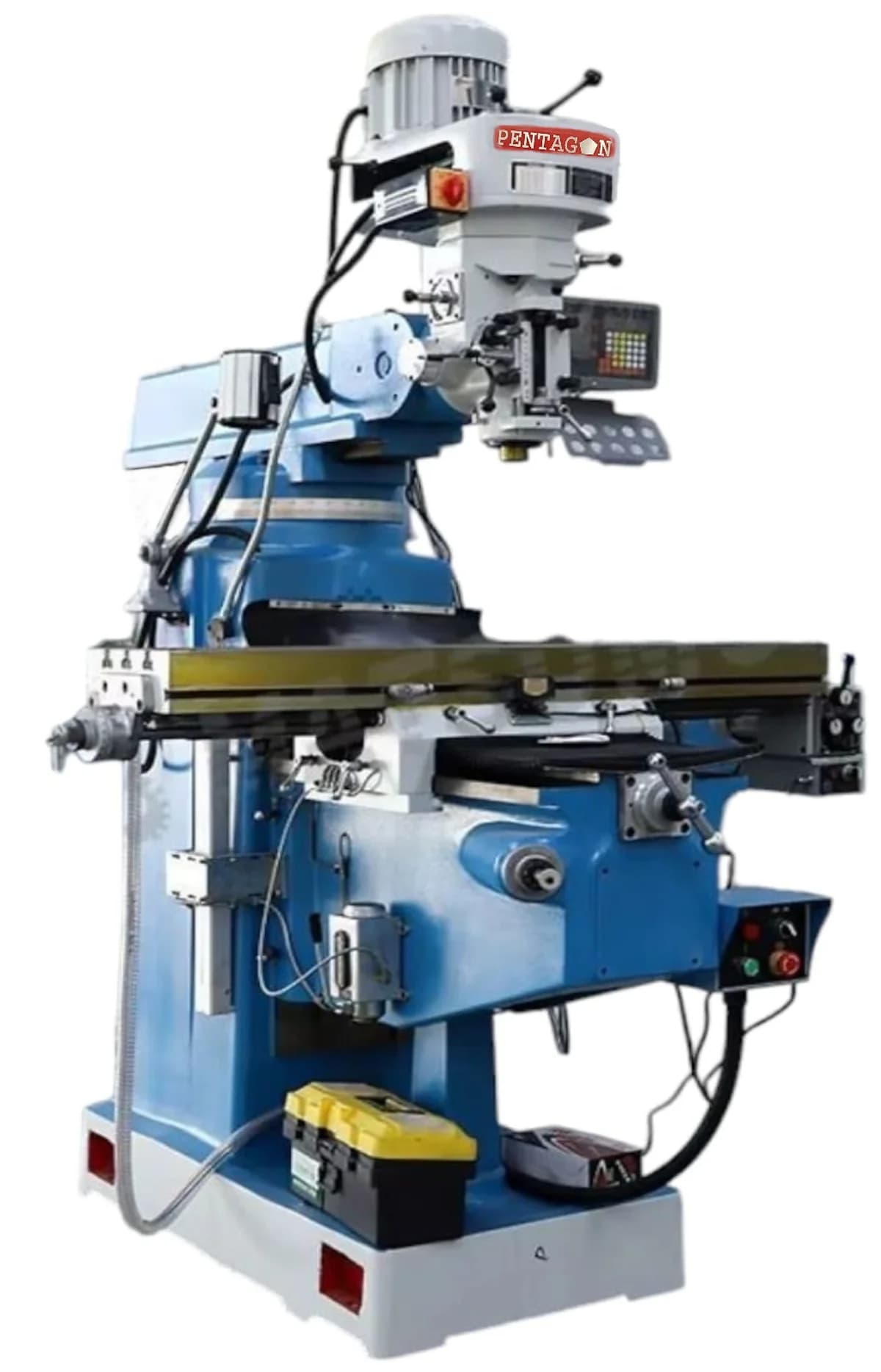

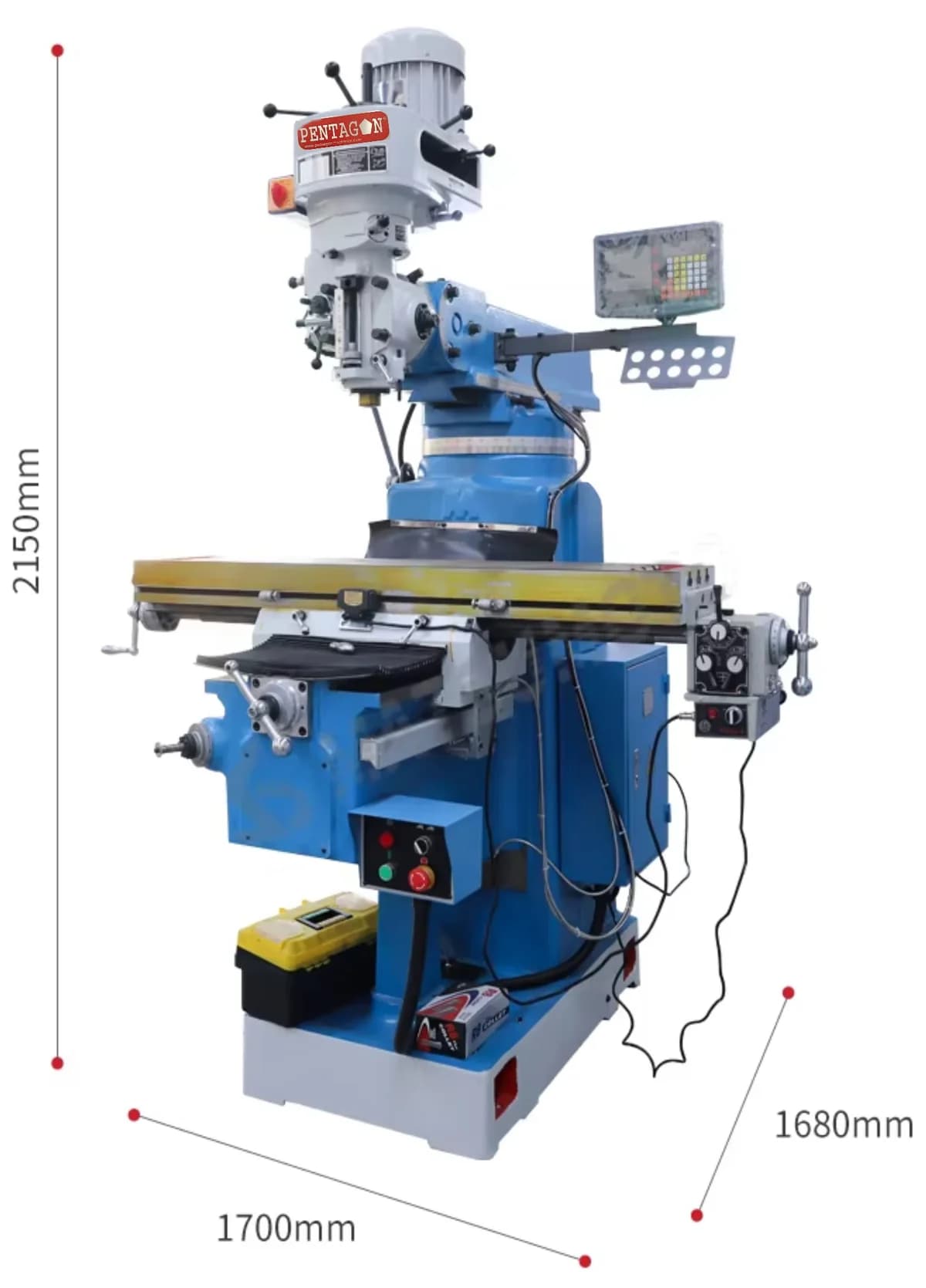

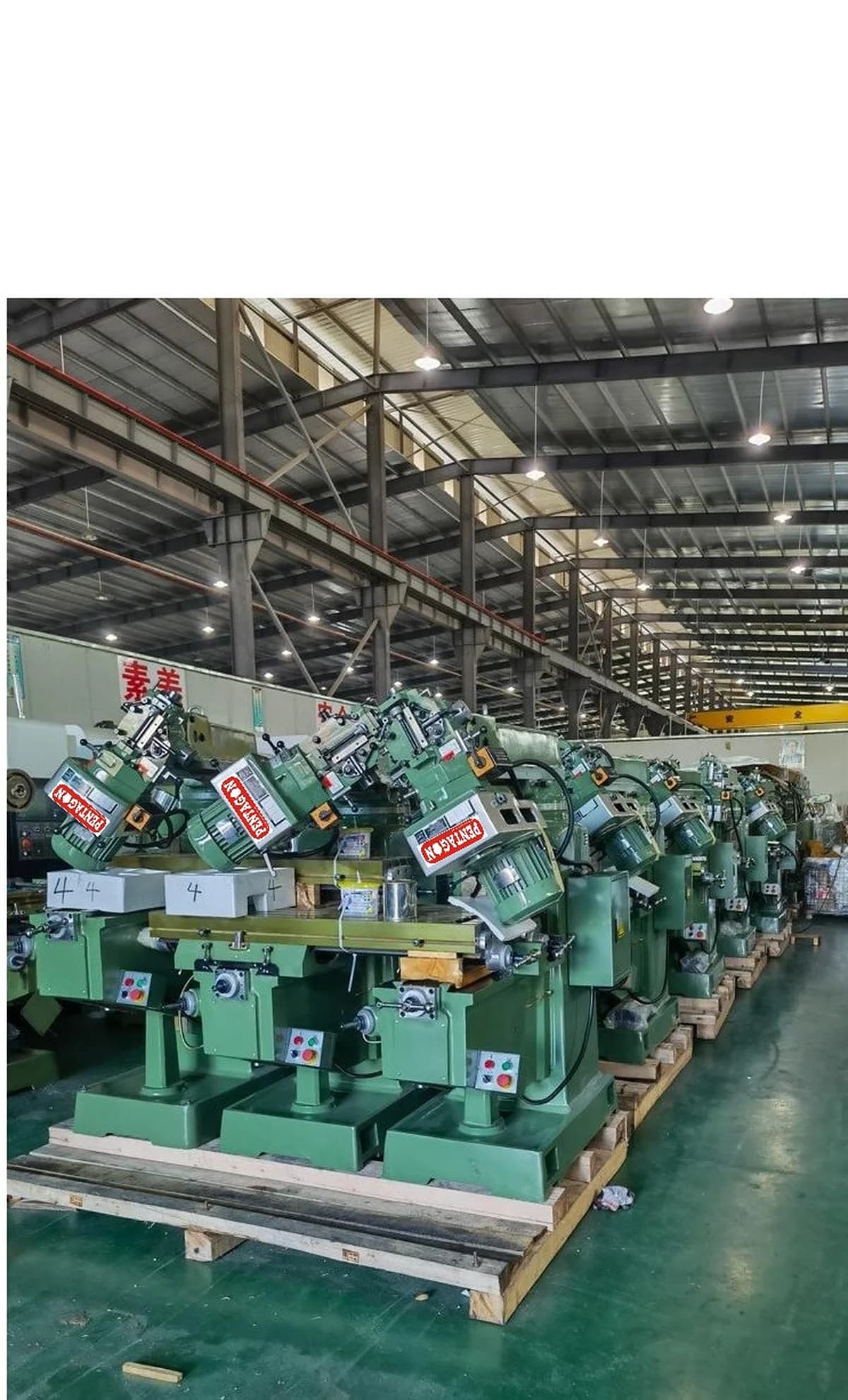

PENTAGON Curved Body Vertical RAM Turret Milling Machine — M3C-R8/ISO30-3
These vertical ram turret milling machines deliver versatile metal cutting and drilling capabilities for industrial toolrooms. Robust curved body design ensures stability during heavy cuts. • 3 HP double speed motors support various cutting speeds • V-type guideways maintain precision under load • Available in R8 or ISO30 spindle taper configurations • 16 speed steps allow optimal feed rates for different materials.

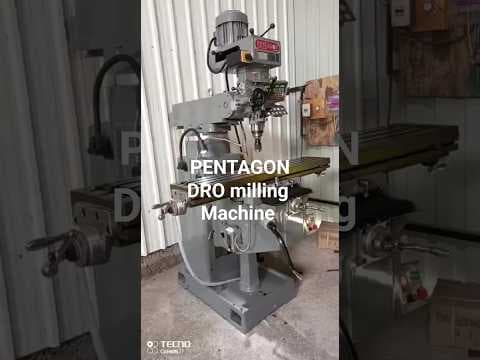

See it in action
Specifications
For: M3C-R8/ISO30-3- Auto Quill Feeds per Revolution
- 0.40/0.08/0.15 mm/rev
- Head Swivel (F x B)
- 45°
- Spindle Speed
- 45-5440 rpm(60Hz)
- Ram Travel
- 580 mm
- Quill Travel
- 127 mm
- Spindle Nose to Table
- 500 mm
- Brake Mounting Type
- Top
- Steps of Speeds
- 16 Steps
- Z-Axis Guideways
- V Type
- Head Swivel (L x R)
- 90°
- Weight of the Machine (Approx.)
- 1280 Kgs
- Vertical Travel of Table
- 400 mm
- Max Load on Table
- 250 Kgs
- Spindle Motor
- 3 HP (Double Speed)/415V/50 or 60Hz
- Milling Head Type
- Round/Square
- Cross Guideways
- V Type
- Cross Travel of table
- 400 mm
- Machine Model
- M3C-R8/ISO30-3
- Longitudinal Travel of Table
- 850 mm
- Spindle Nose taper
- R8/ISO30
- Table size
- 1270x254 mm
Configurations
Click a row to switch| Variant | Price |
|---|---|
| M3C-R8/ISO30-3 | ₹3,53,000 |
| M3C-ISO40-3 | ₹3,64,000 |
| M4C-R8/ISO30-3 | ₹3,65,000 |
| M4C-ISO40-3 | ₹3,83,000 |
Description
The Vertical Ram Turret Milling Machine is designed for precision machining operations such as milling, drilling, boring, and slotting. Its robust construction and flexible ram-type design allow the operator to position the spindle head at multiple angles and directions, enhancing versatility for toolroom and production environments.
PENTAGON Vertical RAM Turret Milling table 1270x254 mm and 1370x254 mm V and Square Guideways in Y axis with two axis DRO and standard accessories listed in offer and mentioned optional accessories package: 1. Machine vice swivel base type 150 mm opening, 2. Clamping kit M12 Type 58 Pcs set, 3. Collet set 11/10 pcs set box
Features
1. The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
2. The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360 Degree on the machine bed, for the processing range can be greater than the table size
3. The speed of milling head is rather high and it makes the machine especially good working with small cutters
4. This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing
5. Robust construction and heavy duty design
6. The machine body is made of Meehanite cast iron
7. The milling head is made of SCM-21.Imported from Taiwan
8. The milling head can swing 90 Degree right and left side, 45 Degree front and back side
9. The ram can swing 180 Degree horizontally
10. High-precision spindle: R8 or ISO 30/40 taper with smooth speed control.
11. Adjustable ram movement: Extends and retracts to position the spindle optimally.
12. Tilting & swiveling head: Allows angular machining for complex components.
13. Heavy-duty table (1270×254 mm and 1370x254 mm): Provides stability and supports larger workpieces.
14. Auto feed on X/Y (optional): Improves machining efficiency.
15. Central lubrication system: Ensures smooth, reliable machine operation.
16. Measuring devices (DRO optional): Enhances accuracy and repeatability.
Advantages
1. Enhanced Precision: The machine's design ensures high accuracy, reducing the need for rework.
2. Increased Productivity: The versatility and efficiency of the machine contribute to higher output.
3. Durability: Constructed with high-quality materials, ensuring long service life.
4. Ease of Operation: User-friendly controls and DRO systems simplify complex machining tasks.
5. High flexibility for different machining operations.
6. Ideal for toolrooms, maintenance workshops, and small to medium industries.
7. Easy to set up and operate, even for angular machining.
8. Strong, vibration-free construction ensures consistent accuracy.
9. Suitable for precision jobs and batch production.
Standard Accessories
- 1. DRO 2 Axis with suitable linear scales fitted in machine
- 2. Coolant Pump with fitting
- 3. Machine Lamp
- 4. Rear and front bellow cover set
- 5. Suitable draw bar set
- 6. Central Lubrication unit
- 7. Electrical cabinet with 110/220 V output
- 8. Tool Box with essential tools
- 9. Operation manual with machine test certificate
- 10. Swivel base Acculock type machine vice 150 mm jaw opening
- 11. Clamping kit M12 Type 58 Pcs set
- 12. Collet set ER32 type 10/11 pcs set
Optional Accessories
- 1. 3 axis DRO set with suitable size of linear scale
- 2. Reduction sleeve MT3
- 3. Reduction sleeve MT2
- 4. X axis table auto power feeder 110V type
- 5. Y axis table auto power feeder 110V type
- 6. H-V Rotary table
- 7. Semi Universal dividing head with tail stock soft jaws Indexing plates
- 8. Splash Tray/Chip Tray
- 9. Integrated type keyless drill chuck with intact suitable arbor
- 10. Micro boring head F-12 or F-18 with suitable Shank
- 11. Mechanical Edge Finder/Edge Sensor
- 12. Boring bar dia 18 mm set of 12 pcs
- 13. keyless drill chuck with intact suitable arbor
- 14. Mechanical Gear box Power feeder 380V
Applications
- The Vertical RAM Turret Milling Machine is ideal for a wide range of applications, including:
- 1. Drilling and Tapping: Precise hole-making and threading operations.
- 2. Slotting and Keyway Milling: Creating slots and keyways with high accuracy.
- 3. Face Milling and End Milling: Surface finishing and contouring tasks.
- 4. Jig Boring: High-precision boring operations for tool and die making.
More questions buyers ask
What is the PENTAGON Curved Body Vertical RAM Turret Milling Machine used for?
It is designed for versatile metal cutting, drilling, boring, and slotting operations in industrial toolrooms.
What is the motor capacity of this milling machine?
The machine is equipped with a robust 3 HP double speed motor operating at 415V/50 or 60Hz.
What type of guideways does this machine use?
It features V-type guideways on the cross and Z-axis to maintain high precision under heavy loads.
How many speed steps are available on this machine?
The machine offers 16 speed steps, allowing operators to select optimal feed rates for different materials.
What is the spindle speed range of the PENTAGON vertical milling machine?
The spindle speed ranges from 45 to 5440 rpm at 60Hz, providing flexibility for various machining tasks.
What is the maximum load capacity on the table?
The table can support a maximum load of 250 Kgs.
Does this machine come with an auto-quill feed?
Yes, it features auto-quill feeds per revolution of 0.40, 0.08, and 0.15 mm/rev.
What is the quill travel distance?
The quill travel distance is 127 mm.
What is the ram travel distance on this milling machine?
The ram travel distance is 580 mm.
Is the milling head adjustable?
Yes, the head can swivel 45° front-to-back and 90° left-to-right for angled cuts.
What type of brake mounting does this machine have?
It features a top-mounted brake system.
Does the machine support both R8 and ISO30 spindle tapers?
Yes, specific variants are available with R8/ISO30 spindle taper configurations.
Who should choose the M3C-R8/ISO30-3 variant?
This variant is ideal for workshops needing a standard 1270x254 mm table with versatile R8/ISO30 spindle compatibility.
Who should choose the M3C-ISO40-3 variant?
Choose this if you require the standard 1270x254 mm table but prefer the heavier-duty ISO40 spindle taper for specific tooling.
Who should choose the M4C-R8/ISO30-3 variant?
This is perfect for users who need a larger 1370x254 mm table for bigger workpieces while using R8/ISO30 tooling.
Who should choose the M4C-ISO40-3 variant?
Opt for this variant if you need both the extended 1370x254 mm table and the robust ISO40 spindle taper for heavy-duty applications.
What is the difference between the M3C and M4C models?
The primary difference is the table size and longitudinal travel. M3C models have a 1270x254 mm table with 850 mm travel, while M4C models feature a larger 1370x254 mm table with 930 mm travel.
How does the R8/ISO30 spindle taper compare to the ISO40 spindle taper?
The R8/ISO30 is versatile and common for lighter to medium milling, whereas the ISO40 provides greater rigidity and is suited for heavier cutting tools.
Which variant offers the largest table size?
The M4C variants (M4C-R8/ISO30-3 and M4C-ISO40-3) offer the largest table size of 1370x254 mm.
Does the spindle taper affect the machine's overall weight?
No, the weight difference is primarily driven by the table size. M3C models weigh approximately 1280 Kgs, while M4C models weigh 1290 Kgs.
