PENTAGON Brand Automatic Circular Saw Blade Grinding Machine with all standard accessories Model-CT550
The PENTAGON Brand Automatic Circular Saw Blade Grinding Machine is designed for precise sharpening of circular saw blades. This stand-type unit ensures consistent tooth geometry and extended blade life through automated grinding processes. • Max Tooth Depth: 8 mm • Max Outer Diameter: 140 mm • Max Tooth Distance: 25 mm • Max Grinding Wheel Dia: 8 mm

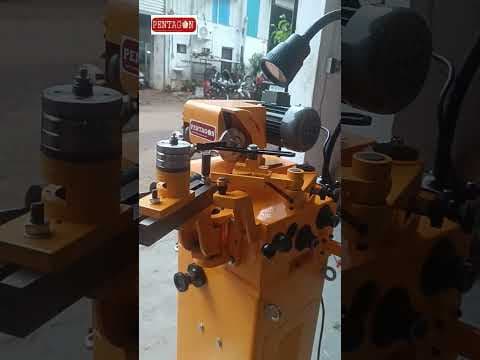

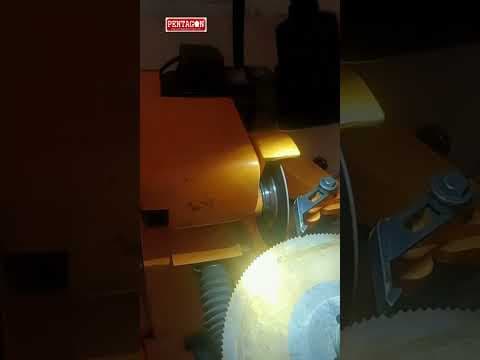

See it in action
Specifications
For: Model-CT550- Product
- Saw Blade Grinding
- Model
- CT550
- Type
- Stand type
- Motor Power
- 0.50 Hp
- RPM
- 2800 r/min
- Voltage
- 220/380 V
- frequency
- 50 Hz
- Ampere
- 1.65 / 0.94 A
- Phase
- 3 phase
- Outer dia meter for saw blade
- 140 mm
- Tooth distance for saw blade Max
- 25 mm
- Tooth depth for saw blade Max
- 8 mm
- Grinding wheel's outer dia meter Max
- 8 mm
- Machine Dimension
- 1240x700x850 mm
- Weight
- 180 Kg
Operational Efficiency and Ease of Use
- Automatic grinding cycle reduces manual labor effort
- Consistent results minimize material waste during setup
- Standard accessories simplify initial installation and use
- Easy-to-read controls streamline daily operational tasks
- Reliable motor performance ensures continuous workflow
- Low maintenance requirements reduce long-term ownership costs
- Quick changeover capabilities support varied production schedules
Precision Tool Maintenance Applications
- Ideal for sharpening circular saw blades in woodworking
- Suitable for metal cutting blade maintenance services
- Supports small to medium scale manufacturing workshops
- Helps extend tool life through regular precision grinding
- Reduces downtime by enabling on-site blade restoration
- Maintains cut quality for high-precision production runs
- Versatile enough for diverse material processing needs
- Essential equipment for professional tool sharpening shops
Robust Construction and Dimensions
- Heavy-duty stand type construction ensures stability
- Overall machine dimensions are 1240x700x850 mm
- Net weight of 180 Kg provides vibration resistance
- Compact footprint suitable for various workshop layouts
- Built-in standard accessories included with purchase
- Designed for consistent performance in repetitive tasks
- Solid frame supports precise grinding operations
- Optimized layout for easy operator access
Key Features and Performance
- PENTAGON Brand Automatic Circular Saw Blade Grinding Machine
- Model CT550 stand type design for stable operation
- Motor power of 0.50 Hp with 2800 r/min RPM
- Supports 220/380 V voltage at 50 Hz frequency
- Current draw is 1.65 A (single phase) or 0.94 A (three phase)
- Three-phase power option available for industrial use
- Handles saw blades up to 140 mm outer diameter
- Maximum tooth distance capacity of 25 mm
- Accommodates maximum tooth depth of 8 mm
- Grinding wheel outer diameter max is 8 mm
More questions buyers ask
What is an automatic circular saw blade grinding machine?
It is an industrial machine designed to automatically sharpen circular saw blades, ensuring consistent tooth geometry and extending blade life.
What are the key features of the PENTAGON CT550?
The CT550 features a 0.50 HP motor, 2800 RPM, handles blades up to 140mm, and has a robust 180kg stand-type construction.
What is the maximum saw blade diameter the CT550 can handle?
The PENTAGON CT550 is designed to accommodate circular saw blades up to 140 mm in outer diameter.
Is the PENTAGON CT550 suitable for industrial use?
Yes, it is built for industrial workshops, offering stable, repetitive grinding performance with a 3-phase power option.
Does this machine come with accessories?
Yes, the PENTAGON CT550 comes with all standard accessories required for immediate installation and operation.
What is the power requirement for this machine?
It operates on 220/380 V at 50 Hz, with current draw options for single or three-phase power.
How does an automatic grinder improve efficiency?
It reduces manual labor, minimizes setup waste, and ensures consistent sharpening results compared to manual methods.
What is the weight of the PENTAGON CT550?
The machine has a net weight of 180 kg, providing excellent stability and vibration resistance during operation.
Can this machine sharpen different types of blades?
It is versatile for various material processing needs, primarily focusing on circular saw blades used in woodworking and metal cutting.
What maintenance does the machine require?
It has low maintenance requirements, though regular cleaning and checking of the grinding wheel are recommended for optimal performance.
Who should choose the PENTAGON CT550?
Professional tool sharpening shops and manufacturing workshops that require a reliable, automated solution for maintaining circular saw blades.
How does the CT550 compare to manual sharpeners?
The CT550 offers superior consistency, speed, and reduced labor costs compared to manual sharpening tools.
More like this
Full description
The PENTAGON Brand Automatic Circular Saw Blade Grinding Machine is designed for precise sharpening of circular saw blades. This stand-type unit ensures consistent tooth geometry and extended blade life through automated grinding processes. • Max Tooth Depth: 8 mm • Max Outer Diameter: 140 mm • Max Tooth Distance: 25 mm • Max Grinding Wheel Dia: 8 mm
