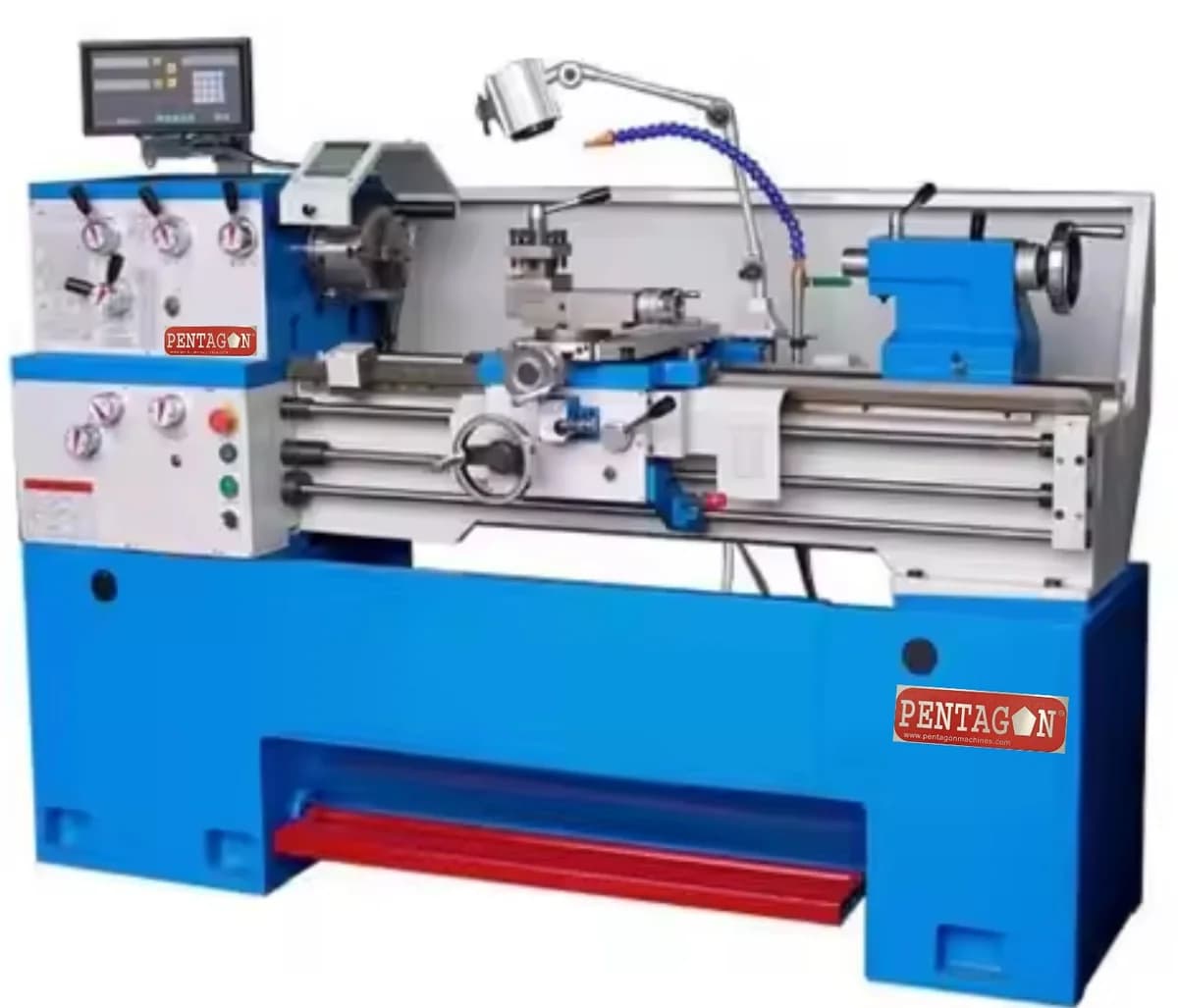

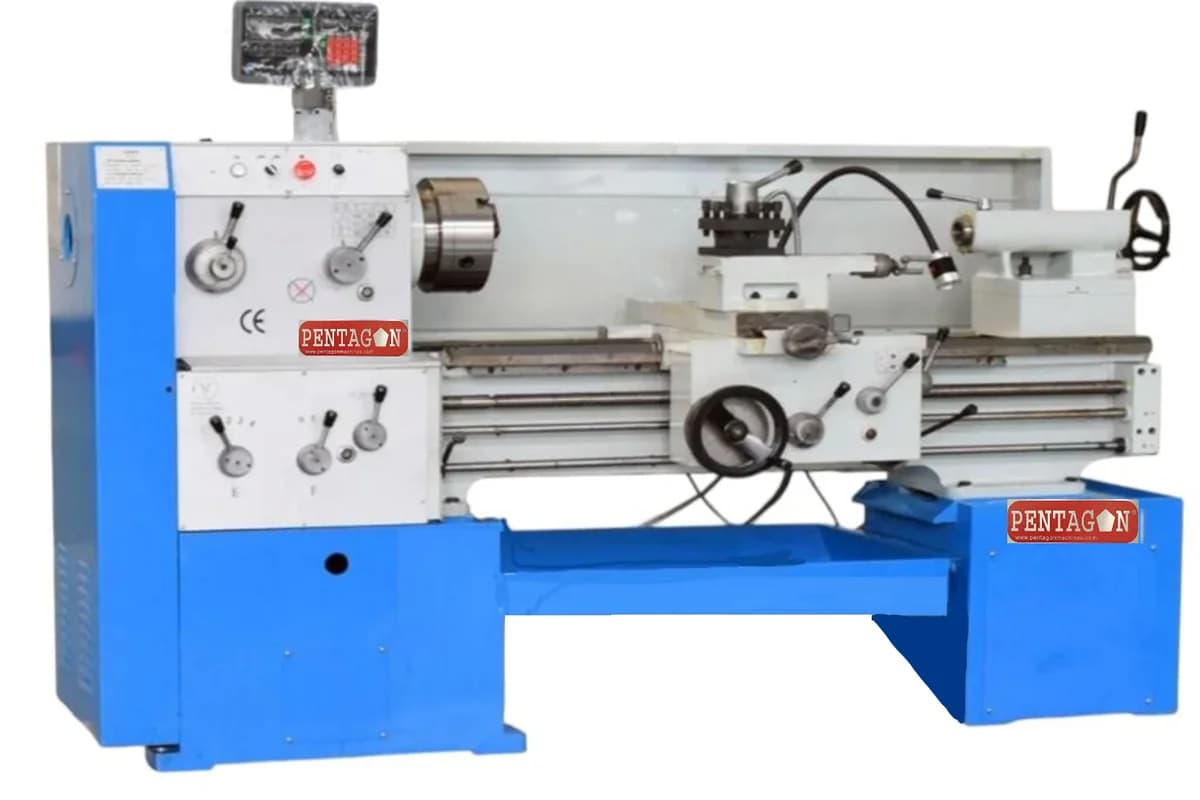

PENTAGON CH6250 Lathe Machine: Price in India, Buy Online — CH6250Fx1000
Engineered for precision turning, these geared high speed lathe machines serve demanding industrial manufacturing environments. Designed for durability and consistent performance across varied metalworking tasks. • Robust gearbox design ensures stable cutting speeds • High precision spindle bearings maintain tight tolerances • Suitable for mass production and specialized job shop applications

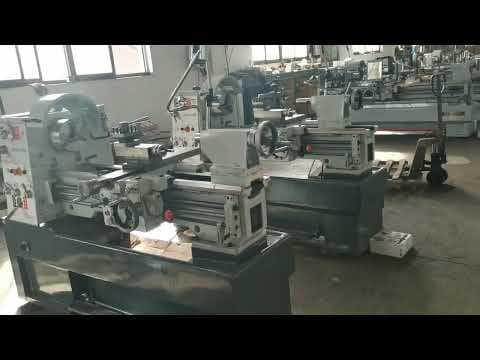

See it in action
Specifications
For: CH6250Fx1000- Model

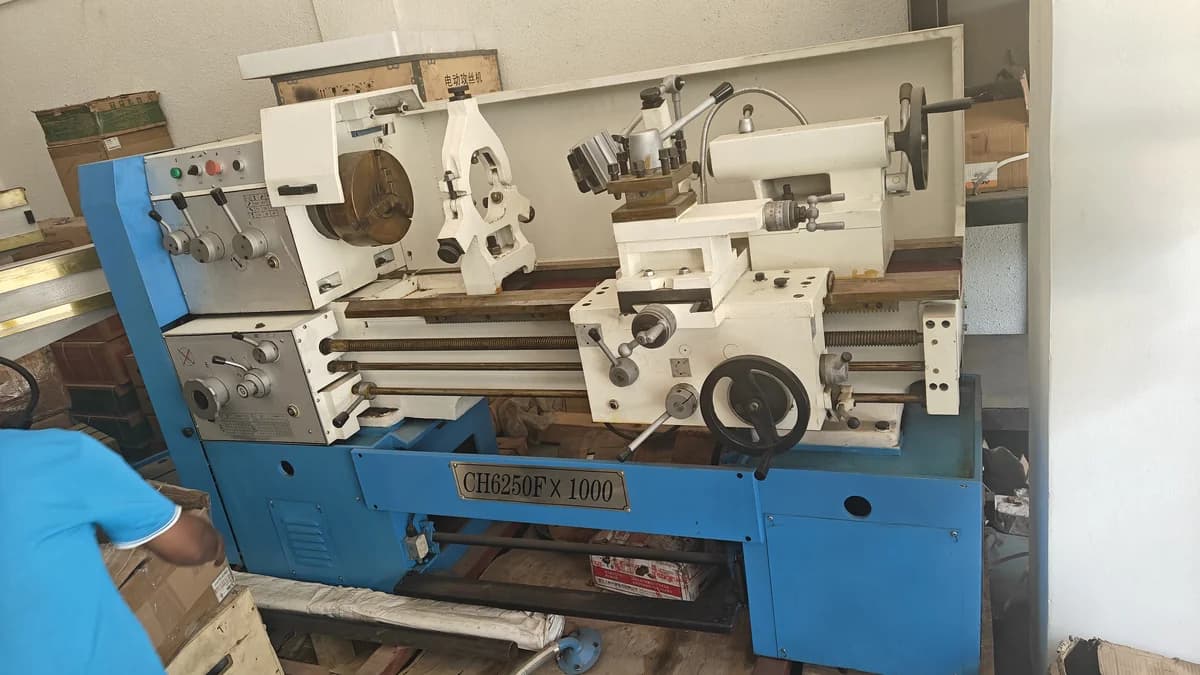

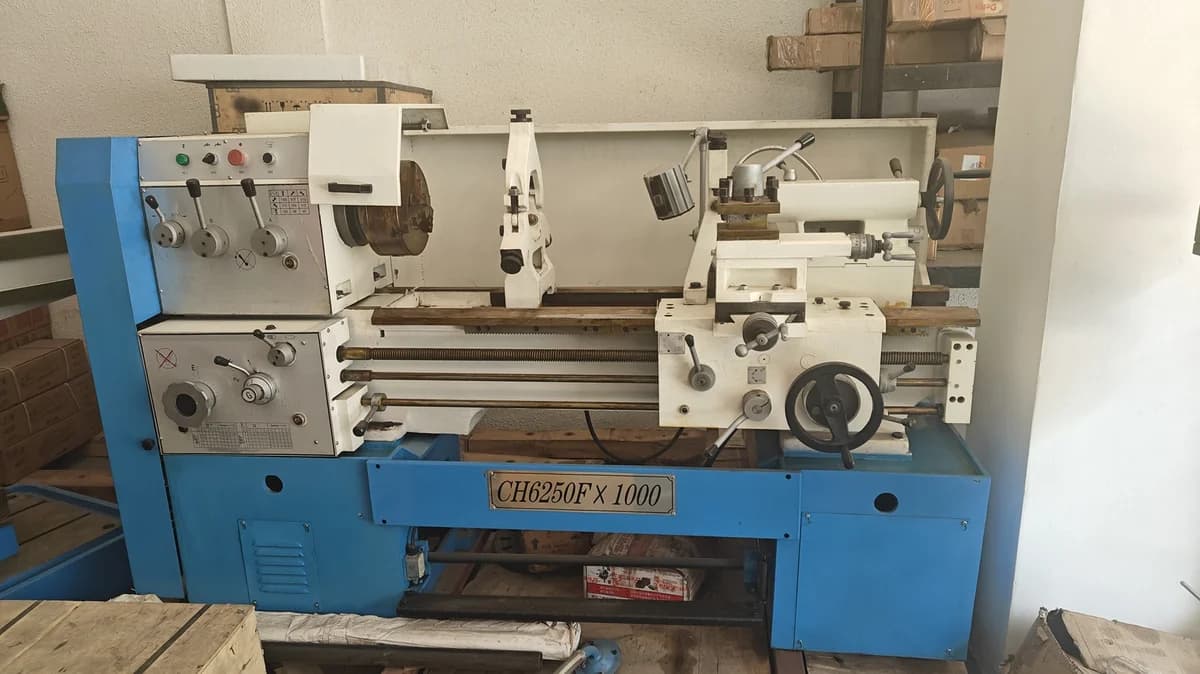

- CH6250Fx1000
- Max.swing over bed
- 500 mm
- Max.swing over cross slide
- 330mm
- Max. swing over gap
- 660mm
- Effective length of gap
- 200mm
- Center Distance
- 1000 mm
- Bed Width
- 360 mm
- Spindle hole
- 52 mm
- Spindle nose
- ISO-C8
- Spindle taper
- MT5
- Spindle speed(Number)
- (9steps)40-1300rpm
- Longitudinal feeds range
- 0.0832-4.66mm/r
- Cross feeds range
- 0.048-2.69mm/r
- Metric threads range
- 19kinds 0.25-14mm
- Inch threads range
- 49kinds 2-40inch
- Moodle threads range
- 11kinds 0.5-3.5mπ
- Max.travel of top slide
- 95mm
- Max.travel of cross slide
- 250mm
- Max.size of toolshank
- 20*20mm2
- Dia.of tailstock sleeve
- 65mm
- Taper of tailstock sleeve
- MT5
- Max.travel of tailstock
- 140mm
- Main drive motor
- 5.5KW
- Coolant pump motor
- 125W
- Size Center Distance(1000mm)
- 2400*1150*1750 mm
- N.W-G.W
- 1550/1750 kg
Configurations
Click a row to switch| Variant | Max.swing over bed | Bed Width | Main drive motor | Center Distance | Price |
|---|---|---|---|---|---|
| CH6250Fx1000 | 500 mm | 360 mm | 5.5KW | 1000 mm | ₹7,45,000 |
| CH6250Fx1500 | 500 mm | 360 mm | 5.5KW | 1500 mm | ₹7,90,000 |
| CH6250Fx2000 | 500 mm | 360 mm | 5.5KW | 2000 mm | ₹8,75,999 |
Operational Versatility
- Designed for durability and consistent performance across tasks
- CH6250F series supports varied metalworking tasks
- High speed spindle bearings maintain tight tolerances
- Robust gearbox design ensures stable cutting speeds
- Ideal for manufacturing components requiring high surface finish
- Provides reliable performance for industrial maintenance tasks
- Geared transmission system minimizes vibration during operation
- Center distance of 1000 mm corresponds to 2400*1150*1750 mm size
Industrial Applications
- Suitable for mass production and specialized job shop applications
- Ideal for automotive component manufacturing and repair
- Supports heavy-duty turning operations for steel and alloys
- Effective for producing shafts, bushings, and cylindrical parts
- Meets requirements for high-speed machining processes
- Adaptable for both prototype development and batch production
- Provides reliable performance for industrial maintenance tasks
- Engineered for precision turning in demanding environments
Construction and Power
- Bed width measures 360 mm for enhanced rigidity
- Max swing over bed is 500 mm for large diameter work
- Max swing over gap reaches 660 mm for extended turning
- Net weight ranges from 1550 to 1750 kg depending on config
- Coolant pump motor is 125W for effective chip removal
- Tailstock sleeve diameter is 65 mm for robust support
- Effective length of gap is 200 mm for tool clearance
- Tailstock taper is MT5 for consistent alignment
Thread and Feed Capabilities
- Longitudinal feeds range from 0.0832 to 4.66mm per revolution
- Cross feeds range from 0.048 to 2.69mm per revolution
- Metric threads range includes 19 kinds from 0.25 to 14mm
- Inch threads range covers 49 kinds from 2 to 40 inch
- Max travel of top slide is 95 mm for precise taper turning
- Max travel of cross slide is 250 mm for radial adjustments
- Max swing over cross slide is 330 mm for larger workpieces
- Max size of toolshank is 20*20mm2 for standard holders
Precision and Performance
- Robust gearbox design ensures stable cutting speeds
- High precision spindle bearings maintain tight tolerances
- Main drive motor rated at 5.5KW for consistent power
- Spindle speed ranges from 40 to 1300rpm across 9 steps
- Spindle nose conforms to ISO-C8 standard
- Spindle taper is MT5 for versatile tool mounting
- Spindle hole diameter is 52 mm for bar feeding options
- CH6250Fx1000 model is engineered for precision turning
Optional Accessories
- Quick Change Tool Post (Multifix / VDI Type)
- Follow Rest (Travelling Steady)
- Tool Holder Set (Turning Tool Kit)
- Taper Turning Attachment
- Adjustable Carriage Stop
- Tool Post Grinding Attachment
- Digital Readout (DRO) – 2 Axis
- Digital Readout (DRO) – 3 Axis

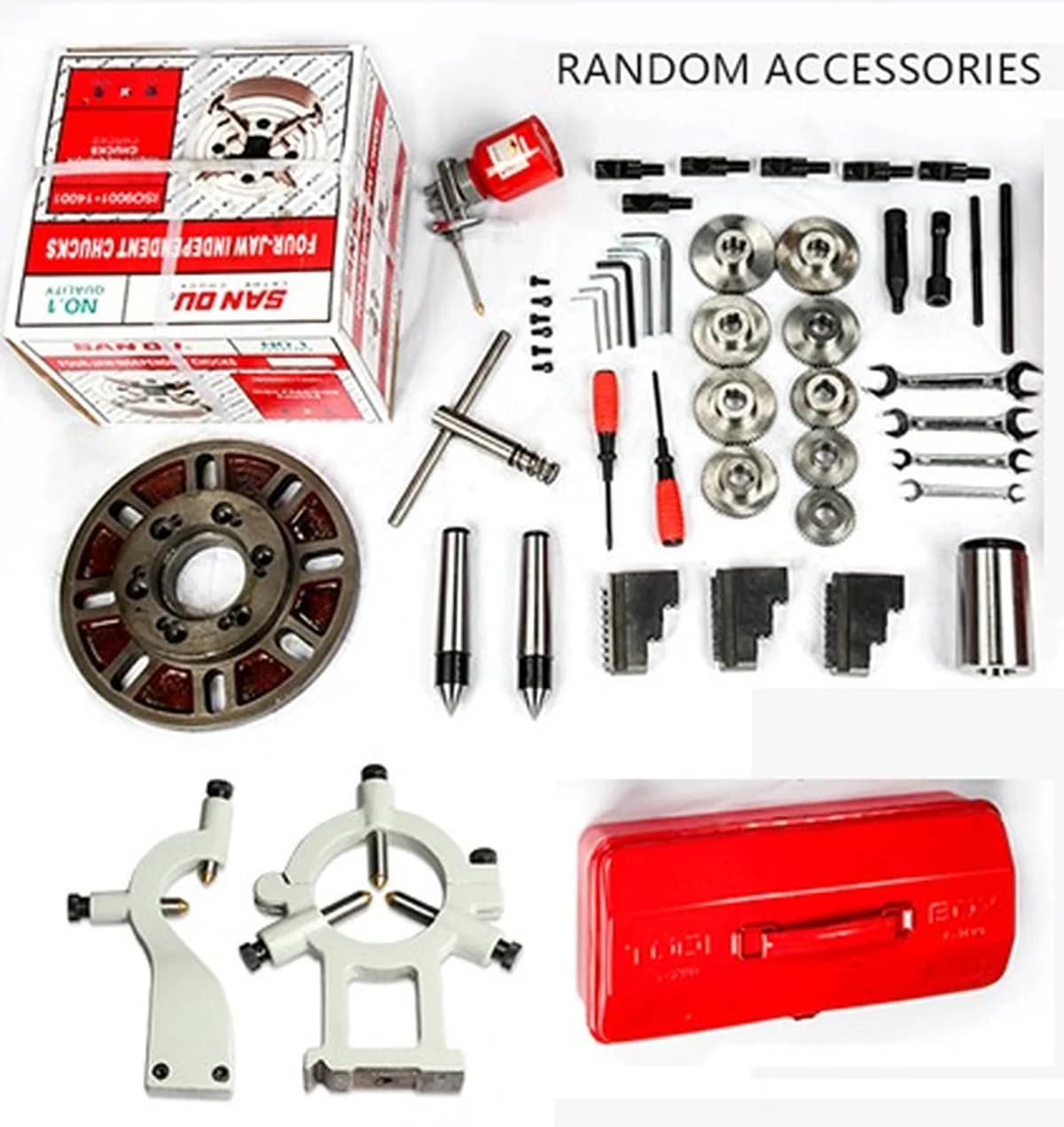

Standard Accessories
- Machine Lamp
- Coolant system
- Thread-cutting dial
- 3-jaw chuck suitable size
- 4-jaw chuck suitable size
- Steady rest & follow rest
- Full-length splash guard
- Foot brake and brake ribbon
- Oil gun
- Face plate suitable size
- One whole set spanner
- Z axis travel marking device
- Dead centre and centre sleeve
- Operation manual
Frequently asked
What is the maximum swing over the bed?
The machine offers a max swing over bed of 500 mm.
Can this lathe handle metric and inch threads?
Yes, it supports 19 metric kinds and 49 inch thread types.
What is the spindle speed range?
The spindle speed ranges from 40 to 1300rpm in 9 steps.
Is the machine suitable for mass production?
Yes, it is designed for mass production and job shop applications.
More questions buyers ask
What is the PENTAGON CH6250 Series lathe machine?
The PENTAGON CH6250 is a series of all-geared, high-speed, high-precision lathe machines designed for industrial metalworking, available in different lengths (center distances).
What are the main applications of this lathe machine?
It is ideal for precision turning, threading, and facing operations in manufacturing plants, job shops, and repair facilities. It can handle a wide range of materials including steel and alloys.
What is the maximum swing over bed for the CH6250 model?
The CH6250 series has a maximum swing over bed of 500mm.
What is the spindle hole diameter?
The CH6250Fx1000 model has a 52mm spindle hole, while the 1500mm and 2000mm models feature a larger 80mm spindle hole.
What is the spindle speed range?
The machine offers a 9-step spindle speed range from 40 to 1300 RPM, providing versatility for different materials and cutting operations.
Does this machine support metric and inch threading?
Yes, it is highly versatile and supports 19 kinds of metric threads (0.25-14mm) and 49 kinds of inch threads (2-40 TPI).
What is the main drive motor power?
All models in the CH6250 series are equipped with a powerful 5.5KW main drive motor.
What standard accessories are included?
Standard accessories typically include a 3-jaw chuck, 4-jaw chuck, steady rest, follow rest, face plate, and drive plate.
What is the bed width of the machine?
The bed width is a robust 360mm, ensuring rigidity and stability during heavy cutting operations.
Is a coolant pump included?
Yes, the machine comes with a 125W coolant pump system to ensure effective chip removal and tool cooling.
What is the warranty on this machine?
This machine comes with a standard 1-year manufacturer warranty against defects. Contact us for extended warranty options.
Do you provide delivery across India?
Yes, we provide pan-India delivery for all our machines. Shipping charges may vary based on location.
Can I get a GST invoice for my purchase?
Absolutely. We provide a GST invoice for all B2B purchases, allowing you to claim input tax credit.
Who should choose the CH6250Fx1000 model?
The CH6250Fx1000 is perfect for workshops that need a high-precision lathe for small to medium-sized parts up to 1000mm long. Its smaller footprint makes it a great choice for facilities with limited space.

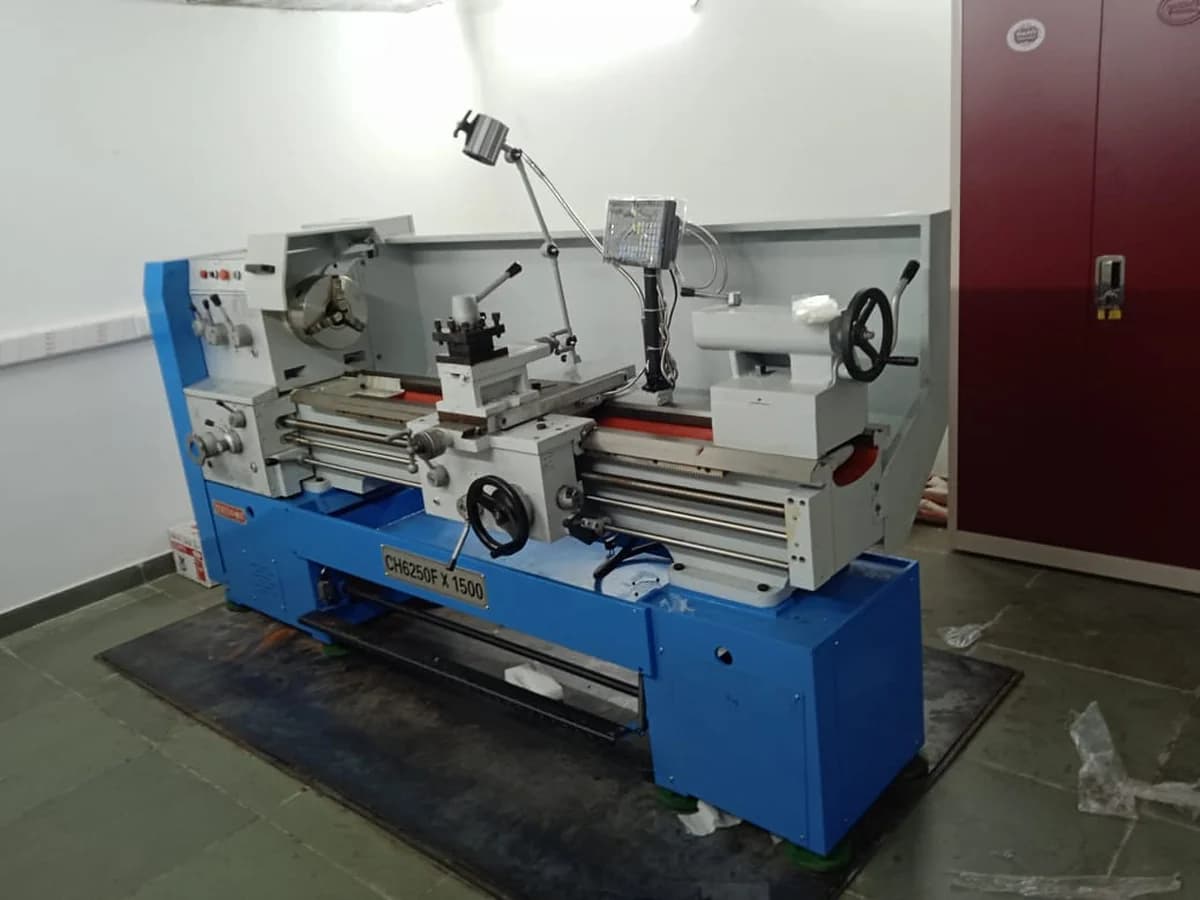

Who should choose the CH6250Fx1500 model?
The CH6250Fx1500 offers a balance of size and capability. With a 1500mm center distance and larger 80mm spindle bore, it is suited for general-purpose machine shops and manufacturers handling a diverse range of job lengths.
Who should choose the CH6250Fx2000 model?
The CH6250Fx2000 is designed for heavy-duty applications and machining long workpieces. It is the ideal choice for oil and gas industries, large-scale manufacturing, and repair shops that handle long shafts and components up to 2000mm.
What is the main difference between the CH6250Fx1000, CH6250Fx1500, and CH6250Fx2000 models?
The primary difference is the 'Center Distance' (1000mm, 1500mm, and 2000mm respectively), which dictates the maximum length of the workpiece that can be mounted. The 1500mm and 2000mm models also have a larger spindle bore (80mm vs 52mm).
How does the center distance affect the lathe's capability?
A longer center distance allows you to work on longer workpieces. Choose a model with a center distance that comfortably exceeds the length of the longest part you anticipate machining.
Does the weight difference between models affect stability?
Yes, the heavier weight of the larger models (from 1550kg to 2150kg) contributes to increased rigidity and vibration damping, which is crucial for maintaining accuracy during heavy cutting on long workpieces.
