Belt Driven Heavy Duty Lathe Machine 15x15-52 Series — PBHL-7'-15"-52
Belt-driven heavy duty lathes provide robust turning capabilities for high-volume manufacturing operations. This model incorporates a 7 feet bed length and 1000 mm admit between centers. • 52 mm spindle bore supports continuous bar feeding • 2100 kg mass ensures consistent thermal stability • 375 mm center height maintains rigid tool engagement

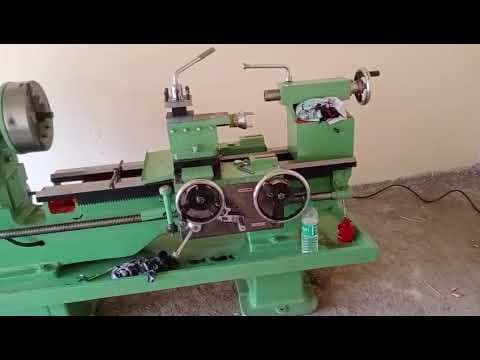

See it in action
Specifications
For: PBHL-7'-15"-52- Model
- PBHL-9-15-52
- Bed Length
- 7 Feet
- Admit Between Centers
- 1000 mm
- Height Of Centre
- 375 mm
- Width Of Bed
- 375 mm
- Swing Over Bed
- 750 mm
- Swing Over Slide
- 550 mm
- Swing Over Gap
- 900 mm
- Spindle Bore
- 52 mm
- Speed- Nos
- 30-600 RPM/8 Nos
- Lead Screw TPI
- 4 TPI
- Tail Stock Sleeve
- MT-4
- Power Required
- 3/5 HP (Optional)
- Electrical Supply
- 415V, 3 Phase, 50 Hz
- Appx Weight
- 2100 Kgs
Configurations
Click a row to switch| Variant | Admit Between Centers | Bed Length | Spindle Bore | Height Of Centre | Price |
|---|---|---|---|---|---|
| PBHL-9'-15"-52 | 1600 mm | 9 Feet | 52 mm | 375 mm | ₹3,52,000 |
| PBHL-16'-15"-52 | 3700 mm | 16 Feet | 52 mm | 375 mm | ₹5,35,000 |
| PBHL-14'-15"-52 | 3100 mm | 14 Feet | 52 mm | 375 mm | ₹4,95,000 |
| PBHL-5.5'-15"-52 | 560 mm | 5.5 Feet | 52 mm | 375 mm | ₹3,15,000 |
| PBHL-7'-15"-52 | 1000 mm | 7 Feet | 52 mm | 375 mm | ₹3,41,000 |
| PBHL-10'-15"-52 | 1900 mm | 10 Feet | 52 mm | 375 mm | ₹3,57,000 |
| PBHL-12'-15"-52 | 2500 mm | 12 Feet | 52 mm | 375 mm | ₹3,65,000 |
Operational Efficiency & Maintenance
- Simplified mechanical controls reduce downtime and enable quick setup changes between different job types
- Robust gearbox and belt tensioning system maintain optimal cutting performance under heavy loads
- Accessible lubrication points and standardized wear components streamline routine servicing schedules
- Stable cast iron construction dampens vibration to preserve tool life and improve surface finish quality
Industrial Applications & Use Cases
- Heavy component turning and facing operations for automotive, agricultural, and construction equipment manufacturing
- Precision shaft machining and thread cutting for industrial pump and valve assembly lines
- Batch production of flanges, rollers, and cylindrical components requiring consistent dimensional accuracy
- Repair shop refurbishment of worn mechanical parts and replacement component fabrication
Configuration & Size Range
- Available bed lengths ranging from 5.5 feet to 24 feet to accommodate varying job requirements and layouts
- Multiple spindle bore options including 52 mm, 80 mm, 104 mm, and 125 mm for flexible bar stock processing
- Modular architecture allows precise matching of machine footprint to specific shop floor space constraints
- Standardized 15x15 series dimensions ensure compatibility with common tooling setups and workholding accessories
Drive System & Core Design
- Belt driven transmission ensures smooth power delivery and consistent torque across all operating speeds
- Heavy duty construction engineered for continuous machining cycles and demanding workshop environments
- 15 inch center height and 15 inch bed width provide a robust foundation for substantial workpiece handling
- Mechanical drive design prioritizes reliability, ease of maintenance, and straightforward operational control
Optional Accessories
- Steady Rest
- Follow Rest
- Face Plate Electrical Fittings
- True Chuck & Dog Chuck
- Quick Change Tool Post Tapper Turning Attachment
- Coolant Pump with Tank & Fittings Machine Lamp
- Rear Tool Post
- Key Way Milling Attachment
- Tool Post Grinder
Standard Accessories
- Electrical Motor, Switches/Starter/V Belts
- Chuck Plate
- Gear Set
- Center Adaptor
- Dead Centers
- Dial Indicator
- Square Tool Post
- Tool Post Key
Frequently asked
How does the belt driven configuration benefit high torque operations?
Mechanical belt drive ensures direct power transfer, reducing slippage while maintaining consistent cutting force.
Can this machine handle long workpieces without additional support?
Models up to 24 feet feature reinforced ways and heavy duty tail stocks to safely support extended machining runs.
What spindle bore sizes are available across the series?
The product family offers 52 mm, 80 mm, 104 mm, and 125 mm bore options to match different bar feeding requirements.
More questions buyers ask
What is the primary advantage of a belt-driven lathe machine?
Belt-driven lathes provide smooth power transmission, reducing vibration and allowing for a superior surface finish on machined parts.
What industries use the Pentagon 15x15-52 series lathe?
This series is widely used in automotive manufacturing, agricultural equipment fabrication, pump assembly, and general industrial repair workshops.
Does the machine come with standard accessories?
Yes, it includes an electrical motor, starter, V-belts, chuck plate, gear set, centers, and a square tool post.
What is the spindle bore size for this series?
The 15x15-52 series features a 52 mm spindle bore, suitable for various bar feeding requirements.
Is the bed length customizable?
We offer multiple bed lengths ranging from 5.5 feet to 24 feet to suit different shop floor requirements.
What power supply is required?
The machine operates on a standard 415V, 3-phase, 50 Hz industrial power supply.
How is the machine's stability ensured?
It features a robust cast iron bed construction that effectively dampens vibration during heavy-duty cutting operations.
Are optional accessories available?
Yes, we offer steady rests, follow rests, face plates, coolant pumps, and tool post grinders as optional add-ons.
What is the weight of the 9-foot model?
The 9-foot model weighs approximately 2100-2300 Kgs, ensuring a stable foundation for machining.
How do I maintain the lathe?
The machine is designed for easy maintenance with accessible lubrication points and standardized wear components.
Who should choose the 5.5-foot model?
Ideal for small workshops or specialized component manufacturing where floor space is limited.
Who should choose the 16-foot model?
Best for heavy-duty industrial applications requiring the machining of long shafts and large components.
Who should choose the 7-foot model?
A versatile choice for general-purpose machining and medium-sized industrial repair tasks.
How does the 5.5-foot model compare to the 16-foot model?
The 5.5-foot model is compact and space-efficient, while the 16-foot model offers extended capacity for long workpieces and higher structural weight.
Is the 12-foot model better than the 10-foot model?
The 12-foot model provides additional admit-between-centers capacity, making it more suitable for longer shafts compared to the 10-foot version.
