Pentagon U Clamp (Orange) 5 Ton Model

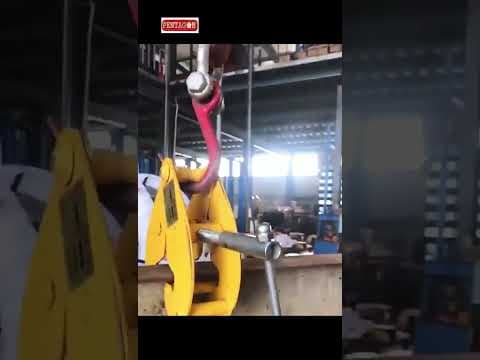

This beam clamp secures lifting attachments to structural I-beams for controlled overhead load movement. Engineered for high-capacity tasks, this variant provides a 5 Ton working load limit and accommodates wider flange dimensions. • 5 Ton rated capacity • 80–330 mm jaw opening • 11 kg steel construction • Orange finish for visibility
Specifications
For: 5 Ton Model- Type of Product
- U CLAMP
- Colour
- Orange
- Jaw Opening
- 80–330
- Weight
- 11 kg
- Working Load Limit
- 5 Ton
- I beam width range
- 75-230
Configurations
Click a row to switch| Variant | Jaw Opening | Weight | Working Load Limit | Colour | Price |
|---|---|---|---|---|---|
| 5 Ton Model | 80–330 | 11 kg | 5 Ton | Orange | ₹1,850 |
| 2 Ton Model | 75–220 | 4.6 kg | 2 Ton | Orange | ₹2,400 |
Visibility & Surface Protection
- Durable orange coating resists chipping during routine handling cycles
- High-contrast color enhances operator awareness in busy work environments
- Surface treatment provides baseline protection against shop floor moisture
- Coating integrity remains stable under standard industrial temperature ranges
- Easy visual inspection confirms clamp readiness before each lifting operation
Industrial Applications & Use Cases
- Ideal for overhead crane operations in manufacturing and assembly plants
- Supports structural steel erection and maintenance projects on site
- Enables controlled positioning of machinery during installation phases
- Suitable for warehouse racking systems requiring temporary lifting points
- Used in construction sites for securing rigging to existing steel frameworks
Secure I-Beam Attachment Mechanism
- Precision machined jaws grip structural steel flanges without slippage
- Robust frame distributes lifting forces evenly across the beam surface
- Adjustable clamping action accommodates flange thickness variations
- Rigid U-shaped profile maintains alignment during overhead load movement
- Engineered to prevent lateral drift when suspended from hoists or cranes
Key Features & Capacity Range
- U clamp design engineered for structural I-beam lifting operations
- Available in 2 Ton and 5 Ton rated capacities for diverse tasks
- Jaw openings cover 75–220 mm and 80–330 mm configurations
- Weights range from 4.6 kg to 11 kg depending on rated capacity
- Orange finish and orange coating variants ensure consistent visibility
- Optimized for both heavy industrial shifts and precision alignment tasks
Frequently asked
Can this clamp be used on non-structural steel beams?
It is rated exclusively for certified structural I-beams meeting load standards.
How is the working load limit determined for each size?
Capacity scales with frame thickness and jaw geometry to match rated limits.
Is regular lubrication required for the clamping mechanism?
Minimal maintenance is needed; keep threads clean and lightly oiled for smooth operation.
What safety factor applies to the rated capacity?
All models are engineered with a standard safety factor per industrial lifting guidelines.
More questions buyers ask
What is a Pentagon heavy-duty beam clamp used for?
It is used for securing rigging to structural I-beams for overhead lifting and material handling.
What are the available weight capacities for these clamps?
They are available in 2 Ton and 5 Ton load capacities.
Is the orange finish purely aesthetic?
No, the high-visibility orange coating helps operators identify the clamp easily in busy industrial environments.
Can this clamp be used on any beam?
It is designed specifically for structural I-beams; ensure the flange width is within the specified range.
Does it require regular maintenance?
Minimal maintenance is required; keep the threads clean and lightly oiled for smooth operation.
What is the safety factor for these clamps?
All Pentagon beam clamps are engineered with a standard safety factor compliant with industrial lifting guidelines.
Are these clamps suitable for construction sites?
Yes, they are ideal for securing rigging to steel frameworks in construction and manufacturing.
How do I choose the right size?
Select based on your required Working Load Limit (WLL) and the flange width of your I-beam.
Does the clamp slip during operation?
The precision-machined jaws are designed to grip structural steel flanges securely without slippage.
Is a GST invoice provided?
Yes, all purchases include a GST-compliant invoice for business accounting.
Who should choose the 2 Ton Pentagon Beam Clamp?
Ideal for lighter-duty workshop tasks, maintenance, and smaller machinery installation requiring a 2 Ton capacity.
Who should choose the 5 Ton Pentagon Beam Clamp?
Best for heavy-duty overhead crane operations, large-scale structural steel erection, and industrial lifting.
How does the 2 Ton model compare to the 5 Ton model?
The 2 Ton model is lighter (4.6 kg) with a 75-220 mm jaw opening, while the 5 Ton model is more robust (11 kg) with an 80-330 mm jaw opening.
Are both models suitable for the same applications?
Both are designed for structural I-beam lifting, but capacity requirements dictate the choice between the 2 Ton and 5 Ton versions.
