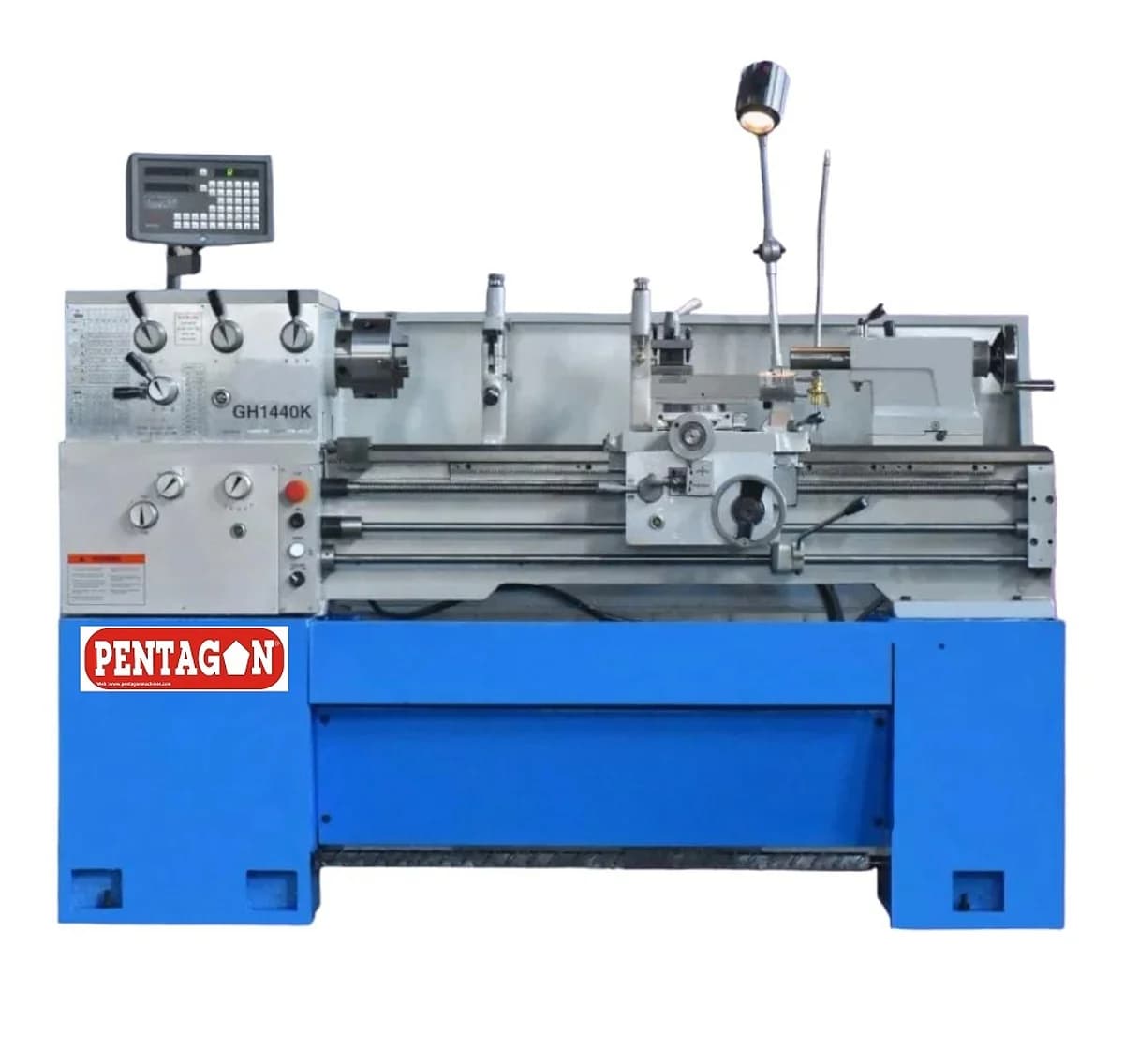

Pentagon PAHL GH-1440Kx1000 Lathe: Price in India
Engineered for precision turning, this geared lathe machine delivers consistent power transmission without belt changes. Ideal for industrial manufacturing requiring versatile machining capabilities. • Fully geared headstock ensures stable speed ranges • Accommodates metric and inch thread cutting • Robust bed design supports large workpieces Suitable for engineering shops needing reliable high speed lathe performance.

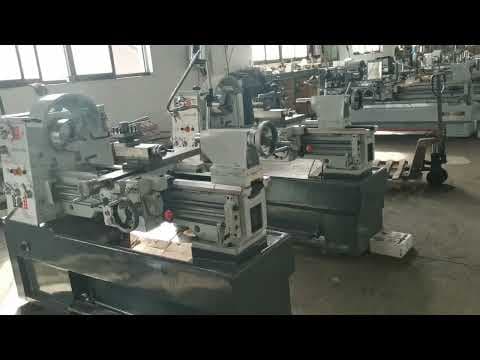

See it in action
Specifications
For: PAHL GH-1440Kx1000- Model
- PAHL GH-1440Kx1000
- Max Swing Over Bed
- 356 mm
- Max Swing Over Cross Slide (mm)
- 210 mm
- Max Swing In Gap (mm)
- 508 mm
- Cross Slide Travel
- 170mm
- Admit Between Centers
- 1000mm
- Bed Width
- 260mm
- Spindle Nose
- D1-4
- Spindle Taper
- MT5
- Spindle Hole
- 40 mm
- Taper of Tailstock Sleeve
- MT3
- Compound Rest Travel
- 88 mm
- Travel of Tailstock Sleeve
- 120mm
- Dia of Tailstock Sleeve
- 45 mm
- Metric Threads Range (Kinds)
- 0.4-7 mm
- Inch Threads Range (Kinds)
- 4-56 TPI
- Cross Section Size of Tool Shank
- 16x16
- Main Motor Power
- 3KW
- Spindle Speeds Number
- 40-1800 RPM (12)
- Packing Size LxWxH (mm)
- 1900x710x1170 mm
- Net Weight / Gross Weight
- 1200/1300 kgs
Safety & Compliance
- Designed with safety guards for operator protection
- Complies with standard industrial machinery safety norms
- Electrical components meet international voltage standards
- Regular maintenance ensures continued safe operation
- Training recommended for all machine operators
- Follow manufacturer guidelines for all safety protocols
Industrial Applications
- Ideal for automotive component manufacturing and repair
- Suitable for general engineering and maintenance workshops
- Effective for producing shafts, bushings, and fittings
- Supports high-volume production with consistent accuracy
- Versatile enough for prototype development and small batches
- Handles materials commonly used in industrial machining
Precision Engineering & Versatility
- Max swing over bed measures 356 mm for large workpieces
- Spindle taper MT5 supports high precision tooling
- Tailstock sleeve taper MT3 ensures secure center holding
- Metric threads range from 0.4 to 7 mm for fine pitches
- Inch threads range from 4 to 56 TPI for imperial standards
- Cross-section tool shank size of 16x16 mm for stability
High-Speed Geared Performance
- Main motor power rated at 3KW for efficient operation
- Spindle speeds range from 40 to 1800 RPM
- 12 distinct speed settings for optimal cutting conditions
- Geared headstock ensures smooth power delivery
- Reduces downtime associated with manual belt adjustments
- Maintains consistent torque at varying speeds
Product Overview: PAHL GH-1440Kx1000 Series
- All Geared High Speed Lathe designed for precision turning
- Engineered for high-performance operations across industries
- Fully geared headstock eliminates need for belt changes
- Provides consistent power transmission for wide speed ranges
- Model PAHL GH-1440Kx1000 represents this high precision series
- Suitable for various machining tasks requiring reliability
Optional Accessories
- Digital Readout System (DRO) – 2 or 3 Axis
- Taper Turning Attachment
- Quick-Change Tool Post (QCTP)
- Large Face Plate (Special Size)
- Boring Bar Support
- Live Centers (MT6 / Heavy Duty)
- Coolant Filtration System
- Steady Rest – Extra Large Capacity
- Follow Rest – Special Type
- Chip Conveyor System
- Tailstock with Motorized Travel
- Variable Frequency Drive (VFD) for Spindle Speed Control
- Safety Guarding / Enclosures
Standard Accessories
- 1. All Geared High Speed High Precision Lathe Machine Model PAHL GH-1440Kx1000
- 2. 3-jaw chuck
- 3. 4-jaw chuck
- 4. center sleeve
- 5. steady rest
- 6. Follower rest
- 7. Face Plate
- 8. Coolant Pump
- 9. Machine Lamp
- 10. Foot brake
Frequently asked
Is this machine suitable for heavy-duty turning?
Yes, the geared headstock provides robust power for heavy cuts.
What thread standards does it support?
It supports both metric and inch thread ranges.
Can it handle long workpieces?
Yes, with an admit between centers of 1000mm.
More questions buyers ask
What is an all-geared lathe machine?
An all-geared head lathe, like the Pentagon PAHL GH-1440Kx1000, uses a gearbox to transmit power from the motor to the spindle. This allows for precise speed selection and delivers higher torque, especially at lower speeds, compared to belt-driven models.
What are the main applications of the Pentagon PAHL GH-1440Kx1000?
This lathe is ideal for precision turning, threading, and facing operations in industrial manufacturing, automotive repair shops, general engineering workshops, and for producing components like shafts, bushings, and fittings.
What is the spindle speed range of this lathe?
The PAHL GH-1440Kx1000 offers 12 spindle speeds, ranging from 40 to 1800 RPM, providing versatility for various materials and cutting operations.
Does this machine support both metric and inch threading?
Yes, it supports a wide range of both metric (0.4-7 mm) and inch (4-56 TPI) thread cutting.
What is the maximum swing over bed for this model?
The maximum swing over the bed is 356 mm, and the maximum swing in the gap is 508 mm, allowing it to handle relatively large diameter workpieces.
What is the distance between centers?
The model PAHL GH-1440Kx1000 has a distance between centers of 1000mm, making it suitable for long workpieces.
Is a warranty included with the purchase?
Yes, all our industrial machinery, including this lathe, comes with a manufacturer's warranty. We provide full support for warranty claims and service.
Do you provide a GST invoice for business purchases?
Absolutely. We provide a proper GST invoice with every purchase, allowing you to claim input tax credit for your business.
Can this lathe machine be delivered anywhere in India?
Yes, we offer pan-India delivery for the Pentagon PAHL GH-1440Kx1000. We ensure safe and reliable shipping to your workshop or factory.
Who should choose the Pentagon PAHL GH-1440Kx1000 model?
The PAHL GH-1440Kx1000 is the perfect choice for workshops and manufacturing units that require a versatile, high-precision, and robust lathe for handling a variety of workpiece sizes and materials. Its 1000mm distance between centers makes it particularly suitable for longer shafts and components.
How does an all-geared lathe compare to a belt-driven lathe?
An all-geared lathe provides more robust torque, especially at low speeds, and allows for quicker speed changes via levers. Belt-driven lathes are generally quieter but may experience belt slippage under heavy loads and require manual belt changes to adjust speeds.
What is the advantage of a high-speed lathe like this one?
A high-speed lathe, with a top RPM of 1800, allows for finer surface finishes and is more efficient when working with smaller diameter pieces or materials that require high cutting speeds.
Is the Pentagon GH-1440Kx1000 suitable for small workshops or only large industries?
While it has industrial-grade capabilities, its versatility and relatively compact footprint (1900x710x1170 mm) make it a valuable asset for both medium-to-large industrial shops and serious, well-equipped smaller workshops that need precision and power.
