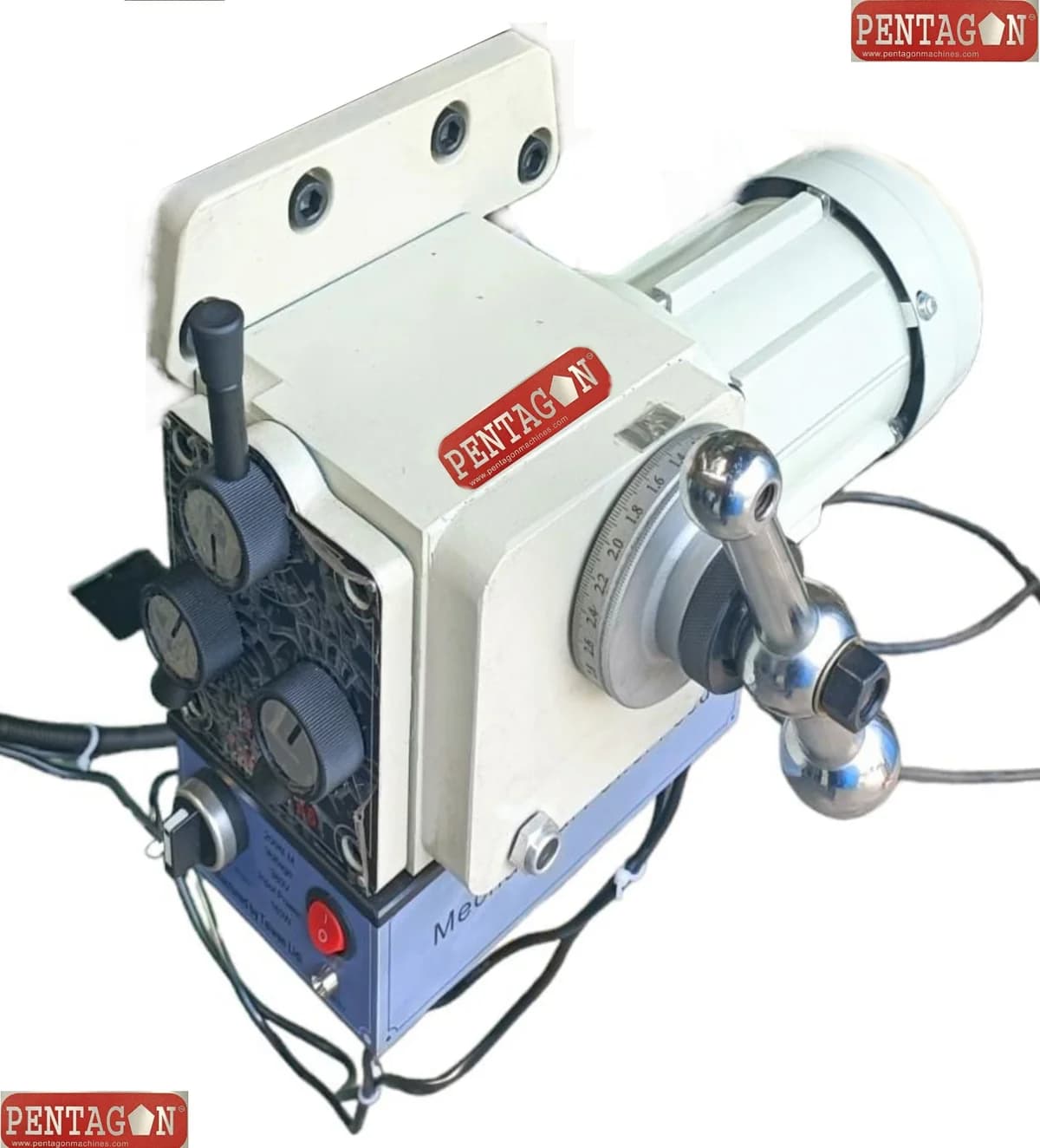

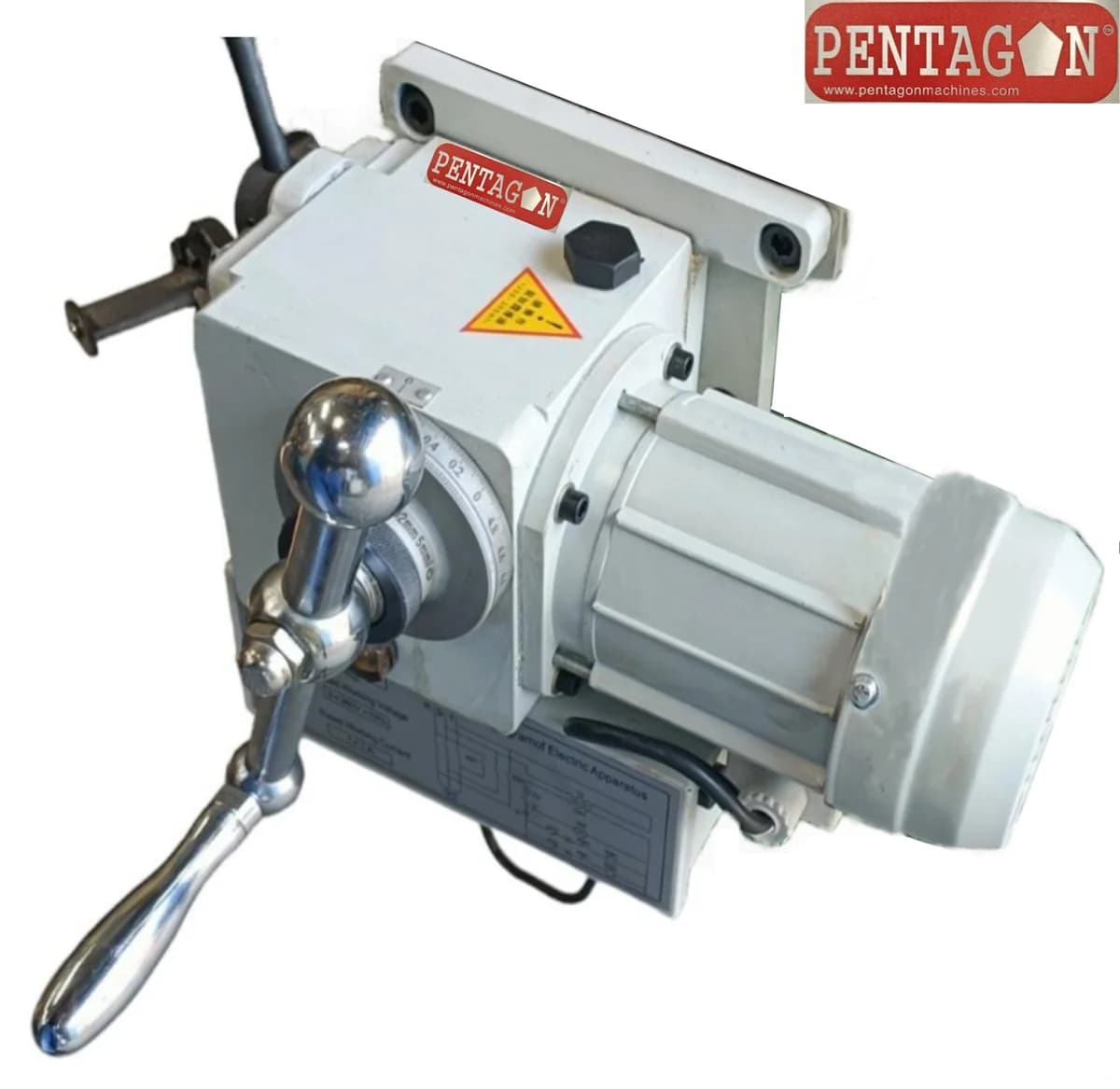

Pentagon PATF-3P Power Feeder for Milling Machine Price India — PATF-3PX axis
Automate milling table movement with heavy duty mechanical power feeders built for industrial durability. These units are essential milling accessories ensuring consistent auto table feed rates across X and Y axes for precision machining. • Hardened gear drive for long service life • Variable speed control from 7 to 42 mm/min • Integrated safety limit switches on both sides • Compatible with 380V 3-phase power systems

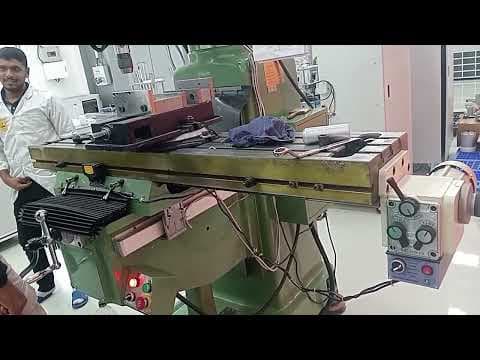

See it in action
Specifications
For: PATF-3PX axis- Model
- PATF-3PX
- Compatibility
- Universal/Vertical Milling
- Voltage
- 380 V (3-phase)
- Maximum Torque
- 225 Nm
- Operating Speed

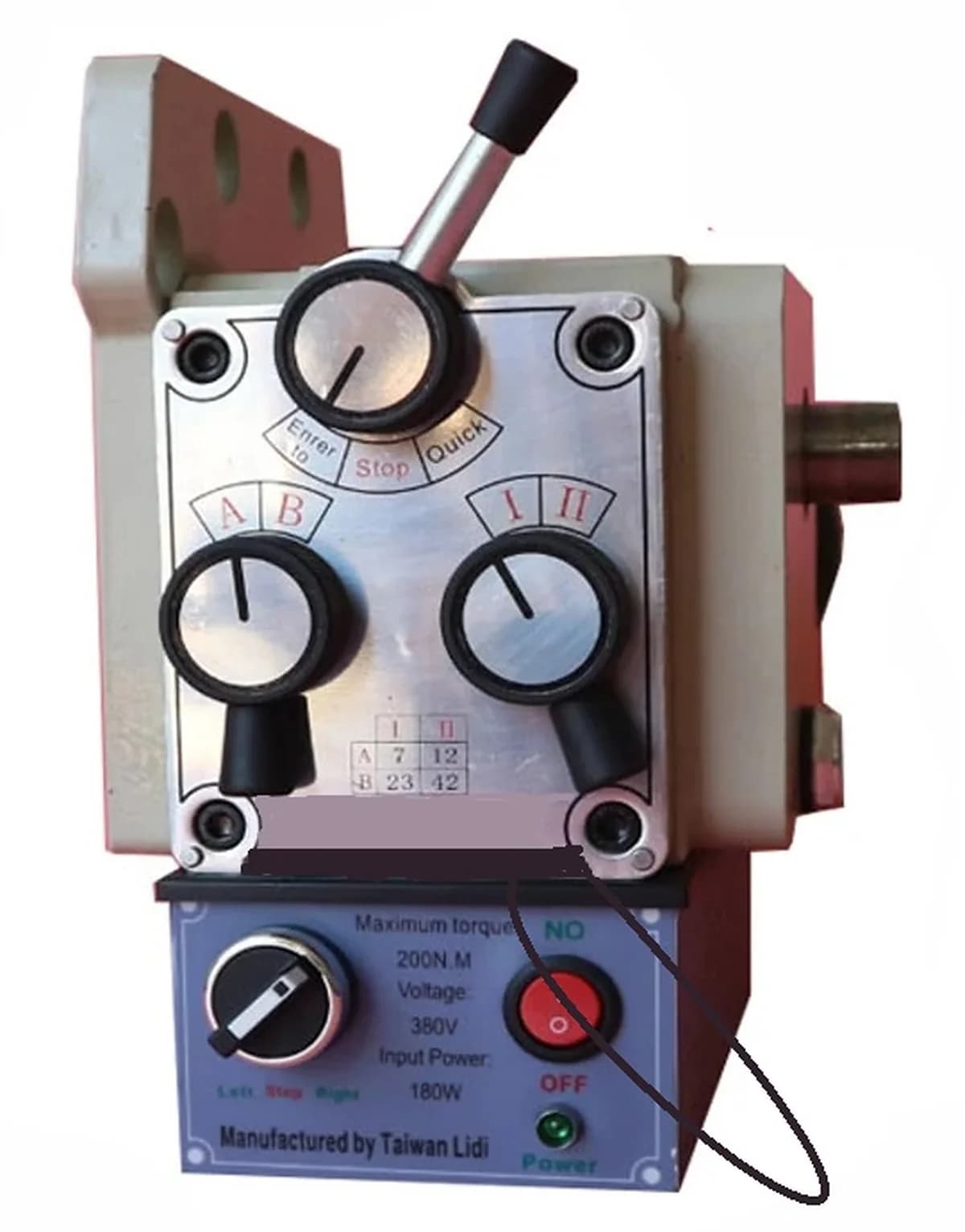

- 7, 12, 23 and 42 mm/min
- Transmission
- Harden Gear drive
- Frequency
- 50 Hz
- Motor Power
- 180 W
- Safety Features
- Limit switches on both sides
- Package size
- 430×320×210 mm
- Weight Approx.
- 13 Kgs
Configurations
Click a row to switch| Variant | Motor Power | Compatibility | Operating Speed | Voltage | Price |
|---|---|---|---|---|---|
| PATF-3PX axis | 180 W | Universal/Vertical Milling | 7, 12, 23 and 42 mm/min | 380 V (3-phase) | ₹26,500 |
| PATF-3PY axis | 180 W | Universal/Vertical Milling | 7, 12, 23 and 42 mm/min | 380 V (3-phase) | ₹27,200 |
Installation and Compatibility

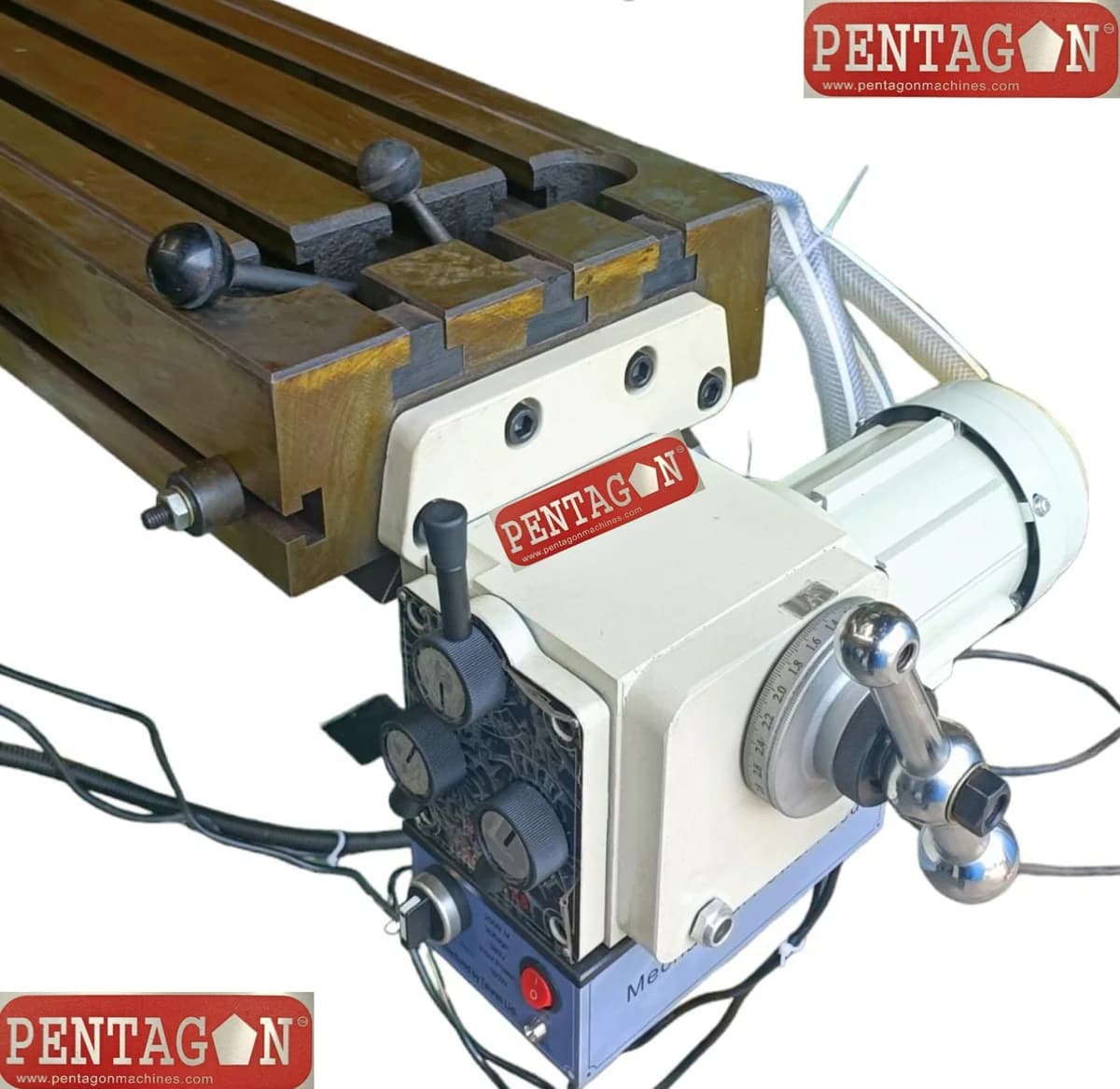

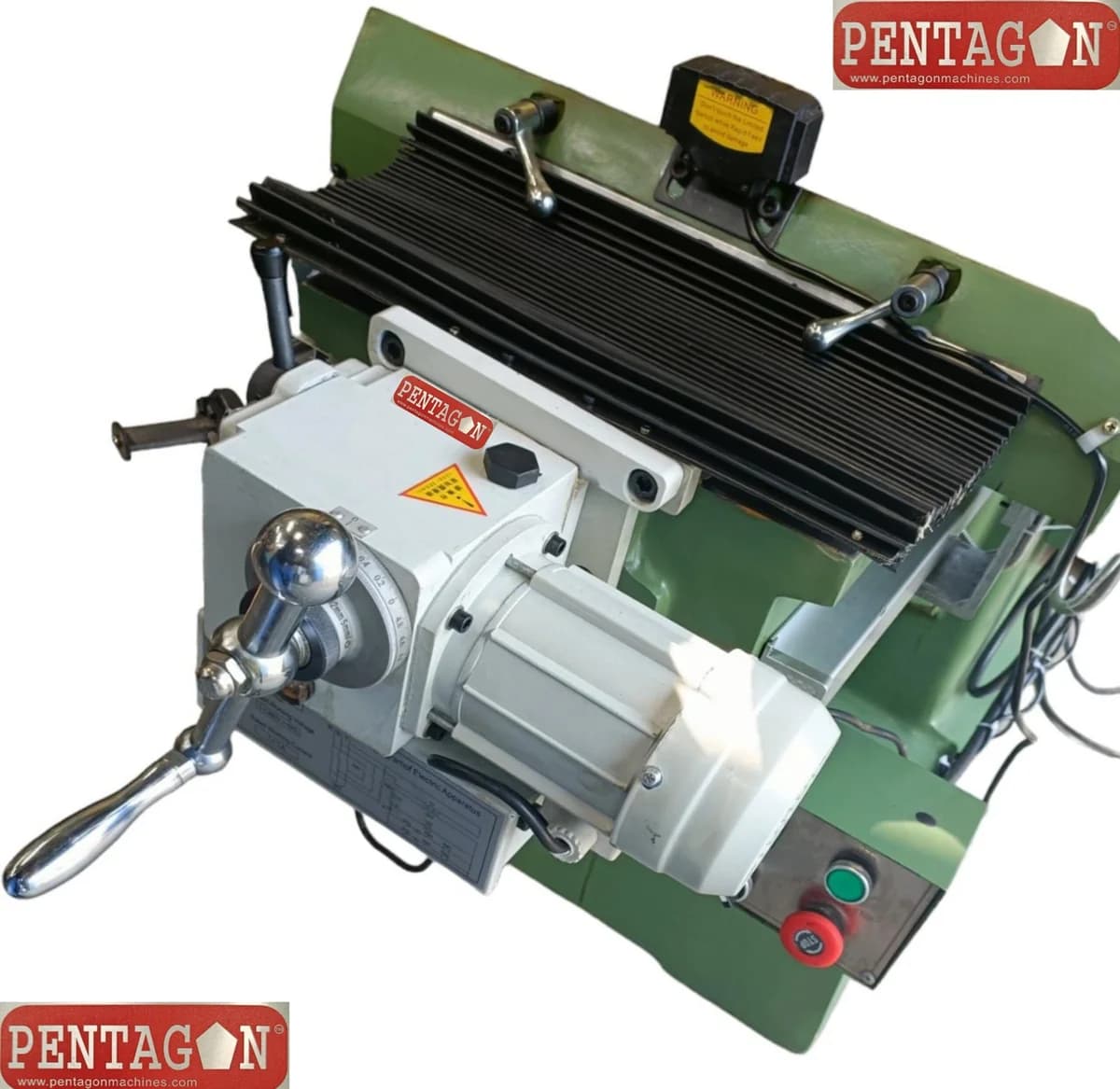

- Mounts directly onto standard milling machine tables
- Requires 3-phase electrical connection for operation
- Compact design fits various heavy duty mill configurations
- Minimal setup time for integration into existing lines
- Compatible with common industrial power supply standards
- Supports both manual and semi-automatic workflows
Precision Machining Benefits
- Automates milling table movement for reduced fatigue
- Improves surface finish by maintaining constant feed
- Increases productivity by freeing operator attention
- Suitable for X and Y axis automation upgrades
- Enhances repeatability in batch production runs
- Reduces manual intervention during long jobs
Safety and Control Systems
- Integrated safety limit switches on both sides
- Prevents over-travel during automated table movement
- Enhances operator safety during extended runs
- Reduces risk of machine damage from manual errors
- Compatible with 380V 3-phase power systems
- Ensures reliable operation in factory environments
Heavy Duty Construction
- Hardened gear drive ensures long service life
- Built for industrial durability and heavy load capacity
- Robust mechanical power feeder construction
- Maximum torque rated at 225 Nm for heavy loads
- Compatible with standard 380V 3-phase power systems
- Essential milling accessories for precision machining
Automated Feed Performance
- Variable speed control from 7 – 42 mm/min
- Motor power rated at 180 W for consistent operation
- Operating speeds available at 7, 12, 23 and 42 mm/min
- Ensures consistent auto table feed rates across axes
- Designed for heavy duty industrial milling applications
- Frequency rated at 50 Hz for stable performance

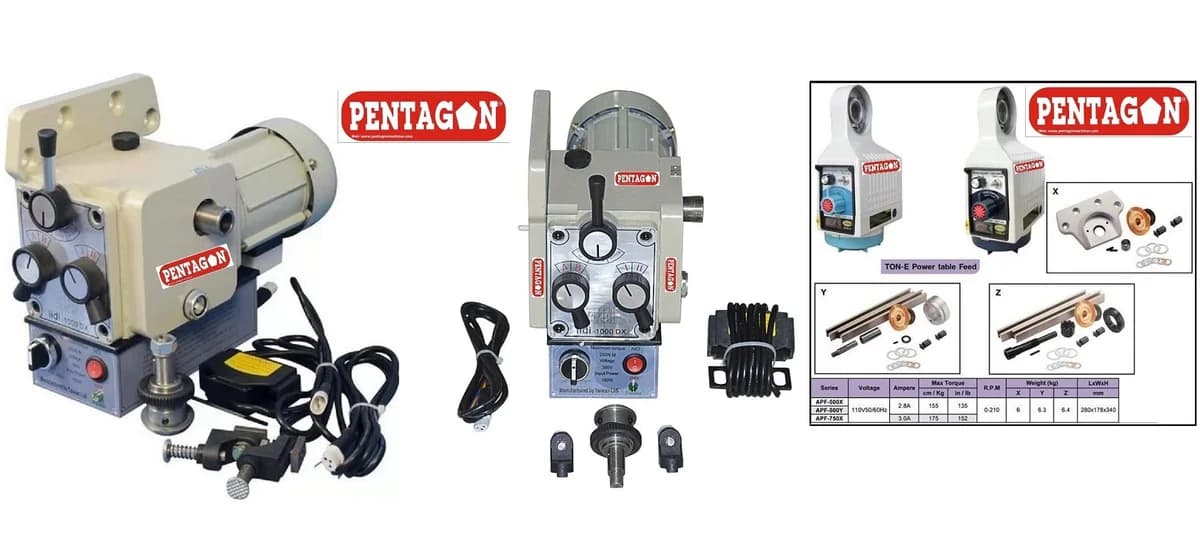

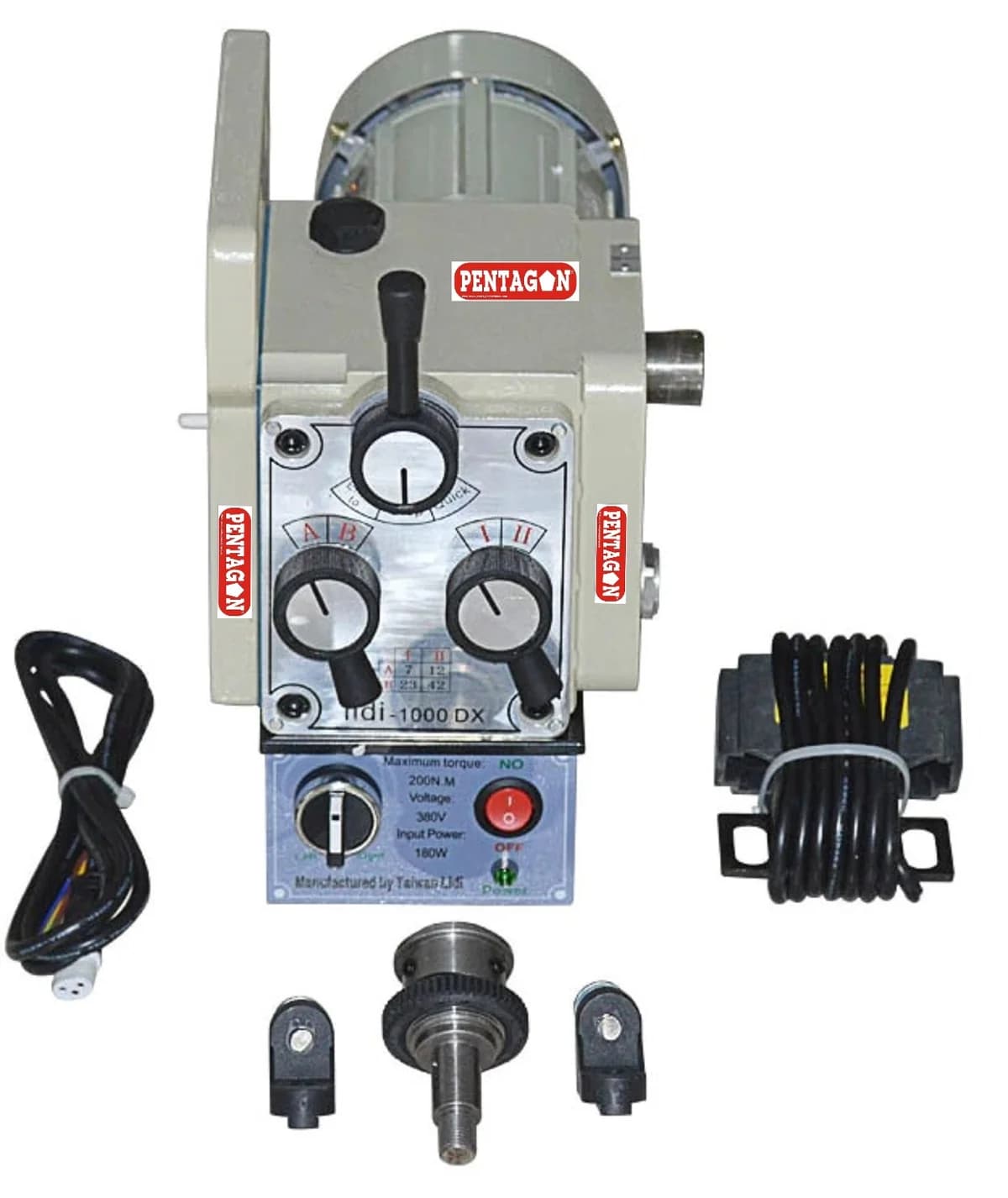

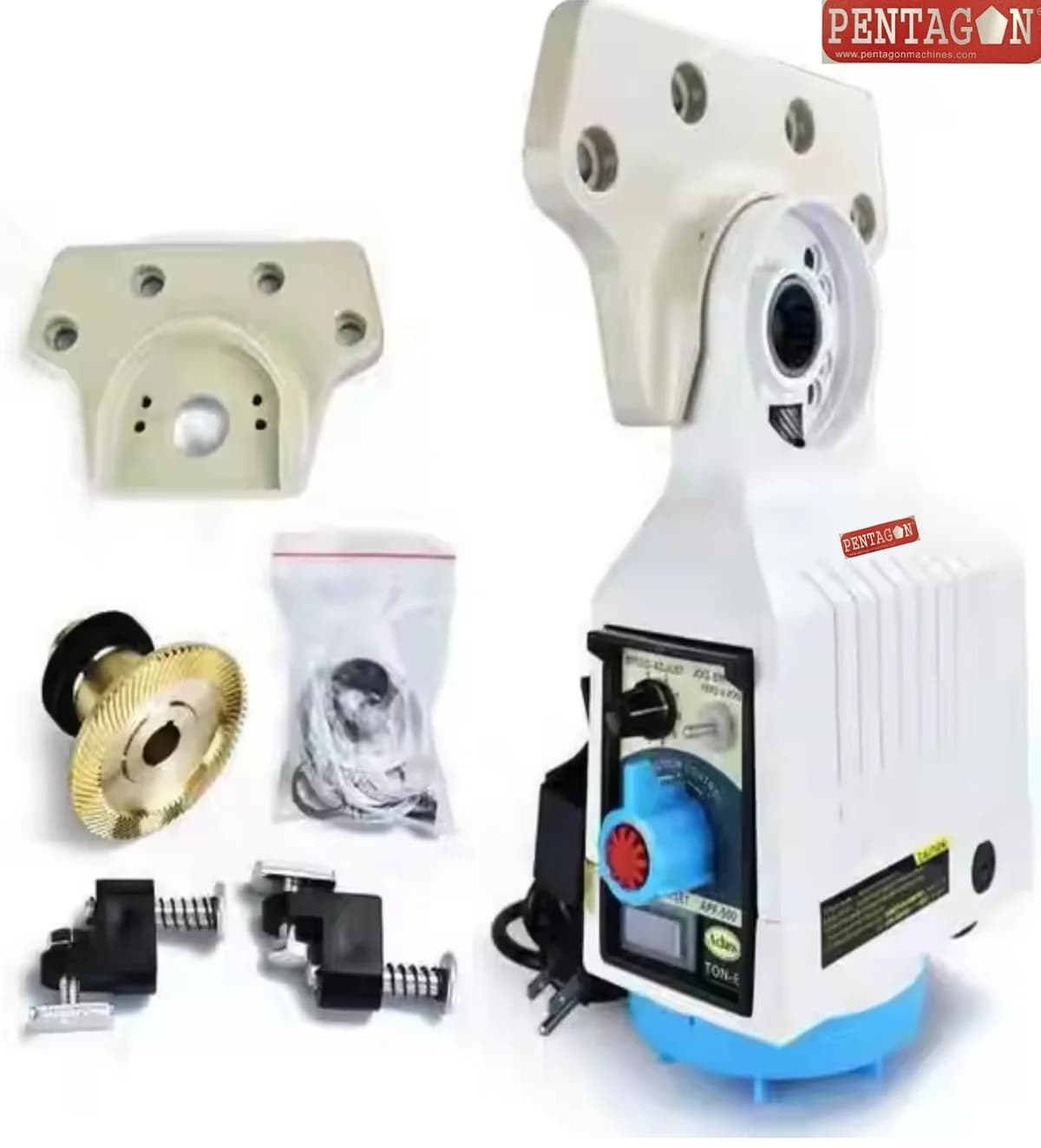

Standard Accessories

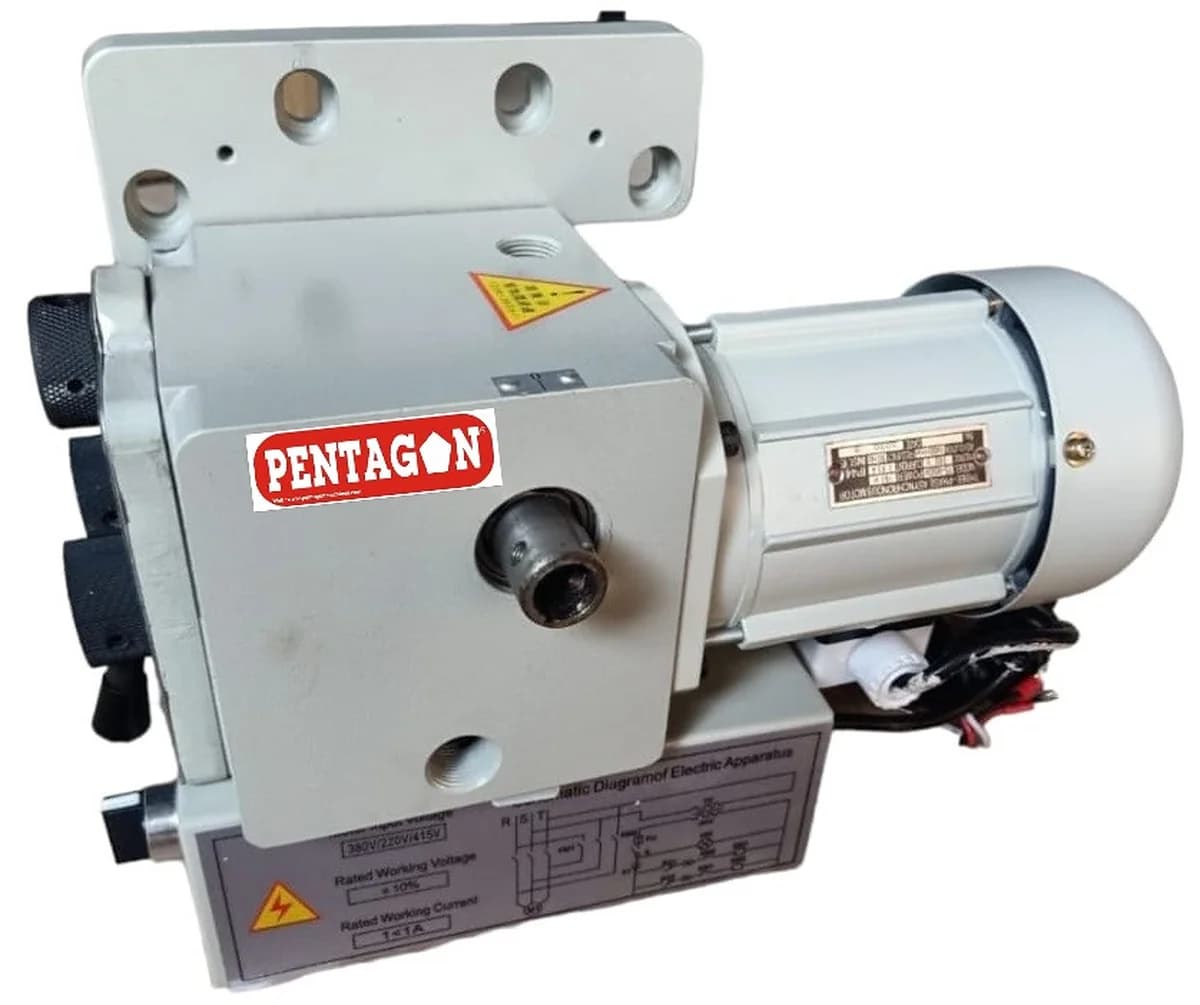

- Heavy-duty power feed unit (3-phase motor)
- Forward / Reverse switch
- Rapid traverse button
- Mounting bracket set (heavy duty type)
- Drive gear set (metal gears for high torque)
- Shaft coupling / adapter sleeve
- Limit switch / trip dog set (auto stop system)
- Mounting hardware kit (bolts, nuts, washers)
- Allen keys / installation tool kit
Frequently asked
Is this suitable for manual milling machines?
Yes, it converts manual machines to semi-automatic operation.
Does it work on both X and Y axes?
Yes, units are available for X and Y axis automation.
What is the maximum torque capacity?
Maximum torque is rated at 225 Nm for heavy loads.
More questions buyers ask
What is a milling machine power feeder?
A power feeder is an accessory that automates the movement of the milling machine's table along an axis (like X or Y), ensuring a smooth, consistent feed rate for improved surface finish and precision.
Is the Pentagon PATF-3P compatible with my milling machine?
The PATF-3P series is designed for universal compatibility with most standard milling machines, but it's always best to check the mounting specifications and your machine's table size.
What is the power requirement for this feeder?
This power feeder operates on a 380V 3-phase electrical system.
Can I control the speed of the feed?
Yes, the unit features variable speed control with four settings: 7, 12, 23, and 42 mm/min, allowing you to choose the optimal rate for your material and cutter.
Does this unit have safety features?
Yes, it includes integrated limit switches on both sides to prevent over-travel and enhance operator safety.
What is the difference between the X-axis and Y-axis models?
The primary difference is the mounting orientation and configuration to drive the table along either the longitudinal (X-axis) or transverse (Y-axis) direction.
Who should choose the Pentagon PATF-3PX model?
The PATF-3PX is designed for automating the X-axis (longitudinal) movement of your milling table. It's the ideal choice for operations requiring consistent, hands-free feed during long cuts.
Who should choose the Pentagon PATF-3PY model?
The PATF-3PY is built to automate the Y-axis (transverse/cross) movement. It's perfect for tasks that involve precise cross-feeding or repetitive in-and-out adjustments.
Should I automate the X-axis or Y-axis first?
For most milling operations, automating the X-axis with the PATF-3PX provides the most immediate benefit, as it's the primary axis for cutting. Y-axis automation is a great secondary upgrade for more complex jobs.
Is there a performance difference between the PATF-3PX and PATF-3PY?
Both models share the same motor, torque (225 Nm), and speed settings. The only significant difference is their mounting hardware and orientation for either X or Y-axis travel. The PATF-3PY is slightly heavier.
Can I install both an X-axis and Y-axis power feeder on the same machine?

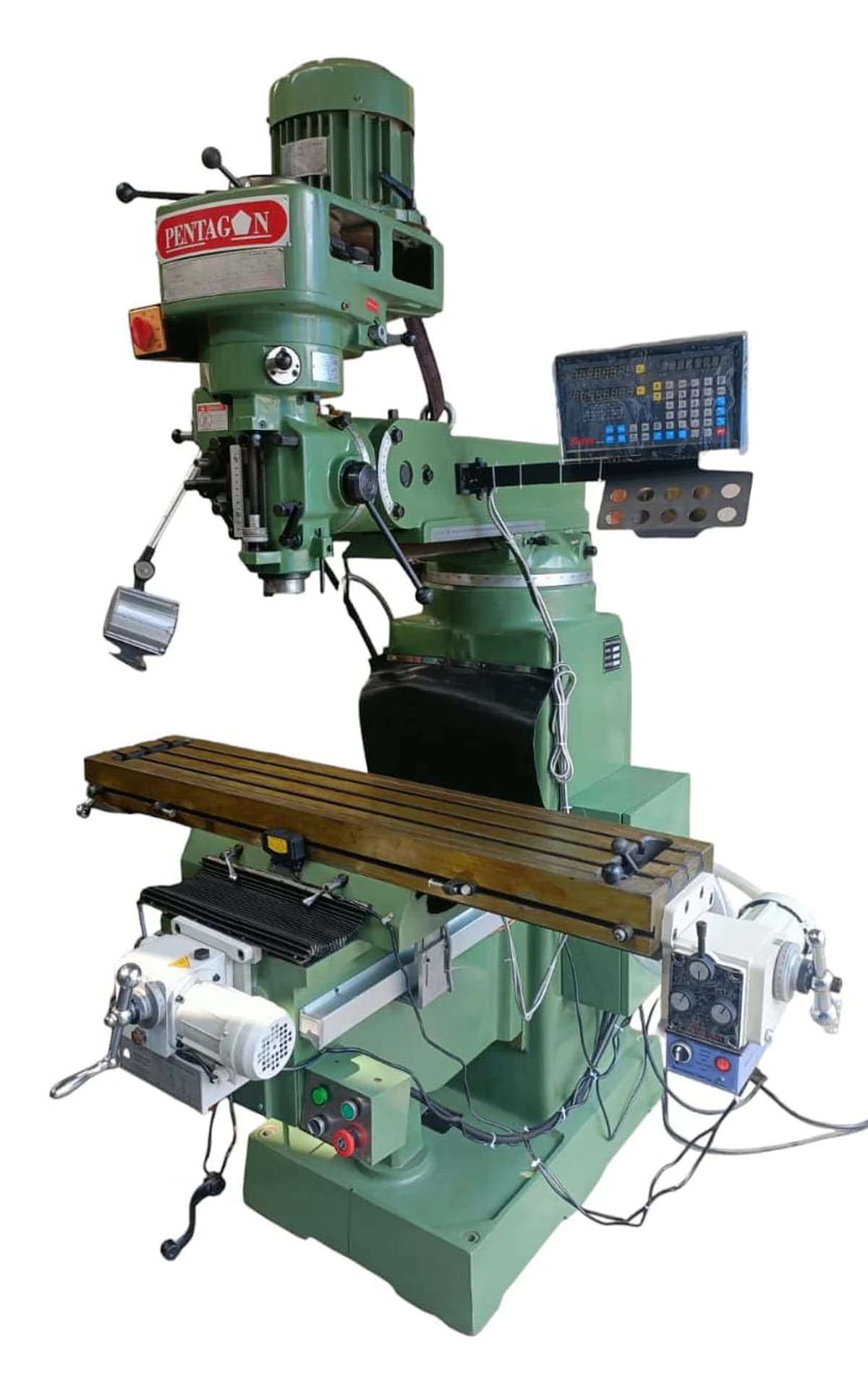

Yes, you can install both the PATF-3PX and PATF-3PY on a compatible milling machine to achieve 2-axis automation for fully controlled table movement.
