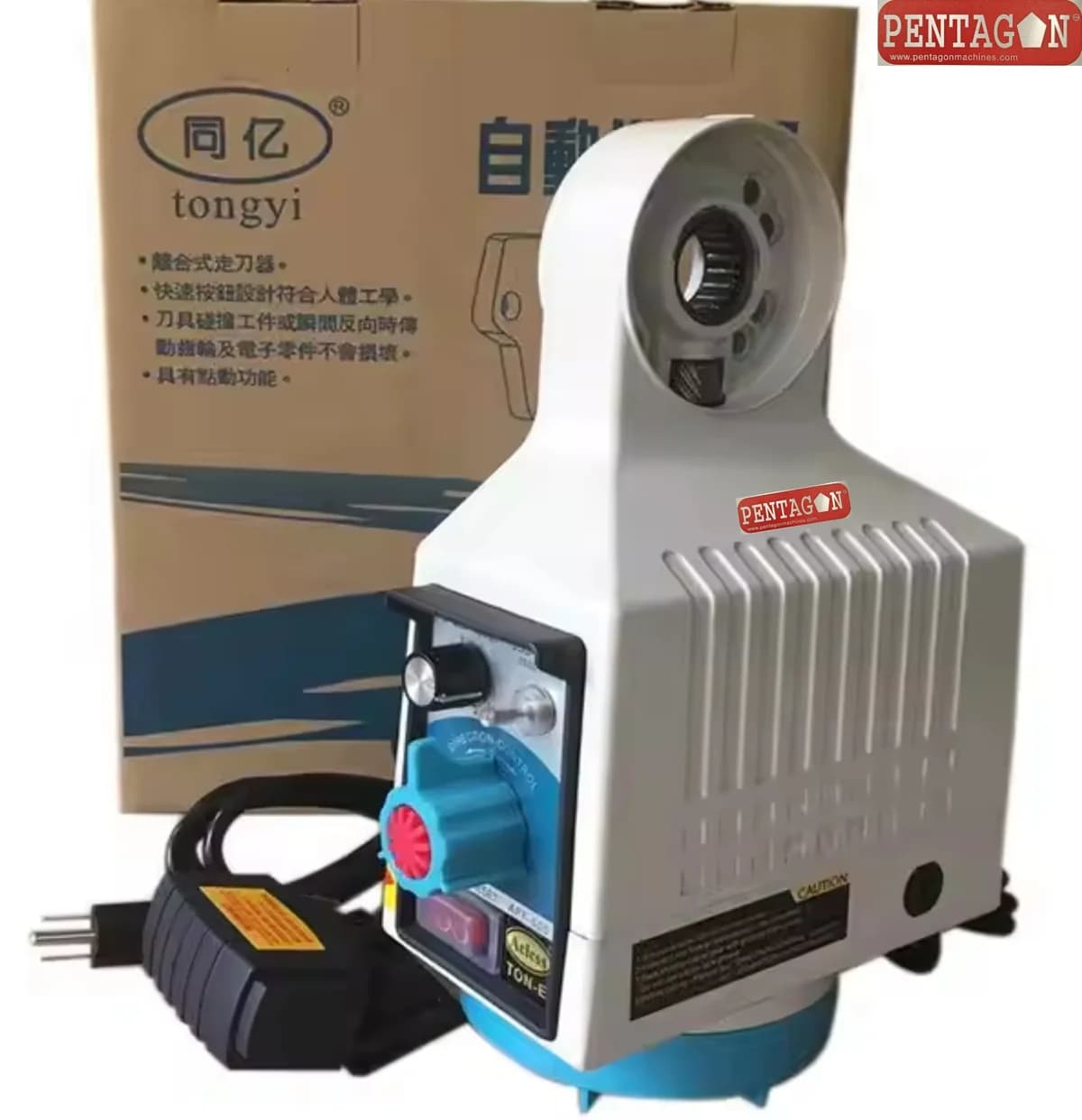

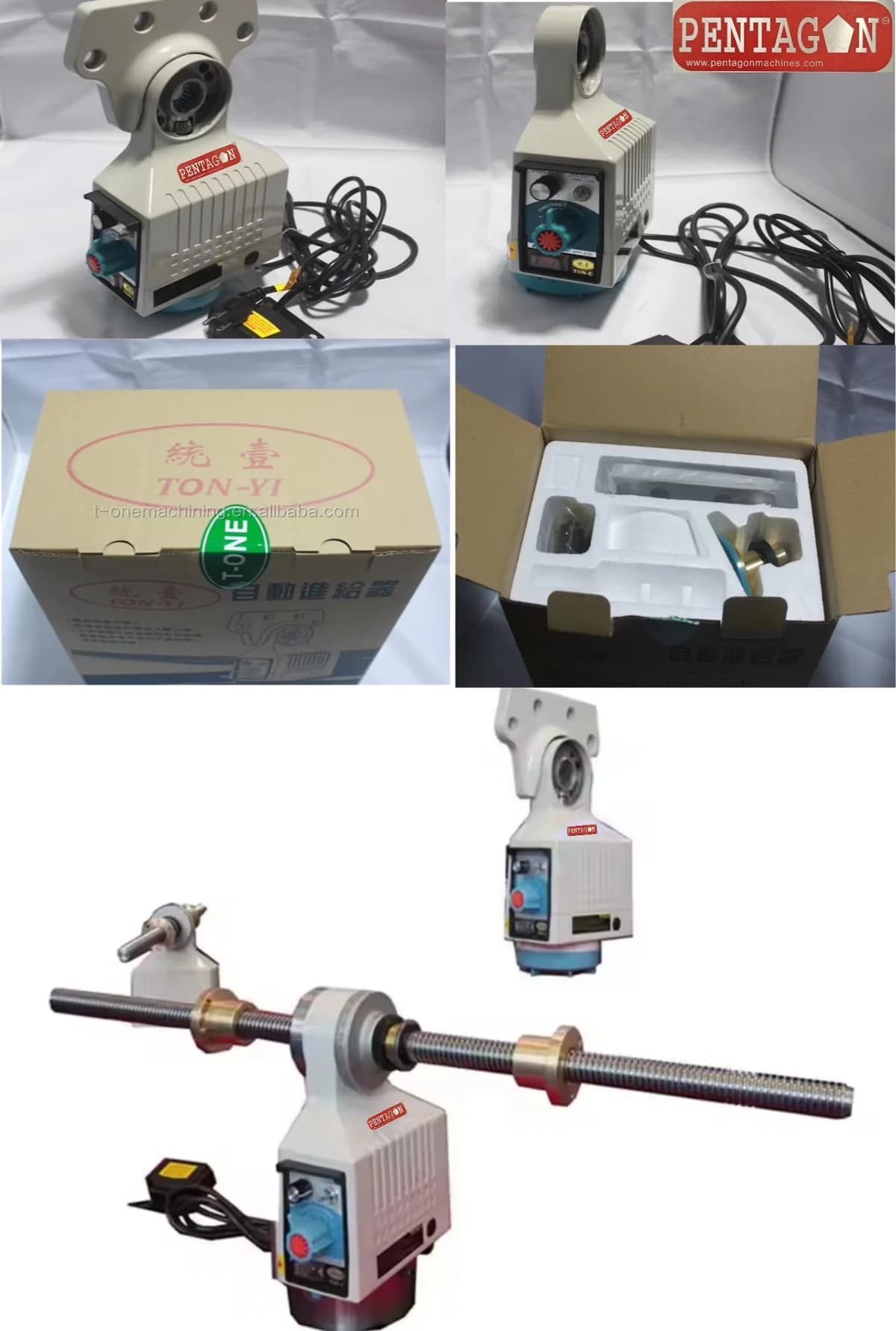

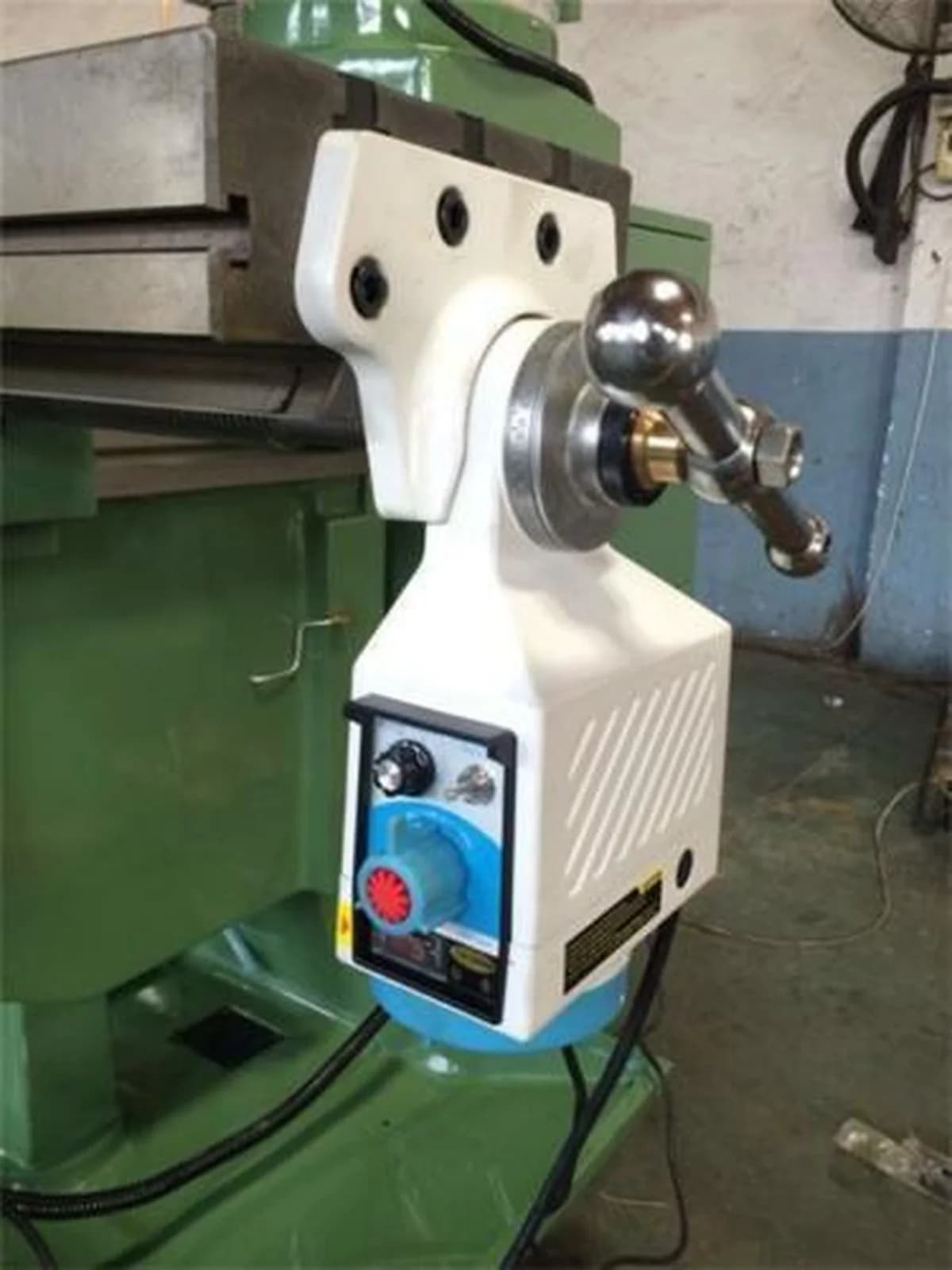

Milling table auto power feeder single phase 110V — APF-500X
Enhance machining precision with automatic table feed systems for milling machines. Designed for longitudinal, cross, and vertical axes, these power feeders ensure consistent worktable movement to reduce operator fatigue and improve surface finish. • Motorized feed control for X, Y, or Z axis • Aluminum housing with limit switch safety • Compatible with standard 110V industrial power
See it in action

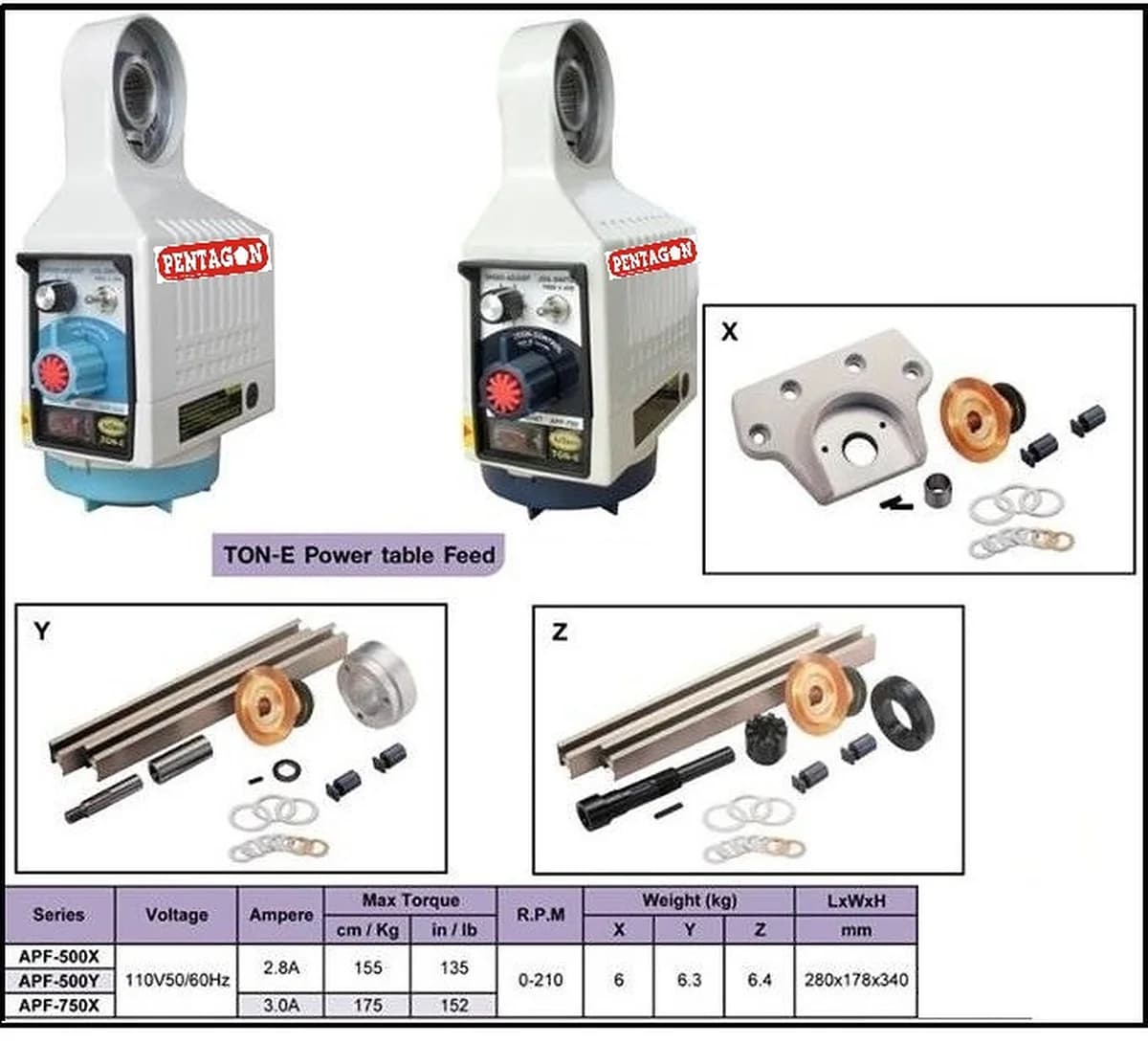

Specifications
For: APF-500X- Model
- APF 500 X
- Voltage
- 110V
- Current
- 2.8A
- Maximum Torque
- 155 kg-cm
- Speed (rpm)
- 0–210 rpm
- Transmission
- plastic gear drive
- Compatibility
- Vertical RAM Turret Milling X axis
- Body Material
- Aluminum housing
- Safety Features
- Limit switches on both sides
- Strength
- Wear-Resistant, High Load Capacity
- Package Size
- 275×175×335 mm
- Weight Approx.
- 6 Kgs
Configurations
Click a row to switch| Variant | Price |
|---|---|
| APF-500X | ₹21,300 |
| APF-500Y | ₹22,800 |
| APF-500Z | ₹24,800 |
Common Buyer Questions
Q: Is this compatible with standard 110V industrial power? A: Yes, the system is designed for single-phase 110V operation. Q: Can it be installed on multiple axes? A: Motorized feed control supports X, Y, or Z axis configurations.
Durability & Construction Quality
- Wear-resistant materials extend service life in harsh environments
- Simple construction facilitates easy inspection and routine maintenance
- Sealed components help protect against coolant and metal chips
- Reliable performance reduces downtime during critical production runs
- Durable design supports high-volume manufacturing requirements
Operational Efficiency Benefits
- Enhances machining precision through automated table feed systems
- Allows operators to focus on monitoring rather than manual cranking
- Suitable for vertical, cross, and longitudinal milling applications
- Streamlines production workflows for repetitive machining operations
- Minimizes human error associated with manual feed inconsistencies
Precision Machining Performance
- Variable speed control optimizes feed rates for different materials
- High load capacity handles demanding machining tasks efficiently
- Wear-resistant components maintain accuracy over extended usage
- Consistent worktable movement improves final surface finish quality
- Torque output ensures reliable power transmission under load
Motorized Feed Control & Safety
- Motorized feed control supports X, Y, or Z axis operation
- Aluminum housing ensures lightweight durability and heat dissipation
- Integrated limit switches provide safety on both sides
- Single-phase 110V design compatible with standard industrial power
- Plastic gear drive transmission offers smooth and consistent movement
- Reduces operator fatigue by automating longitudinal table movement

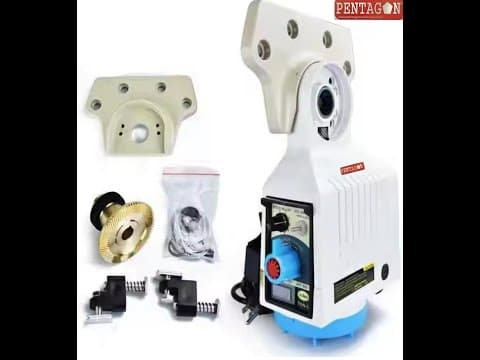

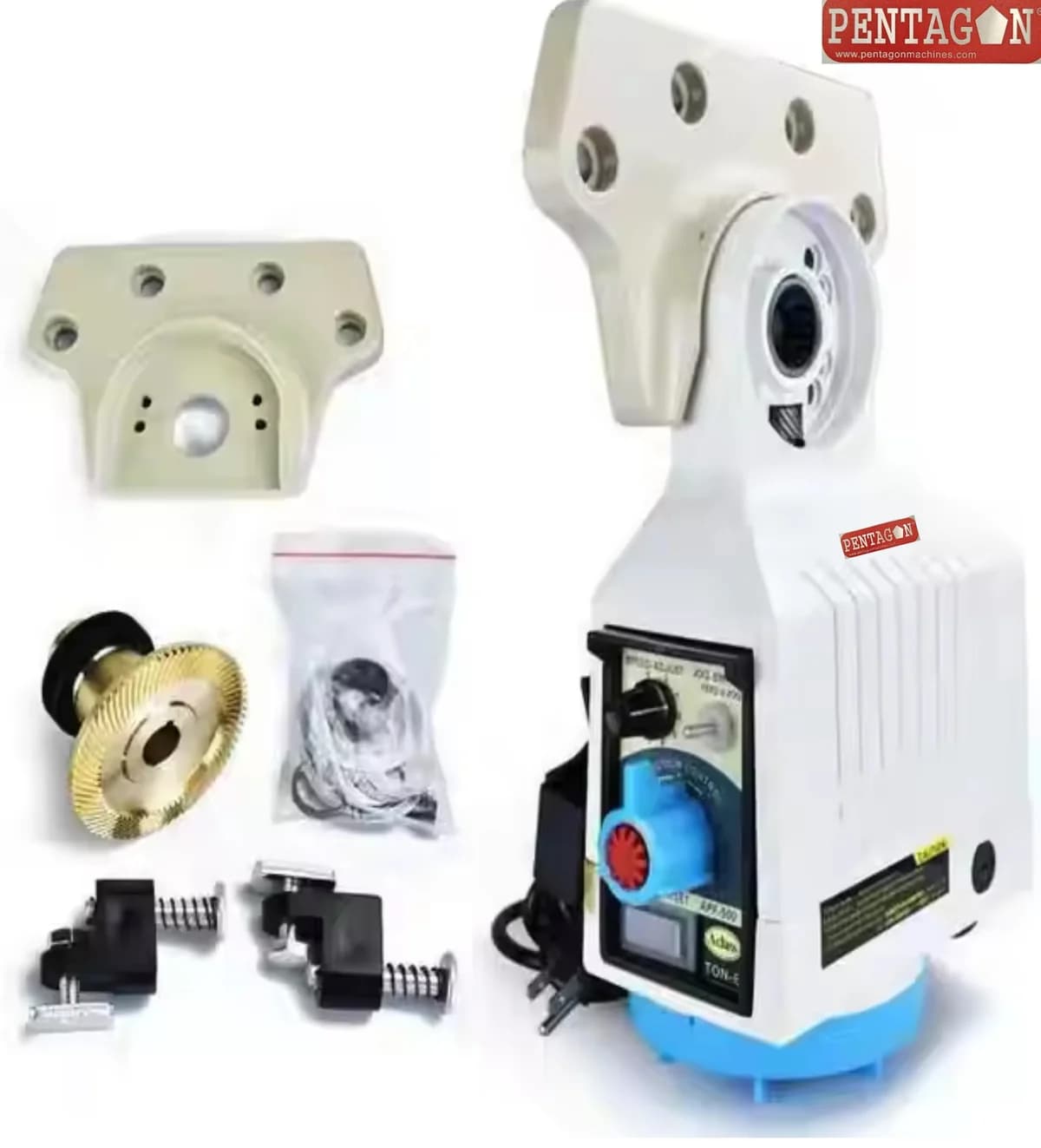

Standard Accessories

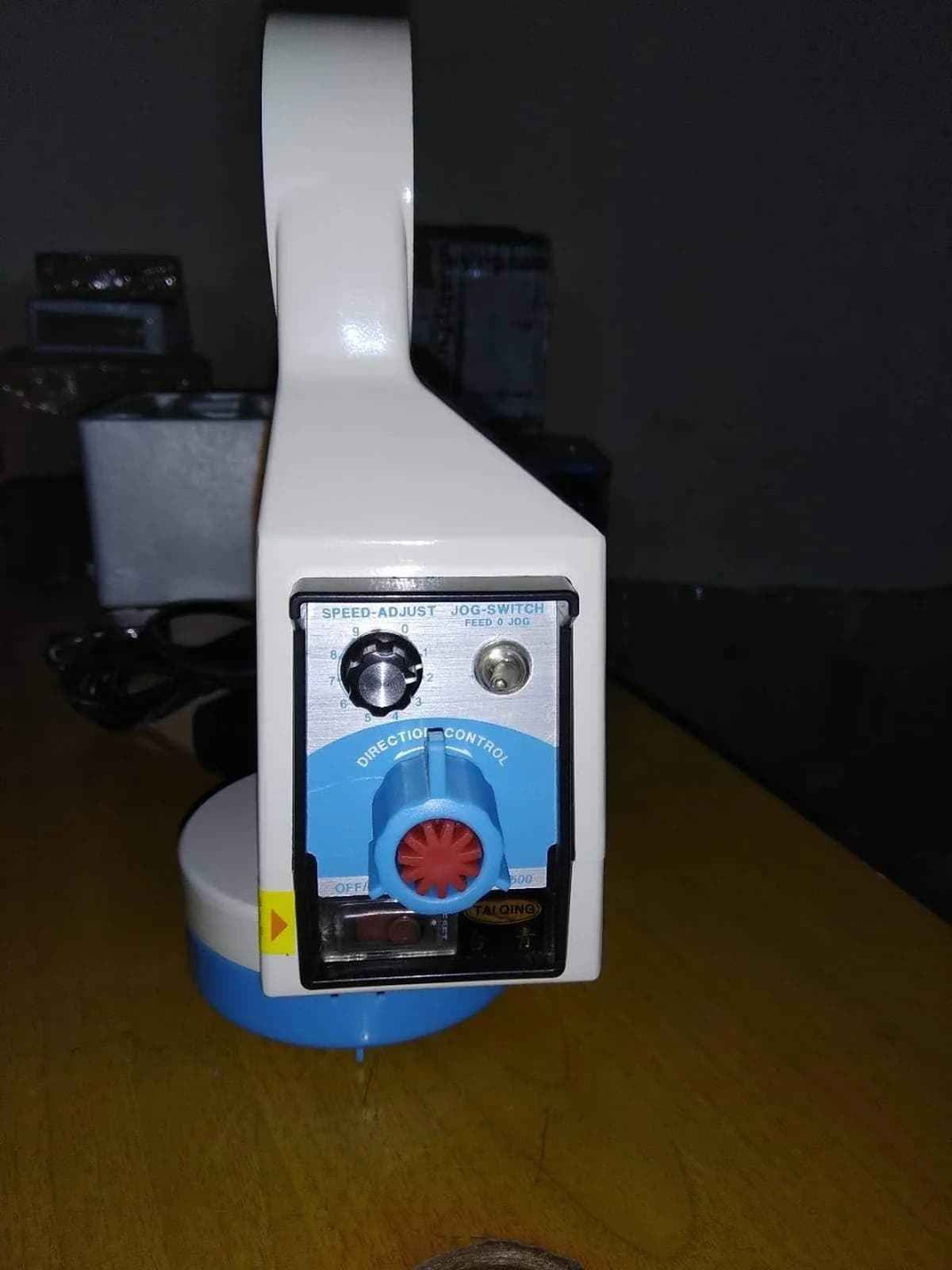

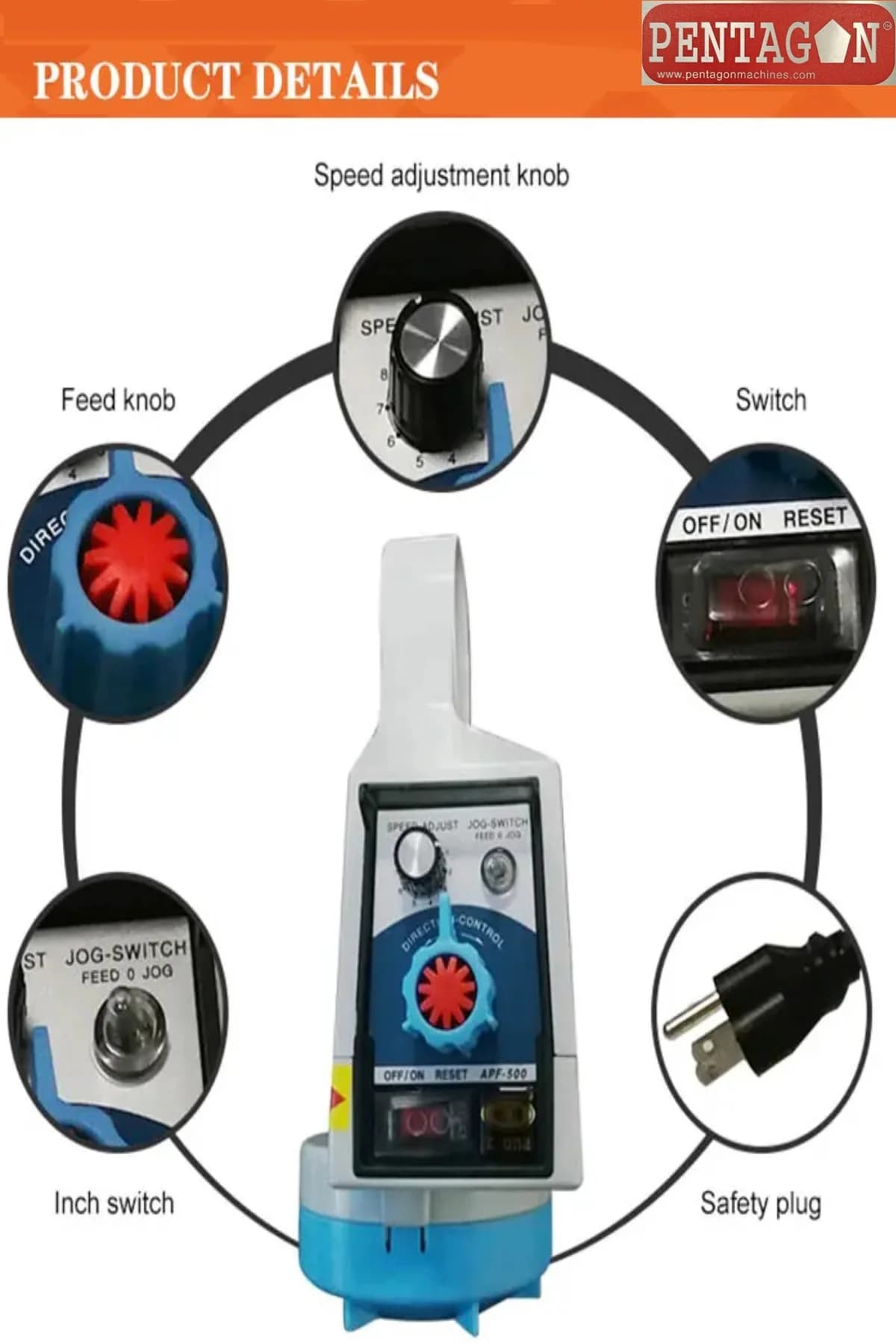

- Control unit with speed регулиation knob & direction switch
- Mounting bracket set
- Drive gear set (plastic gear + coupling gear)
- Shaft adapter / coupling sleeve (for leadscrew connection)
- Limit stop / trip dog set (for auto stop function)

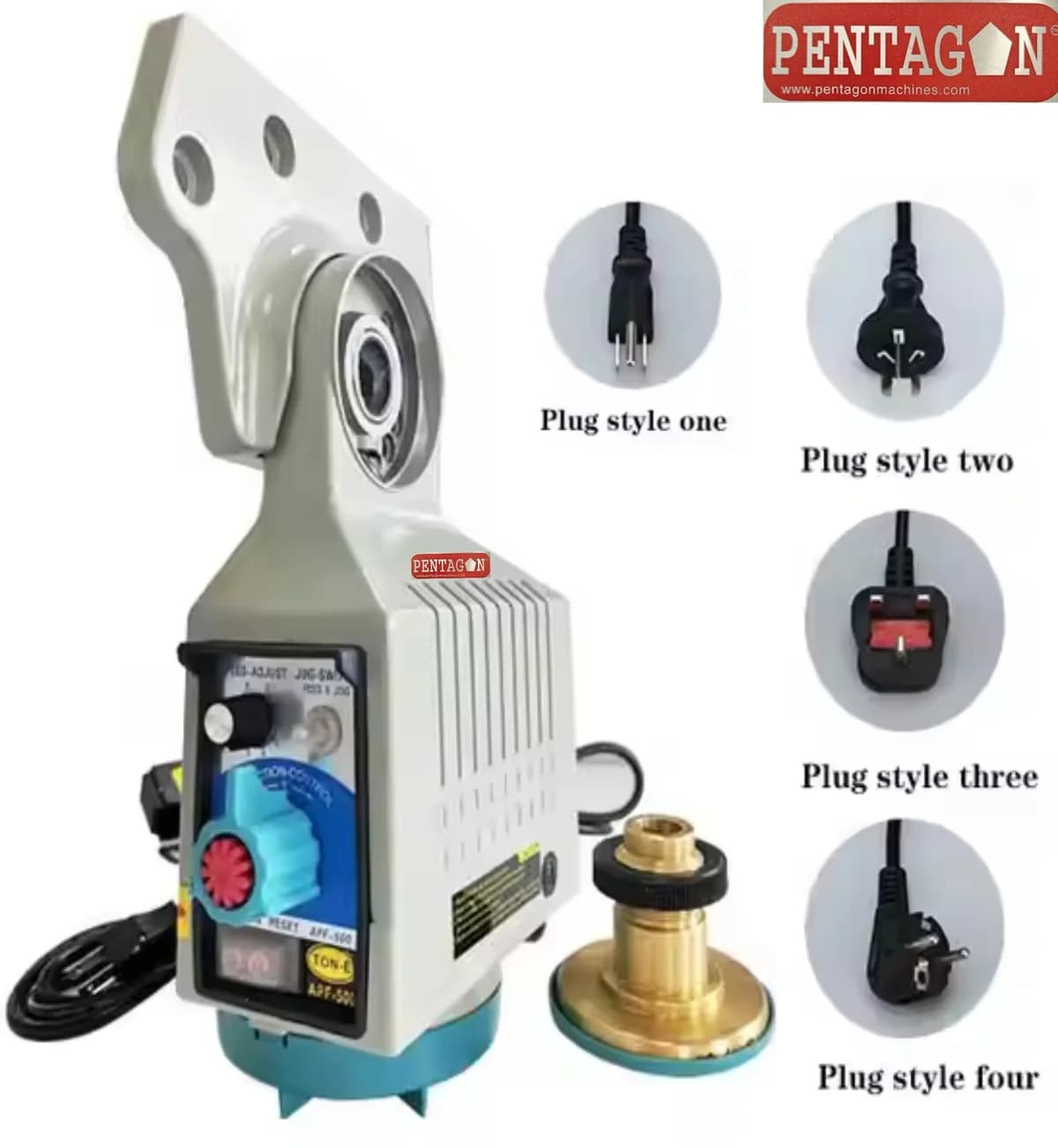

- Power cable with plug
- Mounting bolts, nuts & washers kit
- Allen key / basic tool kit
More questions buyers ask
What is a power table feeder?
A power table feeder is a motorized device that attaches to a milling machine's table to provide smooth, automated movement along the X (longitudinal), Y (cross), or Z (vertical) axes. This enhances precision, improves surface finish, and reduces operator fatigue.
What are the benefits of using a Pentagon APF-500 power feeder?
The Pentagon APF-500 series automates table movement, ensuring a consistent feed rate for better accuracy and surface finish. It also increases productivity by freeing up the operator from manually cranking the table.
What is the power requirement for the APF-500 series?
All models in the APF-500 series (X, Y, and Z) operate on a standard single-phase 110V power supply and draw approximately 2.8A of current.
What is the maximum torque of the APF-500 feeders?
The APF-500 power feeders deliver a maximum torque of 155 kg-cm, which is sufficient for a wide range of milling applications on small to medium-sized machines.
What is the speed range of these power feeders?
The rotational speed is variable and can be adjusted from 0 to 210 RPM, allowing you to select the optimal feed rate for your specific material and cutting tool.
Is the APF-500 series compatible with all milling machines?
The APF-500 series is designed for Vertical RAM Turret Milling Machines. Each model (X, Y, Z) is specific to an axis. Please check your machine's specifications for compatibility before purchasing.
What material is the housing made of?
The power feeder features a durable and lightweight aluminum housing, which helps to dissipate heat and protect the internal components.
Does it come with safety features?
Yes, each unit is equipped with limit switches for both ends of travel to prevent the table from moving beyond its set limits, protecting both the machine and the workpiece.
Who should choose the APF-500X model?
The APF-500X is designed for automating the longitudinal (X-axis) feed. It is the most common type of power feeder and is ideal for standard milling operations that involve long horizontal cuts.
Who should choose the APF-500Y model?
The APF-500Y automates the cross or traverse (Y-axis) feed. You should choose this model if your work involves frequent cross-milling, facing, or slotting operations.
Who should choose the APF-500Z model?
The APF-500Z is used for the vertical (Z-axis) movement of the milling machine's knee. It is essential for tasks requiring precise depth control, such as drilling, boring, and sinking operations.
What is the main difference between the APF-500X, APF-500Y, and APF-500Z?
The primary difference is the axis of the milling machine they are designed to automate. The 'X' model is for the longitudinal axis, 'Y' is for the cross axis, and 'Z' is for the vertical axis. Their core specifications like torque and speed are identical.
Are the torque and speed the same across all models (X, Y, Z)?
Yes, all three models (APF-500X, APF-500Y, and APF-500Z) share the same performance specifications, including a maximum torque of 155 kg-cm and a variable speed range of 0-210 RPM.
Does the installation differ for the X, Y, and Z axis models?
Yes, the mounting hardware and installation procedure are specific to each axis. Each model comes with the necessary components to be fitted to its designated axis on a compatible turret milling machine.
