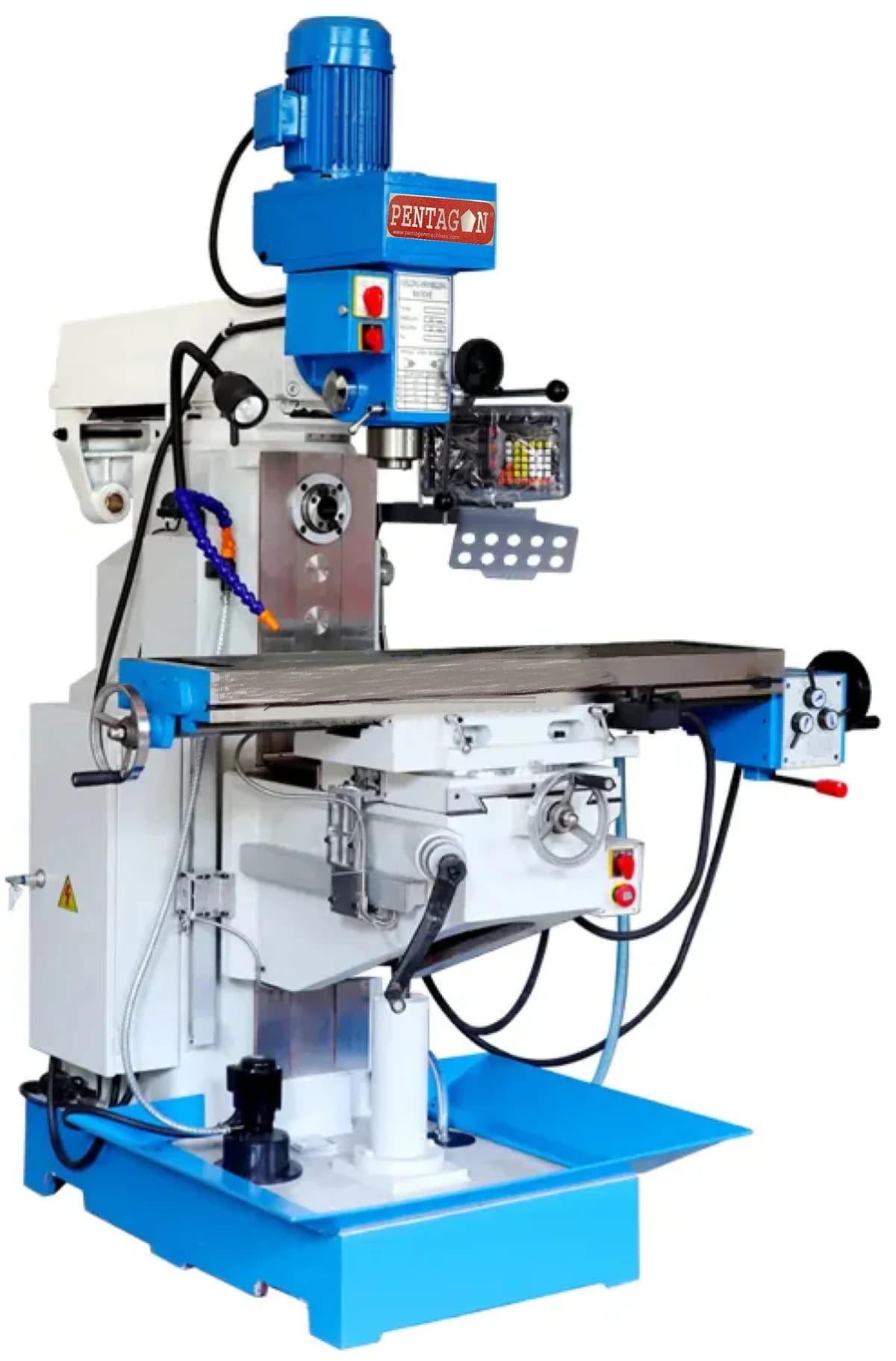

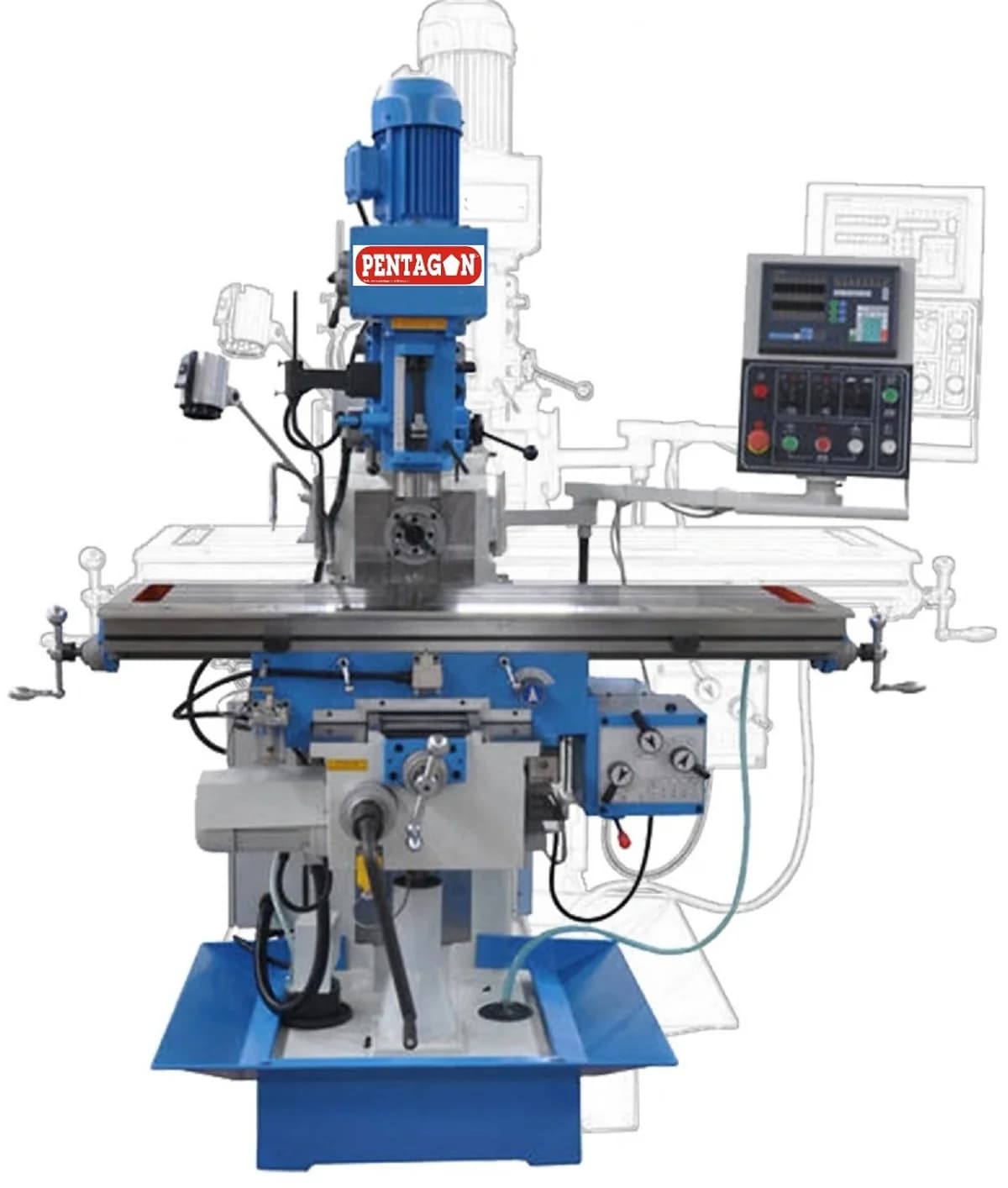

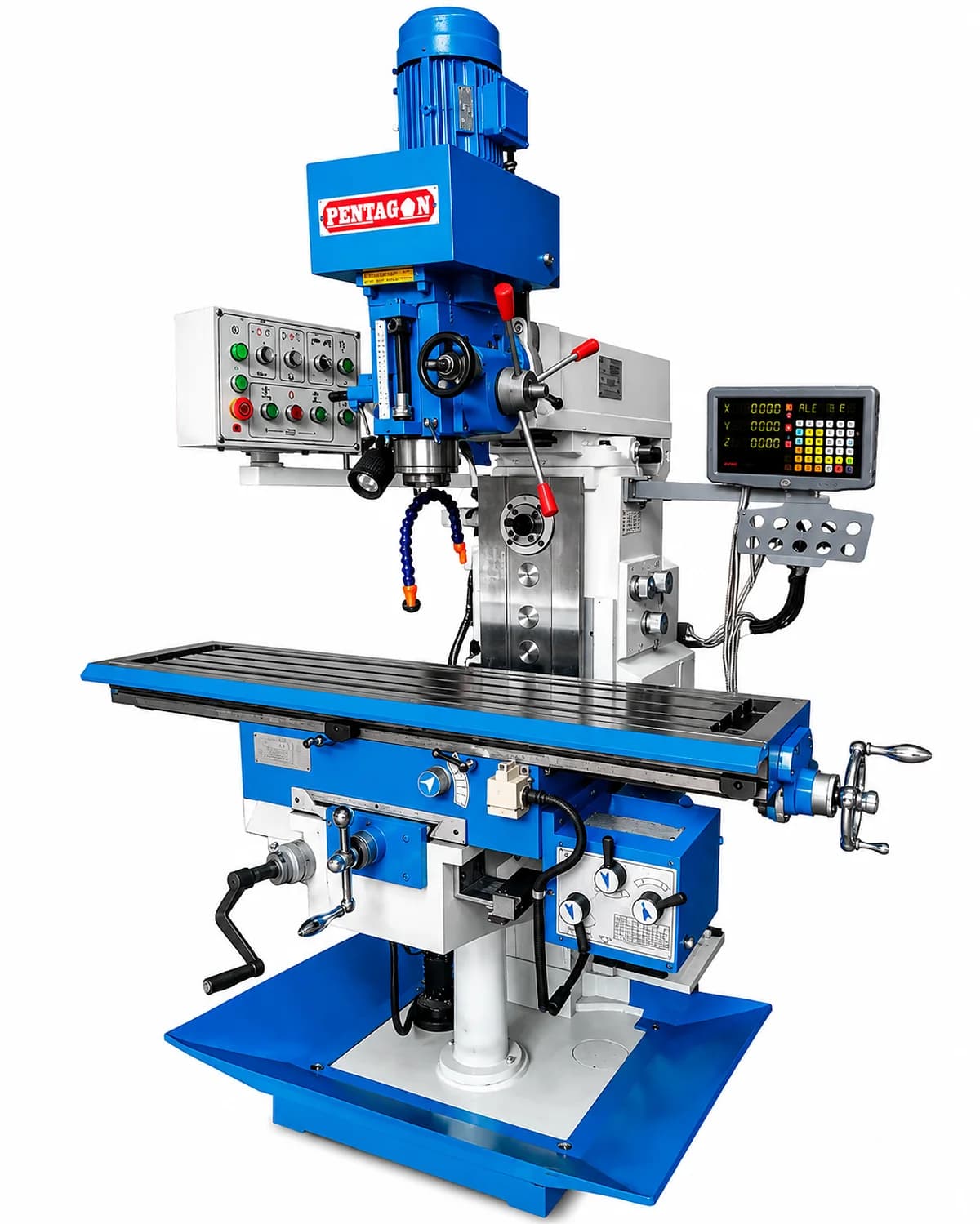

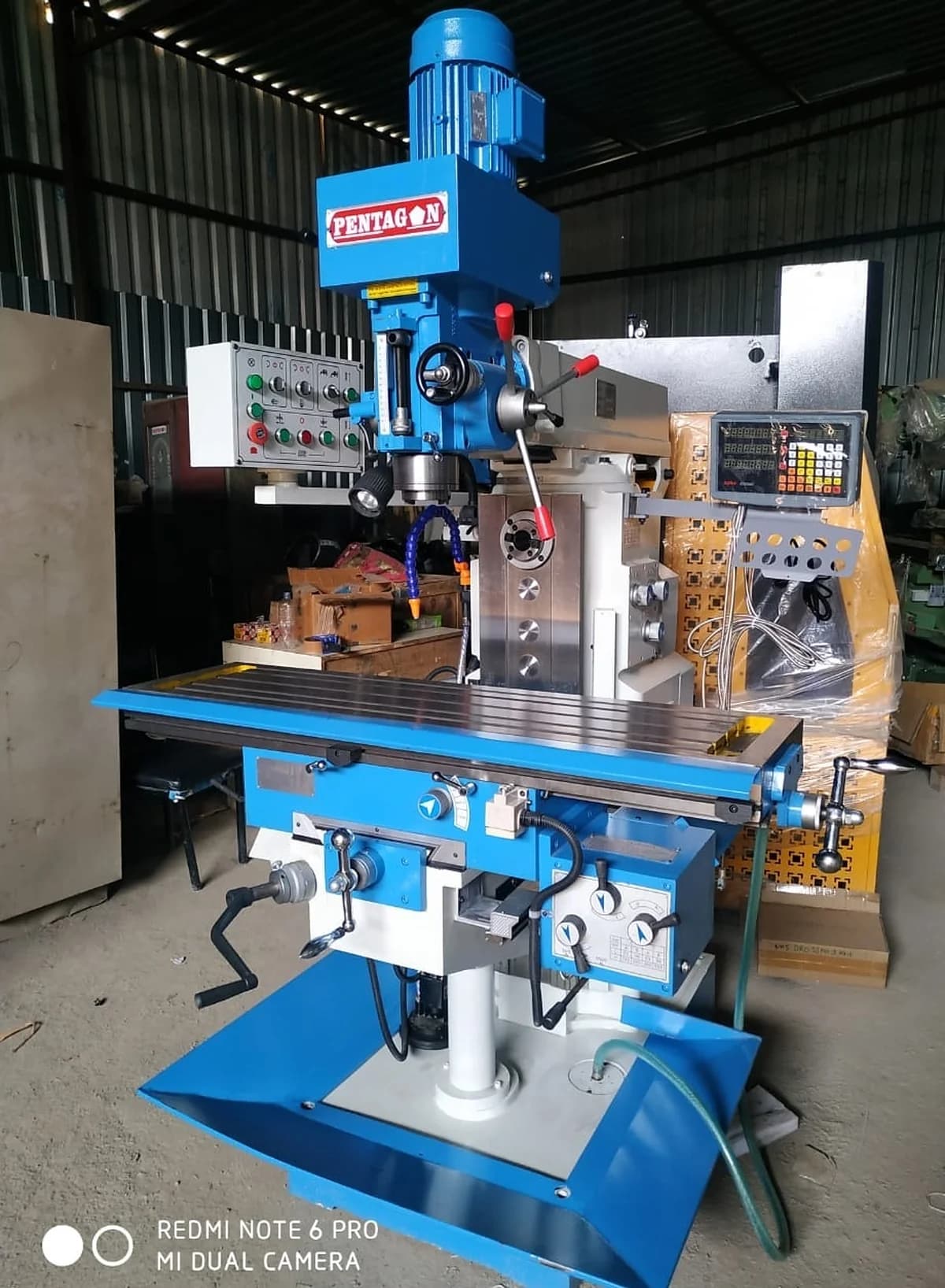

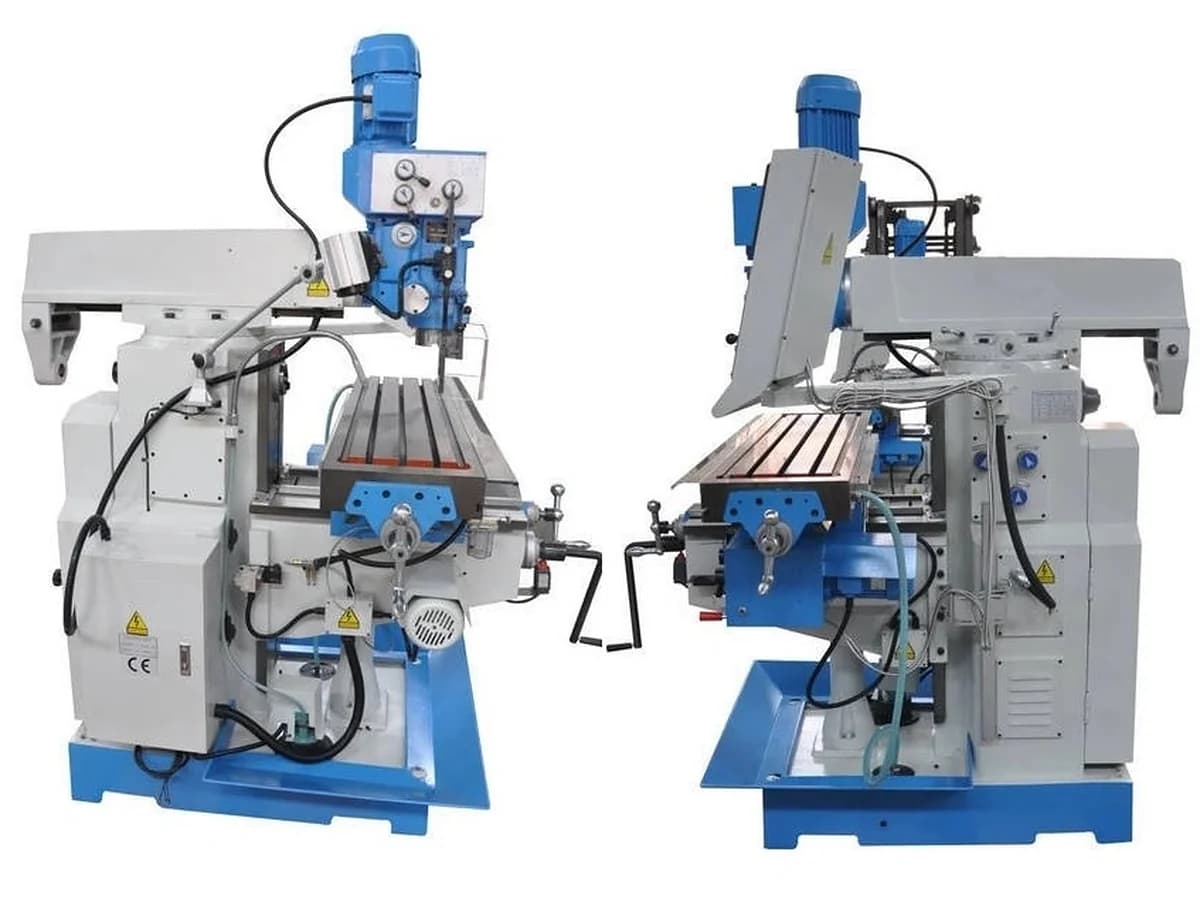

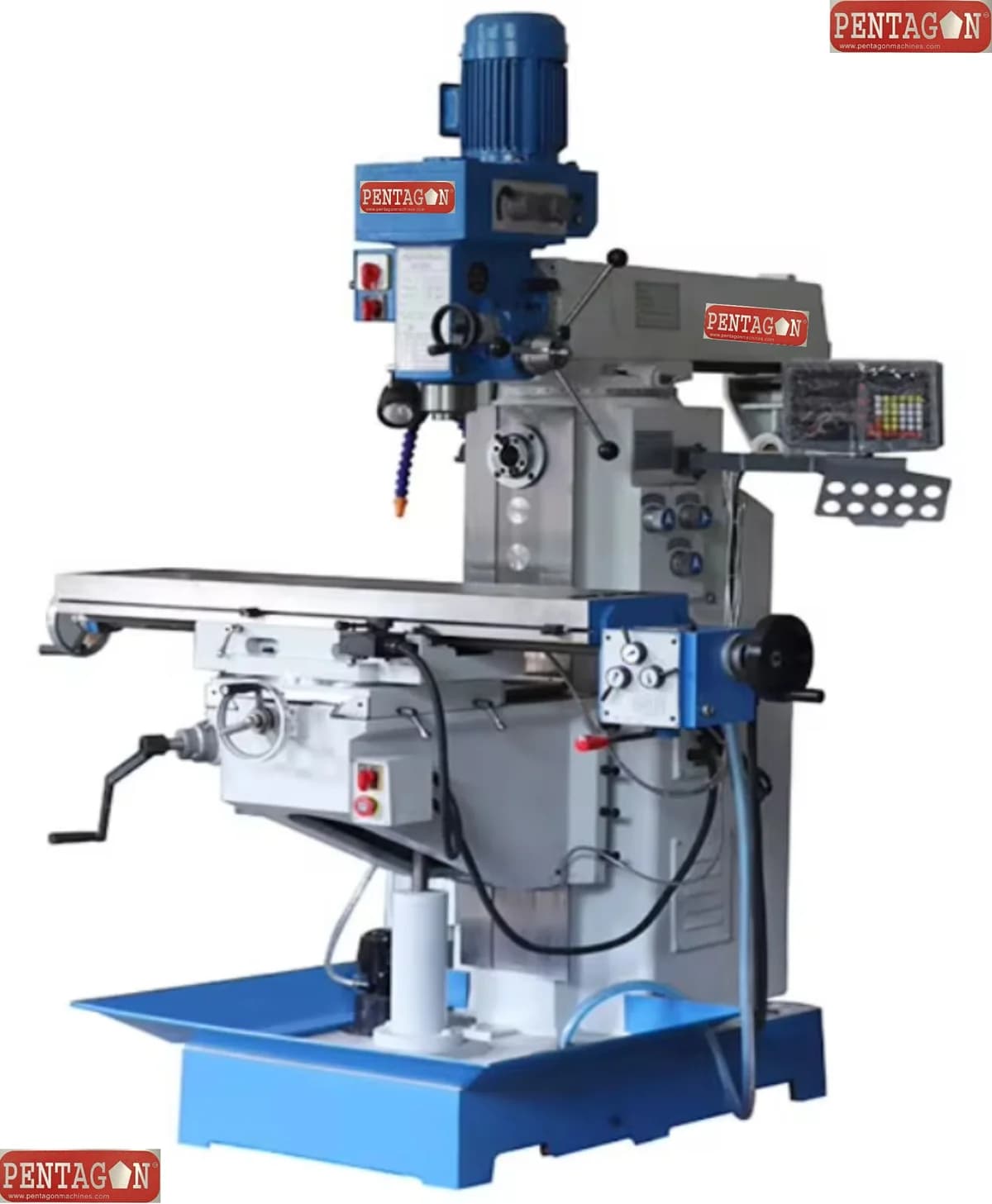

Universal Knee type Geared Head Drilling cum Milling machine — ZX6350ZA
PENTAGONSold by Gearo
This universal knee type drilling and milling machine serves as robust industrial milling equipment for versatile applications. Ideal for medium-sized parts, it features a 1500x280 mm table with hardened guideways and supports manual or automatic feed options. • Max drilling capacity up to 50 mm • Table size 1500x280 mm • Available with automatic or manual quill feed
₹5,45,000₹6,80,000Save 19%
+ 18% GST · Excl. delivery
In stock
Dispatched same day
Price ≥ ₹1 Lakh — quote required for tailored pricing & terms
GST invoice on every order
Warranty — Gearo handles claims
100% original equipment
Installation available pan-India

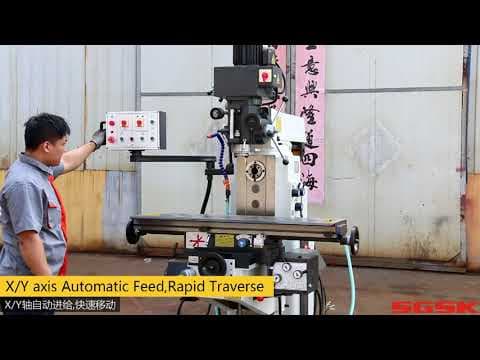

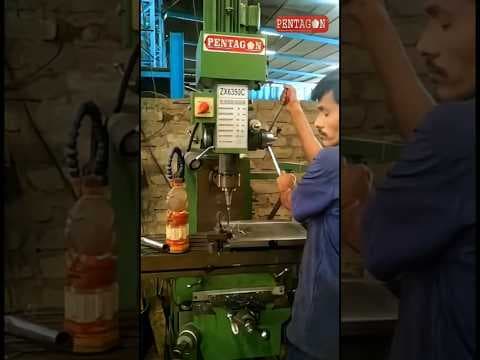

See it in action
Specifications

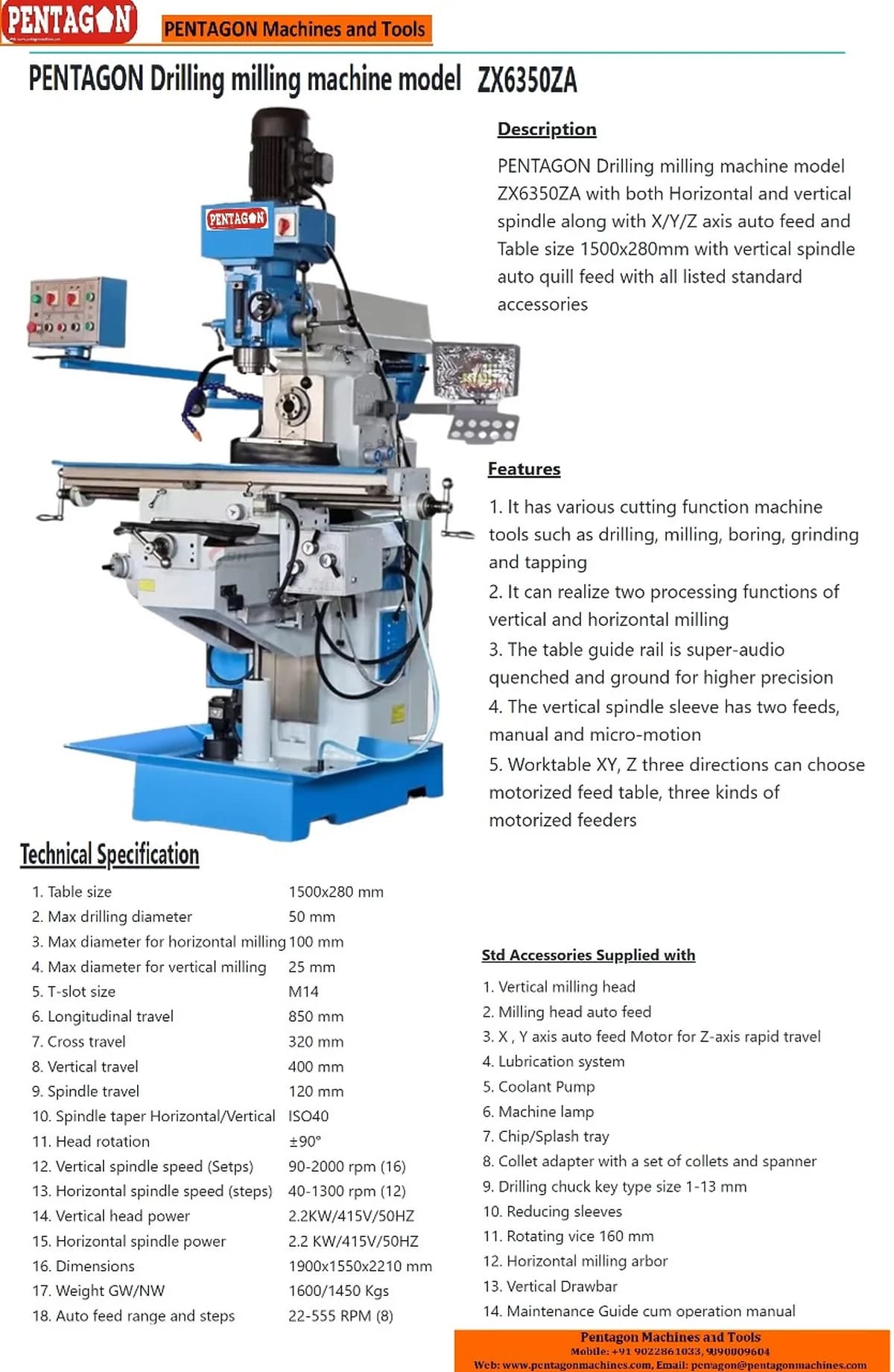

For: ZX6350ZA- Machine Model
- ZX6350ZA
- table size
- 1500x280mm
- cross travel
- 320mm
- vertical travel
- 400mm
- Longitidunal travel
- 850mm
- Max drilling diameter
- 50mm
- Max diameter for horizontal milling
- 100mm
- max diameter for vertical milling
- 25mm
- T slot size
- M14
- spindle travel
- 120mm
- spindal taper horizontal,verticle
- ISO40
- horizontal spindle speed (steps)
- 40-1300 rpm (12)
- Horizontal Spindle Power
- 3KW/415V/50HZ
- verticle head power
- 2.2KW/415V/50HZ
- Spindle Taper
- ISO40 both Horizontal and Vertical
- Motor Power
- 2.2KW/Vertical
- verticle spindle speed (steps)
- 90-2000rpm(16)
- Spindle Quill Feed
- Auto
- Head rotation
- 90*
- Z axis Table lifting
- Auto/Rapid
- Auto feed range and steps
- 22-555 RPM (8)
- Dimensions
- 1900x1550x2210mm
- Weight GW,NW
- 1600/1450kgs
- Max Drilling Capacity
- 50 mm
Configurations
Click a row to switch| Variant | table size | Spindle Taper | Longitidunal travel | Spindle Quill Feed | Price |
|---|---|---|---|---|---|
| ZX6350ZA | 1500x280mm | ISO40 both Horizontal and Vertical | 850mm | Auto | ₹5,45,000 |

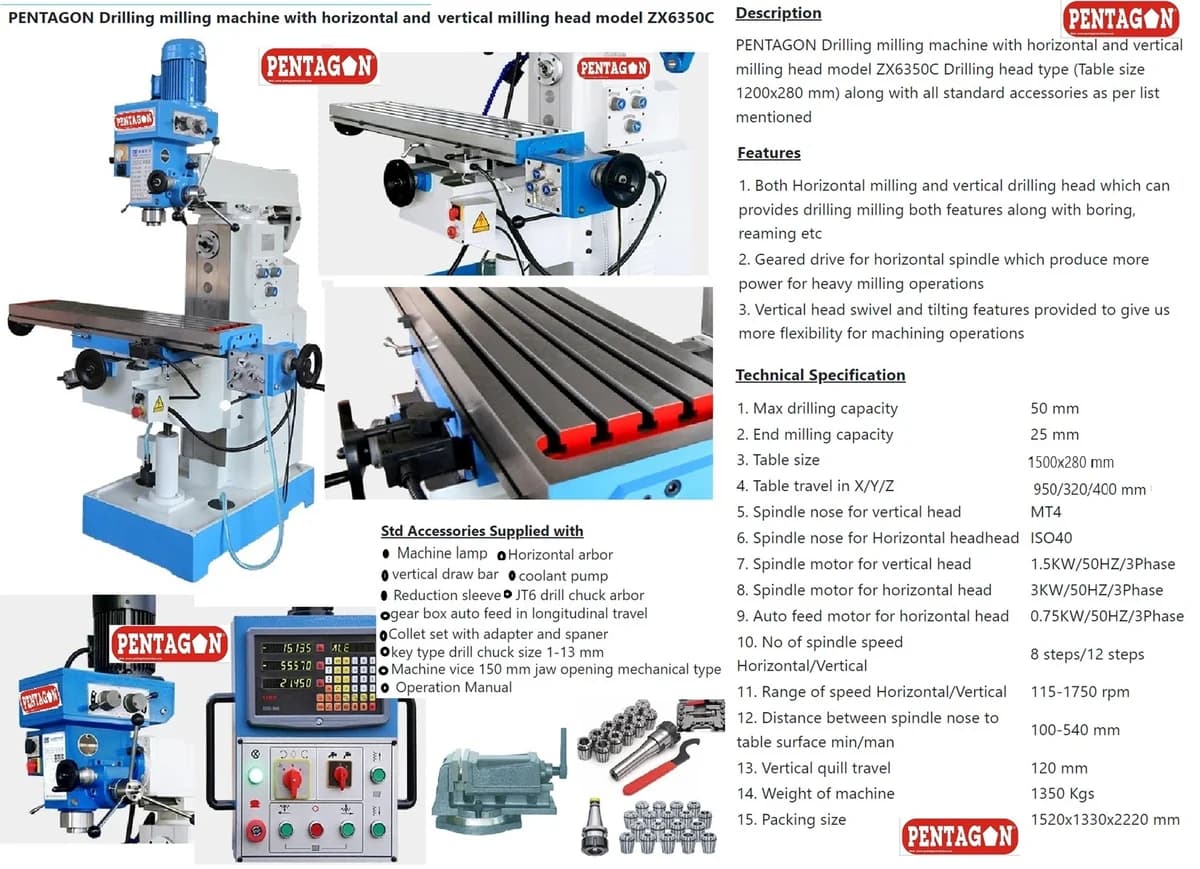

| ZX6350C | 1500x280mm | MT4/Vertical/ISO40 Horizontal | 850mm | Manual | ₹4,55,000 |
Safety and Maintenance
- Designed to meet industrial safety standards for workshop use
- Z axis Table lifting offers Auto/Rapid options for efficiency
- Regular lubrication of guideways maintains machine accuracy
- Ensure proper grounding for 415V/50HZ electrical connections
- Follow manufacturer guidelines for spindle and motor care
- Inspect quill feed mechanisms before starting operations
Operational Versatility
- Ideal for toolroom work and general engineering applications
- Supports manual or automatic feed options for different tasks
- Head rotation 90* enables angled milling and complex cuts
- T slot size M14 compatible with standard tooling and fixtures
- Max diameter for horizontal milling 100mm for larger cuts
- Max diameter for vertical milling 25mm for precision drilling

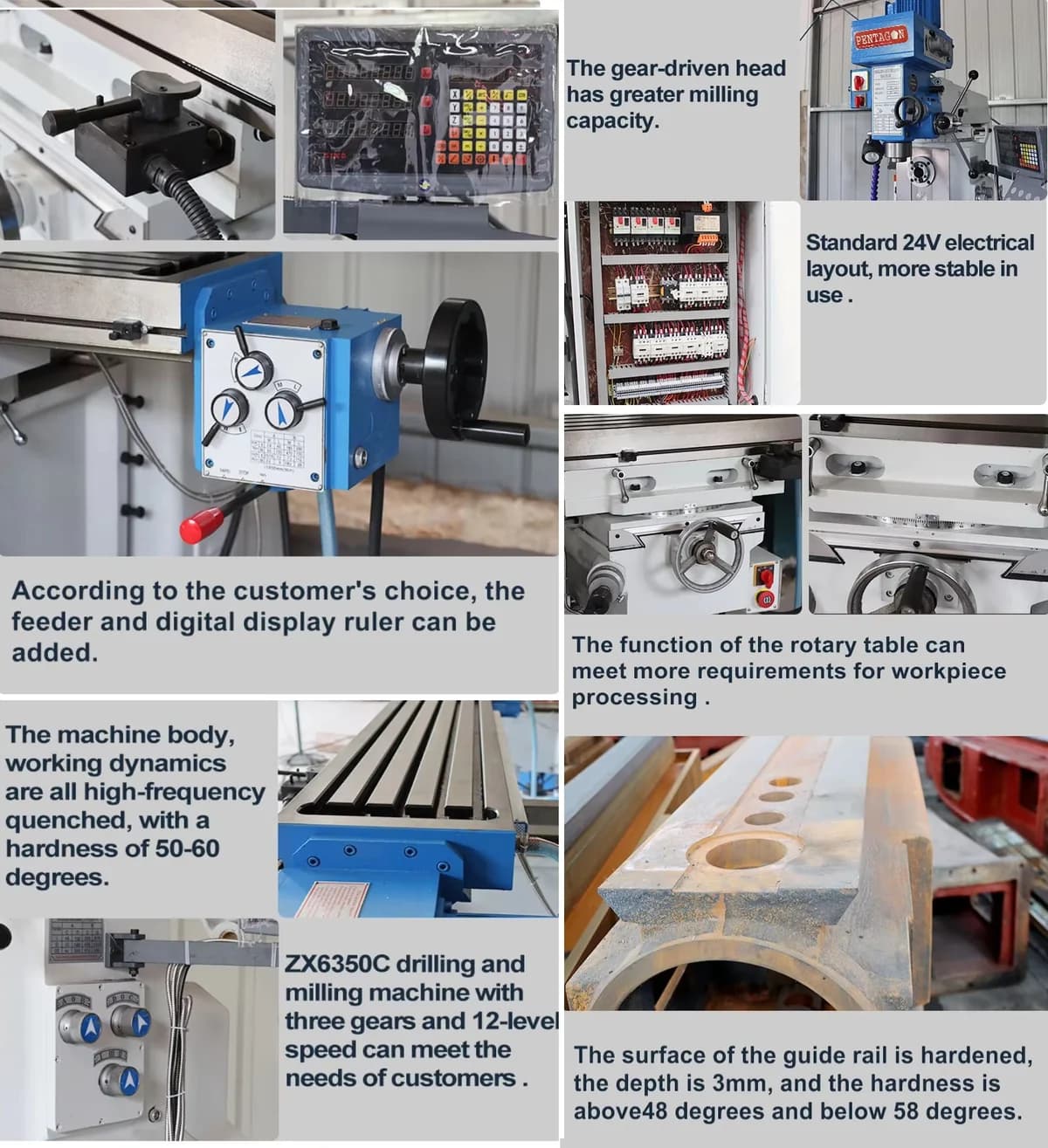

Precision Construction
- Hardened guideways ensure long-term precision and accuracy
- Machine weight around 1600kg provides vibration dampening
- Dimensions 1900x1550x2210mm optimize floor space usage
- Cross travel 320mm and longitudinal travel 850mm offer reach
- Vertical travel 450mm accommodates various workpiece heights
- Spindle travel 120mm allows for deep drilling operations
Spindle and Feed Performance
- Spindle taper ISO40 for both horizontal and vertical setups
- Horizontal spindle speed ranges from 40–1300 rpm in 12 steps
- Vertical spindle speed reaches 90–2000rpm in 16 steps
- Spindle Quill Feed available in Auto or manual options
- Auto feed range 22–555 RPM for X and Y axis movements
- Motor power 2.2KW ensures consistent performance for milling
ZX6350 Series Overview
- Universal knee type drilling cum milling machine for industrial use
- Available in ZX6350C and ZX6350ZA model configurations
- Features robust construction for medium-sized part machining
- Max drilling capacity up to 50 mm for versatile operations
- Table size 1500x280 mm with hardened guideways for stability

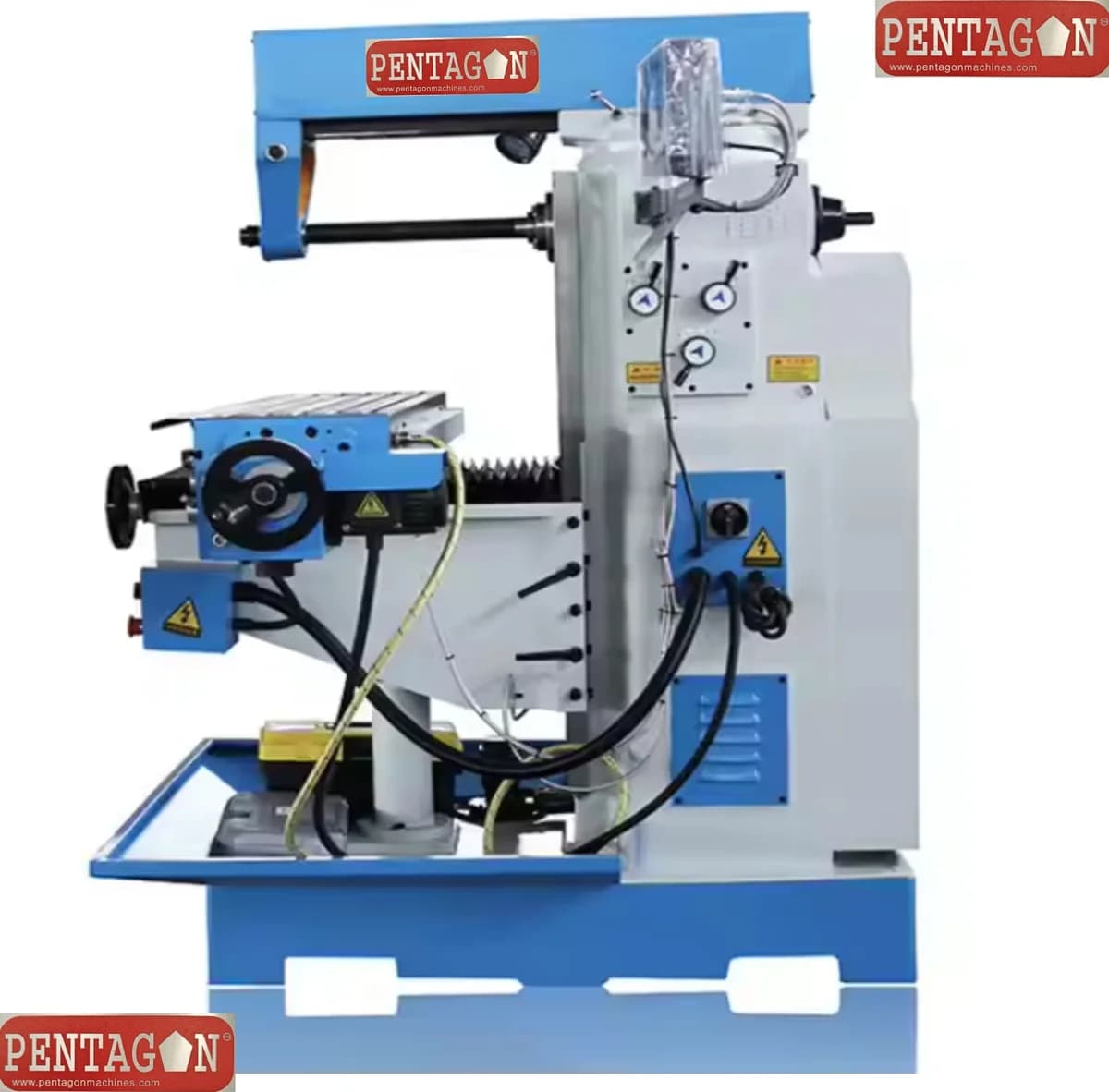

- Supports both horizontal and vertical spindle configurations
Optional Accessories
- 2/3 Axes DRO with along with suitable linear scales
- H-V rotary table size 250 mm
- Semi Universal type dividing head model BS0 with 3 jaw chuck and indexing plate
- Micro boring head with ISO40 Shank
- Keyless drill chuck with ISO40 arbor intact integrated type high precision type
- ER40 Collets Set
Standard Accessories
- Vertical milling head
- Milling head auto feed
- X , Y axis auto feed Motor for Z-axis rapid travel
- Lubrication system
- Coolant Pump
- Machine lamp
- Chip/Splash tray
- Collet adapter with a set of collets and spanner
- Drilling chuck key type size 1-13 mm
- Reducing sleeves
- Rotating vice 160 mm
- Horizontal milling arbor
- Vertical Drawbar
- Maintenance Guide cum operation manual
