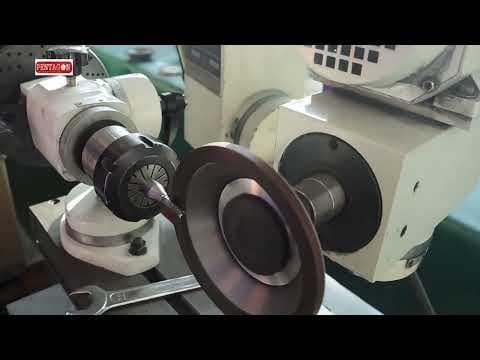

Pentagon Milling Edge Cutter Grinding Attachment for Universal Tool & Cutter Grinder Model 50D
The 50D Milling Cutter Edge Grinder is a precision attachment for universal tool & cutter grinding machines, designed for accurate sharpening of milling cutter edges. Its rigid cast-iron body, micrometer fine-feed system, and 360° swivel base ensure smooth, vibration-free and highly accurate regrinding of end mills, side & face cutters, and slotting tools.
Specifications
For: 50D- Product Name
- Milling Cutter Edge Grinder Attachment
- Model
- 50D
- Cutter Capacity
- 4 mm – 50 mm
- Spindle Bore
- 20 mm or 25 mm (depending on version)
- Base Rotation
- 0°–360°
- Angle Adjustment
- Graduated, fine-tunable
- Micrometer Feed Travel
- 0–30 mm
- Clamping Method
- Quick-Lock Lever
- Weight Approx
- 15 Kgs
- Packing Size
- 380x260x230 mm
Description
The 50D Milling Cutter Edge Grinder is a high-precision attachment used on universal tool and cutter grinder machines to recondition and sharpen the side edges, end edges, and corner radii of various milling cutters.
Its robust swivel base, micrometer adjustment, and concentric spindle design make it ideal for restoring correct tool geometry and improving machining efficiency.
This attachment is suitable for sharpening:
- End mills
- Face mills
- Shell mills
- Slab mills
- Side & face cutters
- T-slot cutters
It ensures accurate cutting angles and edge alignment for optimum tool performance.
Features:
- 360° swivel base for universal angular positioning
- Graduated angle scale for precise and repeatable settings
- Hardened & ground spindle for ultra-smooth rotation
- Micrometer feed adjustment for accurate depth control
- Quick-clamp system for fast setup
- Suitable for carbide and HSS milling cutters
- Rigid cast structure eliminates vibration
- Adjustable for single, double, and multiple-edge milling tools
- Easy integration with standard Universal Tool Grinder models
Advantages:
- Restores original tool geometry
- Extends milling cutter life significantly
- Reduces machining costs by in-house resharpening
- Ensures perfect cutting edge alignment
- Improves surface finish & machining accuracy
- Easy to operate and maintain
Applications:
- Sharpening milling cutter edges
- Regrinding end mills, chamfer tools, slot cutters
- Accurate angle grinding for industrial toolrooms
- Tool maintenance for CNC machining centres
- Precision grinding for mould & die workshops
Optional Accessories:
- Collet chuck sets (ER16 / ER20 / ER32)
- Indexing ring
- Diamond dresser block
- Additional holder bushes
- Angle setting gauge
More questions buyers ask
What is a Milling Cutter Edge Grinder Attachment?
It is a precision fixture used on universal tool and cutter grinders to sharpen and recondition the edges of milling cutters like end mills and face mills.
Which machines is the Pentagon 50D attachment compatible with?
It is designed for integration with standard universal tool and cutter grinders used in industrial toolrooms.
Can this attachment sharpen both HSS and carbide cutters?
Yes, the Pentagon 50D is suitable for both HSS and carbide milling cutters, provided the correct grinding wheel is used.
What is the cutter capacity of the 50D model?
The 50D model supports milling cutters with a capacity ranging from 4 mm to 50 mm.
Does the attachment allow for angular adjustments?
Yes, it features a 360-degree swivel base and a graduated scale for precise angular positioning.
What are the benefits of using this grinding attachment?
It restores original tool geometry, extends cutter life, reduces machining costs, and improves surface finish and accuracy.
Is the feed adjustment manual or automatic?
The 50D features a micrometer feed adjustment for accurate manual depth control during the grinding process.
What is the weight of the Pentagon 50D attachment?
The attachment weighs approximately 15 kg, making it a robust and stable fixture for grinding operations.
What accessories are included or optional?
Standard features include a quick-clamp system. Optional accessories include collet chuck sets, indexing rings, and diamond dressers.
How does this attachment improve machining efficiency?
By allowing in-house resharpening, it minimizes downtime and ensures that tools are always in optimal cutting condition.
Who should choose the Pentagon 50D Milling Cutter Grinder?
Toolroom technicians and machine shop operators looking for a reliable, high-precision solution for maintaining milling cutter geometry.
How does the 50D compare to generic grinding fixtures?
The Pentagon 50D offers superior build quality with a hardened spindle and micrometer precision, ensuring better repeatability than generic alternatives.
