Specifications
| Variant | Price | Max cutting Length | Cutting Thickness | Back Gauge Range | Depth Of Throat | Blade Size (LxWxT) |
|---|---|---|---|---|---|---|
| 610x2 mm | ₹1,65,000.00 | 685 mm | 2 mm (MS) | 450 mm | 65 mm | 685x63x12 mm |
| 610x4 mm | ₹2,65,000.00 | 685 mm | 4 mm (MS) | 450 mm | 75 mm | 685x63x14 mm |
| 1000x2 mm | ₹2,80,000.00 | 1000 mm | 2 mm (MS) | 450 mm | 65 mm | 1000x63x14 mm |
| 1270x2 mm | ₹3,15,000.00 | 1300 mm | 2 mm (MS) | 600 mm | 65 mm | 1300x63x14 mm |
| 1525x2 mm | ₹3,50,000.00 | 1600 mm | 2 mm (MS) | 600 mm | 65 mm | 1600x63x14 mm |
| 1000x4 mm | ₹3,75,000.00 | 1000 mm | 4 mm (MS) | 450 mm | 75 mm | 1000x63x14 mm |
| 1270x4 mm | ₹4,21,000.00 | 1300 mm | 4 mm (MS) | 450 mm | 75 mm | 1300x63x14 mm |
| 1525x4 mm | ₹4,70,000.00 | 1600 mm | 4 mm (MS) | 600 mm | 75 mm | 1600x75x18 mm |
| 2030x2 mm | ₹5,21,000.00 | 2030 mm | 2 mm (MS) | 600 mm | 65 mm | 2030x63x14 mm |
| 2540x2 mm | ₹5,80,000.00 | 2600 mm | 2 mm (MS) | 600 mm | 65 mm | 2600x63x14 mm |
| 2030x4 mm | ₹6,20,000.00 | 2030 mm | 4 mm (MS) | 600 mm | 75 mm | 2030x75x18 mm |
| 3125x2 mm | ₹7,26,000.00 | 3200 mm | 2 mm (MS) | 600 mm | 65 mm | 3200x63x14 mm |
| 2540x4 mm | ₹8,15,000.00 | 2600 mm | 4 mm (MS) | 600 mm | 75 mm | 2600x75x18 mm |
| 3125x4 mm | ₹9,20,000.00 | 3200 mm | 4 mm (MS) | 600 mm | 75 mm | 3200x75x18 mm |
Description

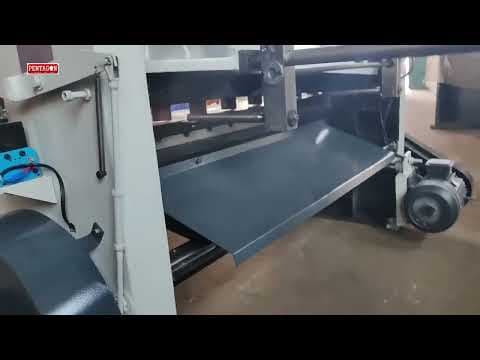

The Mechanical Under Crank Shearing Machine is engineered for sheet metal cutting operations in fabrication, ducting, HVAC, auto body, and general workshop applications. Built with a rigid steel-welded structure, high precision blades, and robust mechanical crank system, the machine delivers smooth & burr-free cuts with excellent repeatability. Mechanical Under Crank Shearing Machine Model PSM-610×2 mm is engineered to shear mild steel sheets up to 2 mm thickness with consistent cutting performance across the full working width of 610 mm. Manual back gauge system ensures quick setup for batch cutting while the front squaring arm and side guides provide accurate alignment. Ideal for both light and medium gauge sheet work.
Features
Robust Welded Frame Construction
- Heavy-duty welded steel frame ensures vibration-free operation, higher stability, and long structural life.
Under-Crank Cutting Mechanism
- Efficient under-crank drive system provides uniform cutting force throughout the length for accurate sheet cutting.
High-Quality Alloy Steel Blades
- Precision-ground blades made from alloy tool steel ensure clean, burr-free cuts and extended blade service life.
Adjustable Blade Clearance
- Manual adjustment mechanism allows easy setting of blade clearance based on sheet thickness to maintain cutting precision.
Front Sheet Support Table
- Integrated front support platform stabilizes sheet metal during loading and ensures straight alignment while cutting.
Manual Back Gauge System
- Facilitates precise sheet length setting for repetitive cutting and increased productivity in fabrication environments.
Flywheel Drive with Clutch System
- Mechanical flywheel and clutch mechanism offers smooth shearing action and improved cutting efficiency.
Operator-Friendly Controls
- Simple mechanical levers and switches for safe and convenient operation with reduced skill dependency.
Wear-Resistant Components
- Quality bearings, bushings, and machined parts minimize downtime and reduce maintenance costs.
Suitable for Mild Steel & Light Stainless Steel
- Designed for cutting CR/HR mild steel sheets up to rated capacity and selected stainless steel grades with reduced thickness.
Advantages
Consistent Cutting Accuracy
- Uniform cutting force and adjustable blade clearance ensures precise, burr-free sheet cutting.
Low Operating Cost
- Mechanical drive and simple clutch mechanism minimize power consumption and reduce operational expenses.
Long Blade Service Life
- Alloy tool steel blades with precision grinding provide extended durability and reduced replacement frequency.
Easy Setup for Repetitive Cuts
- Manual back gauge and squaring arms enable quick and repeatable operations, improving production efficiency.
Rugged & Reliable Construction
- Heavy welded frame and machined components enhance stability and accommodate continuous industrial use.
Low Maintenance Requirements
- Fewer hydraulic or electronic systems result in minimal service needs and simplified upkeep.
Suitable for Multiple Industries
- Adaptable for fabrication, HVAC, automotive, electrical panel, furniture, and general engineering sectors.
Operator-Friendly Design
- Simple mechanical controls reduce skill dependency and shorten operator learning time.
High Productivity Output
- Fast cutting cycle and smooth shearing action support higher throughput in daily fabrication tasks.
Ideal for Light to Medium Gauge Sheets
- Optimal selection for cutting mild steel and thin stainless steel sheets with economical performance.
Applications
Sheet Metal Fabrication Workshops
- Ideal for precise cutting of CR/HR sheet metal for general fabrication tasks.
HVAC & Ducting Manufacturing
- Suitable for cutting thin gauge sheet used in ducting, ventilation systems, and air handling unit components.
Automotive & Body Building Shops
- Used for preparing sheet panels for vehicle bodywork, interior sheet structures, and repair applications.
Electrical Panel & Enclosure Manufacturing
- Supports cutting of sheet metal used in panels, switchboards, junction boxes, and industrial enclosures.
Appliance & Light Engineering Industries
- Applicable for fabricating sheet parts for consumer durables, machinery covers, and assemblies.
Signage & Display Production
- Useful for preparing sheet metal substrates for signage, display frames, and advertising products.
General Engineering & Job Shops
- Flexible for a wide range of daily cutting tasks involving mild steel and thin stainless materials.
Steel Furniture & Fixture Fabrication
- Supports manufacturing of cabinets, shelving, office furniture, and modular fixtures.
Standard Accessories
- Electric Motor 1.5HP 3 Phase
- Starter
- V-belts
- Front gauge
- Rear gauge
- Scale and Stroke counter
6 month warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
