Hand Operated Manual Press Brake Machine — 610x1.2 mm
Manual press brake designed for precision bending of sheet metal. Compact, economical and ideal for light fabrication jobs, prototyping and workshop use. Model PHP1-610×1.2 offers 610 mm bending width with 1.2 mm bending capacity (M.S). Manual hand-operated press brake designed for precise sheet bending and forming operations. Ideal for small workshops, fabrication units, and sheet metal works.

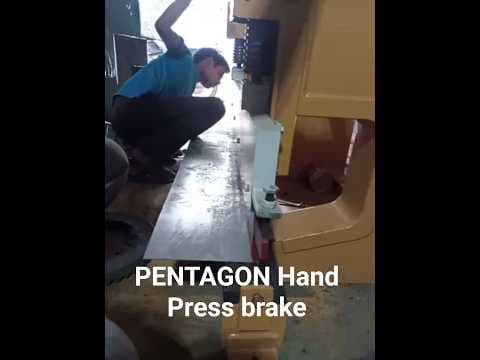

See it in action
Specifications
For: 610x1.2 mm- Model
- PHP1- 610x1.2
- Bending Length
- 610 mm
- Max Bending Thickness
- 1.2 mm
- V Block Size
- 75 mm
- Round Edge Blade
- 2000x25 mm
- Center Distance
- 280 mm
- Max Width
- 700 mm
- Max Length
- 730 mm
- Screw Handle
- 1x750 mm
- Working Height
- 200 mm
- Max Height
- 850 mm
- Plate Thickness
- 5 mm
- Knife Size
- 150x16 mm
- Screw No. and Dia
- 1x70 mm
- Pillar Distance
- Single Pillar
- RAM
- 40 mm
- Weight Approx
- 150 Kgs
Configurations
Click a row to switch| Variant | Bending Length | Max Bending Thickness | Pillar Distance | RAM | Price |
|---|---|---|---|---|---|
| 2000x1.6 mm | 2150 mm | 1.6 mm | 1000 mm | 50 mm | ₹87,000 |
| 610x1.2 mm | 610 mm | 1.2 mm | Single Pillar | 40 mm | ₹34,800 |
| 2500x1.6 mm | 2500 mm | 1.6 mm | 1140 mm | 50 mm | ₹94,000 |
| 2000x1.2 mm | 2000 mm | 1.2 mm | 1000 mm | 40 mm | ₹68,000 |
| 1250x1.2 mm | 1250 mm | 1.2 mm | 610 mm | 40 mm | ₹55,000 |
| 2500x1.2 mm | 2500 mm | 1.2 mm | 1140 mm | 40 mm | ₹84,000 |
Heavy-Duty Industrial Build
- Welded steel frames withstand continuous shop floor vibration
- Precision-ground pillars resist deflection under maximum load
- Corrosion-resistant coatings extend service life in harsh environments
- Overload protection mechanisms safeguard critical drive components
- Designed for seamless integration into existing metal fabrication lines
Precision Forming Mechanism
- Direct mechanical drive translates hand force into uniform bending force
- Hardened V-blocks maintain sharp angles and repeatable tolerances
- Adjustable back gauges enable precise positioning for complex bends
- Smooth ram travel prevents material springback and surface marking
- Compatible with standard industry punch and die configurations – 75 mm to 150 mm
Wide Range Bending Capacities
- Available in sizes from 500 mm to 3200 mm for diverse project needs
- Scalable frame designs accommodate varying sheet metal widths
- Consistent bending accuracy across the entire product family
- Modular tooling options support quick changeover between jobs
- Optimized pillar spacing ensures stable load distribution during operation
Manual Operation & Ergonomic Design
- Hand Press brake design delivers reliable, tool-free bending performance
- Manual type operation ensures consistent pressure without external power
- Ergonomic screw handles provide smooth, controlled ram advancement
- Simple mechanical linkage reduces maintenance and unplanned downtime
- Ideal for low-volume workshops and precision prototype fabrication
Frequently asked
Can this machine handle high-volume production runs?
It is optimized for low to medium volume work, prototyping, and maintenance tasks where manual control is preferred.
What sheet metal materials are compatible?
The machine works effectively with mild steel, stainless steel, aluminum, and copper within rated thickness limits.
How is bending accuracy maintained over time?
Precision-machined guide rails and hardened contact surfaces ensure long-term dimensional stability with minimal wear.
More questions buyers ask
What is a manual press brake machine?
A manual press brake is a mechanical tool used to bend sheet metal into specific shapes using manual force, ideal for low-volume production.
What materials can the Pentagon manual press brake bend?
It is designed for mild steel, stainless steel, aluminum, and copper within the rated thickness capacity.
Is this machine suitable for HVAC duct manufacturing?
Yes, it is widely used in HVAC ducting, electrical cabinet manufacturing, and general sheet metal fabrication workshops.
Does the machine require electricity?
No, these are hand-operated mechanical machines, making them energy-efficient and suitable for workshops without power access.
What is the maximum bending length available?
We offer models ranging from 610 mm up to 2500 mm to accommodate various project requirements.
How do I maintain the bending accuracy?
The machine features precision-ground pillars and hardened contact surfaces to ensure dimensional stability and repeatable bends.
Are spare parts easily available?
Yes, as a domestic manufacturer, Pentagon provides reliable after-sales support and spare parts availability across India.
What is the warranty on these machines?
Pentagon provides a standard industrial warranty; please contact our sales team for specific terms based on your location.
Can I get a GST invoice for my purchase?
Yes, all purchases include a valid GST invoice for tax credit purposes.
Do you provide pan-India delivery?
Yes, we offer secure, pan-India shipping for all our industrial machinery.
Who should choose the 2000x1.6 mm model?
It is best for medium-width fabrication tasks requiring a balance of power and precision for 1.6mm steel.
Who should choose the 610x1.2 mm model?
Ideal for small workshops, prototyping, and light-duty tasks where space is limited.
Who should choose the 2500x1.6 mm model?
Recommended for large-scale projects needing the maximum bending length and robust capacity.
Who should choose the 2000x1.2 mm model?
Perfect for HVAC and light-gauge sheet metal folding where 1.2mm capacity is sufficient.
Who should choose the 1250x1.2 mm model?
A great mid-range choice for versatile, everyday fabrication needs.
Who should choose the 2500x1.2 mm model?
Best for wide-sheet applications that do not exceed 1.2mm thickness.
How does the 2000x1.6 mm compare to the 2000x1.2 mm?
The 1.6mm model offers higher material thickness capacity for more demanding fabrication compared to the 1.2mm version.
How does the 2500x1.6 mm compare to the 2500x1.2 mm?
Both offer the same 2500mm length, but the 1.6mm model handles thicker, more robust materials.
Why choose a manual press brake over a hydraulic one?
Manual press brakes are more cost-effective, require zero electricity, and are perfect for prototyping or low-volume work.
More like this
Full description
Manual press brake designed for precision bending of sheet metal. Compact, economical and ideal for light fabrication jobs, prototyping and workshop use. Model PHP1-610×1.2 offers 610 mm bending width with 1.2 mm bending capacity (M.S). Manual hand-operated press brake designed for precise sheet bending and forming operations. Ideal for small workshops, fabrication units, and sheet metal works.
