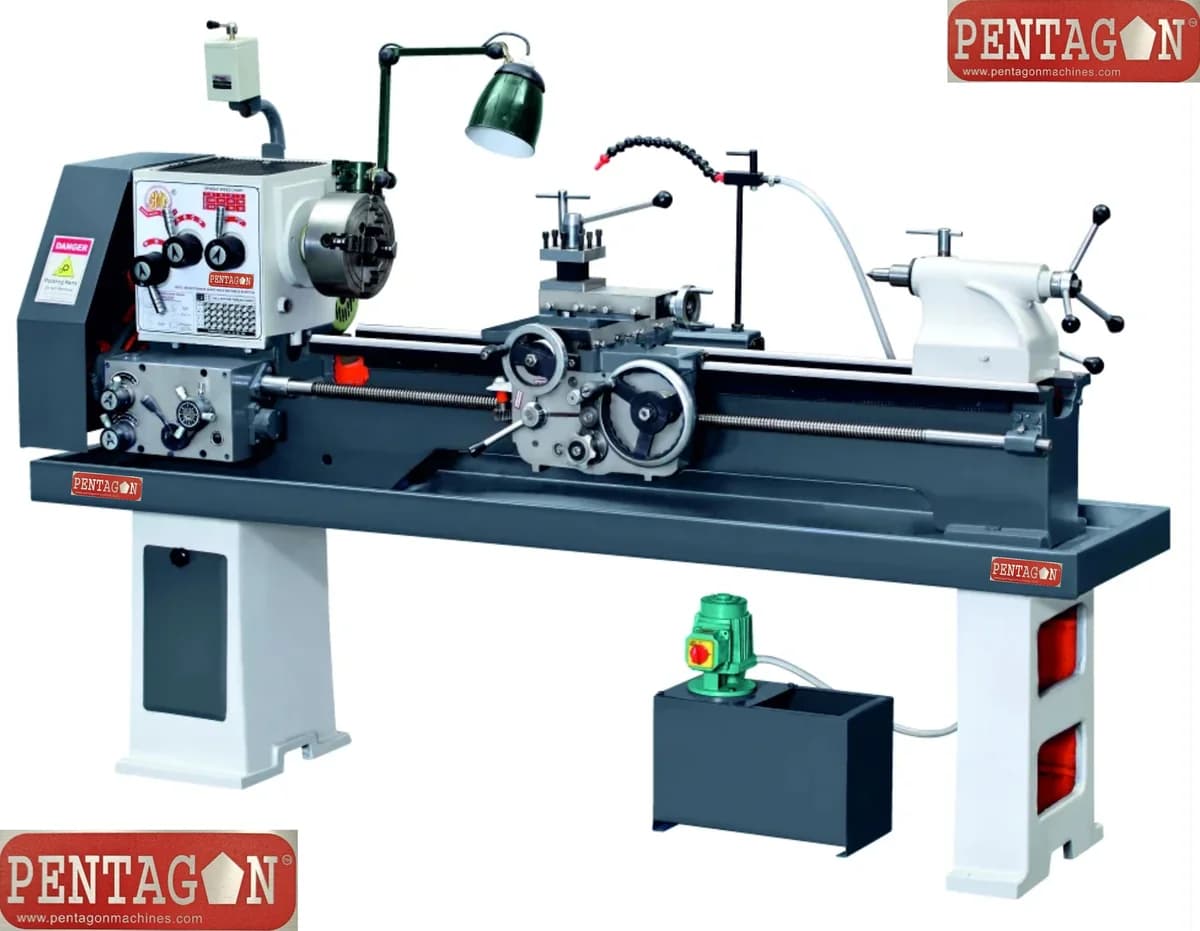

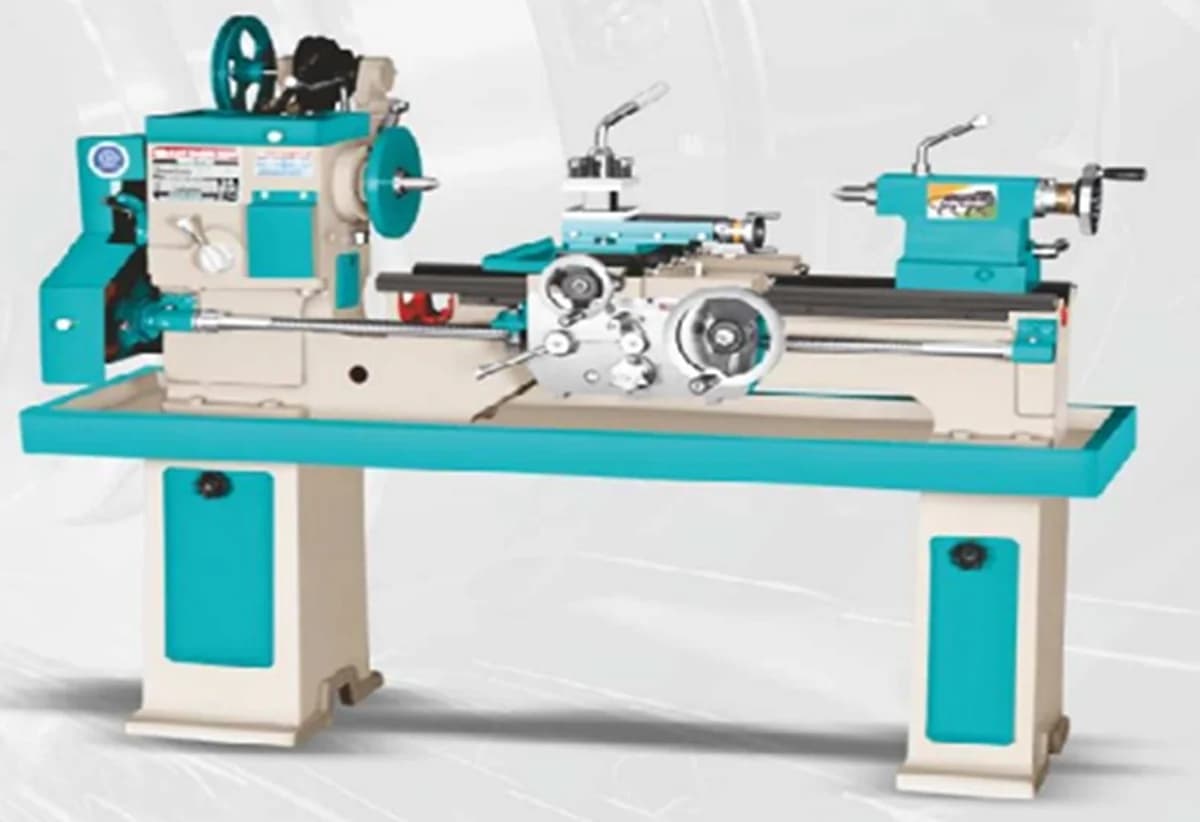

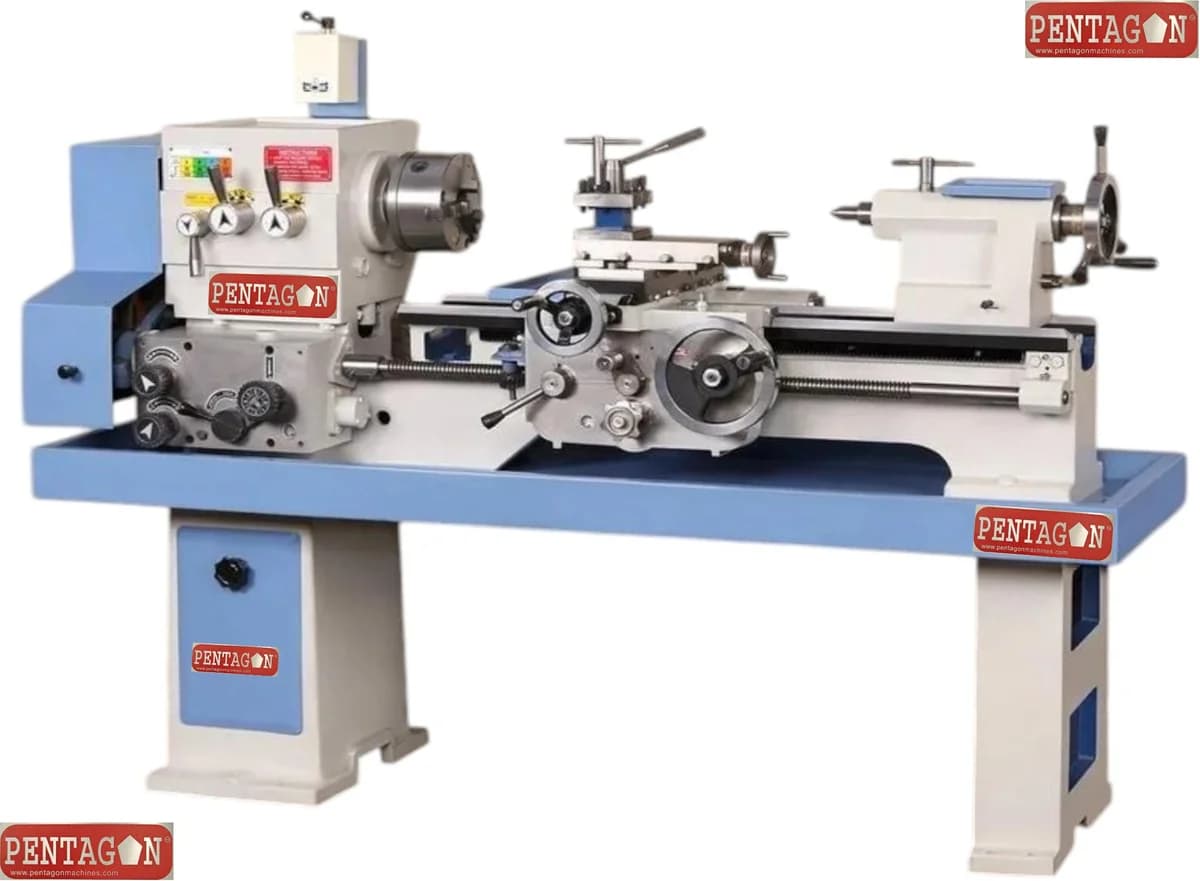

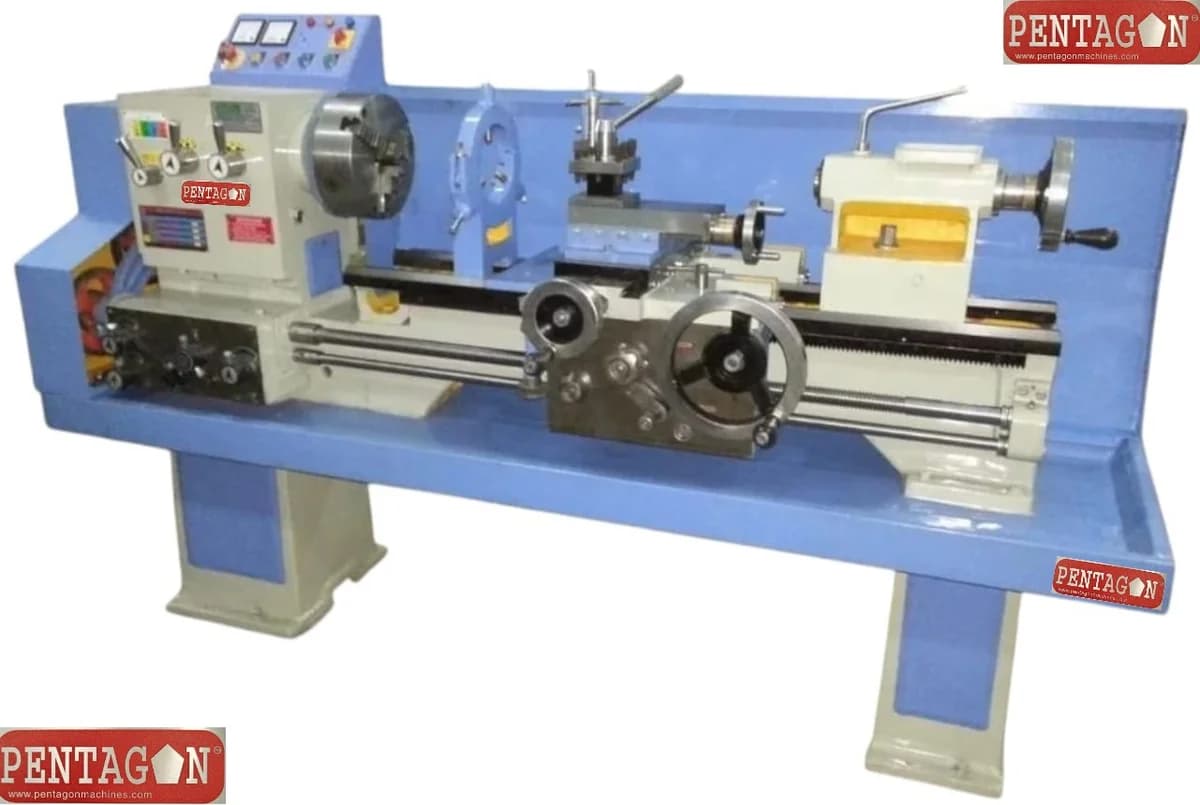

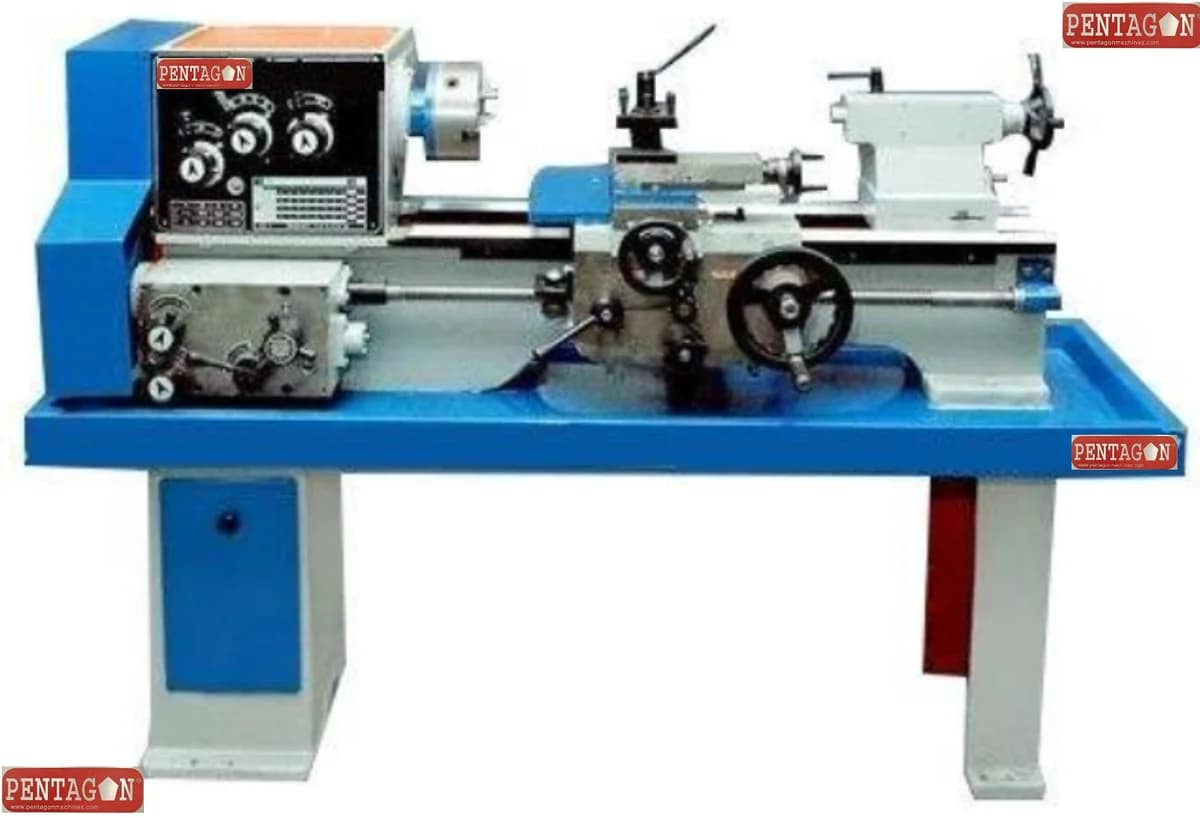

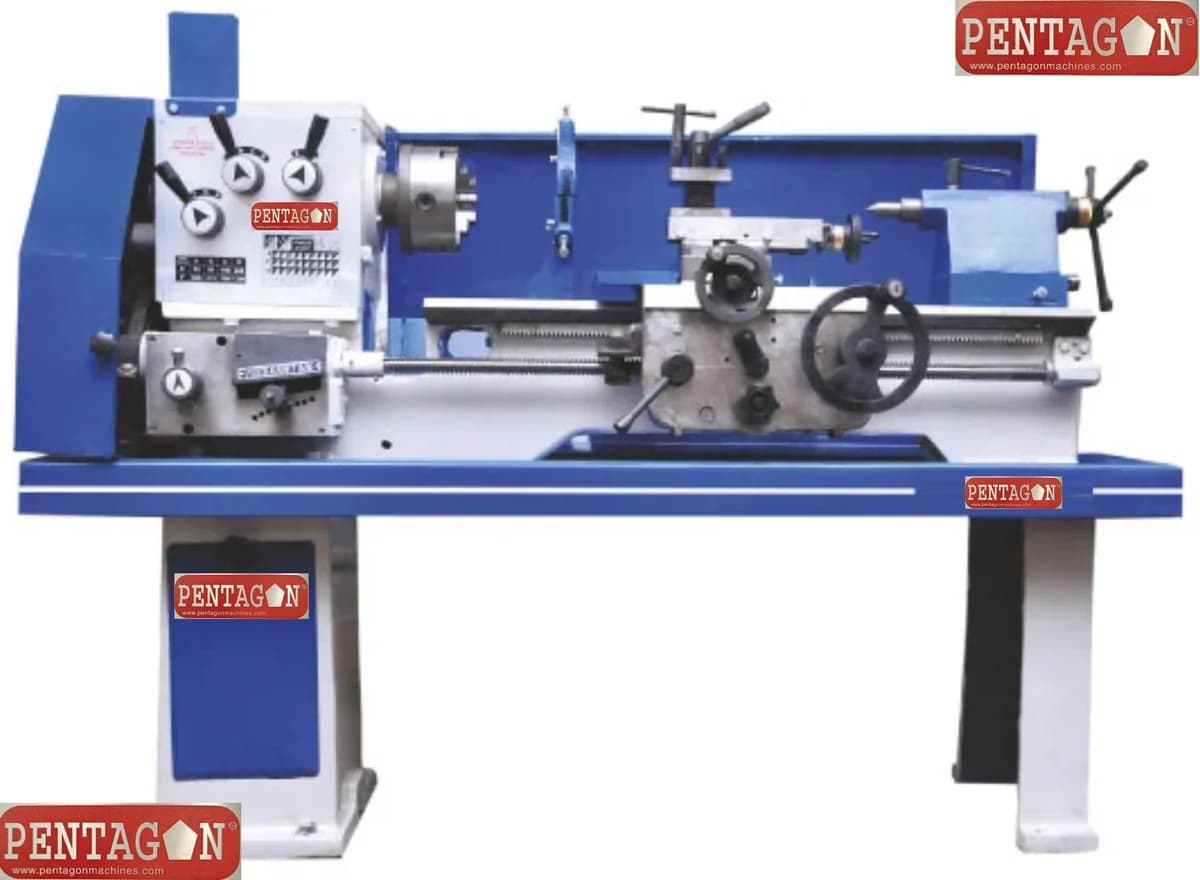

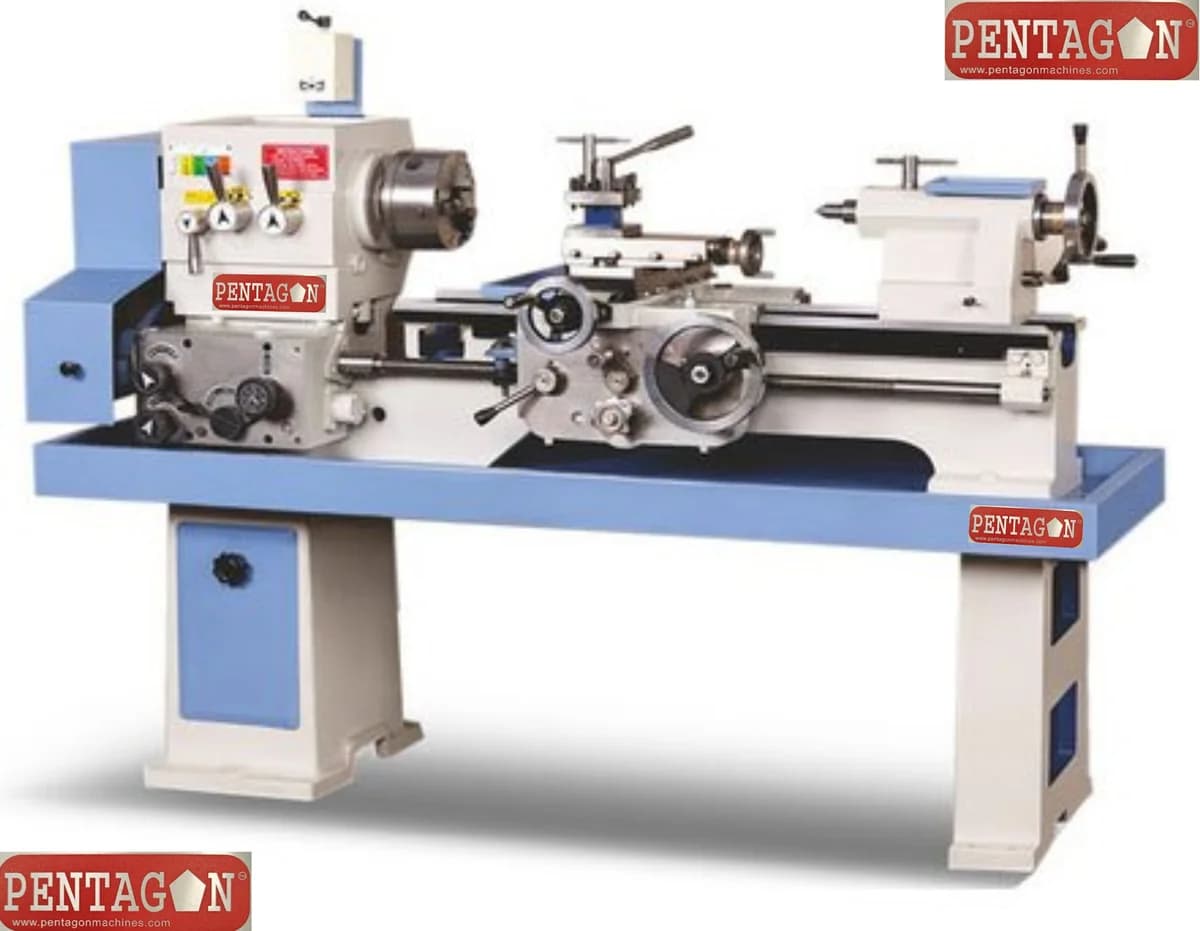

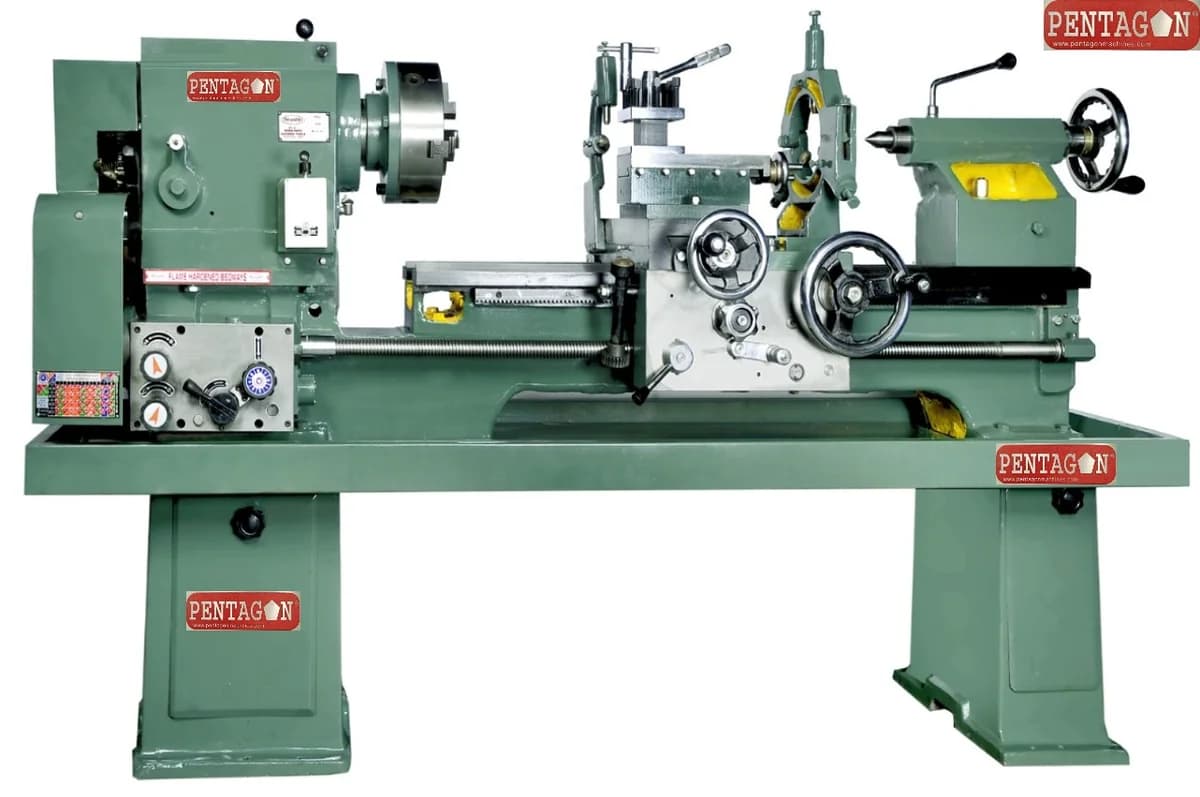

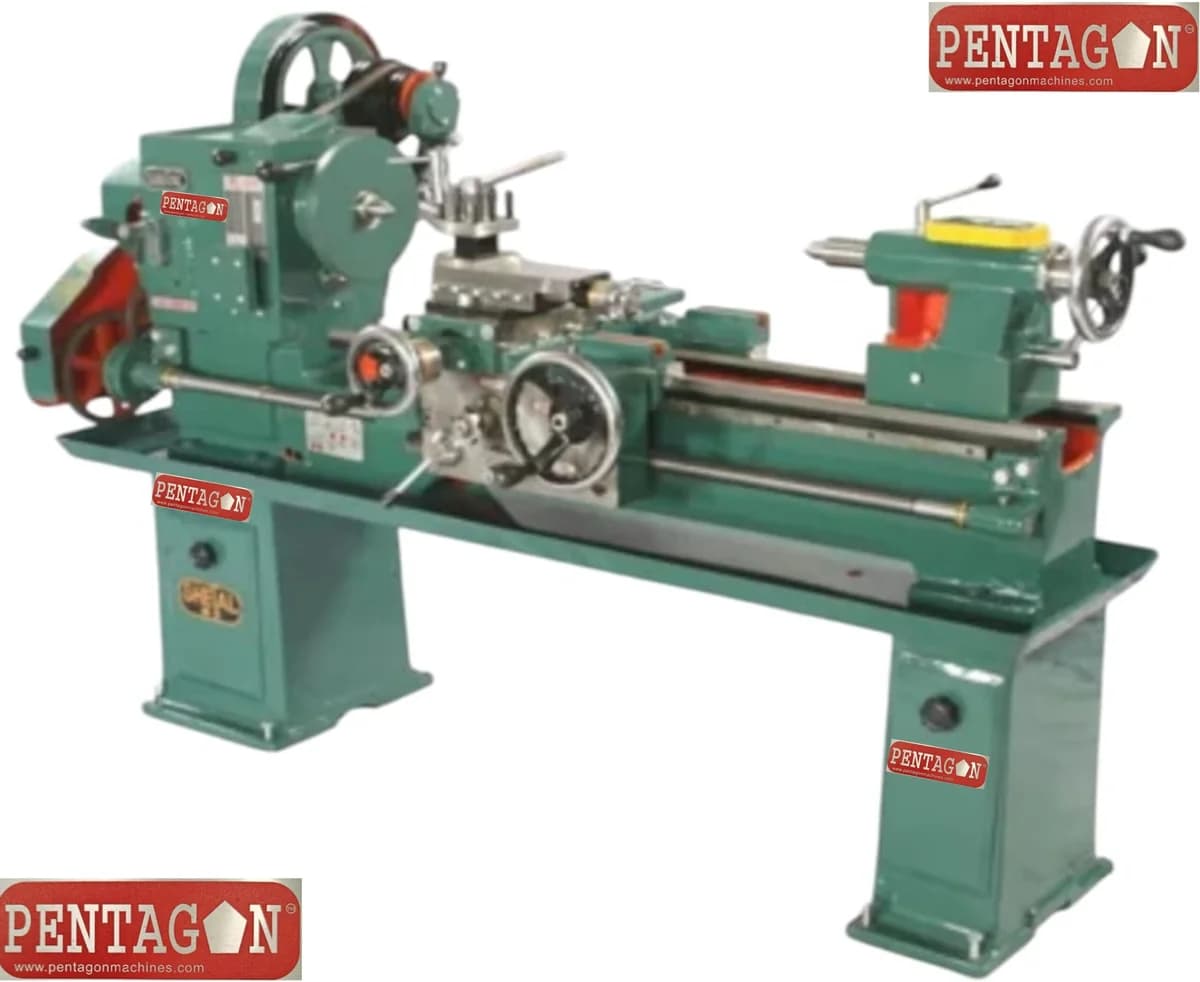

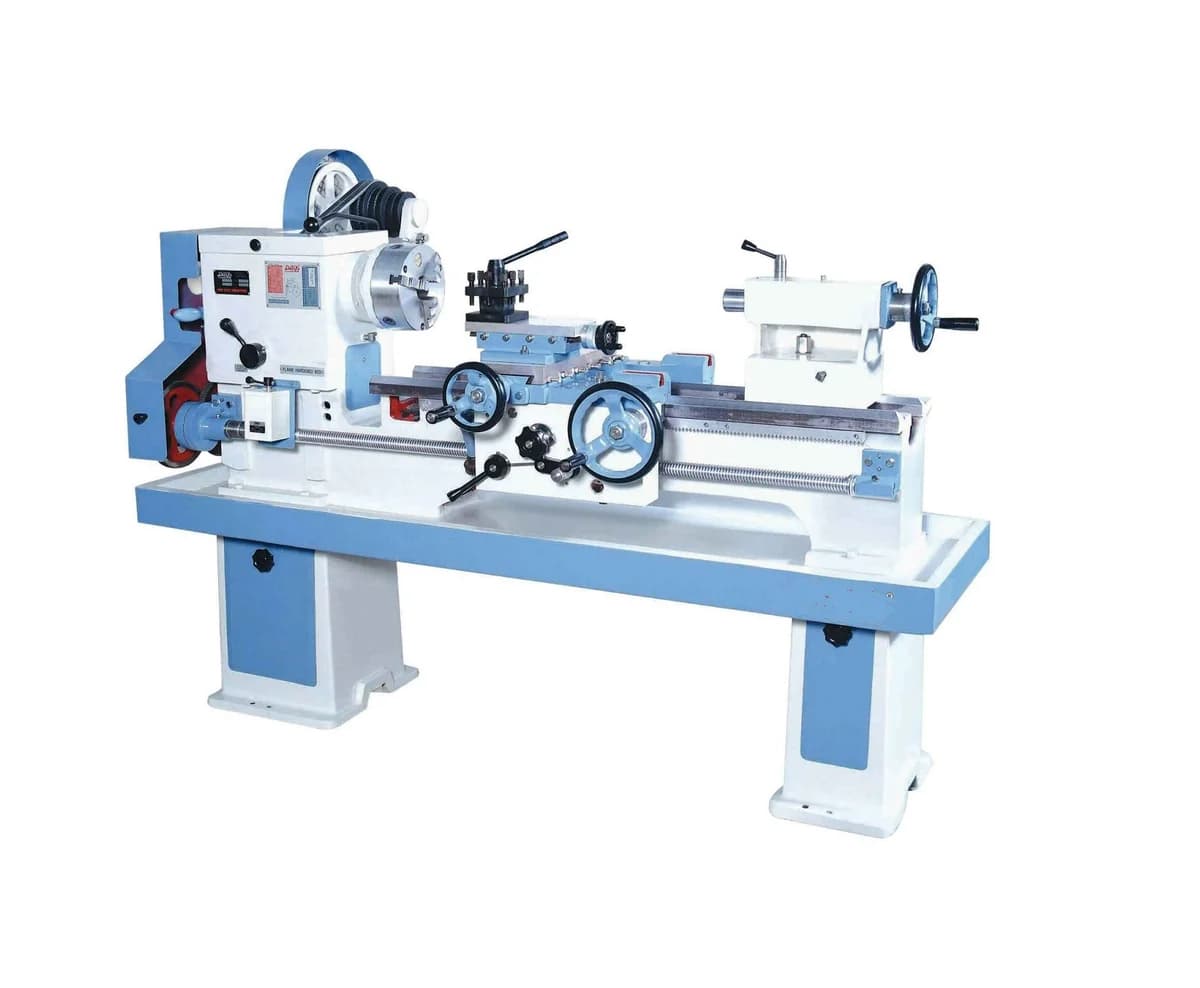

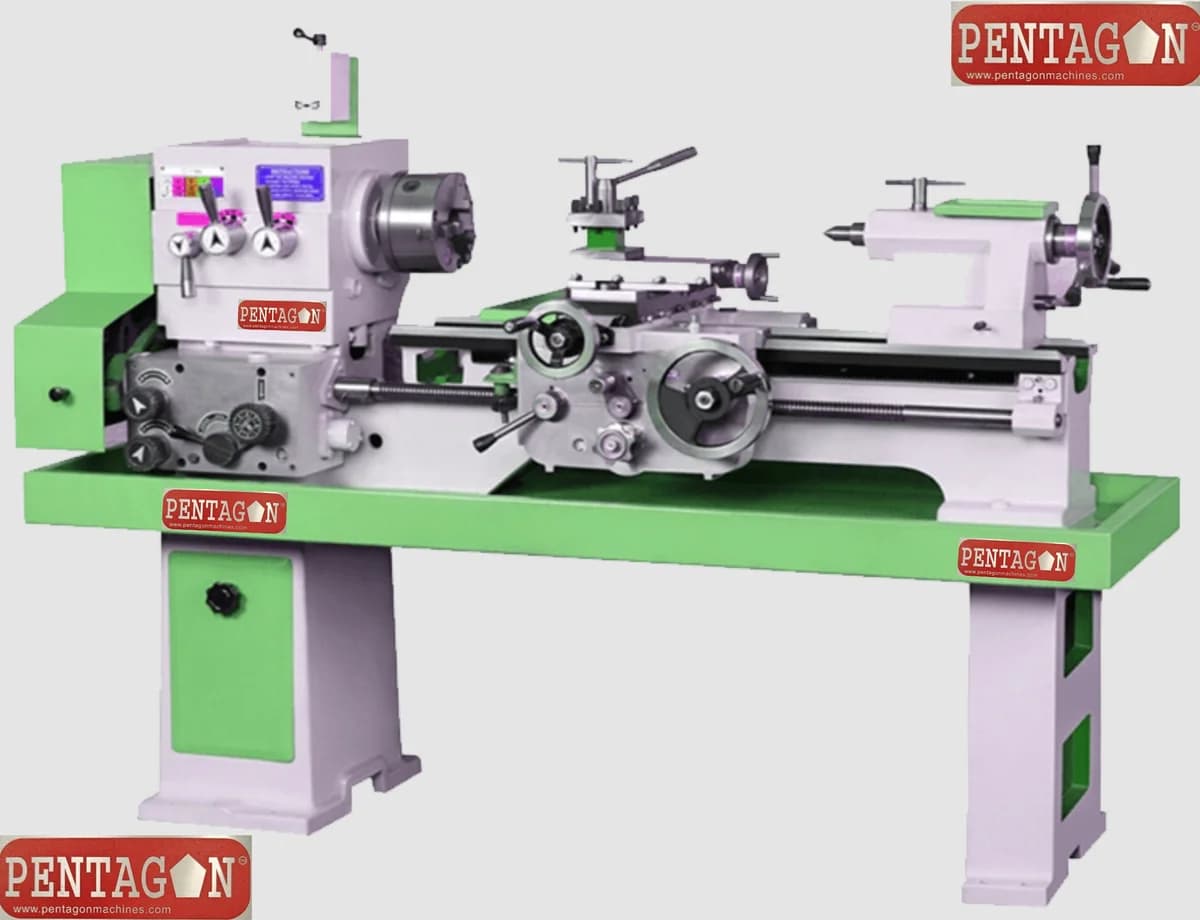

LIGHT Duty Belt Driven Lathe model 1370/4'6"
Designed for precision metal turning in small to medium workshops, these light duty belt driven lathe machines offer reliable performance for general machining tasks. Hardened bed ways provide rigidity while variable speed control ensures optimal cutting conditions. • 8 spindle speeds from 30 to 825 RPM for diverse material processing • 38mm spindle bore supports standard bar stock for continuous feed • MT5 headstock and MT3 tailstock tapers ensure compatible tooling
See it in action
Specifications
For: LDL-1370 mm (4'6)- Model
- LDL-1370 mm (4'6)
- Length of Bed
- 1370 mm (4'6
- Center Height
- 165 mm
- Max Swing Over Bed
- 320 mm
- Spindle Bore
- 38 mm
- Max Swing Over Cross Slide
- 175 mm
- Cross Slide Travel
- 225 mm
- Admit Between Centers
- 650 mm
- Type of Bed
- Hardened Bed way
- Width of Bed
- 240 mm
- Spindle Speed (RPM)
- 30-825 RPM
- No of Spindle Speed
- 8Nos
- Spindle Taper Head Stock
- MT5
- Taper of Tail Stock
- MT 3
- Lead Screw Pitch
- 4 TPI
- Weight
- 550 Kgs
Common Questions
Q: Is this suitable for heavy industrial production? A: No, this is a Light Duty machine best for light machining and maintenance tasks. Q: How is the spindle speed controlled? A: Speed is adjusted via the belt driven mechanism across 8 Nos speeds. Q: What is the maximum workpiece diameter? A: The max swing over bed is 320 mm, defining the largest diameter capacity.
Tooling & Tapers
- Spindle taper head stock utilizes MT5 standard interface
- Taper of tail stock is MT 3 for versatile accessory fitment
- Cross slide travel of 225 mm allows precise longitudinal cuts
- Spindle bore of 38 mm accommodates standard bar stock
Capacity & Dimensions
- Max swing over bed is 320 mm for larger diameter work
- Max swing over cross slide reaches 175 mm for tool clearance
- Admit between centers measures 650 mm for extended parts
- Width of bed is 240 mm for robust structural integrity
Performance & Speed
- Spindle speed ranges from 30 to 825 RPM for various materials
- 8 Nos spindle speeds provide flexible operation
- Lead screw pitch of 4 TPI supports standard threading
- Belt driven mechanism ensures smooth power transmission
Product Overview
- Light Duty Belt Driven Lathe designed for precision turning
- Model 1370 offers 1370 mm (4'6) length of bed
- Center height of 165 mm ensures stable workpiece support
- Hardened bed way construction guarantees long-term accuracy
- Compact weight of 550 Kgs facilitates workshop mobility
Standard Accessories
- Electrical Motor 1 HP 3 phase
- V belt and Switches fitted
- Chuck Plate
- Change Gear Set of ( inch and mm)
- Dead Center
- Center Adapter
- Motor Pulley
- Tool Post Key
- Chip Tray
Optional Accessories
- Coolant Pump with fitting
- Machine lamp with fitting
- Norton Gear box with fitting
- Rear Safety Guard
- Extra face plate
- Quick Change Tool Post
- 3 Jaw True chuck size
- 4 Jaw Dog chuck size
- DRO set two axis with linear scale of suitable size fitted
More questions buyers ask
What is a light-duty lathe machine used for?
A light-duty lathe machine, like the PENTAGON LDL-1370, is designed for precision metal turning, facing, and threading operations in small workshops, repair shops, and for hobbyist machinists. It's ideal for general machining tasks that don't require the power of a heavy-duty industrial machine.
What are the key specifications of the PENTAGON LDL-1370?
The key specifications include a center height of 165mm, a bed length of 1370mm (4'6''), a spindle bore of 38mm, a maximum swing over bed of 320mm, and 8 spindle speeds ranging from 30 to 825 RPM.
What is the spindle speed range of this lathe?
This lathe offers 8 different spindle speeds, ranging from a low of 30 RPM for delicate operations to a high of 825 RPM for faster material removal.
Is the bed of this lathe machine hardened?
Yes, the PENTAGON LDL-1370 features a hardened bed way, which provides excellent durability, wear resistance, and rigidity for maintaining precision over time.
What is the maximum workpiece diameter it can handle?
The maximum swing over the bed is 320mm, meaning it can accommodate workpieces up to 320mm in diameter. The maximum swing over the cross slide is 175mm.
What are the standard tapers for the headstock and tailstock?
The headstock spindle taper is MT5, and the tailstock taper is MT3. These are common standards, ensuring compatibility with a wide range of tooling and accessories.
Does this machine come with a warranty?
Yes, all PENTAGON machines come with a standard 1-year manufacturer warranty against defects. We provide full support and service for our products.
Can I get a GST invoice for my purchase?
Absolutely. We provide a proper GST invoice with every purchase, allowing you to claim Input Tax Credit (ITC) for your business.
Do you deliver across India?
Yes, we offer pan-India delivery for all our machines. Your lathe will be securely packaged and shipped to your workshop location.
What is the benefit of a belt-driven lathe?
Belt-driven lathes are known for their smooth and quiet operation. The belt system helps to absorb vibrations, which can lead to a better surface finish on the workpiece. They are also generally simpler to maintain and repair.
Who should choose the PENTAGON LDL-1370 (4'6'') model?
The PENTAGON LDL-1370 is the perfect choice for small to medium-sized workshops, technical training institutes (ITIs), and serious hobbyists who need a reliable and precise machine for general-purpose metal turning. Its 4'6'' bed length provides a good balance between compactness and capacity for a variety of projects.
