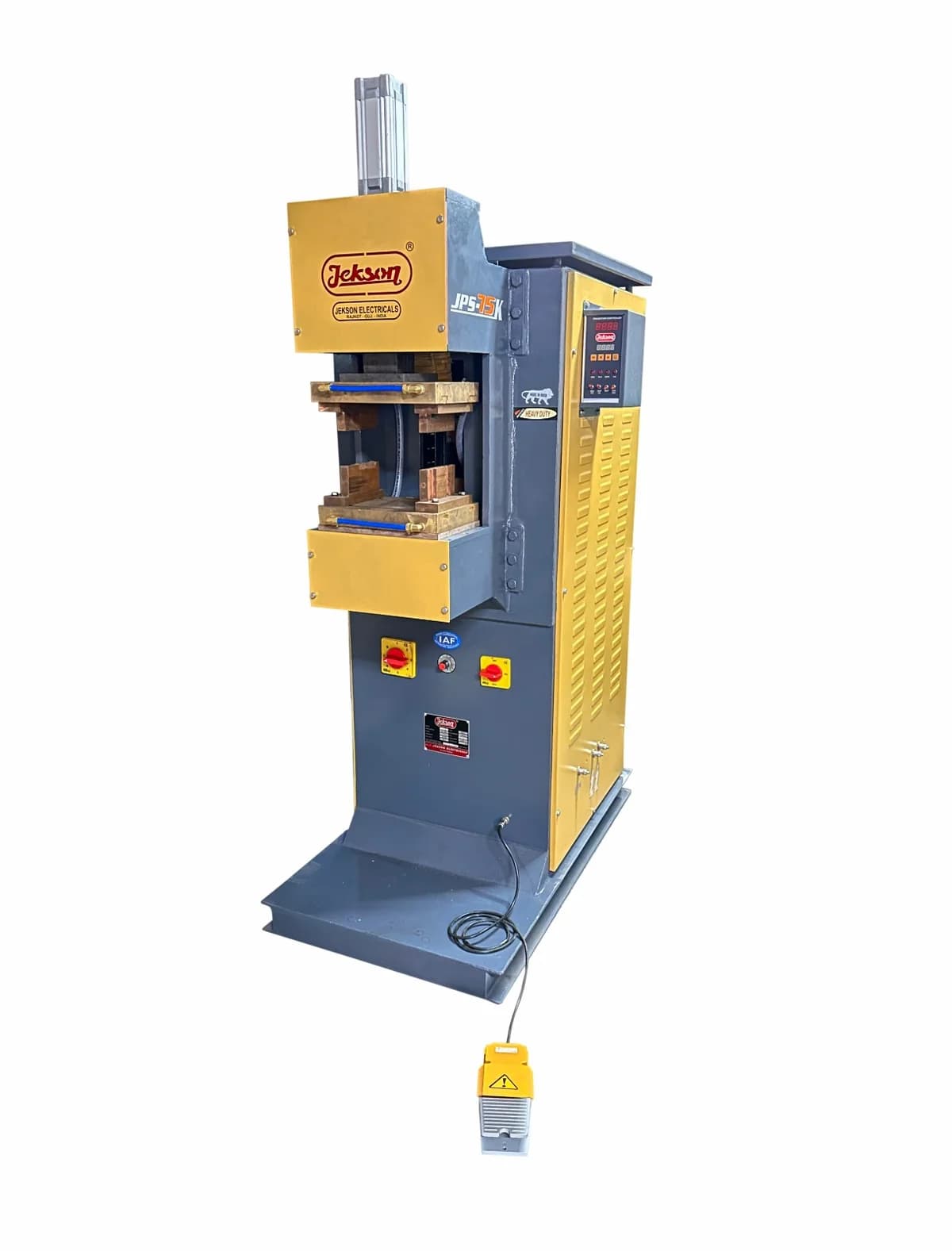

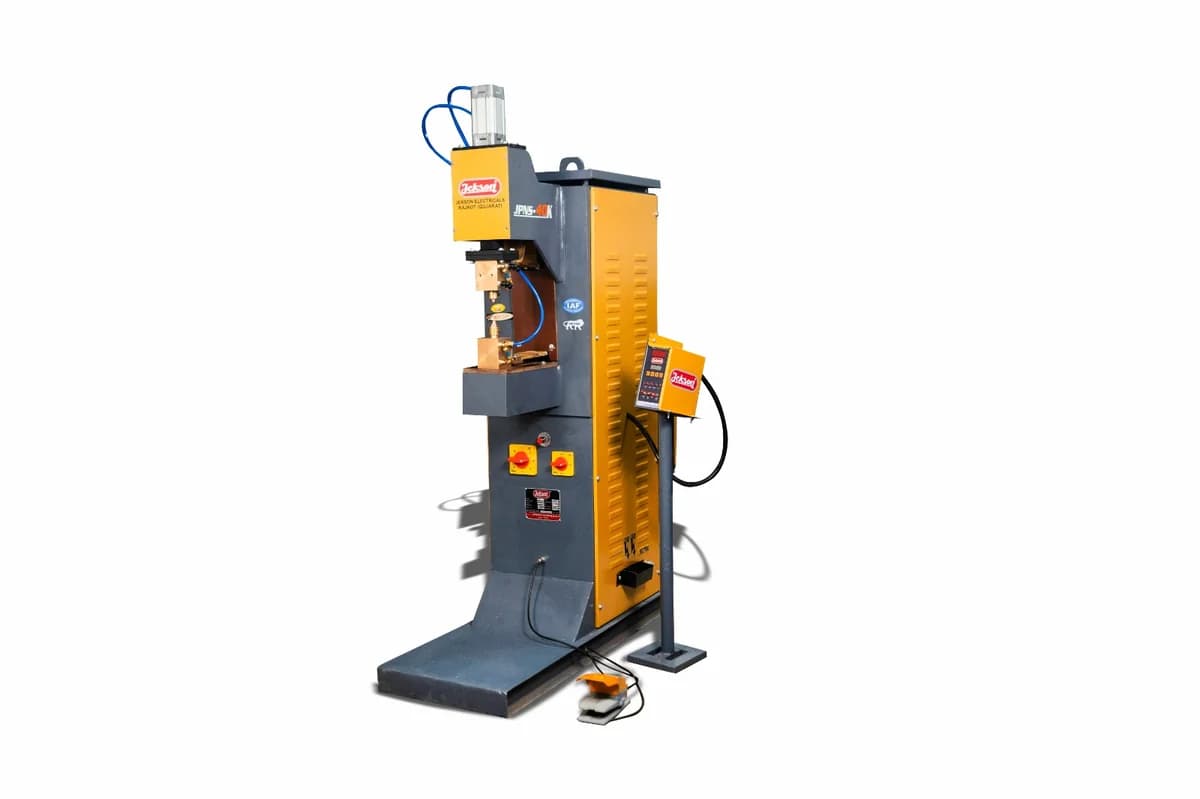

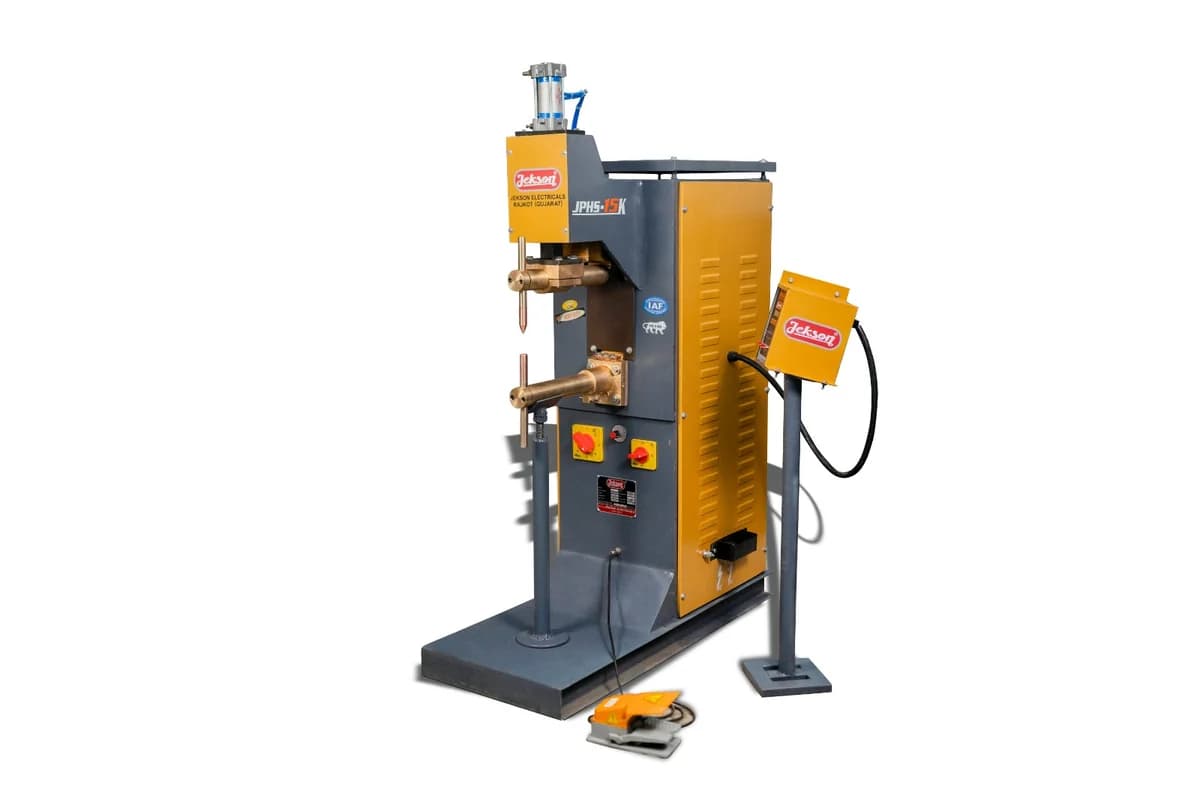

Jekson Make Pneumatic Spot Welding Machine JPHS-20K
This 20 KVA pneumatic welder provides reliable spot welding for light sheet metal tasks. It supports 220V or 380V inputs and handles thicknesses up to 1.5–2 mm. • 20 KVA input power capacity • Welds up to 1.5–2 mm thickness • 50 Hz frequency operation • Ideal for general fabrication
Specifications
For: JPHS-20K- Rated Capacity
- 20 KVA
- Duty Cycle
- 50%
- Throat Depth
- 460 mm
- Throat Clearance
- 220 mm
- Mild Steel Welding Capacity
- 0.64 + 0.64 mm
- Stainless Steel Welding Capacity
- 0.64 + 0.64 mm
- Maximum Short Circuit Current
- 9,000 A
- Cooling
- Water Cooled
- Air Pressure
- 1–3 kg/cm²
- Supply Voltage
- 415V AC (±10%)
- Phase
- 2
- Frequency
- 50/60 Hz
- Copper Cable Size
- 6 mm²
- Main Disconnect Switch
- 50 A
Configurations
Click a row to switch| Variant | Rated Capacity | Stainless Steel Welding Capacity | Maximum Short Circuit Current | Throat Clearance | Price |
|---|---|---|---|---|---|
| JPHS-20K | 20 KVA | 0.64 + 0.64 mm | 9,000 A | 220 mm | ₹1,49,600 |
| JPHS-25K | 25 KVA | 0.64 + 0.64 mm | 10,000 A | 220 mm | ₹1,90,400 |
| JPHS-30K | 30 KVA | 1.2 + 1.2 mm | 12,000 A | 220 mm | ₹2,17,600 |
| JPHS-35K | 35 KVA | 1.4 + 1.4 mm | 13,000 A | 220 mm | ₹2,38,000 |
| JPHS-40K | 40 KVA | 1.6 + 1.6 mm | 14,000 A | 220 mm | ₹2,85,600 |
| JPHS-50K | 50 KVA | 2.0 + 2.0 mm | 16,000 A | 350 mm | ₹3,19,600 |
Safety & Maintenance
- Safety Focused Design prioritizes operator protection during use
- Simple controls enable quick setup for operators with varying skill levels
- Optimized power usage contributes to lower long-term operational expenses
- Consistent weld quality reduces scrap rates and rework requirements
- Built-in safety features ensure compliance with industrial safety standards
Construction & Durability
- Heavy-duty structure ensures durability in continuous industrial environments
- Reliable components reduce downtime and servicing cost significantly
- Robust Build Quality withstands harsh industrial conditions safely
- Stable performance minimizes vibration and noise during operation
- Compact footprint allows efficient placement within crowded workshops
Power & Capacity
- Input Power is optimized for 20 KVA energy consumption
- Voltage compatibility supports 220V / 380V industrial standards
- Frequency operates at 50 Hz for stable electrical performance
- Welding Thickness capability reaches up to 1.5–2 mm
- Designed for efficient power usage in continuous operations
Welding Performance
- Designed for fast, accurate, and consistent welding of sheet metals
- Uses pneumatic pressure and resistance welding technology for strong joints
- Ensures high productivity with minimal distortion during operations
- Ideal for sheet metal fabrication and automotive component manufacturing
- Suitable for heavy-duty industrial applications requiring reliability
Key Features
- Pneumatic Pressure System ensures uniform force for consistent weld quality
- High Welding Efficiency supports fast operation in mass production
- Robust Build Quality features heavy-duty structure for long-lasting performance
- Precise Welding Control allows accurate current and pressure management
- Low Maintenance Design uses reliable components to reduce servicing cost
- Energy Efficient Operation optimizes power usage for cost-effective performance
- User-Friendly Operation provides simple controls for easy handling and setup
- Stable Performance delivers consistent output during continuous usage
- Compact & Space Saving design fits efficiently in industrial workspaces
- Safety Focused Design includes built-in features for operator protection
More questions buyers ask
What is the Jekson Pneumatic Spot Welding Machine used for?
It is an advanced industrial welding solution designed for fast, precise, and consistent spot welding operations, ideal for sheet metal fabrication, automotive components, and heavy-duty industrial applications.
How does a pneumatic spot welding machine work?
It uses pneumatic pressure combined with resistance welding technology to ensure uniform weld quality and strong joints with minimal distortion.
What materials can be welded using this machine?
This machine is primarily designed for welding various types of sheet metals used in industrial and automotive fabrication.
What is the frequency of the Jekson Spot Welding Machine?
All variants of the Jekson Pneumatic Spot Welding Machine operate at a stable frequency of 50 Hz.
Does the machine require a specific voltage to operate?
The 20 KVA, 25 KVA, and 30 KVA models support 220V / 380V, while the higher capacity 35 KVA, 40 KVA, and 50 KVA models operate strictly on 380V industrial standards.
Is this machine suitable for automotive component manufacturing?
Yes, its fast, accurate, and consistent welding performance makes it highly suitable for automotive component manufacturing.
What are the safety features of the Jekson Pneumatic Spot Welder?
The machine features a safety-focused design that prioritizes operator protection, along with simple controls for quick and safe setup.
How does pneumatic pressure improve weld quality?
Pneumatic pressure ensures consistent and uniform force during the welding process, which reduces scrap rates, minimizes rework, and creates stronger joints.
Can this machine be used for continuous industrial operations?
Yes, it has a heavy-duty structure and robust build quality designed to withstand harsh industrial conditions and continuous use.
Does the machine come with a warranty?
Yes, it comes with a standard manufacturer warranty to ensure reliable performance and peace of mind.
Is pan-India delivery available for this welding machine?
Yes, we offer secure pan-India delivery for all Jekson Pneumatic Spot Welding Machines.
Can I get a GST invoice for my purchase?
Absolutely, a B2B GST invoice is provided with every purchase for seamless input tax credit claims.
Who should choose the 20 KVA Jekson Pneumatic Spot Welding Machine?
The 20 KVA model is ideal for light sheet metal fabrication, offering precise welding for thicknesses up to 1.5-2 mm.
Who should choose the 25 KVA Jekson Pneumatic Spot Welding Machine?
Choose the 25 KVA model for medium-duty applications, providing reliable spot welding for metal sheets up to 2-2.5 mm thick.
Who should choose the 30 KVA Jekson Pneumatic Spot Welding Machine?
The 30 KVA model is perfect for industrial fabrication requiring enhanced power, capable of welding materials up to 2.5-3 mm in thickness.
Who should choose the 35 KVA Jekson Pneumatic Spot Welding Machine?
The 35 KVA model is designed for heavier industrial tasks, operating on 380V and handling metal thicknesses up to 3-4 mm.
Who should choose the 40 KVA Jekson Pneumatic Spot Welding Machine?
The 40 KVA model is a robust solution for heavy-duty automotive and structural components up to 4-5 mm thick.
Who should choose the 50 KVA Jekson Pneumatic Spot Welding Machine?
For maximum power and performance, the 50 KVA model is the ultimate choice for heavy industrial welding up to 5-6 mm.
What is the difference between the 20 KVA and 50 KVA models?
The 20 KVA model is designed for lighter tasks (up to 1.5-2 mm thickness) and supports 220V/380V, whereas the 50 KVA model is built for heavy-duty welding (up to 5-6 mm thickness) and requires a 380V power supply.
Should I choose a 220V/380V compatible model or a strictly 380V model?
If you need flexibility in power supply and are working with thinner materials (up to 3 mm), the 220V/380V models (20-30 KVA) are ideal. For thicker materials (up to 6 mm), you will need the strictly 380V models (35-50 KVA).
How does the welding thickness capability vary across the different KVA models?
Welding thickness capacity increases with the KVA rating: 20 KVA handles 1.5-2 mm, 25 KVA handles 2-2.5 mm, 30 KVA handles 2.5-3 mm, 35 KVA handles 3-4 mm, 40 KVA handles 4-5 mm, and 50 KVA handles 5-6 mm.
