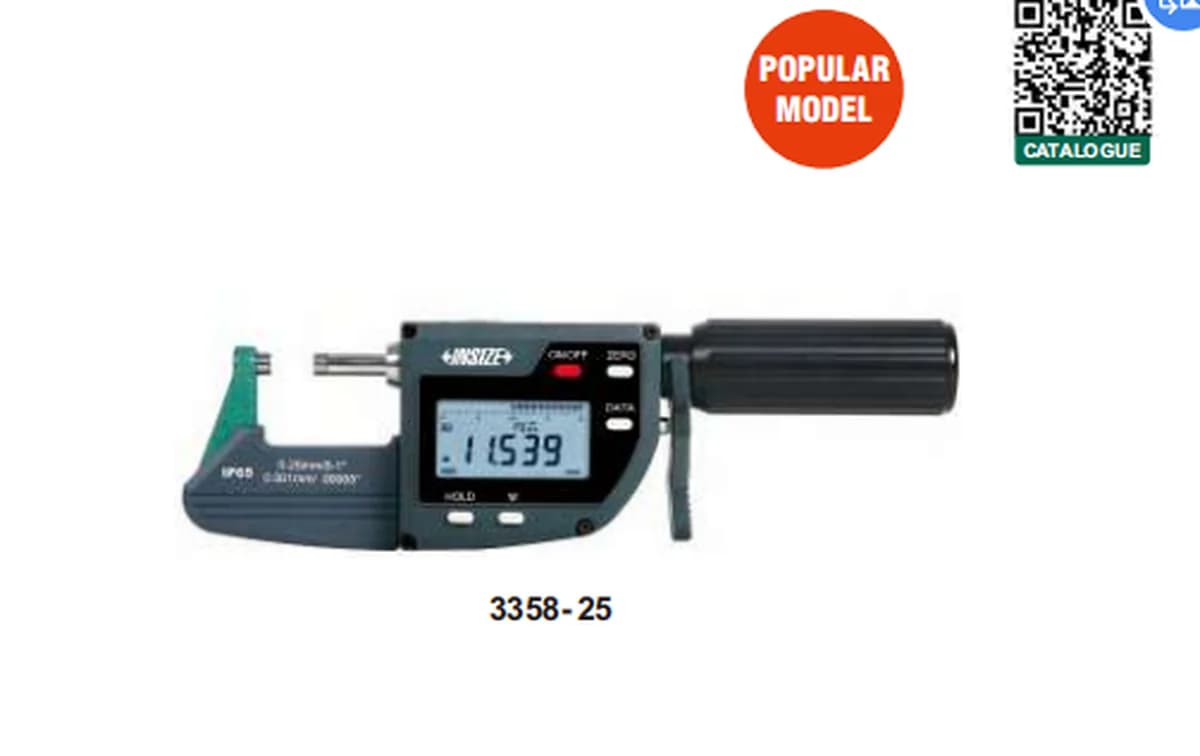

DIGITAL MICROMETERS (BASIC TYPE) — 3358-25
Digital Micrometers / Snap Gauges (Basic Type) – Description: Precision measuring instruments used for quick and accurate external dimension checks, featuring a digital display for easy reading, high repeatability, and fast measurement in production and inspection applications.
Specifications
For: 3358-25- Range
- 0-25mm/0-1"
- Resolution
- 0.001mm/0.00005
- Type
- Digital Micrometer
- Display
- LCD Digital Display
- Accuracy
- ±2–5 microns
- Measuring Force
- Constant force (ratchet/friction)
- Data Output
- Optional (SPC/USB)
- Power Supply
- Battery operated (Button cell)
- Protection
- IP54 (basic splash/dust resistance)
- Code
- 0
Configurations
Click a row to switch| Variant | Resolution | Range | Price |
|---|---|---|---|
| 3358-25 | 0.001mm/0.00005 | 0-25mm/0-1" | ₹12,397 |
| 3358-50 | 0.001mm/0.00005 | 25-50mm/1-2" | ₹14,856 |
| 3358-75 | 0.001mm/0.00005 | 50-75mm/2-3" | ₹17,563 |
| 3358-100 | 0.001mm/0.00005 | 75-100mm/3-4" | ₹19,338 |
| 3358-25AWL | 0.001mm/0.00005 | 0-25mm/0-1 | ₹16,632 |
| 3358-50AWL | 0.001mm/0.00005 | 25-50mm/1-2 | ₹19,226 |
| 3358-75AWL | 0.001mm/0.00005 | 50-75mm/2-3" | ₹23,897 |
| 3358-100AWL | 0.001mm/0.00005 | 75-100mm/3-4 | ₹25,901 |
Maintenance & Care
- Store in protective cases to prevent dust accumulation on the measuring faces
- Clean measuring surfaces with a soft cloth before and after each use
- Avoid dropping or striking the instrument to preserve internal calibration
- Regular calibration checks are recommended to maintain measurement integrity
- Handle with care to prevent damage to the digital display unit
Durability & Construction
- Built with robust materials to withstand frequent handling in industrial environments
- Designed to maintain accuracy despite exposure to typical shop floor conditions
- Ergonomic design reduces operator fatigue during extended measurement sessions
- Stable frame construction ensures consistent contact pressure for reliable results
- Resistant to wear and tear common in high-volume production settings
Industrial Applications
- Ideal for quality control departments in automotive and aerospace manufacturing
- Supports machining shops requiring precise external measurement of shafts and pins
- Used in assembly lines for rapid go-no-go verification of critical components
- Suitable for toolrooms where frequent calibration and dimension checks are needed
- Effective for precision engineering tasks requiring reliable dimensional data
Measurement Resolution & Display
- High-resolution digital readout supports 0.001mm/0.00005 increments
- Digital Micrometer type ensures rapid data acquisition for workflow efficiency
- Suitable for verifying external dimensions with minimal setup time
- Optimized for users requiring immediate visual feedback on tolerance levels
- Basic type design prioritizes core measurement functions for general use
Product Overview & Key Features
- Precision measuring instruments designed for quick and accurate external dimension checks
- Features a clear digital display for easy reading and reduced human error
- Ensures high repeatability essential for consistent production quality control
- Enables fast measurement cycles in both production and inspection applications
- Available in basic type configurations to suit standard metrology requirements
More questions buyers ask
What is the resolution of the Insize 3358 digital micrometer?
The Insize 3358 digital micrometer has a resolution of 0.001mm/0.00005 inches.
What is the measuring force of the Insize 3358?
The measuring force is between 5-10 N.
Does the Insize 3358 come with a warranty?
Yes, it comes with a 1-year manufacturer warranty.
Is a GST invoice available for the Insize 3358?
Yes, a GST invoice is available for all purchases.
Do you offer pan-India delivery?
Yes, we offer pan-India delivery for the Insize 3358 digital micrometer.
What is the accuracy of the Insize 3358 series?
The accuracy varies by model, ranging from ±2µm for the 0-50mm models to ±3µm for the 50-100mm models.
What is included with the Insize 3358 micrometer?
The Insize 3358 micrometer typically includes a protective case and a setting standard for models above 25mm.
What are the main applications for the Insize 3358 micrometer?
It is ideal for precise external measurements in quality control, machining, and automotive/aerospace manufacturing.
What is the difference between the standard and AWL models?
The 'AWL' models typically feature a data interface for wireless or cabled data output.
How do I care for my Insize 3358 micrometer?
Clean the measuring faces before and after use, store it in its case, and avoid dropping it. Regular calibration is recommended.
Who should choose the Insize 3358-25 (0-25mm) model?
The 3358-25 is ideal for workshops and quality inspectors measuring small, high-precision parts and components.
Who should choose the Insize 3358-50 (25-50mm) model?
This model is suited for measuring medium-sized components, such as shafts and bearings, where precision is critical.
Who should choose the Insize 3358-75 (50-75mm) model?
The 3358-75 is designed for larger applications in automotive or industrial manufacturing that require accurate measurements up to 75mm.
Who should choose the Insize 3358-100 (75-100mm) model?
This is the best choice for heavy engineering and large component manufacturing where dimensions up to 100mm need to be verified with high accuracy.
Who should choose the Insize 3358-25AWL model?
Choose the 3358-25AWL for applications requiring digital data output for SPC (Statistical Process Control) on small components.
Who should choose the Insize 3358-50AWL model?
The 3358-50AWL is perfect for modern workshops that need to digitally record measurements of medium-sized parts for quality assurance.
Who should choose the Insize 3358-75AWL model?
This model is for industrial settings that require data logging for larger parts, streamlining the quality control process.
Who should choose the Insize 3358-100AWL model?
The 3358-100AWL is essential for advanced manufacturing and quality control of large components where digital measurement records are mandatory.
What is the main difference between the 3358-25 and 3358-50 models?
The primary difference is the measurement range: 0-25mm for the 3358-25 and 25-50mm for the 3358-50. Choose based on the size of the components you typically measure.
How does the 3358-100 compare to the 3358-75?
The 3358-100 offers a larger measurement range of 75-100mm compared to the 50-75mm range of the 3358-75, making it suitable for bigger parts.
Should I get a standard model or an AWL model?
Choose an AWL model if you need to transfer measurement data to a computer or data logger for record-keeping and analysis. If you only need to read the measurement on the screen, the standard model is sufficient.
