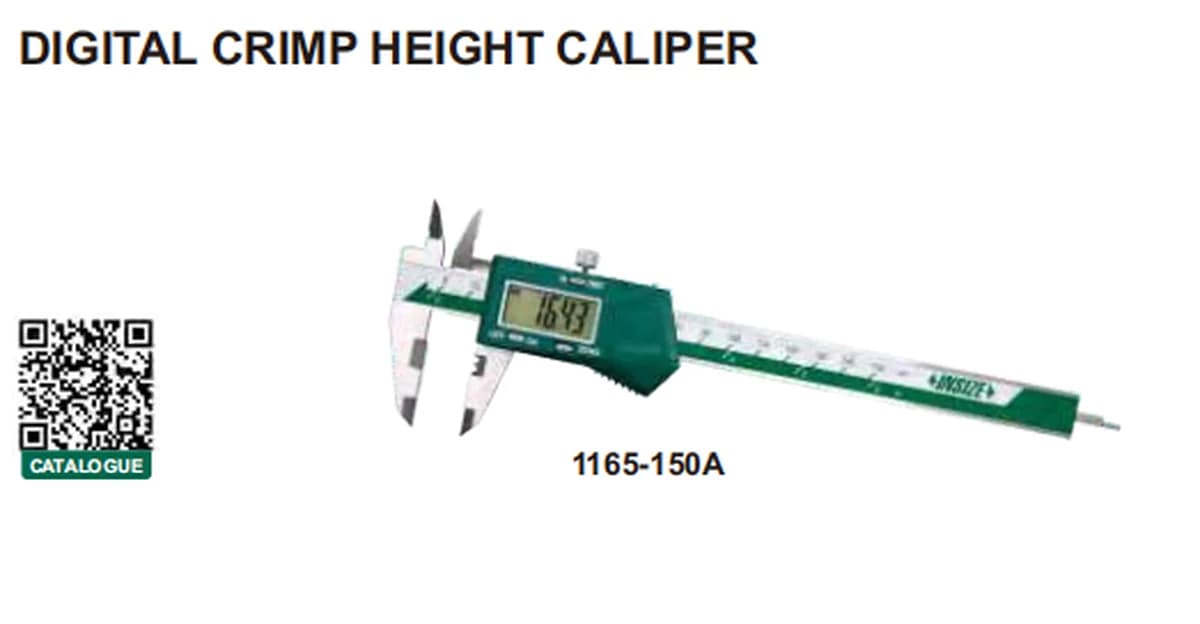

DIGITAL CRIMP HEIGHT CALIPER
A Digital Crimp Height Caliper is a precision measuring instrument designed to accurately measure the crimp height of terminals in electrical connectors. It features a high-resolution digital display that provides quick and error-free readings, ensuring consistent quality control in wire crimping applications. The caliper is typically equipped with specially designed jaws to access and measure crimped areas precisely, even in tight spaces. Made from hardened stainless steel, it offers durability, smooth operation, and long service life. Ideal for use in automotive, electronics, and manufacturi
Specifications
For: 1165-150A- Type
- Gear tooth Caliper
- Measurement Range
- Defines internal groove measuring capacity (e.g., 10–150 mm)
- Resolution
- 0.01mm
- Accuracy
- Typically ±0.03 mm to ±0.05 mm
- Display
- Large LCD digital display
- Material
- Hardened stainless steel construction
- Auto Power Off
- Saves battery when idle
- Protection Rating
- IP54 (dust & splash resistant, if available)
- Usage
- Industrial, machining, inspection, QC
- Range
- 0 - 150 mm
- Graduation
- 0. MM
Maintenance & Usage Guidelines
- Clean instrument regularly to maintain measurement accuracy
- Store in protective case to prevent damage to measuring jaws
- Check battery levels periodically to avoid power interruptions
- Avoid dropping the device to protect internal sensors
- Calibrate periodically to ensure ongoing precision standards
Operational Efficiency
- Simplifies gear inspection compared to standard calipers
- Reduces measurement errors during pitch circle verification
- Supports high-volume production line quality checks
- Versatile tool for various gear types and manufacturing stages
- Enhances workflow speed in machining and QC departments
Robust Construction & Design
- Hardened stainless steel construction for long-term durability
- Large LCD digital display for easy reading in low light
- Auto Power Off feature saves battery when instrument is idle
- Protection Rating IP54 ensures dust and splash resistance
- Suitable for industrial, machining, and inspection environments
- Ergonomic design facilitates handling during precise measurements
Precision Measurement Capabilities
- Measures chordal thickness and depth of gear teeth
- Dual-scale system allows simultaneous tooth thickness measurement
- Measures distance from top of gear tooth accurately
- Resolution of 0.01mm ensures high precision readings
- Accuracy typically ±0.03 mm – ±0.05 mm for reliability
- Graduation scale supports detailed inspection workflows
- Designed for gear manufacturing and quality control tasks
Frequently asked
What is the primary use of this caliper?
Measuring chordal thickness and depth of gear teeth
Is the device resistant to workshop contaminants?
Yes, it features an IP54 protection rating for dust and splash
How precise are the digital readings?
Resolution is 0.01mm with accuracy typically ±0.03 mm to ±0.05 mm
More questions buyers ask
What is the primary use of the Insize Digital Crimp Height Caliper?
The Insize Digital Crimp Height Caliper is primarily used for accurately measuring the crimp height of terminals in electrical connectors, ensuring consistent quality control in wire crimping applications.
What is the measuring range of this Insize caliper?
This digital crimp height caliper has a measuring range of 0 to 150 mm (0 to 6 inches).
What is the resolution of the Insize 1165-150A caliper?
The caliper features a high-resolution digital display with a resolution of 0.01 mm (0.0005 inches).
Is the Insize digital crimp height caliper water and dust resistant?
Yes, it features an IP54 protection rating, making it resistant to dust and splashes, which is ideal for workshop environments.
What material is the Insize crimp height caliper made of?
The caliper is constructed from hardened stainless steel, ensuring long-term durability and resistance to wear.
Does the caliper have an auto power-off feature?
Yes, it includes an auto power-off feature that saves battery life when the instrument is idle. Moving the digital unit turns the power back on.
What type of battery does the Insize digital caliper use?
The Insize digital crimp height caliper typically uses a standard CR2032 battery.
Can this caliper measure in both metric and imperial units?
Yes, the digital display allows for easy conversion between millimeters and inches with the push of a button.
Is this caliper suitable for measuring gear teeth?
Yes, it can also be used as a gear tooth caliper to measure chordal thickness and the depth of gear teeth.
Does the Insize 1165-150A come with a data output interface?
Yes, the 1165-150A model features a data interface for easy recording and transfer of measurement data.
How accurate is the Insize digital crimp height caliper?
The caliper offers high precision with an accuracy typically ranging from ±0.03 mm to ±0.05 mm.
Who should choose the Insize 1165-150A variant?
The Insize 1165-150A is ideal for quality control inspectors, wire harness manufacturers, and machinists who require precise crimp height measurements up to 150mm with digital data output capabilities.
How does a digital crimp height caliper compare to a standard digital caliper?
A crimp height caliper features specially designed jaws to access and measure crimped areas precisely, even in tight spaces, whereas standard calipers have flat jaws that may not fit into crimp indentations.
Why choose a digital caliper over an analog dial caliper for crimp height?
Digital calipers provide quicker, error-free readings with higher resolution, easy unit conversion, and often include data output features for quality control logging, which analog calipers lack.
What is the difference between IP54 and IP67 rated calipers?
IP54 rated calipers are protected against dust and splashing water, suitable for most workshops. IP67 rated calipers offer higher protection, being completely dust-tight and capable of withstanding temporary immersion in water or coolant.
