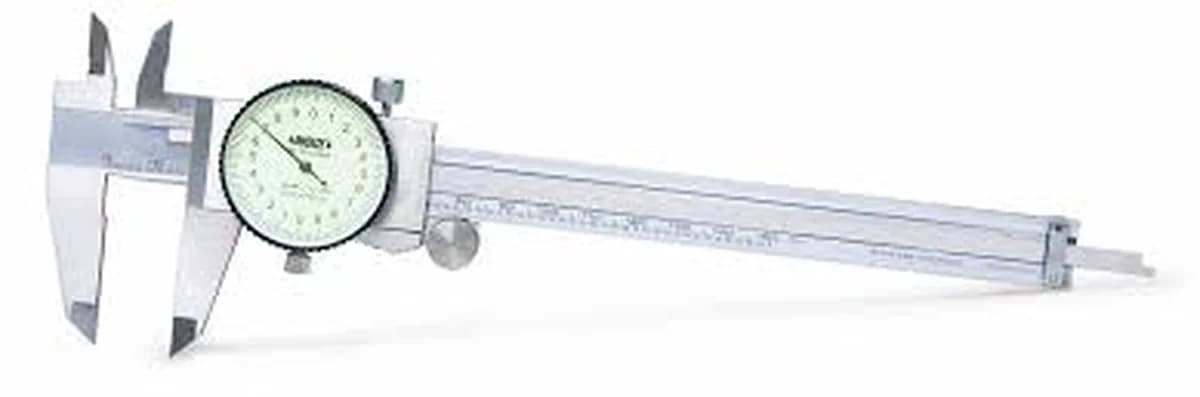

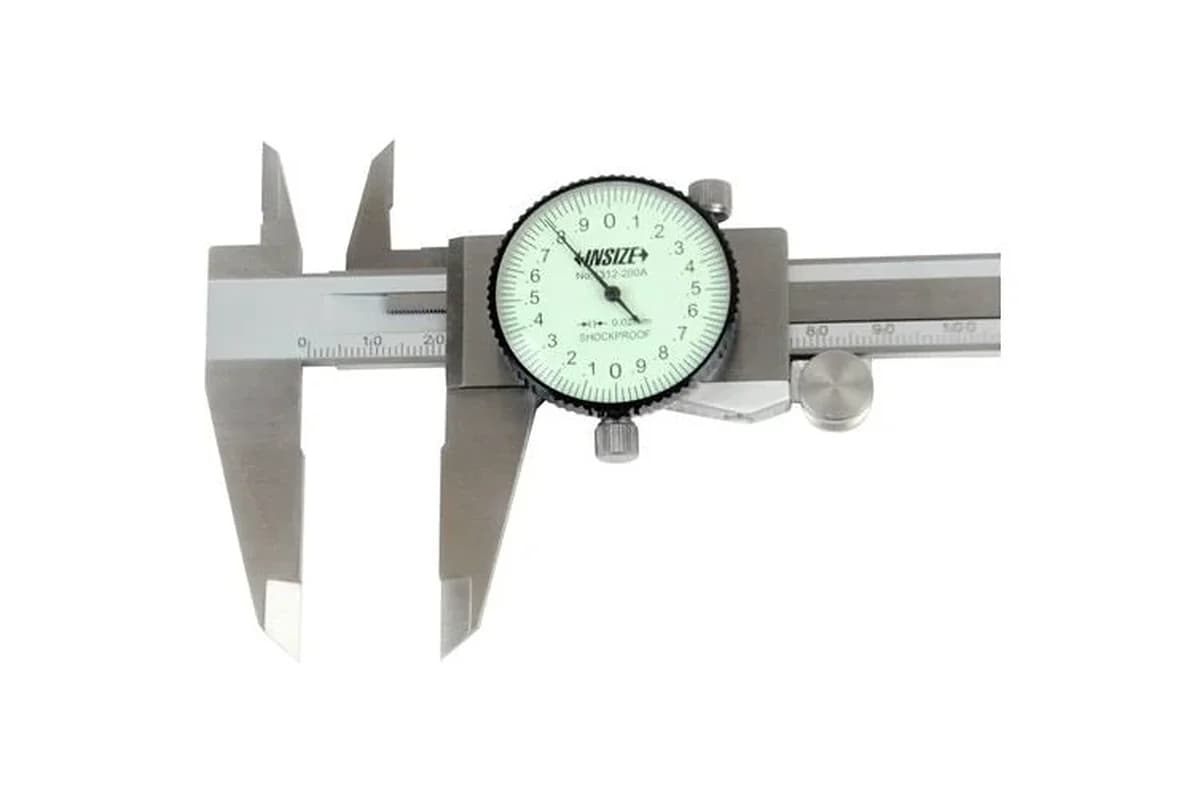

DIAL CALIPERS WITH CARBIDE TIPPED JAWS — 1339-150
Dial Calipers are precision measuring instruments that use a mechanical dial indicator to display measurements, making readings faster, clearer, and easier compared to traditional vernier scales. The dial provides a direct reading of the fractional measurement, reducing human error and improving efficiency. They are widely used for measuring external, internal, depth, and step dimensions in workshops, machining, and quality inspection processes.
Specifications
For: 1339-150- Resolution
- 0.01 mm / 0.02 mm
- Dial Rotation
- 1 Revolution = 1 mm (typical)
- Accuracy
- ±0.02 mm / ±0.01 mm
- Graduation
- 0.0 mm
- Display Type
- Analog Dial Indicator
- Measurement Types
- External, Internal, Depth, Step
- Measurement Range
- 0–200mm
Configurations
Click a row to switch| Variant | Accuracy | Graduation | Measurement Types | Measurement Range | Price |
|---|---|---|---|---|---|
| 1339-150 | ±0.02 mm / ±0.01 mm | 0.0 mm | External, Internal, Depth, Step | 0–200mm | ₹7,897 |
| 1339-200 | ±0.02 mm / ±0.01 mm | 0.02 mm | External, Internal, Depth, Step | 0-200mm | ₹10,566 |
| 1339-300 | ±0.02 mm / ±0.01 mm | 0.02 mm | External, Internal, Depth, Step | 0-300mm | ₹13,355 |
Operational Efficiency in Production
- Streamlines quality inspection processes on the shop floor
- Enables rapid measurement of step dimensions efficiently
- Reduces time spent interpreting fractional measurements
- Supports consistent quality control across manufacturing batches
- Enhances workflow speed without sacrificing measurement integrity
- Minimizes operator fatigue during repetitive inspection tasks
Carbide Tipped Jaw Durability
- Carbide tipped jaws ensure long-term wear resistance
- Designed for heavy use in industrial machining environments
- Robust build quality maintains calibration over time
- Ideal for measuring hard materials without damaging jaws
- Reduces maintenance needs compared to standard steel jaws
- Ensures consistent performance across multiple measurement cycles
Comprehensive Dimensional Measurement Scope
- Measures external, internal, depth, and step dimensions
- Range options include 0–150mm – 0–200mm – 0–300mm
- Extended capacity available up to 0–1000mm or 0–1500mm
- Suitable for workshops, machining, and quality inspection processes
- Analog dial indicator provides immediate visual feedback
- Graduation resolution supports 0.01 mm or 0.02 mm precision
Precision Analog Measurement System
- Mechanical dial indicator displays measurements clearly
- Direct reading of fractional measurement reduces human error
- Readings faster and clearer compared to traditional vernier scales
- Accuracy available in ±0.02 mm or ±0.01 mm variations
- Resolution options include 0.01 mm or 0.02 mm for precision
- Dial rotation typically set to 1 Revolution = 1 mm
Frequently asked
What measurement types are supported?
Supports external, internal, depth, and step dimensions.
How does the dial rotation work?
Typically 1 Revolution equals 1 mm for standard readings.
Is this suitable for machining workshops?
Yes, widely used for measuring in workshops and machining.
More questions buyers ask
What is the accuracy of the Insize Dial Caliper with Carbide Tipped Jaws?
The accuracy is ±0.02 mm or ±0.01 mm depending on the specific model and range.
What are the measurement types supported by this caliper?
It supports external, internal, depth, and step measurements.
What is the graduation of the dial?
The dial graduation is typically 0.01 mm or 0.02 mm.
How does the dial rotation work?
Typically, 1 revolution of the dial equals 1 mm for standard readings.
Are the jaws durable?
Yes, the carbide-tipped jaws ensure long-term wear resistance and are designed for heavy industrial use.
Does it require batteries?
No, this is an analog dial caliper, so it does not require batteries.
What materials can it measure?
It is ideal for measuring hard materials without damaging the jaws, thanks to the carbide tips.
Is it suitable for machining workshops?
Yes, it is widely used for quality inspection and machining processes.
Does it come with a warranty?
Yes, it comes with a standard manufacturer warranty.
Can I get a GST invoice for this purchase?
Yes, a GST invoice is provided for B2B purchases.
Who should choose the 150mm (1339-150) variant?
The 150mm variant is ideal for standard workshop tasks and measuring smaller components with high precision.
Who should choose the 200mm (1339-200) variant?
The 200mm variant is perfect for medium-sized parts, offering a balance between extended range and easy handling.
Who should choose the 300mm (1339-300) variant?
The 300mm variant is best for heavy-duty industrial applications requiring measurements of larger workpieces.
What is the difference between the 150mm, 200mm, and 300mm variants?
The primary difference is the maximum measurement range (150mm, 200mm, and 300mm respectively), which also affects the overall size and weight of the tool.
Do all variants have carbide-tipped jaws?
Yes, all variants in this series feature carbide-tipped jaws for enhanced durability.
Is the accuracy the same across all sizes?
The accuracy is generally consistent, though larger ranges like 300mm may have slightly different tolerance specifications as per industry standards.
More like this
Full description
Dial Calipers are precision measuring instruments that use a mechanical dial indicator to display measurements, making readings faster, clearer, and easier compared to traditional vernier scales. The dial provides a direct reading of the fractional measurement, reducing human error and improving efficiency.
Read more ↓
They are widely used for measuring external, internal, depth, and step dimensions in workshops, machining, and quality inspection processes.
