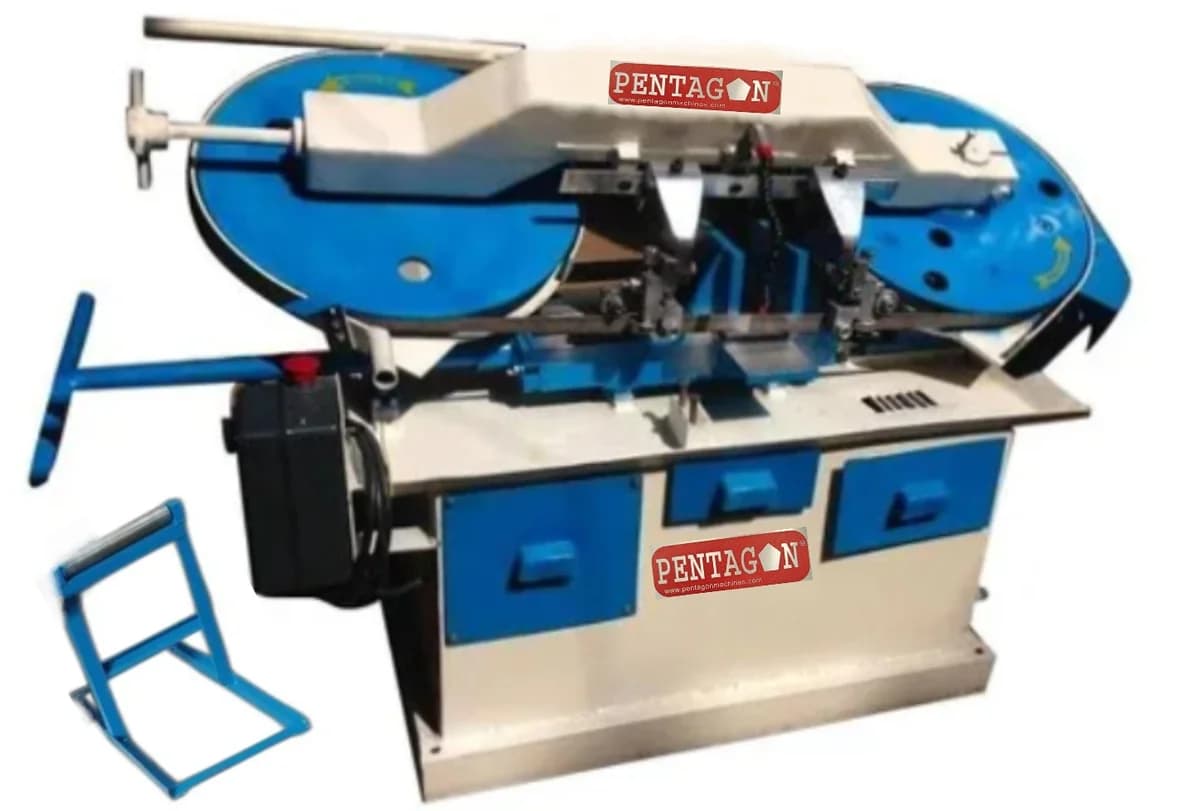

Swing Type Single Column Hydraulic Metal Cutting Bandsaw Machine Model PLB200
The Metal Cutting Bandsaw Machine PLB200 delivers efficient cutting for ferrous and non-ferrous materials up to 200 mm diameter. Its compact 350 kg frame and 1 hp motor make it ideal for small to medium industrial workshops requiring reliable precision. • Maximum cutting capacity of 200 mm round stock • Blade size 3000x27x0.9 mm supported by belt drive • Variable hydraulic feed control for regulated downward motion • Overall dimensions 1360x700x1100 mm for space efficiency

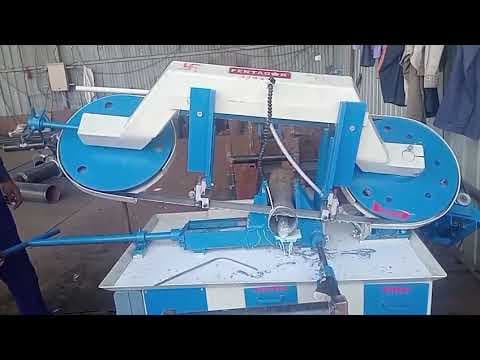

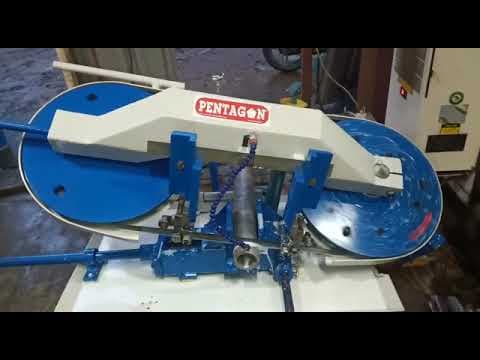

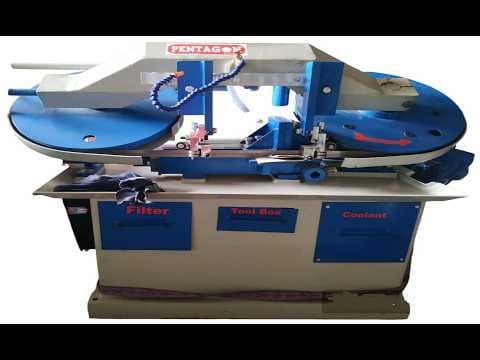

See it in action
Specifications
For: PLB200- Model
- PLB200
- Cutting capacity at 0° (Round)
- 200 mm
- Cutting capacity at 0° (Square)
- 150 mm
- Blade size
- 3000x27x0.9 mm
- Motor power (typical)
- 1 hp/3 Phase/50Hz
- Drive type
- Belt Driven
- Coolant Pump Motor Power
- 0.15 HP/3 Phase/50Hz
- Structure
- Hinged type steel fabricated
- Blade feed Control
- Variable
- Overall Dimensions (L × W × H)
- 1360×700×1100 mm
- Weight Appx
- 350 Kgs
Configurations
Click a row to switch| Variant | Cutting capacity at 0° (Round) | Blade size | Motor power (typical) | Cutting capacity at 0° (Square) | Price |
|---|---|---|---|---|---|
| PLB300 | 300 mm | 3760x34x1.1 mm | 2 HP/3 Phase/50Hz | 150 mm | ₹1,25,000 |
| PLB200 | 200 mm | 3000x27x0.9 mm | 1 hp/3 Phase/50Hz | 150 mm | ₹79,000 |
Common Buyer Questions
Q: What types of metal can this machine cut? A: It is suitable for cutting both ferrous and non-ferrous metal stock. Q: How is the blade feed controlled? A: The machine uses an infinitely variable hydraulic cylinder feed control. Q: Is the machine suitable for high-volume production? A: Yes, it is designed specifically for high-volume metal cutting sawing applications. Q: What is the drive type for the motor? A: The motor utilizes a belt driven system to ensure stable blade movement.
Construction and Durability
- Robust hinged type steel fabricated frame ensures long-term structural integrity
- Heavy-duty construction minimizes vibration during heavy load cutting cycles
- Swing mechanism allows for easy loading and unloading of material stock
- Compact overall dimensions optimize floor space usage in industrial settings
- Stable base design supports consistent performance under continuous operation
Power and Efficiency
- Motor power typically 1 hp/3 Phase/50Hz for reliable operation
- Coolant pump motor power 0.15 HP/3 Phase/50Hz supports continuous use
- Belt driven motor system ensures stable blade movement
- Variable feed settings allow operators to adjust pressure based on material
- Efficient motor power configuration supports performance in production lines
Cutting Capabilities
- Cutting capacity 200 mm and 300 mm round stock depending on configuration
- Capable of cutting square stock up to 150 mm for various profiles
- Suitable for high-volume metal cutting sawing applications in workshops
- Designed for precise cutting of both ferrous and non-ferrous metal
- Blade size typically 3000x27x0.9 mm for standard industrial requirements
Key Features and Design
- Single column swing type bandsaw machine for versatile operations
- Belt type drive ensures stable blade movement and reduced vibration
- Hydraulic cylinder feed control regulates downward motion precisely
- Integrated coolant system to enhance the cutting efficiency and blade life
- Hinged steel fabricated structure provides durability and easy maintenance
- Infinitely variable hydraulic feed control for accurate cutting performance
Standard Accessories
- Coolant Pump
- One Set of Blade general purpose
- Supporting stand for resting job
- Complete with electric motor, starter/Switch and V belt
Optional Accessories
Vice for Angle cutting option 45 Degrees (It is extra equipment which can be fit into the machine with extra cost
More questions buyers ask
What is the cutting capacity of the PLB200?
The PLB200 has a round cutting capacity of 200mm and a square cutting capacity of 150mm.
What is the motor power of this bandsaw?
The PLB200 model comes with a 1 HP motor, while the PLB300 has a 2 HP motor. Both are 3-phase.
What is the blade size for this machine?
The PLB200 uses a 3000x27x0.9 mm blade, and the PLB300 uses a 3760x34x1.1 mm blade.
How is the blade feed controlled?
The machine features an infinitely variable hydraulic cylinder feed control for precise and regulated downward motion of the head arm.
What is the drive type?
It is a belt-driven system for stable blade movement.
What are the overall dimensions and weight?
The PLB200 is 1360x700x1100 mm and weighs approximately 350 Kgs. The PLB300 is 1910x1150x800 mm and weighs approximately 650 Kgs.
Is a coolant system included?
Yes, it includes a 0.15 HP coolant pump motor.
What kind of materials can it cut?
It is designed for cutting both ferrous and non-ferrous metals.
What is the structure of the machine?
It has a robust, hinged-type steel fabricated frame to ensure long-term structural integrity and minimize vibration.
Is this machine suitable for high-volume work?
Yes, it is suitable for high-volume metal cutting and sawing applications in workshops.
Who should choose the PENTAGON PLB200 model?
The PLB200 is ideal for workshops and small-scale industrial applications that require precise cutting of metal stock up to 200mm in diameter. Its 1 HP motor and compact size make it a cost-effective choice for general-purpose cutting.
Who should choose the PENTAGON PLB300 model?
The PLB300 is designed for heavier-duty applications. With a larger 300mm cutting capacity, a more powerful 2 HP motor, and a heavier build, it is suitable for facilities that handle larger stock and require higher throughput.
What is the main difference between the PLB200 and PLB300 models?
The primary differences are cutting capacity (200mm vs 300mm), motor power (1 HP vs 2 HP), and overall size/weight. The PLB300 is a larger, more powerful machine for bigger jobs.
Is the PLB300 more expensive than the PLB200?
Yes, the PLB300 has a higher price due to its larger capacity, more powerful motor, and heavier construction.
Which model offers better value?
The best value depends on your needs. For smaller-scale work, the PLB200 offers excellent value. If you need to cut larger materials, the PLB300 is the more capable and necessary investment.
