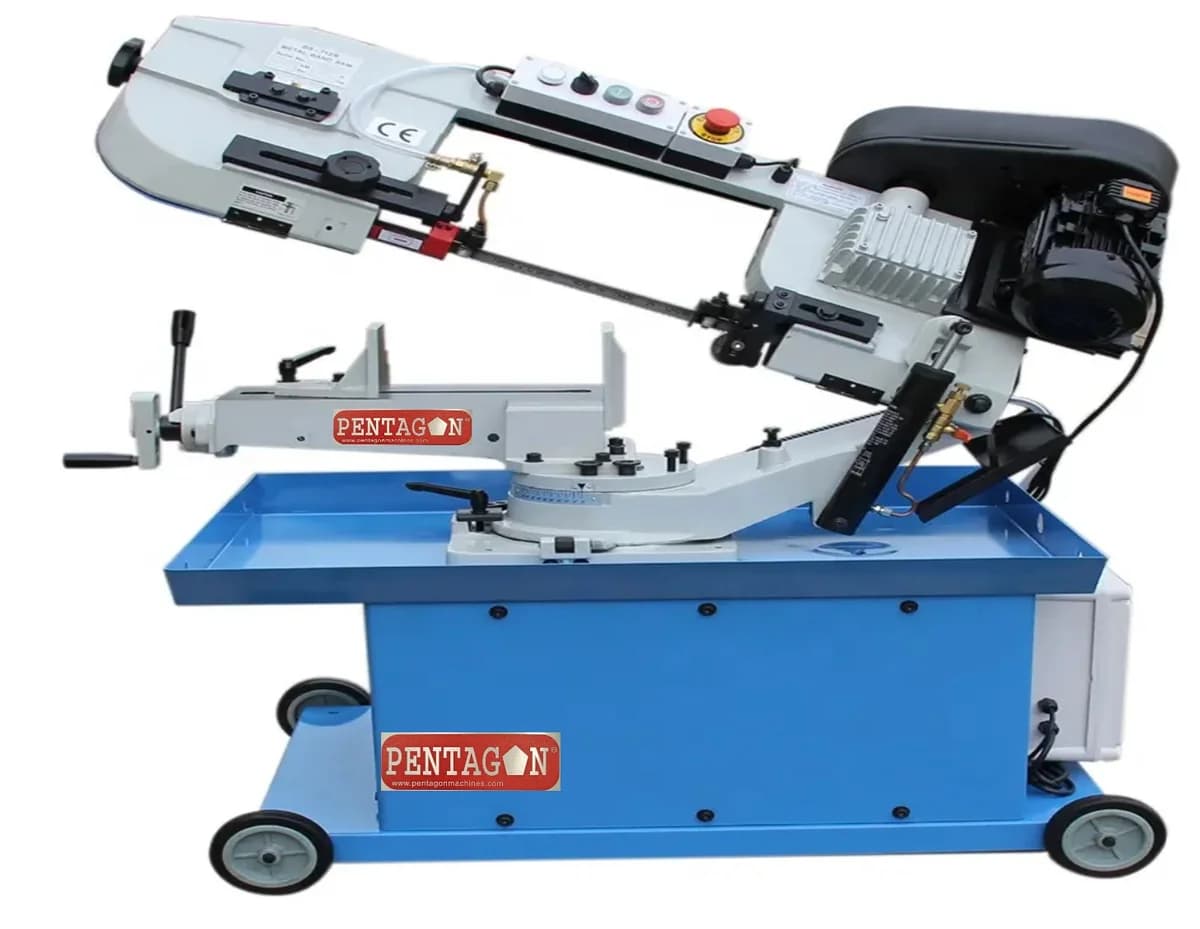

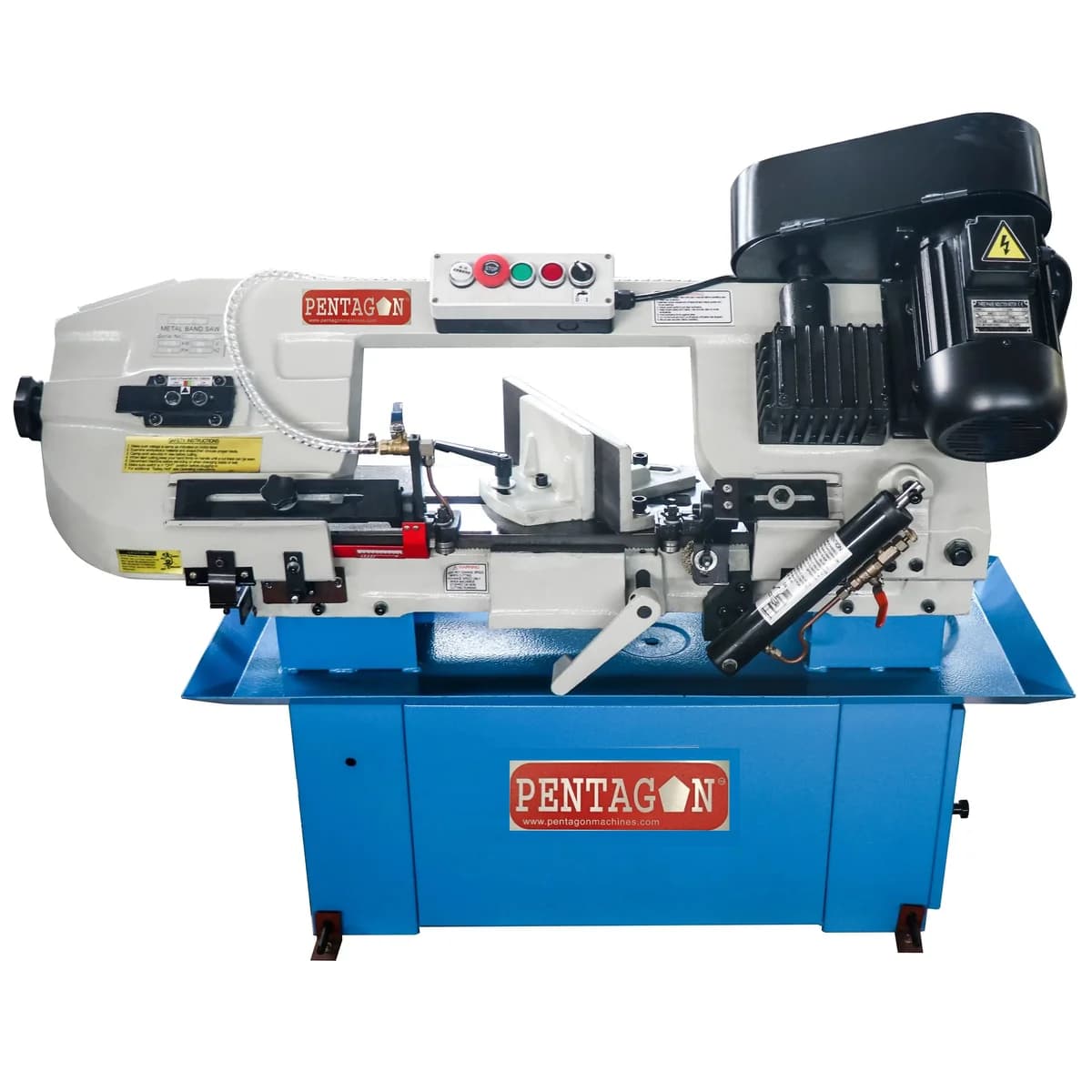

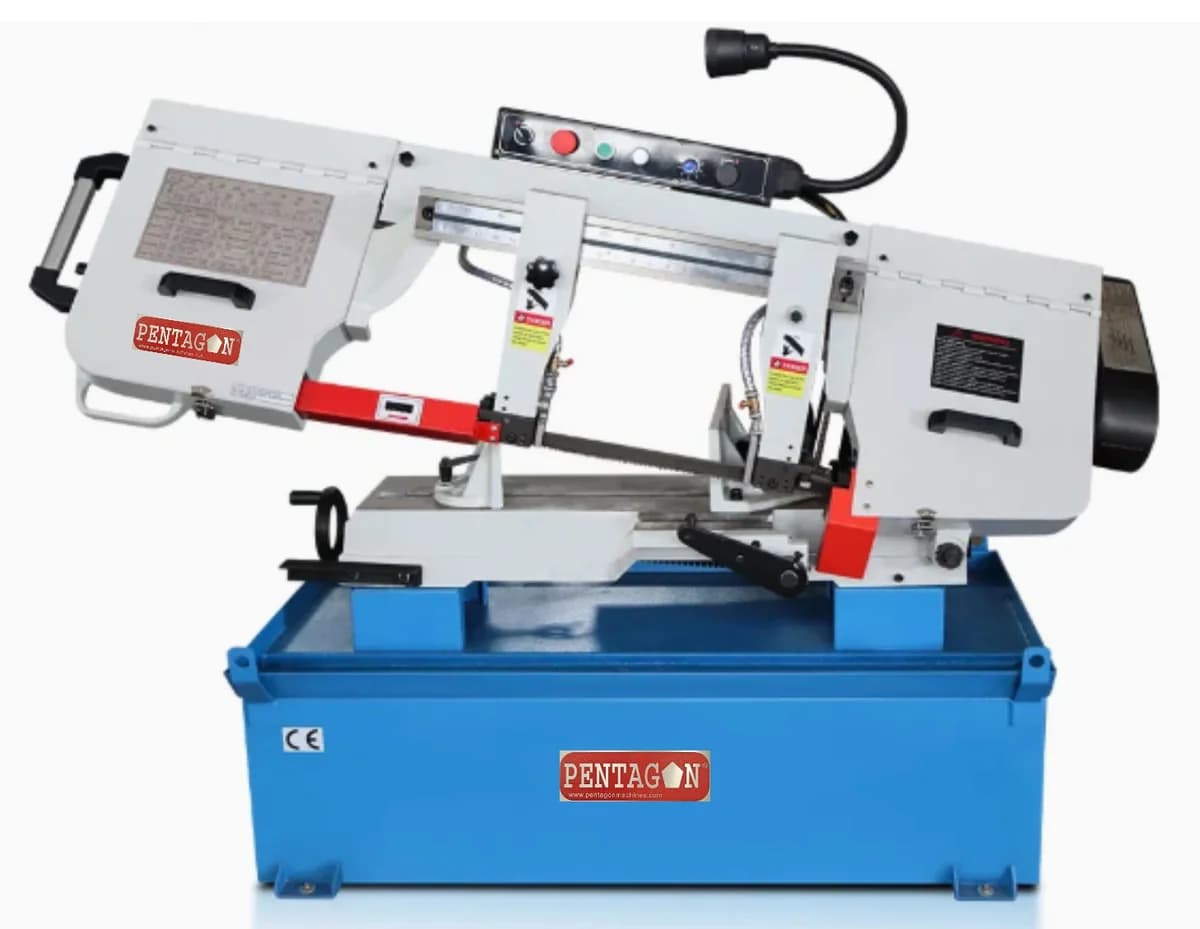

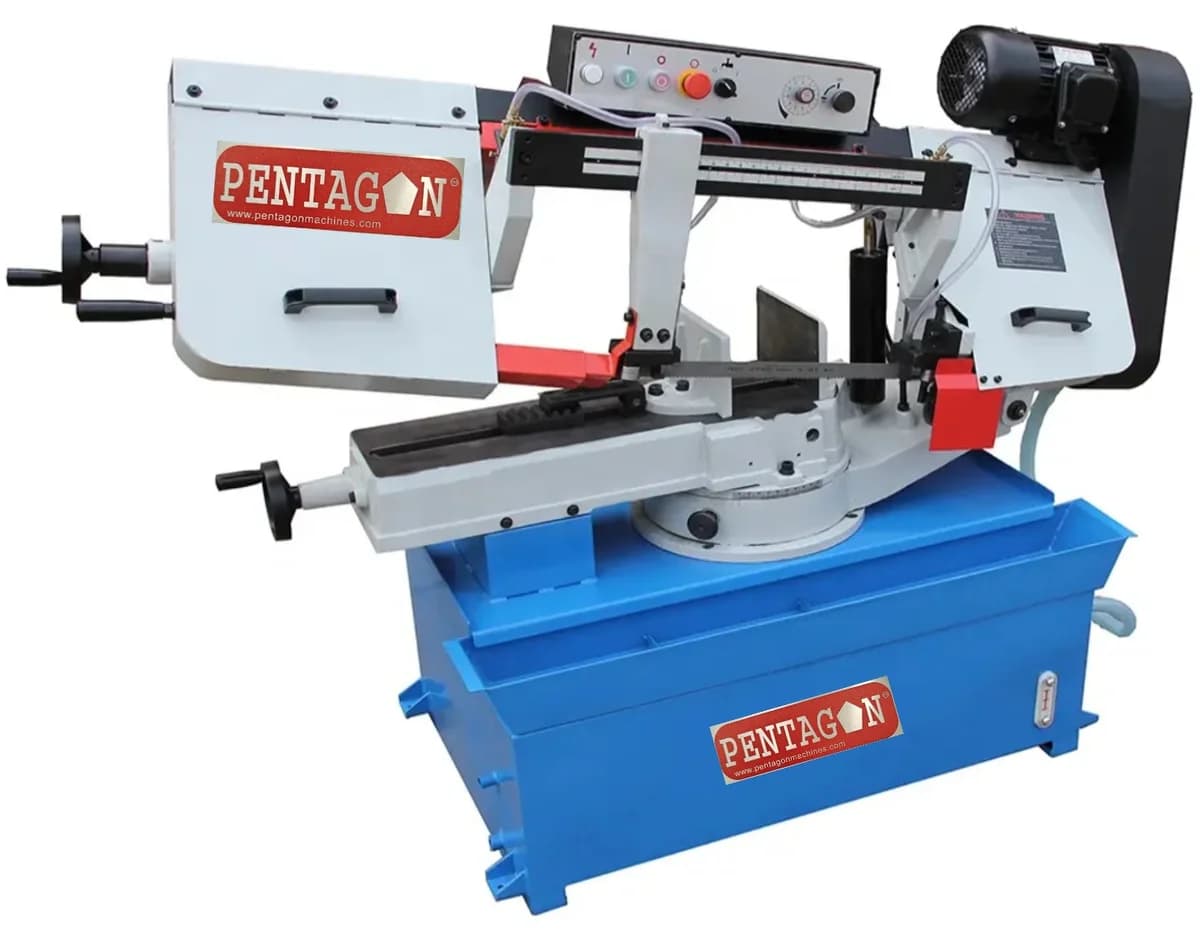

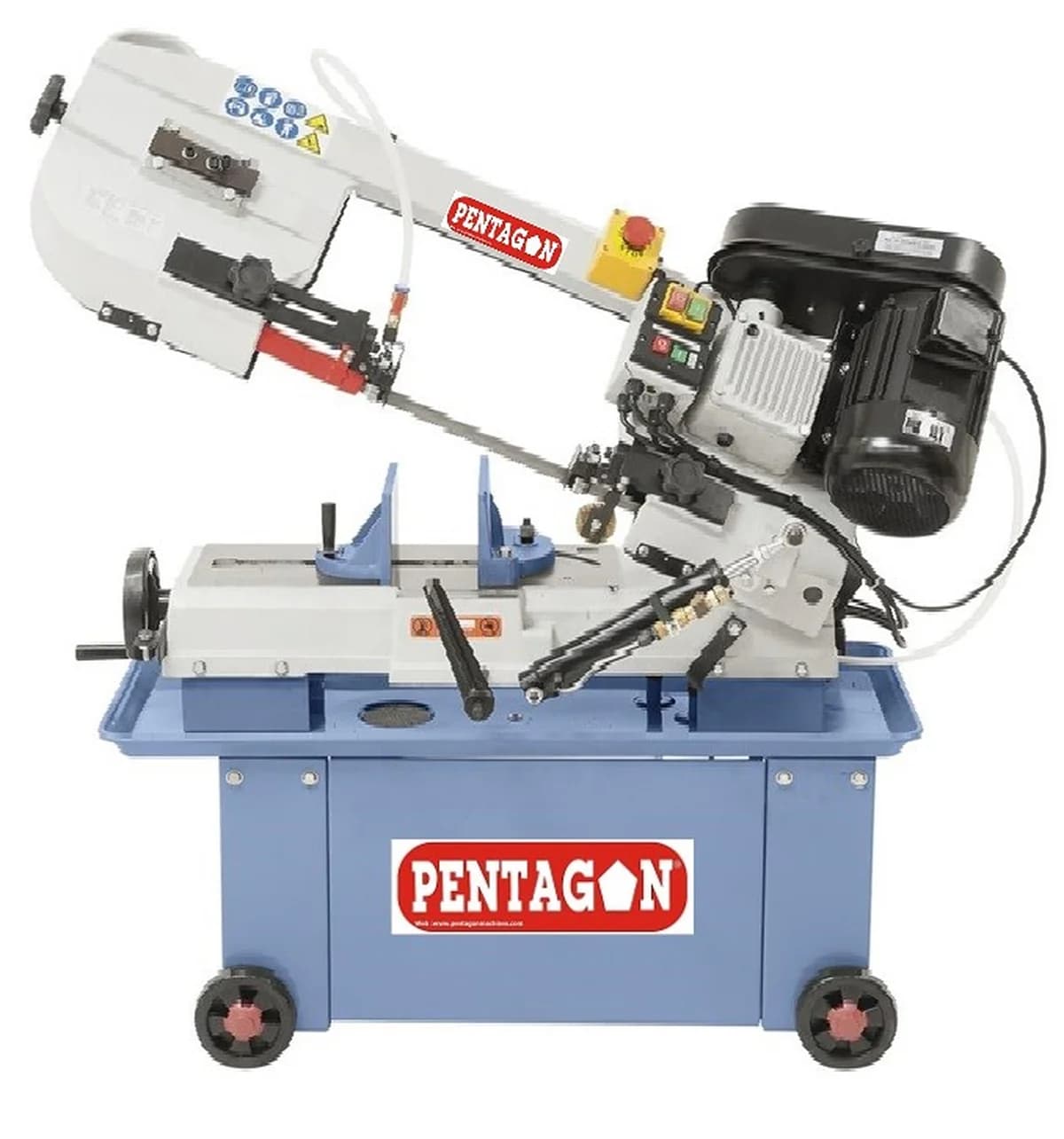

BS Series Hydraulic Swing/Miter Type Metal Cutting Bandsaw Machine — BS712N
Engineered for precision cutting across various metals, this hydraulic swing bandsaw family offers versatile miter cutting capabilities. Ideal for machine shops and fabrication units handling mild steel, stainless steel, and non-ferrous materials. • Adjustable blade speeds for optimized cutting performance • Hydraulic clamping ensures secure workpiece holding • Integrated coolant system extends blade life • Available in multiple capacities ranging from 178mm to 254mm round

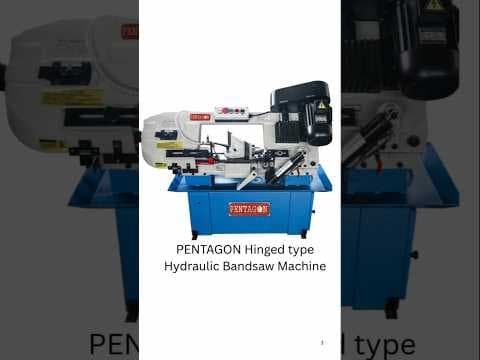

See it in action
Specifications
For: BS712N- Model
- BS712N
- Cutting Capacity (Round)
- 178 mm
- Cutting Capacity (Square)
- 178 × 305 mm
- Machine Type
- Hydraulic Swing / Hinge Type Bandsaw
- Cutting Material
- Suitable for MS, SS, Aluminum, Brass, Copper
- Coolant System
- Integrated
- Blade Type
- Bi-metal Bandsaw Blade
- Clamping Type
- Manual
- Blade Size
- 2362×19×0.9 mm
- Blade Speed
- 20/30/45/60 m/min
- Motor Power
- 1 HP (0.75 kW)
- Coolant Pump
- 0.04 kW
- Angle Cutting
- Up to 45°
- Machine Weight
- 170 kg
- Machine Dimension
- 1250 × 500 × 1100 mm
Configurations

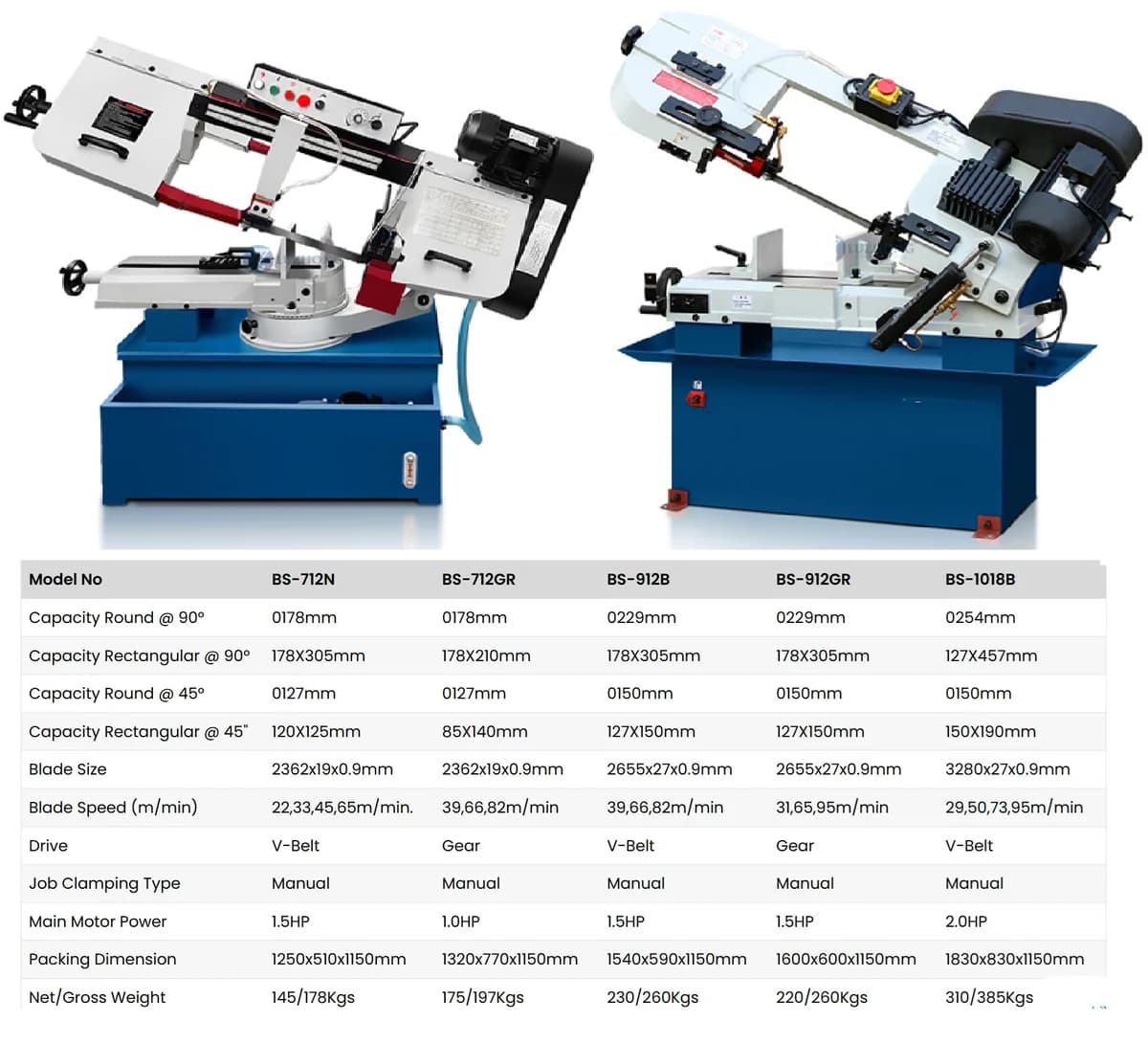

Click a row to switch| Variant | Cutting Capacity (Round) | Blade Size | Angle Cutting | Motor Power | Price |
|---|---|---|---|---|---|
| BS-1018R | 254 mm | 3280 × 27 × 0.9 mm | Up to 45° | 2HP/(1.5Kw) | ₹2,35,000 |
| BS712R | 178 mm | 2362×19×0.9 mm | Up to 45° | 1 HP (0.75 kW) | ₹1,41,700 |
| BS712N | 178 mm | 2362×19×0.9 mm | Up to 45° | 1 HP (0.75 kW) | ₹93,700 |
| BS-1018N | 254 mm | 3280 × 27 × 0.9 mm | Up to 45° | 2HP/(1.5Kw) | ₹1,95,400 |
| BS-912N | 229 mm | 2650 × 27 × 0.9 mm | Up to 45° | 1.5 HP (1.1 kW) | ₹1,45,000 |
| BS-912R | 229 mm | 2650 × 27 × 0.9 mm | Up to 45° | 1.5 HP (1.1 kW) | ₹1,55,250 |
Build Quality & Maintenance
- Engineered for precision cutting across various metals and alloys
- High durability design withstands rigorous industrial working conditions
- Bi-metal blades offer superior toughness compared to standard carbon blades
- Integrated system minimizes downtime and maximizes operational efficiency
- Standard accessories included reduce initial setup time for new buyers
- Regular coolant maintenance ensures optimal blade performance and longevity
- Compact footprint fits well within standard workshop floor layouts
Industrial Applications
- Ideal for machine shops handling various metal cutting requirements
- Perfect for fabrication units processing mild steel and stainless steel
- Supports production of components from non-ferrous materials like brass
- Handles high-volume cutting tasks with consistent precision results
- Suitable for general purpose metalworking and structural fabrication
- Meets the demands of workshops requiring versatile cutting capabilities
- Provides reliable service for both small batch and medium production runs

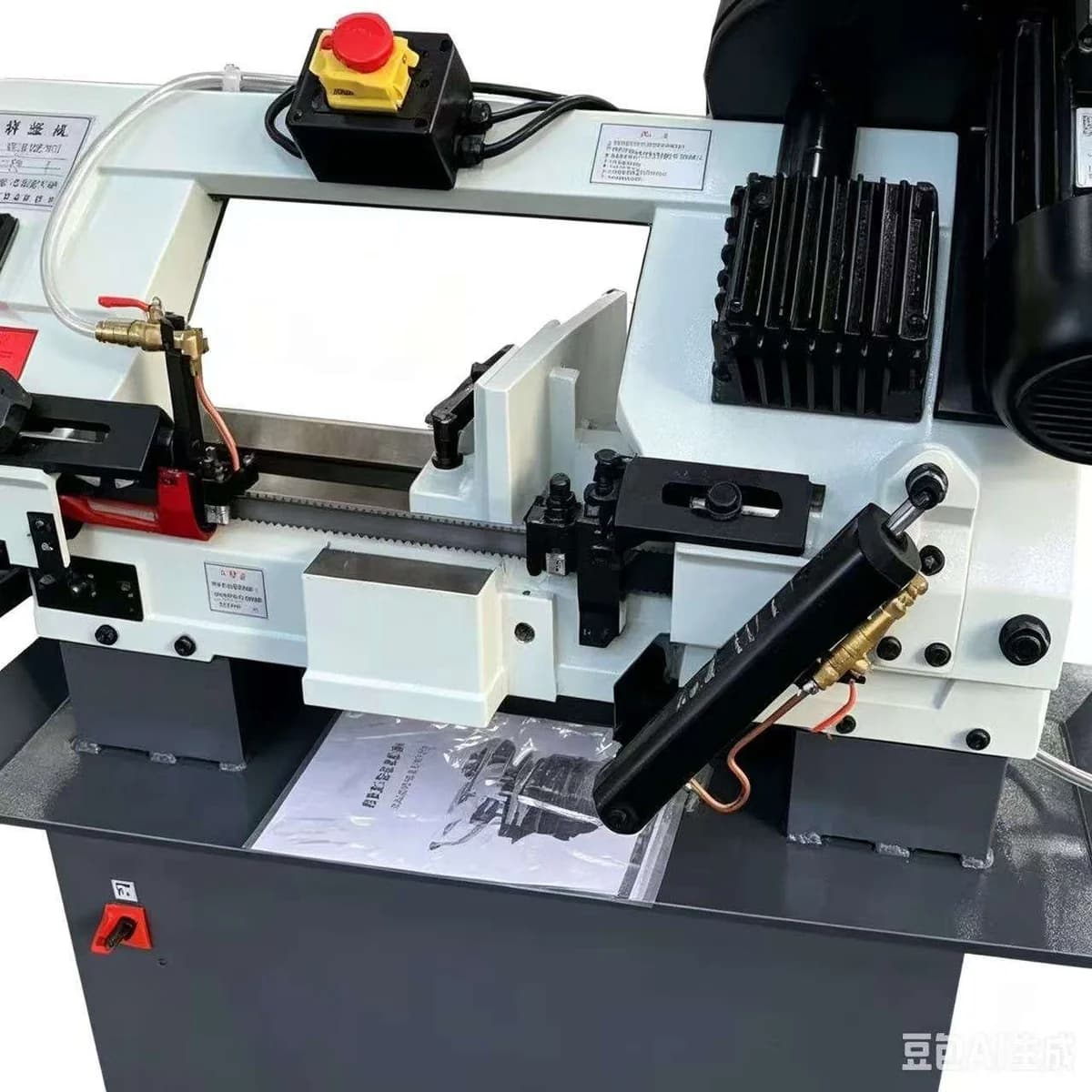

Hydraulic Mechanism & Cooling System
- Hydraulic Swing / Hinge Type Bandsaw for smooth operation
- Hydraulic clamping ensures secure workpiece holding during cutting
- Integrated coolant system extends blade life and reduces friction
- Semi-automatic operation reduces manual effort and increases throughput
- Designed for stable performance in machine shops and fabrication units
- Robust construction supports continuous industrial usage patterns
- Easy maintenance access for routine servicing and blade changes
Cutting Performance & Material Range
- Cutting capacity ranges from 178 mm to 254 mm round material
- Square cutting capacity up to 150×150 mm for various profiles
- Adjustable blade speeds of 20/30/45/60 m/min for optimized performance
- Angle cutting capability up to 45° for precise miter cuts
- Suitable for MS, SS, Aluminum, Brass, Copper and non-ferrous materials
- Uses Bi-metal Bandsaw Blade for extended cutting life and durability
- Integrated coolant system ensures efficient heat management during cuts

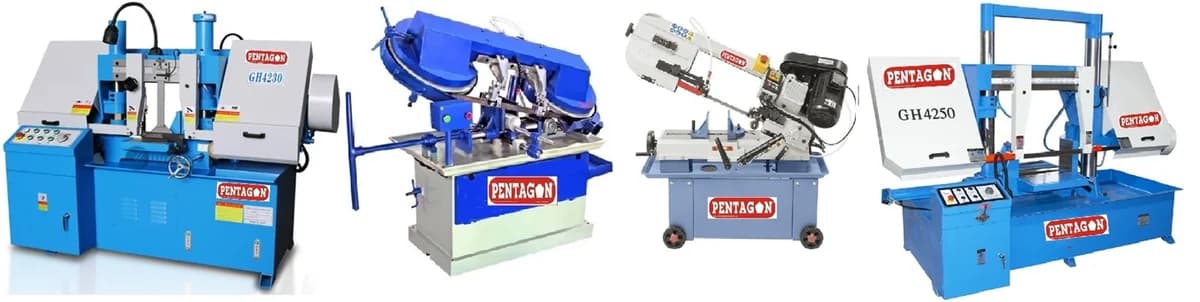

Product Family & Configuration
- PENTAGON high precision Semi Automatic horizontal Metal Cutting bandsaw
- Features Tilt/Miter cutting facility for versatile angle operations
- Available in models BS712N, BS712R, BS-912N, BS-912R, BS-1018N, BS-1018R
- Includes set of blades, coolant pump and other standard accessories
- Typical motor power is 1 HP (0.75 kW) with 0.1 HP coolant pump
- Approximate machine weight ranges from 160–200 kgs
- Standard machine dimension is 1300x600x1200 mm
Standard Accessories
- Coolant Pump
- One Set of Blade general purpose
- Vice for Angle cutting option 45 Degrees
Frequently asked
What materials can this bandsaw machine cut?
It is suitable for MS, SS, Aluminum, Brass, Copper and non-ferrous materials.
What is the maximum cutting angle available?
The machine supports angle cutting up to 45° for miter operations.
Does the machine come with blades and coolant?
Yes, it includes a set of blades, coolant pump and other standard accessories.
What are the available cutting capacities?
Round capacity ranges from 178 mm to 254 mm depending on the model.
