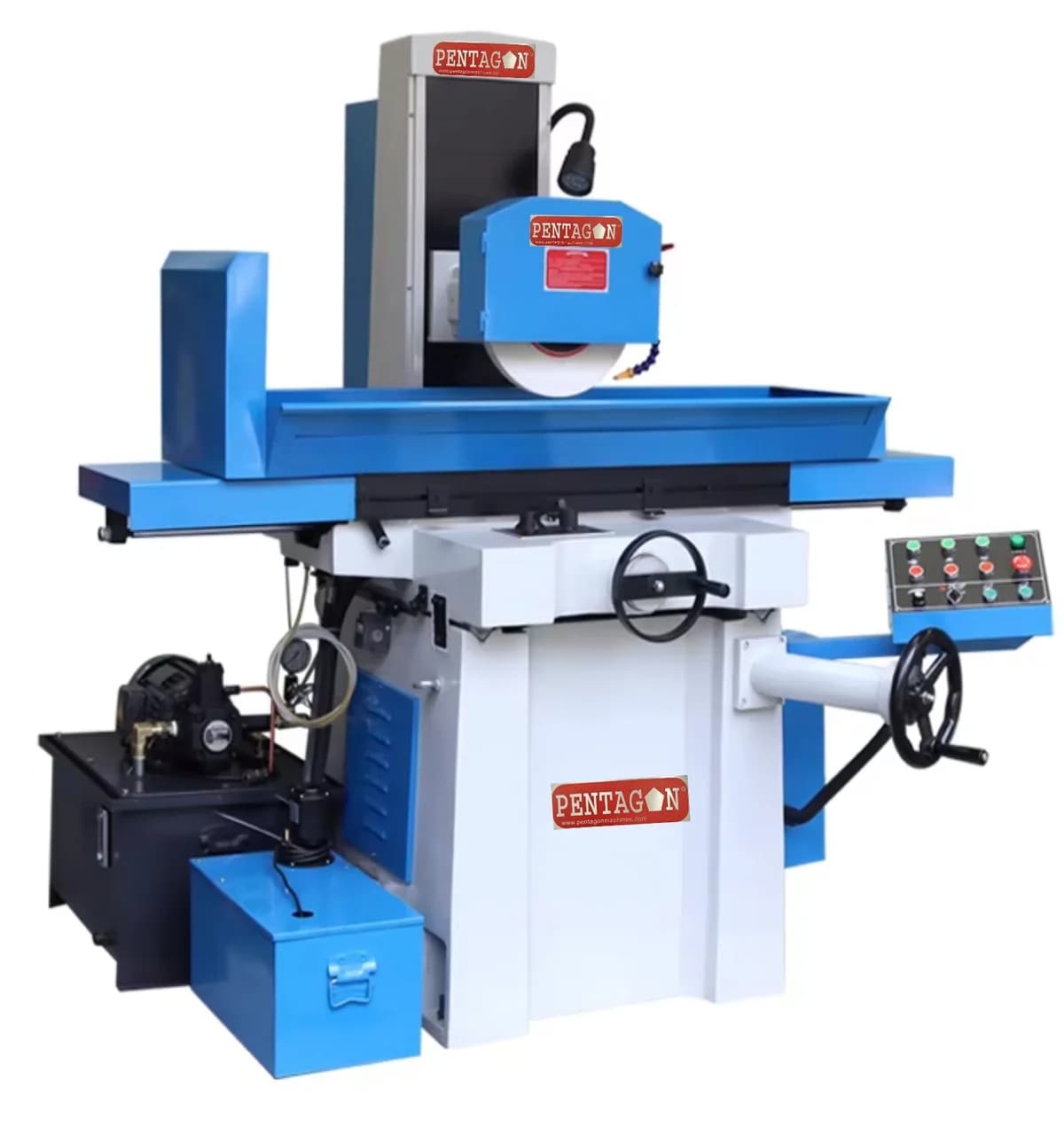

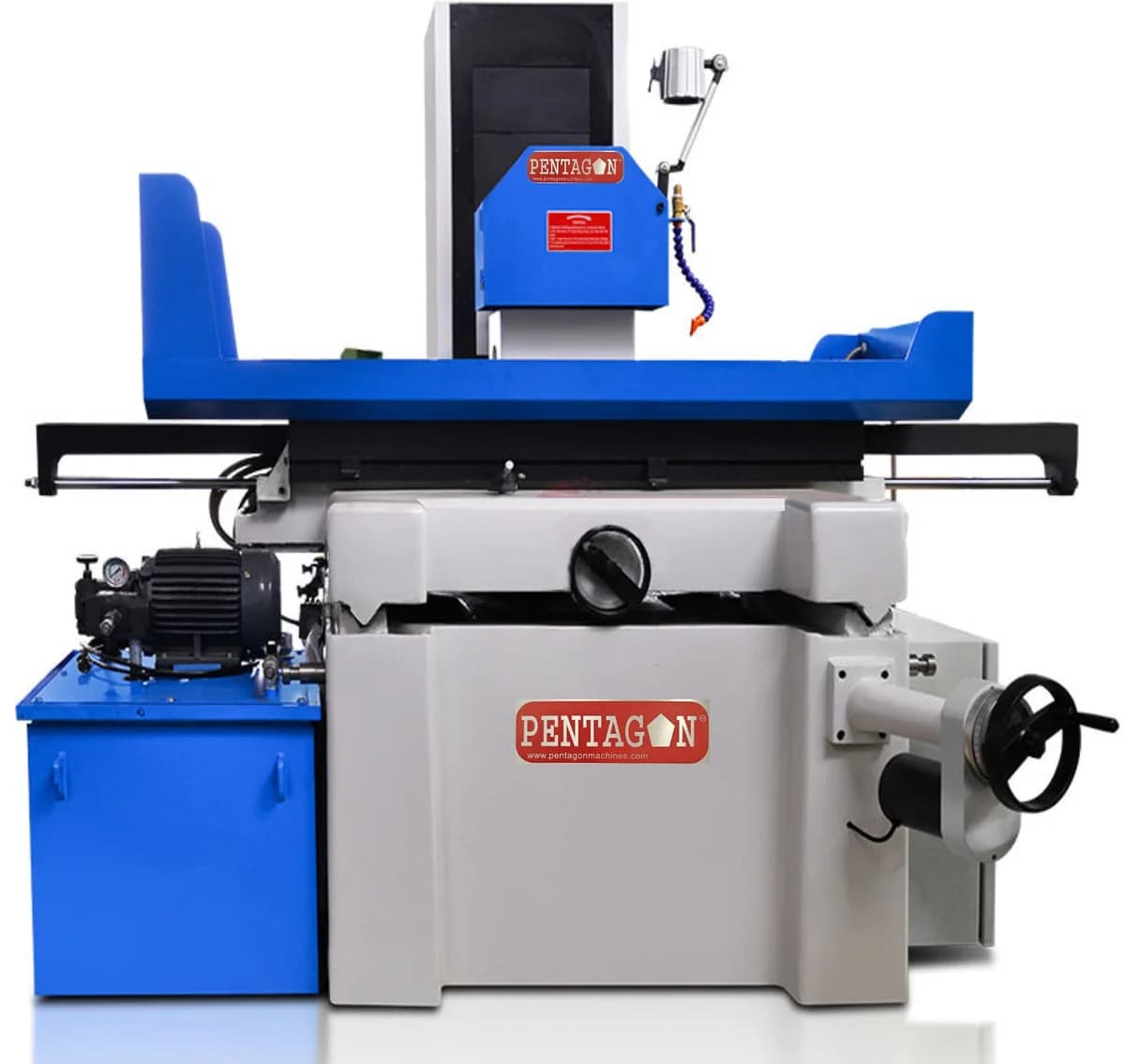

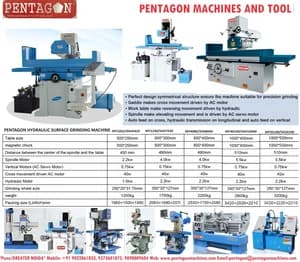

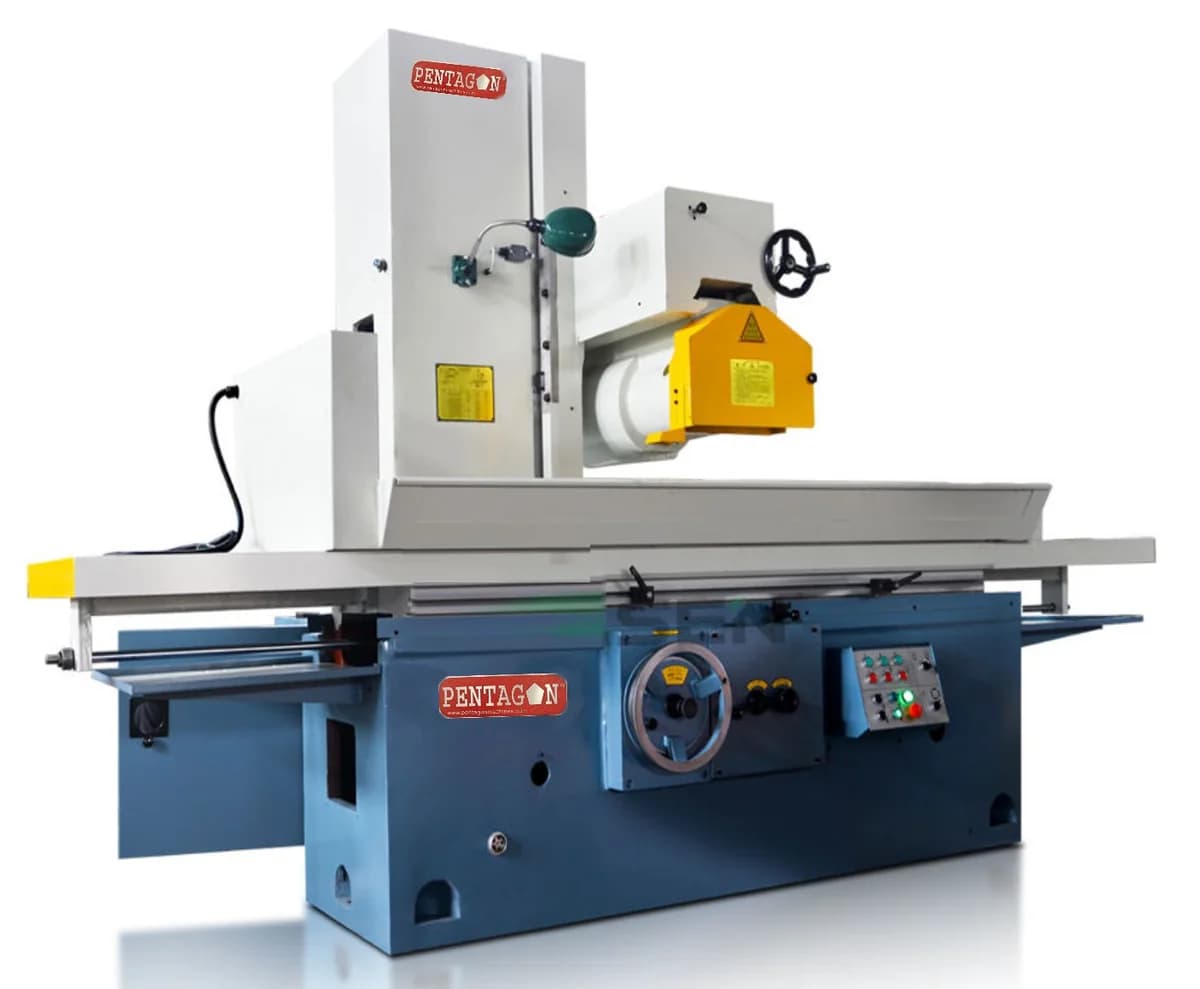

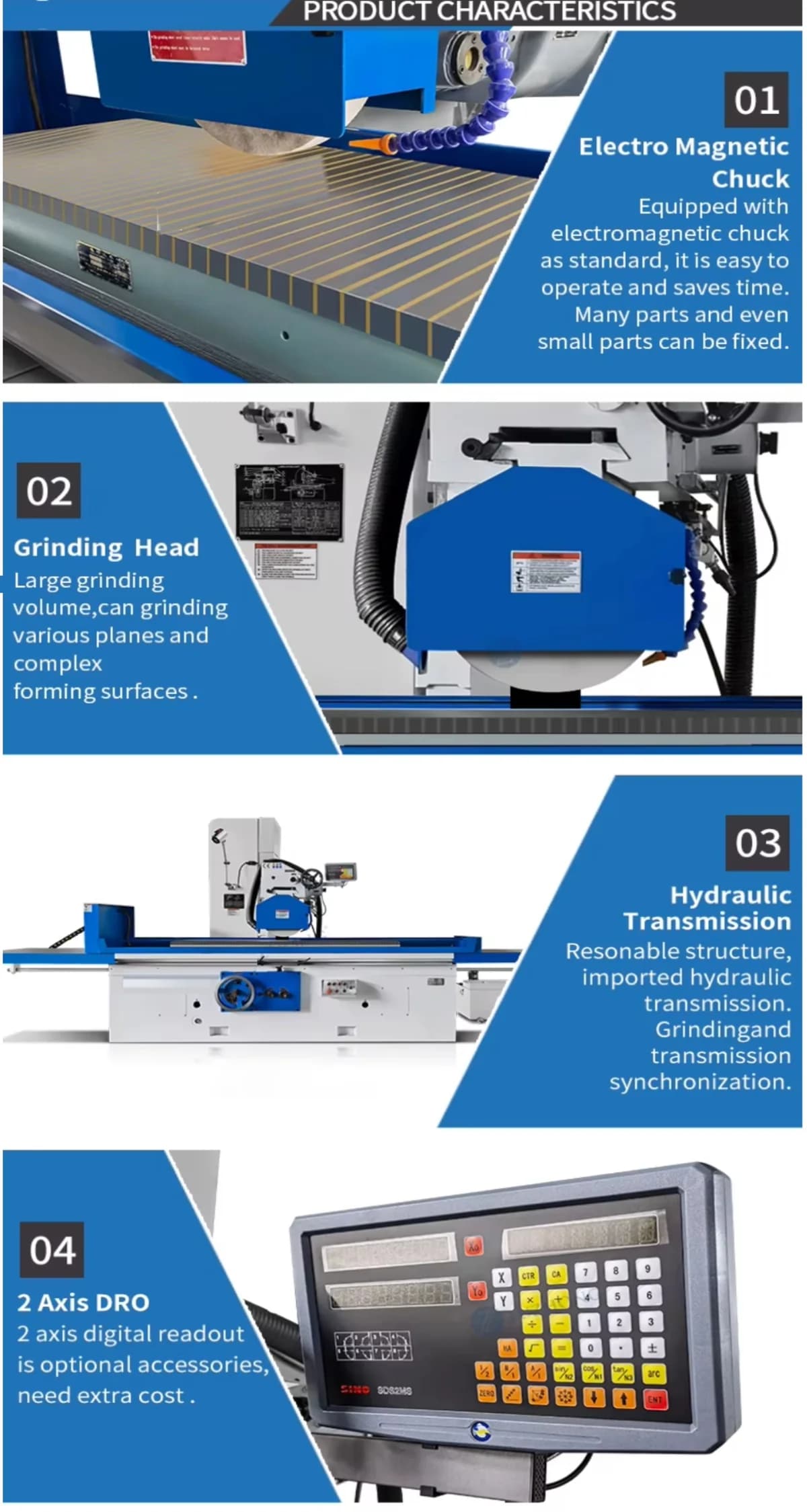

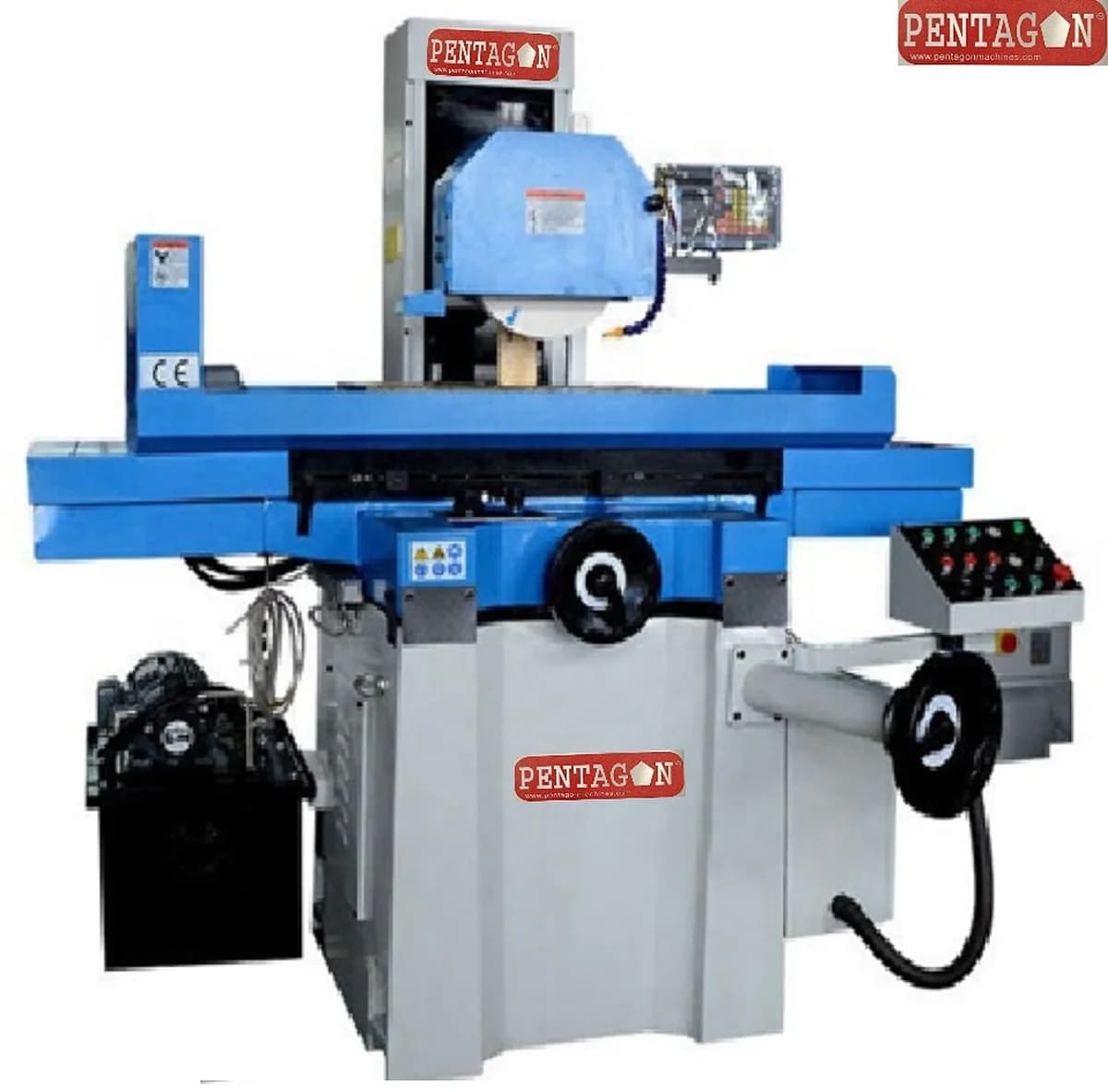

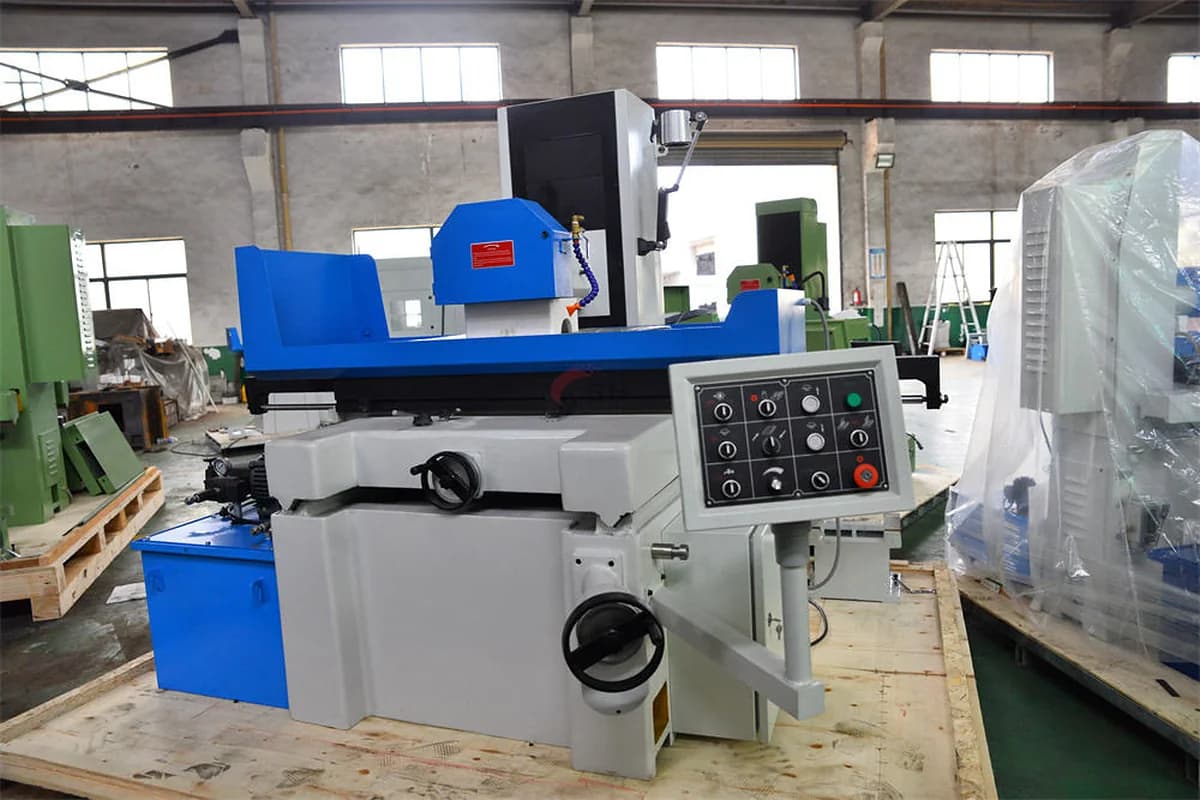

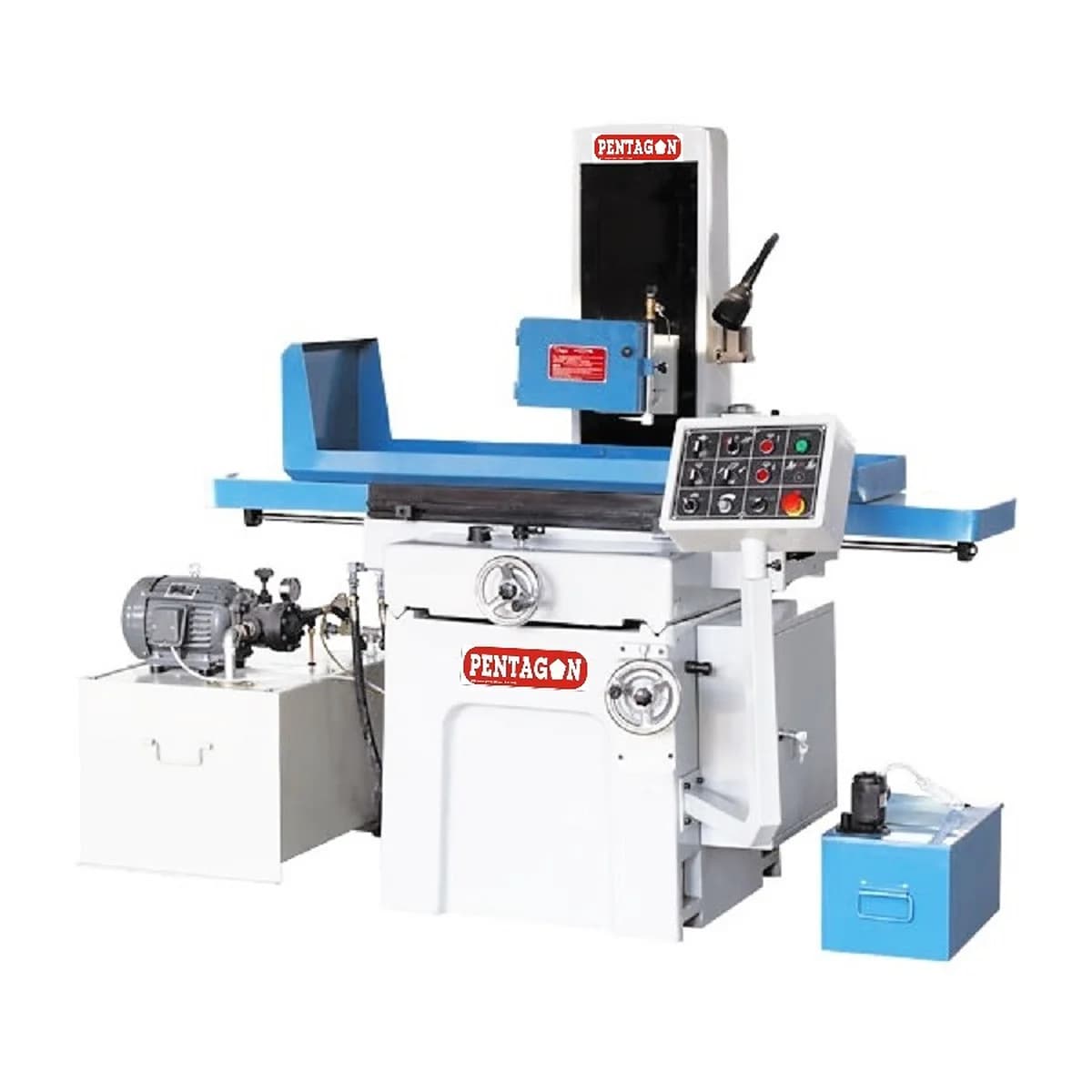

High Precision Hydraulic Surface Grinding Machine MY1022/SGH5425
Ideal for light-duty tasks, this machine features a 540x250 mm table with permanent magnetic holding. Efficient coolant system and high-speed spindle ensure quality surface finish. • Permanent magnetic chuck 500x250 mm • Spindle speed 2850 rpm • Max table movement 560x260 mm • Surface roughness Ra0.32μm

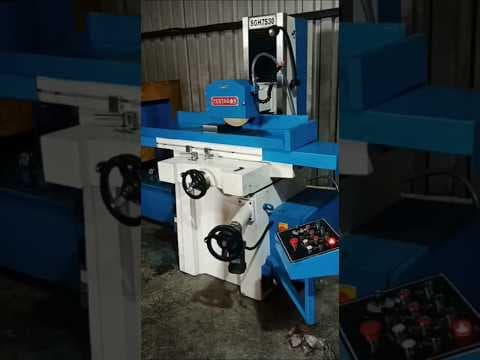

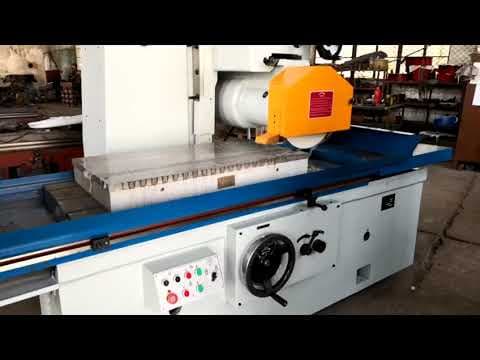

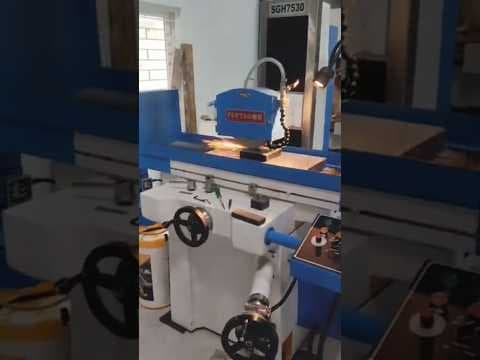

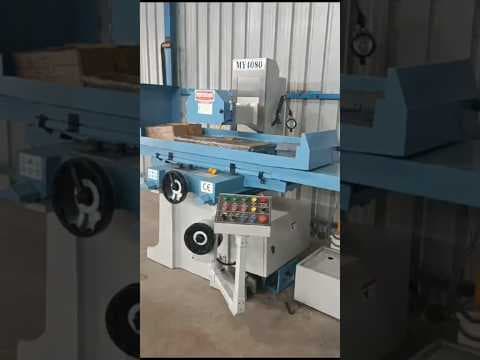

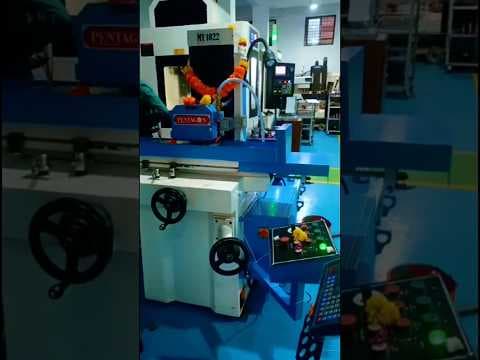

See it in action

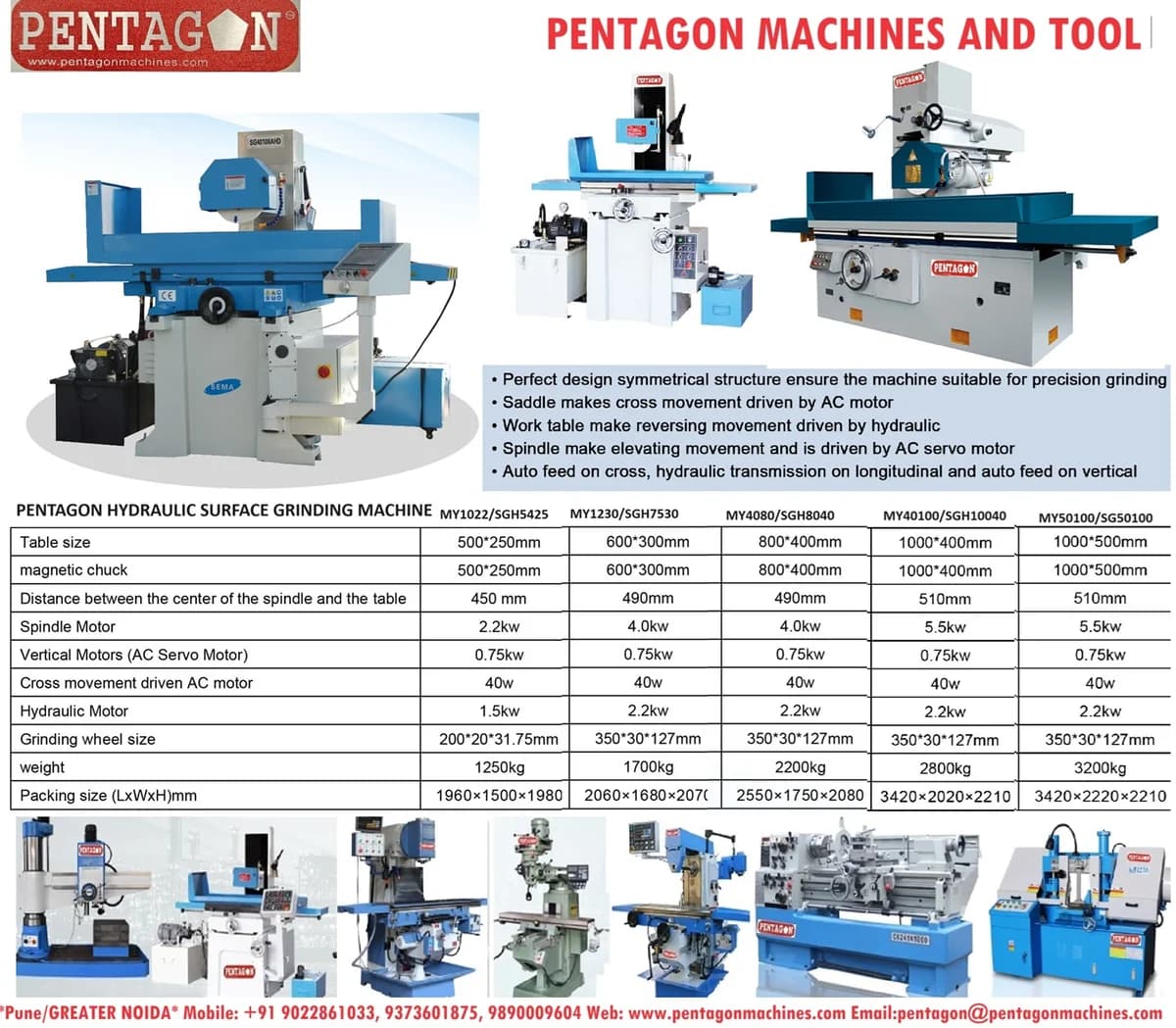

Specifications
For: MY1022/SGH5425- Machine Model
- MY1022
- Table Size
- 540x250 mm
- Max movement of working table (L×W)
- 560x260mm
- T-slot (number width)
- 1x14 mm
- Distance from table to spindle center
- 450 mm
- Wheel size (dia width bore)
- 200x20x31.75 mm
- Spindle speed
- 2850 rpm
- Table longitudinal (left and right) speed
- 3-20 m/min
- Cross feed Per revolution
- 5 mm
- Cross feed Per graduation
- 0.02 mm
- Vertical (up and down) feed Per revolution
- 0.8(1.0) mm
- Vertical (up and down) Per graduation
- 0.01 mm
- Speed of vertical feed
- 500 mm/Min
- Motor Spindle Motor
- Motor 3 HP (2.2 kW)
- Hydraulic Motor Power
- 1 HP/2 HP
- Lifting Motor
- 0
- Coolant Motor
- 40W
- Working pressure
- 4 Mpa
- Oil tank capacity
- 80 L
- The parallelism of working surface to base level
- 300:0.005mm
- Max oil flow
- 20L/min
- Surface roughness
- Ra0.32μm
- Net-Gross Weight
- 1000/1100 Kgs
- Magnetic Chuck size
- 500x250 mm
- Type of Chuck
- Fine Pitch Permanent magnetic chuck
- Machine size
- 1750× 1450× 1850 mm

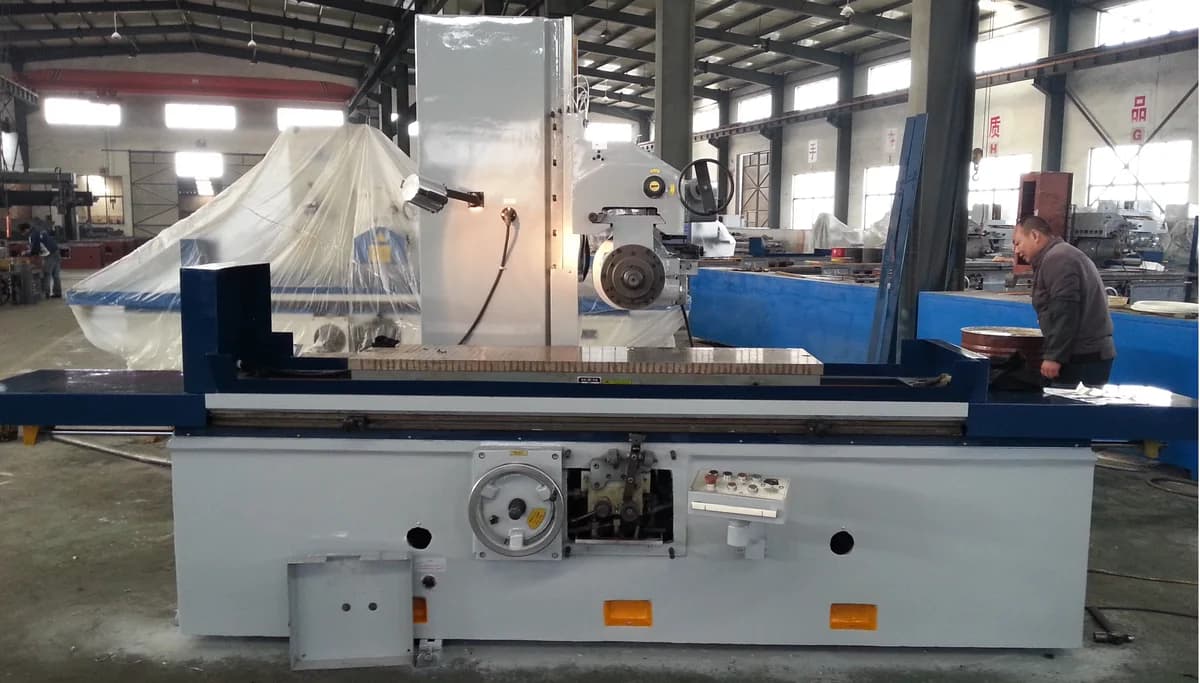

Configurations

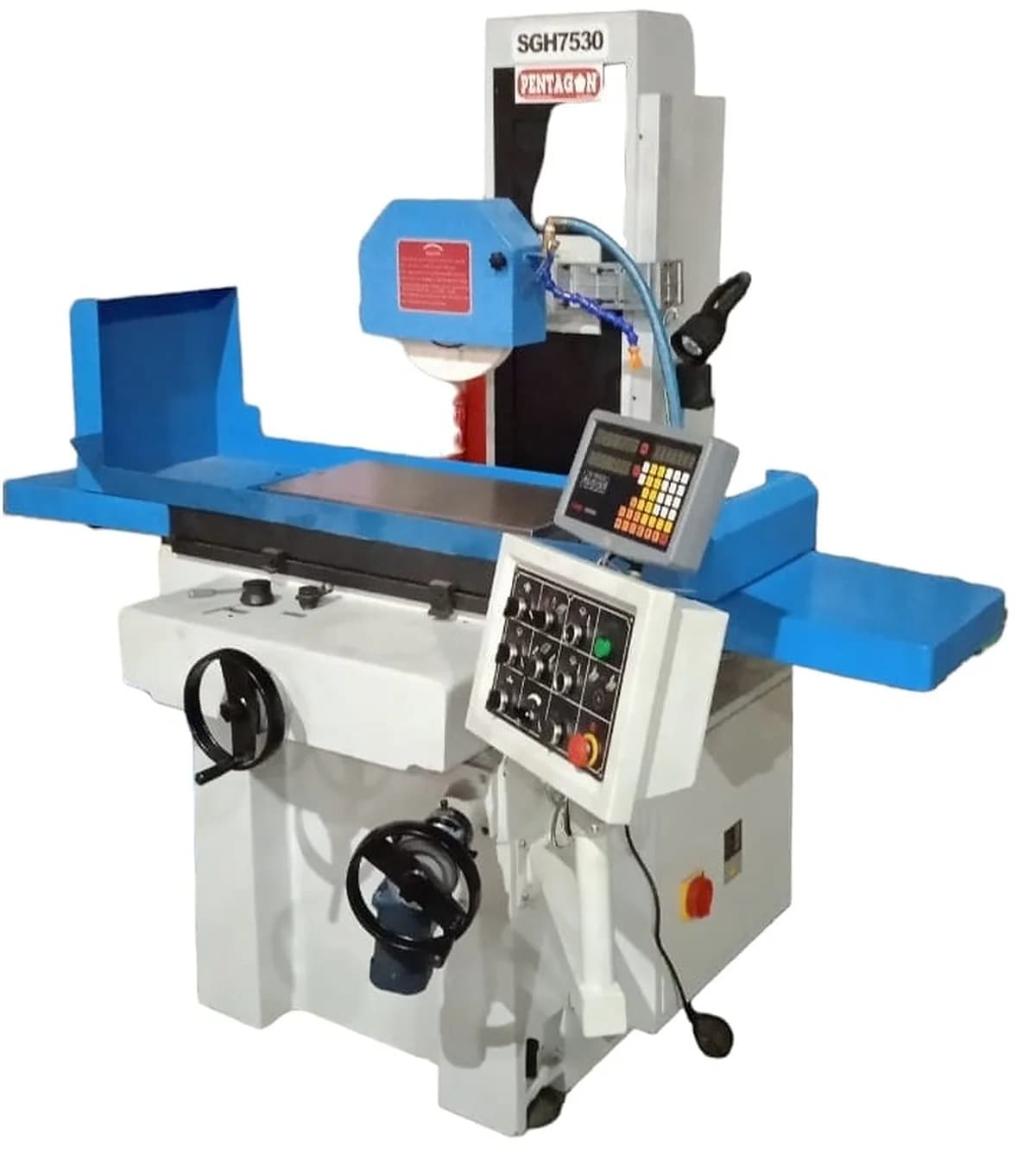

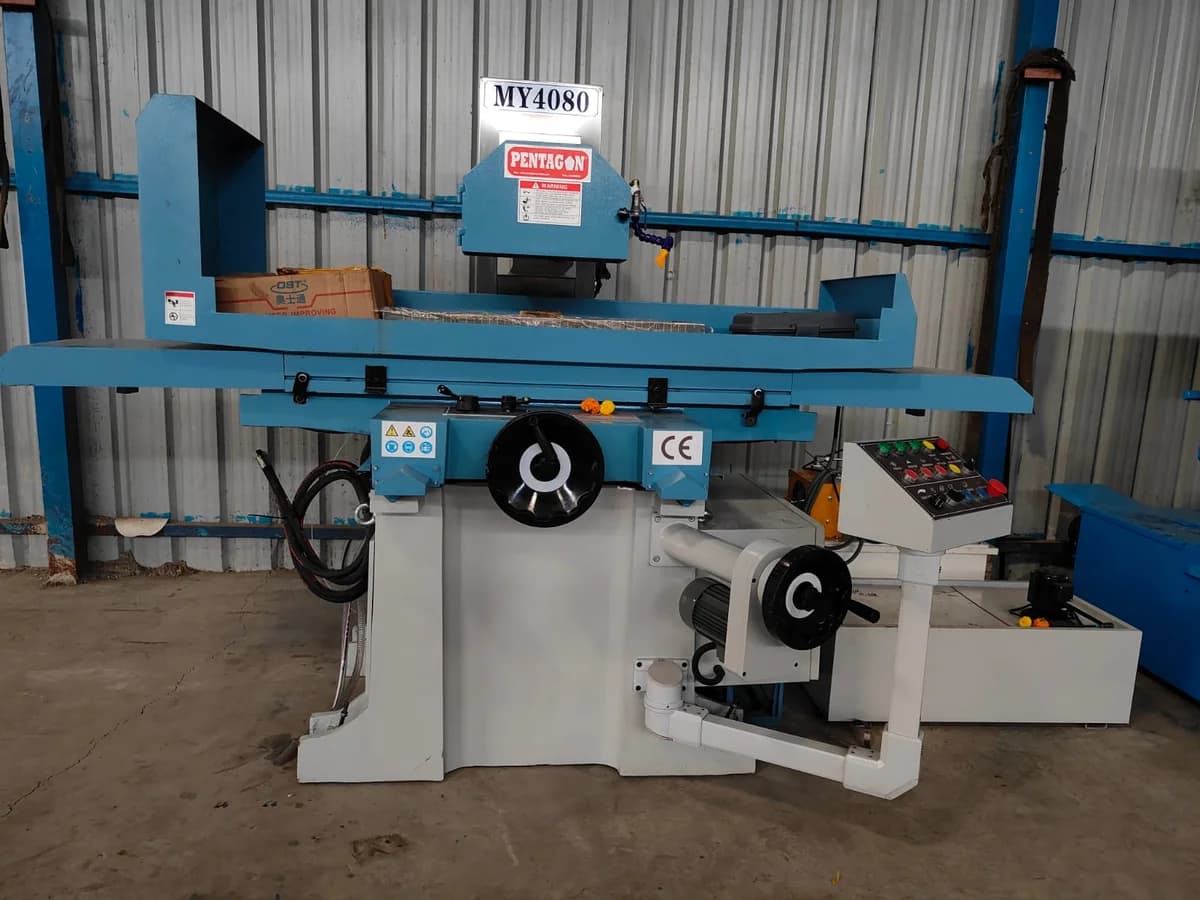

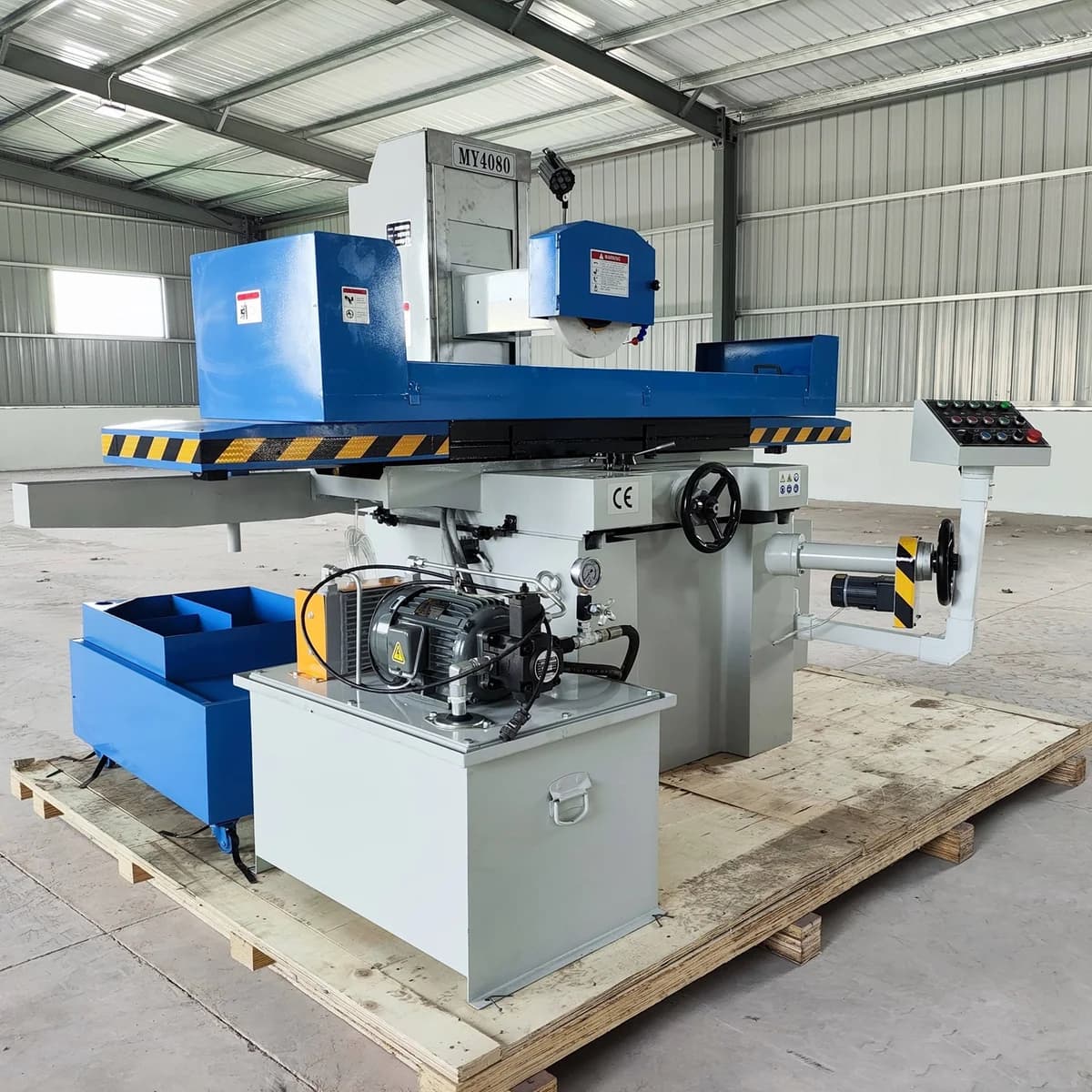

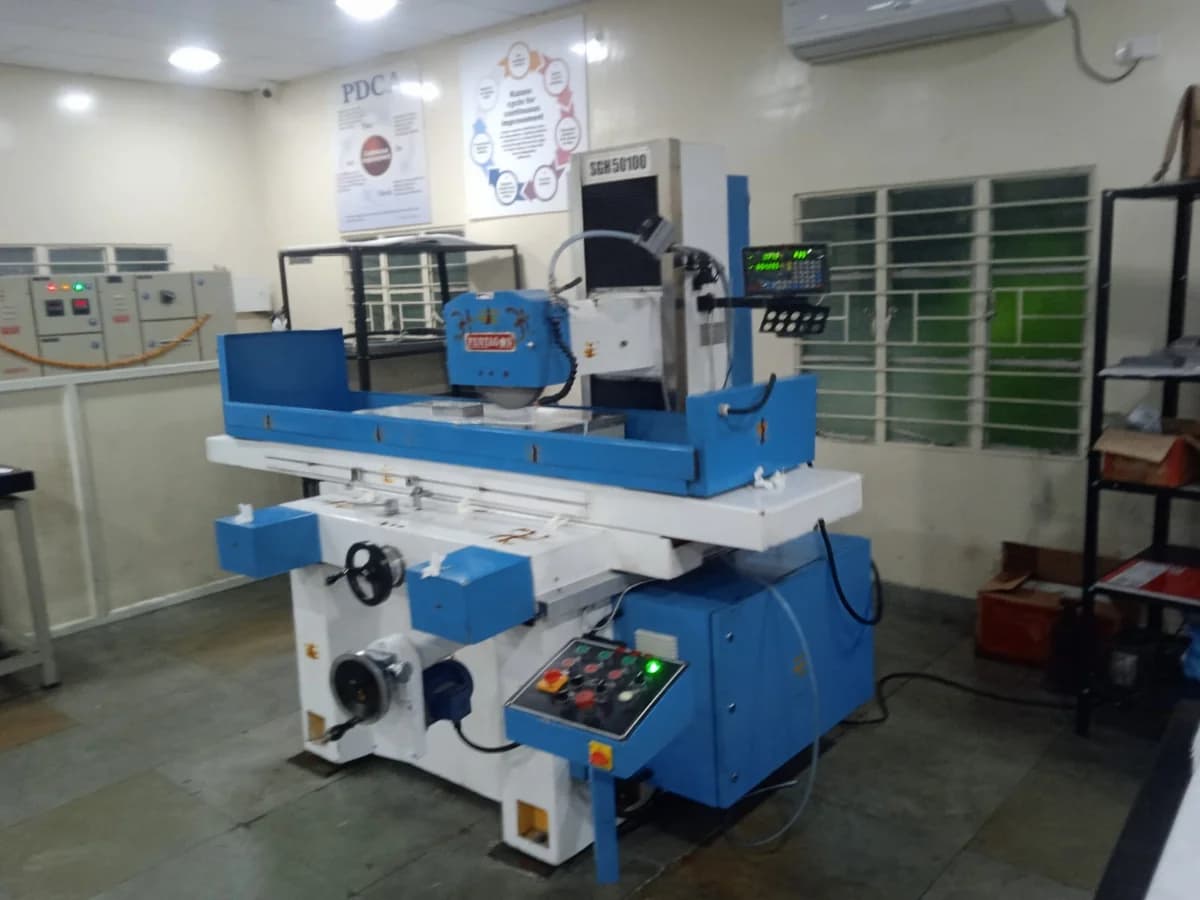

Click a row to switch| Variant | Magnetic Chuck size | Hydraulic Motor Power | Machine size | Price |
|---|---|---|---|---|
| MY1230/SGH7530 | 600x300 mm | 2.2KW/3HP | 1960x1480x1850 mm | ₹7,35,000 |
| MY4080/SGH4080E | 800x400 mm | 2.2KW/3 HP | 2550*2000*2100 mm | ₹11,23,000 |
| SGH50100/MY50100E | 1000x500 mm | 2.2KW/3 HP | 4445X2400x2200 mm | ₹19,55,000 |
| SGH30100/MY30100E | 1000x300 mm | 2.2KW/3 HP | 2800x1665x2180 mm | ₹10,85,000 |
| SGH40100/MY40100E | 1000x400 mm | 2.2KW/3 HP | 2550×1650×2200 mm | ₹14,65,000 |
| MY1230/SGH7530 E | 600x300 mm | 2.2KW/3HP | 1960x1480x1850 mm | ₹7,35,000 |
| MY1022/SGH5425 | 500x250 mm | 1 HP/2 HP | 1750× 1450× 1850 mm | ₹5,35,000 |
| MY1022-ZA | 500x250 mm | 1 HP (0.75 kW) | 1750× 1450× 1850 mm | ₹5,55,000 |
Industrial Applications & Benefits
- Ideal for industrial grinding equipment applications in manufacturing plants
- Perfect for finishing flat surfaces on diverse metal components
- Suitable for precision tool and die making requiring tight tolerances
- Supports production runs needing consistent accuracy and repeatability
- Handles various metal components requiring high surface finish standards
- Ensures consistent accuracy across production runs for quality control
- High precision hydraulic surface grinding machine for diverse metal components
Flexible Workholding Solutions
- Available with permanent or electromagnetic chucks for flexible workholding
- Fine pitch permanent magnetic chuck options available for secure holding
- Magnetic chuck size accommodates various workpiece dimensions
- T-slot configuration supports diverse clamping and fixture requirements
- Wheel size (dia width bore) 200x20x31.75 mm supports standard grinding
- Chuck options ensure secure holding for flat surface finishing tasks
- Distance from table to spindle center allows for varied workpiece heights
Robust Construction & Stability
- Rigid cast iron frames ensure stability during heavy grinding operations
- Coolant motor of 40W maintains optimal temperature during operation
- Robust design supports long-term reliability in demanding environments
- Stable base level ensures minimal wear on machine components over time
- Hydraulic table feeds provide consistent accuracy across production runs
- Compact machine footprint allows efficient integration into workshop layouts
- Built for durability in demanding industrial workshop environments

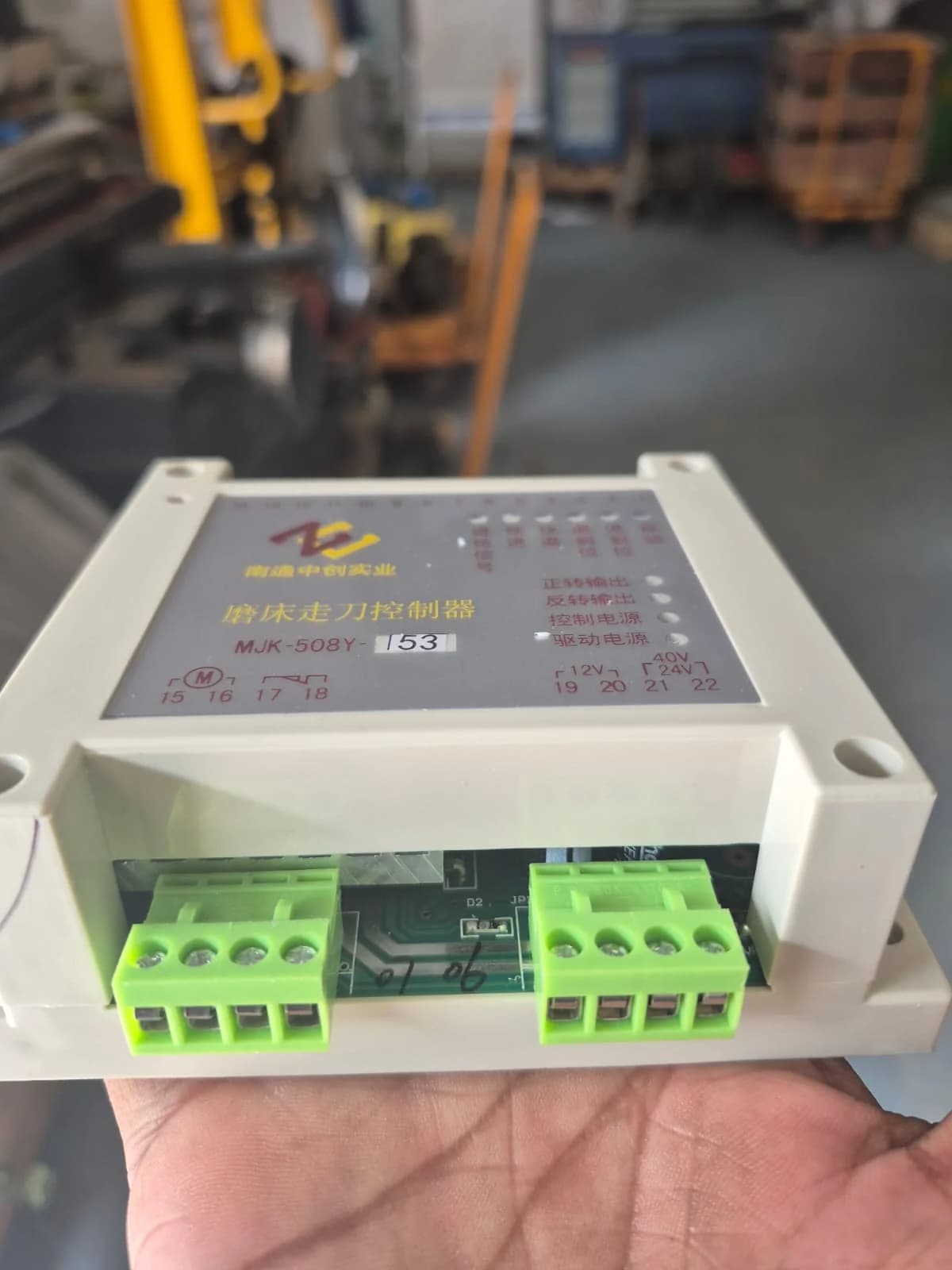

Hydraulic Power & Control Systems
- Hydraulic motor power of 1 HP (0.75 kW) drives table movement smoothly
- Vertical feed speed reaches 500 mm/Min for rapid approach movements
- Cross feed Per revolution is 5.0 mm for standard grinding passes
- Vertical (up and down) feed Per revolution is 0.8(1.0) mm
- Working pressure of 4 Mpa ensures consistent hydraulic system performance
- Oil tank capacity of 80 L supports extended industrial grinding applications
- Max oil flow of 20L/min ensures effective cooling and chip removal

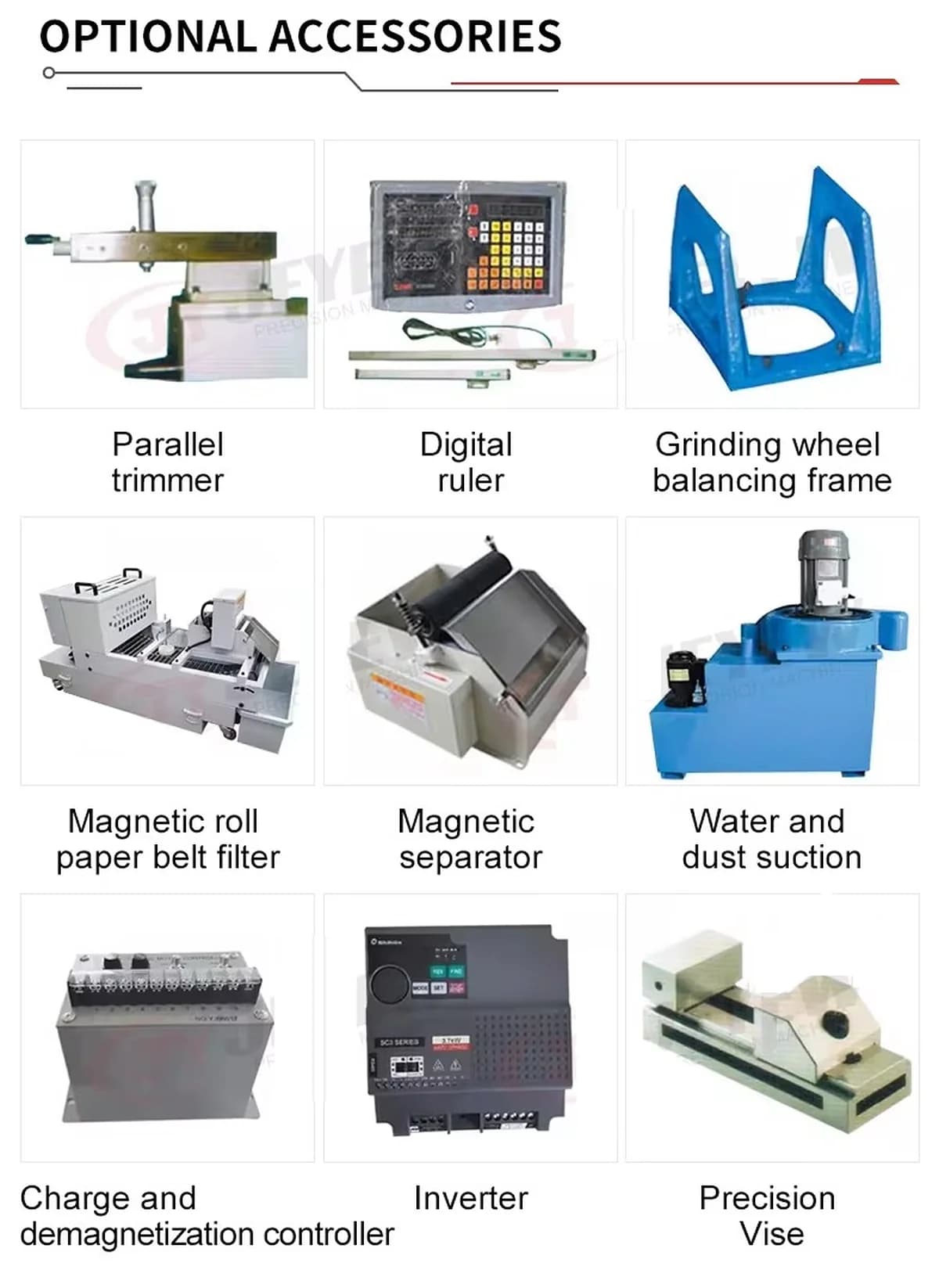

Optional Accessories
- DRO set along with scale fitted
- Electro Magnetic chuck suitable for this machine
- Mounting Pads
- Extra Wheels
High Precision Grinding Performance
- Achieves surface roughness as fine as Ra0.32μm for superior finishes
- Variable spindle speeds from 1450 – 2850 rpm for versatile processing
- Cross feed per graduation allows precise adjustments down to 0.02 mm
- Vertical feed per graduation offers fine control at 0.01 mm increments
- Longitudinal table speed ranges from 3 – 20 m/min for optimal grinding
- Parallelism of working surface to base level maintained at 300:0.005mm
- Spindle motor power up to 3 HP (2.2 kW) ensures efficient removal
Standard Accessories
- Machine Lamp
- Coolant Pump
- Grinding wheel
- Magnetic Chuck suitable size as per the machine model
- Balancing Stand
- Tool box
- Operation manual
More questions buyers ask
What is a hydraulic surface grinding machine used for?
It is used for precision finishing of flat surfaces on metal components, ensuring high accuracy and surface quality in industrial manufacturing.
Does Pentagon provide a warranty for these machines?
Yes, Pentagon machines come with a standard manufacturer warranty. Please verify specific terms at the time of purchase.
Can I claim input tax credit on this purchase?
Yes, Gearo provides a GST invoice for all B2B purchases, allowing you to claim input tax credit.
What is the difference between a permanent and electromagnetic chuck?
Permanent magnetic chucks are reliable and require no power, while electromagnetic chucks offer adjustable holding power and are ideal for larger or more complex workpieces.
Do you provide pan-India delivery?
Yes, we offer secure and reliable pan-India delivery for all industrial machines.
What accessories are included with the machine?
Standard accessories typically include a magnetic chuck, wheel balancing unit, diamond dresser, coolant pump, and operation manual.
What is the maximum surface roughness achievable?
These machines can achieve surface roughness as fine as Ra0.32μm to Ra0.4μm depending on the model and application.
What power supply is required?
Most models operate on 415V industrial power, though specifications vary by model. Please check the technical specifications for your chosen unit.
Are these machines suitable for tool and die making?
Yes, their high precision and stability make them ideal for tool and die making requiring tight tolerances.
How do I choose the right table size?
Choose a table size that accommodates your largest typical workpiece. We offer models ranging from 540x250mm up to 1000x500mm.
Who should choose the MY1022 model?
The MY1022 is perfect for small-to-medium workshops and tool rooms needing a compact, high-precision solution.
Who should choose the MY50100 model?
The MY50100 is designed for heavy-duty industrial production environments requiring large table capacity and robust grinding power.
How does the MY1022 compare to the MY4080?
The MY1022 is a compact model (540x250mm table) for precision work, whereas the MY4080 is a heavy-duty machine (800x400mm table) with a more powerful 5HP motor for larger industrial tasks.
Is the MY1230 better than the MY1022?
The MY1230 offers a larger table (700x300mm) compared to the MY1022 (540x250mm), making it better suited for medium-sized components.
