Hydraulic Swing Beam NC Shearing Machine Model 4x2500 mm
PENTAGON Hydraulic NC shearing machine swing beam type model QC12Y 4x2500 mm with motorized back gauge with ball screw supported motion along with NC control system E-21 and with complete all std accessories, QC12Y 4×2500 NC Hydraulic Swing Beam Shear offers smooth, accurate, and efficient cutting for MS, SS, Aluminium, Copper sheets with ESTUN E21 NC control and rigid swing-beam structure.

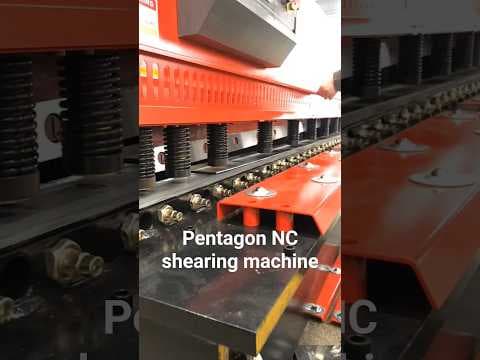

See it in action
Specifications
For: 4x2500 mm- Model
- QC12Y 4x2500 mm
- Machine Type
- Hydraulic NC Shearing Machine
- Cutting Thickness
- 4 mm MS and 2 mm SS
- Cutting Length
- 2500 mm
- Cutting Angel
- 0 1°30"
- Back gauge adjustment Range
- 20-500 mm
- Stroke per Min
- 16 Stroke
- Motor Power
- 7.5Hp (5.5Kw)
- Controller
- Estun E-21
- Blade Material
- High Grade Alloy Steel
- Blade Type
- 4 Edge Blade
- Blade Clearance Mechanism
- Manual
- Body frame
- Heavy Welded Steel Fabricated
- Oil Tank Capacity
- 100-125 Liters
- Material to Be Cut
- MS / SS / Aluminium / Copper
- Machine Dimensions
- 3040x1550x1550 mm
- Machine Weight
- 3500 Kgs Approximate
Configurations
Click a row to switch| Variant | Cutting Length | Cutting Thickness | Stroke per Min | Back gauge adjustment Range | Price |
|---|---|---|---|---|---|
| 4x2500 mm | 2500 mm | 4 mm MS and 2 mm SS | 16 Stroke | 20-500 mm | ₹9,28,000 |
| 4x3200 mm | 3200 mm | 4 mm MS and 2 mm | 13 Stroke | 20-550 mm | ₹12,64,000 |
| 4x4000 mm | 4000 mm | 4mm MS and 2mm SS | 10 Stroke | 20-600 mm | ₹17,28,000 |
| 6x4000 mm | 4000 mm | 6mm MS and 3mm SS | 9 Stroke | 20-600 mm | ₹18,40,000 |
| 6x3200 mm | 3200 mm | 6mm MS and 3mm SS | 11 Stroke | 20-600 mm | ₹14,72,000 |
| 8x4000 mm | 4000 mm | 8mm MS and 4mm SS | 8 Stroke | 20-600 mm | ₹21,44,000 |
| 10x2500 mm | 2500 mm | 10mm MS and 5mm SS | 10 Stroke | 20-600 mm | ₹16,64,000 |
| 10x3200 mm | 3200 mm | 10mm MS and 5mm SS | 8 Stroke | 20-600 mm | ₹21,44,000 |
| 6x2500 mm | 2500 mm | 6mm MS and 3mm SS | 12 Stroke | 20-600 mm | ₹12,64,000 |
| 8x2500 mm | 2500 mm | 8mm MS and 4mm SS | 11 Stroke | 20-600 mm | ₹14,40,000 |
| 8x3200 mm | 3200 mm | 8mm MS and 4mm SS | 8 Stroke | 20-600 mm | ₹16,32,000 |
| 10x4000 mm | 4000 mm | 10mm MS and 5mm SS | 8 Stroke | 20-600 mm | ₹24,80,000 |
| 12x2500 MM | 2500 mm | 12mm MS and 6mm SS | 12 Stroke | 20-800 mm | ₹21,12,000 |
Description
The QC12Y NC Hydraulic Swing Beam Shearing Machine is designed for precision sheet-metal cutting with stable swing-beam shearing technology. Equipped with an ESTUN E21 NC control system, the machine ensures accurate back-gauge positioning, repeatability, and consistent productivity for fabrication workshops, HVAC ducting, metal furniture, control panels, enclosures, and general sheet-metal industries.
Machine Specially Designed for cutting mild steel sheets up to 16 mm thickness and 6000 mm length, the machine utilizes advanced hydraulic transmission combined with a numerically controlled back gauge for accurate and repeatable cutting operations.
The swing beam mechanism delivers smooth cutting performance and protects blade sharpness while reducing noise and vibration. The machine is built with a heavy welded steel frame for rigidity, durability, and minimum deformation during continuous production.
Features
- The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation
- Indicator-based adjustment of gap of blade is convenient and fast
- Hardened, precision-ground blades for extended life
- Hydraulic hold-downs ensure anti-slip sheet grip
- Adjustable blade gap for varying sheet thickness
- The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier
- The machine uses protection fence for safe operation
- Adjustable cutting stroke improves productivity & blade life
- Heavy-duty welded steel frame prevents distortion under load
- Digital display device for size of back gauge and shearing times available
- ESTUN E21 controller for NC back gauge positioning
- Process of shearing is programmable control
- Front sheet support arms with scale
- Rear safety guard and electrical overload protection
- Low noise, stable hydraulic performance
- High repeatability for batch cutting jobs
Advantages
- Higher cutting accuracy vs. manual shears
- Fast setup with automated back gauge
- Reduced sheet deformation due to hold-down cylinders
- Lower operating cost and longer blade life
- Ideal for medium-duty fabrication production
- Improved operator safety & efficiency
- Suitable for MS, SS & aluminium sheet cutting
- Compact & robust industrial design
Applications
- Used widely in sheet-metal industries including:
- Ducting & HVAC fabrication
- Metal furniture & kitchen equipment
- Control panel & electrical cabinet manufacturing
- Fabrication workshops
- Sheet metal job shops
- Industrial enclosures & trays
- Auto body components
- General precision sheet cutting operations
Standard Accessories
- ESTUN E21 NC controller
- Hydraulic hold down cylinders
- Front squaring arm with ruler
- Front sheet support arms
- Back gauge unit
- Motor & hydraulic system
- Safety guards
More questions buyers ask
What is the primary function of the QC12Y shearing machine?
The QC12Y is a hydraulic swing beam shearing machine designed for precision cutting of mild steel, stainless steel, and aluminium sheets.
What does the NC in the model name stand for?
NC stands for Numerically Controlled, referring to the automated back gauge positioning system (typically Estun E21) that ensures high cutting accuracy and repeatability.
What is the maximum cutting thickness for the QC12Y series?
The series offers various models ranging from 4mm to 12mm cutting thickness for mild steel, depending on the specific variant chosen.
How does the swing beam design benefit the cutting process?
The swing beam mechanism provides a smooth, consistent cutting action, reduces blade wear, and minimizes noise and vibration compared to traditional guillotine shears.
Is the blade gap adjustable on this machine?
Yes, the machine features an indicator-based adjustable blade gap, allowing operators to optimize the cut for different sheet thicknesses.
What type of controller is used in these machines?
These machines are equipped with the Estun E21 NC controller, which allows for programmable back gauge positioning and shearing counts.
What materials can be cut using this machine?
It is suitable for cutting mild steel (MS), stainless steel (SS), aluminium, and copper sheets within the specified thickness limits.
Does the machine come with safety features?
Yes, it includes a protection fence, rear safety guards, and electrical overload protection to ensure operator safety.
What is the purpose of the hydraulic hold-down cylinders?
They securely grip the sheet metal during the cutting process to prevent slipping and reduce sheet deformation.
What is the typical power requirement for these machines?
The motor power ranges from 5.5kW (7.5HP) to 18.5kW, depending on the machine's cutting capacity and size.
Who should choose the 4x2500mm model?
This model is ideal for medium-duty fabrication workshops requiring a compact, precise machine for 4mm MS sheet cutting.
Who should choose the 12x2500mm model?
This model is best for heavy-duty industrial fabrication shops that need to process thicker steel plates up to 12mm.
How does the 4x4000mm model compare to the 4x2500mm model?
Both offer 4mm cutting thickness, but the 4x4000mm model provides a significantly longer cutting length, making it better for large-format panels.
What is the difference between the 6x3200mm and 8x3200mm variants?
While both have a 3200mm cutting length, the 8x3200mm model is built for heavier-duty tasks, capable of cutting 8mm MS compared to the 6mm capacity of the 6x3200mm model.
Which model should I choose for high-volume industrial production?
For high-volume, heavy-duty production, models like the 10x4000mm or 12x2500mm are recommended due to their robust construction and higher cutting capacities.
