Hand Pallet Truck with Weighting Scale and Printer Model PHPT-30D — PHPT-30LWP with Printer

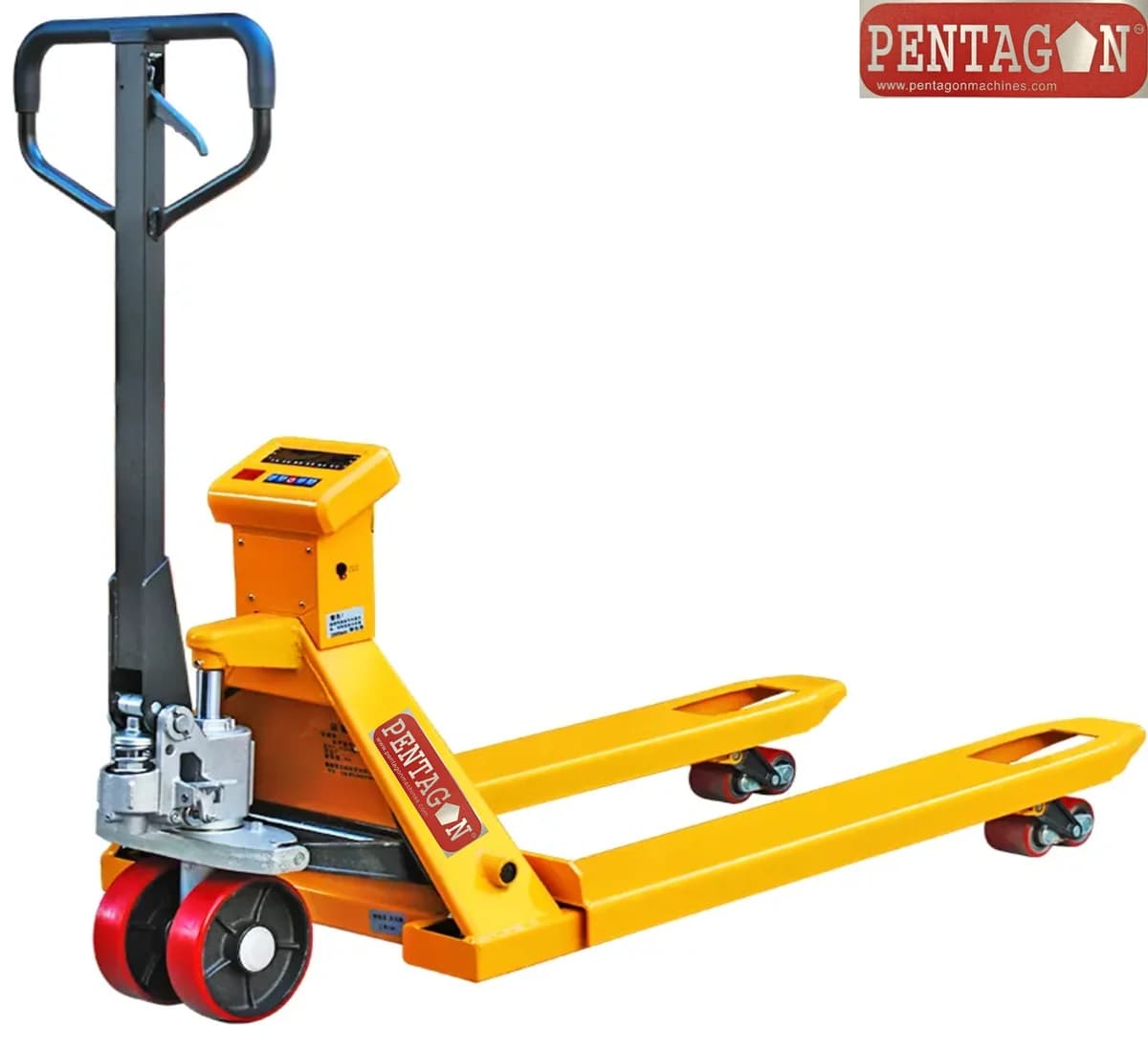

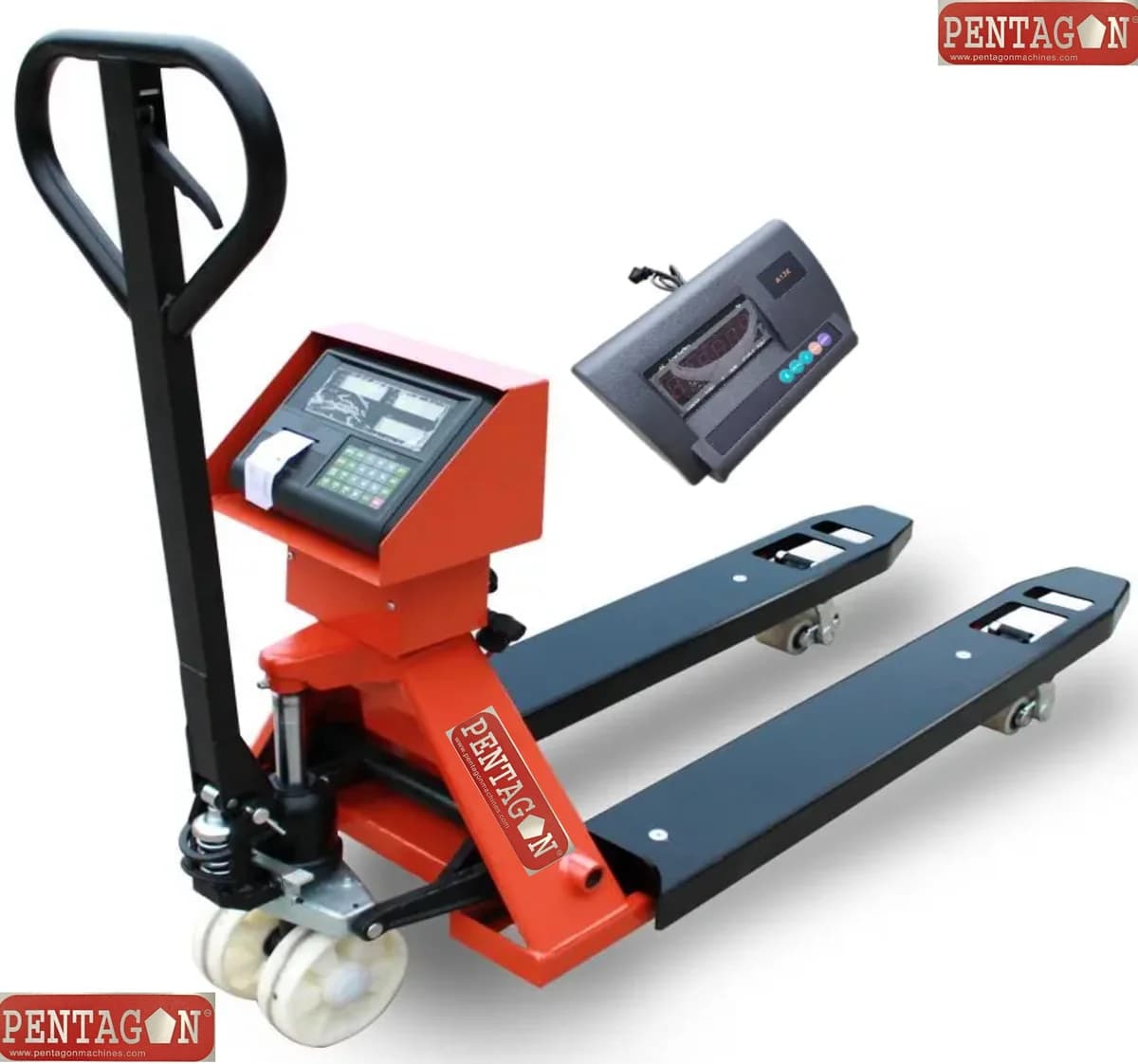

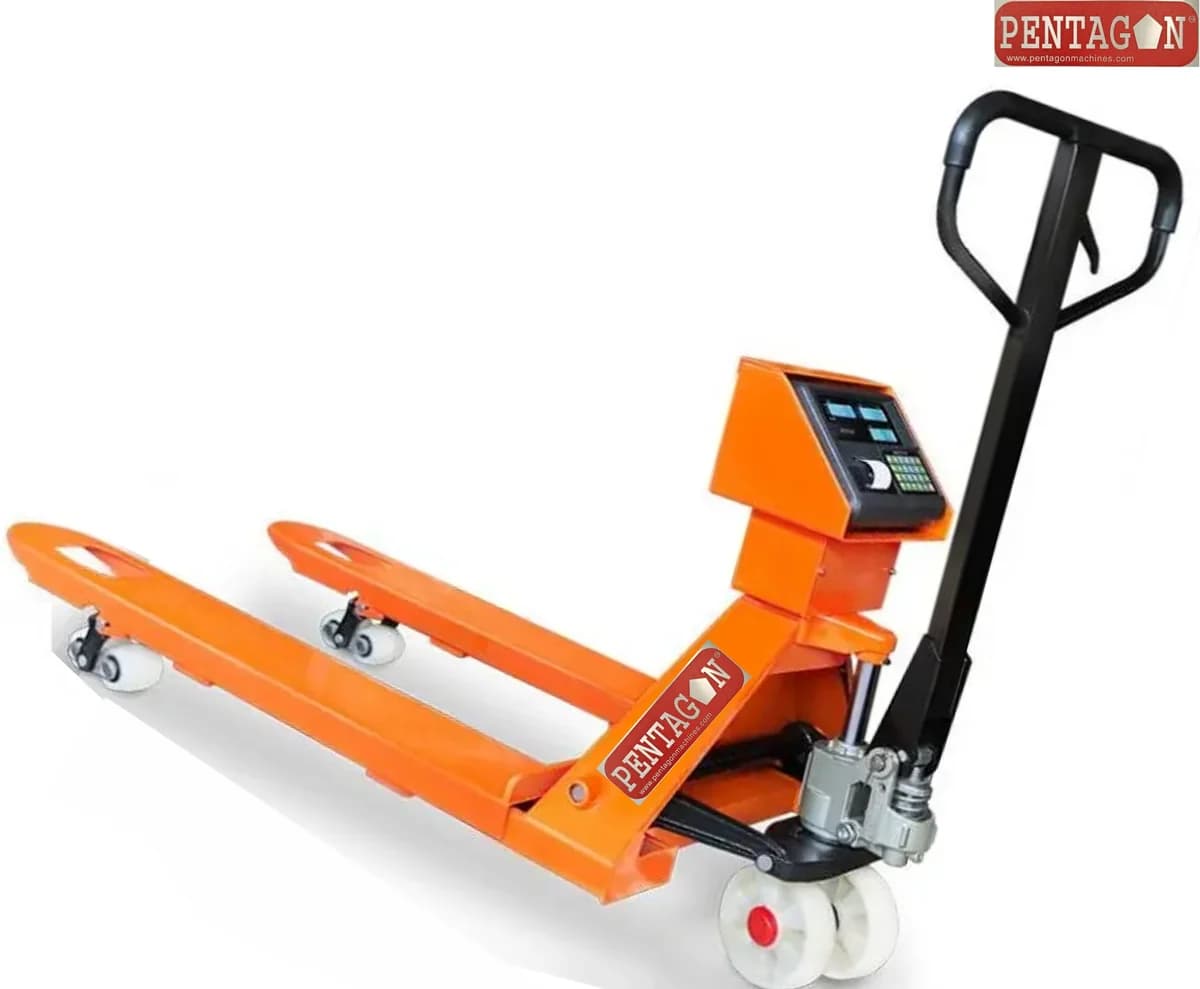

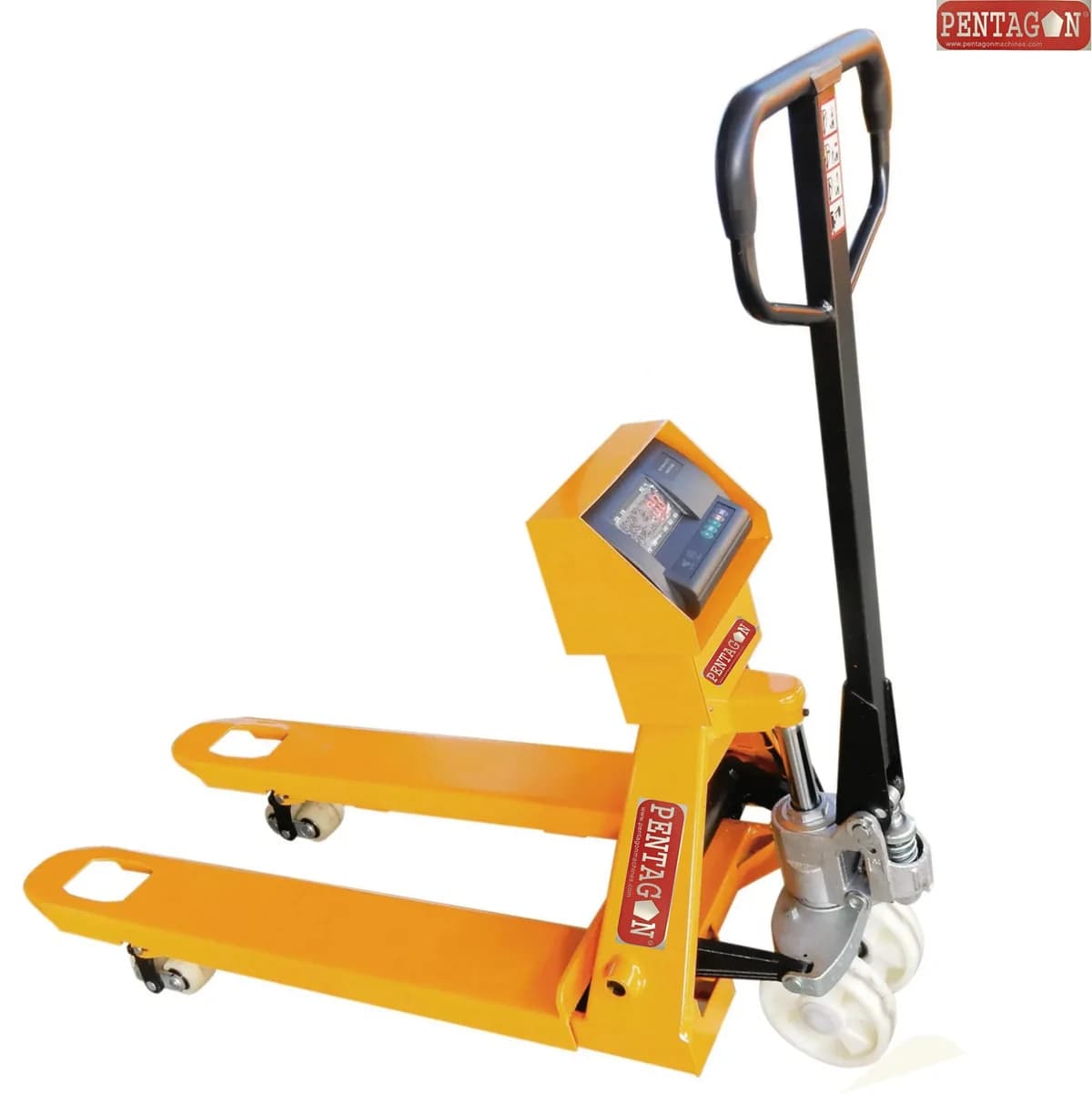

Hydraulic hand pallet truck with built-in weighing scale and thermal printer. Weighs and prints slips on the spot. • Built-in receipt or label printer for instant documentation • Accurate digital weighing with high-precision load cells • Rated load capacity of 3000 kgs for standard pallets • Reduces manual data entry errors in warehouse operations

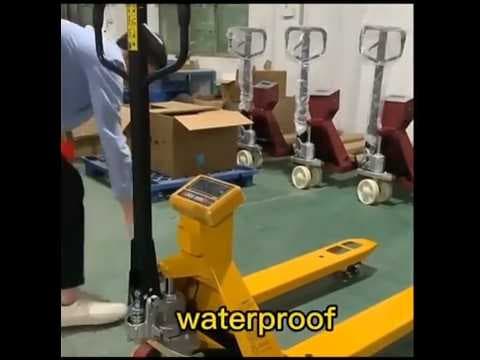

See it in action
Specifications
For: PHPT-30LWP with Printer- Model
- PHPT-30D
- Load Capacity
- 3000 kg
- Fork Length
- 1150 mm (standard)

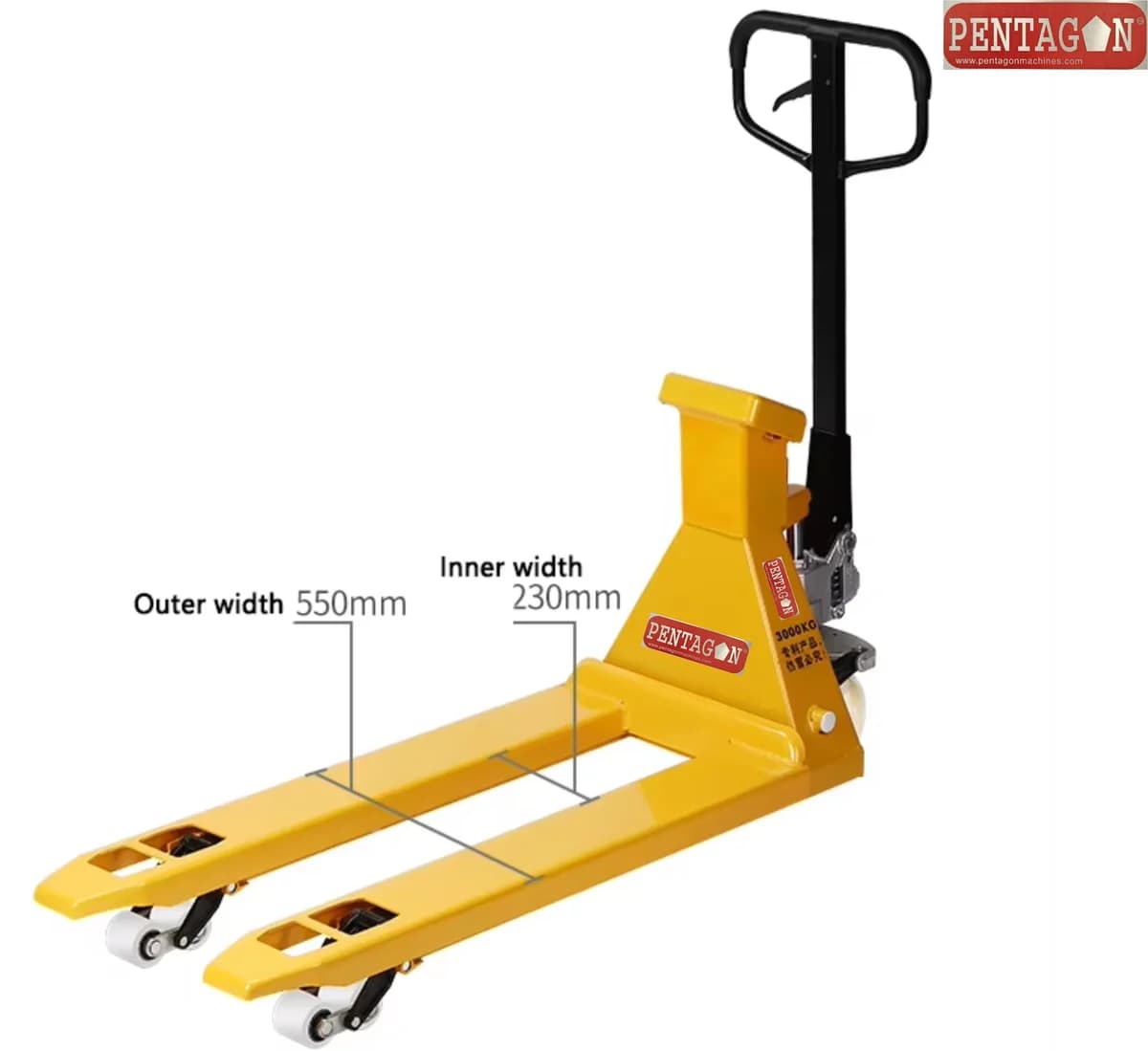

- Fork Width
- 550 mm
- Min Fork Height
- 85 mm
- Max Lifting
- 185 mm
- Weighing Accuracy
- ±0.5 kg to ±1 kg
- Graduation
- 0.5 / 1 kg
- Load Cells
- 4 Nos. high precision
- Display
- Digital LCD / LED
- Printer Type
- Thermal Printer
- Print Output
- Weight, Date, Time
- Power Supply
- Rechargeable Battery
- Wheel Type
- PU Wheels
- Net Weight
- 110 Kgs
- Packing Dimension
- 1550 × 700 × 1250 mm
- Fork Length (l)
- 1150 mm
- Printer
- Yes (built-in receipt or label)
- Rated Load Capacity
- 3000 Kgs
Configurations
Click a row to switch| Variant | Load Capacity | Printer Type | Fork Length | Fork Width | Price |
|---|---|---|---|---|---|
| PHPT-30LWP with Printer | 3000 kg | Thermal Printer | 1150 mm (standard) | 550 mm | ₹52,600 |
| PHPT-30LWP with out Printer | 3000 kg | NA | 1150 mm (standard) | 550 mm | ₹46,200 |
Maintenance and Safety Standards
- Regular calibration ensures long-term weighing accuracy
- Hydraulic system requires standard maintenance checks
- Designed for safe handling of heavy loads up to 3000 kg
- Rechargeable battery allows continuous operation shifts
- Built-in safety valves prevent overloading during lifts
Robust Construction and Mobility

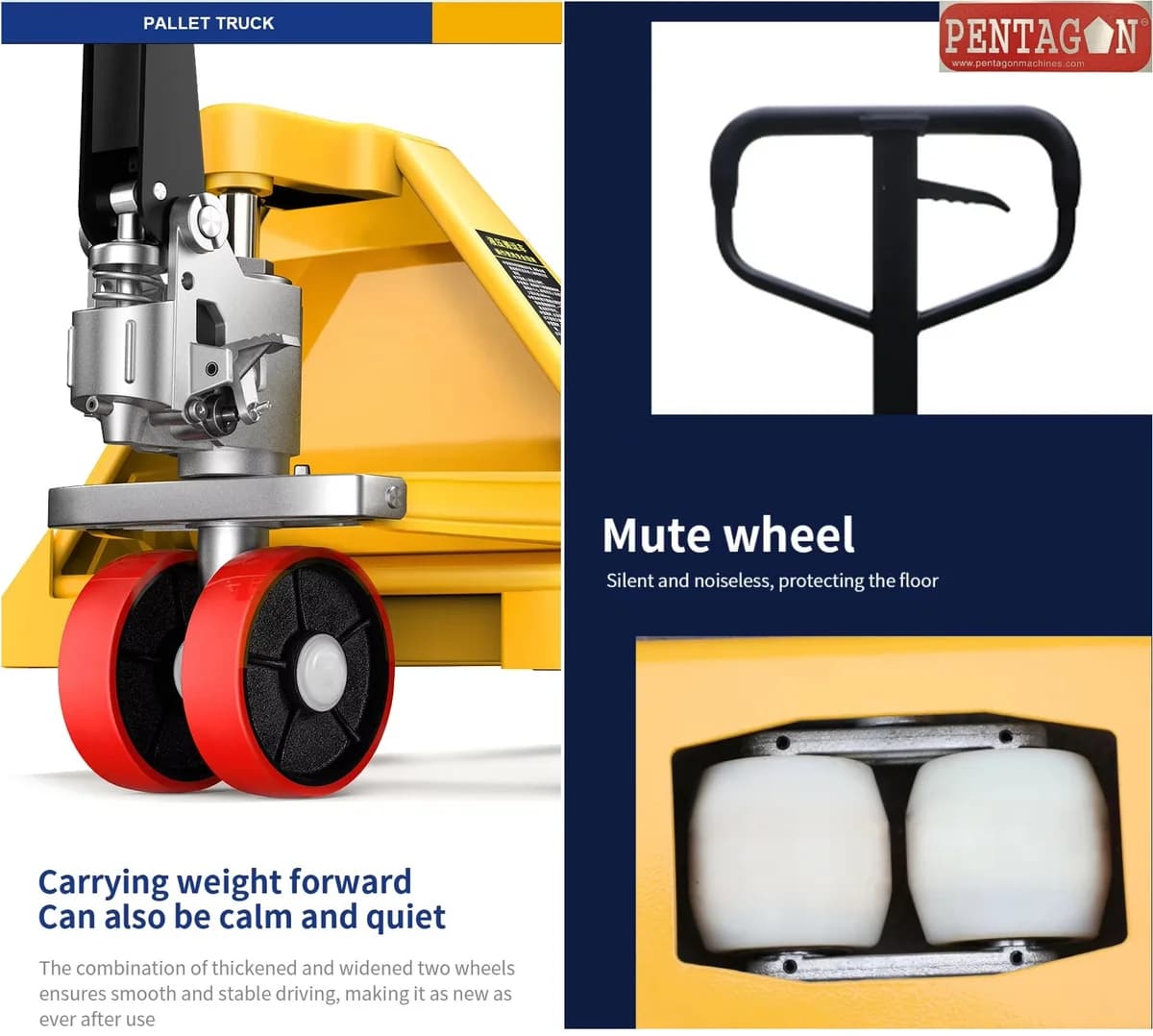

- PU wheels offer smooth movement on various warehouse floors
- Min fork height of 85 mm slides under most pallet bases
- Max lifting capability reaches 185 mm for transport
- Net weight of 110 Kgs balances portability and stability
- Packing dimension of 1550 × 700 × 1250 mm fits standard shipping
- Designed for safe handling of heavy loads up to 3000 kg
- Hydraulic system requires standard maintenance checks
Operational Efficiency and Data Accuracy
- Reduces manual data entry errors in warehouse operations
- Weighing accuracy ranges from ±0.5 kg to ±1 kg

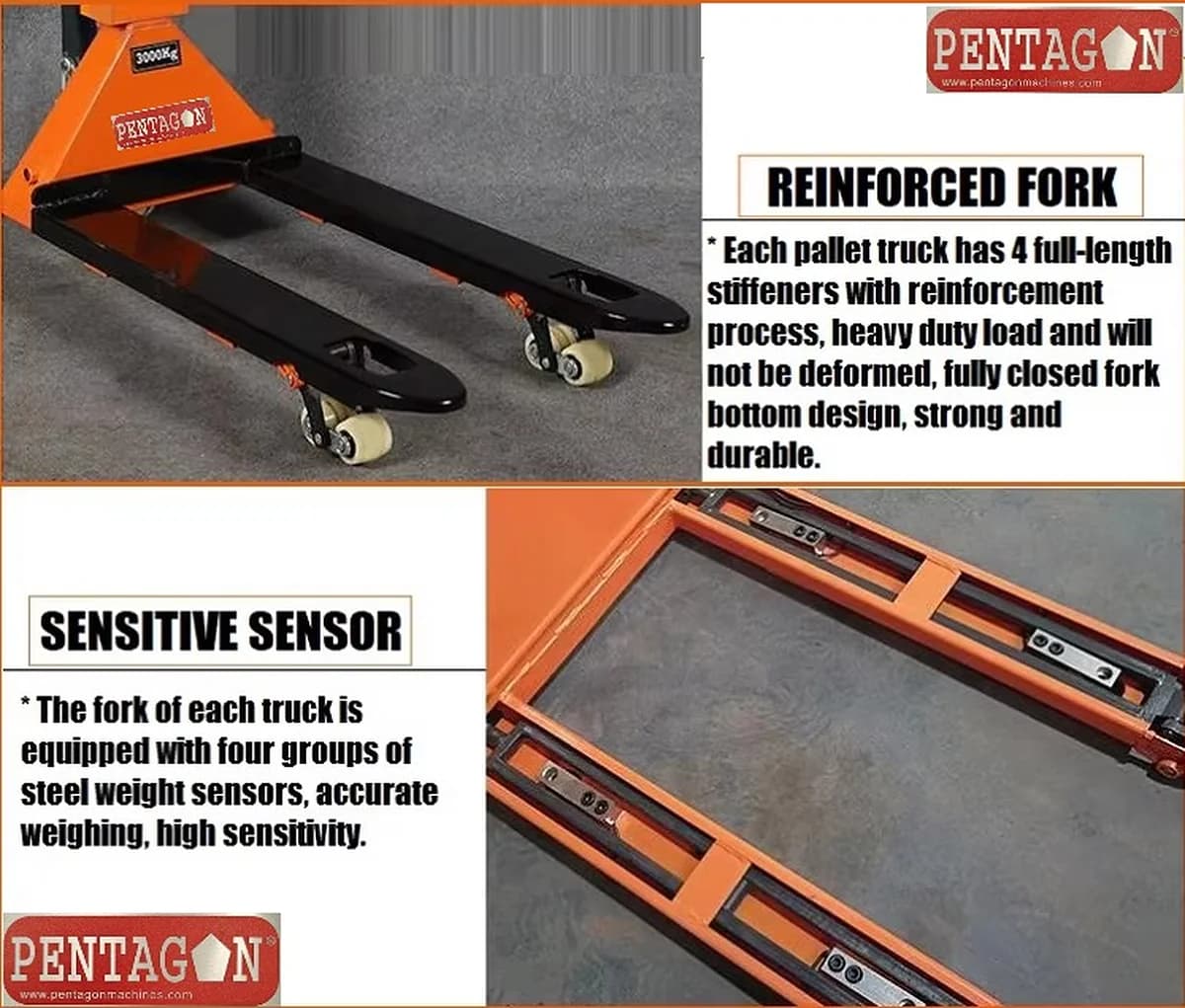

- 4 Nos. high precision load cells ensure stable measurements
- Rechargeable battery powers the scale and printer functions
- Fork width of 550 mm fits most standard industrial pallets
- Fork length of 1150 mm provides stable load support
Integrated Weighing and Printing System
- Built-in receipt or label printer for instant documentation
- Accurate digital weighing with high-precision load cells
- Rated load capacity of 3000 kg for standard pallets

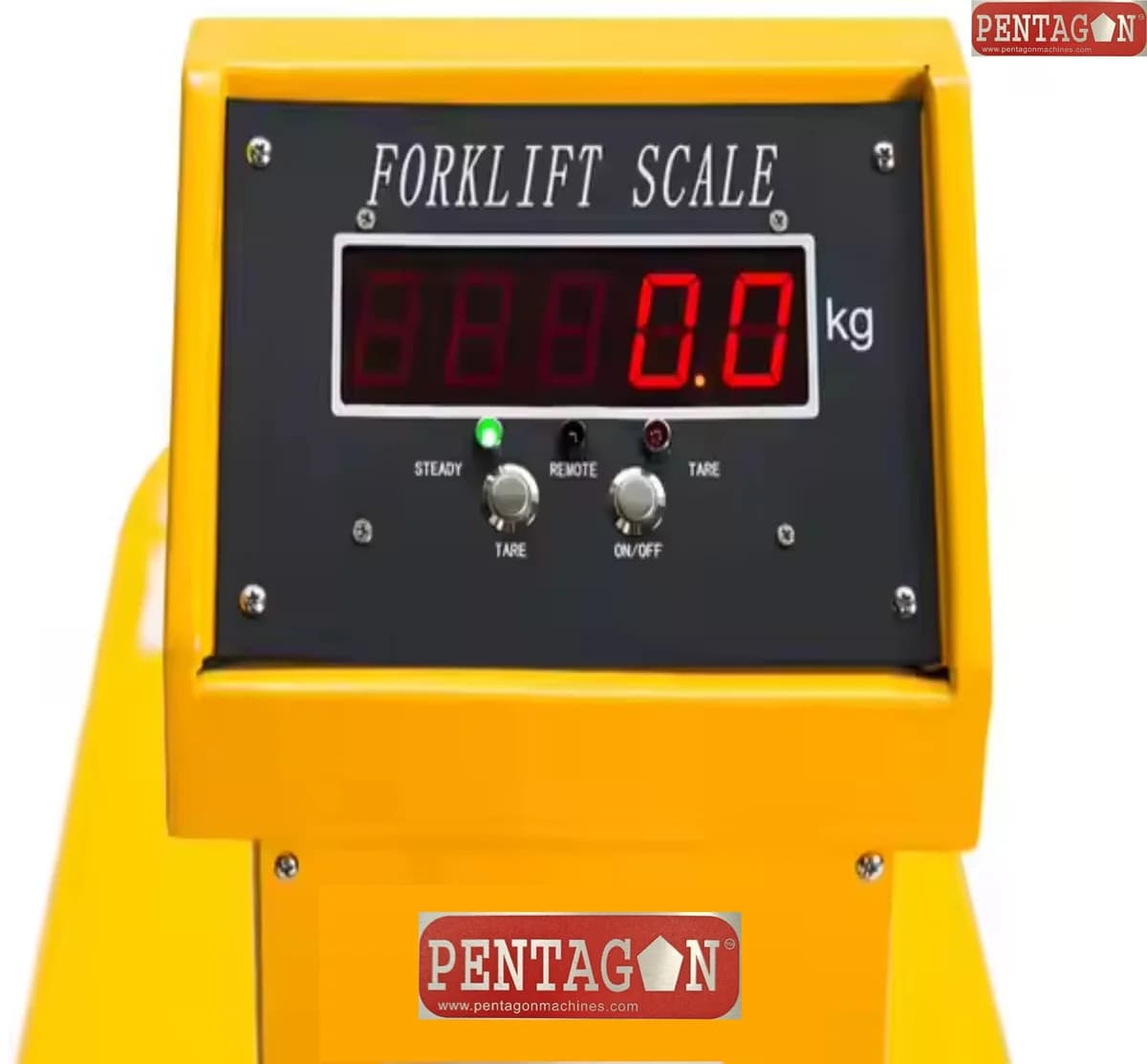

- Digital LCD or LED display shows real-time weight data
- Graduation options of 0.5 – 1 kg for varying precision needs
- Thermal printer prints weight, date, and time on slips
- Available in configurations with or without the integrated printer
Frequently asked
Can the printer be used without the weighing function?
The system integrates both, but printing is triggered by weight data.
How long does the rechargeable battery last?
Battery life depends on usage frequency and printer activation.
Is the truck suitable for outdoor use?
PU wheels and hydraulic systems are designed for indoor warehouse floors.
More questions buyers ask
What is the load capacity of this Pentagon hand pallet truck?
This hydraulic hand pallet truck has a robust rated load capacity of 3000 kg (3 Tons), making it suitable for heavy-duty warehouse applications.
Does it come with a built-in weighing scale?
Yes, it features an integrated digital weighing scale equipped with 4 high-precision load cells for accurate measurements.
What is the weighing accuracy of the scale?
The weighing accuracy is highly reliable, ranging from ±0.5 kg to ±1 kg, ensuring precise load management.
What are the fork dimensions of the pallet truck?
The standard fork length is 1150 mm and the overall fork width is 550 mm, designed to fit standard pallets easily.
What is the minimum and maximum lifting height?
The minimum fork height is 85 mm, allowing it to slide under most pallets, and the maximum lifting height reaches 185 mm.
How is the weighing scale powered?
The digital scale and the optional printer are powered by a built-in rechargeable battery, allowing for continuous operation during shifts.
What type of wheels does the pallet truck have?
It is equipped with durable PU (Polyurethane) wheels that offer smooth movement and protect various types of warehouse floors.
Is the weight display easy to read?
Yes, it features a clear Digital LCD / LED display that makes it easy for operators to read the weight instantly.
What is the net weight of the equipment?
The net weight of the pallet truck is 110 Kgs, which provides a good balance of portability and stability.
Can I get a GST invoice for this purchase?
Yes, a valid GST invoice is provided for all B2B purchases, allowing you to claim input tax credit.
Is pan-India delivery available for this product?
Yes, we offer reliable pan-India delivery to ensure your material handling equipment reaches your facility safely.
Who should choose the PHPT-30LWP with Printer?
This variant is ideal for warehouses, logistics, and shipping operations that require instant documentation and printed weight receipts on the spot to reduce manual data entry errors.
Who should choose the PHPT-30LWP without Printer?
This variant is best for businesses that need accurate mobile weighing for internal tracking but do not require physical printed receipts, offering a more cost-effective solution.
What is the main difference between the two variants?
The primary difference is the inclusion of a built-in thermal printer in one variant for instant weight documentation, while the other only displays the weight digitally.
Does the absence of a printer affect the weighing accuracy?
No, both variants use the exact same high-precision load cells and offer the same weighing accuracy of ±0.5 kg to ±1 kg.
Is there a price difference between the models?
Yes, the model without the printer is more affordable, making it a great choice for budget-conscious buyers who only need the weighing functionality.
