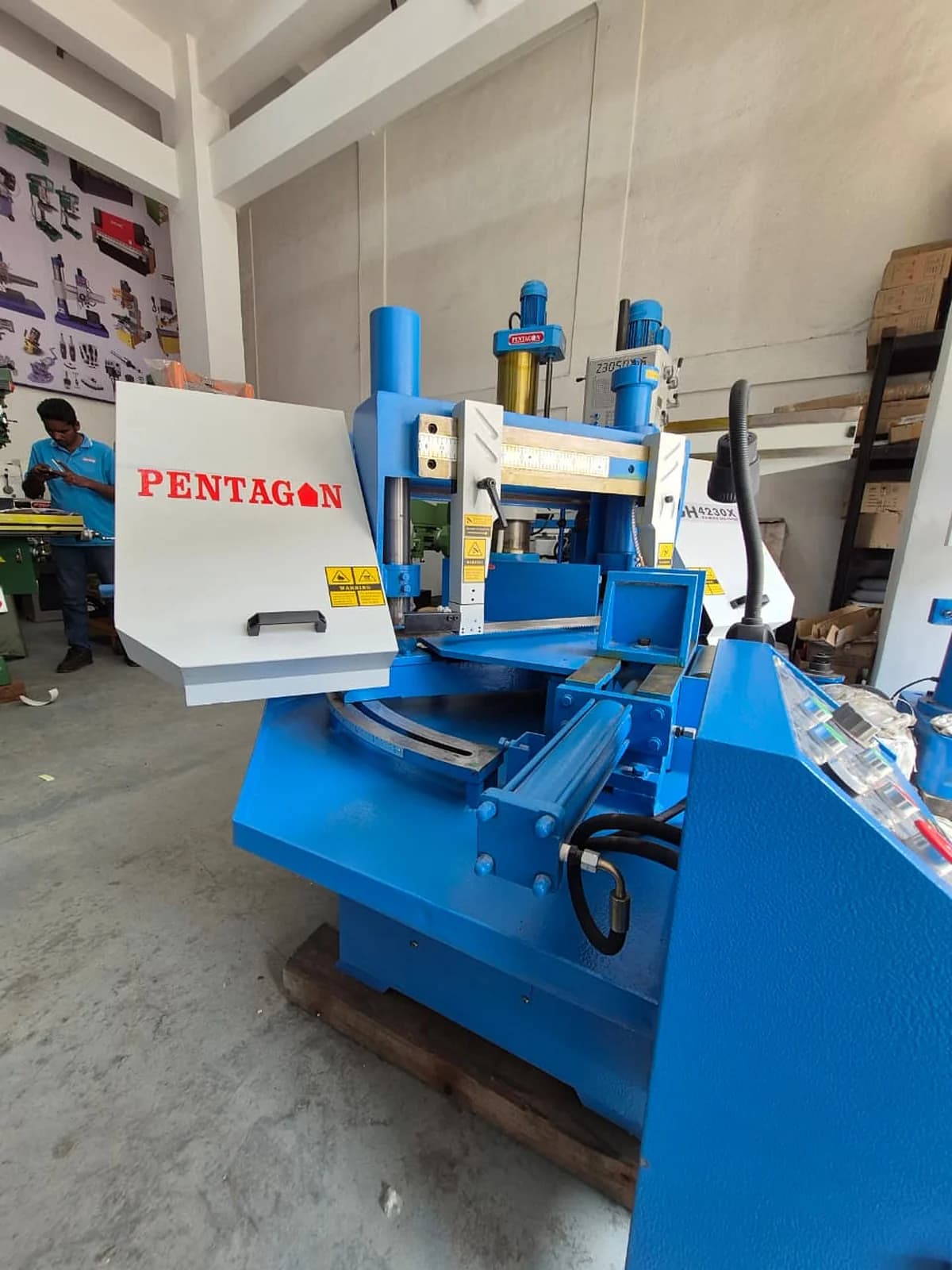

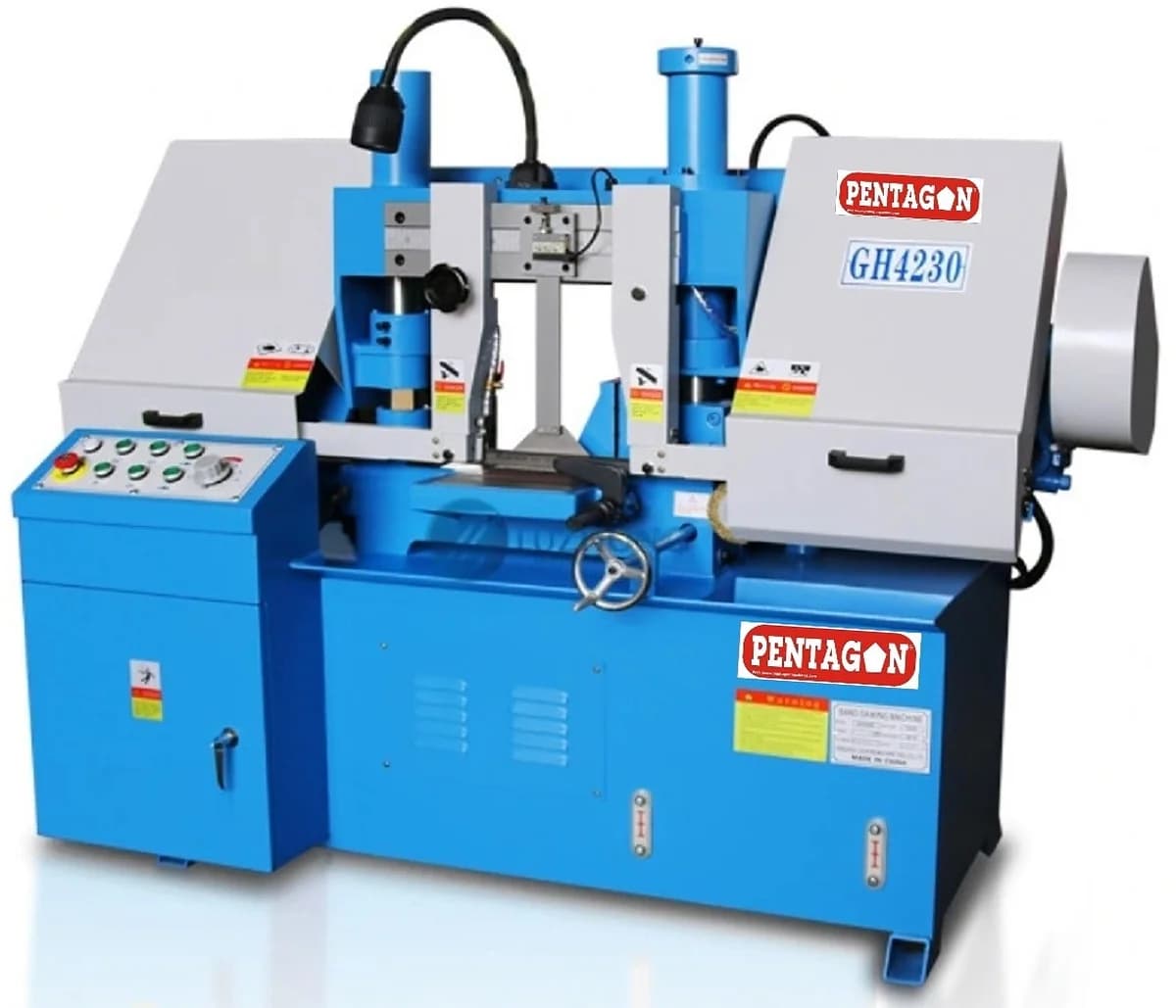

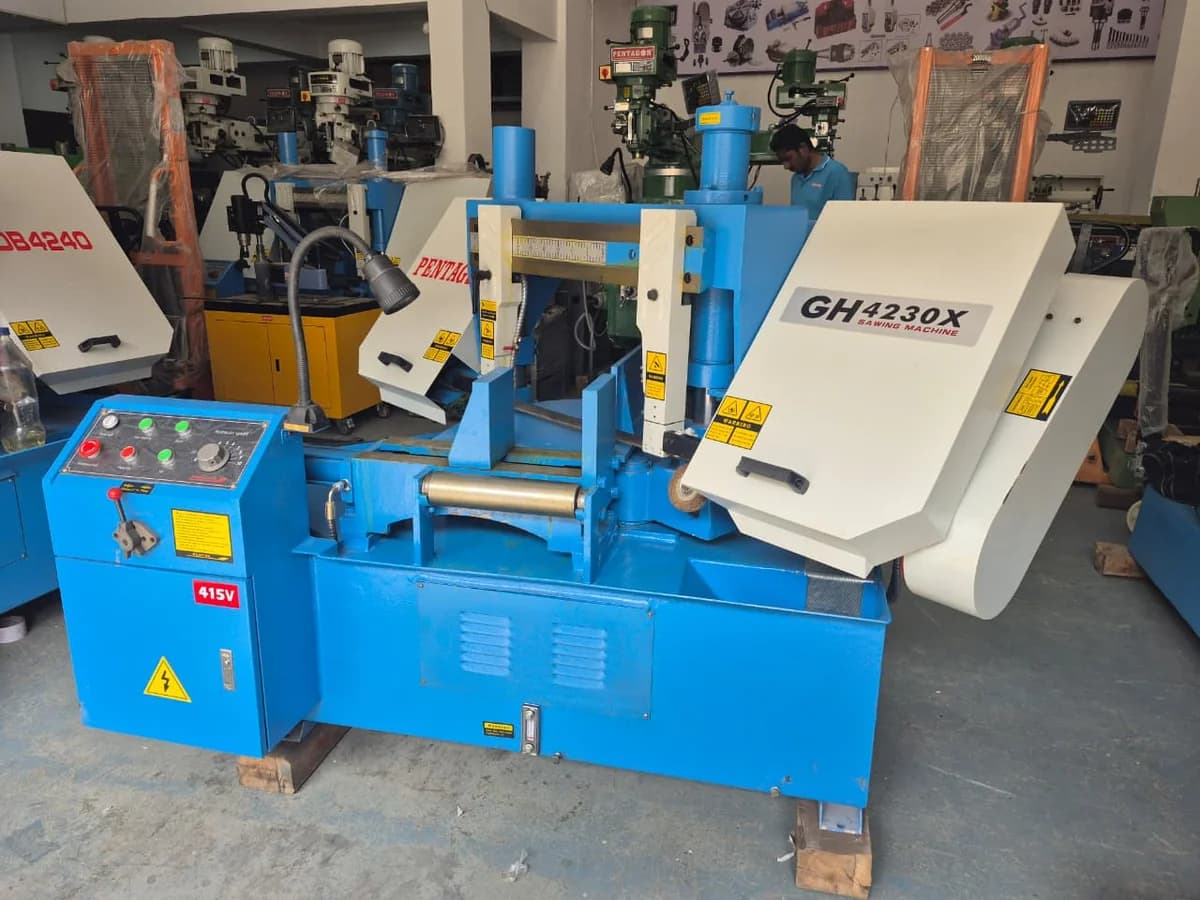

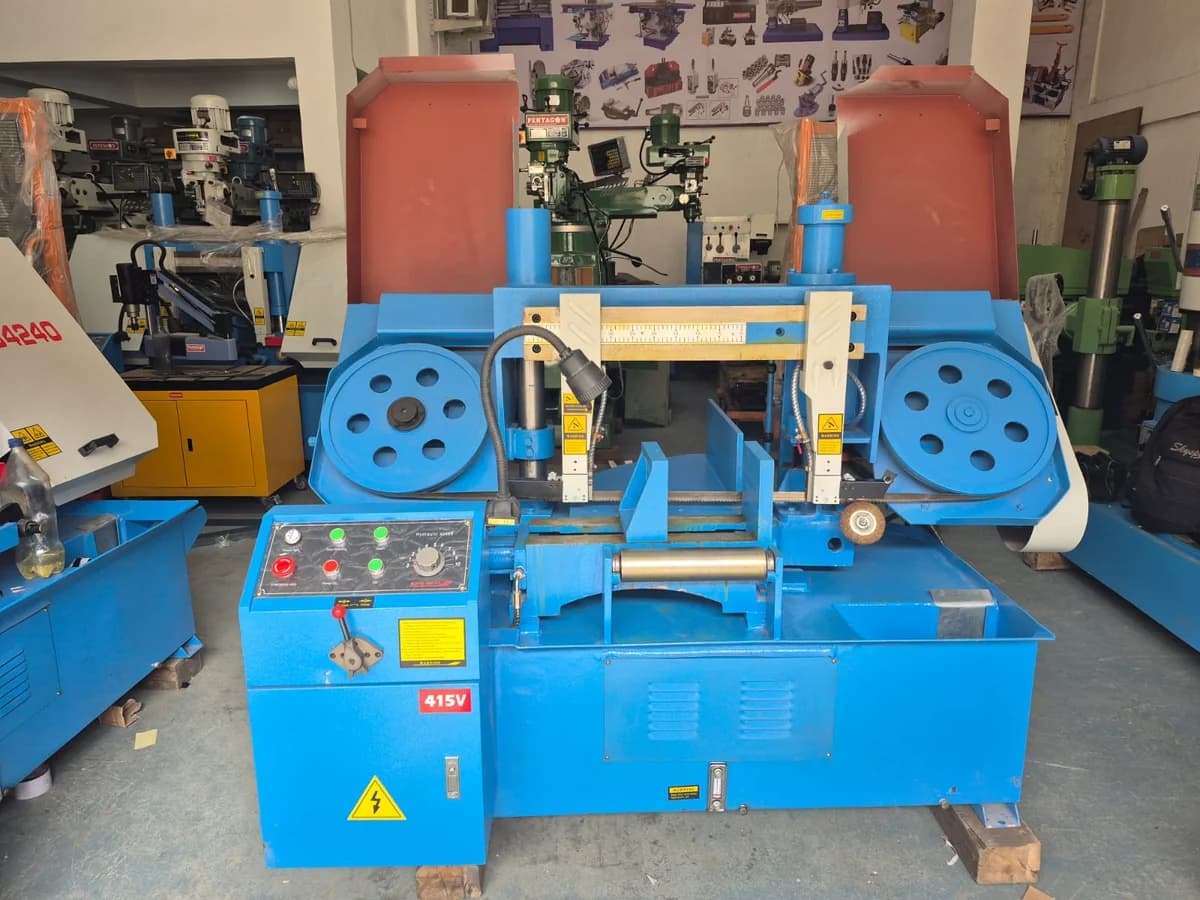

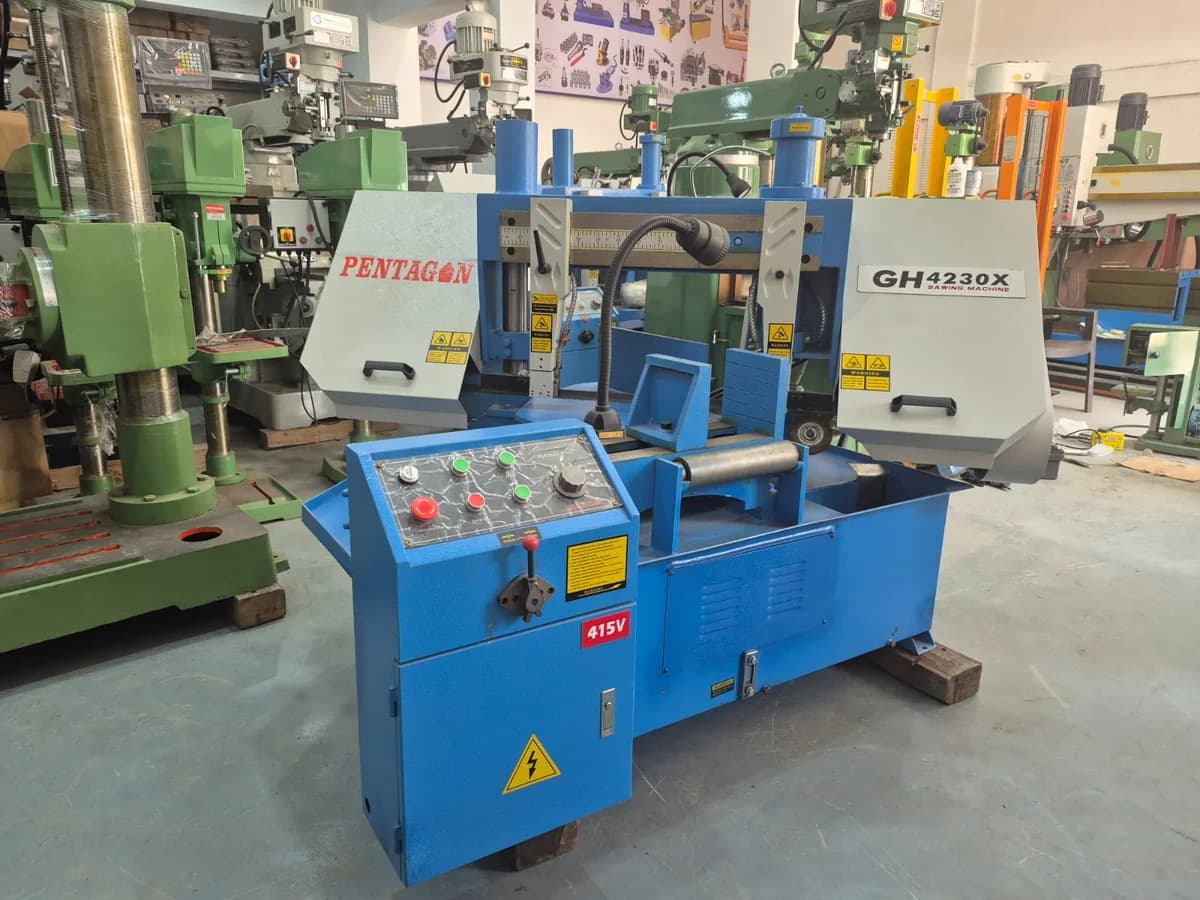

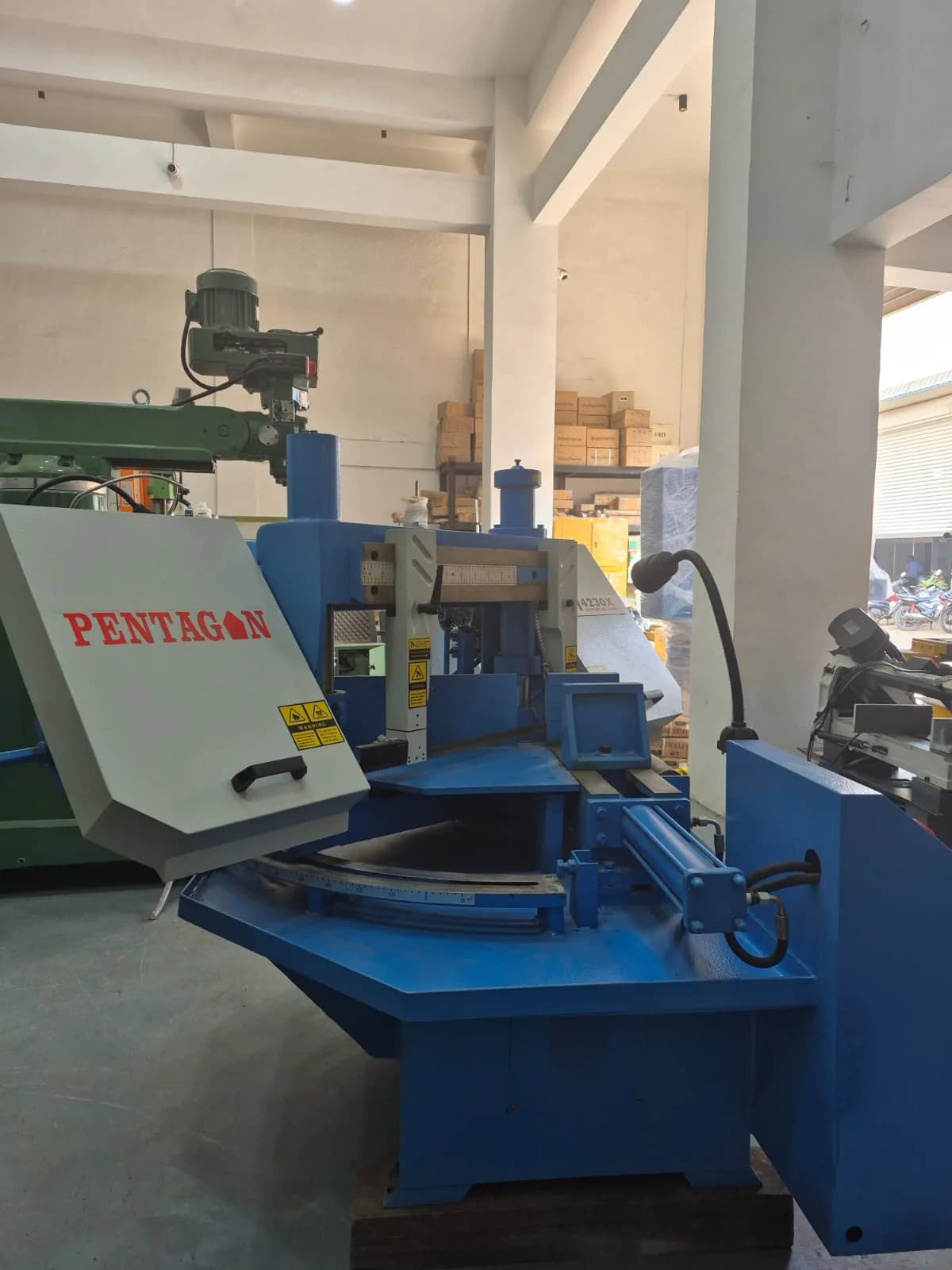

PENTAGON Hydraulic Double Column Rotary angle (45°/60°) Bandsaw Machine Model PDB-4230S
Robust hydraulic bandsaw machine built for precise cutting of medium-sized metal workpieces. Equipped with a double column structure for enhanced rigidity during operation. • Cuts up to 300 mm round bar and square stock • Rotary angle cutting up to 45 degrees • 3 kW main motor with 0.75 kW hydraulic drive • Blade speed options ranging from 27 to 69 m/min
See it in action
Specifications
For: PDB-4230S- Model
- PDB-4230S
- Cutting Capacity
- 300 mm round / 300×300 mm square
- Angle Cutting
- Up to 45°
- Operation
- Semi-Automatic
- Saw Frame
- Double column frame
- Job Clamping Mechanism
- Hydraulic clamping
- Blade size
- 4115 × 34 × 1.1 mm
- Main Motor Power
- 3 kW
- Hydraulic Motor Power
- 0.75 kW
- Blade Speed
- 27 / 45 / 69 m/min
- Blade Drive
- Gear Driven
- Machine Dimensions
- 2200 × 1700 × 1600 mm
- Weight Approx.
- 1200 kg
Configurations
Click a row to switch| Variant | Cutting Capacity | Blade size | Angle Cutting | Hydraulic Motor Power | Price |
|---|---|---|---|---|---|
| PDB-4230S | 300 mm round / 300×300 mm square | 4115 × 34 × 1.1 mm | Up to 45° | 0.75 kW | ₹3,85,000 |

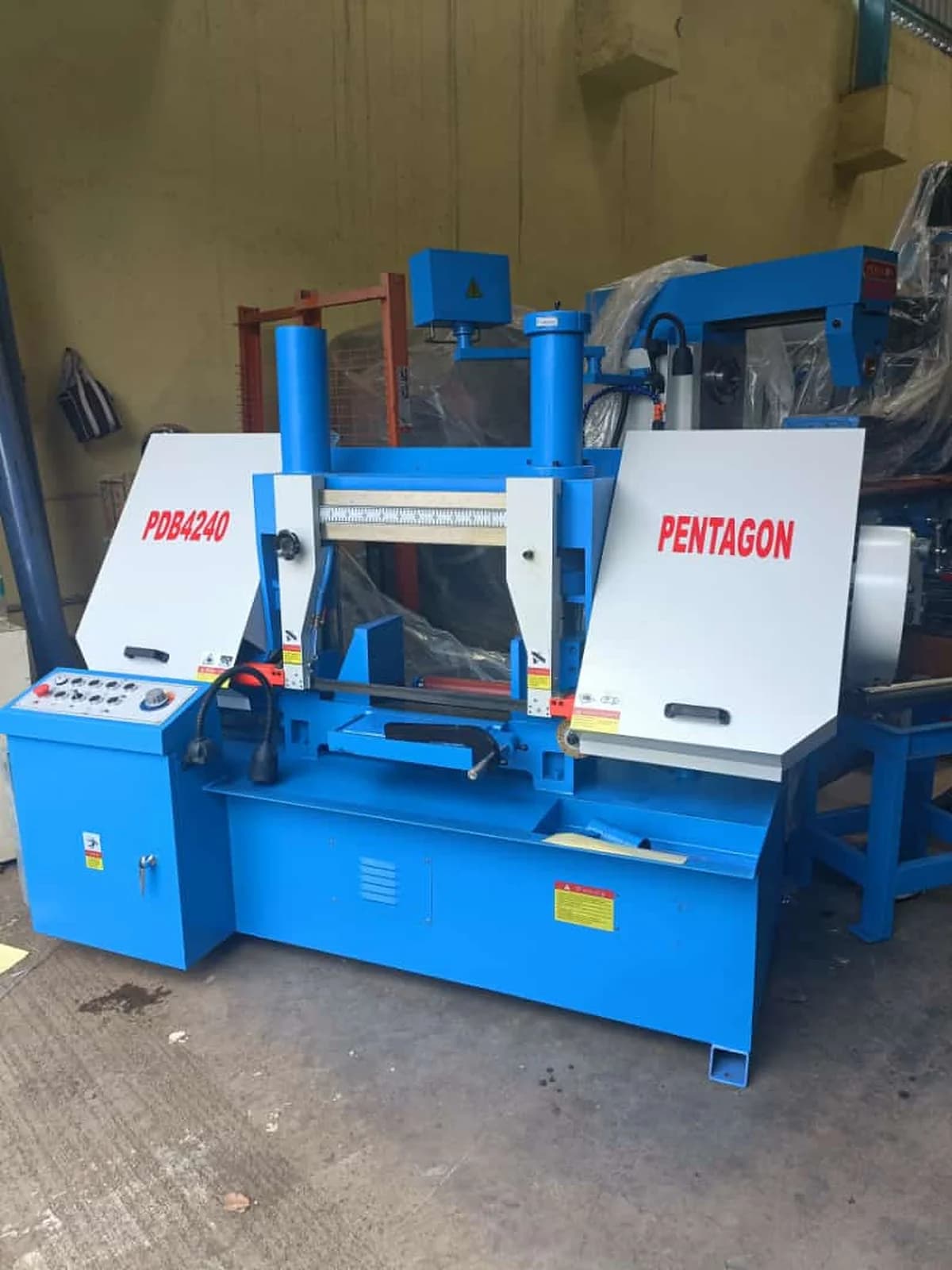

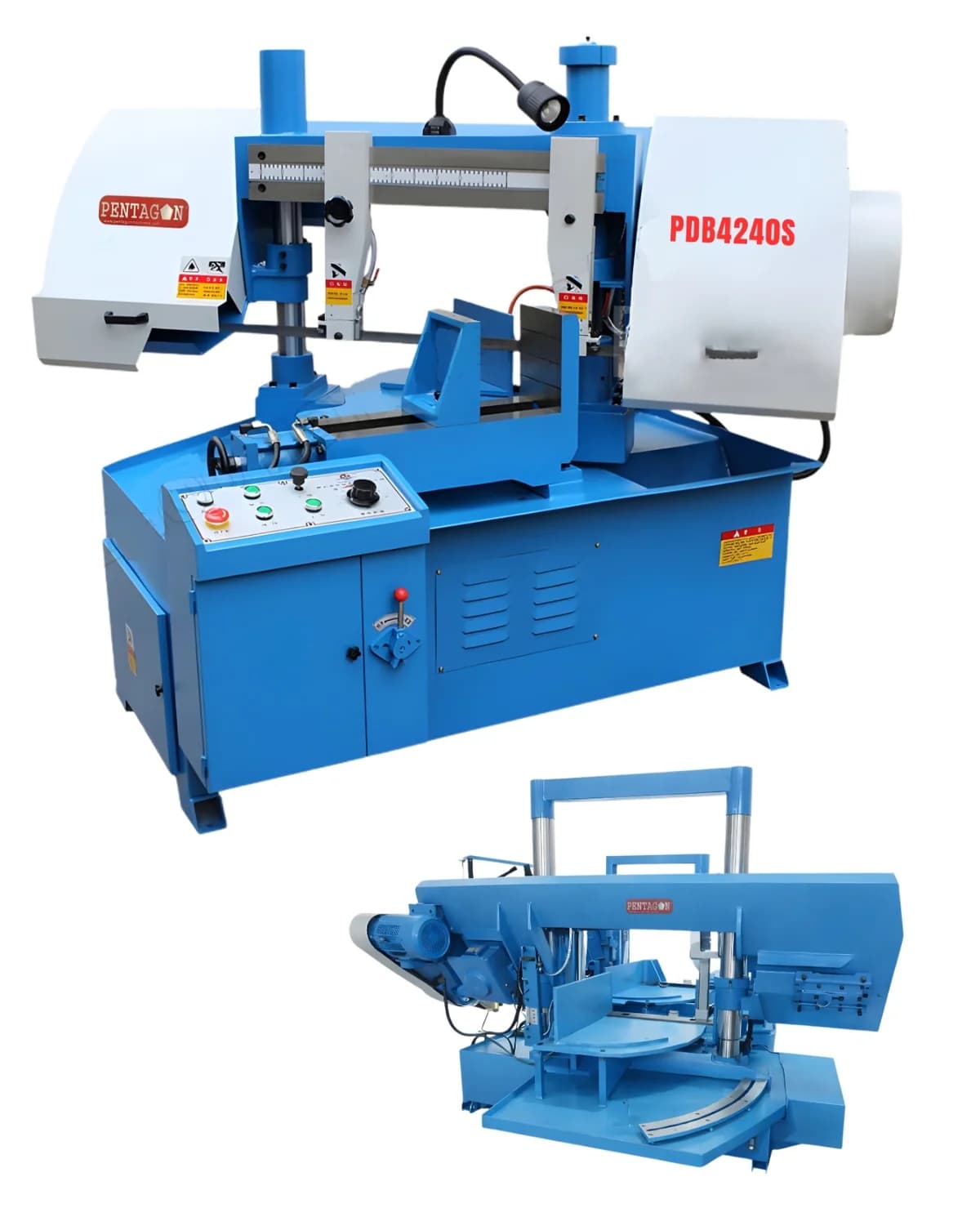

| PDB-4240S | 400 mm round / 400×400 mm square | 4900 × 41 × 1.3 mm | Up to 55° | 1.5 kW | ₹5,25,000 |
| PDB-4235S | 300 mm round / 300×300 mm square | 4515 × 34 × 1.1 mm | Up to 55° | 1.1 kW | ₹4,35,000 |
Industrial Applications
- Suitable for metal-cutting operations in industrial fabrication
- Handles heavy loads with double column stability
- Ideal for processing round and square bar stock
- Supports precision cutting for structural components
- Fits well within machine shops and fabrication units
- Effective for batch processing of metal profiles
- Cuts materials up to 300 mm round or square
- Versatile for various metal alloy processing tasks
Safety & Operational Standards
- Secure clamping mechanism prevents workpiece movement
- Integrated safety features protect operators during use
- Stable frame design reduces risk of machine tipping
- Coolant system minimizes fire hazards from overheating
- Compliant with general industrial safety standards
- Regular maintenance ensures long-term safe operation
- Heavy-duty construction supports safe load handling
- Automatic frame adjustment reduces operator fatigue
Hydraulic Operation & Efficiency
- Semi-automatic operation streamlines production workflows
- Hydraulic systems reduce manual intervention requirements
- Optimized cutting feed rate improves material utilization
- Consistent tensioning reduces downtime for blade changes
- Designed for continuous operation in fabrication shops
- User-friendly controls facilitate quick setup and training
- Hydraulic motor power drives auxiliary functions reliably
- Blade speeds range from 20 to 60 m/min for flexibility
Precision Cutting Capabilities
- Rotary angle cutting capability up to 55 degrees
- Enables mitre and compound cuts for varied applications
- Multiple blade speeds for varied material handling
- Stepless feed rate via hydraulic flow control
- Automatic saw frame height adjustment saves cycle time
- Ideal for round and square bar stock processing
- Gear driven blade drive ensures smooth operation
- Main motor power supports heavy-duty industrial use
Robust Construction & Stability
- Double column rigid frame provides high stability and durability
- Minimizes vibration during heavy sawing operations
- Hydraulic feed control ensures consistent cutting performance
- Hydraulic clamping vice secures workpiece under angle cuts
- Hydraulic saw frame descent improves operational efficiency
- Robust vice design maintains grip during mitre cutting
- Integrated coolant delivery reduces heat-induced distortion
- Hydraulic blade tensioning extends blade life significantly
Optional Accessories
- Automatic Blade Tension System
- Foundation Bolts
- Powered Roller Table
- Laser Cutting Line Marker
- Automatic Chip Conveyor
- Extra Bi-Metal Saw Blade
- PLC Touch Screen Control System
Standard Accessories
- Bi-Metal Bandsaw Blade
- Hydraulic Power Pack
- Coolant System
- Hydraulic Vice Clamping System
- Blade Cleaning Brush
- Carbide Blade Guide
- Tool Kit & Spanners
- Workpiece Support Table
- Operator Manual Book
- Machine Work Lamp
- Automatic Blade Tension System
- Chip Tray
- Electrical Control Panel
More questions buyers ask
What is the PENTAGON PDB-4230S?
The PENTAGON PDB-4230S is a semi-automatic, hydraulic double column bandsaw machine designed for precision metal cutting in industrial settings.
What are the main features of this bandsaw machine?
It features a robust double column frame, hydraulic clamping, rotary angle cutting, multiple blade speeds, and a gear-driven blade drive for stability and precision.
What is the cutting capacity of the PDB-4230S model?
The PDB-4230S model has a cutting capacity of 300mm for round bars and 300x300mm for square bars.
What is the power of the main motor?
The main motor power varies by model: the PDB-4230S has a 3 kW motor, the PDB-4235S has a 4 kW motor, and the PDB-4240S has a 5.5 kW motor.
Is this machine suitable for angle cutting?
Yes, it is designed for rotary angle cutting. The PDB-4230S model supports up to 45° cuts, while the PDB-4235S and PDB-4240S models support up to 55° cuts.
What is the blade size for this machine?
The required blade size varies by model. For the PDB-4230S, it is 4115 x 34 x 1.1 mm.
Does it come with a warranty?
Yes, all PENTAGON machines sold through our platform come with a manufacturer warranty. Please contact us for specific warranty details.
Do you provide delivery across India?
Yes, we offer pan-India delivery for all our products. Your machine will be securely shipped to your location.
Can I get a GST invoice for my purchase?
Absolutely. We provide a GST invoice for every purchase, allowing you to claim input tax credit.
What is the difference between the PDB-4230S, PDB-4235S, and PDB-4240S models?
The main differences are in cutting capacity, motor power, and angle cutting capability. The PDB-4240S has the largest capacity (400mm) and most powerful motor (5.5 kW), while the PDB-4230S is a more compact model with a 300mm capacity.
Who should choose the PENTAGON PDB-4230S model?
The PDB-4230S is ideal for workshops and small fabrication units that need a reliable and precise machine for cutting materials up to 300mm in diameter with angle cutting up to 45 degrees. It is the most economical option in this series.
Who should choose the PENTAGON PDB-4235S model?
The PDB-4235S is suited for businesses that require more power and versatility. With a stronger 4 kW motor and 55-degree angle cutting, it's perfect for handling a wider range of fabrication jobs on 300mm stock.
Who should choose the PENTAGON PDB-4240S model?
The PDB-4240S is the top-tier choice for heavy-duty industrial applications. Its large 400mm cutting capacity and powerful 5.5 kW motor make it the best option for large-scale projects and processing thick materials.
PDB-4230S vs PDB-4235S: What are the key differences?
The PDB-4235S offers a more powerful 4 kW motor (vs. 3 kW) and a greater angle cutting range of 55° (vs. 45°), making it more versatile, even though both have the same 300mm cutting capacity.
How does the PDB-4240S compare to the other models in terms of cutting capacity?
The PDB-4240S stands out with a significantly larger cutting capacity of 400mm, compared to the 300mm capacity of both the PDB-4230S and PDB-4235S models.
Which model offers the most powerful motor?
The PDB-4240S has the most powerful engine with a 5.5 kW motor, followed by the PDB-4235S at 4 kW, and the PDB-4230S at 3 kW.
