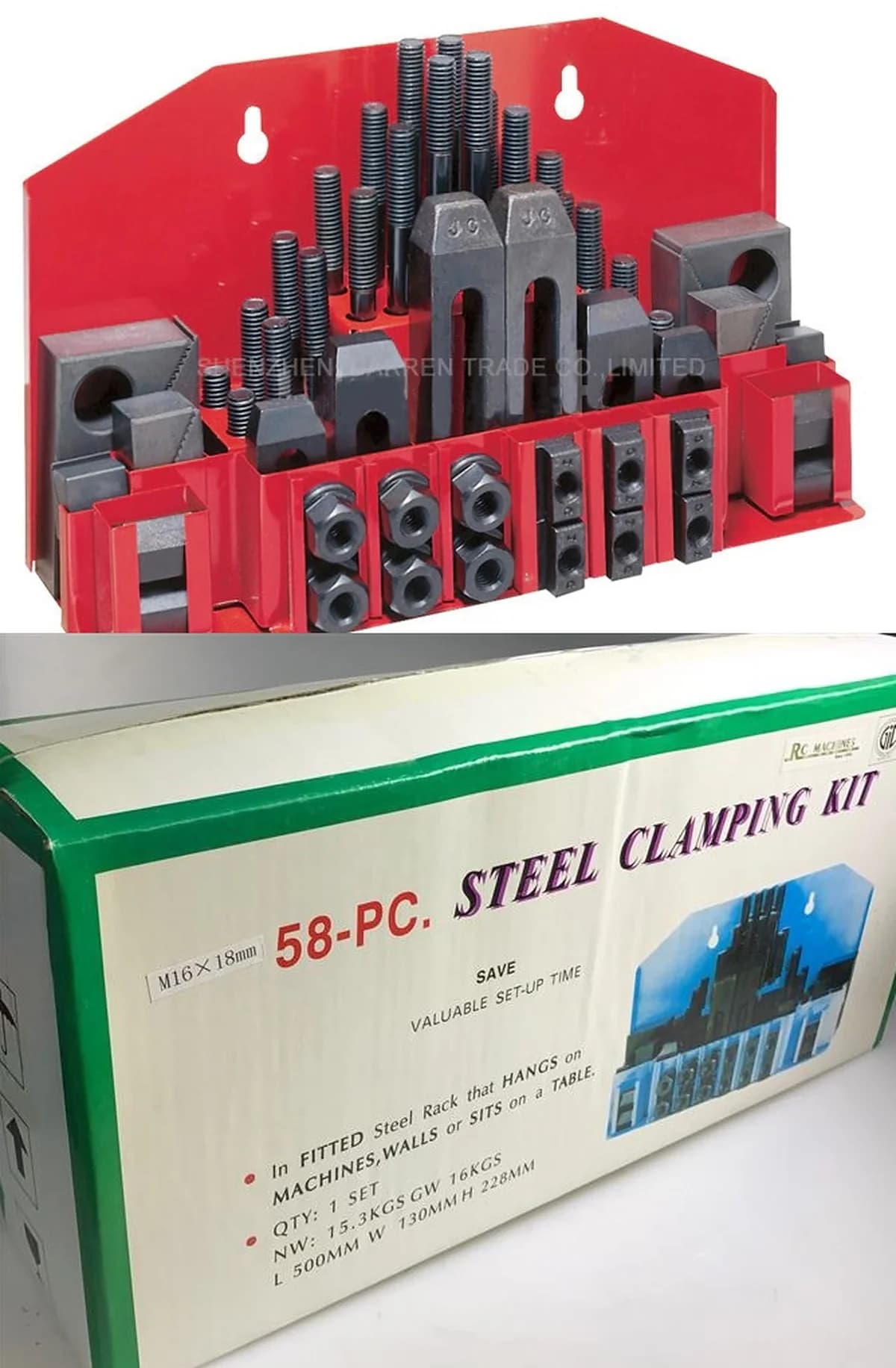

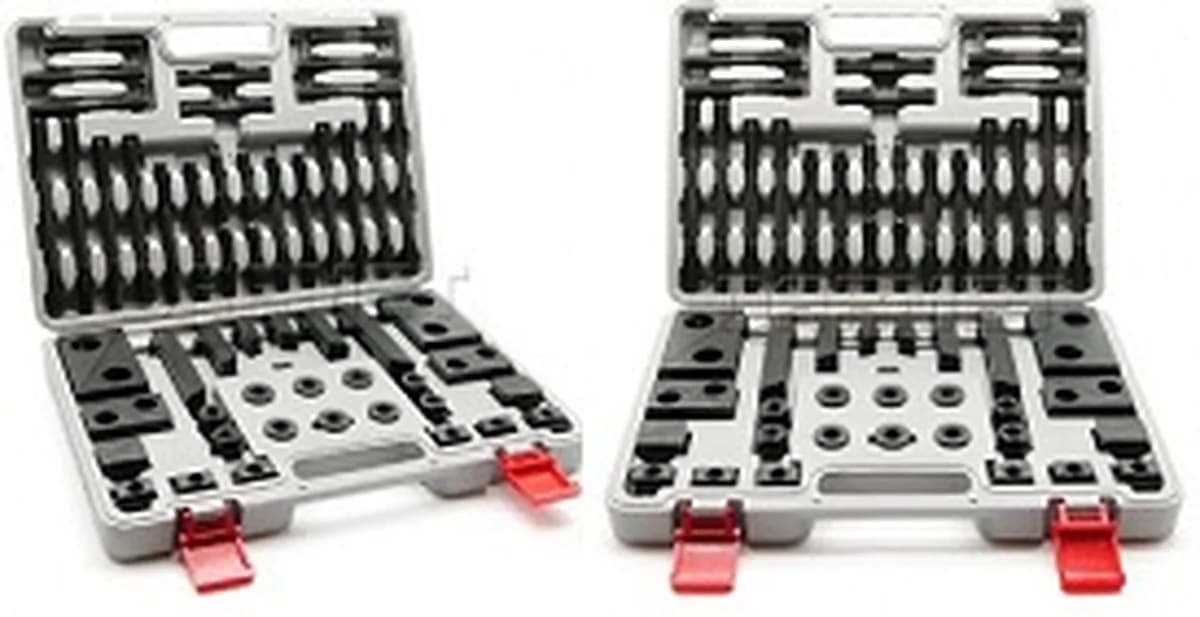

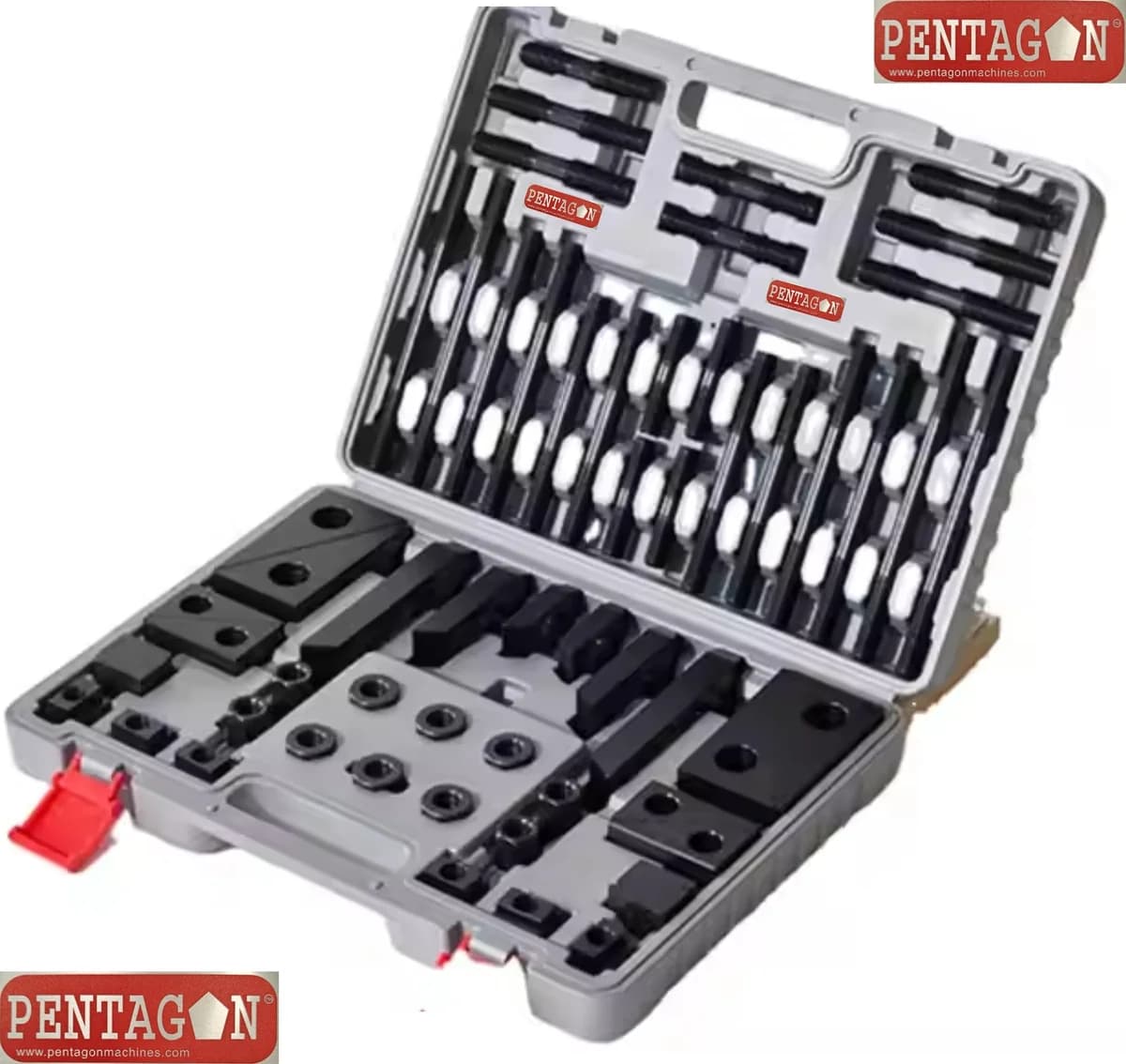

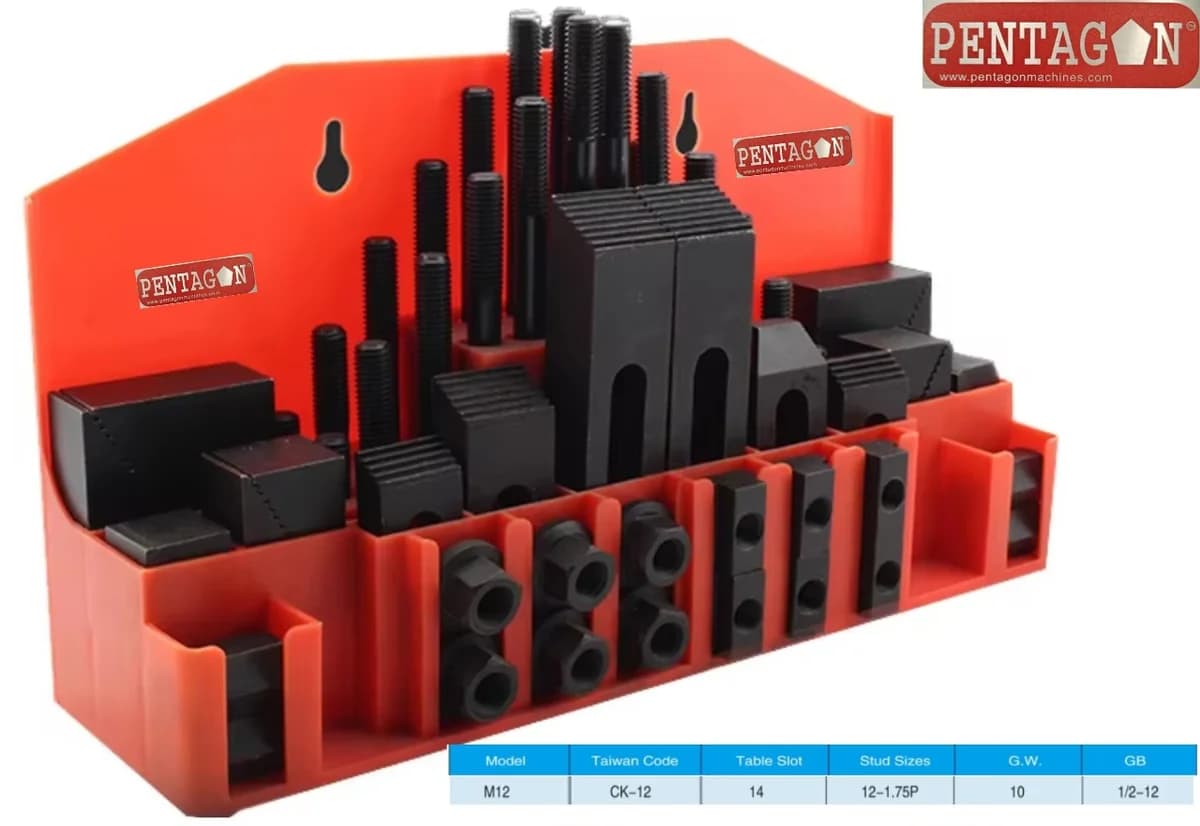

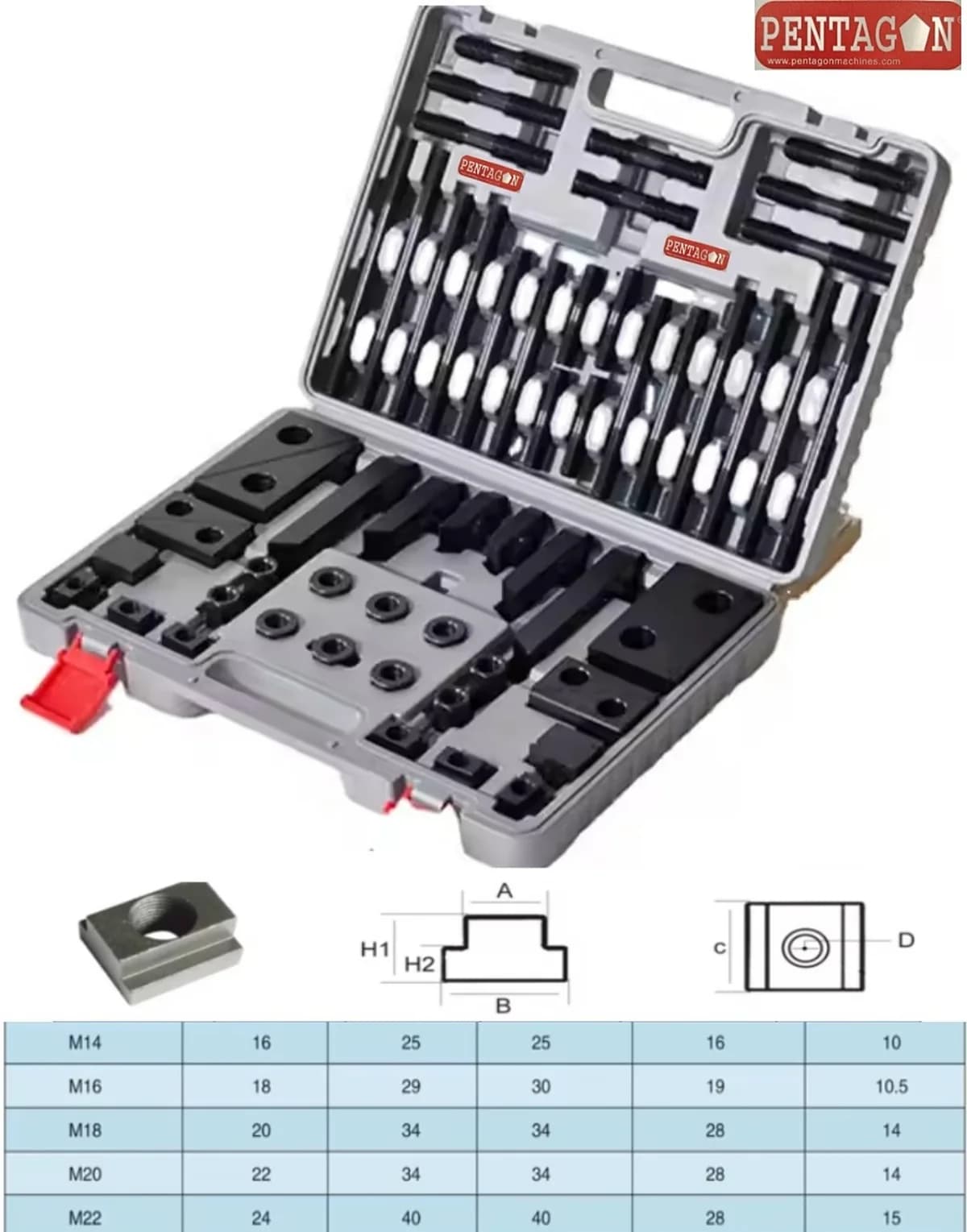

High Precision Steel Clamping Kit M12 type-58 pcs Set
This M12 clamping kit secures workpieces on 14 mm T-slot tables for milling and CNC operations. The 58-piece set features S45C steel components for reliable fixturing. • Thread pitch M12x1.75 mm with 24 studs • Includes 12 step blocks and 6 step clamps • Weight 8 Kgs for manageable workshop handling • T-nut size 22 mm fits standard precision tables
Specifications
For: M12 type-58 pcs Set- Model
- M-12
- Thread pitch
- M12x1.75 mm
- No. of step blocks
- 12 Nos.
- No. of Studs
- 24 Nos.
- No. of Flanged nuts
- 6 Nos.
- T-nut Size
- 22 mm
- No. of T-nuts
- 6 Nos.
- T-nuts Height
- 14 mm
- Suitable T-slot table size
- 14 mm
- No. of Coupling nuts
- 4 Nos.
- No. of step clamps
- 6 Nos.
- Material
- Non-alloy carbon steel S45C
- Hardness
- HRC32±5
- Packing Dimension
- 370X260X100 mm
- Weight
- 8 Kgs

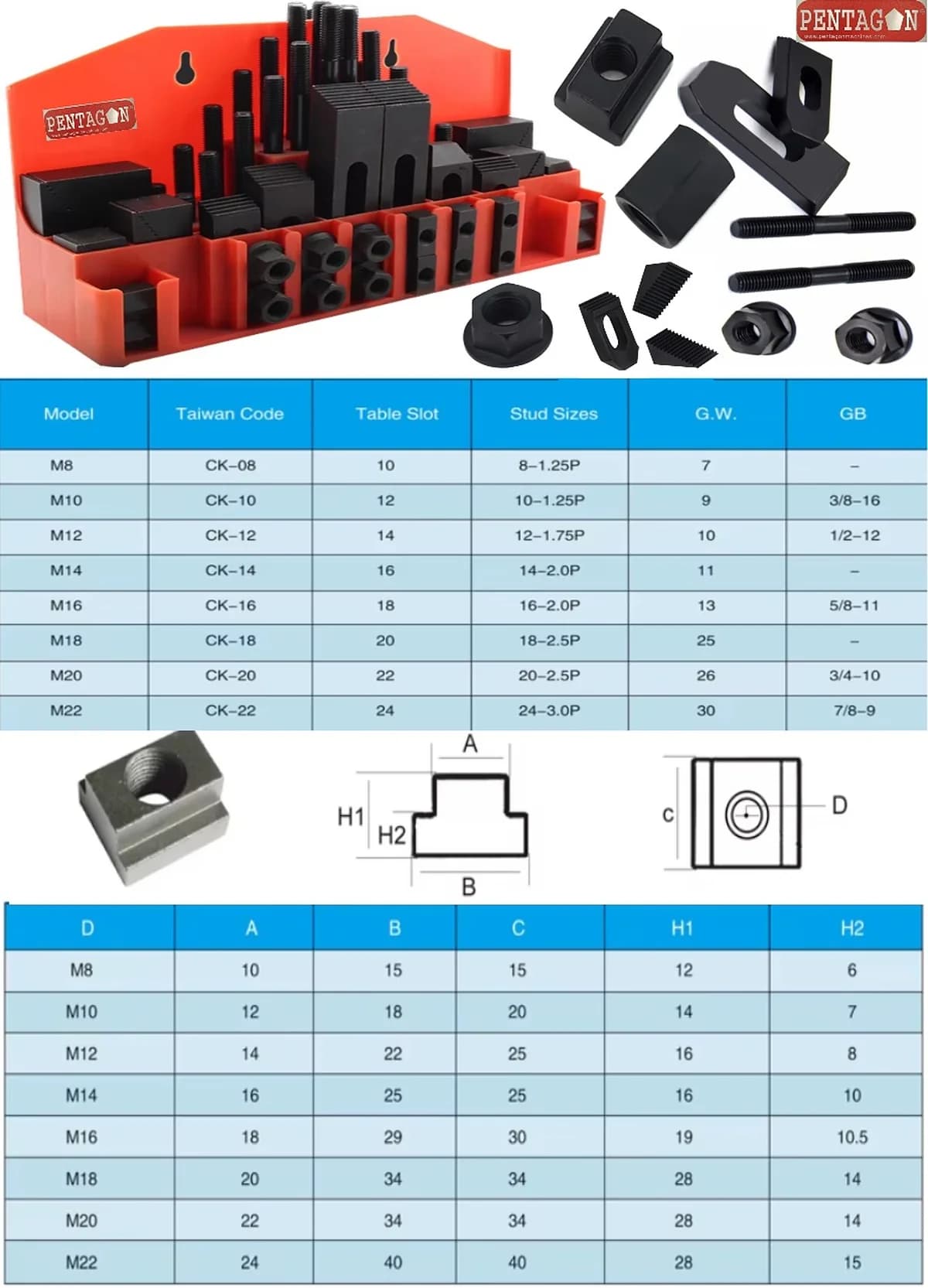

Configurations

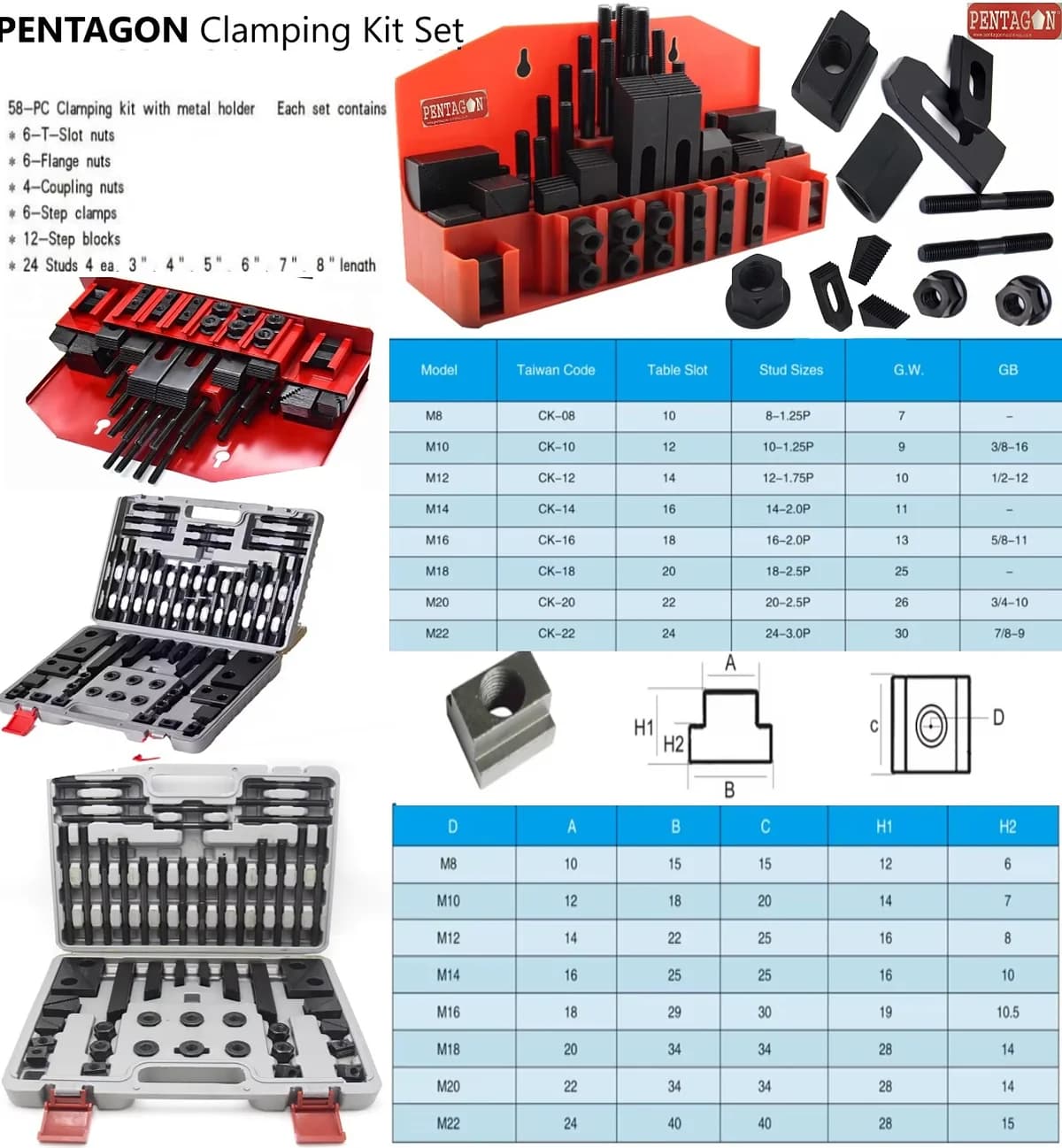

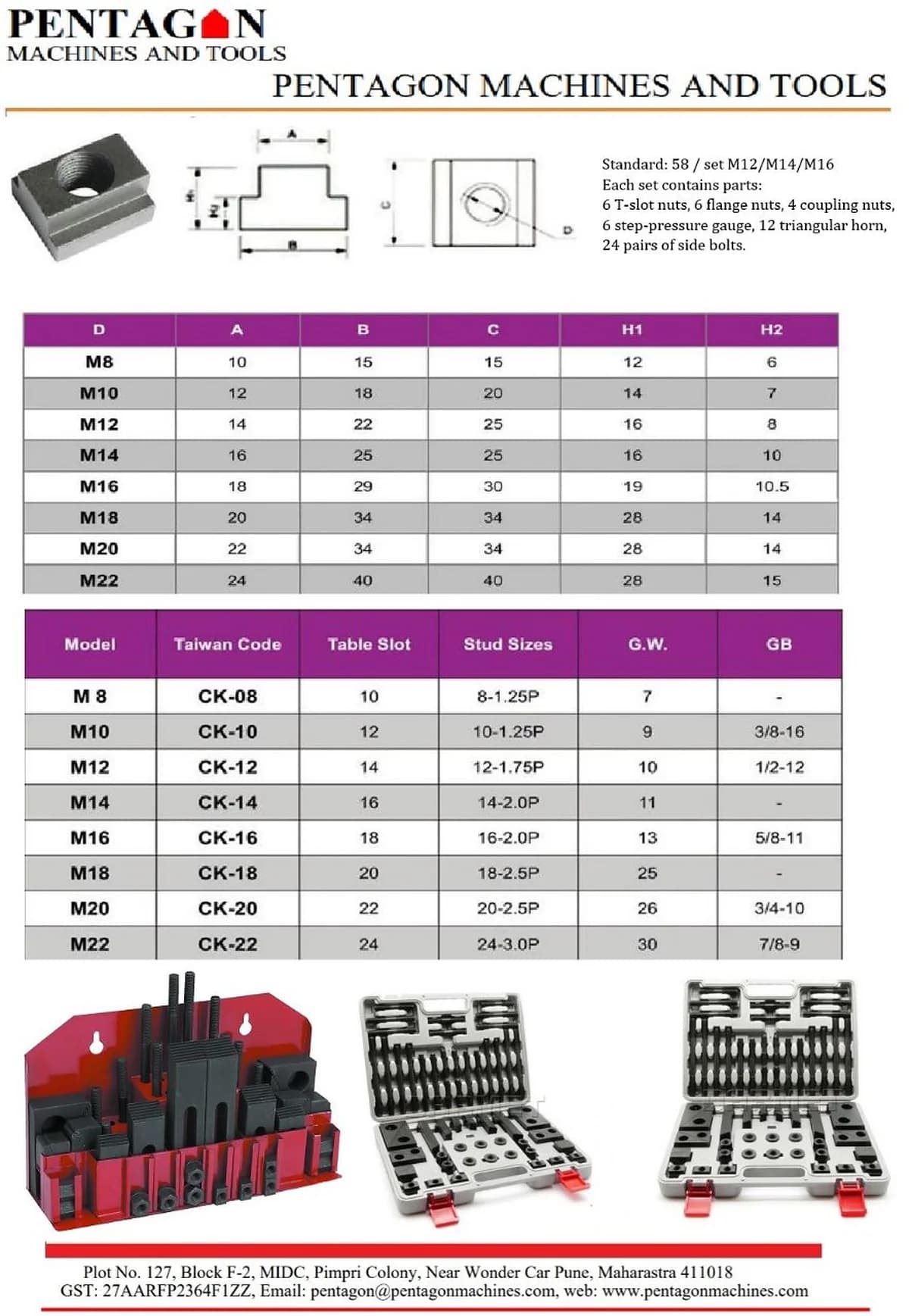

Click a row to switch| Variant | Model | Thread pitch | Suitable T-slot table size | T-nut Size | Price |
|---|---|---|---|---|---|
| M12 type-58 pcs Set | M-12 | M12x1.75 mm | 14 mm | 22 mm | ₹3,350 |
| M14 type-58 pcs Set | M14 | M14x2.0 mm | 16 mm | 25 mm | ₹6,000 |
| M16 type-58 pcs Set | M-16 | 16x2.0 mm | 18 mm | 29 mm | ₹7,600 |
| M18 type-58 pcs Set | M18 (58 pcs) | 18x2.5 mm | 20 mm | 34 mm | ₹16,600 |
| M20 type-58 pcs Set | M-20 (58) | M20x2.5P | 22 mm | 34 mm | ₹18,400 |
| M22 type-58 pcs Set | M-22 (58) | M24x3.0P | 24 mm | 40 mm | ₹33,400 |
Operational Safety and Handling Guidelines
- Inspect all threads and surfaces for damage before each assembly
- Ensure T-nuts are fully seated in slots to prevent slippage
- Tighten flanged nuts evenly to avoid uneven stress distribution
- Store kit in dry environment to prevent corrosion of steel components
- Verify compatibility with machine table slot width prior to installation
- Replace worn components immediately to maintain clamping integrity
Optimized for Precision Machining Workflows
- Ideal for milling, drilling, and grinding machine setups
- Compatible with standard 14 mm T-slot table configurations
- Enables quick setup changes for high-mix, low-volume production
- Supports accurate positioning for repetitive manufacturing tasks
- Facilitates secure clamping of diverse part geometries and sizes
- Enhances operator efficiency through standardized component interaction
Robust S45C Carbon Steel Construction
- Manufactured from non-alloy carbon steel S45C for superior strength
- Heat-treated to achieve a hardness of HRC32±5 for durability
- Resists deformation under heavy cutting loads and vibration
- Ensures long-term dimensional stability in demanding machining environments
- High-quality steel composition minimizes wear during repeated use
- Designed to maintain tight tolerances over extended operational life

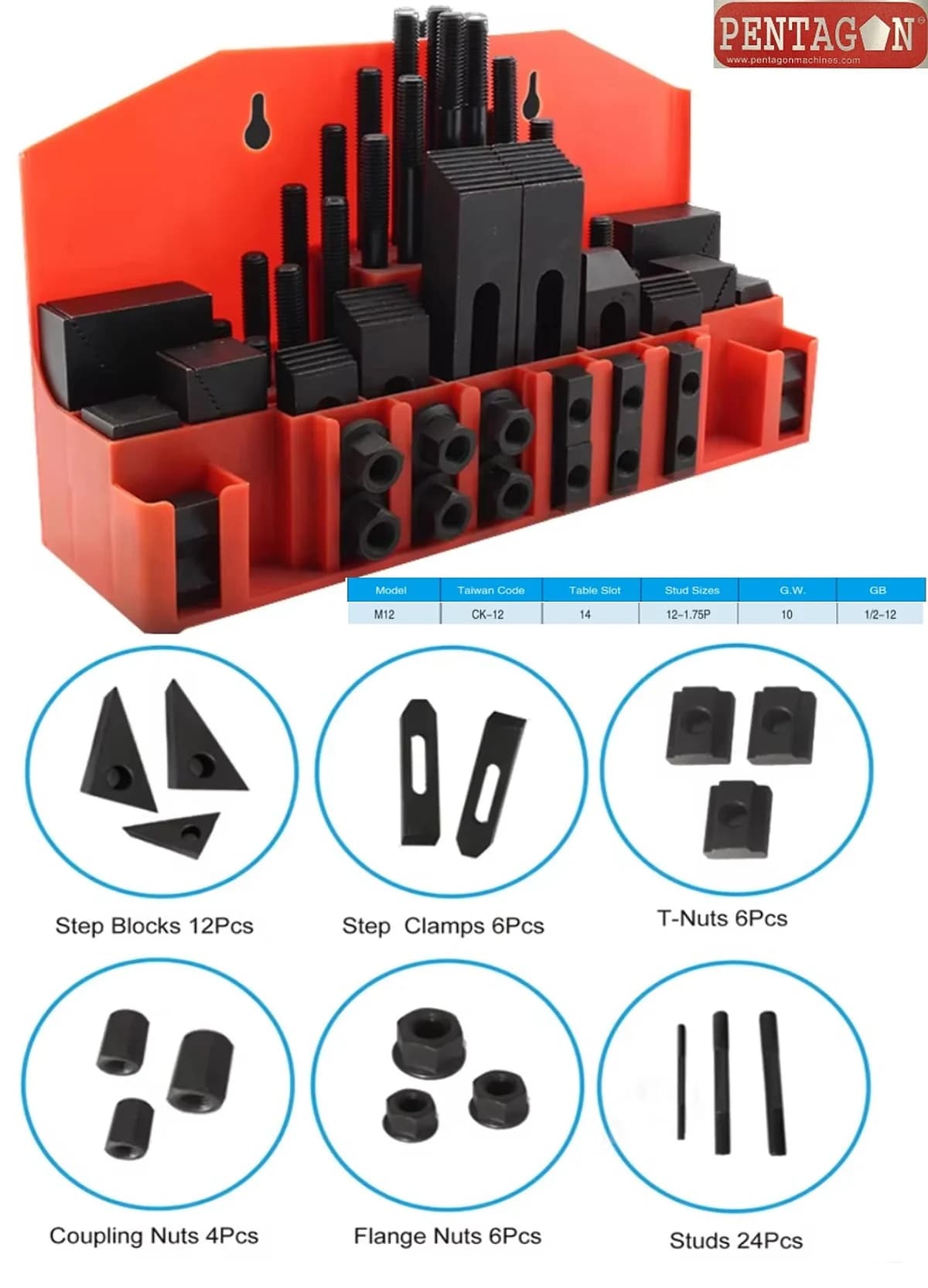

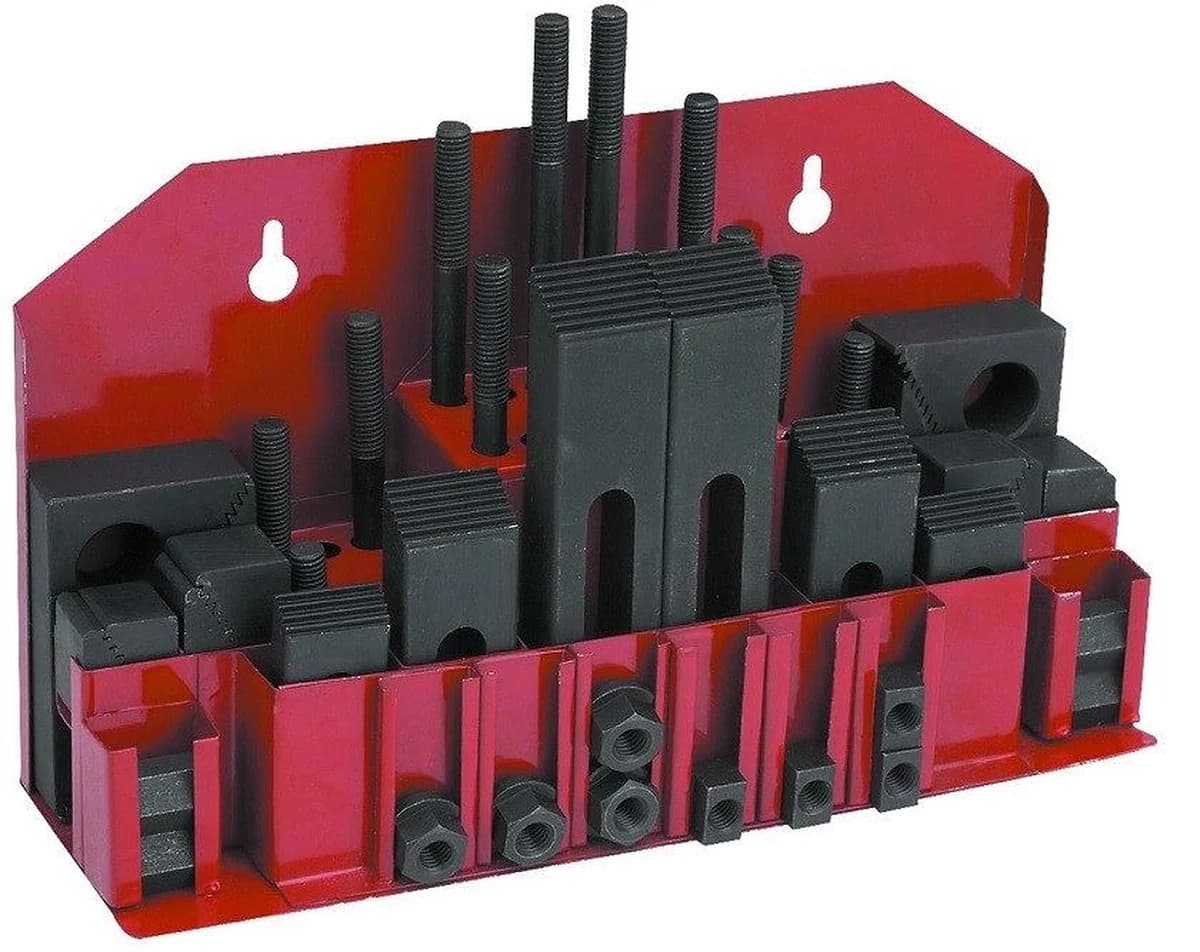

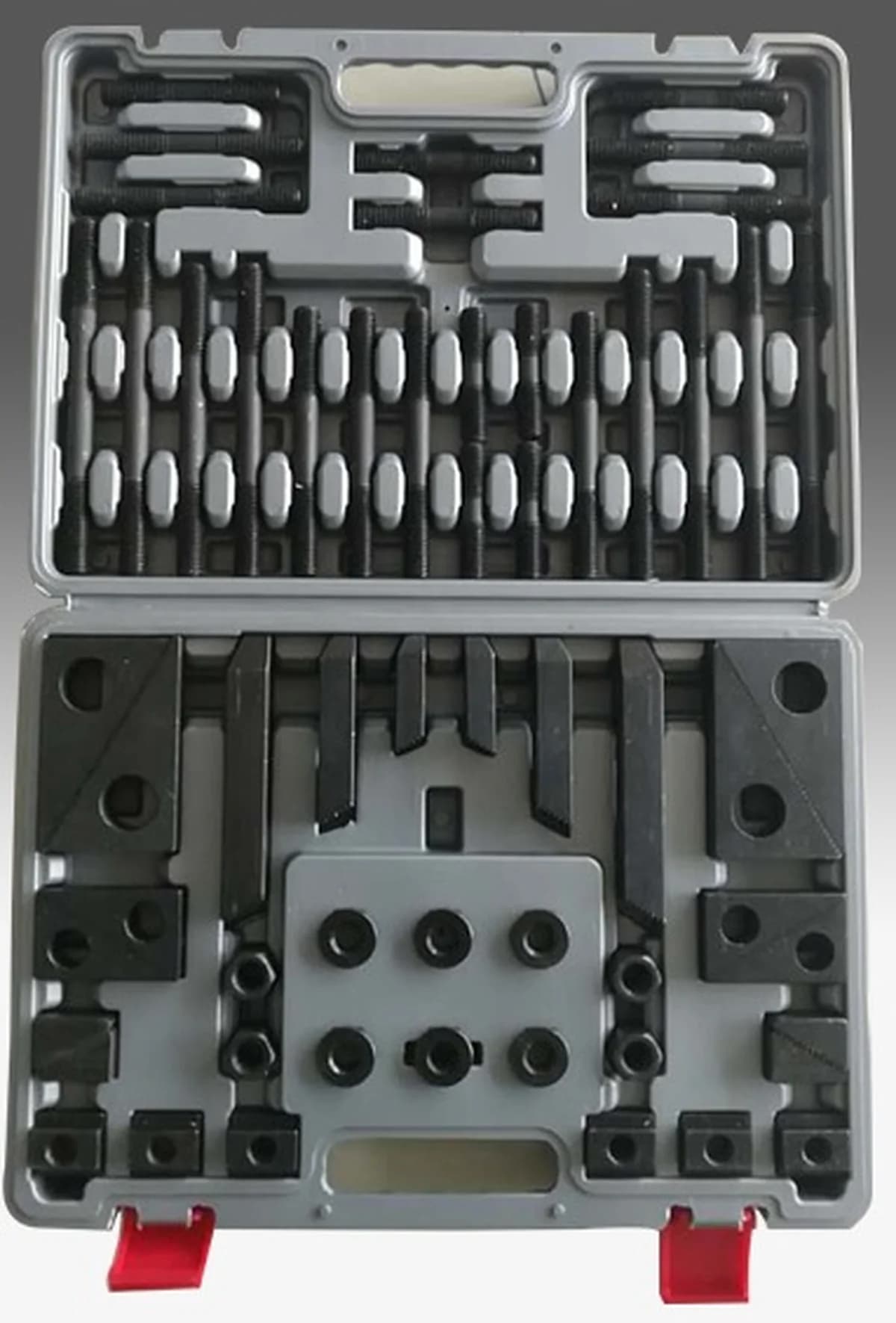

Comprehensive Component Inventory

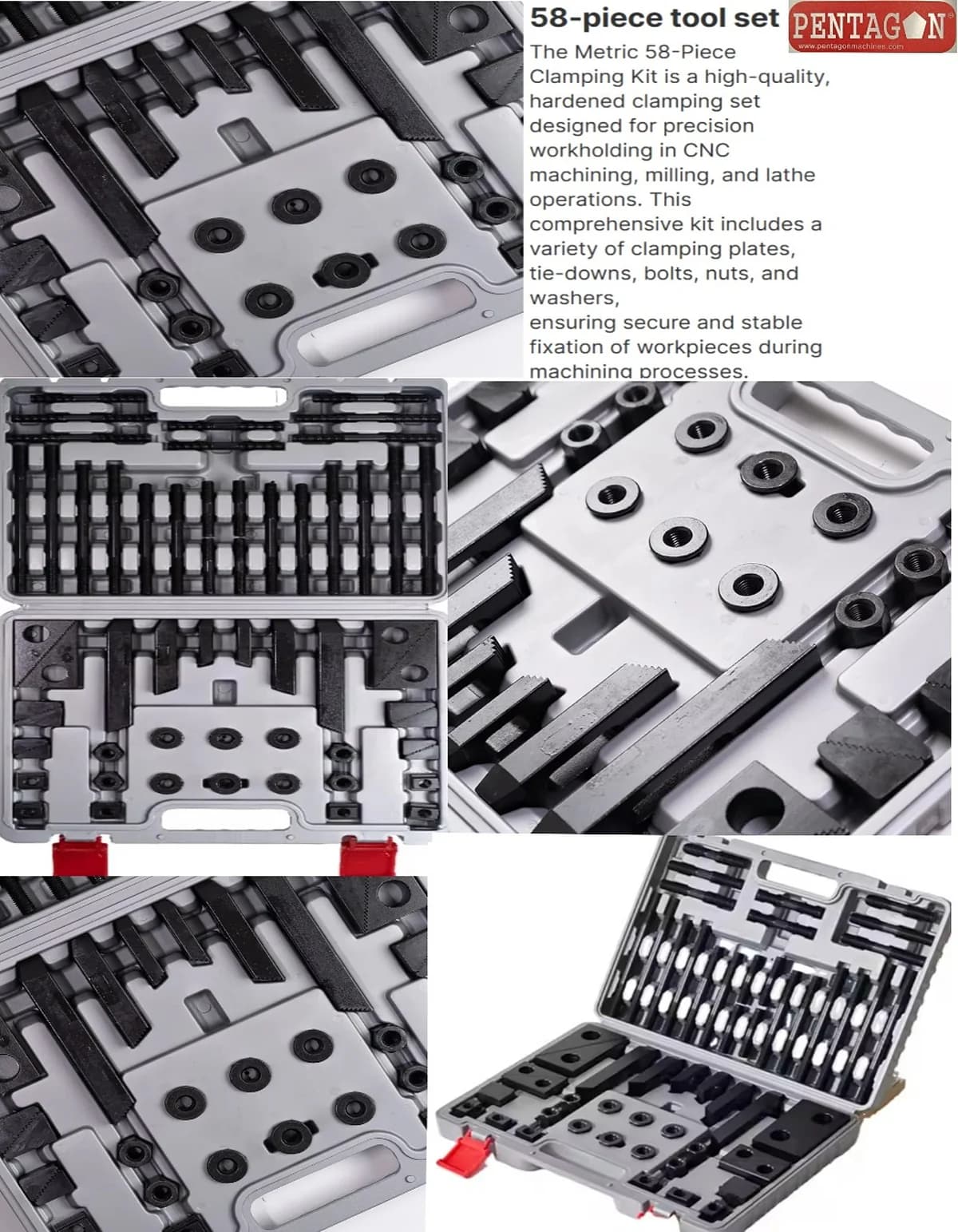

- Complete set includes 58 precision-engineered clamping components
- Features 12 step blocks for versatile workpiece positioning and support
- Includes 24 high-strength studs to accommodate various fixture heights
- Equipped with 6 flanged nuts for secure fastening on T-slot tables
- Contains 6 T-nuts (22 mm size, 14 mm height) for sliding table mounting
- Provides 4 coupling nuts for extended reach or specialized setups
- Includes 6 step clamps for rapid and reliable workholding operations
More questions buyers ask
What is included in the Pentagon 58-piece clamping kit?
The kit includes 24 studs, 6 T-nuts, 6 flanged nuts, 4 coupling nuts, 6 step clamps, and 12 step blocks.
What material is the Pentagon clamping kit made of?
It is constructed from high-quality S45C non-alloy carbon steel, heat-treated for durability and wear resistance.
What is the hardness rating of these clamping kits?
The components have a hardness rating of HRC32±5, ensuring long-term stability under heavy industrial loads.
Are these kits compatible with standard T-slot tables?
Yes, they are engineered for standard T-slot tables, with various sizes available from M12 to M24 to match your machine's requirements.
What machines are these clamping kits suitable for?
They are ideal for milling machines, drilling machines, and CNC machining centers for secure workpiece fixturing.
Does the kit come with a warranty?
Pentagon provides reliable industrial-grade quality; please check specific dealer terms for warranty duration.
Can I use this kit for heavy-duty machining?
Yes, the S45C heat-treated steel is designed for rigorous industrial work-holding applications.
How do I choose the right size for my machine?
Select the kit based on your machine's T-slot size and thread pitch (e.g., M12 for 14mm slots, M16 for 18mm slots).
Is GST invoice provided with the purchase?
Yes, all purchases include a valid GST invoice for business accounting.
Do you offer pan-India delivery?
Yes, we provide secure and fast pan-India delivery for all industrial machine accessories.
Who should choose the M12 Clamping Kit?
The M12 kit is perfect for smaller milling machines and precision setups requiring 14mm T-slot compatibility.
Who should choose the M22 Clamping Kit?
The M22 kit is designed for heavy-duty industrial milling and large-scale CNC operations requiring 24mm T-slot compatibility.
How does the M12 compare to the M22 kit?
The M12 is for lighter, precision work (8kg total weight), while the M22 is for heavy-duty industrial applications (42kg total weight).
Are all kits 58-piece sets?
Yes, all variants in this series are comprehensive 58-piece sets containing the same essential components, scaled to the specific thread size.
