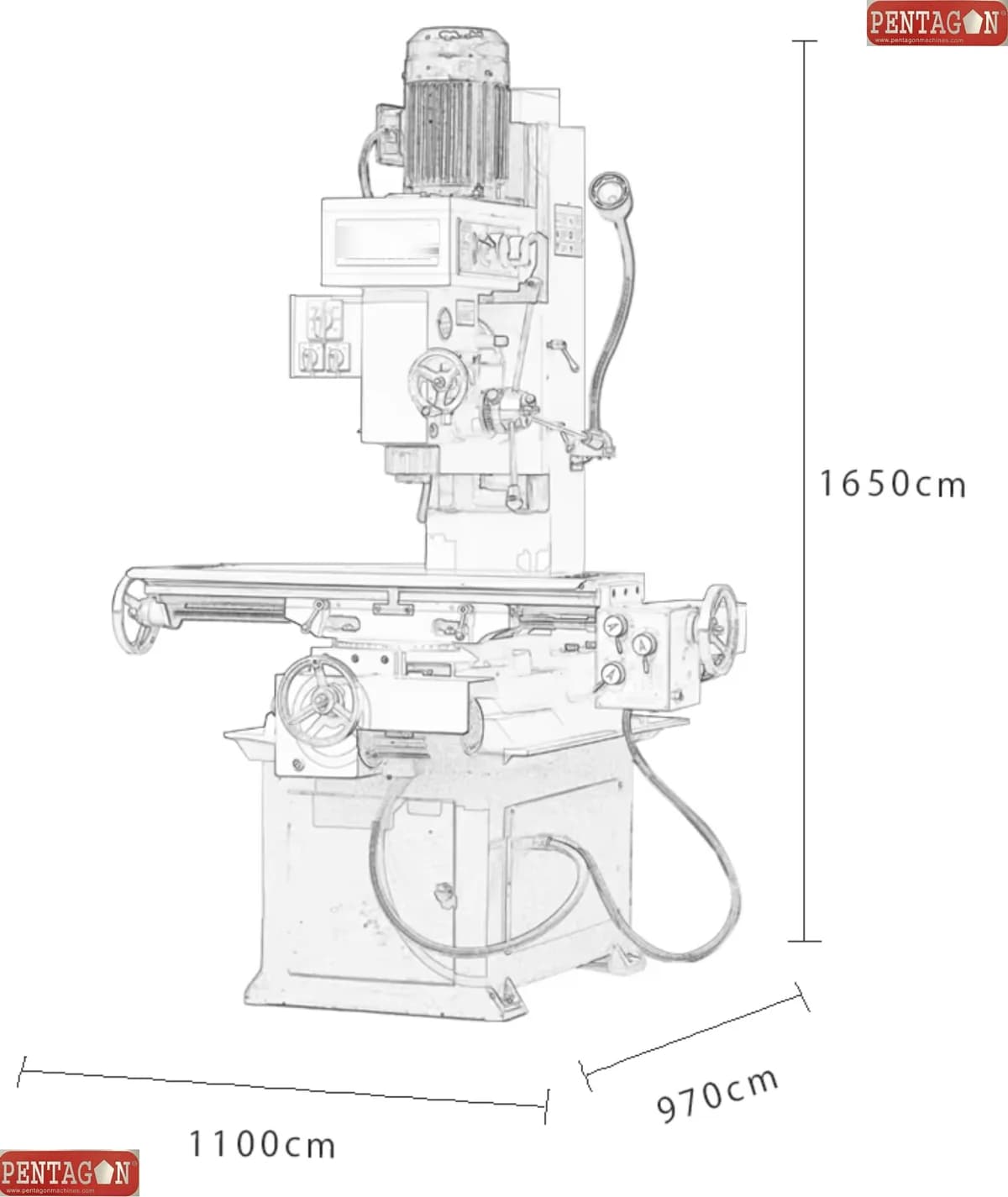

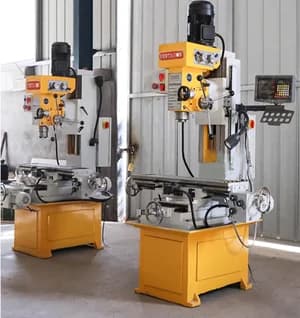

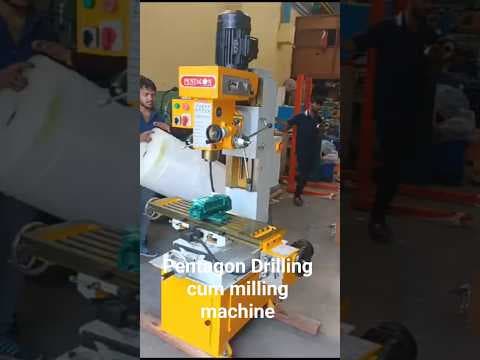

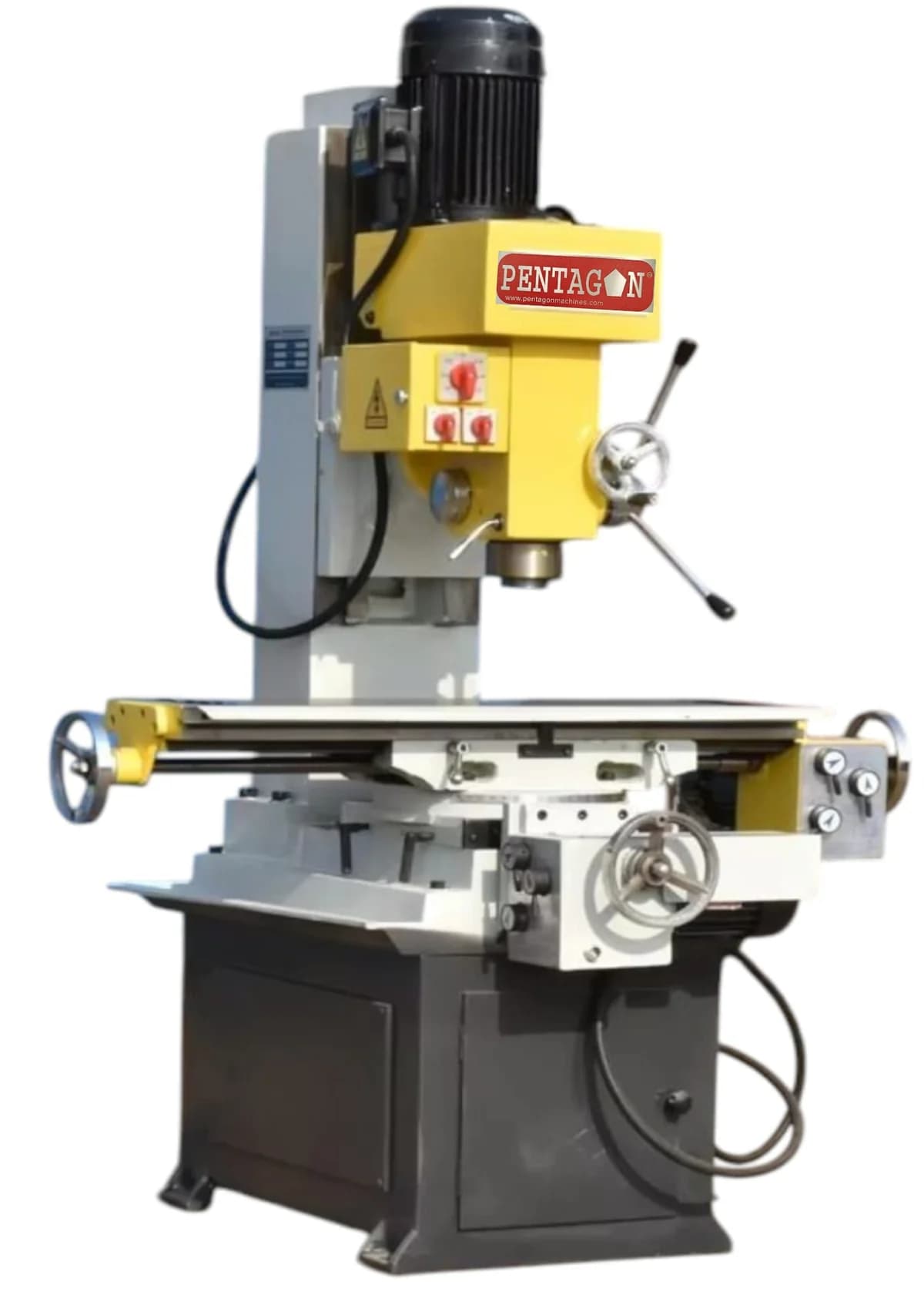

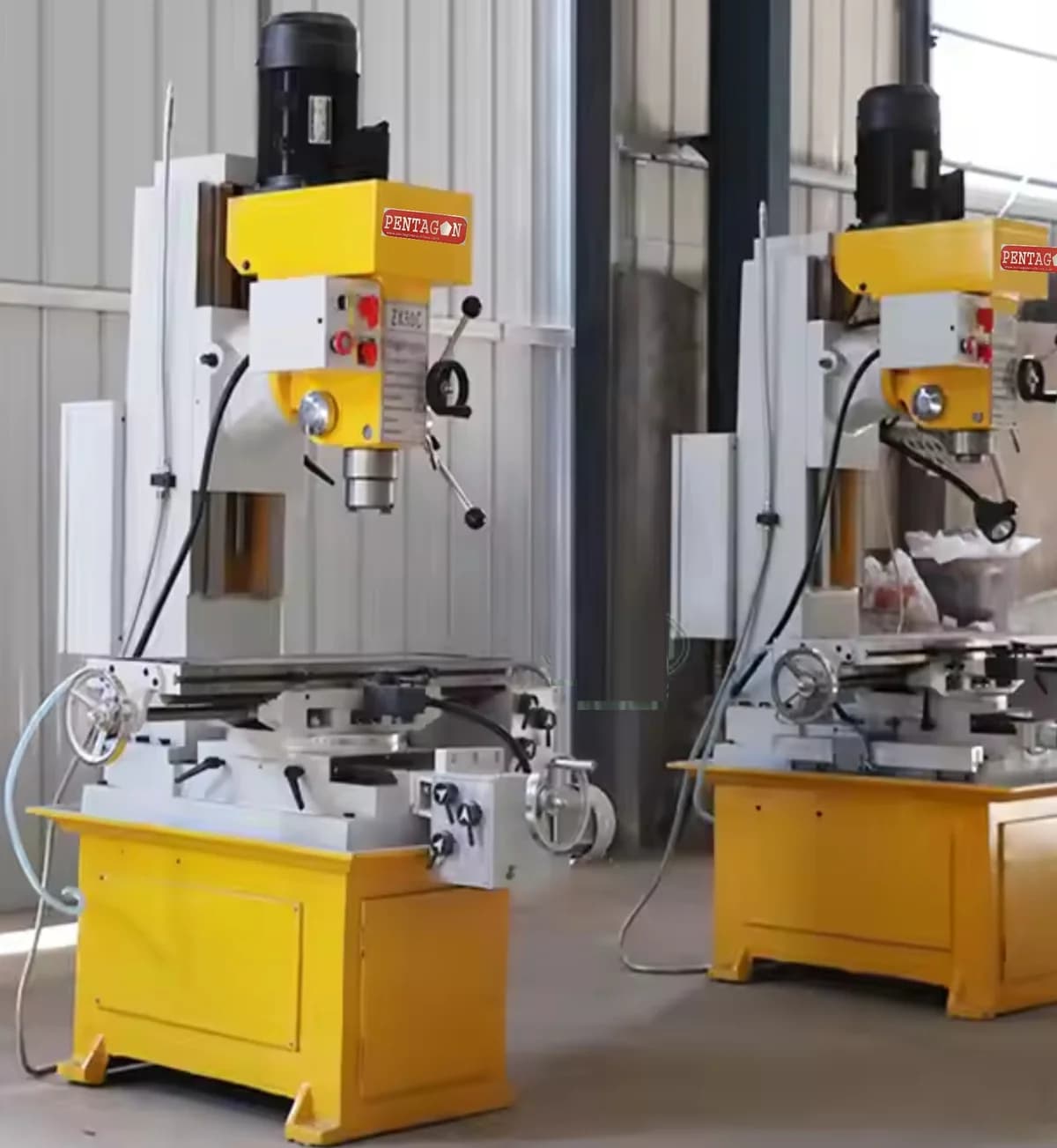

Geared Head Vertical Drilling cum Milling machine

Vertical Drilling and Milling Machine is a versatile machine tool designed to perform both drilling and milling operations with high precision. It is widely used in tool rooms, workshops, maintenance departments, and small to medium manufacturing industries for machining metal components.

The machine features a vertical spindle arrangement, allowing accurate drilling, tapping, boring, and milling operations on various materials such as steel, aluminum, brass, and cast iron. Its rigid construction and precision spindle ensure stability, smooth operation, and improved machining accuracy.

1. The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.

2.If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove .

3. And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, The length of X of the machine can be further expanded.

4. Large machine tool use range, according to user needs can be configured to display device.

5. The spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.

6.The configuration of special accessories: vertical milling head, which realize the milling function

This machine is a combined drilling and milling machine (often called a drill-mill) designed for small to medium parts. It integrates functions such as drilling, milling (face or end), boring, tapping etc.

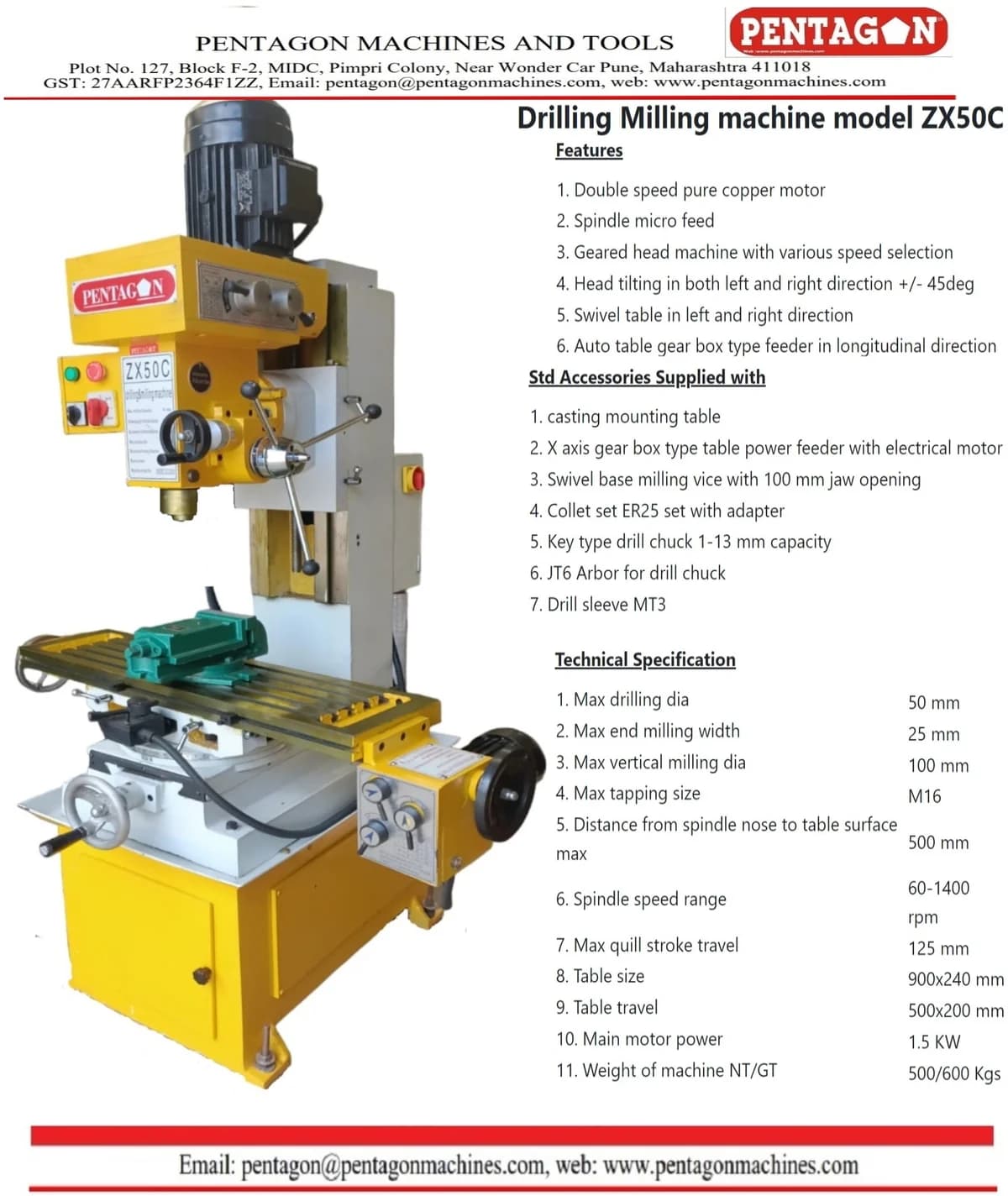

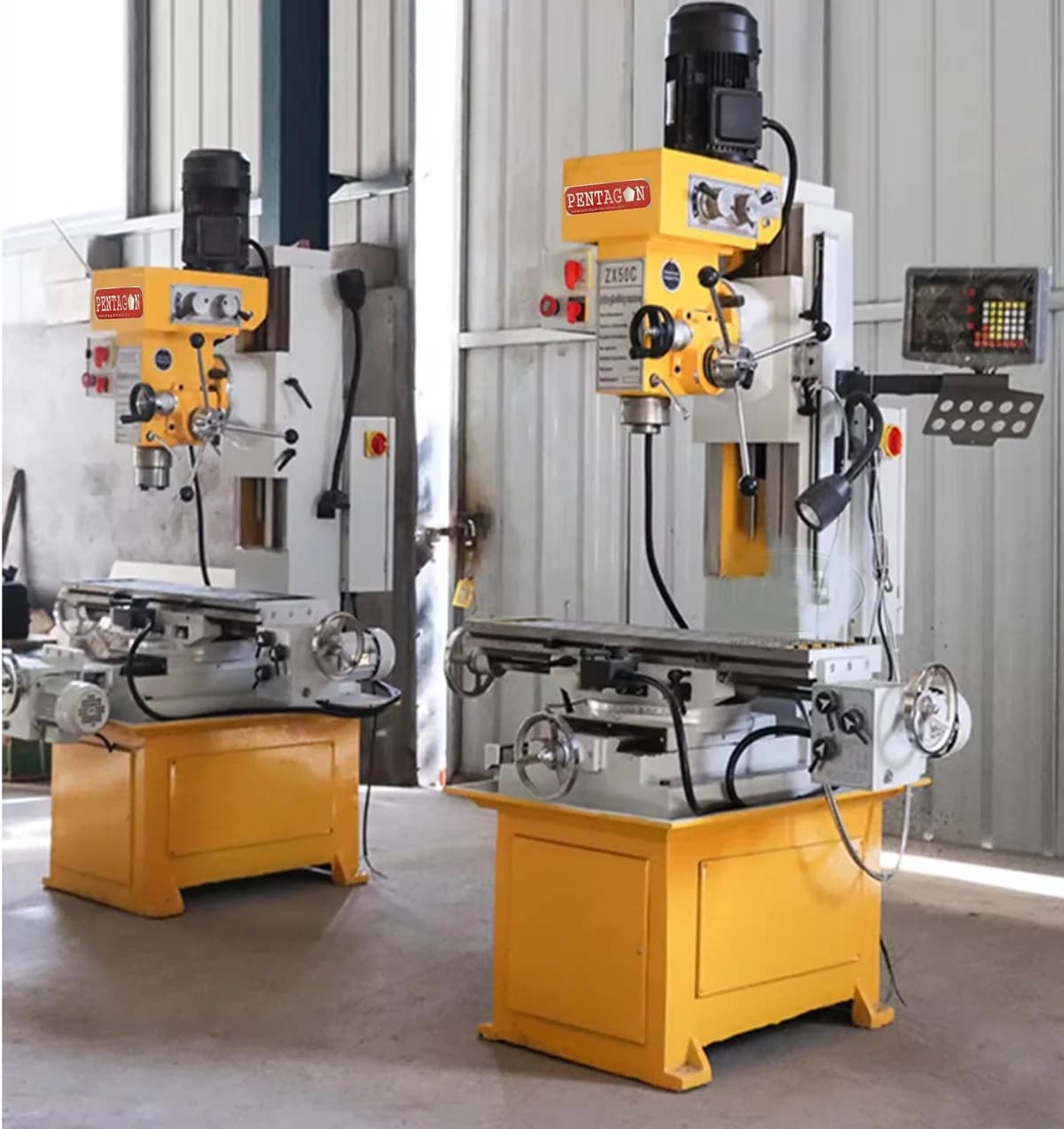

“The drilling and milling machine ZX50C is a machine tool that integrates drilling, milling, boring and grinding, and is applied to the processing of small and medium-sized parts.”

So you get the convenience of multiple machining tasks in one machine — rather than separate drill press and mill.

• 1. Collet set with adapter and spanner
• 2. Machine Vice 5"
• 3. Drill chuck 1-13 mm size
• 4. MT4 drill chuck arbor JT6 type
• 5. Vertical draw bar
• 6. Hexagon nut
• 7. Reduction Sleeve
• 8. Operational manual
• 9. Machine lamp with fitting
• 10.Splash guard cum tray Tray

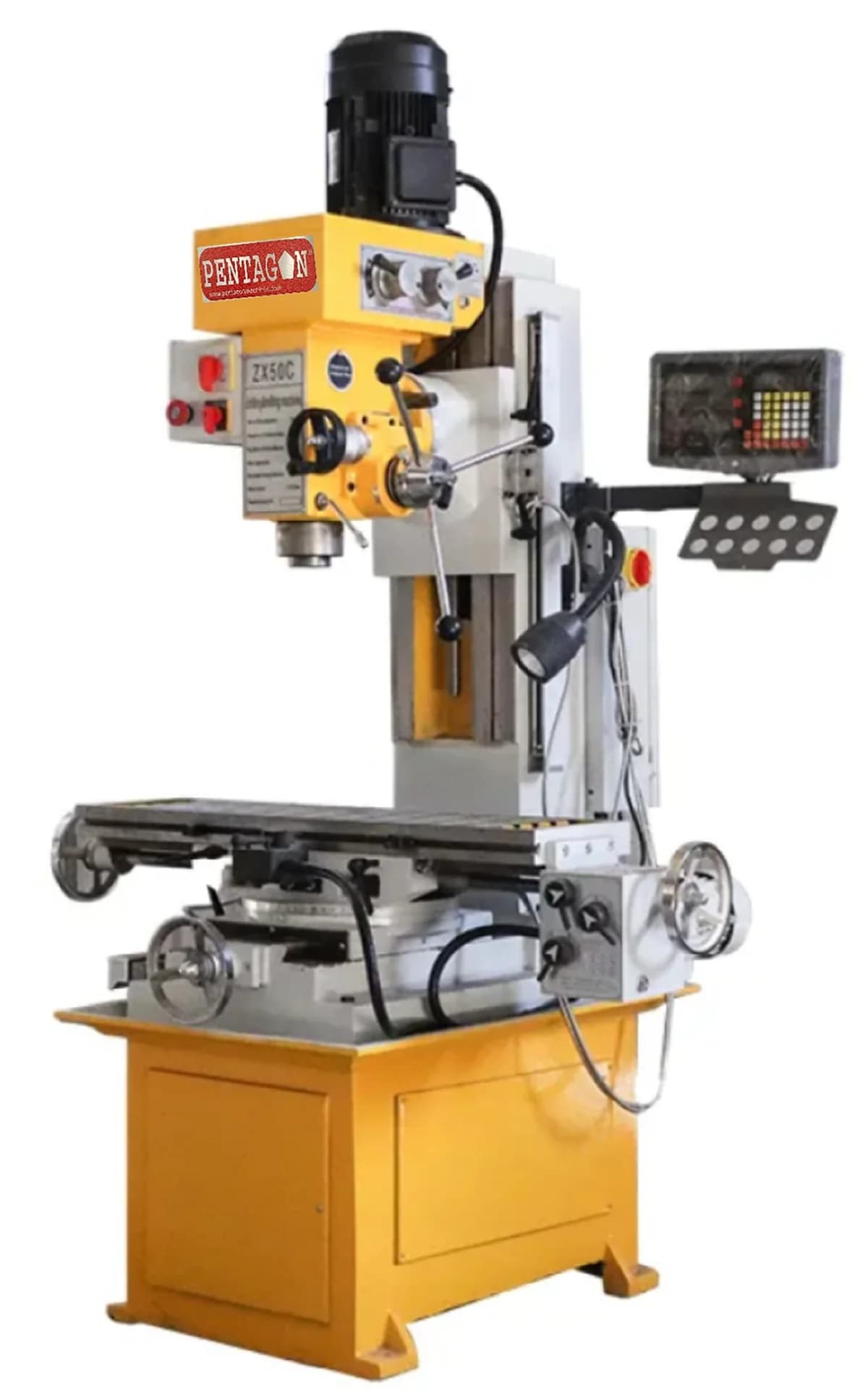

• 1. Two/Three Axis DRO with suitable linear scales and fittings
• 2. Coolant Pump with fittings
• 3. Semi universal dividing head with chuck and tail stock
• 4. H-V rotary table
• 5. Mounting pads 4 Nos suitable for the machine

• 1. X, Y, Z three direction guide super audio quenching, precision grinding
• 2. Hardened and ground table surface
• 3. Table X axis for automatic feeding

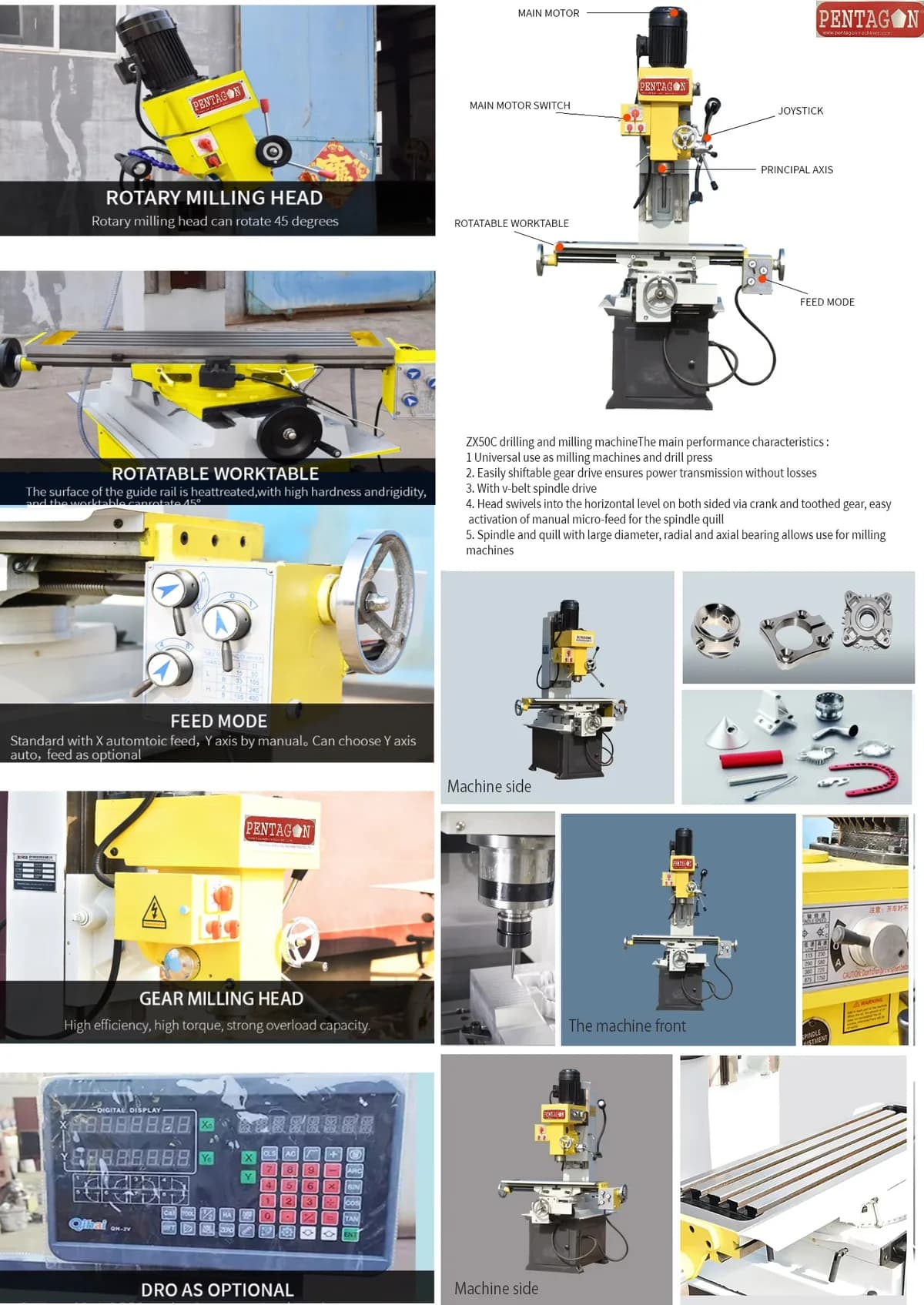

• 4. Swivel angle and vertical milling head +45 degree or -45 degree
