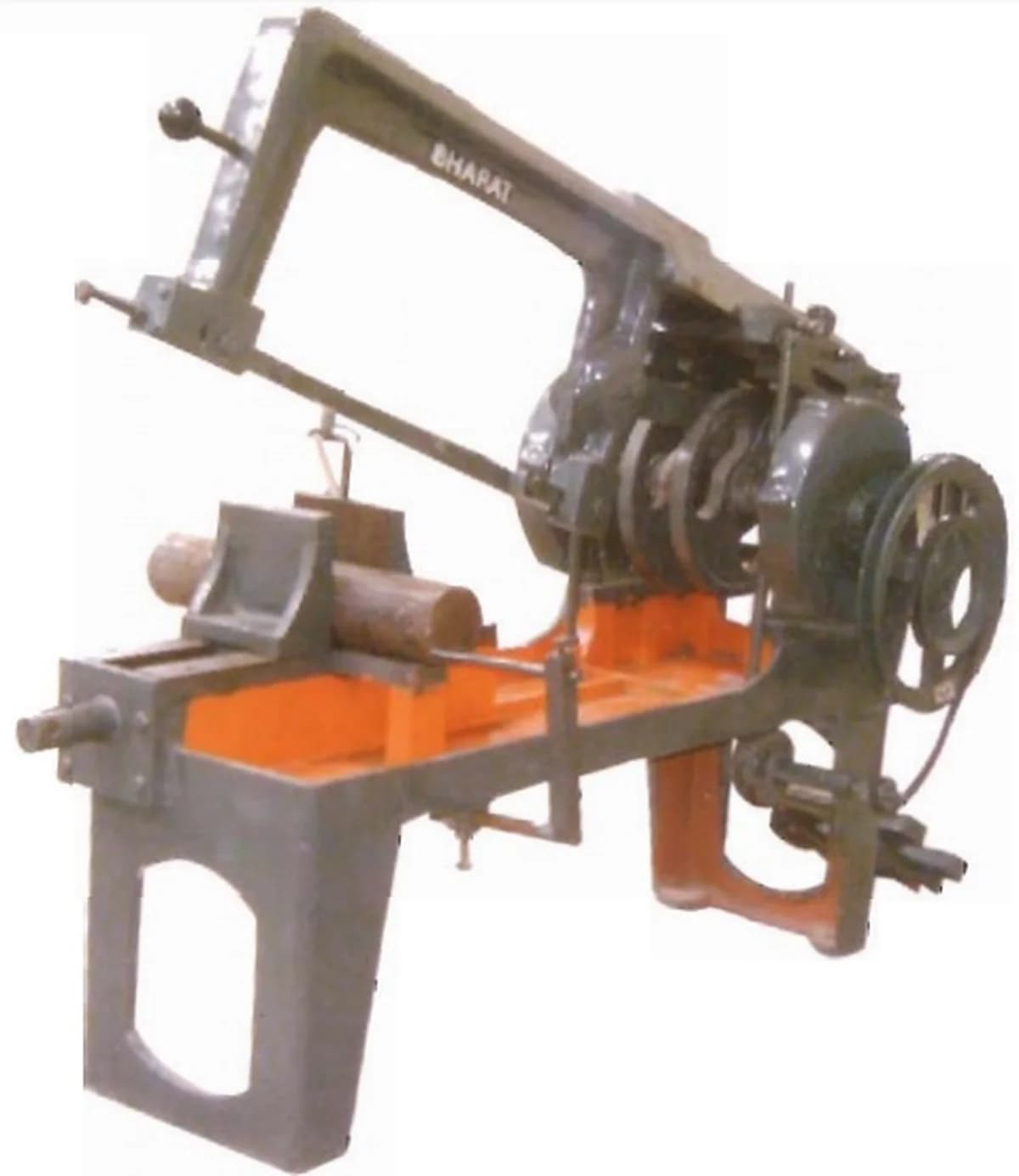

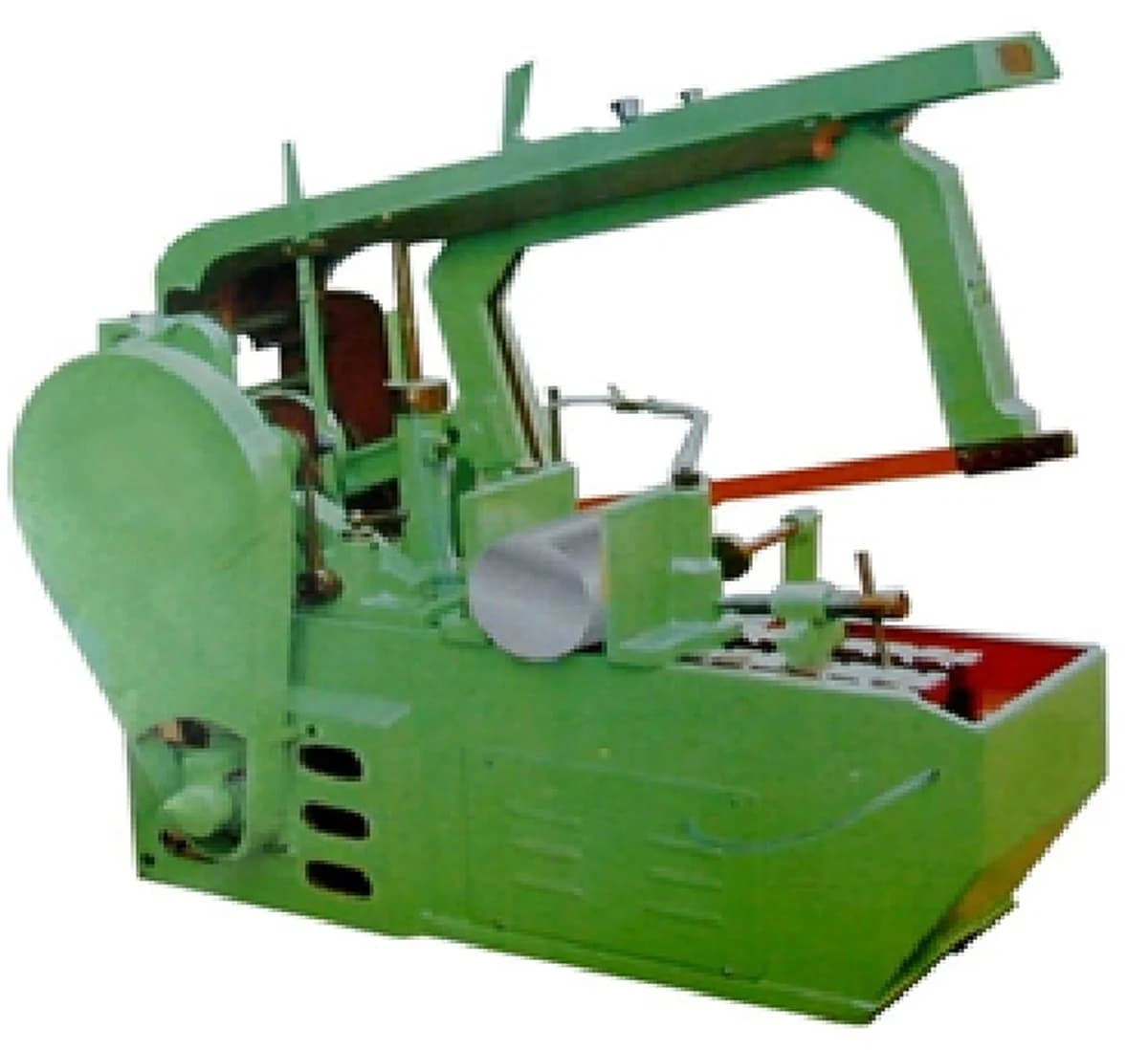

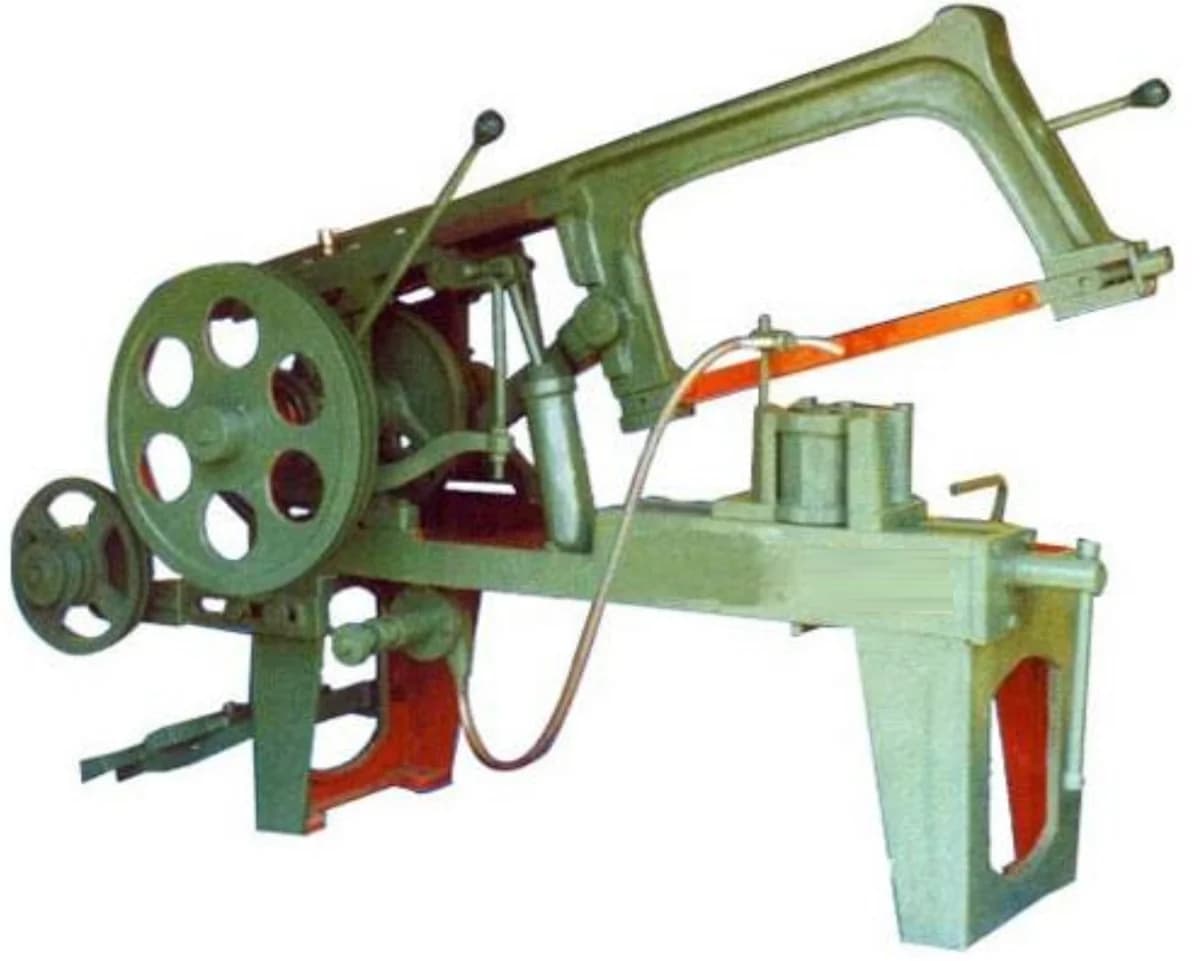

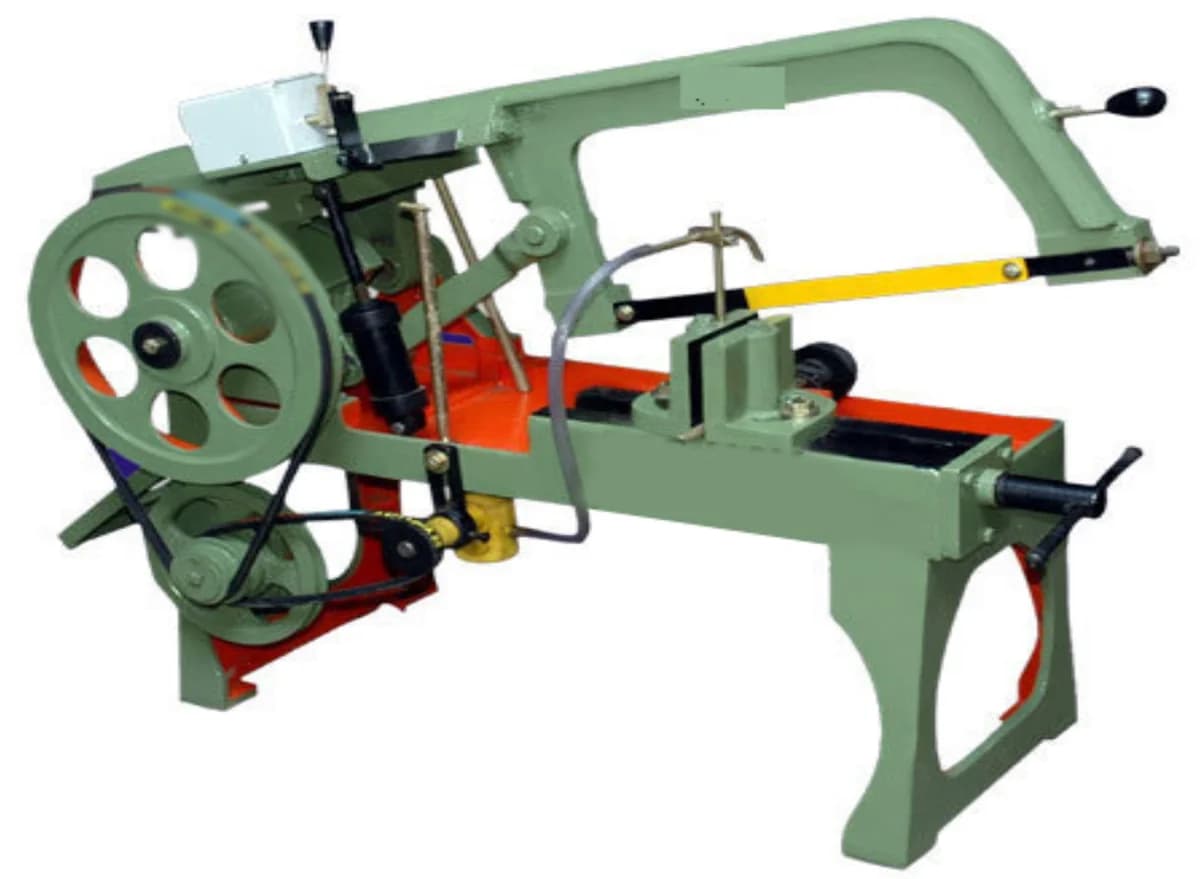

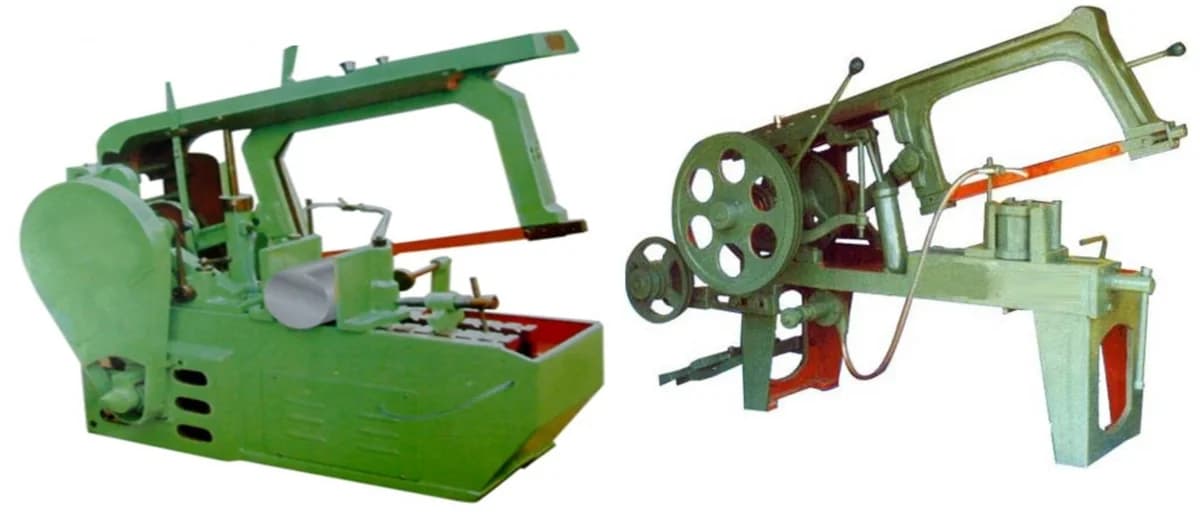

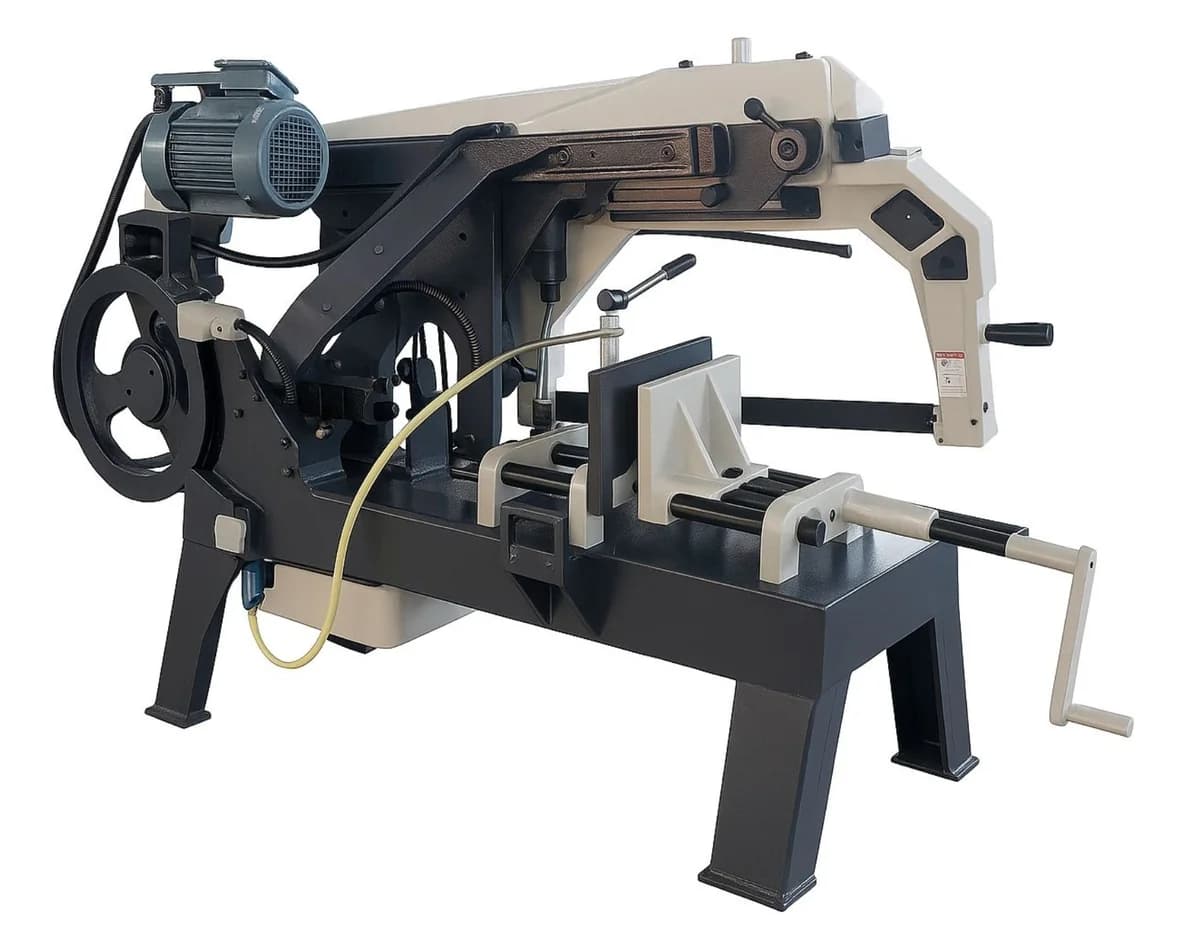

Gear type Mechanical Power Hacksaw Machine — Cutting Capacity 175 mm
Precision gear drive power hacksaw machines engineered for high-efficiency metal cutting in industrial applications. Suitable for cutting round bars, square sections, and structural profiles with stable operation. • Variable blade speeds range from 40 to 120 strokes per minute • Heavy-duty mechanical vice maintains secure workpiece positioning • Multiple capacity options from 175 mm to 300 mm round bar • Optional coolant system enhances blade longevity and finish
Specifications
For: Cutting Capacity 175 mm- Model
- 7"
- Cutting Capacity (Round)
- 175 mm
- Cutting Capacity (Square)
- 175 × 175 mm
- Blade Size
- 350 × 25 × 1.25 mm
- Blade Speed
- 60 / 90 / 120 Strokes per min
- Main Motor Power
- 1 HP / 0.75 kW
- Drive Type
- Gear Drive
- Vice Type
- Mechanical
- Coolant System
- Optional
- Stroke Length
- Approx. 150 mm
- Approx. Machine Dimensions
- 900 × 450 × 850 mm
- Approx. Weight
- 180 – 220 kg
Configurations
Click a row to switch| Variant | Blade Size | Cutting Capacity (Round) | Cutting Capacity (Square) | Main Motor Power | Price |
|---|---|---|---|---|---|
| Cutting Capacity 175 mm | 350 × 25 × 1.25 mm | 175 mm | 175 × 175 mm | 1 HP / 0.75 kW | ₹49,700 |
| Cutting Capacity 230 mm | 450 × 38 × 1.8 mm | 230 mm | 230 × 230 mm | 2 HP / 1.5 kW | ₹55,700 |
| Cutting Capacity 300 mm | 500 × 45 × 2.0 mm | 300 mm | 300 × 300 mm | 3 HP / 2.2 kW | ₹75,700 |
Common Buyer Questions
Q: Can this machine cut different metal types? A: Yes, it is suitable for mild steel, alloy steel, and structural profiles. Q: Is coolant included with the machine? A: Coolant system is optional and can be added based on specific needs. Q: What blade sizes are supported? A: Supports 350, 450, and 500 mm blades with varying thicknesses.
Build Quality and Stability
- Robust construction supports weights between 180 and 220 kg for stability
- Compact footprint dimensions around 900 × 450 × 850 mm fit most floors
- 1 HP motor provides sufficient power for continuous industrial cutting
- Mechanical design reduces complexity compared to hydraulic alternatives
- Engineered for low vibration to ensure precision cuts on hard metals
Industrial Applications
- Suitable for metal fabrication shops requiring reliable cutting solutions
- Used in structural steel workshops for cutting beams and angles
- Effective in maintenance departments for cutting pipes and solid bars
- Supports production lines needing consistent mechanical power hacksawing
- Ideal for workshops handling mild steel and alloy steel cutting tasks
Material Cutting Capacities
- Handles round bars in capacities of 175 mm, 230 mm, or 300 mm
- Cuts square sections up to 175 × 175 mm depending on machine configuration
- Compatible with blade sizes 350 × 25 × 1.25 mm for standard tasks
- Supports intermediate blades 450 × 38 × 1.8 mm for medium capacity
- Handles larger blades up to 500 × 45 × 2.0 mm for heavy duty tasks
Precision Gear Drive Performance
- Heavy-duty gear drive ensures stable operation during heavy cutting cycles
- Variable blade speeds adjustable from 40 to 120 strokes per minute
- Mechanical vice maintains secure workpiece positioning for accuracy
- Stroke length optimized at approximately 150 mm for efficient material removal
- Optional coolant system available to enhance blade longevity and cut finish
Optional Accessories
- Coolant Pump
- Machine lamp
- Extra blade set
- Foundation Bolts
- Lubrication System
- Chip Tray
Standard Accessories
- Hacksaw Blade
- Electrical Motor/Switch and V belt
- Job clamping device
