Steel Fabrication Body Foot Operated Treadle Shearing Machine 610x0.8mm
The PTSM-24 Treadle Shearing Machine is a heavy-duty, foot-operated manual sheet cutting machine designed for accurate and effortless cutting of sheet metal up to 610 mm. It is ideal for workshops, fabrication units, and maintenance applications where power-free operation is required. • Cutting Length: 610 mm • Blade Size: 625x50x12 mm • Body Material: Heavy Steel Fabrication • Weight: 120 Kgs

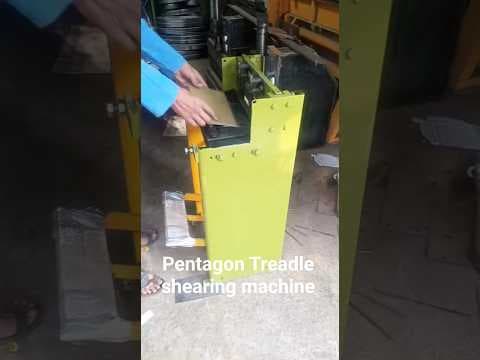

See it in action
Specifications
For: 610x0.8mm- Front Gauge
- 500 mm
- Total height
- 915 mm
- Total Width
- 530 mm
- Machine Model
- PTSM-24
- Material Type
- Mild Steel, Aluminum, SS (thin sheet)
- Max Shear Thickness (Mild Steel)
- 0.8 mm
- Spring Load
- 2 Nos.
- Weight
- 120 Kgs
- Bed Height
- 762 mm
- Operation Mode
- Manual, foot treadle
- Blade Material
- HCHCR-D3
- Body Material
- Heavy Steel Fabrication
- Plate Thickness
- 5 mm Steel
- Blade Size
- 625x50x12 mm
- Back Gauge
- 500 mm
- Cutting Length
- 610 mm
- Total length
- 747 mm
- Blade Type
- HCHCR-D3
- Model
- PTSM-24
- Cutting Material
- Mild Steel, Aluminum, SS (thin sheet)
- Back-Front Gauge
- adjustable
Configurations
Click a row to switch| Variant | Cutting Length | Back Gauge | Blade Size | Max Shear Thickness (Mild Steel) | Price |
|---|---|---|---|---|---|
| 450x0.8mm | 450 mm | 500 mm | 465x50x12 mm | 0.8 mm | ₹29,000 |
| 1850x0.8mm | 1850 mm | 500 mm | 1875x50x12 mm | 0.8 mm | ₹1,26,000 |
| 1300x0.8mm | 1300 mm | 500 mm | 1325x50x12 mm | 0.8 mm | ₹65,000 |
| 610x0.8mm | 610 mm | 500 mm | 625x50x12 mm | 0.8 mm | ₹34,000 |
| 300x0.8mm | 300 mm | 500 mm | 310x50x12 mm | 0.8 mm | ₹26,500 |
| 910x0.8mm | 910 mm | 500 mm | 936x50x12 mm | 0.8 mm | ₹48,000 |
Common Buyer Questions
Q: What materials can this machine cut? A: It handles mild steel, aluminum, and thin stainless steel sheets.
Q: Is the gauge adjustable? A: Yes, both front and back gauges are fully adjustable for precision.
Q: Does it require electricity? A: No, it operates manually via a foot treadle mechanism.
Compact Design for Workshop Efficiency
- Total length of 600 mm fits easily into compact workspaces
- Bed height of 762 mm provides comfortable working posture
- Total width of 530 mm ensures stable footprint on shop floors
- Weight of 98 Kgs balances portability with operational stability
- Model variants like PTSM-18/24 cater to diverse production needs
Ergonomic Foot Treadle Operation
- Manual foot treadle control frees both hands for sheet positioning
- Reduces operator fatigue during high-volume cutting tasks
- Simple mechanical operation requires no external power source
- Intuitive interface suitable for operators of all skill levels
- Enhances workflow efficiency in small to medium workshops
Precision Cutting Capabilities
- Adjustable back-front gauge allows for accurate repeat cuts
- Front gauge extends up to 500 mm for versatile sheet handling
- Cutting length of 450 mm accommodates standard sheet sizes
- Ideal for mild steel, aluminum, and thin stainless steel sheets
- Max shear thickness reaches 0.8 mm for mild steel applications
Robust Construction and Durability
- Heavy steel fabrication body ensures long-term stability
- 5 mm thick plate thickness provides rigid structural support
- HCHCR-D3 blade material offers superior hardness and wear resistance
- Spring load mechanism aids in consistent blade return action
- Designed for continuous operation in demanding industrial environments
More questions buyers ask
What is a foot-operated treadle shearing machine?
It is a manual metal cutting machine that uses a foot pedal to actuate the blade, allowing for hands-free operation and precise control over sheet metal cutting.
What materials can this machine cut?
It is designed to cut mild steel, aluminum, and thin stainless steel sheets efficiently.
Does the machine require electricity?
No, it is a purely mechanical, foot-operated machine, making it ideal for workshops without heavy power requirements.
What is the maximum cutting thickness?
The machine is rated for a maximum shear thickness of 0.8 mm for mild steel.
Are the blades durable?
Yes, the machine features high-quality HCHCR-D3 blades known for their hardness and long-lasting cutting performance.
Is the back gauge adjustable?
Yes, it comes with an adjustable back-front gauge to ensure accurate and repeatable cuts.
What industries use this machine?
It is widely used in fabrication workshops, sheet metal processing units, and small-scale manufacturing industries.
How do I maintain the machine?
Regular lubrication of moving parts and keeping the blade area clean from debris will ensure long service life.
Is it portable?
While robust and heavy, it is designed for workshop use and can be positioned as needed within your facility.
Does it come with a warranty?
Yes, Pentagon provides standard manufacturer warranty and after-sales support.
Who should choose the 300mm model?
The 300mm model is perfect for small workshops or hobbyists needing to cut narrow strips or small components.
Who should choose the 450mm model?
The 450mm model is the standard choice for general fabrication tasks requiring slightly more width than the entry-level model.
Who should choose the 610mm model?
The 610mm model offers a balance of capacity and footprint, suitable for medium-sized sheet metal projects.
Who should choose the 910mm model?
The 910mm model is ideal for workshops handling larger sheets that require consistent, clean cuts across a wider span.
Who should choose the 1300mm or 1850mm models?
These larger models are designed for professional fabrication shops handling full-size sheets and high-volume production.
How does the 300mm model compare to the 1850mm model?
The 300mm model is a compact, entry-level tool for small parts, whereas the 1850mm model is a heavy-duty industrial machine for large-scale sheet metal production.
Which model is best for limited workshop space?
The 300mm and 450mm models have the smallest footprints, making them the best choice for space-constrained workshops.
Are all models capable of cutting the same materials?
Yes, all models in the Pentagon PTSM series are engineered to handle mild steel, aluminum, and thin stainless steel sheets.
More like this
Full description
The PTSM-24 Treadle Shearing Machine is a heavy-duty, foot-operated manual sheet cutting machine designed for accurate and effortless cutting of sheet metal up to 610 mm. It is ideal for workshops, fabrication units, and maintenance applications where power-free operation is required. • Cutting Length: 610 mm • Blade Size: 625x50x12 mm • Body Material: Heavy Steel Fabrication • Weight: 120 Kgs
