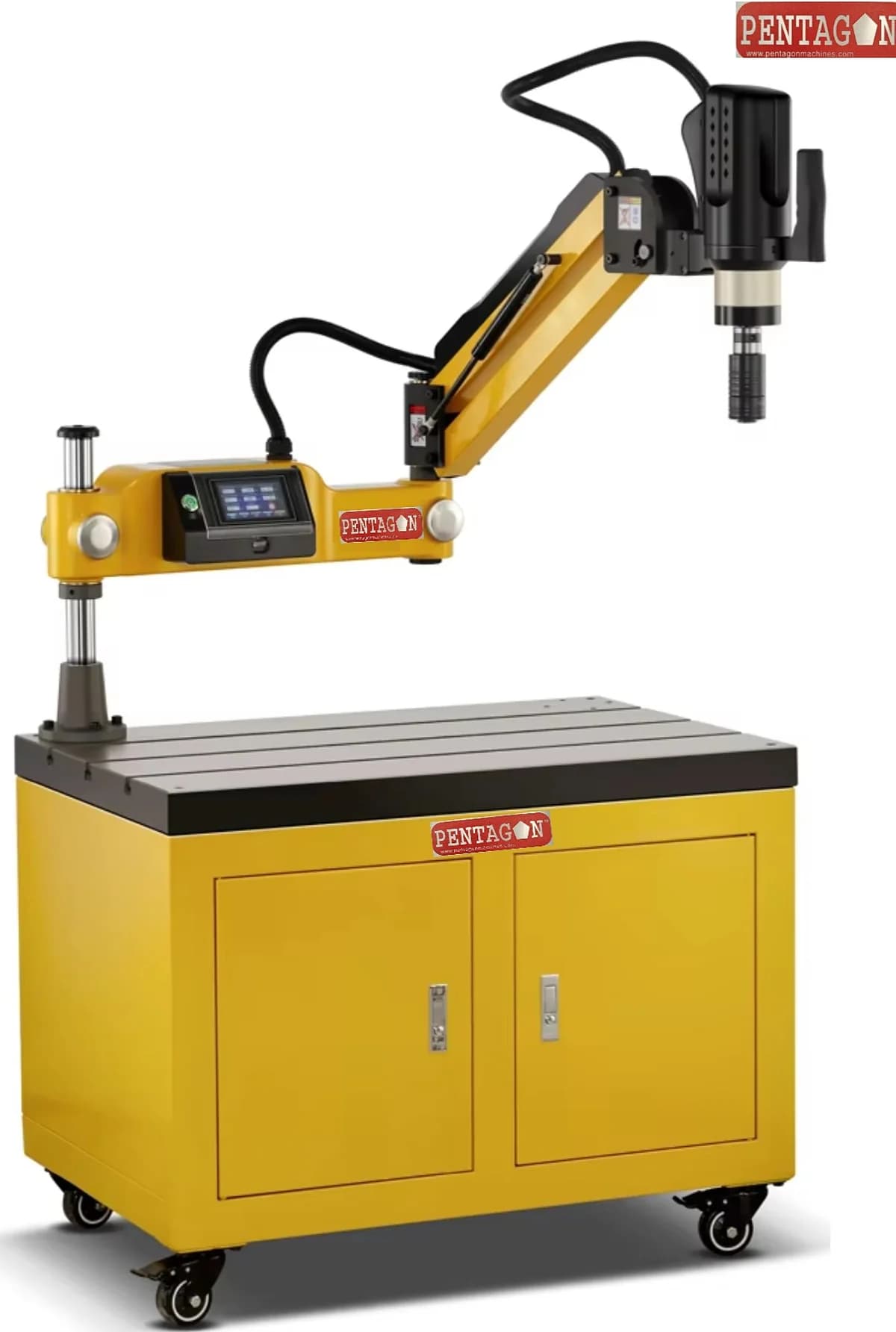

Flexible Arm Type Universal Tapping Machine ARM Tap: M3-M16
This flexible arm servo tapping system ensures precise thread creation across standard workshop components. The lightweight frame allows easy repositioning between stations without sacrificing alignment accuracy. • Handles M3 to M16 thread specifications • 800W motor supports aluminum and mild steel applications • 300 rpm spindle speed maintains fine pitch accuracy • 35 kg construction facilitates quick mobile deployment.

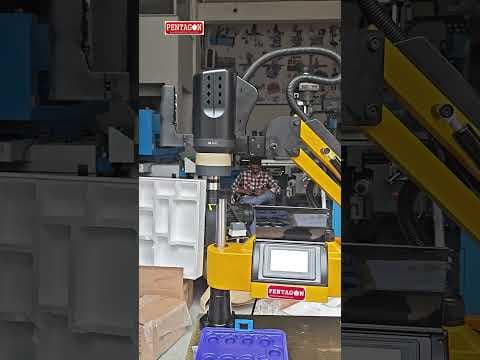

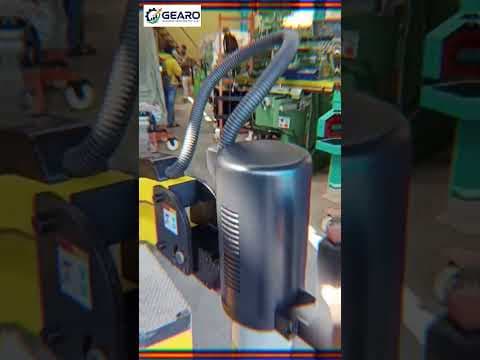

See it in action

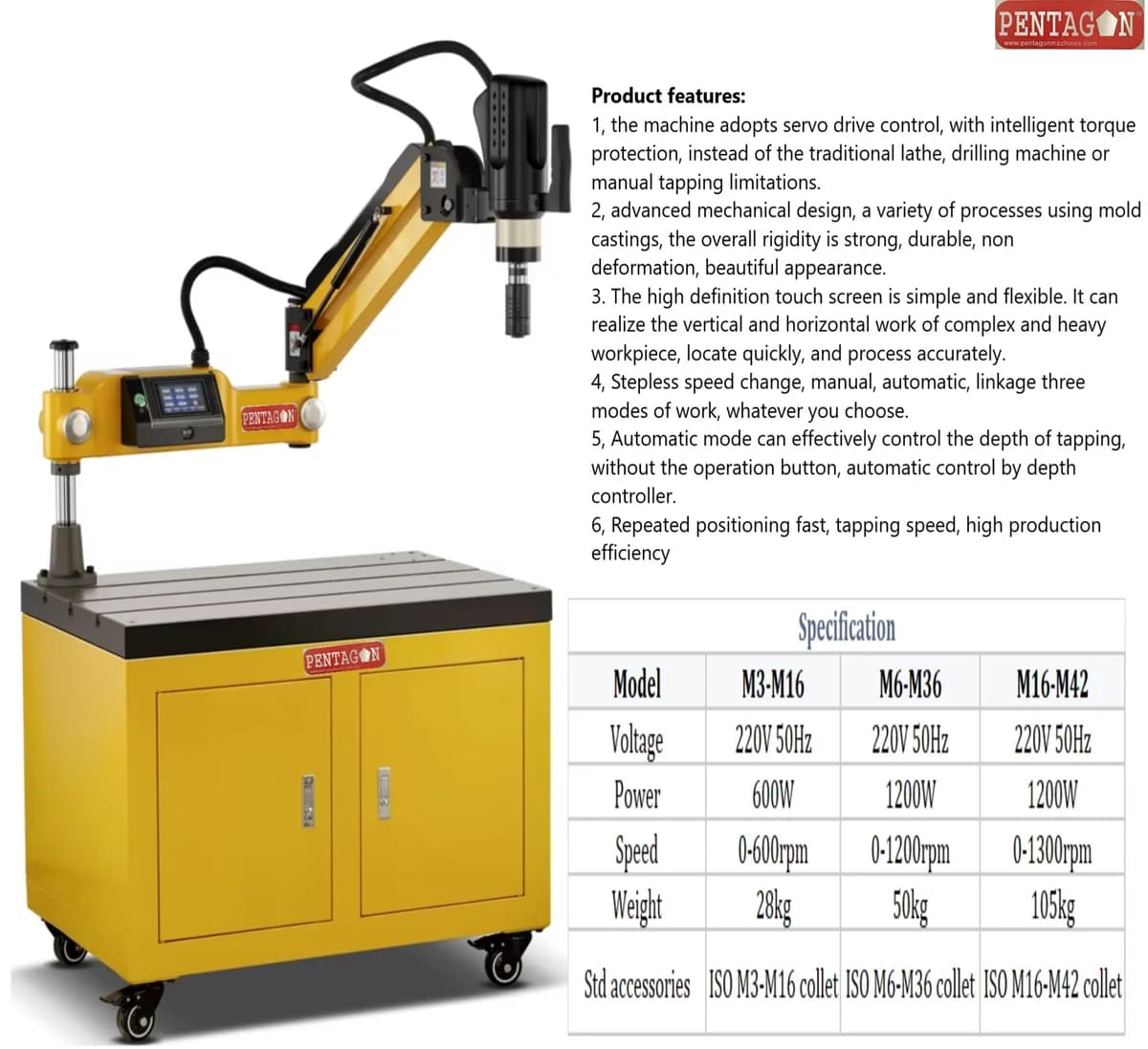

Specifications
For: ARM Tap: M3-M16- Model
- ARM Tap: M3-M16
- Tapping Capacity
- M3-M16
- Tapping Direction
- Universal (Horizontal/Vertical)
- Arm Size
- 1100 mm
- Vertical stretch
- 380 mm
- Working Radius
- 1100 mm
- Motor Power
- 600W
- Spindle RPM
- 300 rpm
- Power Voltage
- 220V 50Hz
- Current
- Single Phase

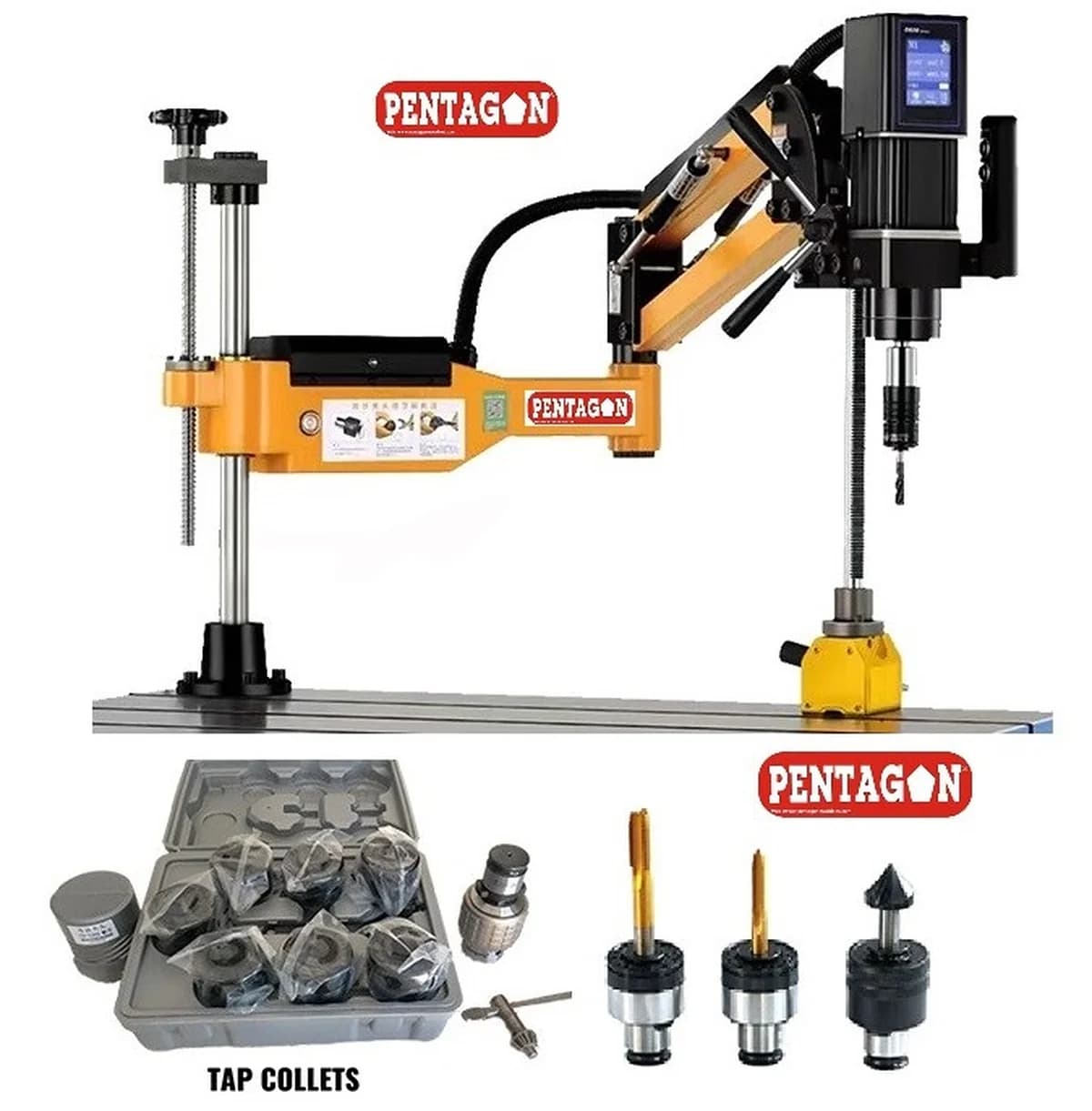

- Collet Sizes and Nos
- 3，4，5，6-8，10，12，14，16 （8 pieces）
- Machine Weight
- 35 Kgs
Configurations
Click a row to switch| Variant | Tapping Capacity | Arm Size | Tapping Direction | Motor Power | Price |
|---|---|---|---|---|---|
| ARM Tap: M12-M48 | M12-M48 | 1300 mm | Universal (Horizontal/Vertical) | 2000 W | ₹2,86,000 |
| ARM Tap: M3-M16 | M3-M16 | 1100 mm | Universal (Horizontal/Vertical) | 600W | ₹65,000 |
| ARM Tap: M6-M30 | M6-M30 | 1200 mm | Universal (Horizontal/Vertical) | 1200W | ₹90,000 |
| ARM Tap: M6-M36 | M6-M36 | 1200 mm | Universal (Horizontal/Vertical) | 1200W | ₹98,000 |
| ARM Tap: M3-M12 | M3-M12 | 1100 mm | Universal (Horizontal/Vertical) | 600W | ₹58,000 |
| ARM Tap: M6-M24 | M6-M24 | 1100 mm | Universal (Horizontal/Vertical) | 1200W | ₹88,000 |
Operational Efficiency & Maintenance
- Compact 38 kg frame enables quick relocation between workstations
- Minimal moving parts reduce long-term maintenance requirements
- Simple setup process allows operators to achieve optimal alignment fast
- Built-in overload protection safeguards the drive mechanism during jams
- Open design facilitates easy chip removal and routine cleaning
- Standardized components ensure quick replacement and minimal downtime
Target Industries & Production Applications
- Ideal for automotive subassembly and chassis threading operations
- Supports aerospace component manufacturing with strict tolerance needs
- Streamlines heavy machinery fabrication and structural steel tapping
- Enhances production flow in custom metal fabrication workshops
- Integrates seamlessly into semi-automated assembly line workflows
- Reduces manual labor costs while maintaining repeatable thread quality

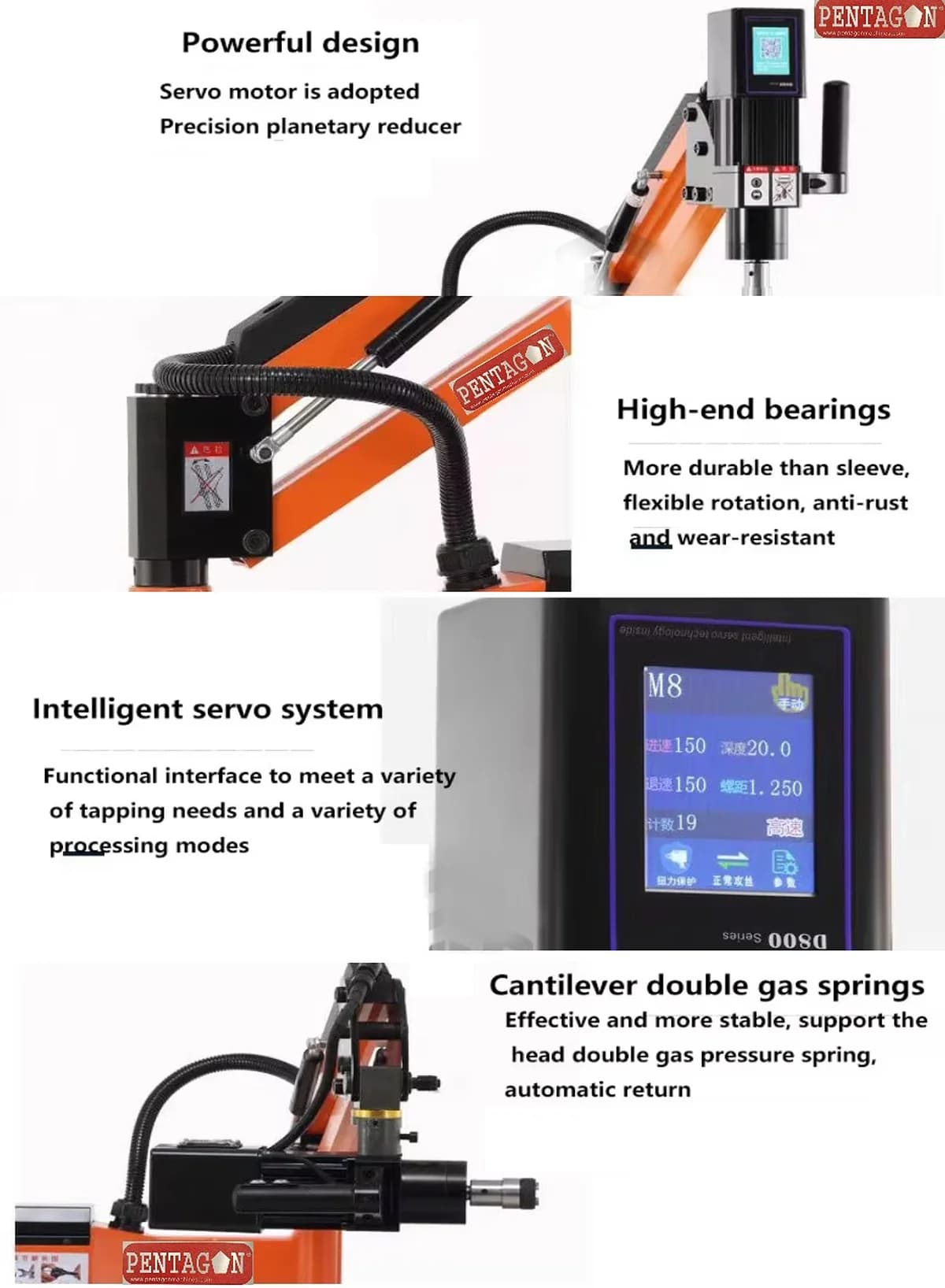

Servo Drive System & Operational Control
- Powered by a responsive servo electric motor for precise torque control
- Operates on standard 220V 50Hz single phase industrial power
- Delivers controlled spindle speeds up to 300 rpm for optimal feed rates
- 600W motor output balances energy efficiency with consistent cutting force
- Electronic speed regulation minimizes tap breakage and tool wear
- Smooth acceleration profiles protect delicate workpiece surfaces

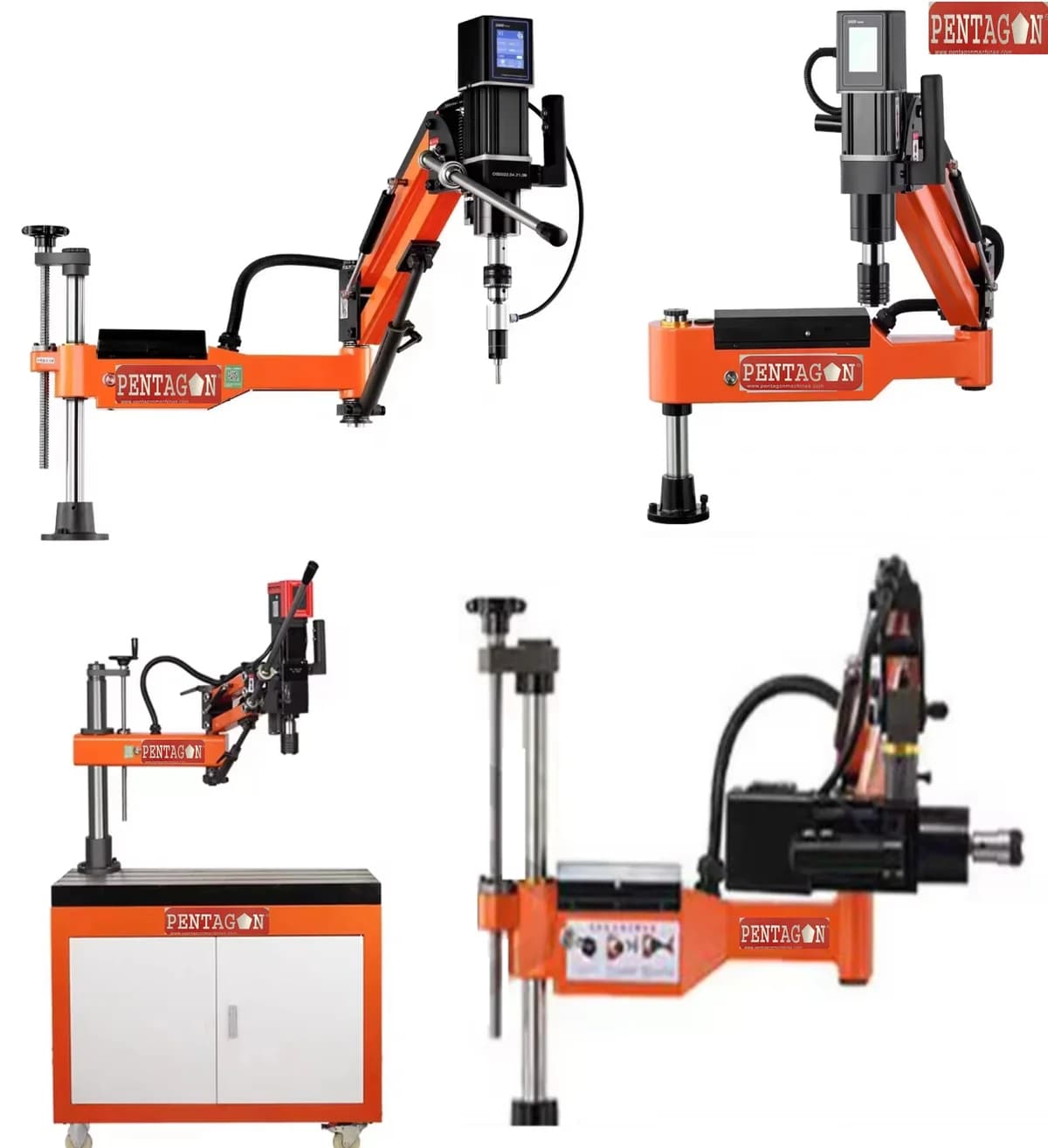

Flexible Arm Servo Electric Tapping Machine Design
- Flexible Arm type Servo Electric Tapping Machine design ensures precision
- Features a highly maneuverable articulated arm for complex workpieces
- Provides a generous 1000 mm working radius for large assemblies
- Offers 380 mm vertical stretch to accommodate varying part heights

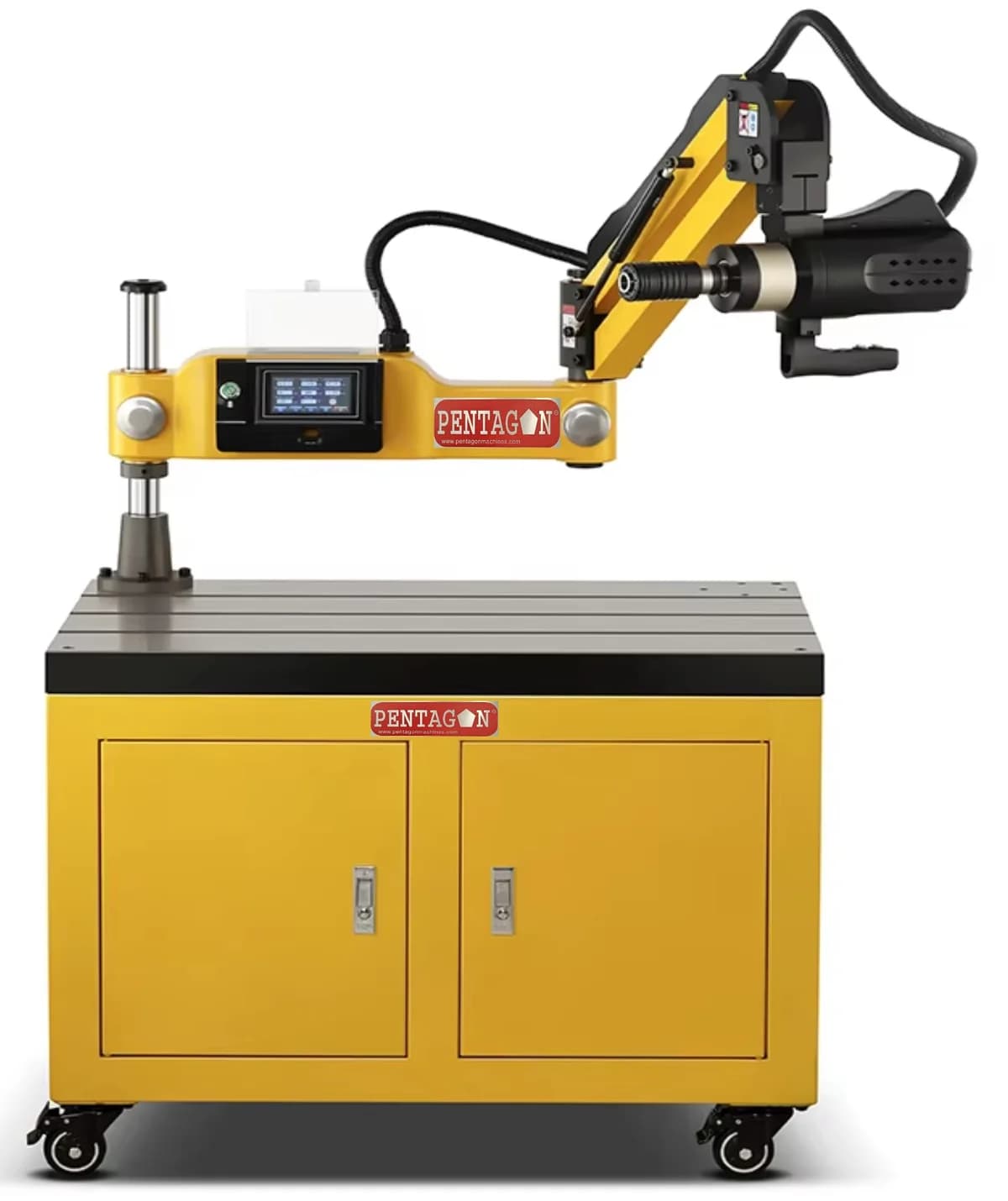

- Supports universal mounting in both horizontal and vertical orientations
- 1100 mm arm length ensures extended reach without repositioning
Core Tapping Capabilities & Range
- Available in standardized configurations: M3–M12, M3–M16, M6–M20
- Extended capacity options include M6–M24, M6–M30, and M6–M36
- Heavy-duty variant supports large fastener threading up to M12–M48
- Each configuration is calibrated for precise pitch control and depth
- Optimized for consistent thread quality across mixed production batches
- Compatible with standard cutting and forming taps for immediate use

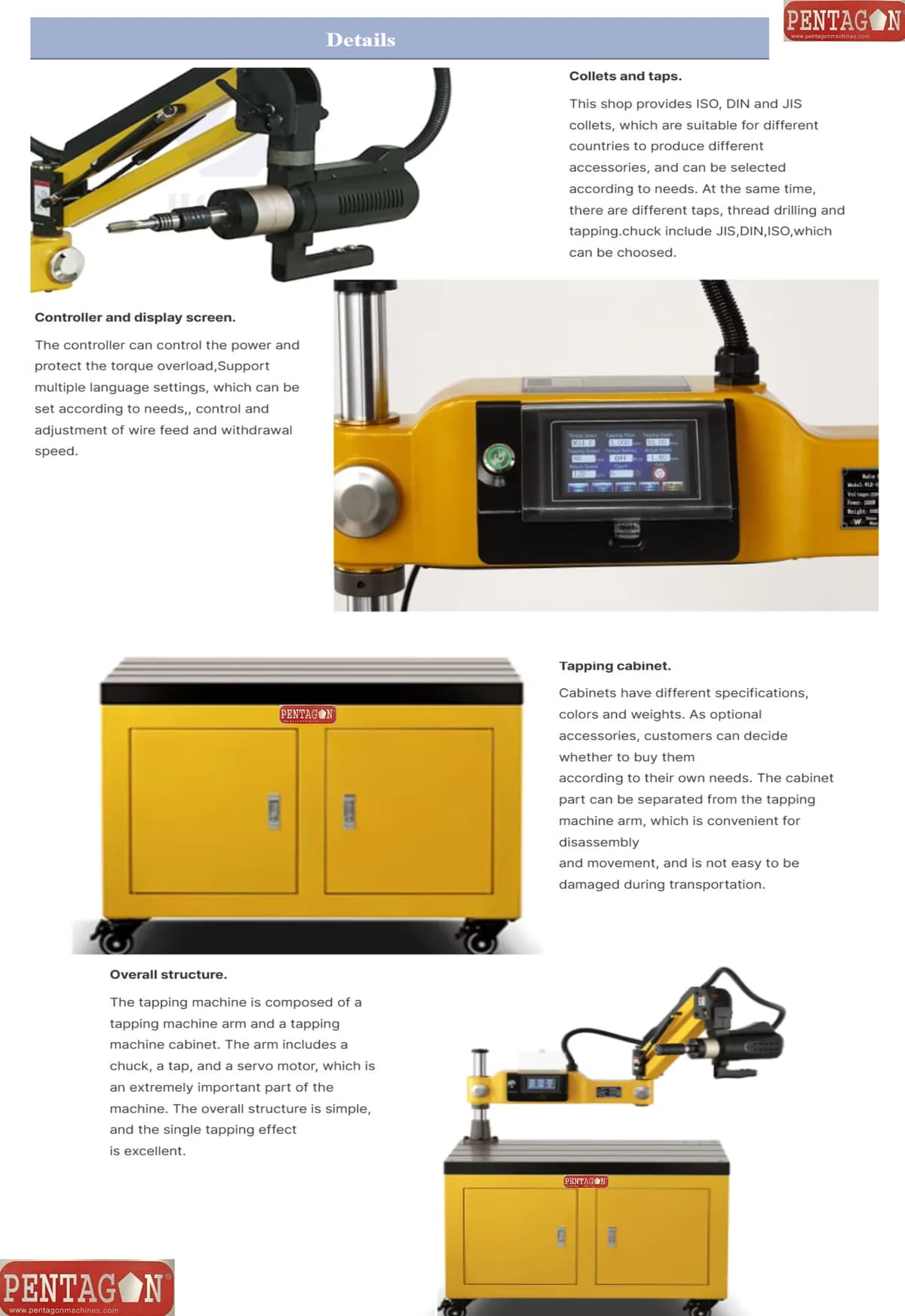

Optional Accessories

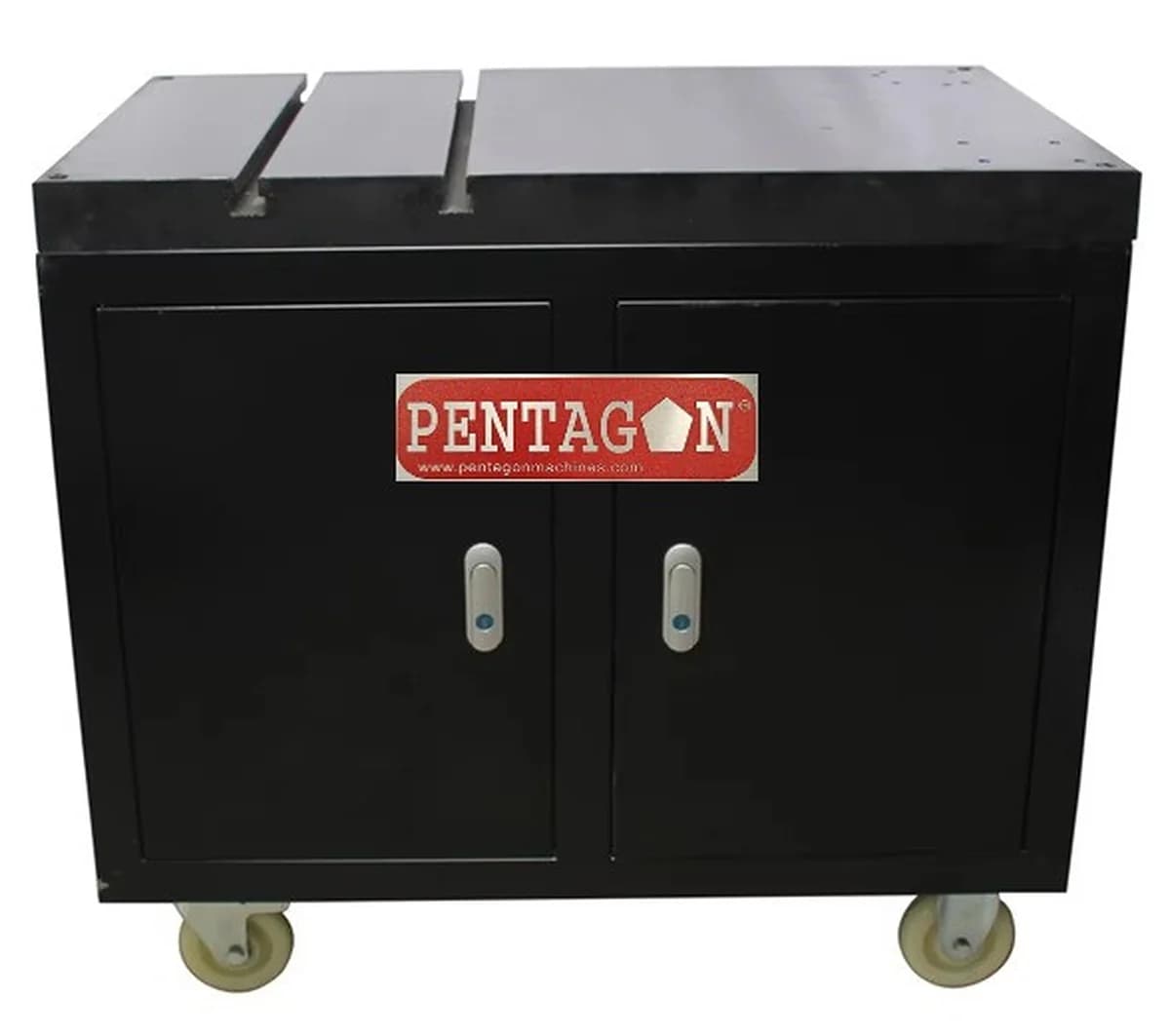

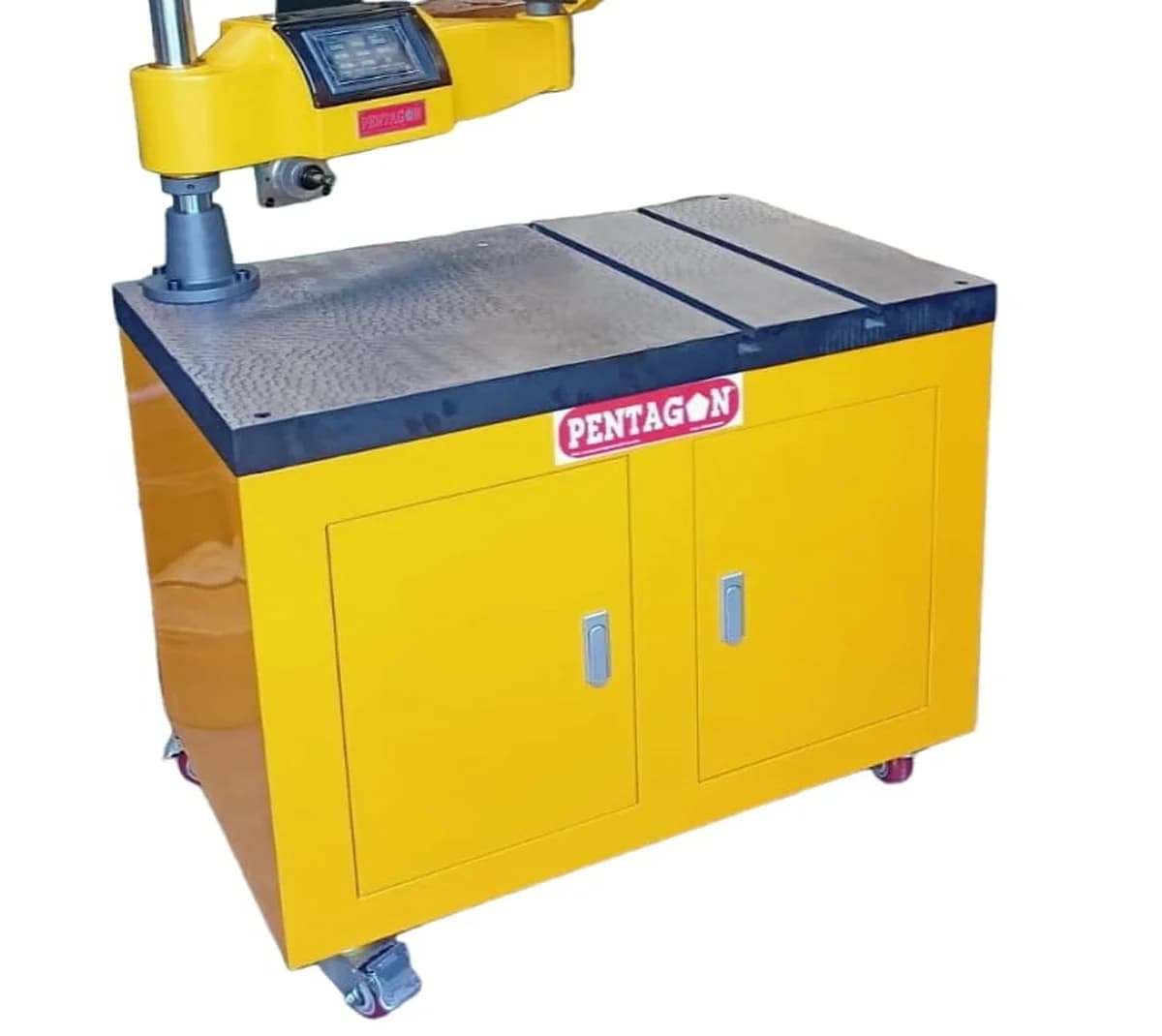

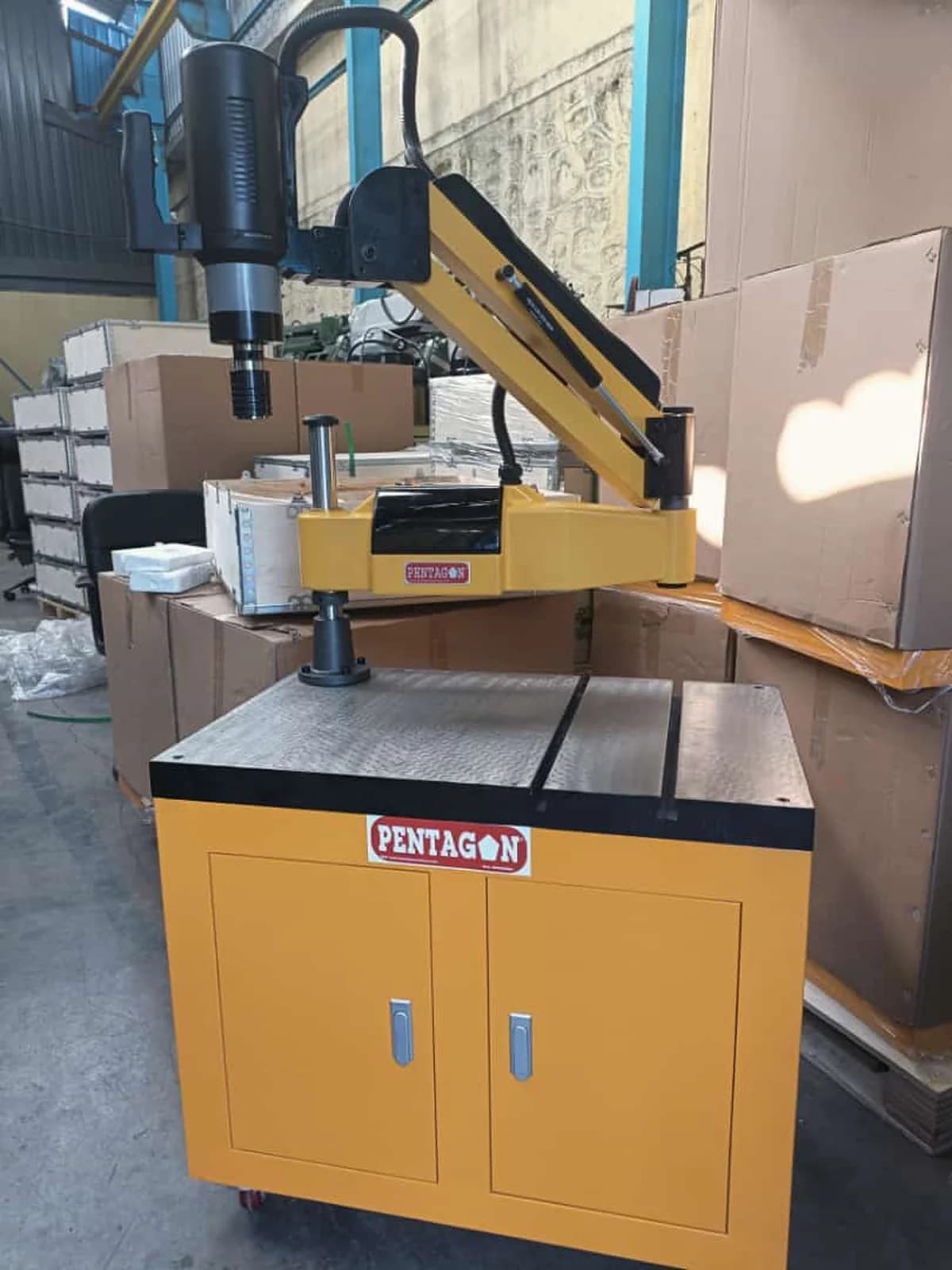

- Cast Iron T Slotted type Table size 800*500 mm
- JIS or Din standard collet

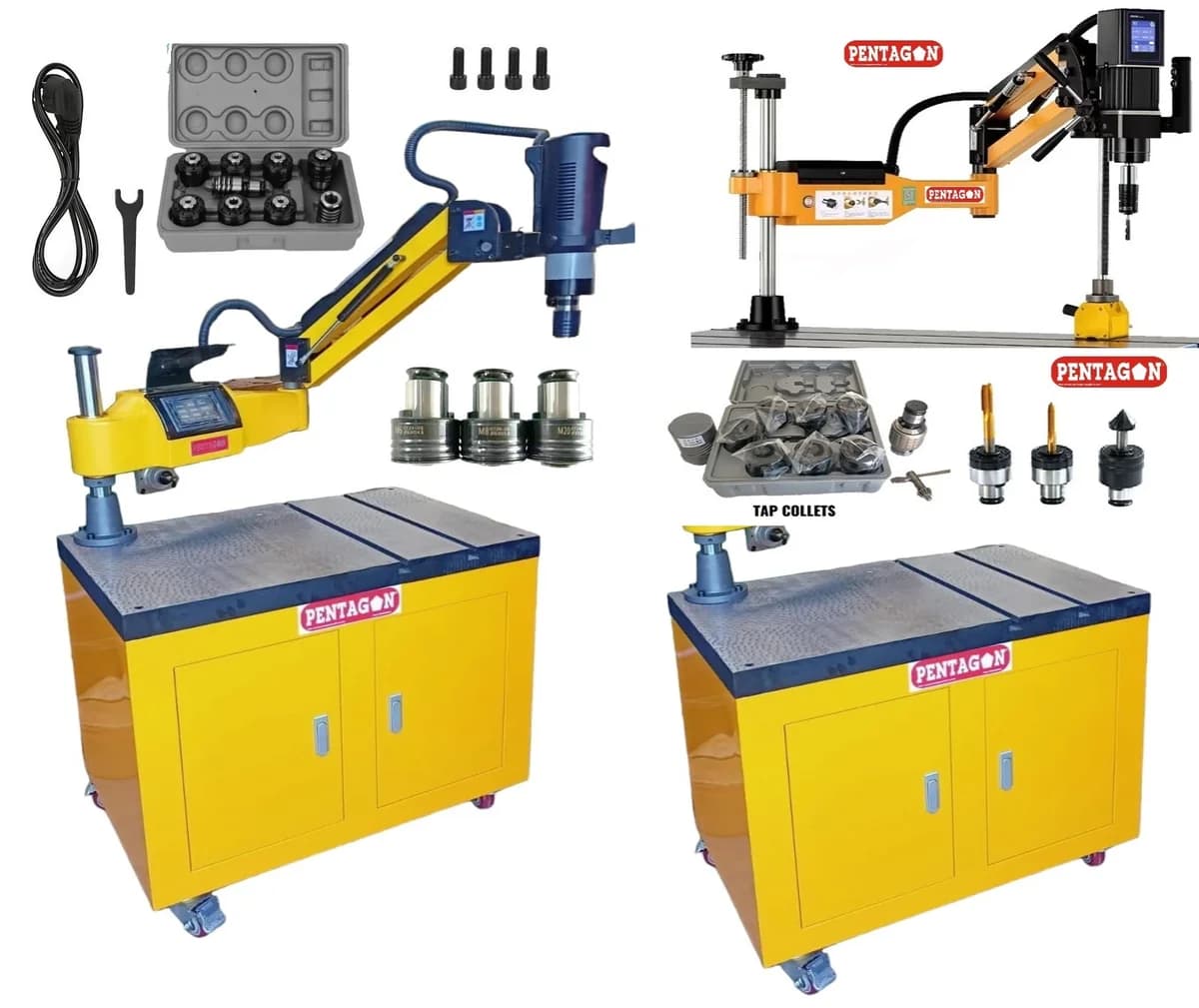

Standard Accessories
- Connecting Cables and Wires
- Tapping collets set full range as per machine model
- Operation Manual
- Wooden Packing Box
More questions buyers ask
What is a flexible arm servo electric tapping machine?
It is a precision industrial tool that uses a servo motor and an articulated arm to tap threads into workpieces with high accuracy, speed, and minimal operator effort.
What are the key benefits of using a servo tapping machine?
Key benefits include automatic depth control, high repeatability, reduced tap breakage, variable speed control, and the ability to tap in both horizontal and vertical orientations.
What is the tapping capacity range of Pentagon machines?
Pentagon offers a wide range of tapping capacities, starting from M3-M12 for small components up to M12-M48 for heavy-duty industrial applications.
Does the machine come with a warranty?
Yes, Pentagon machines typically come with a standard manufacturer's warranty. Please check the specific product documentation or contact our support team for details.
Is the machine suitable for stainless steel tapping?
Yes, these servo electric tapping machines are highly effective for tapping stainless steel, mild steel, aluminum, and other industrial metals.
What power supply is required for these machines?
Most Pentagon flexible arm tapping machines operate on a standard 220V 50Hz single-phase industrial power supply.
Are tapping collets included with the machine?
Yes, each machine comes with a full set of tapping collets appropriate for its specific capacity range.
Can this machine be used for horizontal and vertical tapping?
Yes, the articulated arm design allows for universal mounting, supporting both horizontal and vertical tapping orientations.
How do I choose the right tapping machine for my workshop?
Consider your maximum tapping diameter, the material type, the required working radius, and your production volume. Our team can help you select the best model.
Do you provide GST invoices for these machines?
Yes, all purchases include a valid GST invoice for your accounting and tax credit requirements.
What is the typical lead time for delivery?
We offer pan-India delivery. Lead times depend on your location and stock availability; please contact us for an estimated delivery date.
Who should choose the M3-M16 model?
The M3-M16 model is ideal for general-purpose workshops and automotive subassembly tasks requiring precision and versatility.
Who should choose the M12-M48 model?
The M12-M48 model is designed for heavy-duty industrial fabrication, structural steel work, and large-scale component threading.
Who should choose the M6-M30 model?
The M6-M30 model is perfect for medium-duty production environments needing a balance of power and reach for consistent thread quality.
How does the M3-M12 compare to the M6-M24 model?
The M3-M12 is a compact, entry-level model for small precision work, while the M6-M24 offers higher torque (1200W) and a larger working radius for more demanding tasks.
Is the M6-M36 more powerful than the M6-M30?
Both models feature a 1200W motor, but the M6-M36 is specifically calibrated for larger diameter threading up to M36, providing greater versatility for heavy-duty shops.
Why choose the M12-M48 over other models?
The M12-M48 is the most powerful variant with a 2000W motor, specifically engineered for the largest threading requirements where standard machines would struggle.
