Electric Pipe Threading Machine — 1/2"- 2"
These pipe threading machines create precise threaded connections for plumbing, HVAC, and industrial applications. High torque motors ensure consistent thread quality across various sizes. • Handles capacities from 1/2 inch to 6 inches • Includes self-contained oiling system for reduced friction • Compatible with BSPT and NPT standards • Robust alloy steel construction for durability

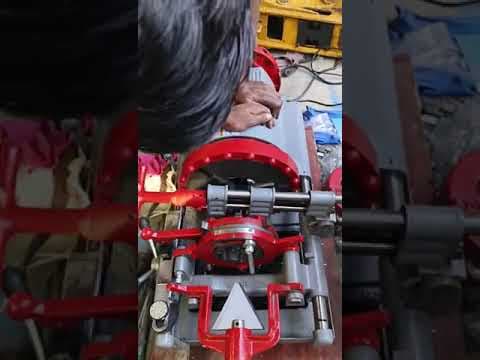

See it in action
Specifications
For: 1/2"- 2"- Motor
- 750W
- Die Head Size
- 1/2" - 2"
- Die Material
- Alloy Steel
- Screw Thread
- BSPT/NPT
- Machine Model
- Z1T-R2-50
- Packing Size
- 900*640*680 mm
- Weight
- 65 Kgs
- Speed
- 28 rpm
- Capacity
- 1/2"- 2"
Configurations
Click a row to switch| Variant | machine-model | capacity | motor | speed | Price |
|---|---|---|---|---|---|
| 1/2"-3" | — | 1/2-3" | 750W (Single Phase) | 28 rpm | ₹64,000 |
| 1/2"-4" | — | 1/2-4" | 1100W (Single Phase) | 20-22 rpm | ₹74,700 |
| 2-1/2"-6" | — | 2-1/2"-6" | 1600W (Single Phase) | 8-16 rpm | ₹1,65,000 |
| 1/2"- 2" | — | 1/2"- 2" | 750W | 28 rpm | ₹43,800 |
Description

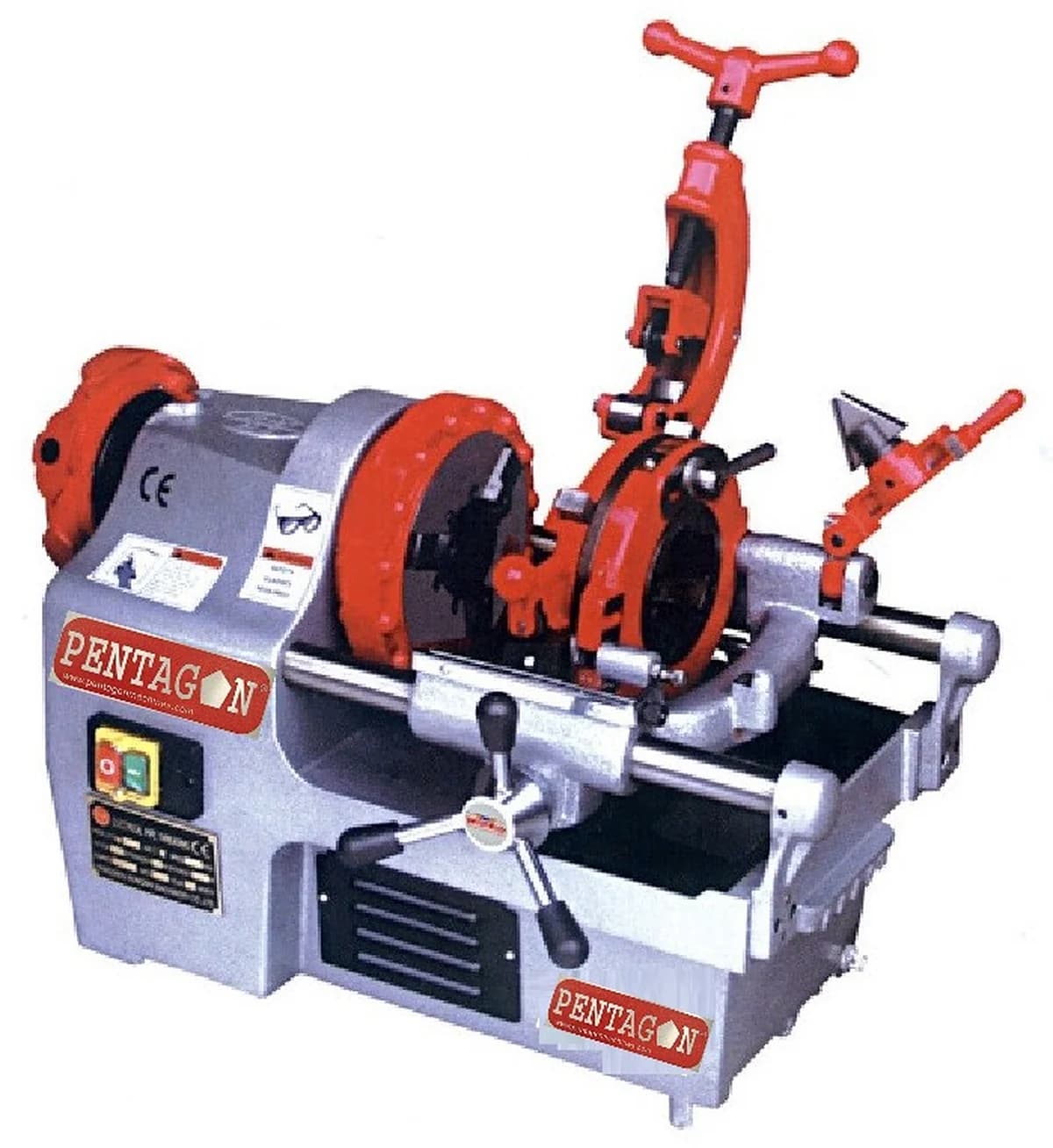

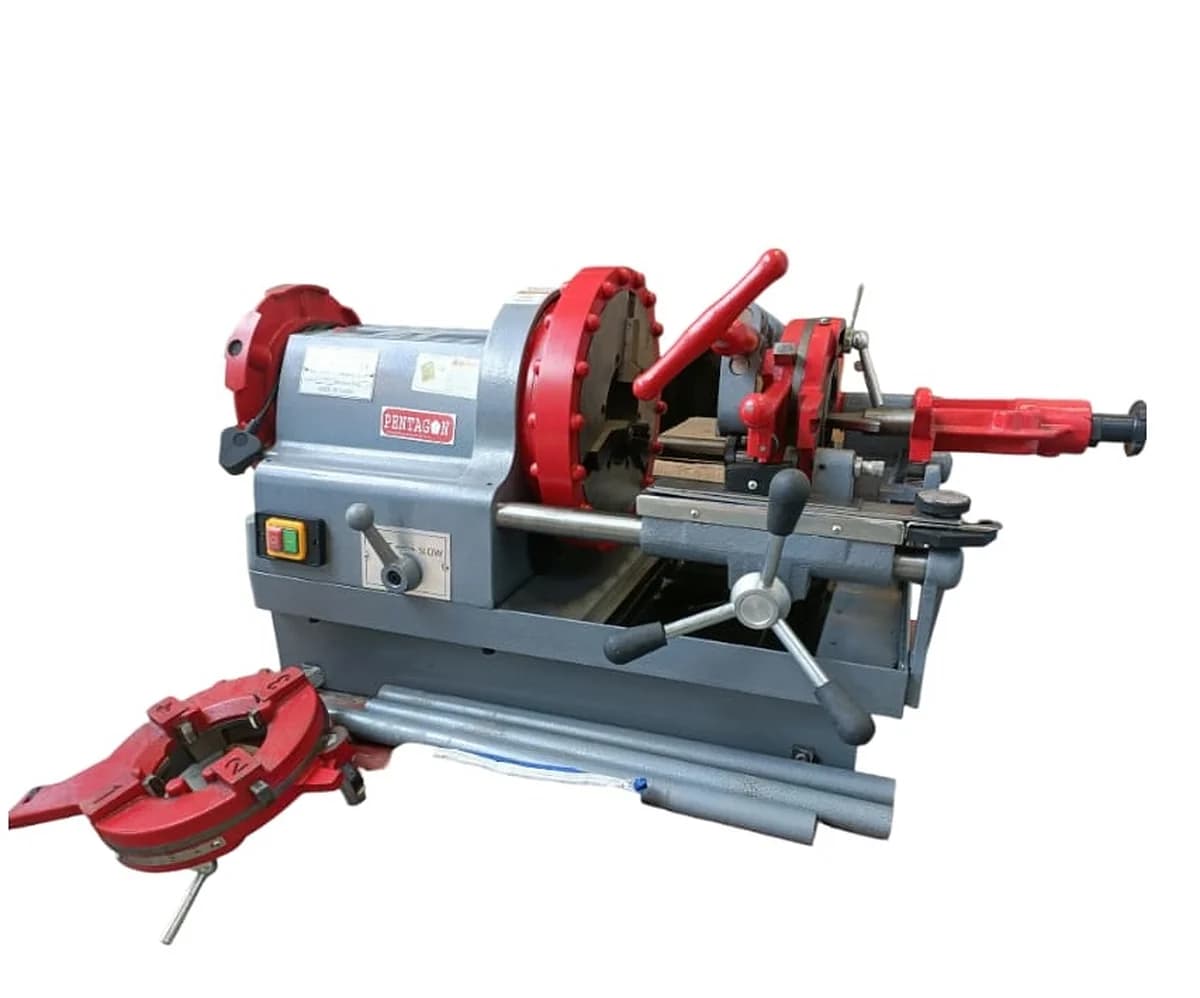

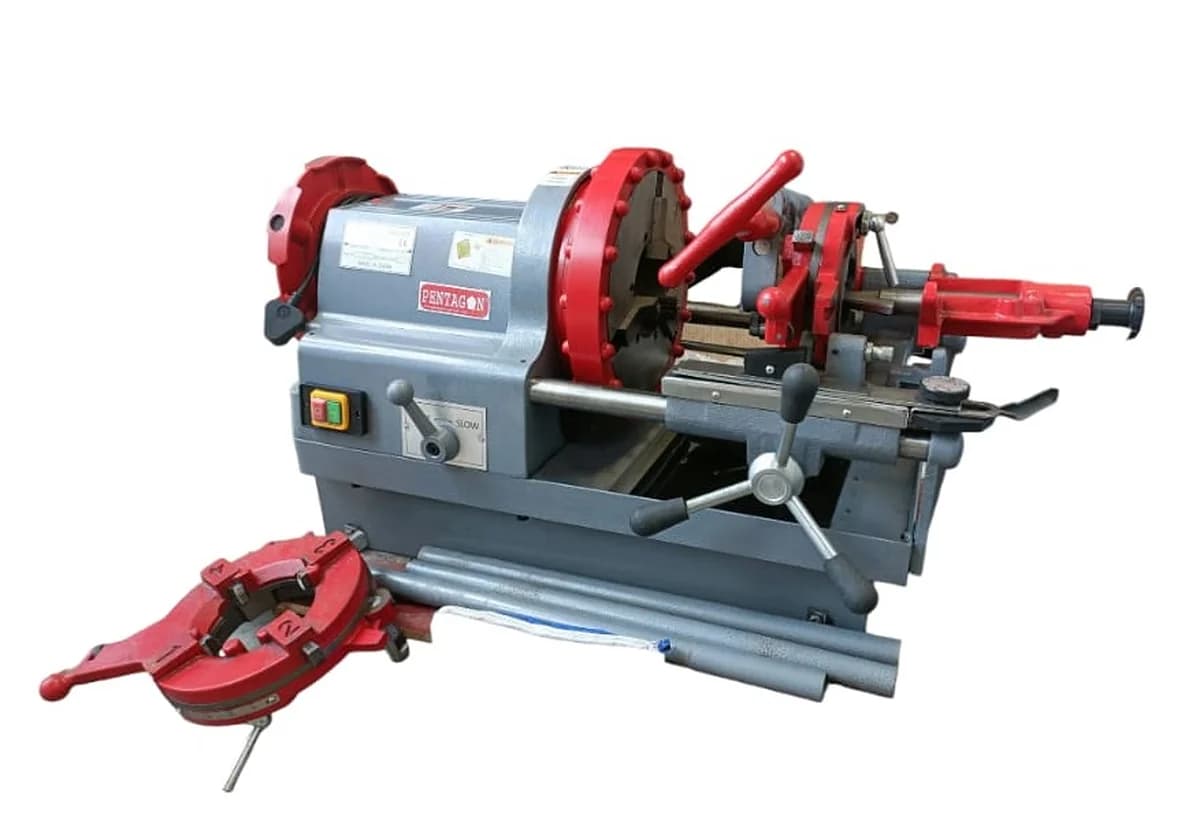

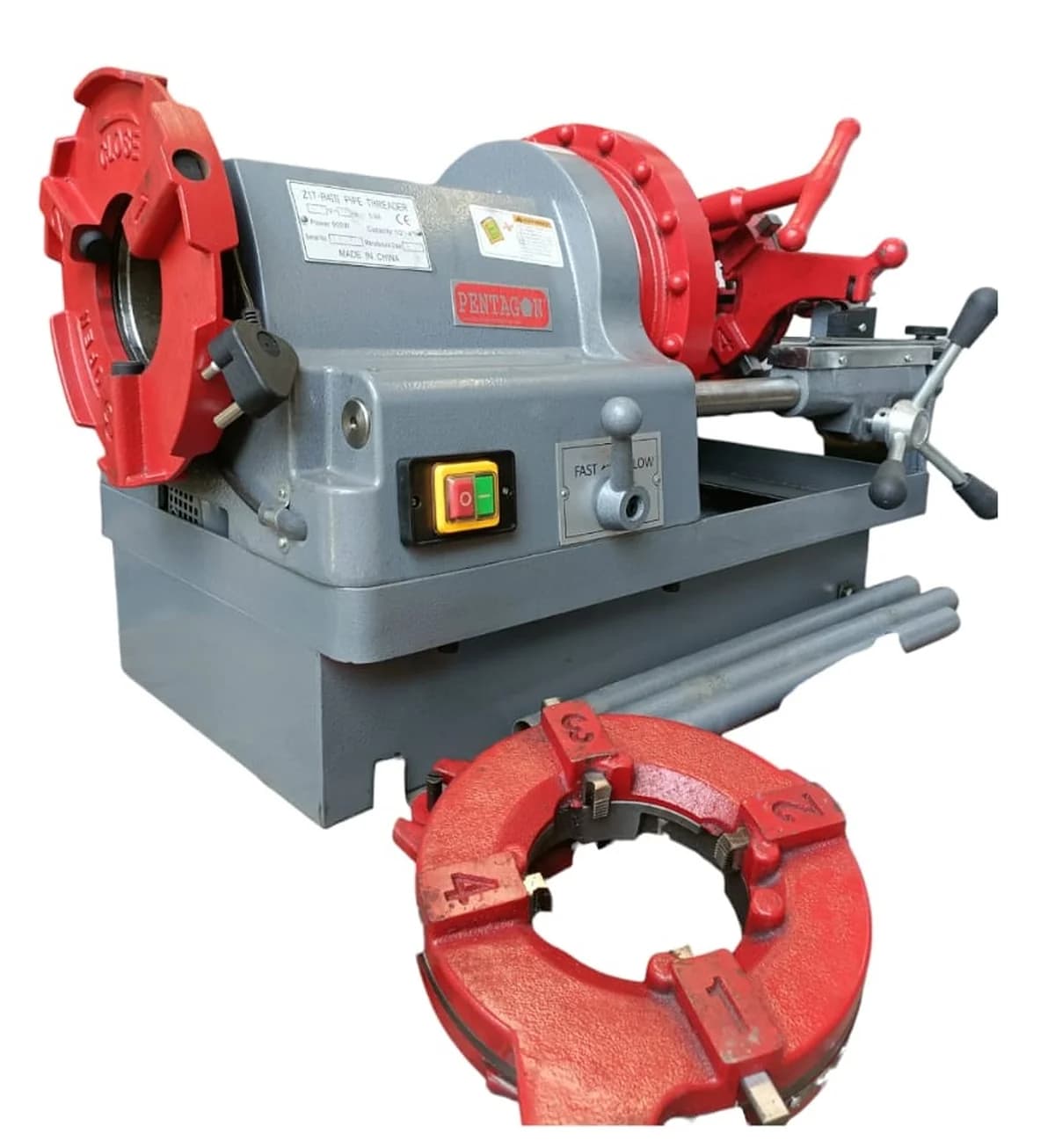

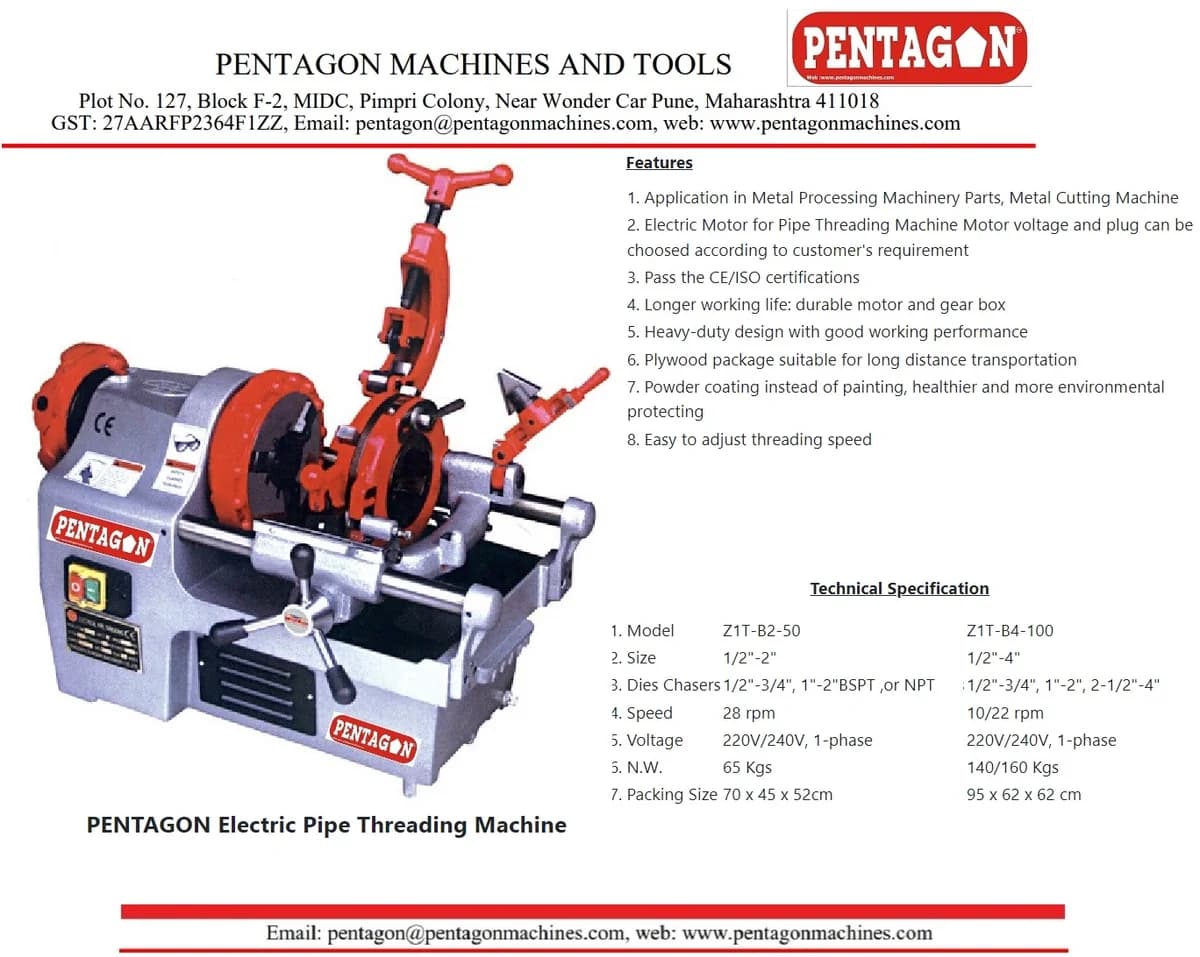

PENTAGON Electric Pipe Threading Machine model Z1T-R2-50 size 1/2"-2" with all standard accessories
Electric pipe threading machines are essential tools for creating precise threaded connections on pipes,
commonly used in plumbing, HVAC, and industrial applications.
These machines offer significant advantages over manual threading methods, including increased efficiency,
consistent thread quality, and versatility across various pipe sizes and materials
Features
Motor Power and Speed Variability: Electric pipe threading machines are equipped with powerful motors, typically ranging from 750W to 1500W, depending on the model. For instance, the NE-T4-100RT model features a 1500W induction motor with spindle speeds of 36, 20, and 11 RPM, allowing for threading of pipes from ¼" to 4" .
Versatile Threading Capacity: These machines can handle a wide range of pipe sizes and threading standards. For example, the Z1T-SD100A model supports threading from ½" to 4" and is compatible with various thread types, including BSPT, NPT, and UNC, by changing the die heads
Self-Contained Oiling System: To ensure smooth operation and prolong the life of the dies, electric pipe threading machines come with built-in oiling systems. These systems provide consistent lubrication during the threading process, reducing friction and heat buildup.
Quick-Change Die Heads: Many models feature quick-open or self-opening die heads, allowing for rapid changes between different pipe sizes and threading types. This feature enhances productivity by minimizing downtime during setup .
Heavy-Duty Construction: Built to withstand rigorous use,
these machines often have a robust construction with features like alloy gear bath lubrication and steel bar guide posts, ensuring durability and stability during operation
Advantages
- Provides fast and accurate pipe threading, saving time and labor
- Powerful motor ensures smooth and consistent cutting performance
- Supports multiple pipe sizes (1/2″–2″) for versatile use
- Automatic oiling system improves thread finish and extends die life
- Heavy-duty construction for long service life and rugged job-site use
- Easy operation with simple controls and quick die change
- Delivers uniform, professional threads with minimal effort
- Compact and portable design for workshop and site applications
- Increases productivity and reduces manual work
Additional Features
Foot Pedal Switch: Allows hands-free operation, improving safety and convenience.
Integrated Tool Storage: Some models include built-in toolboxes for easy access to accessories and maintenance tools.
High-Quality Dies: Made from high-speed steel (HSS) for precise and clean threads.
The types of pipe threading machines generally include: 2-inch pipe threading machine (ZIT-R2),
processing range: 1/2"-2" (inch)
3-inch pipe threading machine (ZIT-R3) processing range: 1/2" The processing range of 2"-3" (inch)
4-inch pipe threader (ZIT-R4) is: 1/2"-4" (inch)
6-inch pipe threader (ZIT-R6) is: 2 1 /2"-6"(inch)
More questions buyers ask
What is the Pentagon Electric Pipe Threading Machine used for?
It is an essential tool for creating precise threaded connections on pipes, commonly used in plumbing, HVAC, and industrial applications.
What pipe sizes can this machine handle?
Depending on the variant, it can handle pipe capacities ranging from 1/2 inch up to 6 inches.
What type of motor does the machine use?
The machines are equipped with powerful single-phase motors ranging from 750W to 1600W, depending on the model.
Does it come with an automatic oiling system?
Yes, it includes a self-contained automatic oiling system that reduces friction, improves thread finish, and extends die life.
What materials are the dies made of?
The high-quality dies are made from alloy steel (HSS) for precise, clean, and durable threading.
Is the machine compatible with BSPT and NPT standards?
Yes, the machine is compatible with both BSPT and NPT threading standards.
What is the advantage of the foot pedal switch?
The foot pedal switch allows for hands-free operation, significantly improving safety and convenience during use.
Does the machine include integrated tool storage?
Some models feature built-in toolboxes for easy access to accessories and maintenance tools.
How does the machine improve thread finish?
The combination of high-speed steel dies and the automatic oiling system ensures a smooth and consistent thread finish.
Is this machine suitable for heavy-duty industrial use?
Yes, its robust alloy steel construction and powerful motors make it highly suitable for heavy-duty and long-term industrial use.
Who should choose the 1/2"- 2" variant?
This variant is ideal for standard plumbing and HVAC professionals who need a compact, portable machine for everyday pipe threading tasks.
Who should choose the 1/2"-3" variant?
Users requiring slightly larger capacity for medium-duty applications will find the 1/2"-3" model perfect for their versatile threading needs.
Who should choose the 1/2"-4" variant?
Industrial users dealing with larger pipe diameters should choose this variant, which features a more powerful 1100W motor.
Who should choose the 2-1/2"-6" variant?
This heavy-duty variant with a 1600W motor is designed for large-scale industrial applications requiring threading of very large pipes up to 6 inches.
What is the difference between the 1/2"-2" and 1/2"-4" models?
The 1/2"-4" model handles larger pipes and features a more powerful 1100W motor compared to the 750W motor on the 1/2"-2" model.
How does the motor power vary across the different variants?
Motor power starts at 750W for smaller capacities, increases to 1100W for mid-range, and goes up to 1600W for the largest 6-inch capacity model.
Which variant is best for large-scale industrial applications?
The 2-1/2"-6" variant is best suited for large-scale industrial applications due to its massive capacity and powerful 1600W motor.
