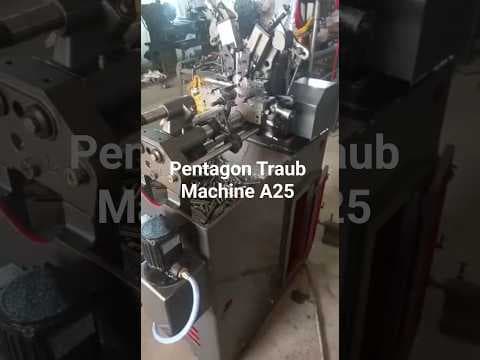

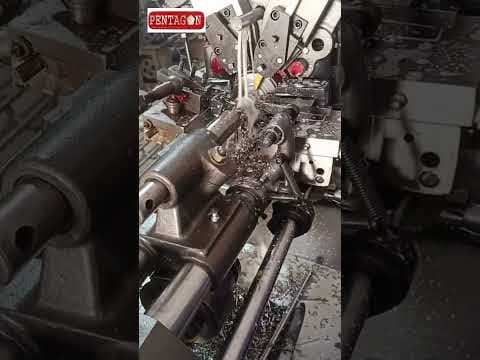

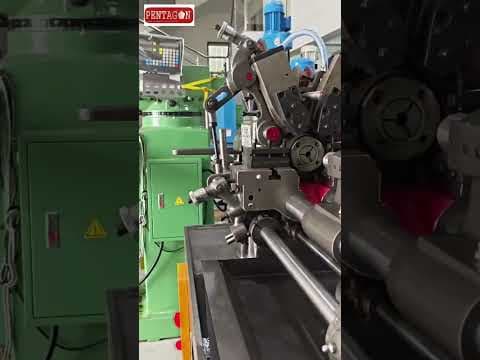

Devansh Single Spindle Automatic Lathe Machine A25
Designed for high-cycle precision turning of cylindrical and profiled components in continuous production environments. This configuration supports ⌀25 mm round stock, 22 mm hex, and 18 mm square bar capacity. • 1.3/1.6 kW main drive motor • 12-speed range up to 4000 RPM • 42 programmable feeds • 1.7 to 180 sec cycle time
Specifications
For: A25- Max. Bar Size in Collet - Round
- ⌀25 mm
- Max. Bar Size in Collet - Hexagonal
- A/F 22 mm
- Max. Bar Size in Collet - Square
- A/F 18 mm
- Net or Gross Weight
- 450/550 kg
- Type of Drive
- Countershaft
- No. of Speeds
- 12
- Speed Range
- 550-4000 RPM
- No. of Feeds
- 42
- Cycle Time Sec per Piece
- 1.7-180
- Production Rate Pieces per Hr
- 28 - 2100
- Cross Slide Traverse
- 22 mm
- Vertical Slide Traverse
- 15 mm
- Long Turning Traverse
- 70 mm
- Tailstock or Turret Traverse
- 100 mm
- Tail Stock or Collet Capacity
- 13 mm
- Main Motor (3 Phase, 415V, 50 Hz)
- 1.3/1.6 kw
- Feed Drive Motor (3 Phase, 415V, 50 Hz)
- 0.37 kw
- Motor Speed (Reversible)
- 1440/2800 rpm
- Coolant Pump Delivery
- 15 lpm
Configurations
Click a row to switch| Variant | Max. Bar Size in Collet - Hexagonal | Max. Bar Size in Collet - Round | Max. Bar Size in Collet - Square | Main Motor (3 Phase, 415V, 50 Hz) | Price |
|---|---|---|---|---|---|
| A25 | A/F 22 mm | ⌀25 mm | A/F 18 mm | 1.3/1.6 kw | ₹1,75,000 |
| A32 | A/F 27 mm | ⌀32 mm | A/F 22 mm | 2.2 kw | ₹2,15,000 |
Robust Construction & Thermal Management
- Cast iron base absorbs vibration and maintains alignment during continuous operation
- Hardened spindle bearings ensure long-term runout stability under heavy machining loads
- Sealed lubrication points reduce friction and extend component service life significantly
- Integrated chip tray design simplifies debris removal and maintains a clean workspace
- Enclosed electrical cabinet protects controls from coolant mist and metal particulates
High-Volume Production Efficiency
- Coolant pump delivery is optimized at 15 lpm or 20 lpm for effective heat dissipation
- Tailstock and collet capacity accommodates 13 mm round bar for extended workpiece support
- Long turning traverse provides 70 mm travel for efficient shaft and pin machining
- Turret and tailstock traverse reaches 100 mm for flexible part positioning
- Production output scales from 28–2100 pieces per hour based on part complexity
Precision Speed & Feed Control
- 12-speed gear range delivers operating speeds from 360–4000 RPM for optimal cutting conditions
- 42 programmable feed settings enable exact surface finish and tolerance control
- Cycle time is adjustable from 1.7–180 seconds for high-speed runs or complex parts
- Cross slide traverse reaches 22 mm for precise shoulder and groove machining
- Vertical slide traverse extends from 15 mm to 18 mm for controlled facing and profiling
Configurable Bar Capacity & Drive Options
- Bar capacity options include ⌀25 mm round, 22 mm hex, 18 mm square, and upgraded ⌀32 mm round configurations
- Main drive power is available at 1.3 kW, 1.6 kW, or 2.2 kW for varied torque requirements
- Feed drive motor scales from 0.37 kW to 0.55 kW for consistent material removal rates
- Countershaft drive system ensures reliable power transmission across all machine configurations
- Motor speed is reversible at 1440 or 2800 rpm for flexible tooling and spindle setups
- Machine weight ranges from 450 kg to 550 kg depending on the selected configuration
Frequently asked
Can this lathe handle both cylindrical and profiled turning operations?
Yes, the single spindle design supports continuous turning of round, hex, and square profiles.
How does the machine maintain accuracy during long production runs?
Precision-ground ways and a rigid countershaft drive minimize deflection and thermal drift.
Is the coolant system compatible with standard industrial cutting fluids?
The 15–20 lpm pump delivers standard fluids through adjustable nozzles for optimal coverage.
More questions buyers ask
What is a single spindle automatic lathe machine?
A single spindle automatic lathe is a machine tool designed for the mass production of small, precision-turned parts like fasteners, pins, and shafts.
What industries use Devansh automatic lathes?
These machines are widely used in automotive, aerospace, electronics, and general engineering industries for high-volume component manufacturing.
What is the difference between A25 and A32 models?
The A25 model handles up to 25mm round bars, while the A32 is a heavier-duty version capable of handling up to 32mm round bars with a more powerful motor.
Does the machine come with a warranty?
Yes, Devansh Industries provides standard manufacturer warranty coverage on all new lathe machines. Please contact us for specific terms.
Is pan-India delivery available?
Yes, we offer secure, pan-India shipping and logistics support for all industrial machinery orders.
Are these machines suitable for small-batch production?
While optimized for mass production, they are also efficient for small-batch runs and prototyping custom parts.
What power supply is required?
The machines typically operate on a 3-phase, 415V, 50Hz industrial power supply.
Can I get a GST invoice?
Yes, all purchases include a valid GST invoice for your business accounting and tax credit purposes.
What is the production rate of these lathes?
Depending on the part complexity, these machines can produce between 28 and 2100 pieces per hour.
Are spare parts easily available?
As a manufacturer, Devansh Industries ensures the availability of genuine spare parts and components for all our machines.
Who should choose the A25 model?
The A25 is ideal for workshops focusing on standard-sized fasteners and small turned components up to 25mm diameter.
Who should choose the A32 model?
The A32 is best for manufacturers requiring higher torque and capacity for larger components up to 32mm diameter.
Which model is better for heavy-duty turning?
The A32 model is superior for heavy-duty turning due to its 2.2 kW motor and more robust construction compared to the A25.
How do these models compare in weight?
The A25 weighs approximately 450-550 kg, whereas the more robust A32 weighs between 600-735 kg.
