DELOS Brand 2 axis DRO Set with suitable scales, fitting items and all accessories package Model 2 Axis DELOS-0.005
DELOS 2 Axis Digital Readout kits provide reliable measurement for standard machine tools. This package includes two linear scales and a complete display unit for X and Y axes. • 0.005 mm resolution ideal for general milling and drilling operations • Scales fit lengths between 130-970 mm with 22x34 mm cross section • IP53 protection and DB9 connectors ensure stable workshop performance
See it in action
Specifications
For: 2 Axis DELOS-0.005- Brand
- DELOS
- Type of DRO Set
- 2 Axis
- No of Scales in package
- 2 Scales (Any size upto 970 mm)
- Measures Length (mm)
- between 130-970 mm any
- Set Contains
- Complete 2 Axis DRO Kit with Linear Scales (Up to 970 mm), Mounting Hardware, Cables & Installation Accessories

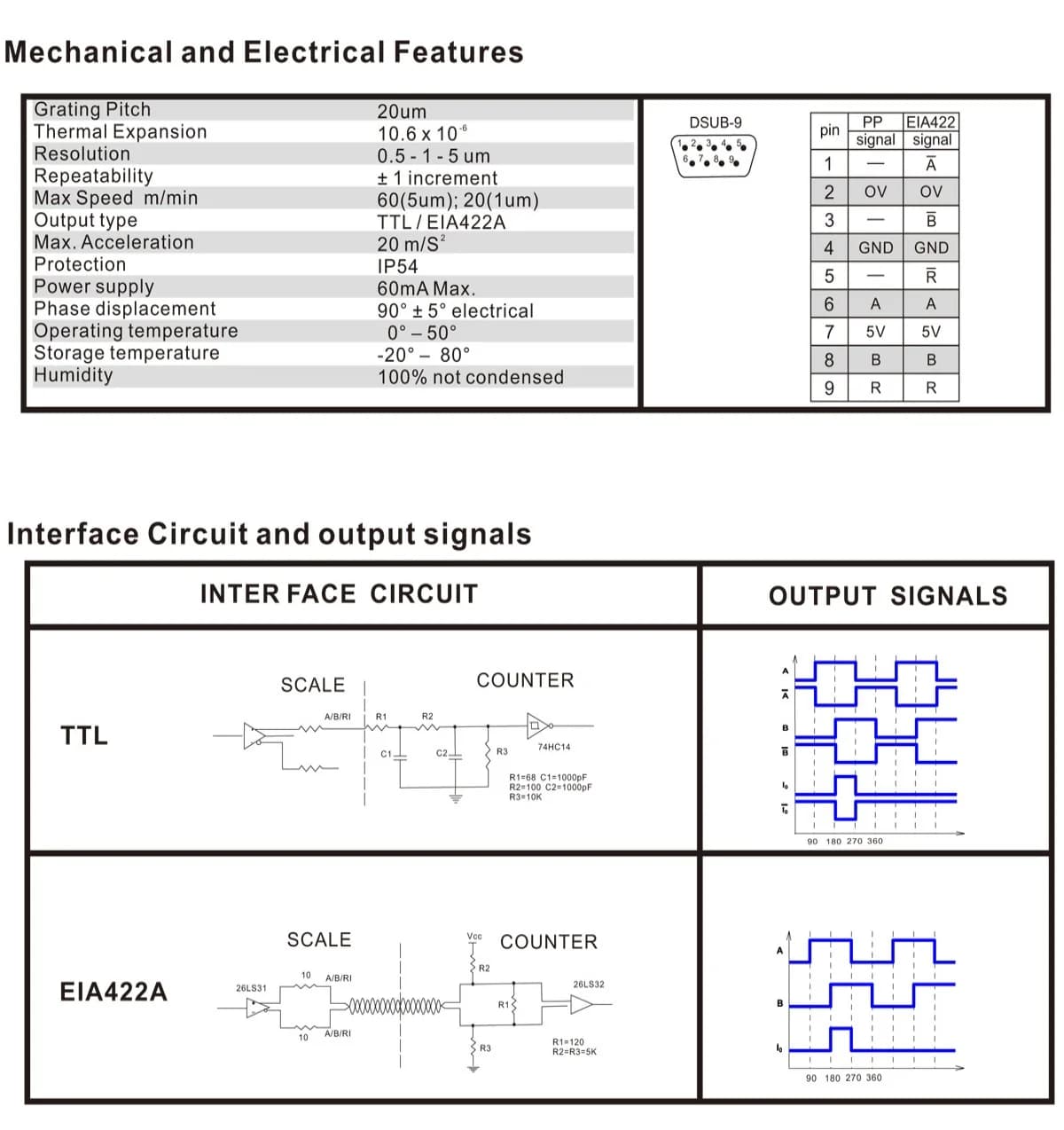

- Max of Measuring Speed
- 60m/min
- Output
- TTL
- Cross Section (mm)
- 25x34 mm
- Reference Point
- Each/50mm
- Accuracy
- ±3,±5,±10(20ºC,680F 1000mm)
- Protection
- IP53

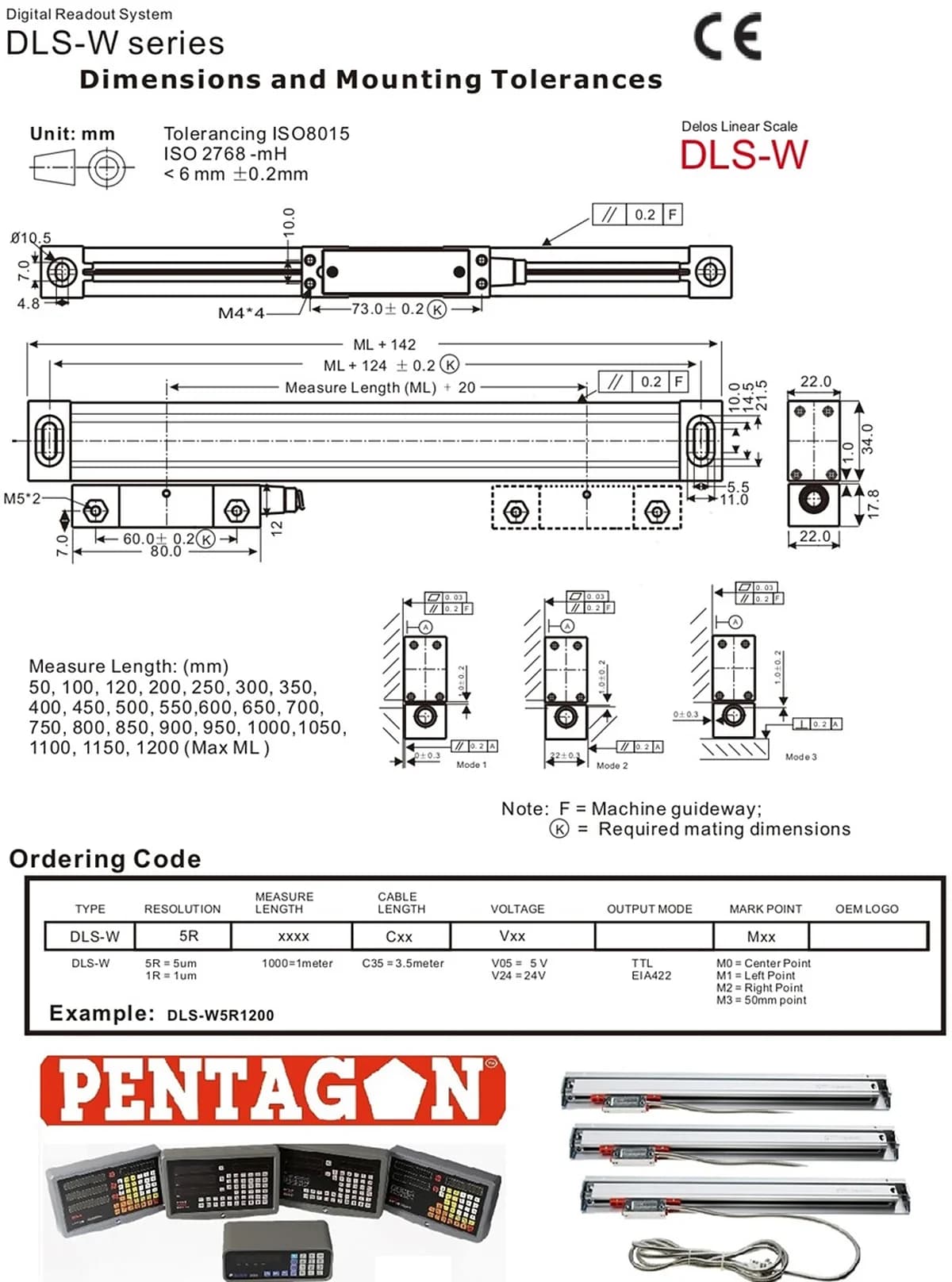

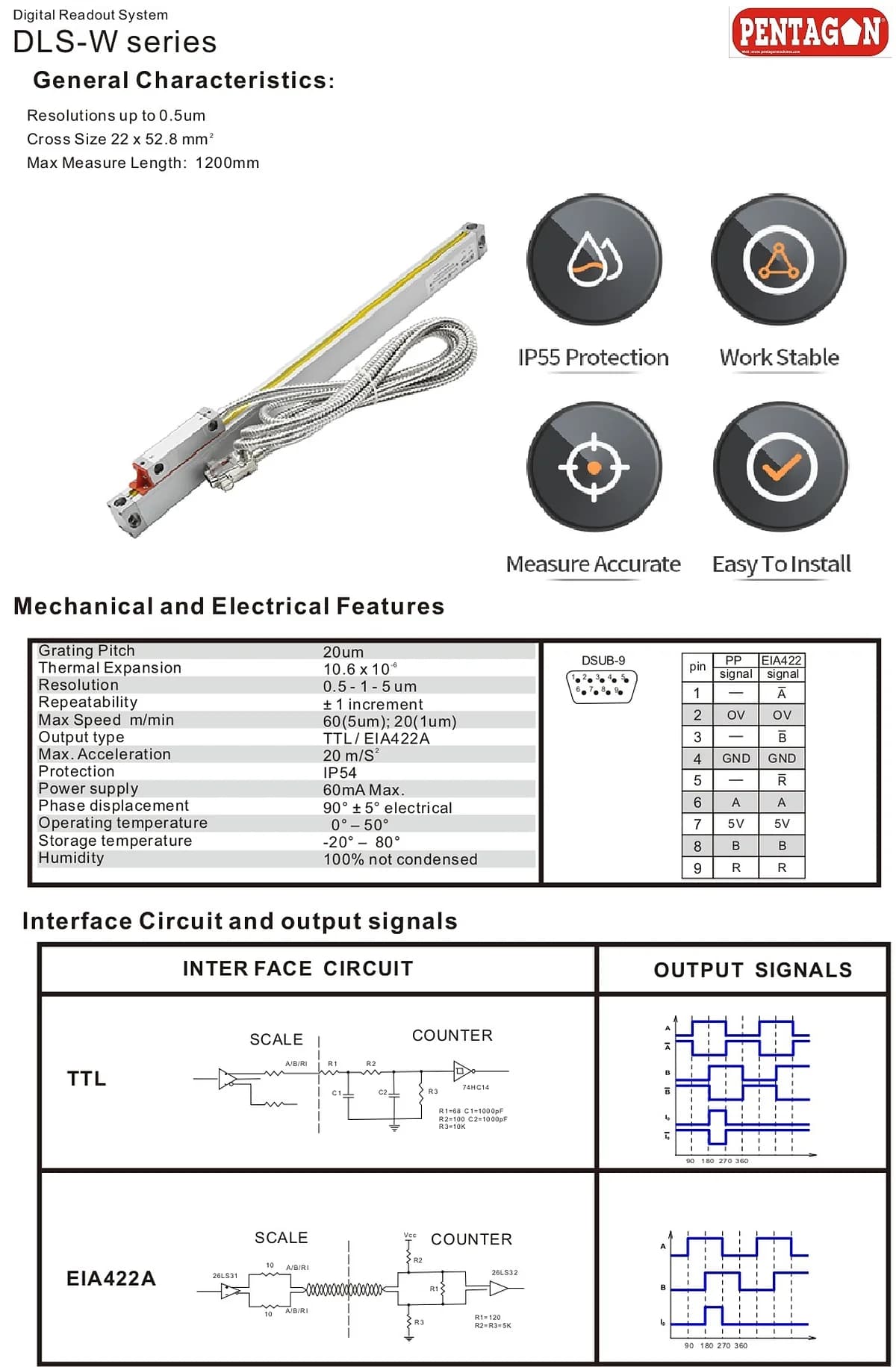

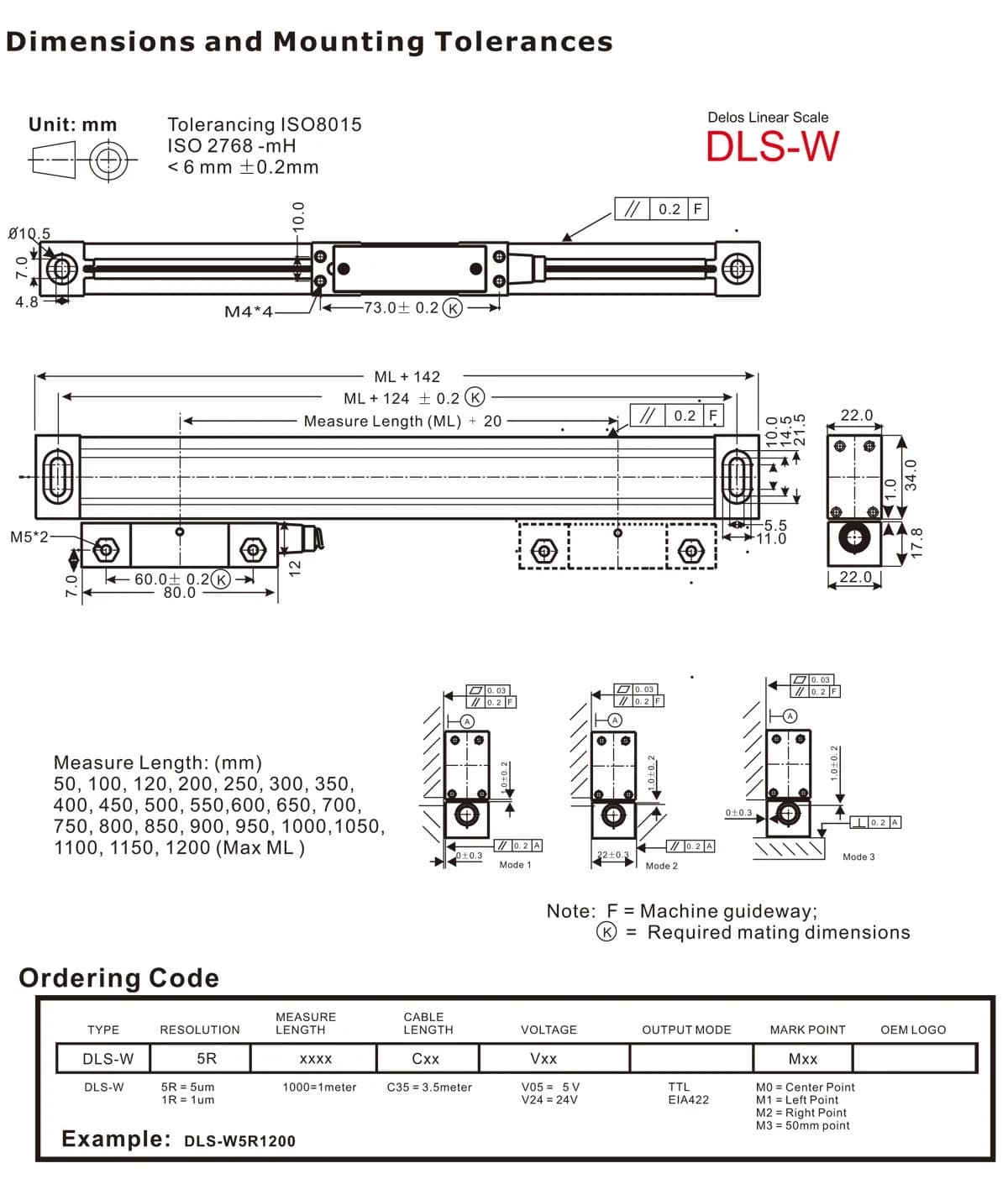

- DRO Scale Model
- DLS- W5R
- Resolution
- 0.005 mm
- Power Supply
- 110V-240V AC
- Connectors
- DB9 (9-pin D-Sub)
- Weight of the package
- Appx 6.5 Kgs
Configurations
Click a row to switch| Variant | Accuracy | Measures Length (mm) | Power Supply | No of Scales in package | Price |
|---|---|---|---|---|---|
| 2 Axis DELOS-0.005 | ±3,±5,±10(20ºC,680F 1000mm) | between 130-970 mm any | 110V-240V AC | 2 Scales (Any size upto 970 mm) | ₹17,200 |
| 2 Axis DELOS-0.001 | ±3,±5,±10(20ºC,680F 1000mm) | between 130-970 mm any | 110V-240V AC | 2 Scales (Any size upto 970 mm) | ₹19,800 |
Machine Tool Applications
- Enhances accuracy and efficiency of machine tools
- Advanced measurement tools for precision work
- Renowned for robust construction and interfaces
- Enhances productivity in various industrial applications
- Simplifies manual measurement processes
Power and Connectivity
- Compatible with Power Supply 110V-240V AC
- Connects via DB9 (9-pin D-Sub) interface
- DRO Scale Model DLS-W5R ensures compatibility
- Cross Section dimensions 22x34 mm for mounting
- Weight of package Appx 6.5 Kgs for logistics planning
Industrial Durability and Protection
- Built with robust construction for industrial settings
- Protection rating of IP54 against dust and water
- DELOS DRO Scales designed for durability
- Suitable for milling machines, lathes, grinders, and EDM
- User-friendly interfaces widely adopted worldwide
Precision Measurement Performance
- Offers Resolution options of 0.005 mm and 0.001 mm
- Ensures Accuracy of ±3, ±5, ±10 at 20ºC
- Measures Length – between 130-970 mm on X axis
- Supports Max Measuring Speed of 60m/min
- Utilizes TTL Output for reliable signal transmission
- Features Reference Point options Each or 50mm

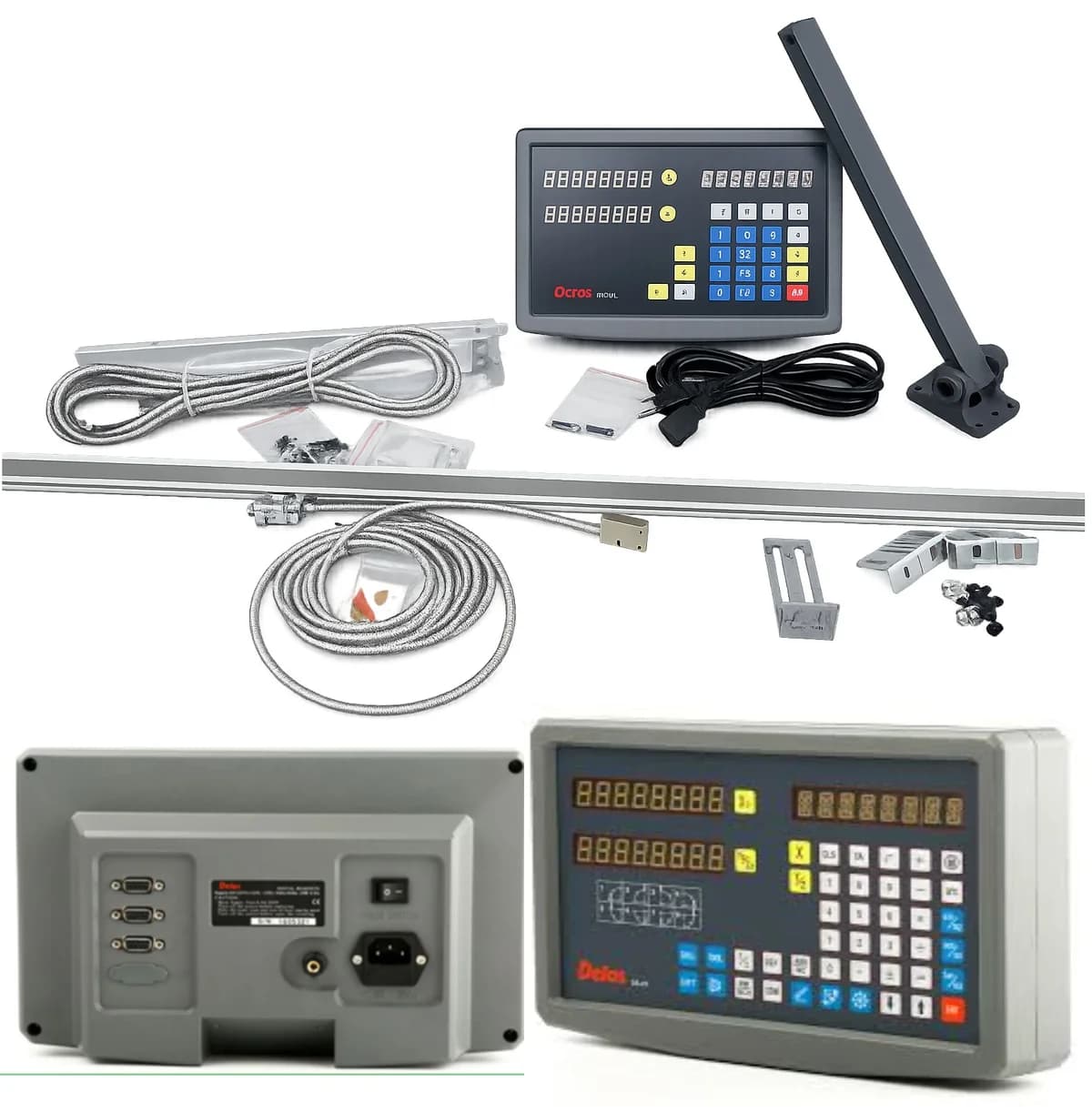

Complete Installation Kit

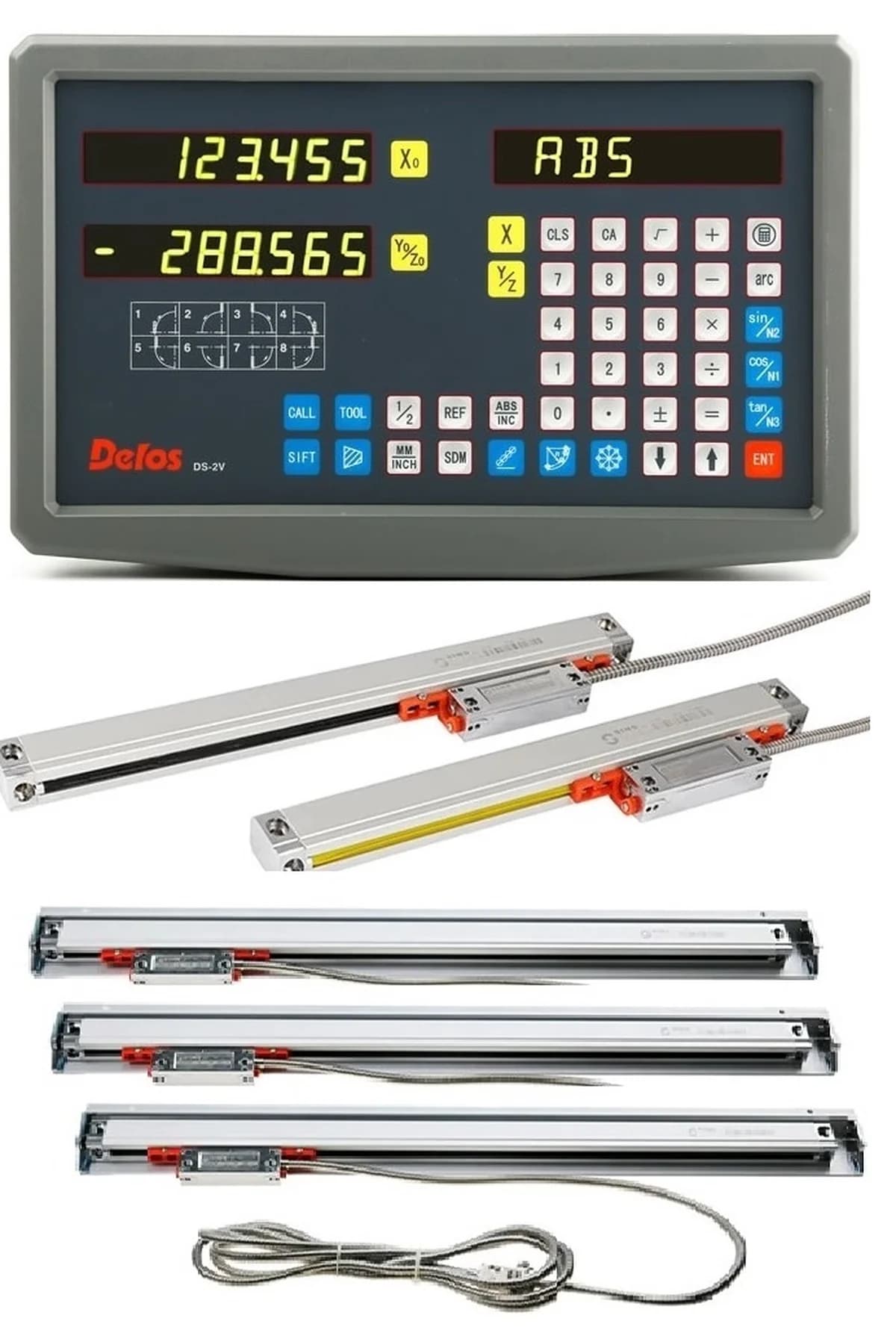

- Includes complete 2 Axis DRO Kit with Linear Scales
- Features 2 Sets Mounting Brackets for Scales
- Provides 2 Nos. Reader Head Mounting Brackets
- Contains Complete Clamps, L-Brackets & Support Plates
- Includes Full Installation Hardware Kit (Bolts, Nuts, Washers, Screws)
- Supplies 2 Nos. Scale Signal Cables (Armored)
- Provides 1 No. Power Cord (220V AC) and 1 No. Earthing Wire
- Includes 2 Nos. Scale Protection Covers and Guards
- Comes with Cable clips and routing accessories

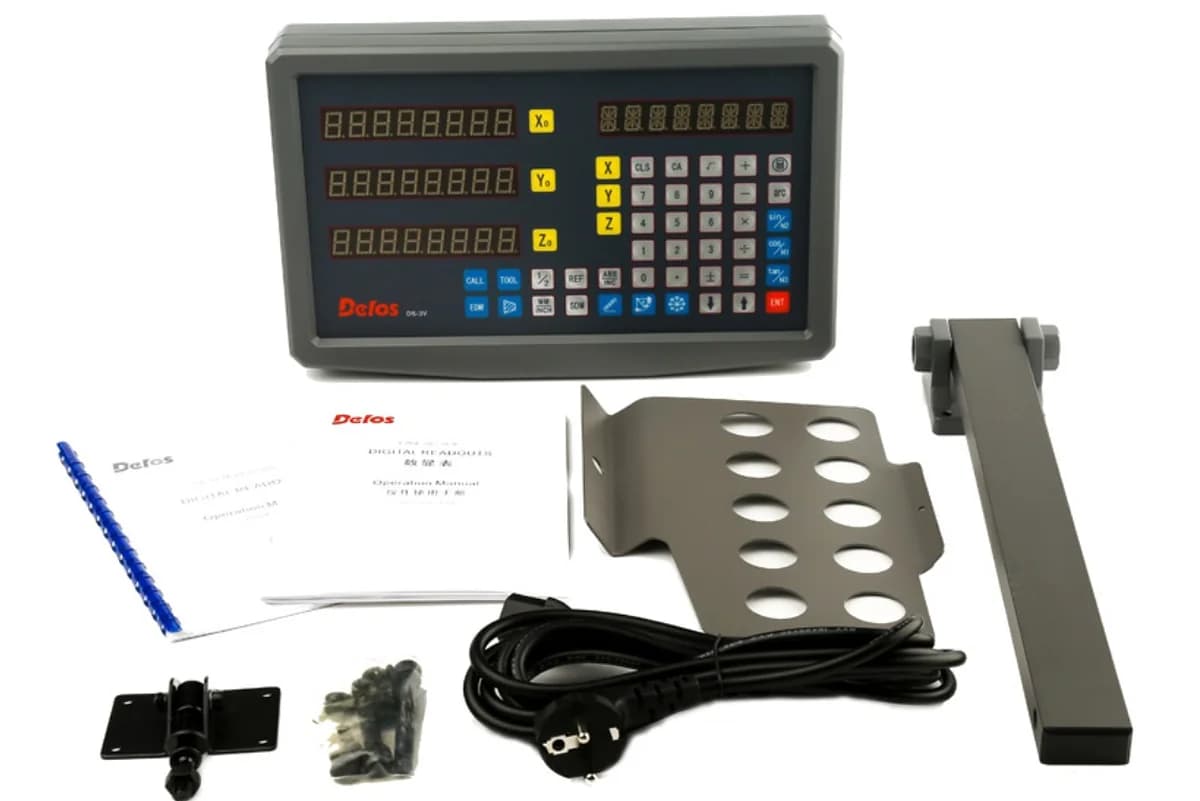

Standard Accessories
🔹 Main Unit

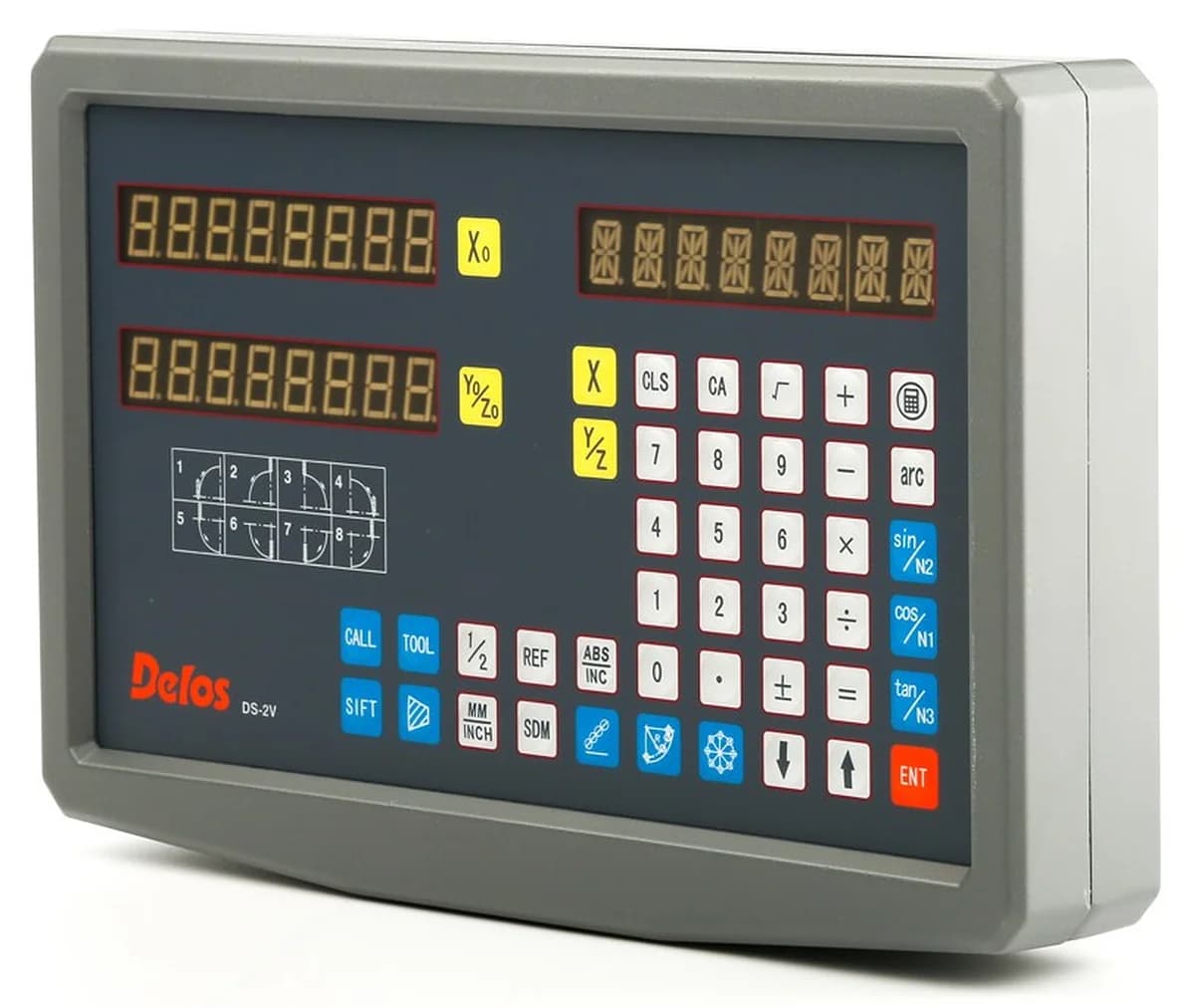

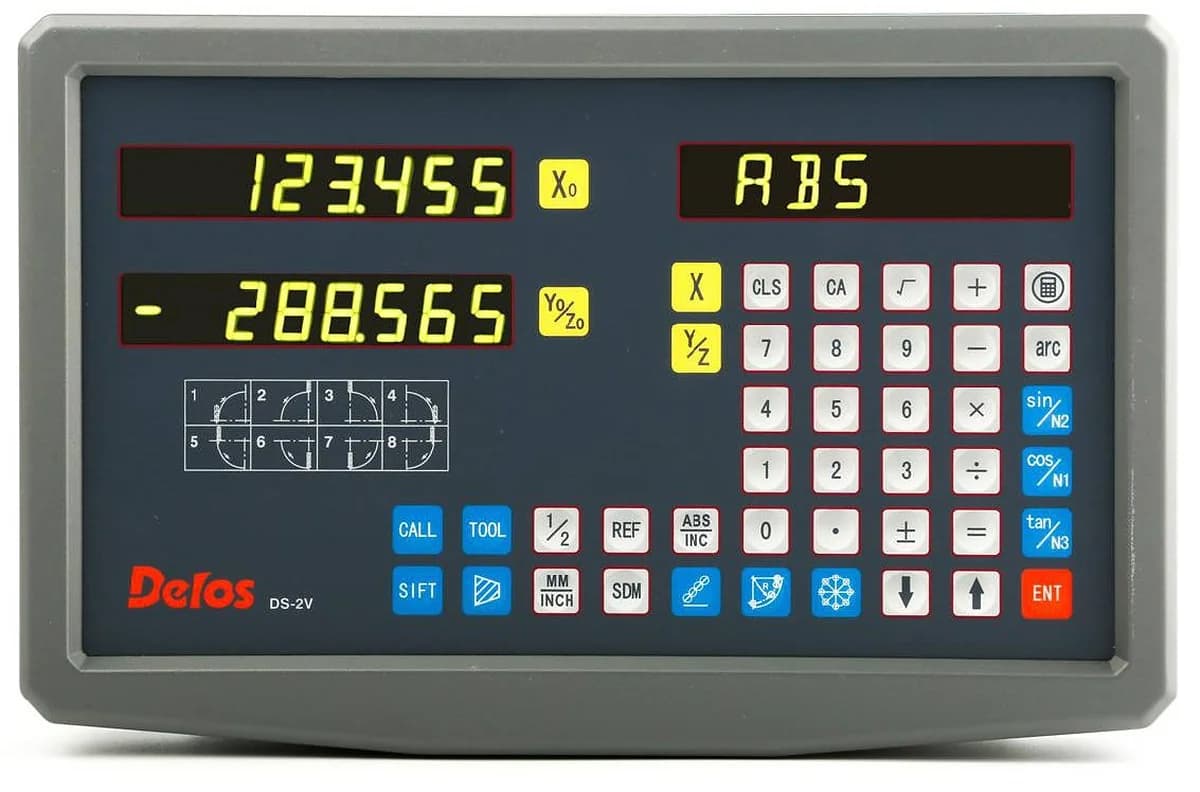

- 1 No. Digital Readout Display Unit (2 Axis)

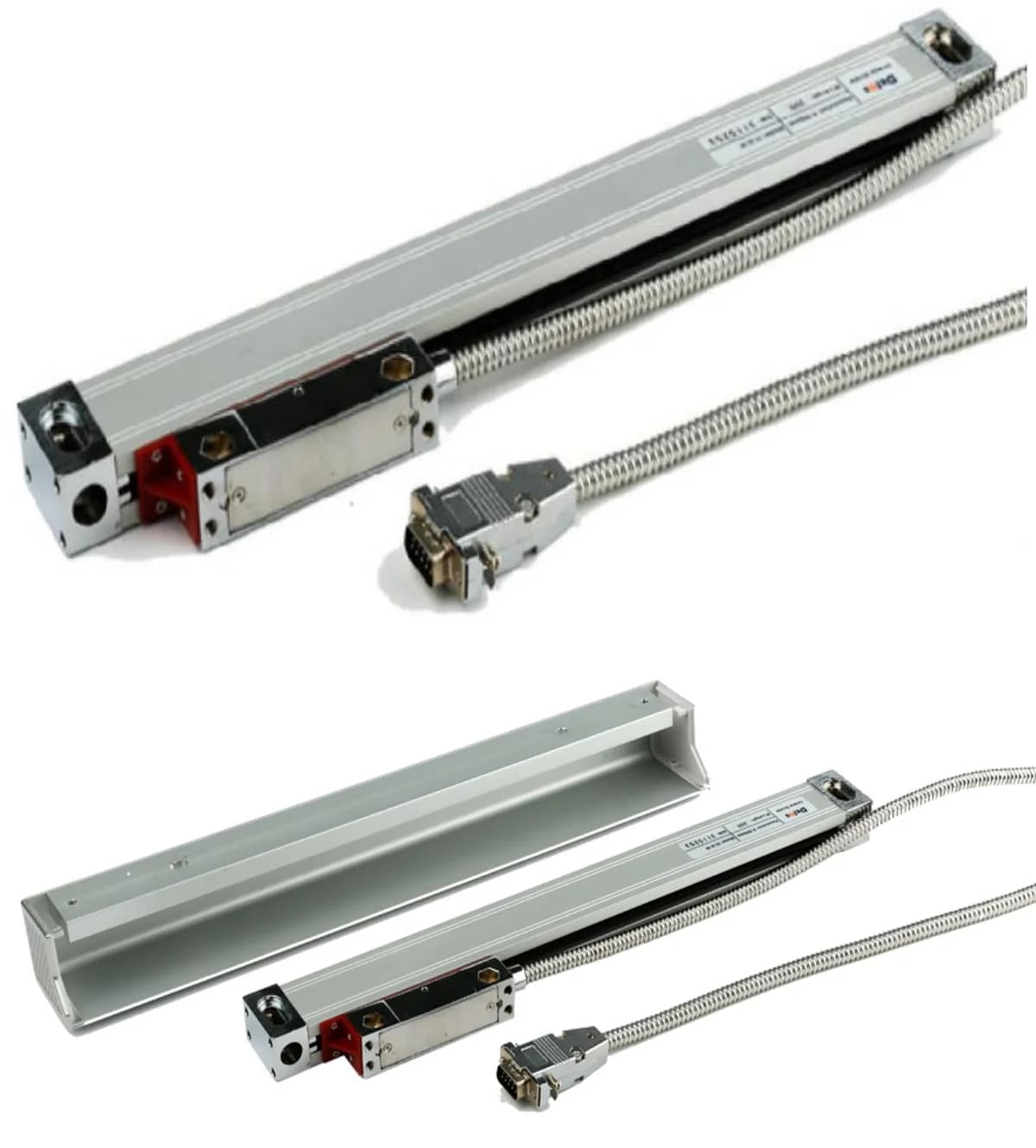

🔹 Linear Scales
- 2 Nos. Linear Glass Scales (Encoder Type)Measuring Length: Up to 970 mm (Max)
- Resolution: 5µ / 1µ (as per model)
🔹 Mounting Accessories
- 2 Sets Mounting Brackets for Scales
- 2 Nos. Reader Head Mounting Brackets
- Complete Clamps, L-Brackets & Support Plates
- Full Installation Hardware Kit (Bolts, Nuts, Washers, Screws)
🔹 Cables & Electrical
- 2 Nos. Scale Signal Cables (Armored)
- 1 No. Power Cord (220V AC)
- 1 No. Earthing Wire
🔹 Protective & Support Items
- 2 Nos. Scale Protection Covers / Guards
- Cable clips & routing accessories
🔹 Documents
- 1 No. User Manual / Installation Guide
- 1 No. Calibration Certificate (if applicable)
- Warranty Card
🔹 Optional (If Included)
- DRO Stand / Mounting Arm
- Remote keypad (select models)
Frequently asked
What resolution is available?
Available in 0.005 mm and 0.001 mm resolutions.
Is the system waterproof?
It has an IP54 protection rating for industrial environments.
What power supply is required?
It operates on 110V-240V AC power supply.
What machines is this compatible with?
Suitable for milling machines, lathes, grinders, and EDM machines.
More questions buyers ask
What is a 2-axis DRO set?
A 2-axis Digital Readout (DRO) set is a measurement system for machine tools like lathes and milling machines that displays the position of the axes in real-time, improving accuracy and efficiency.
What machines is the DELOS 2-axis DRO compatible with?
It is suitable for milling machines, lathes, surface grinders, and EDM machines.
What is the difference between 0.005mm and 0.001mm resolution?
0.005mm is standard for general machining, while 0.001mm (1 micron) is for high-precision tasks requiring tighter tolerances.
Does the kit include mounting hardware?
Yes, the kit includes a complete set of mounting brackets, clamps, L-brackets, support plates, and all necessary installation hardware.
What is the IP rating of these scales?
The DELOS DRO scales have an IP54 protection rating, making them resistant to dust and water splashes in industrial environments.
What is the maximum measuring speed?
The system supports a maximum measuring speed of 60m/min.
Is a calibration certificate provided?
Yes, a calibration certificate is included with the set.
What power supply does the DRO display require?
It operates on a standard 110V-240V AC power supply.
Are the signal cables armored?
Yes, the kit includes armored scale signal cables for durability in workshop conditions.
Can I get a GST invoice for this purchase?
Yes, all purchases include a GST-compliant invoice for business accounting.
Who should choose the 0.005mm resolution DRO?
The 0.005mm resolution DRO is ideal for general-purpose workshops, standard milling, and lathe operations where high efficiency and reliability are required.
Who should choose the 0.001mm resolution DRO?
The 0.001mm resolution DRO is best for tool rooms, precision engineering, and specialized machining where micron-level accuracy is critical.
How does the 0.005mm set compare to the 0.001mm set?
Both sets offer the same robust build and installation hardware, but the 0.001mm set provides five times the measurement resolution for more demanding precision work.
Which DRO set is better for general lathe work?
For most general lathe work, the 0.005mm resolution set is sufficient and cost-effective, while the 0.001mm set is reserved for high-precision finishing tasks.
